Western Electricity Coordinating Council Renewable Energy Modeling Task Force REMTF Report to MVWG Abraham Ellis, Sandia March 18, 2015 Salt Lake City, UT Sandia is a multiprogram laboratory operated by Sandia Corporation, a Lockheed Martin Company, for the United States Department of Energy’s National Nuclear Security Administration under contract DE-AC 04 -94 AL 85000.

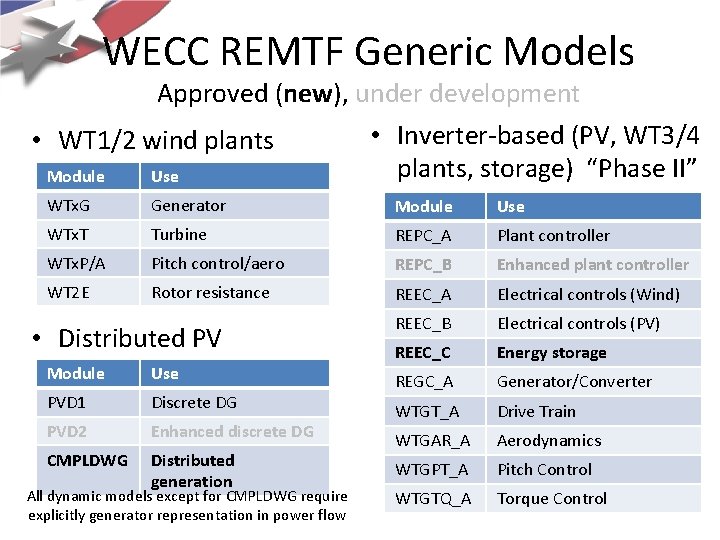

WECC REMTF Generic Models Approved (new), under development • Inverter-based (PV, WT 3/4 • WT 1/2 wind plants, storage) “Phase II” Module Use WTx. G Generator Module Use WTx. T Turbine REPC_A Plant controller WTx. P/A Pitch control/aero REPC_B Enhanced plant controller WT 2 E Rotor resistance REEC_A Electrical controls (Wind) REEC_B Electrical controls (PV) REEC_C Energy storage REGC_A Generator/Converter WTGT_A Drive Train WTGAR_A Aerodynamics WTGPT_A Pitch Control WTGTQ_A Torque Control • Distributed PV Module Use PVD 1 Discrete DG PVD 2 Enhanced discrete DG CMPLDWG Distributed generation All dynamic models except for CMPLDWG require explicitly generator representation in power flow

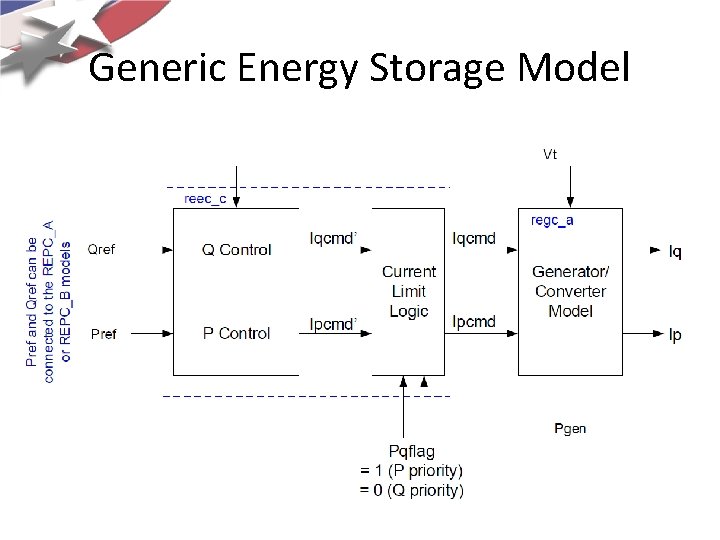

Generic Energy Storage Model

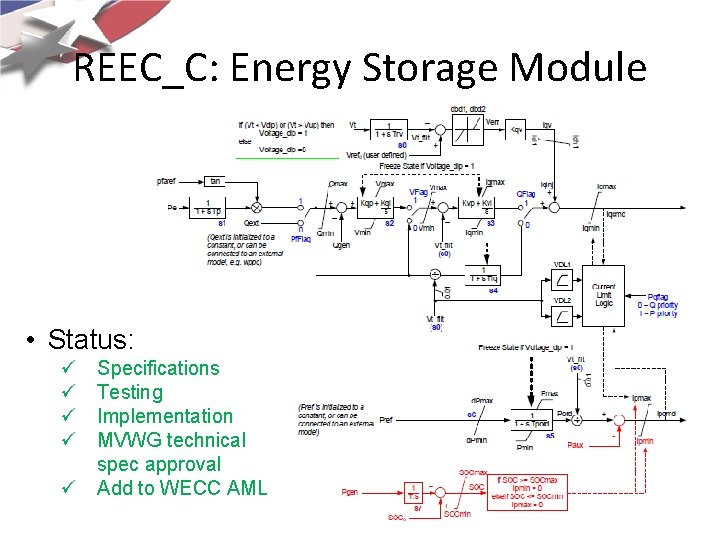

REEC_C: Energy Storage Module • Status: ü ü Specifications Testing Implementation MVWG technical spec approval ü Add to WECC AML

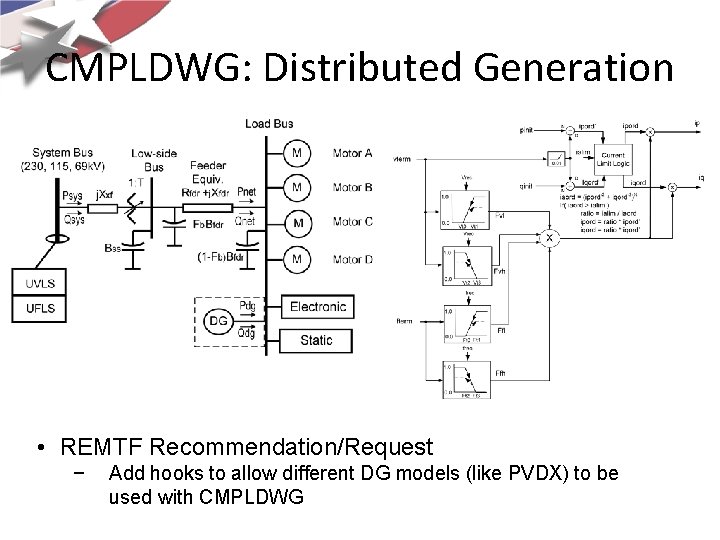

CMPLDWG: Distributed Generation • REMTF Recommendation/Request − Add hooks to allow different DG models (like PVDX) to be used with CMPLDWG

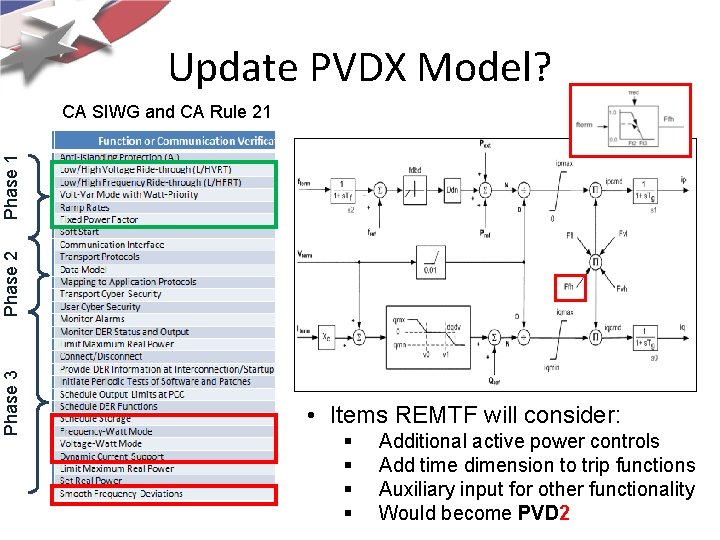

Update PVDX Model? Phase 3 Phase 2 Phase 1 CA SIWG and CA Rule 21 • Items REMTF will consider: § § Additional active power controls Add time dimension to trip functions Auxiliary input for other functionality Would become PVD 2

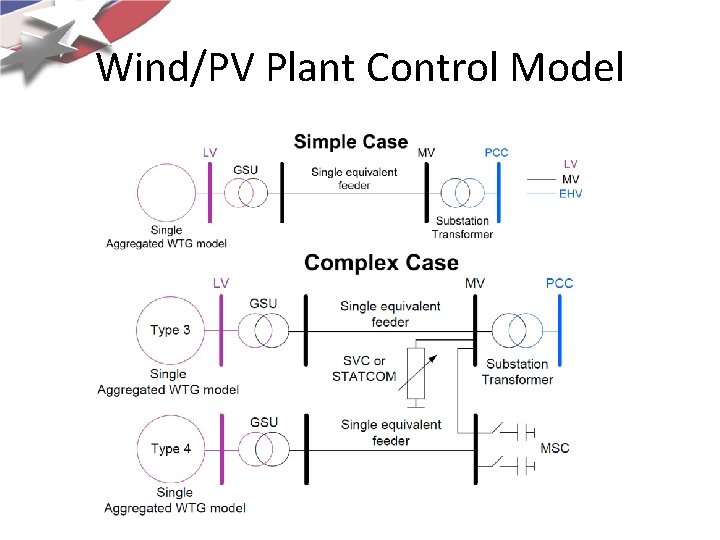

Wind/PV Plant Control Model

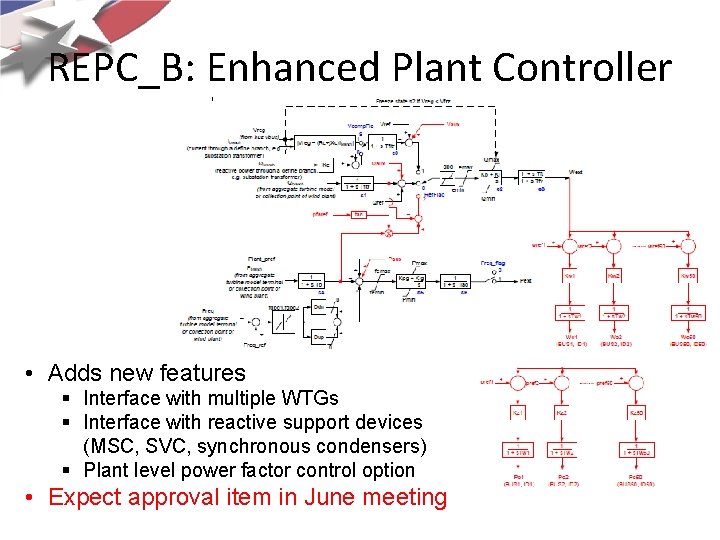

REPC_B: Enhanced Plant Controller • Adds new features § Interface with multiple WTGs § Interface with reactive support devices (MSC, SVC, synchronous condensers) § Plant level power factor control option • Expect approval item in June meeting

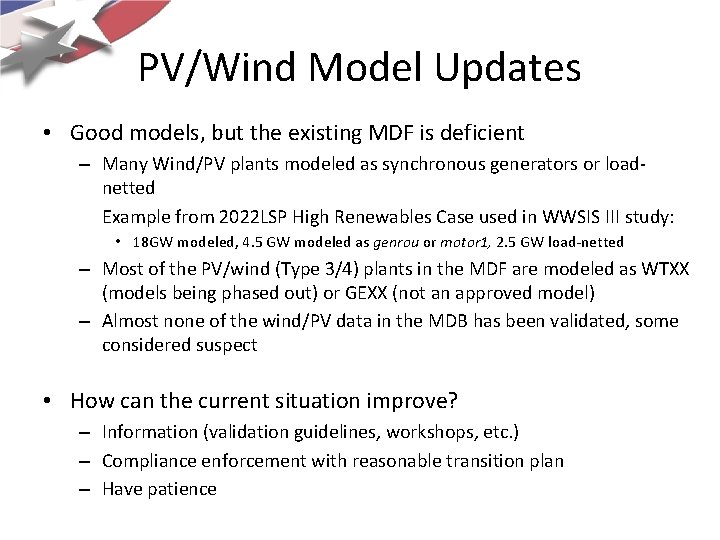

PV/Wind Model Updates • Good models, but the existing MDF is deficient – Many Wind/PV plants modeled as synchronous generators or loadnetted Example from 2022 LSP High Renewables Case used in WWSIS III study: • 18 GW modeled, 4. 5 GW modeled as genrou or motor 1, 2. 5 GW load-netted – Most of the PV/wind (Type 3/4) plants in the MDF are modeled as WTXX (models being phased out) or GEXX (not an approved model) – Almost none of the wind/PV data in the MDB has been validated, some considered suspect • How can the current situation improve? – Information (validation guidelines, workshops, etc. ) – Compliance enforcement with reasonable transition plan – Have patience

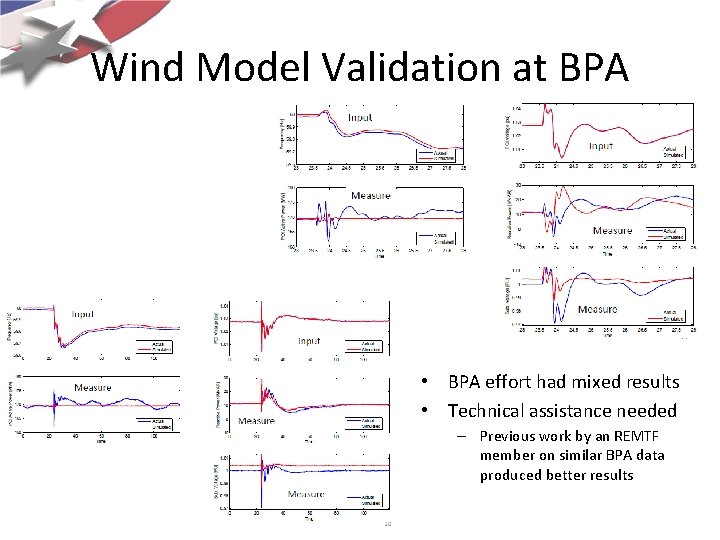

Wind Model Validation at BPA • BPA effort had mixed results • Technical assistance needed – Previous work by an REMTF member on similar BPA data produced better results

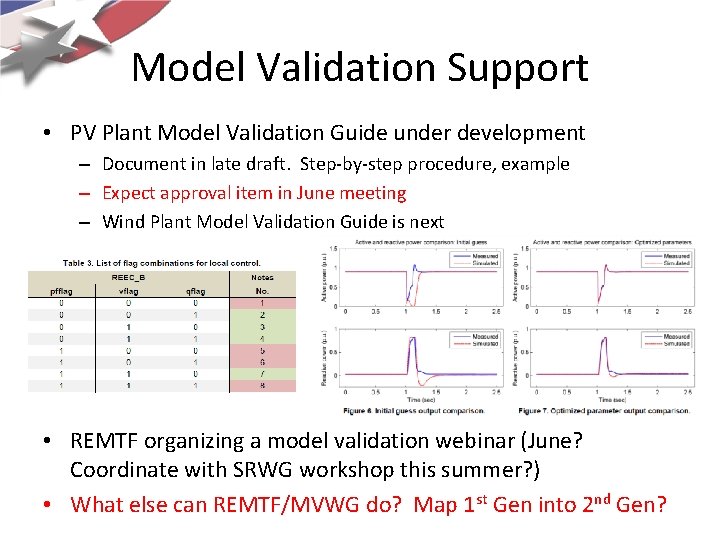

Model Validation Support • PV Plant Model Validation Guide under development – Document in late draft. Step-by-step procedure, example – Expect approval item in June meeting – Wind Plant Model Validation Guide is next • REMTF organizing a model validation webinar (June? Coordinate with SRWG workshop this summer? ) • What else can REMTF/MVWG do? Map 1 st Gen into 2 nd Gen?

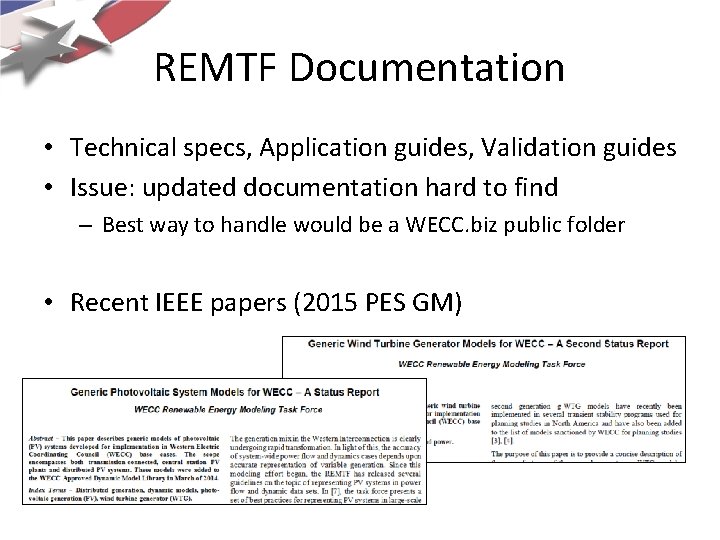

REMTF Documentation • Technical specs, Application guides, Validation guides • Issue: updated documentation hard to find – Best way to handle would be a WECC. biz public folder • Recent IEEE papers (2015 PES GM)

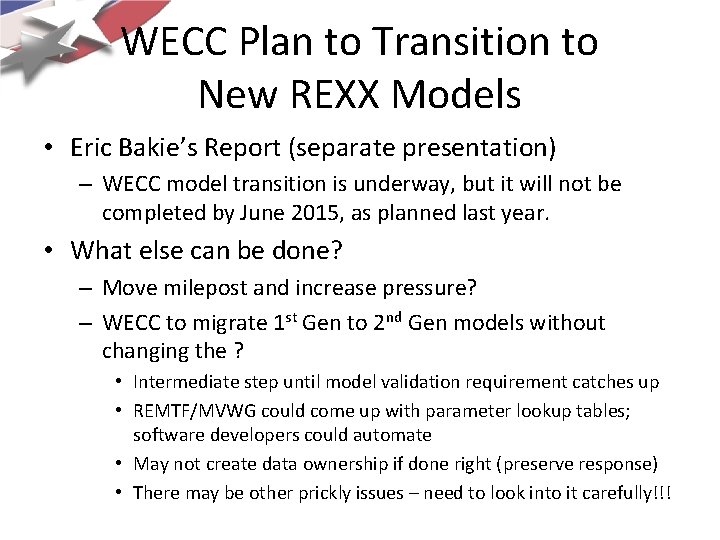

WECC Plan to Transition to New REXX Models • Eric Bakie’s Report (separate presentation) – WECC model transition is underway, but it will not be completed by June 2015, as planned last year. • What else can be done? – Move milepost and increase pressure? – WECC to migrate 1 st Gen to 2 nd Gen models without changing the ? • Intermediate step until model validation requirement catches up • REMTF/MVWG could come up with parameter lookup tables; software developers could automate • May not create data ownership if done right (preserve response) • There may be other prickly issues – need to look into it carefully!!!

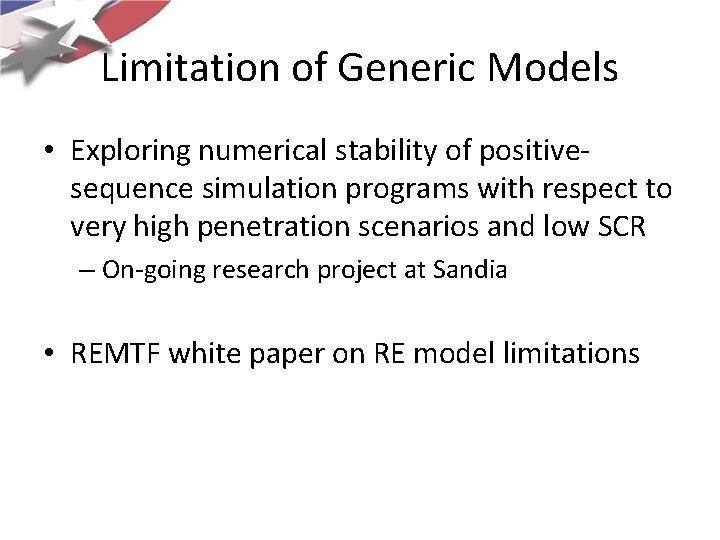

Limitation of Generic Models • Exploring numerical stability of positivesequence simulation programs with respect to very high penetration scenarios and low SCR – On-going research project at Sandia • REMTF white paper on RE model limitations
