West Virginia Department of Transportation WV Transportation Roadway Network: Integrating Routing Capabilities and Best Practices through Detailed Editing and an Updated Data Model Jessica D. Perkins GIS Programmer Analyst 2 Geospatial Transportation Information Section Program Planning & Administration Division of Highways West Virginia Department of Transportation May 9, 2012

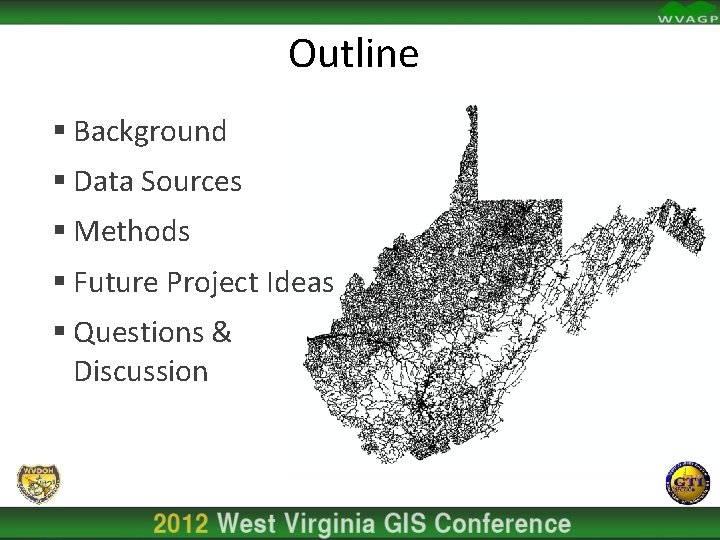

Outline § Background § Data Sources § Methods § Future Project Ideas § Questions & Discussion

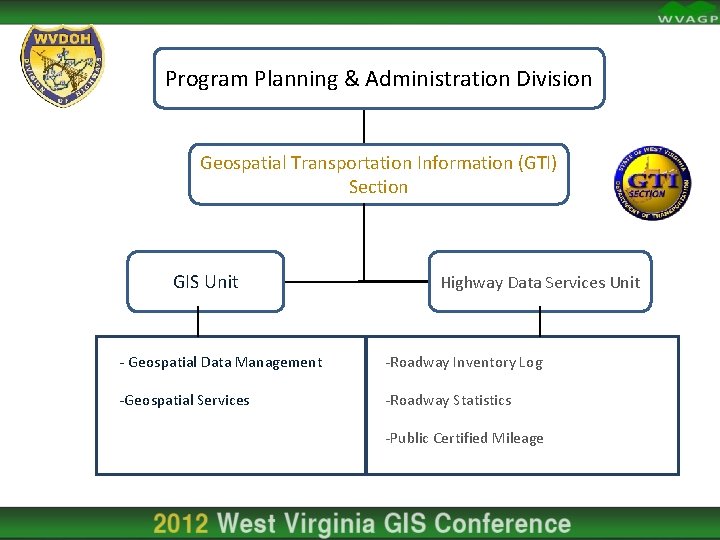

Program Planning & Administration Division Geospatial Transportation Information (GTI) Section GIS Unit Highway Data Services Unit - Geospatial Data Management -Roadway Inventory Log -Geospatial Services -Roadway Statistics -Public Certified Mileage

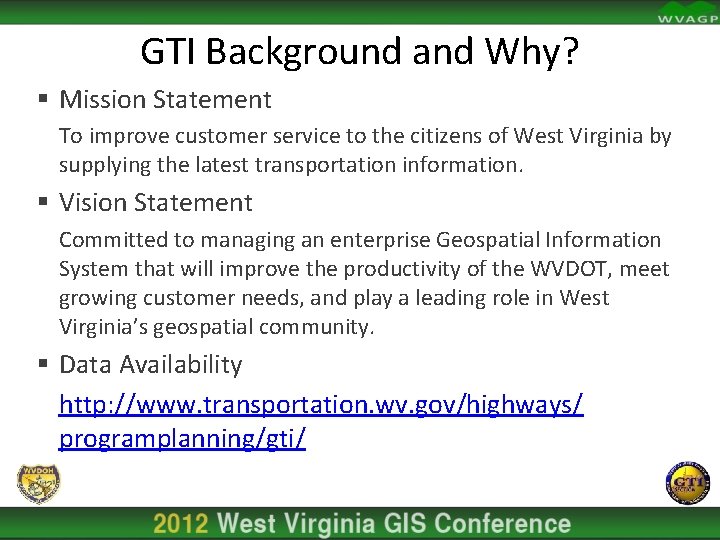

GTI Background and Why? § Mission Statement To improve customer service to the citizens of West Virginia by supplying the latest transportation information. § Vision Statement Committed to managing an enterprise Geospatial Information System that will improve the productivity of the WVDOT, meet growing customer needs, and play a leading role in West Virginia’s geospatial community. § Data Availability http: //www. transportation. wv. gov/highways/ programplanning/gti/

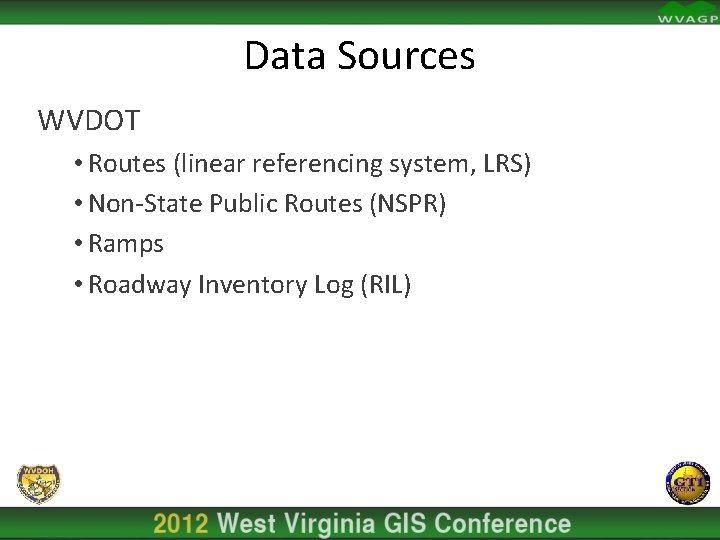

Data Sources WVDOT • Routes (linear referencing system, LRS) • Non-State Public Routes (NSPR) • Ramps • Roadway Inventory Log (RIL)

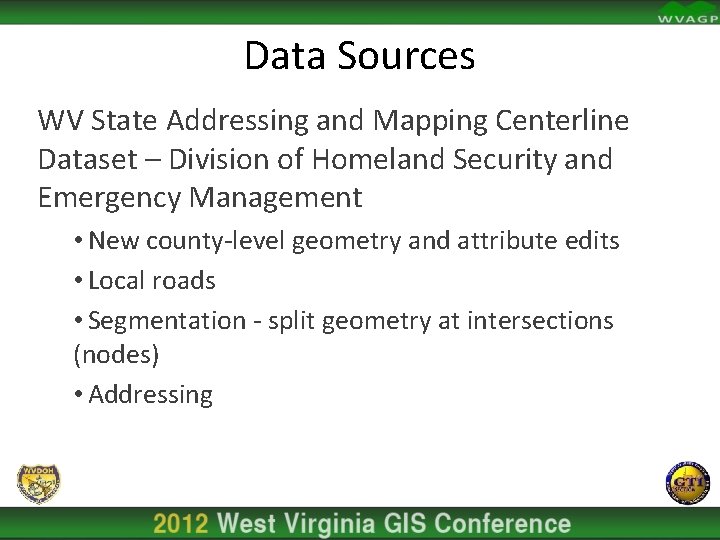

Data Sources WV State Addressing and Mapping Centerline Dataset – Division of Homeland Security and Emergency Management • New county-level geometry and attribute edits • Local roads • Segmentation - split geometry at intersections (nodes) • Addressing

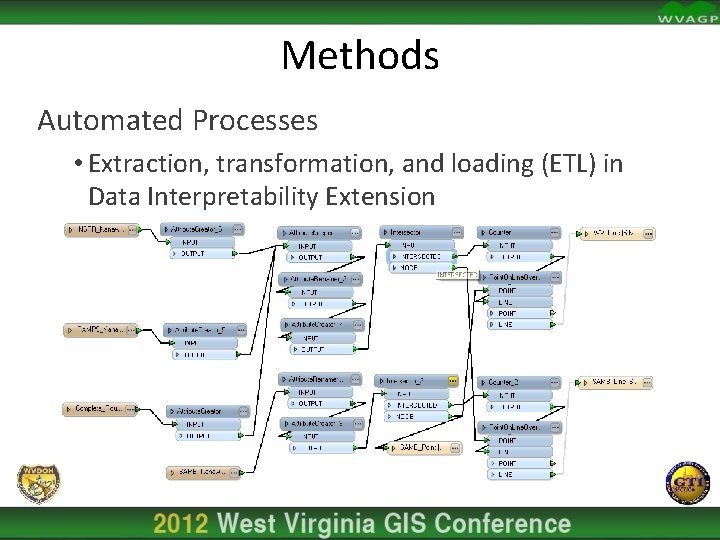

Methods Automated Processes • Extraction, transformation, and loading (ETL) in Data Interpretability Extension

Methods Geoprocessing steps for entire state dataset • Midpoints of both line feature classes (WVDOT_Midpoints and SAM_Midpoints) • Spatial join – WVDOT_Midpoints to SAM_Midpoints • Join features from SAM_Lines to SAM_WVDOT_Mid. Points by SAM_ID • Field calculations to simplify attributes (all attributes for WVDOT and SAM) • Identify features that were not intersected by SAM data (“Missing_WVDOTsource”). Introduces duplicate geometry removed during manual cleanup • Extend and Trim to connect intersections • Delete features less than 1 meter and run Extend again

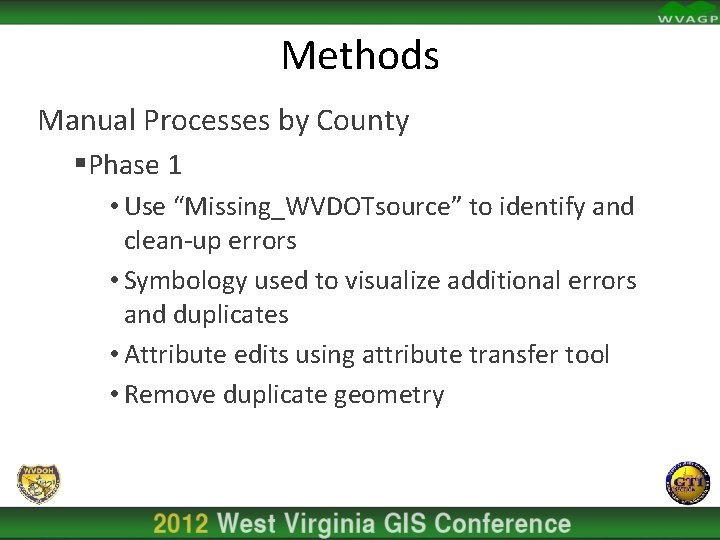

Methods Manual Processes by County §Phase 1 • Use “Missing_WVDOTsource” to identify and clean-up errors • Symbology used to visualize additional errors and duplicates • Attribute edits using attribute transfer tool • Remove duplicate geometry

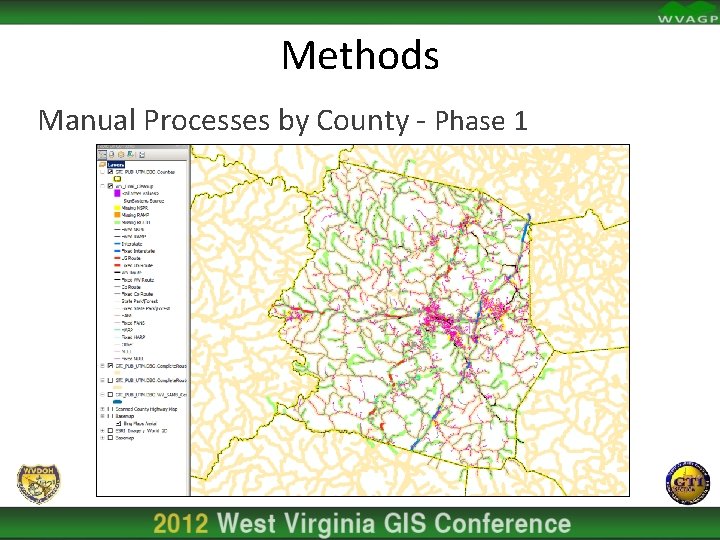

Methods Manual Processes by County - Phase 1

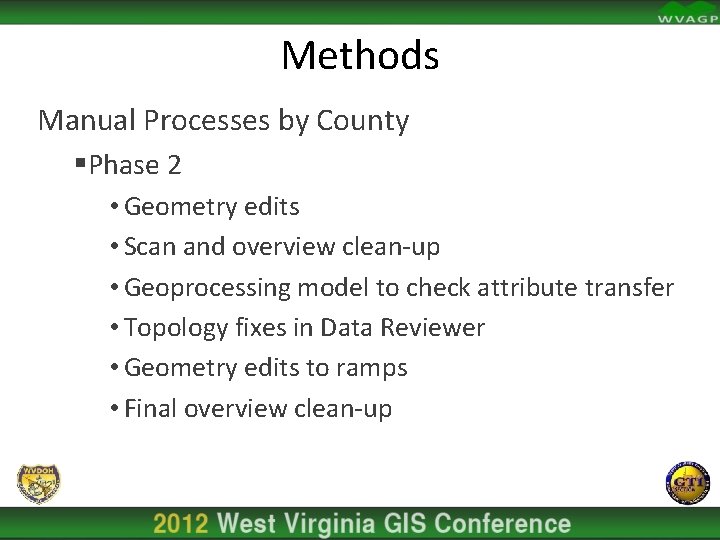

Methods Manual Processes by County §Phase 2 • Geometry edits • Scan and overview clean-up • Geoprocessing model to check attribute transfer • Topology fixes in Data Reviewer • Geometry edits to ramps • Final overview clean-up

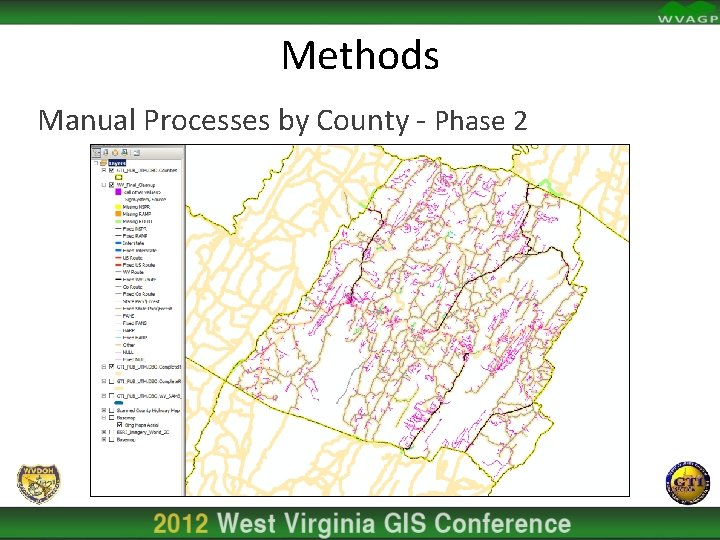

Methods Manual Processes by County - Phase 2

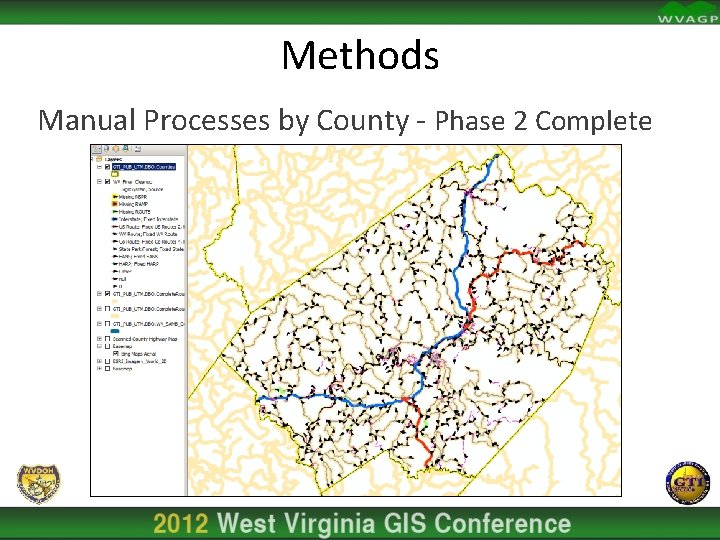

Methods Manual Processes by County - Phase 2 Complete

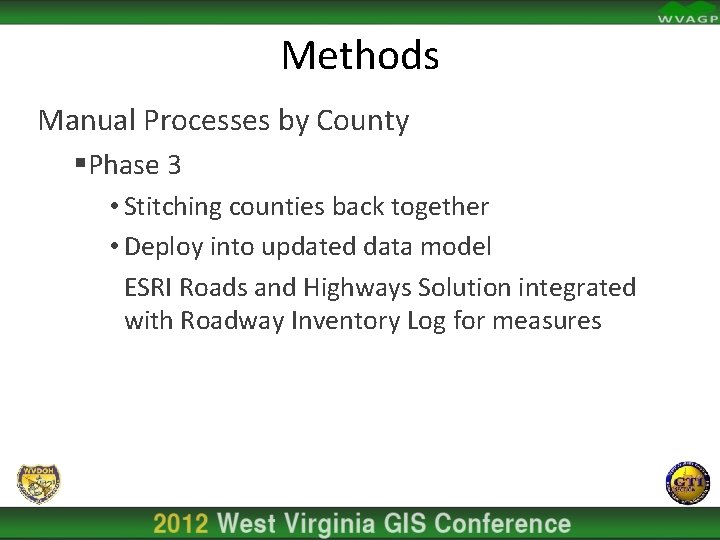

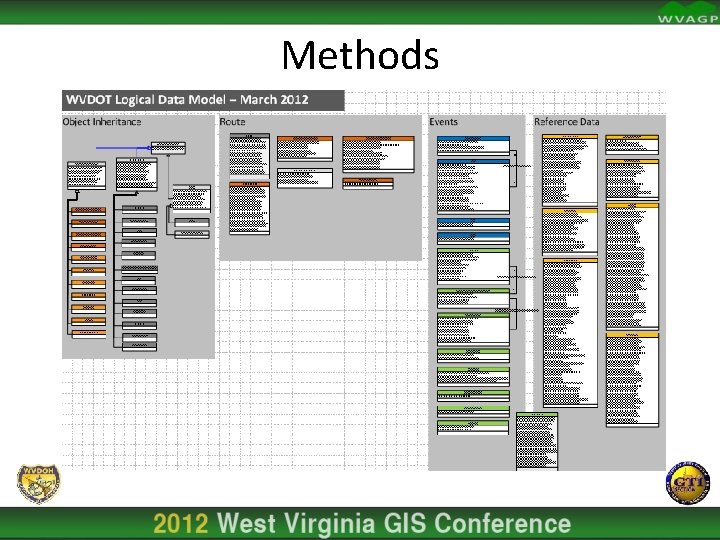

Methods Manual Processes by County §Phase 3 • Stitching counties back together • Deploy into updated data model ESRI Roads and Highways Solution integrated with Roadway Inventory Log for measures

Methods

Methods

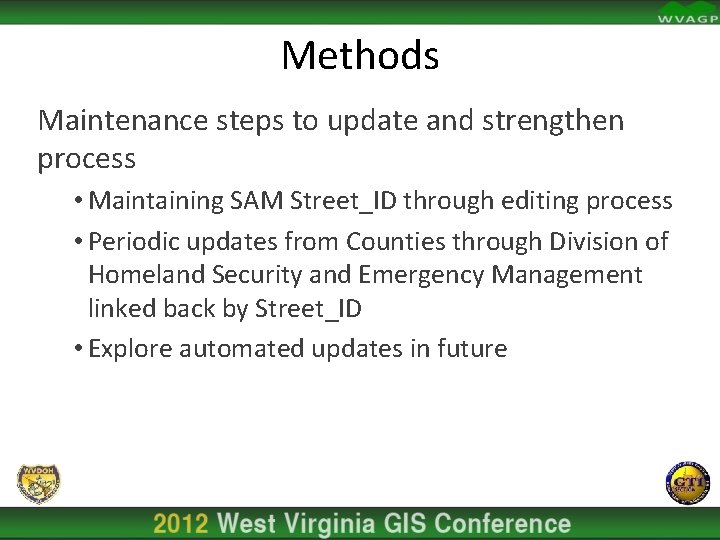

Methods Maintenance steps to update and strengthen process • Maintaining SAM Street_ID through editing process • Periodic updates from Counties through Division of Homeland Security and Emergency Management linked back by Street_ID • Explore automated updates in future

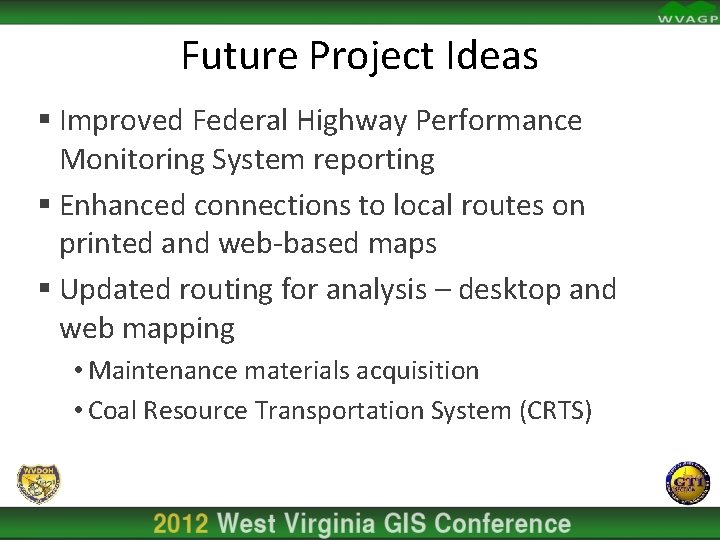

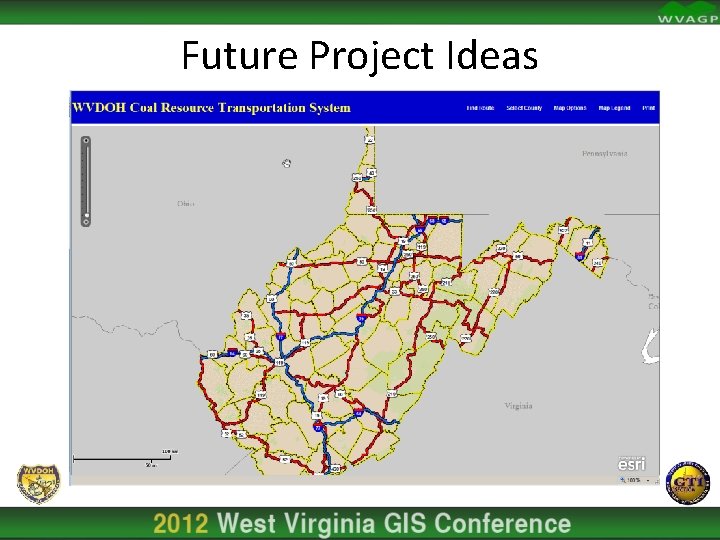

Future Project Ideas § Improved Federal Highway Performance Monitoring System reporting § Enhanced connections to local routes on printed and web-based maps § Updated routing for analysis – desktop and web mapping • Maintenance materials acquisition • Coal Resource Transportation System (CRTS)

Future Project Ideas

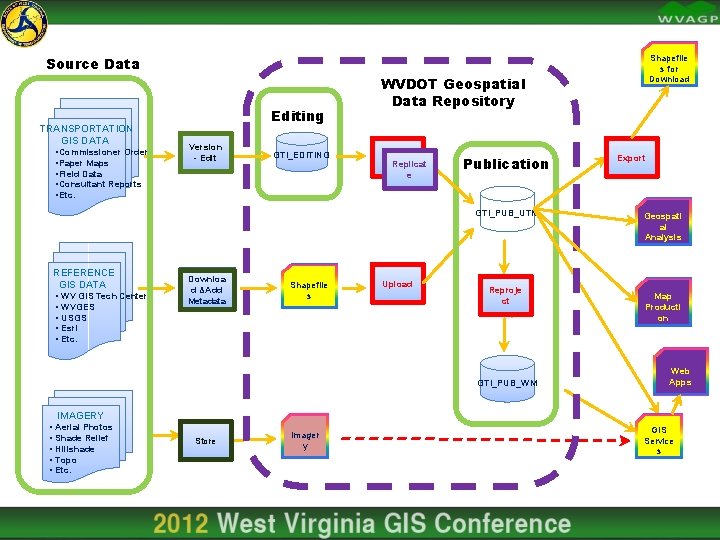

Shapefile s for Download Source Data TRANSPORTATION GIS DATA • Commissioner Orders • Paper Maps • Field Data • Consultant Reports • Etc. Editing Version - Edit GTI_EDITING WVDOT Geospatial Data Repository Update Replicat e Publication GTI_PUB_UTM REFERENCE GIS DATA • WV GIS Tech Center • WVGES • USGS • Esri • Etc. Downloa d &Add Metadata Shapefile s Upload Reproje ct GTI_PUB_WM Export Geospati al Analysis Map Producti on Web Apps IMAGERY • Aerial Photos • Shade Relief • Hillshade • Topo • Etc. Store Imager y GIS Service s

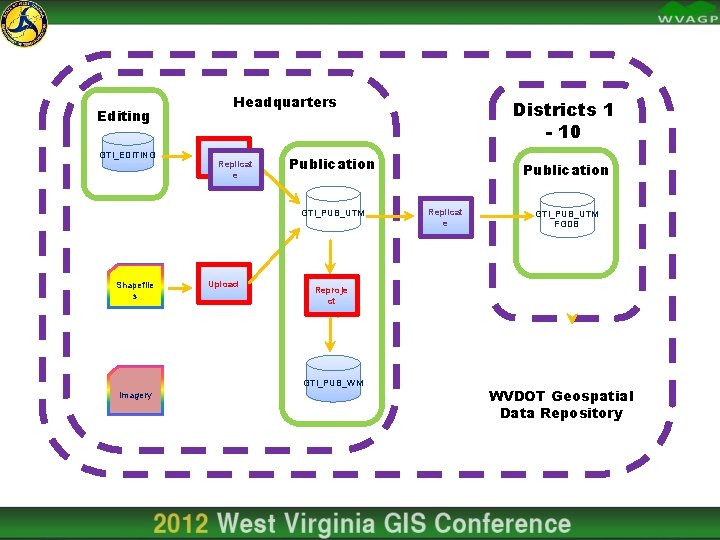

Editing GTI_EDITING Headquarters Update Replicat e Publication GTI_PUB_UTM Shapefile s Upload Publication Replicat e GTI_PUB_UTM FGDB Reproje ct GTI_PUB_WM Imagery Districts 1 - 10 WVDOT Geospatial Data Repository

Questions and Discussion
