WEST SIDE DOOR LOCATIONS DOOR A DOOR B

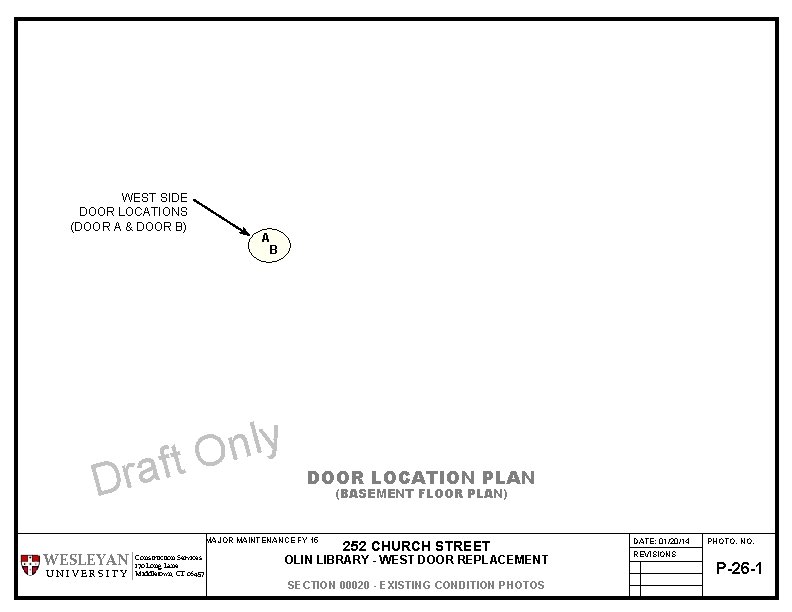

WEST SIDE DOOR LOCATIONS (DOOR A & DOOR B) A B y l n ft O Dra DOOR LOCATION PLAN (BASEMENT FLOOR PLAN) MAJOR MAINTENANCE FY 15 WESLEYAN UNIVERSITY Construction Services 170 Long Lane Middletown, CT 06457 252 CHURCH STREET OLIN LIBRARY - WEST DOOR REPLACEMENT SECTION 00020 - EXISTING CONDITION PHOTOS DATE: 01/20/14 PHOTO. NO. REVISIONS P-26 -1

WEST SIDE DOORS TO BE REPLACED WITH NEW FRP DOORS. ALSO PROVIDE NEW HARDWARE AS NOTED. DOOR ‘A’ DOOR ‘B’ y l n ft O Dra WEST ELEVATION WESLEYAN UNIVERSITY Construction Services 170 Long Lane Middletown, CT 06457 252 CHURCH STREET OLIN LIBRARY - WEST DOOR REPLACEMENT SECTION 00020 - EXISTING CONDITION PHOTOS DATE: 01/20/14 PHOTO. NO. REVISIONS P-26 -2

DOOR ‘A’ – EXISTING CONDITIONS WESLEYAN UNIVERSITY Construction Services 170 Long Lane Middletown, CT 06457 252 CHURCH STREET OLIN LIBRARY - WEST DOOR REPLACEMENT SECTION 00020 - EXISTING CONDITION PHOTOS DATE: 01/20/14 PHOTO. NO. REVISIONS P-26 -3

DOOR ‘B’ – EXISTING CONDITIONS WESLEYAN UNIVERSITY Construction Services 170 Long Lane Middletown, CT 06457 252 CHURCH STREET OLIN LIBRARY - WEST DOOR REPLACEMENT SECTION 00020 - EXISTING CONDITION PHOTOS DATE: 01/20/14 PHOTO. NO. REVISIONS P-26 -4

Scope of Work (Reference MMFY 15 Project Manual for all general project requirements) (See photo sheets for scope location clarifications) DOOR ‘A’ • Contractor shall remove and discard door leaf, hinges, closer and threshold. Salvage “Deliveries Only” sign for reinstallation. • Contractor shall salvage lockset and core – return to Owner. • Contractor shall repair lower section of rusted HM frames (both sides). Grind out all rusted and deteriorated frame areas. Refasten and anchor basepf strike side jamb to prevent future movement. Repair base of frame with Bondo or equivalent repair material. • Contractor shall install a new FRP door, threshold and associated hardware as identified. Prep existing frame to install new FRP door to replace the existing HM door. Prior to ordering door, contractor shall field measure frame opening and all hardware prep requirements. Submit shop drawings for final review and approval. • Contractor shall field measure the existing frame opening and hold the tightest dimension at the base of the frame. New door shall be sized based on using this dimension and adequate clearance shall be provided to account for the continuous hinge and operating clearance at the strike side of the jamb. • Contractor shall prep and level concrete floor to accept new threshold. Repair exist interior VCT floor at threshold. • Prep, prime and paint interior and exterior of new FRP door. Prep, prime & paint HM frames. Paint shall match existing colors. • Contractor shall schedule door installation with Owner. Delivery access must be maintained at all times. • Door removal and installation of new door must occur within the same day. • Upon completion of the new door installation, ensure proper function and clearance space between new door and existing frame. . y l n O t f Dra WESLEYAN UNIVERSITY Construction Services 170 Long Lane Middletown, CT 06457 252 CHURCH STREET OLIN LIBRARY - WEST DOOR REPLACEMENT SECTION 00020 - EXISTING CONDITION PHOTOS DATE: 01/20/14 PHOTO. NO. REVISIONS P-26 -5

Scope of Work (Reference MMFY 15 Project Manual for all general project requirements) (See photo sheets for scope location clarifications) DOOR ‘B’ • Contractor shall remove and discard door leaf, hinges and threshold. Salvage “Fire Panel” sign for reinstallation. • Contractor shall maintain and protect existing automatic door closer, electric latch and card reader system. • Contractor shall re-install activated electric latch, latch sensor and wiring. Coordinate with ISG (Integrated Security Group), Mike Veronese, 888 -474 -3672, and new hardware to ensure compatibility and proper installation. • Contractor shall salvage lockset and core – return to Owner. • Contractor shall repair lower section of rusted HM frames (both sides). Grind out all rusted and deteriorated frame areas. Refasten and anchor basepf strike side jamb to prevent future movement. Repair base of frame with Bondo or equivalent repair material. • Contractor shall install a new FRP door, threshold and associated hardware as identified. Prep existing frame to install new FRP door to replace the existing HM door. Prior to ordering door, contractor shall field measure frame opening and all hardware prep requirements. • Contractor shall field measure the existing frame opening and hold the tightest dimension at the base of the frame. New door shall be sized based on using this dimension and adequate clearance shall be provided to account for the continuous hinge and operating clearance at the strike side of the jamb. Submit shop drawings for review & approval. • Contractor shall prep and level concrete floor to accept new threshold. Repair exist interior VCT floor at threshold. • Prep, prime and paint interior and exterior of new FRP door. Prep, prime & paint HM frames. Paint shall match existing colors. • Contractor shall schedule door installation with Owner. Egress must be maintained at all times. • Door removal and installation of new door must occur within the same day. • Upon completion of the new door installation, ensure proper function and clearance space between new door and existing frame. . y l n O t f Dra WESLEYAN UNIVERSITY Construction Services 170 Long Lane Middletown, CT 06457 252 CHURCH STREET OLIN LIBRARY - WEST DOOR REPLACEMENT SECTION 00020 - EXISTING CONDITION PHOTOS DATE: 01/20/14 PHOTO. NO. REVISIONS P-26 -6

Products (Reference MMFY 15 Project Manual for all general project requirements) • Contractor shall field measure, coordinate, furnish and install the following. Verify all field dimensions for proper ordering. DOOR ‘A’ 1. DOORS: 1 ¾” thick FRP door with insulated core: Model # • Ceco; • Commercial Door Systems; or • Approved Equal 2. HINGES: 3. EXIT DEVICE: 4. CLOSER: 5. THRESHOLD: 6. DOOR BOTTOM: 7. PERIMETER WEATHERSTRIPPING: 8. CORE: 9. DOOR ‘B’ 10. DOORS: 1 ¾” thick FRP door with insulated core: Model # • Ceco; • Commercial Door Systems; or • Approved Equal 11. HINGES: 12. EXIT DEVICE: 13. CLOSER: 14. THRESHOLD: 15. DOOR BOTTOM: 16. PERIMETER WEATHERSTRIPPING: 17. CORE: WESLEYAN UNIVERSITY Construction Services 170 Long Lane Middletown, CT 06457 y l n ft O Dra 252 CHURCH STREET OLIN LIBRARY - WEST DOOR REPLACEMENT SECTION 00020 - EXISTING CONDITION PHOTOS DATE: 01/20/14 PHOTO. NO. REVISIONS P-26 -7
