Well log interpretation for MSc geologists 2019 Last

Well log interpretation for MSc geologists 2019

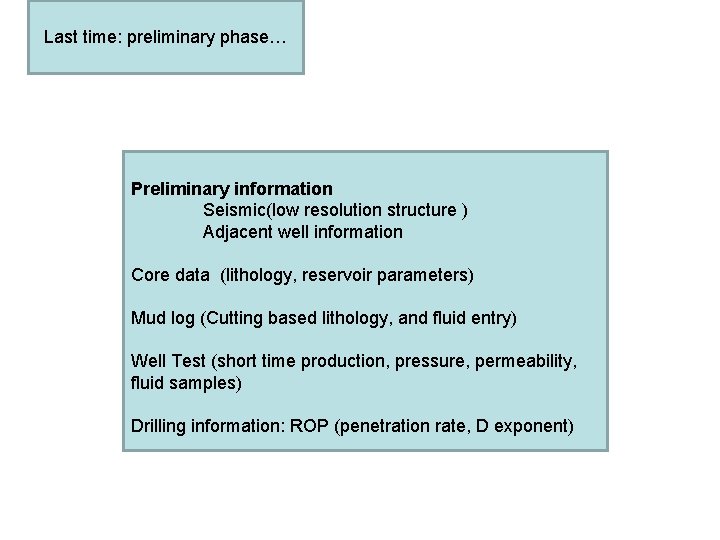

Last time: preliminary phase… Preliminary information Seismic(low resolution structure ) Adjacent well information Core data (lithology, reservoir parameters) Mud log (Cutting based lithology, and fluid entry) Well Test (short time production, pressure, permeability, fluid samples) Drilling information: ROP (penetration rate, D exponent)

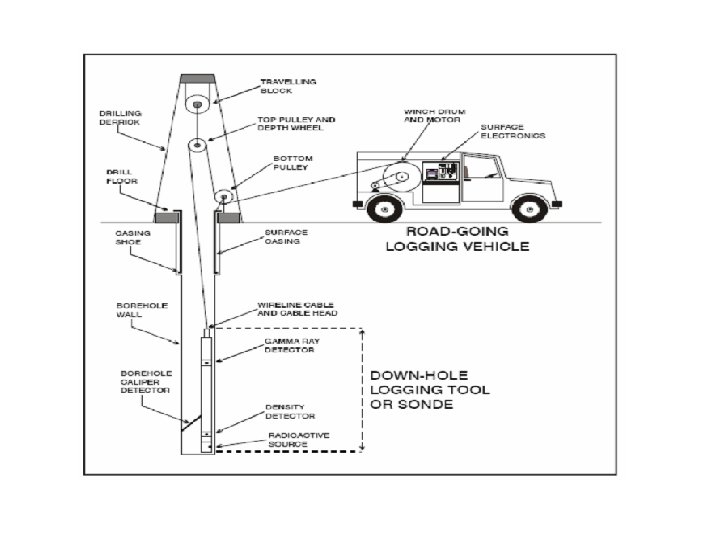

Borehole geophysical tools (sondes) OH CH Open hole environment Cased hole environment 3

Target parameters Lithology Lithological category (eg. Sandstone, Shalysand, …) Rock matrix components Special components (coal, evaporites, organic) Shale volume (structure, components) Reservoir parameters Porosity (total, effective, primary secondary) Saturations (pore fluid composition) Effective thickness (net pay, gross etc) Permeability (absolute, relative) Structure Bedding (laminar structure, grading) dip (structural, sedimentary) fractures Trends Compaction, pressure Elastic and seismic parameters Stess field elements, fracability

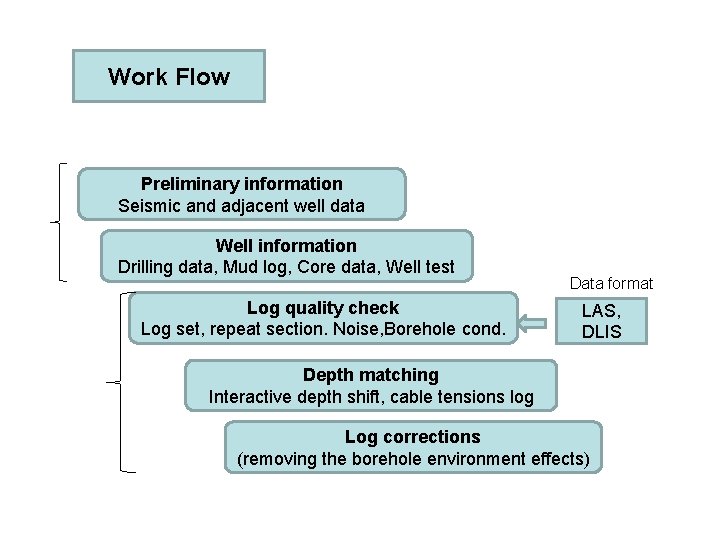

Work Flow Preliminary information Seismic and adjacent well data Well information Drilling data, Mud log, Core data, Well test Log quality check Log set, repeat section. Noise, Borehole cond. Data format LAS, DLIS Depth matching Interactive depth shift, cable tensions log Log corrections (removing the borehole environment effects)

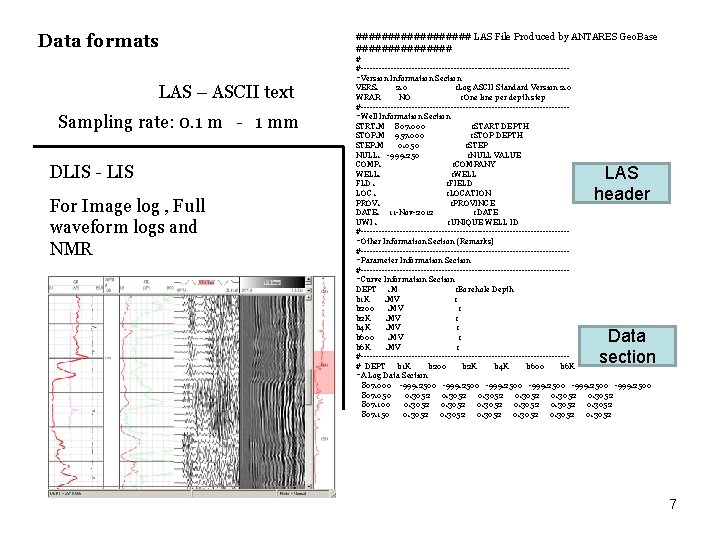

Data formats LAS – ASCII text Sampling rate: 0. 1 m - 1 mm DLIS - LIS For Image log , Full waveform logs and NMR ######### LAS File Produced by ANTARES Geo. Base ######## # #-----------------------------------~Version Information Section VERS. 2. 0 : Log ASCII Standard Version 2. 0 WRAP. NO : One line per depth step #-----------------------------------~Well Information Section STRT. M 807. 000 : START DEPTH STOP. M 957. 000 : STOP DEPTH STEP. M 0. 050 : STEP NULL. -999. 250 : NULL VALUE COMP. : COMPANY WELL. : WELL FLD. : FIELD LOC. : LOCATION PROV. : PROVINCE DATE. 11 -Nov-2012 : DATE UWI. : UNIQUE WELL ID #-----------------------------------~Other Information Section (Remarks) #-----------------------------------~Parameter Information Section #-----------------------------------~Curve Information Section DEPT. M : Borehole Depth b 1 K. MV : b 200. MV : b 2 K. MV : b 4 K. MV : b 600. MV : b 6 K. MV : #-----------------------------------# DEPT b 1 K b 200 b 2 K b 4 K b 600 b 6 K ~A Log Data Section 807. 000 -999. 2500 807. 050 0. 3052 807. 100 0. 3052 807. 150 0. 3052 LAS header Data section 7

Deviated wells Preprocessing – Depth corrections Depth matching – between the runs Borehole trajectory from inclination and azimuth True depth and thickness Depth reference logs GR, CCL 8

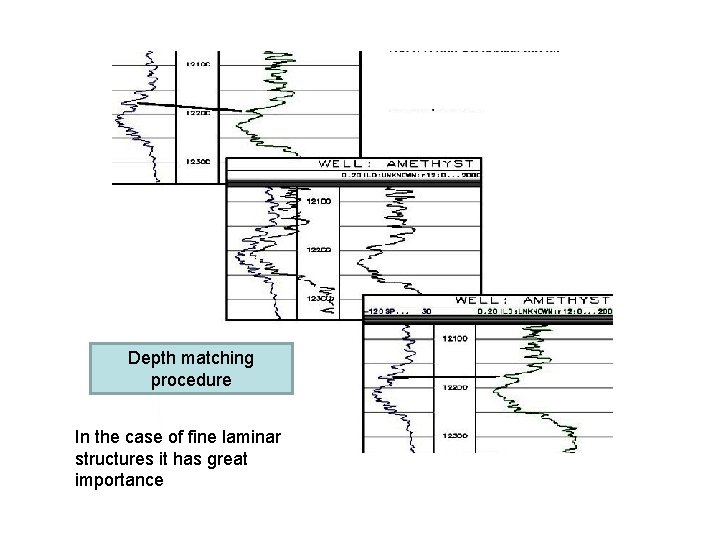

Depth matching procedure In the case of fine laminar structures it has great importance

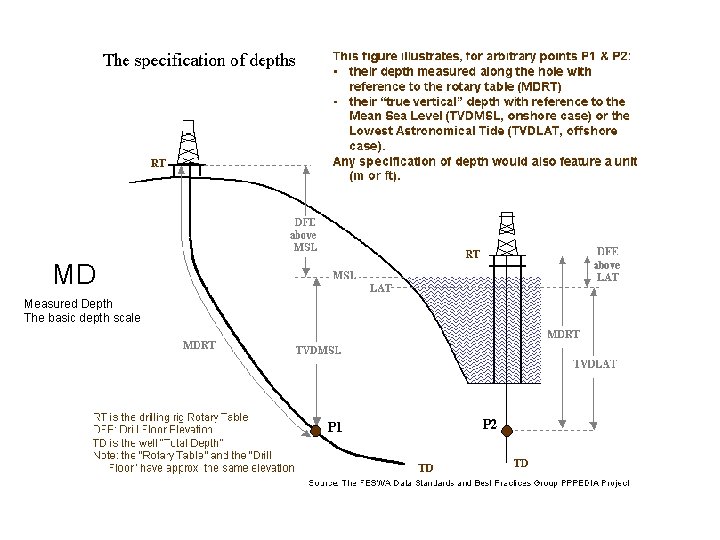

MD Measured Depth The basic depth scale

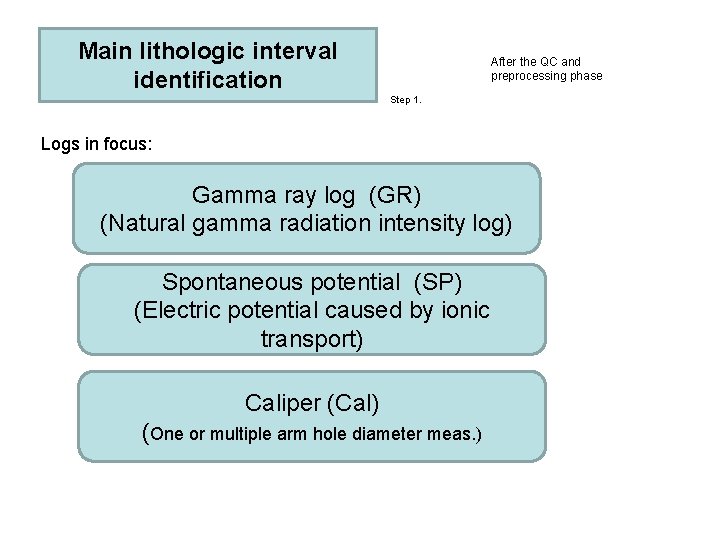

Main lithologic interval identification After the QC and preprocessing phase Step 1. Logs in focus: Gamma ray log (GR) (Natural gamma radiation intensity log) Spontaneous potential (SP) (Electric potential caused by ionic transport) Caliper (Cal) (One or multiple arm hole diameter meas. )

Main reservoir (lithologic) cathegory in well log interpretation Clean clasctic reservoirs Carbonates Shaly-sand reservoirs Complex lithology Uncertainty of reservoir quality estimation Fractured reservoirs 12

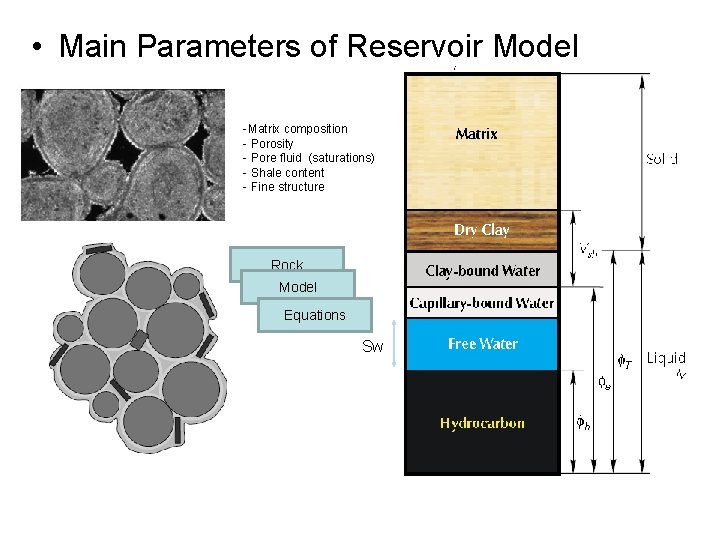

• Main Parameters of Reservoir Model -Matrix composition - Porosity - Pore fluid (saturations) - Shale content - Fine structure Rock Model Equations Sw

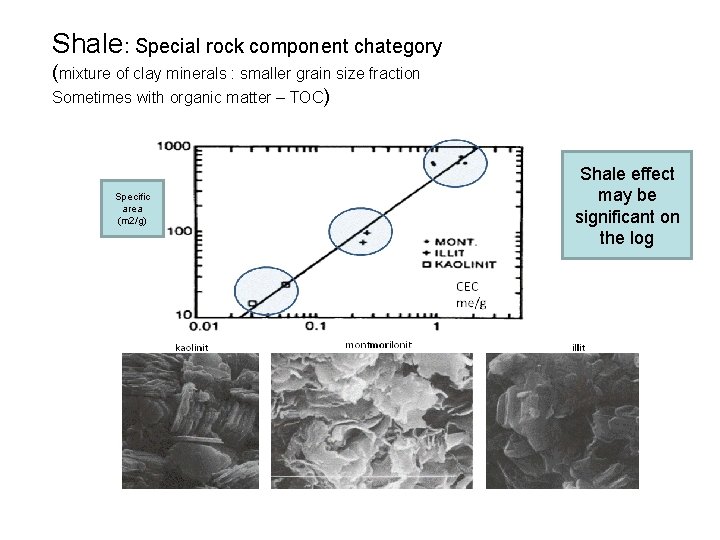

Shale: Special rock component chategory (mixture of clay minerals : smaller grain size fraction Sometimes with organic matter – TOC) + Al 3+ - Si 4+ Specific area (m 2/g) Shale effect may be significant on the log

Shale may reduce strongly the permeability

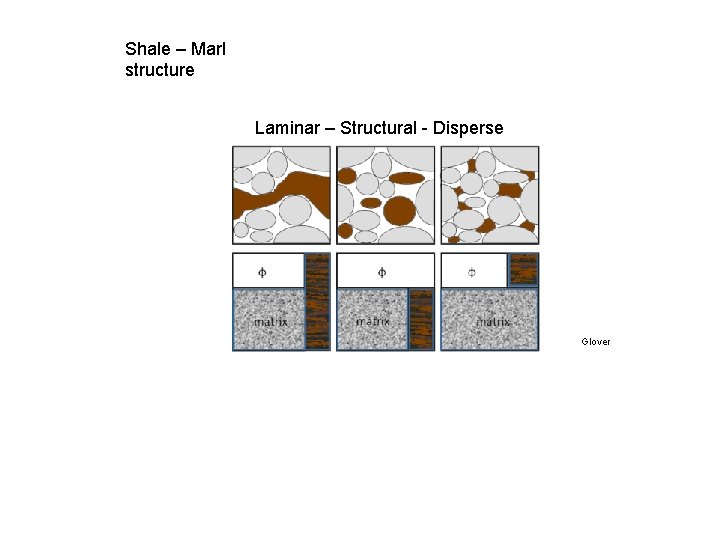

Shale – Marl structure Laminar – Structural - Disperse Glover

Gamma Ray log (GR) Natural gamma intensity measurements

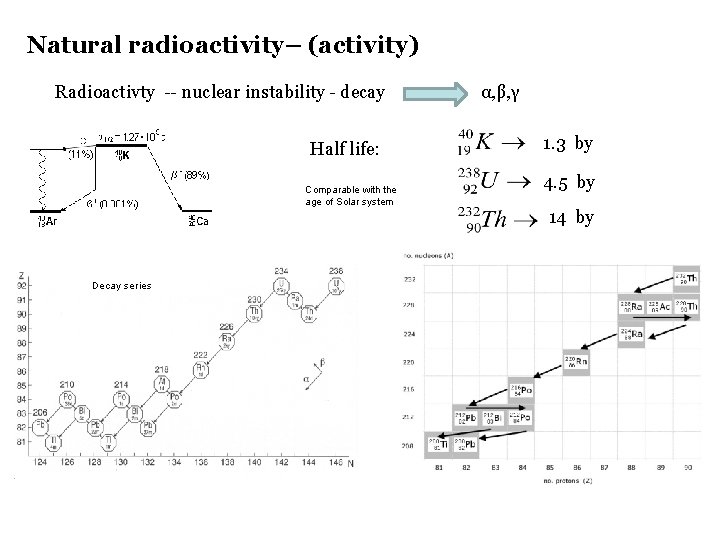

Natural radioactivity– (activity) Radioactivty -- nuclear instability - decay Half life: Comparable with the age of Solar system Decay series α, β, γ 1. 3 by 4. 5 by 14 by

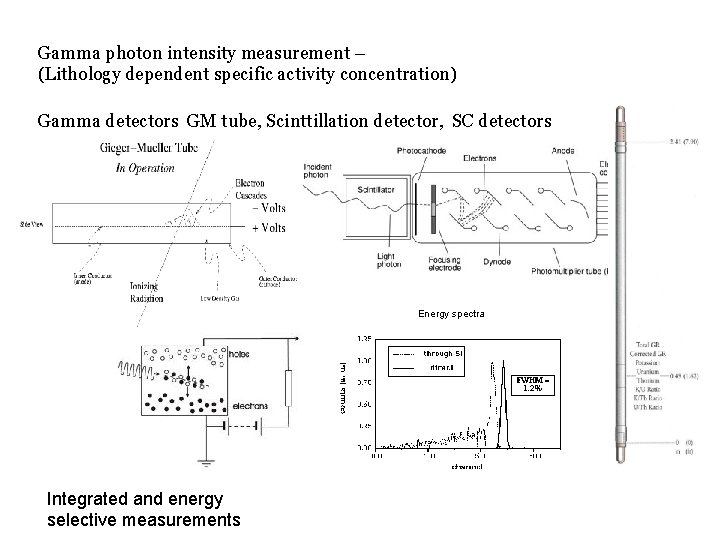

Gamma photon intensity measurement – (Lithology dependent specific activity concentration) Gamma detectors GM tube, Scinttillation detector, SC detectors Energy spectra Integrated and energy Mélyfúrási geofizika – OH litológiai szelvények selective measurements 19

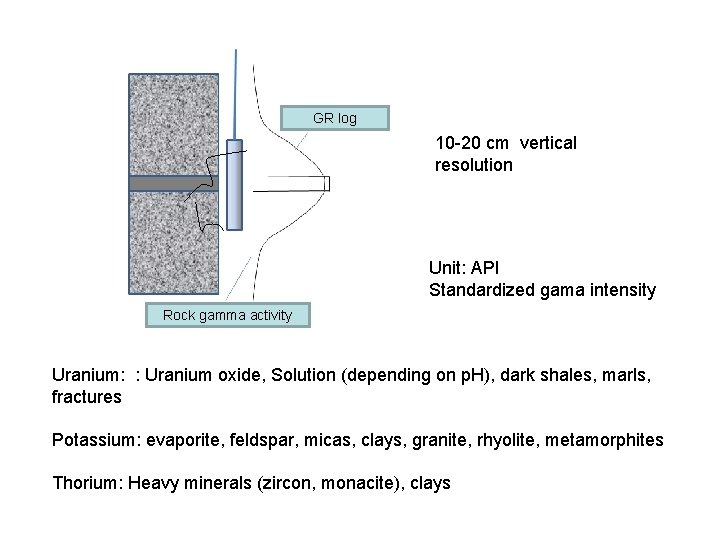

GR log 10 -20 cm vertical resolution Unit: API Standardized gama intensity Rock gamma activity Uranium: : Uranium oxide, Solution (depending on p. H), dark shales, marls, fractures Potassium: evaporite, feldspar, micas, clays, granite, rhyolite, metamorphites Thorium: Heavy minerals (zircon, monacite), clays

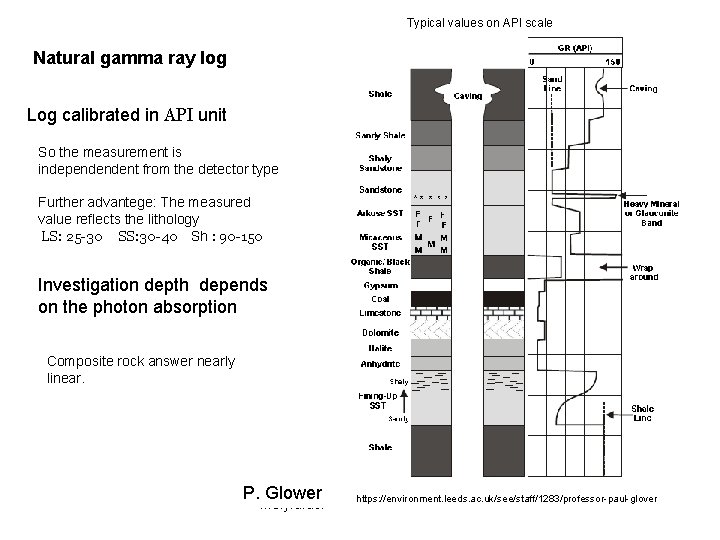

Typical values on API scale Natural gamma ray log Log calibrated in API unit So the measurement is independendent from the detector type Further advantege: The measured value reflects the lithology LS: 25 -30 SS: 30 -40 Sh : 90 -150 Investigation depth depends on the photon absorption Composite rock answer nearly linear. P. Glower https: //environment. leeds. ac. uk/see/staff/1283/professor-paul-glover Mélyfúrási geofizika - bevezetés 21

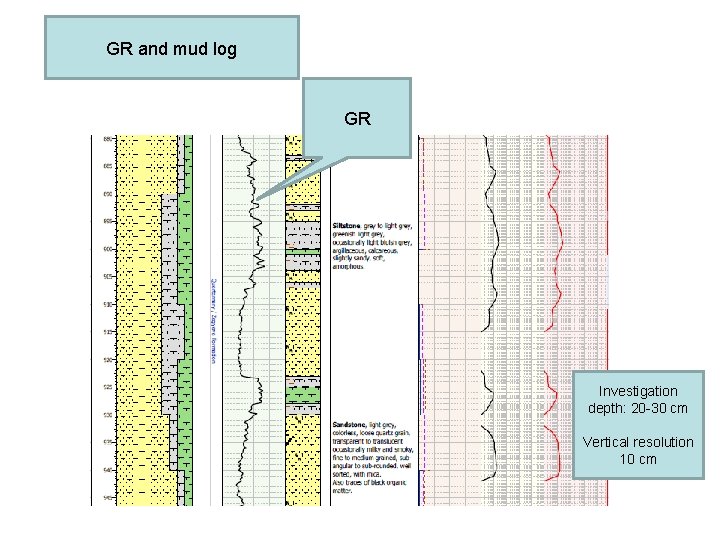

GR and mud log GR Investigation depth: 20 -30 cm Vertical resolution 10 cm

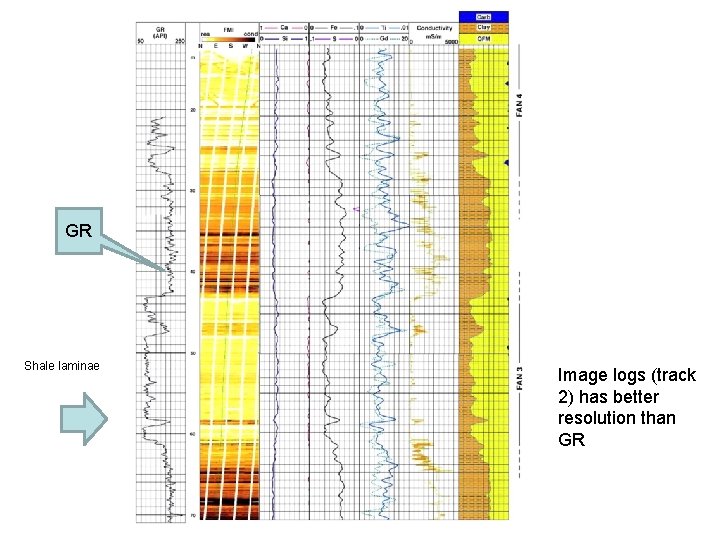

GR Shale laminae Image logs (track 2) has better resolution than GR

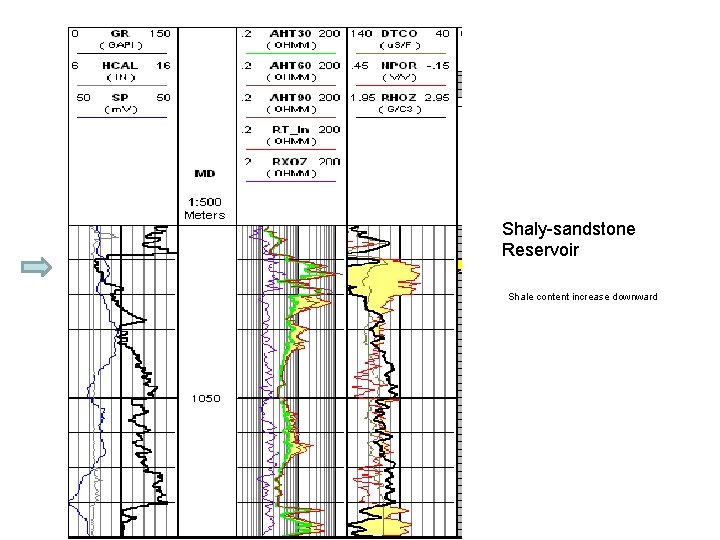

Shaly-sandstone Reservoir Shale content increase downward

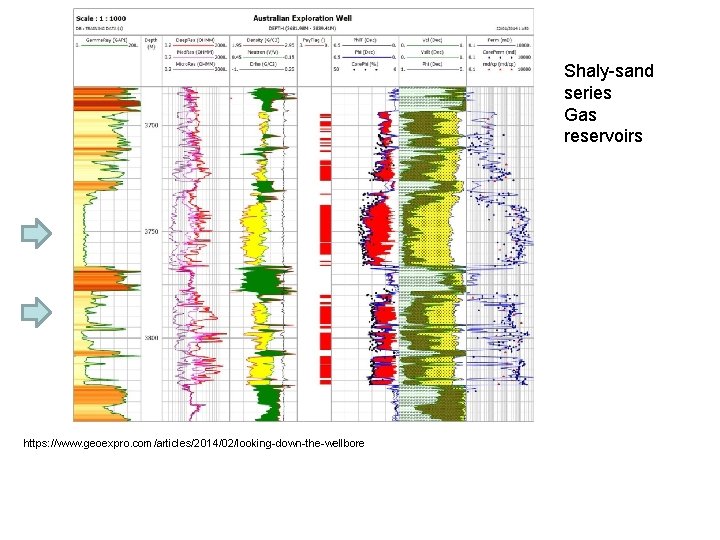

Shaly-sand series Gas reservoirs https: //www. geoexpro. com/articles/2014/02/looking-down-the-wellbore

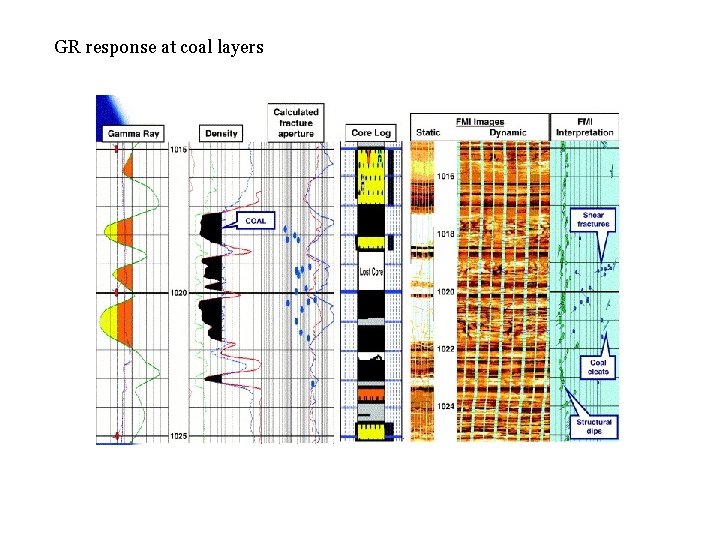

GR response at coal layers Mélyfúrási geofizika - bevezetés 26

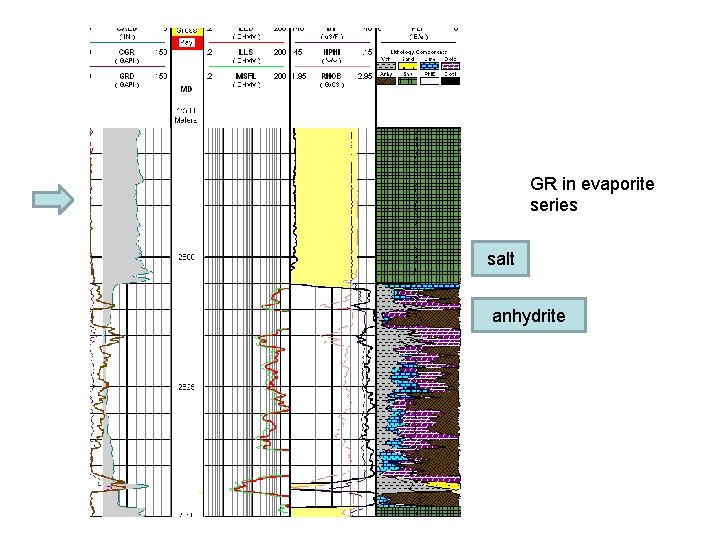

GR in evaporite series salt anhydrite

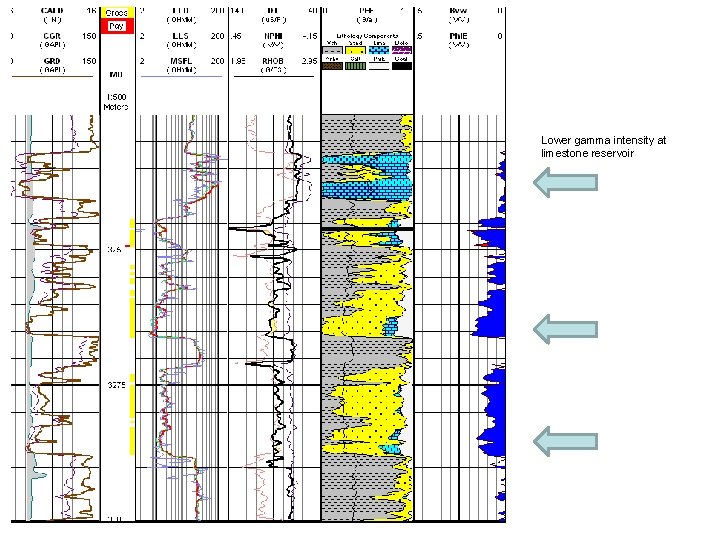

Lower gamma intensity at limestone reservoir

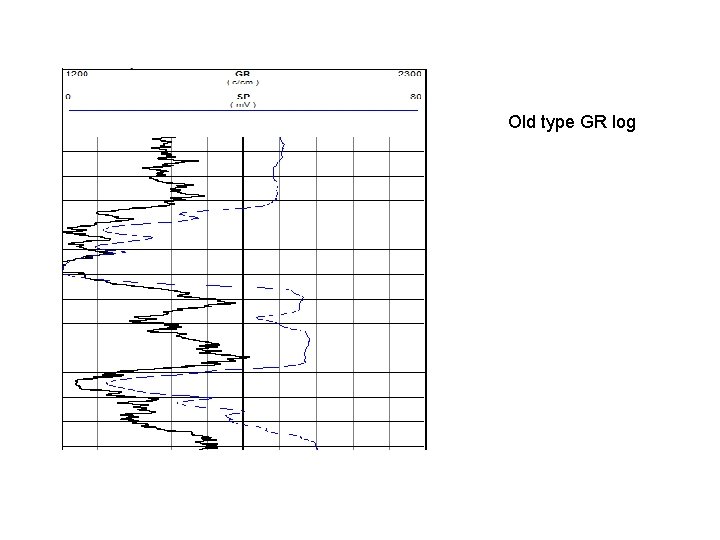

Old type GR log

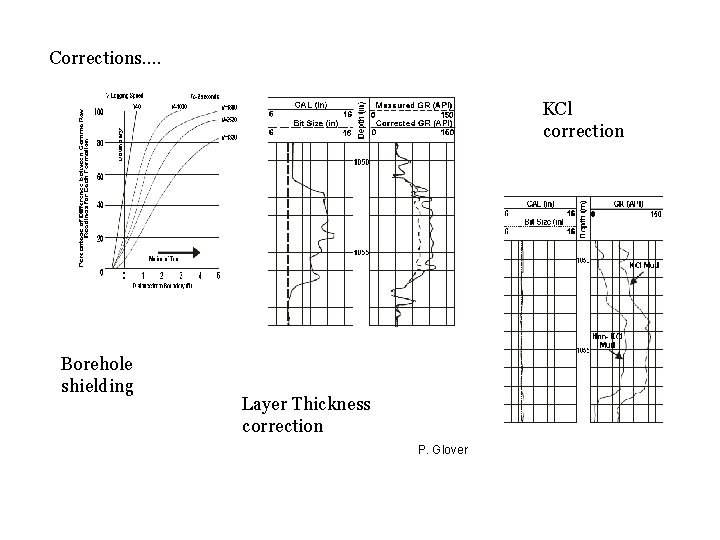

Corrections…. KCl correction Borehole shielding Layer Thickness correction P. Glover Mélyfúrási geofizika - bevezetés 30

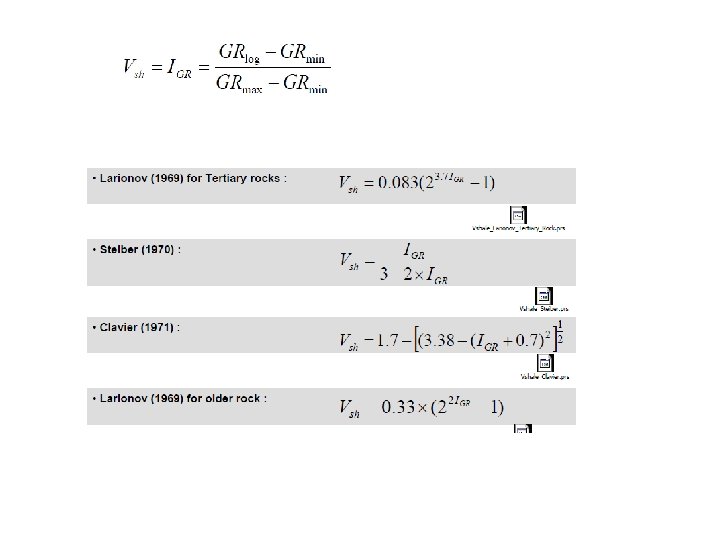

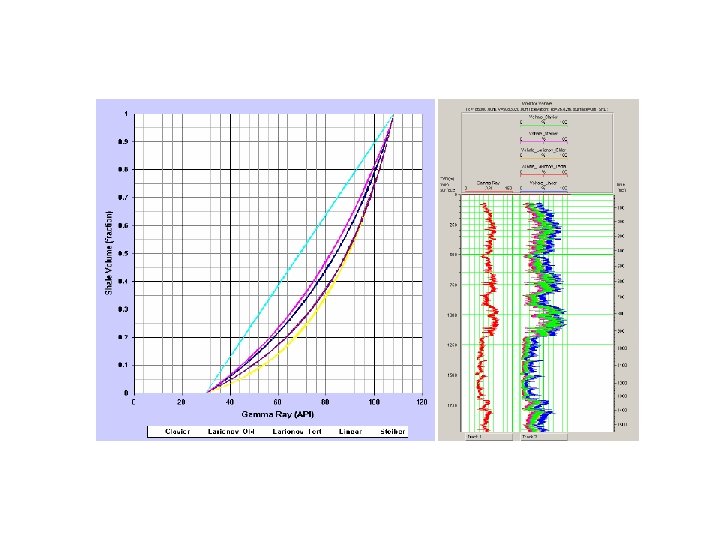

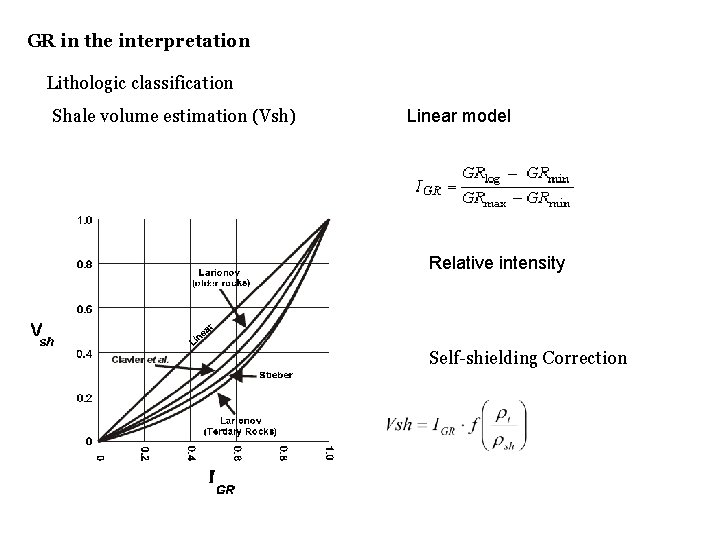

GR in the interpretation Lithologic classification Shale volume estimation (Vsh) Linear model Relative intensity Self-shielding Correction Mélyfúrási geofizika - bevezetés 31

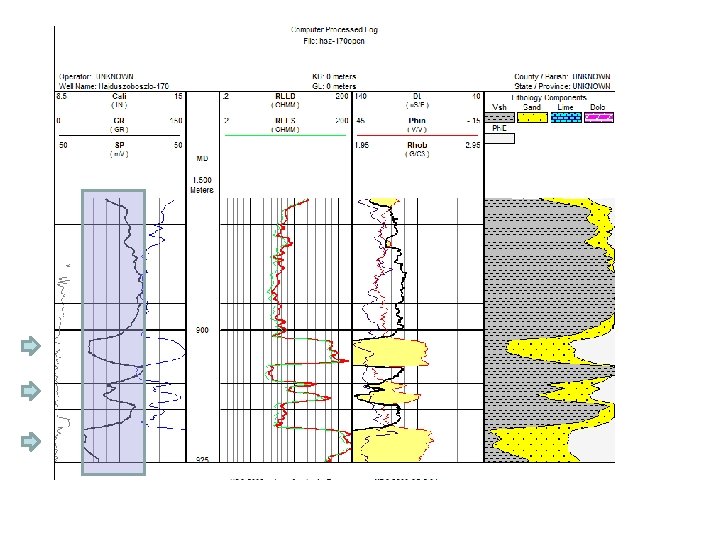

Mélyfúrási geofizika - bevezetés 35

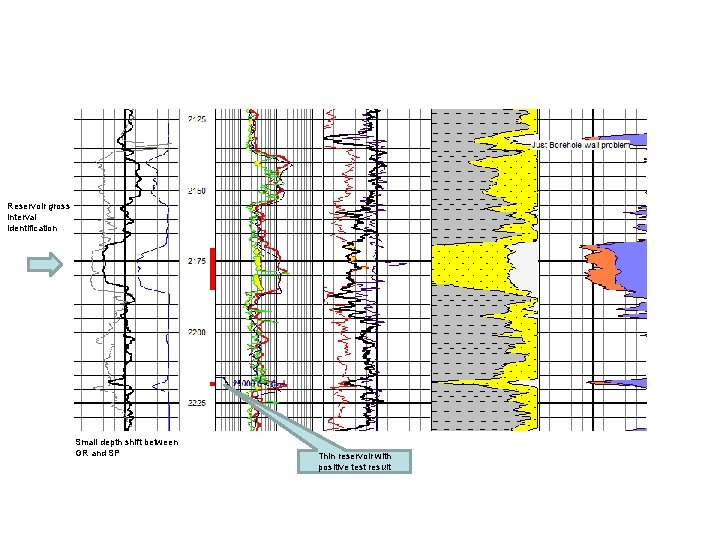

Reservoir gross interval identification Small depth shift between GR and SP Thin reservoir with positive test result

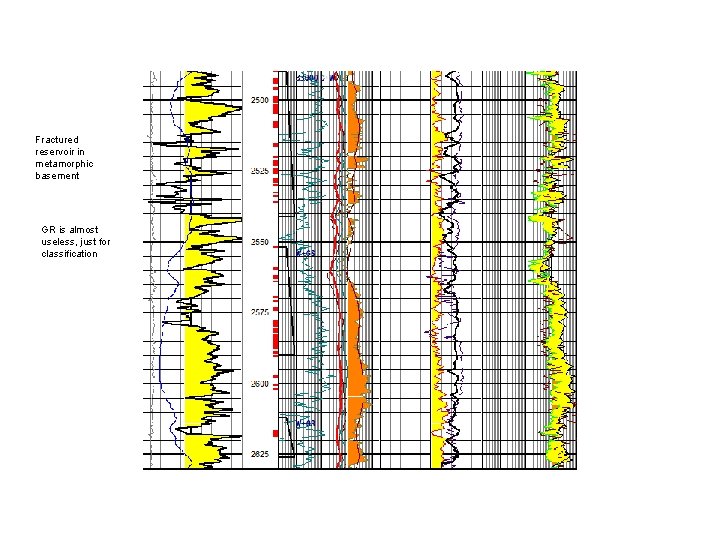

Fractured reservoir in metamorphic basement GR is almost useless, just for classification

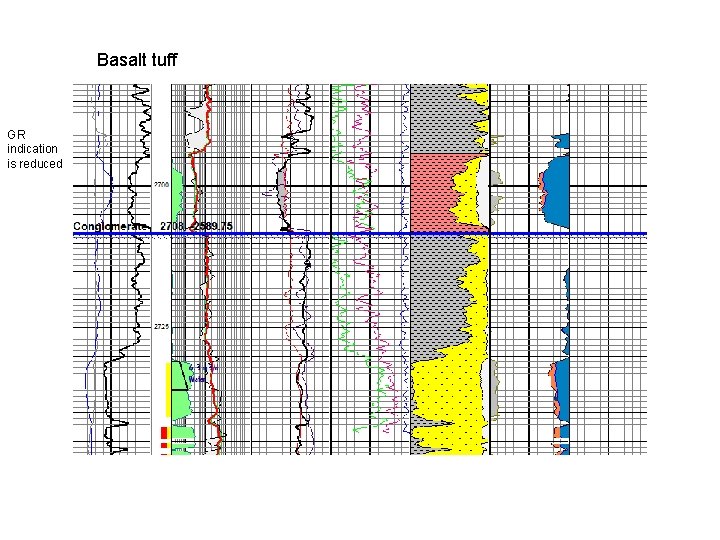

Basalt tuff GR indication is reduced

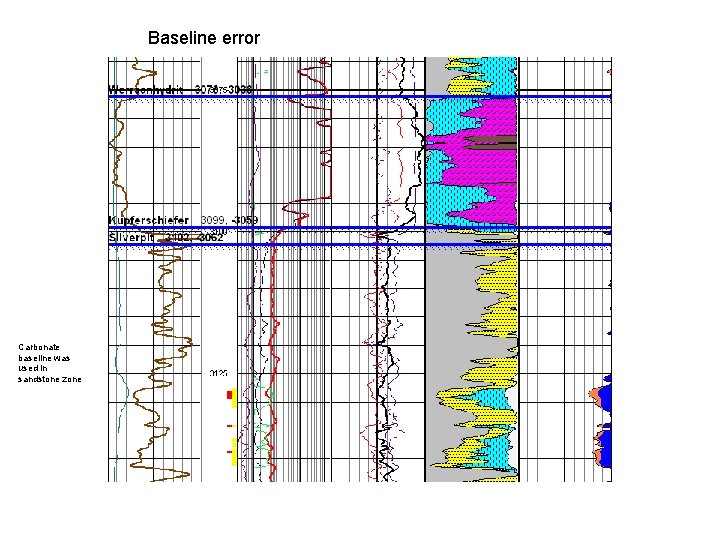

Baseline error Carbonate baseline was used in sandstone zone

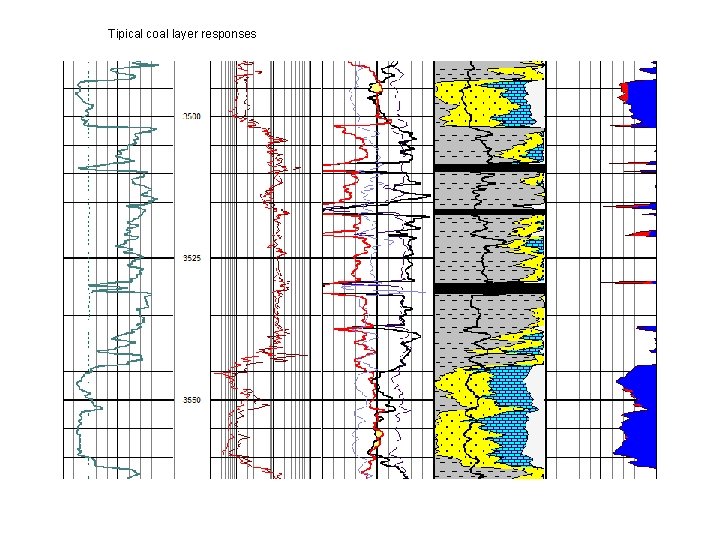

Tipical coal layer responses

Marl zone With smaller GR increment Mélyfúrási geofizika - bevezetés 42

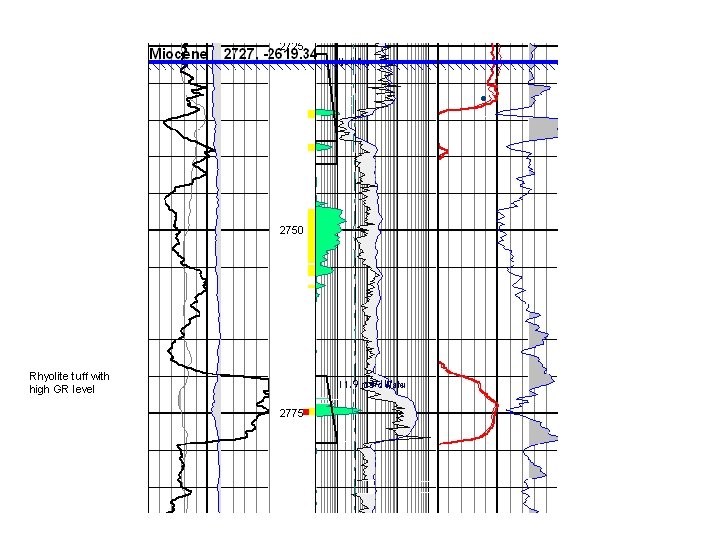

Rhyolite tuff with high GR level

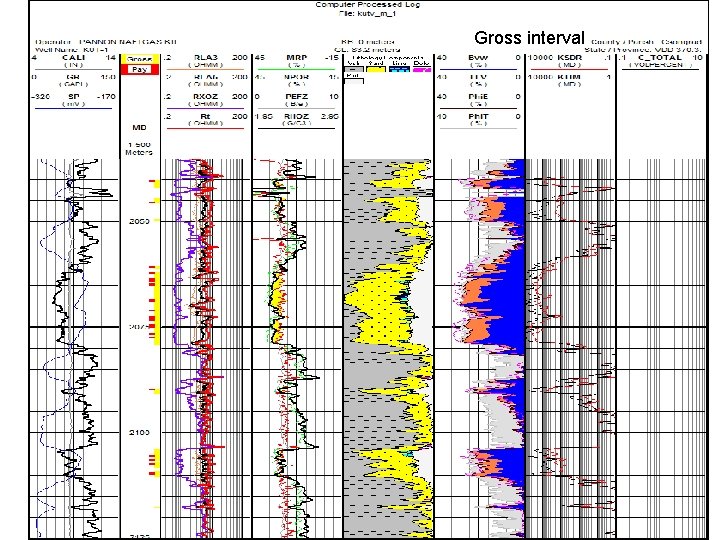

Gross interval

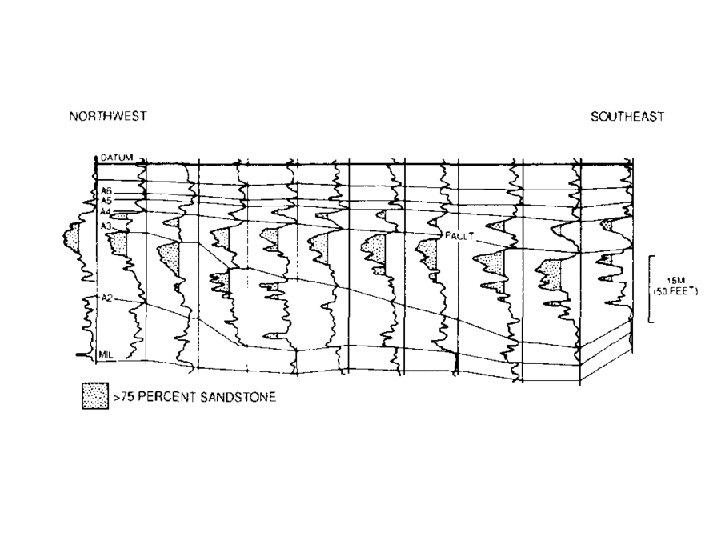

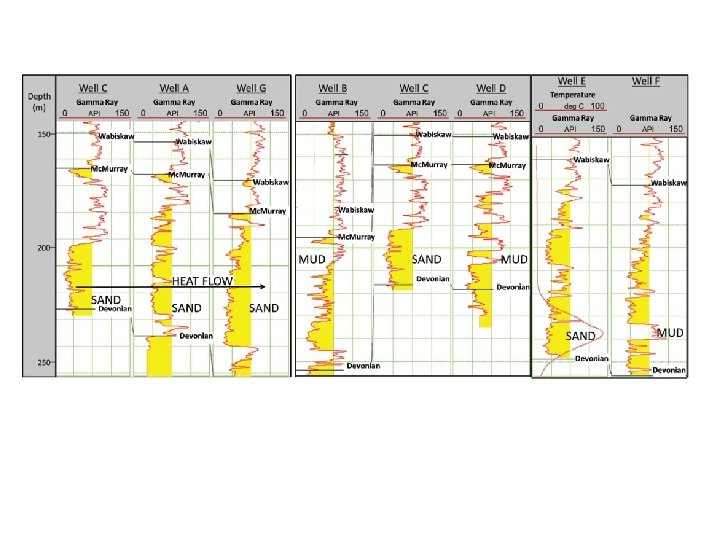

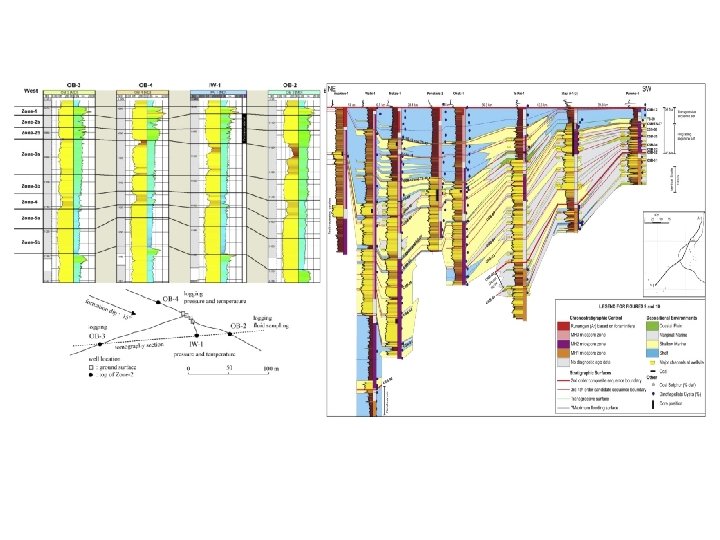

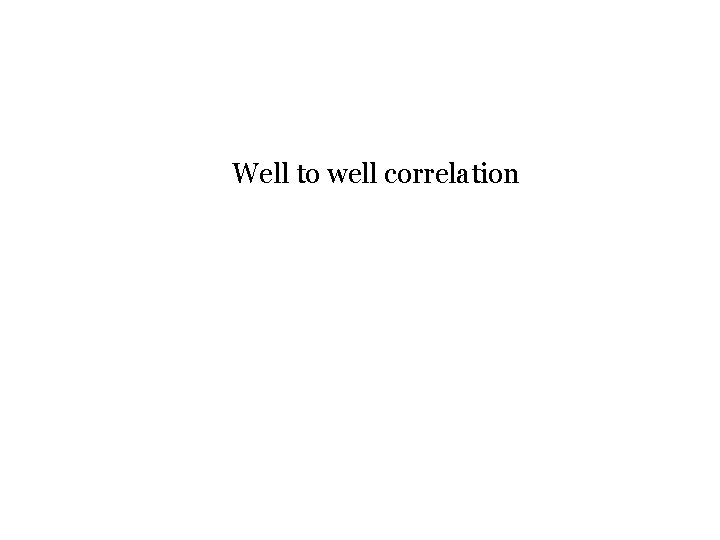

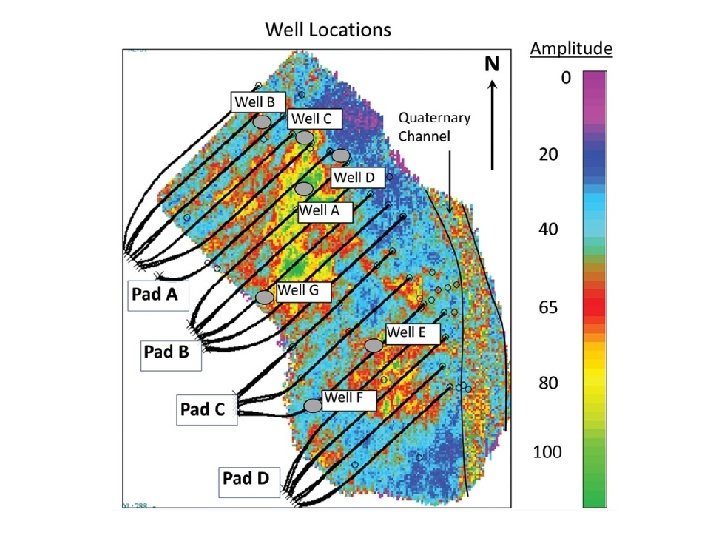

Well to well correlation

Mélyfúrási geofizika - bevezetés 46

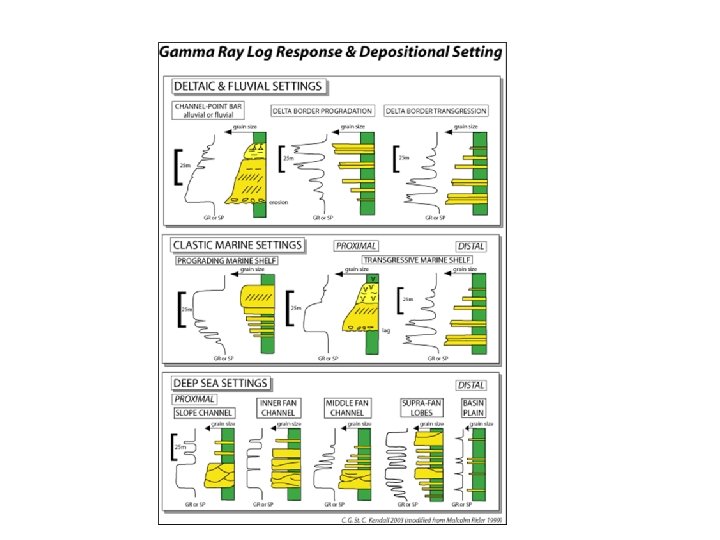

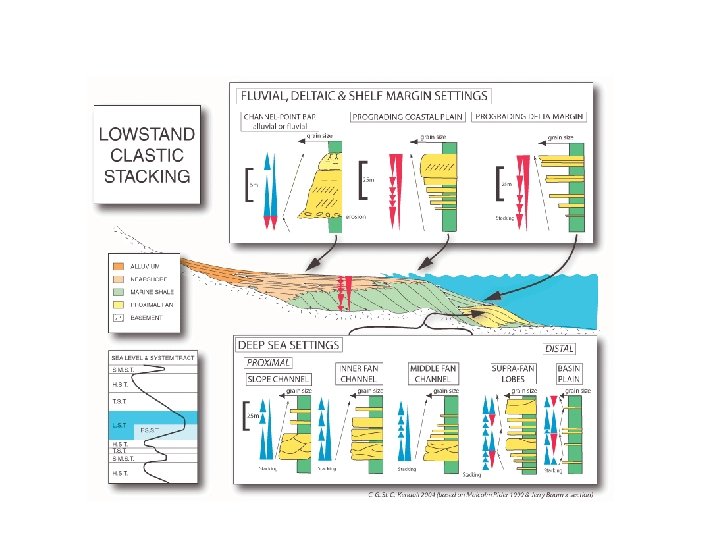

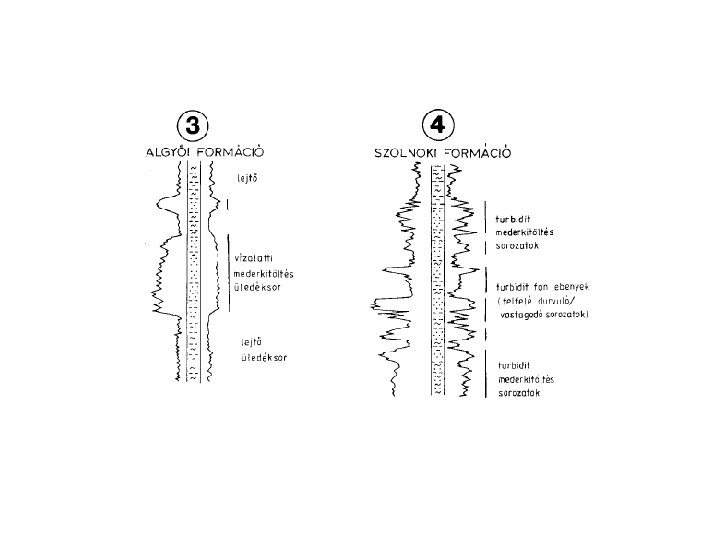

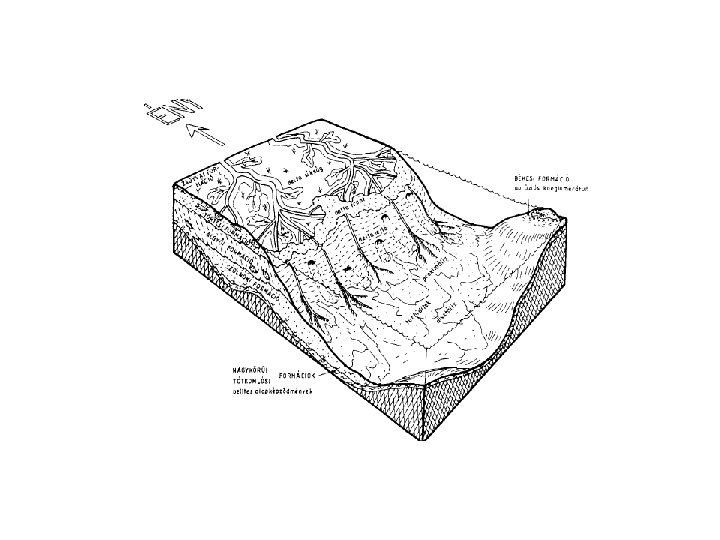

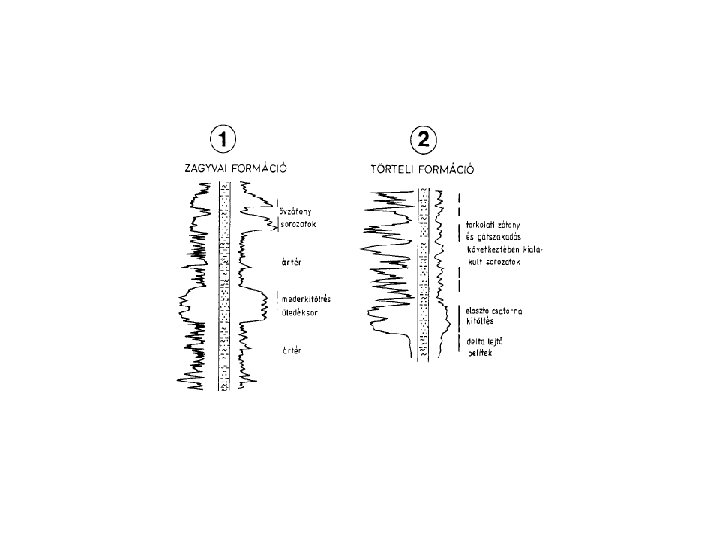

GR signal shape and sedimentary environment

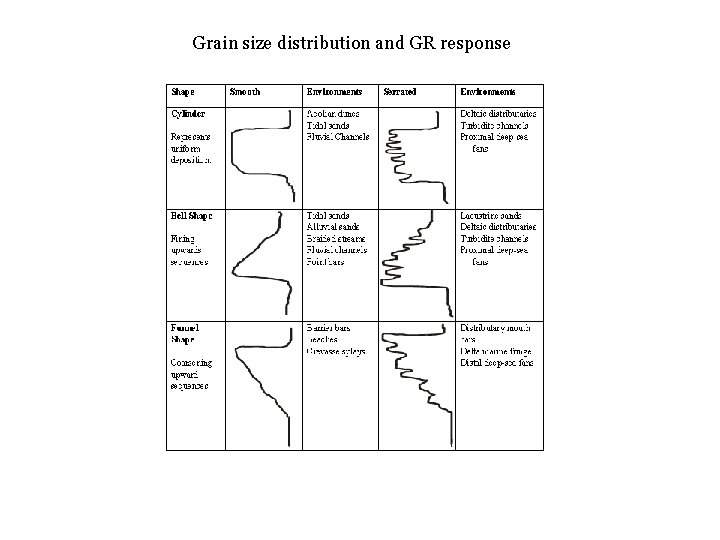

Grain size distribution and GR response Mélyfúrási geofizika - bevezetés 51
