Well 30 Modeling Well 30 Well UCH 2

Well 30 Modeling

Well 30 Well UC-H 2 Well 31 Well 27 Model Grid and Setup

Constant Head General Head Boundaries

Model Parameters • 1 layer • Unconfined • Only pumping Wells – Well 30 – Well 31 – Well 27 • Boundaries – Constant Head • Top and Left Side of Model – General Head • Bottom and Right Side of Model

Layer Properties • Conductivity • Storage • Kx = 0. 012 cm/sec • Ky = 0. 012 cm/sec • Kz = 0. 0012 cm/sec • • • Vx = 130 ft/yr • Gradient of 0. 003 Ss = 0. 0002 (1/ft) Sy = 0. 2 Effective Porosity = 30% Total Porosity = 35 %

Initial Conditions • Water Levels – 1974 Groundwater contours from Kaiser Steel Corp Report, 1986. • TDS Concentrations – 2000 model results from Kaiser Steel Corp Report, 1986.

Well 30: TDS value 254 mg/l (no pumping from year 2000 – 2003)

Well 30: TDS 480 mg/l (with pumping from 2000 – 2003; 2500 gpm)

Well 30 TDS Impact vs. Pumping

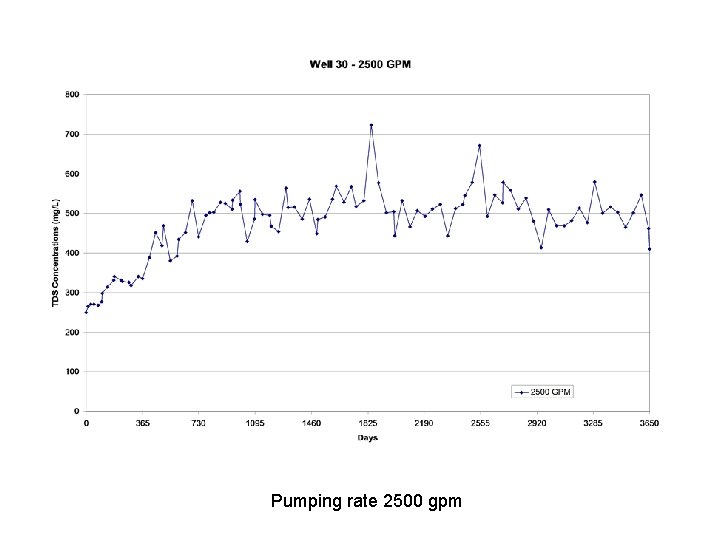

Pumping rate 2500 gpm

Well 30 (Pumping Rate 0 gpm, 3650 days)

Well 30 (Pumping Rate 0 gpm, 3650 days)

Well 30 (Pumping Rate 1000 gpm, 3650 days)

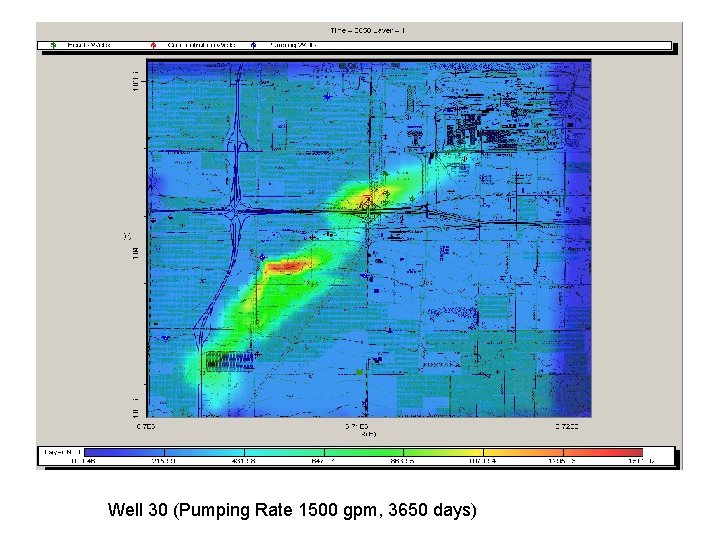

Well 30 (Pumping Rate 1500 gpm, 3650 days)

Well 30 (Pumping Rate 2000 gpm, 3650 days)

Well 30 (Pumping Rate 2500 gpm, 3650 days)

Union Carbide – Particle Tracking 5 years

Union Carbide – Particle Tracking 10 years

Union Carbide – Particle Tracking 15 years
