Welding Blueprint Reading Welder Training Unit 2 Objectives

Welding Blueprint Reading Welder Training Unit 2

Objectives - Weld Notes Welding Call-out Weld Symbols Fillet Welds Groove Welds Intermittent Welds CJP / PJP Additional Resources

Weld Notes: - First thing to look for on a print! Weld Notes are Engineering Instructions that apply to all welds on a part, and specific instructions for how that part is to be made.

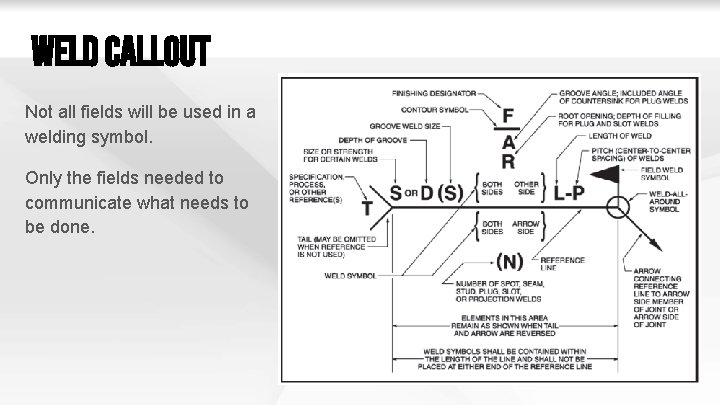

Weld Callout Not all fields will be used in a welding symbol. Only the fields needed to communicate what needs to be done.

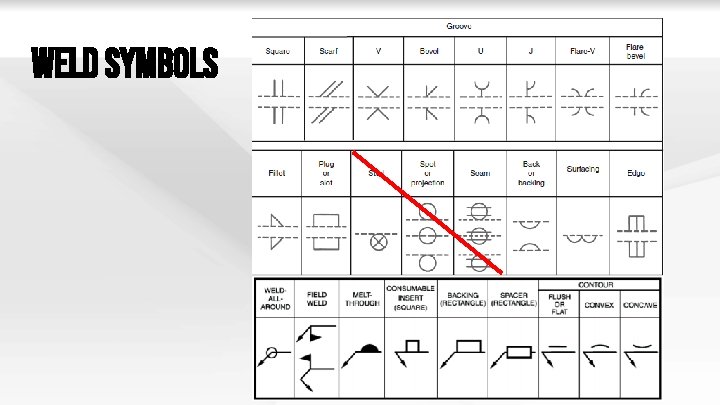

Weld Symbols

Fillet Welds

Fillet Welds

Groove Welds

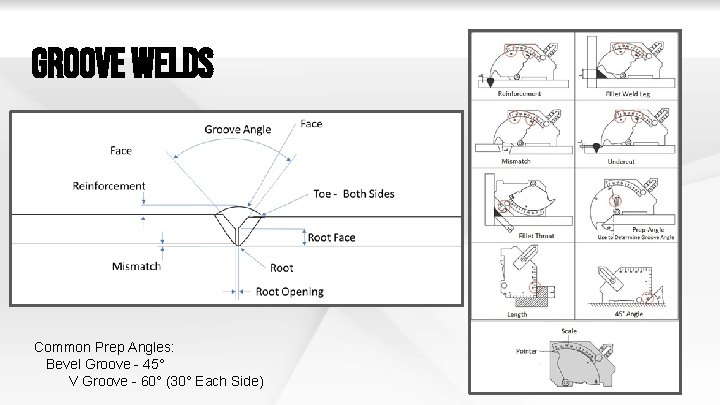

Groove Welds Common Prep Angles: Bevel Groove - 45° V Groove - 60° (30° Each Side)

Groove Welds

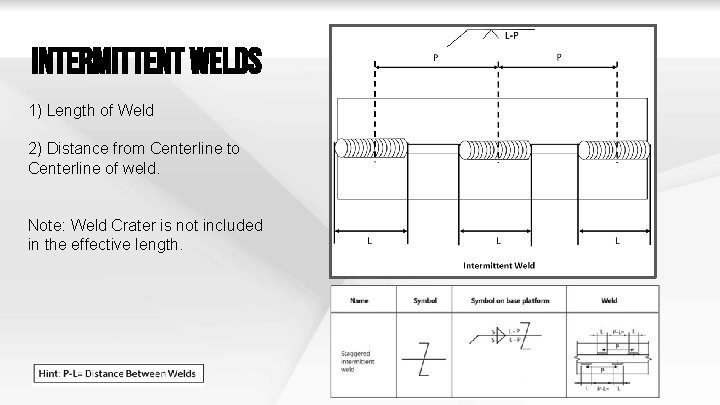

Intermittent Welds 1) Length of Weld 2) Distance from Centerline to Centerline of weld. Note: Weld Crater is not included in the effective length.

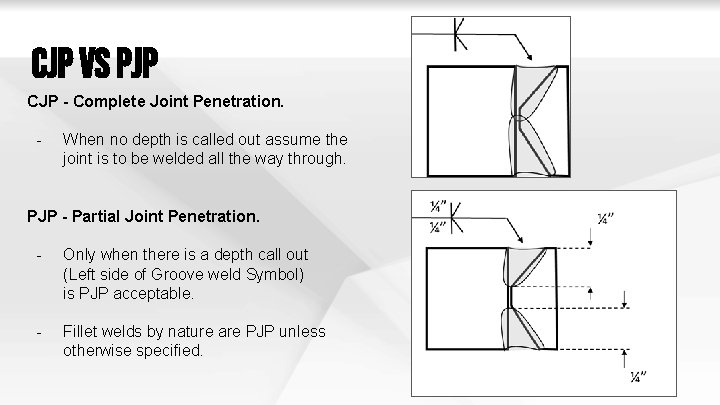

CJP vs PJP CJP - Complete Joint Penetration. - When no depth is called out assume the joint is to be welded all the way through. PJP - Partial Joint Penetration. - Only when there is a depth call out (Left side of Groove weld Symbol) is PJP acceptable. - Fillet welds by nature are PJP unless otherwise specified.

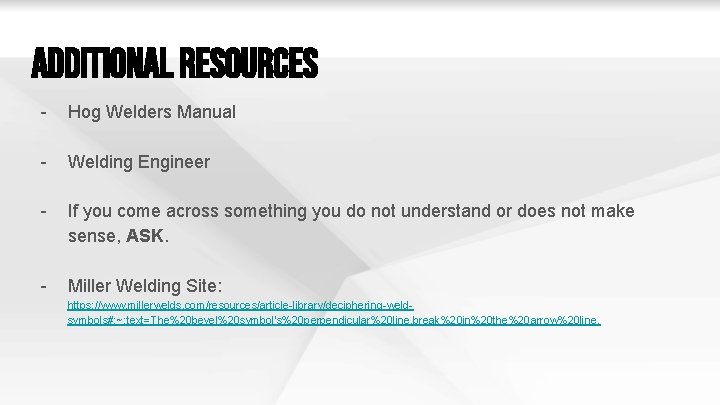

Additional Resources - Hog Welders Manual - Welding Engineer - If you come across something you do not understand or does not make sense, ASK. - Miller Welding Site: https: //www. millerwelds. com/resources/article-library/deciphering-weldsymbols#: ~: text=The%20 bevel%20 symbol's%20 perpendicular%20 line, break%20 in%20 the%20 arrow%20 line.
