Welded Wire Mesh Machine Welcome to visit our factory www. apmwiremeshmachine. com
Brief introduction of company Hebei Metal Enterprise Co. , Ltd. Formerly known as Anping Yilian Wire Mesh Machinery Factory. Yilian was established in 1995 by Mr. Duan. Our Machine won high praise all over China and our factory begin to think about entering into the international market. In 2003, with the police of “Going out ” , wire mesh exporting also reaches its climax! In 2004, after a series of founds, equipment's, workers etc. investments, Hebei Metal Enterprise Co. , Ltd was established and started the exporting of wire mesh machinery worldwide. Till 2012, Metal has dev eloped into a company with 3 engineers, 70 production line workers, 25 production assembly work ers, 5 after-sale maintenance personals. With International quality management system certificate ISO 9001: 2008 and CE certificate provid ent and our professional quality control worker’s effort, our products have been exported to more than 30 countries and regions, such as the United States, canada, Russia, Uzbekistan, Azerbaijan, Turkey, Iran India, Brazil, Pakistan, Saudi Arabia, Jordan etc. Our factory is about 300 km away from Beijing and Tianjin, and you are welcomed to visit our factory anytime. www. apmwiremeshmachine. com

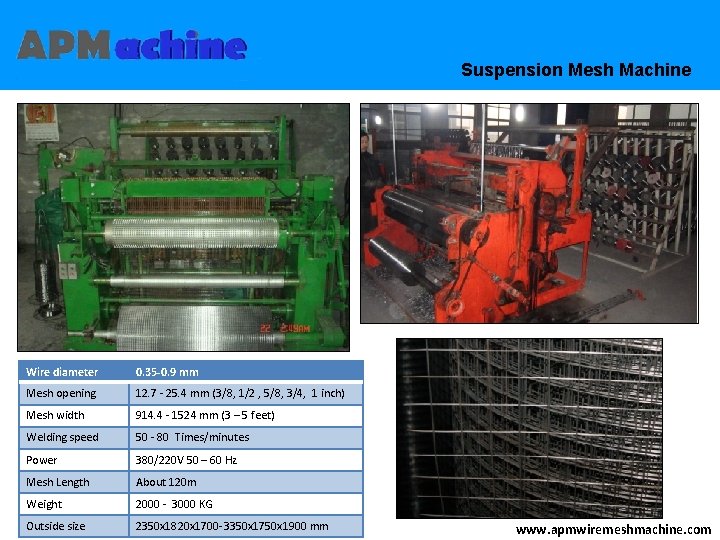

Suspension Mesh Machine Wire diameter 0. 35 -0. 9 mm Mesh opening 12. 7 - 25. 4 mm (3/8, 1/2 , 5/8, 3/4, 1 inch) Mesh width 914. 4 - 1524 mm (3 – 5 feet) Welding speed 50 - 80 Times/minutes Power 380/220 V 50 – 60 Hz Mesh Length About 120 m Weight 2000 - 3000 KG Outside size 2350 x 1820 x 1700 -3350 x 1750 x 1900 mm www. apmwiremeshmachine. com
Wire-feed Welding Machine Wire diameter 0. 6 - 1. 2 mm Mesh opening 12. 7 - 25. 4 mm (3/8, 1/2 , 5/8, 3/4, 1 inch) Mesh width 914. 4 - 1524 mm (3 – 5 feet) Welding speed 60 - 120 Times/minutes Power 380/220 V 50 – 60 Hz Mesh Length About 120 m Weight 2000 - 3000 KG Outside size 2350 x 1900 -3350 x 2000 mm www. apmwiremeshmachine. com
Wire-feed Welding Machine Wire diameter 1. 2 -2. 0 mm Mesh opening 25. 4 – 50. 8 mm (1, 1" x 1/2" , 1 -1/2“, 1" x 2“, 2 inch) Mesh width 914. 4 – 1828. 8 mm/3 – 6 feet Welding speed 50 - 110 Time/minute Power 380/220 V 50 – 60 Hz Mesh Length About 100 m /327. 8 feet Weight 2000 - 3000 KG Outside size 2350 x 1820 x 1700 -3950 x 1750 x 1900 mm www. apmwiremeshmachine. com

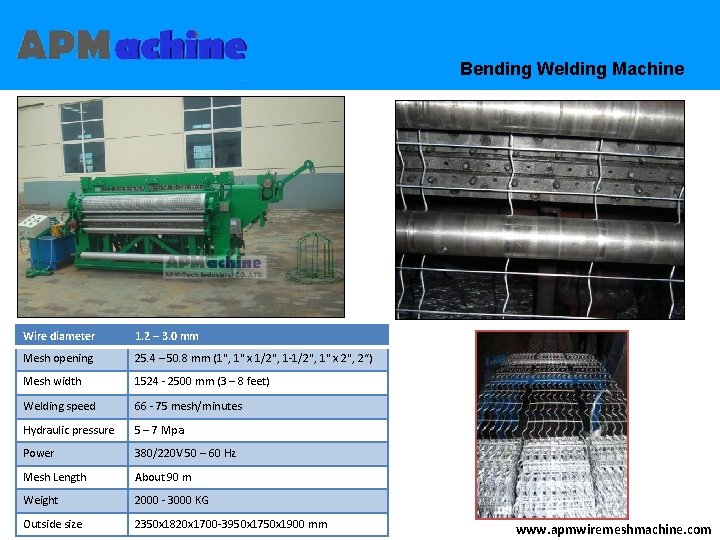

Bending Welding Machine Wire diameter 1. 2 – 3. 0 mm Mesh opening 25. 4 – 50. 8 mm (1", 1" x 1/2", 1 -1/2", 1" x 2", 2“) Mesh width 1524 - 2500 mm (3 – 8 feet) Welding speed 66 - 75 mesh/minutes Hydraulic pressure 5 – 7 Mpa Power 380/220 V 50 – 60 Hz Mesh Length About 90 m Weight 2000 - 3000 KG Outside size 2350 x 1820 x 1700 -3950 x 1750 x 1900 mm www. apmwiremeshmachine. com

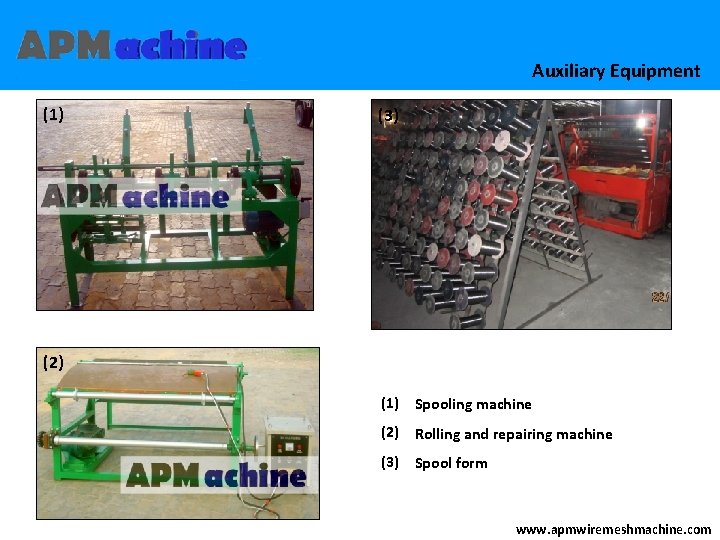

Auxiliary Equipment (1) (3) (2) (1) Spooling machine (2) Rolling and repairing machine (3) Spool form www. apmwiremeshmachine. com

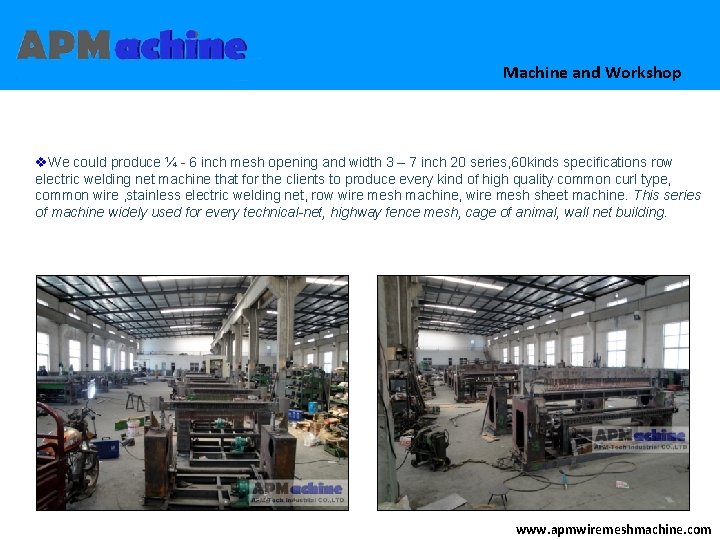

Machine and Workshop v. We could produce ¼ - 6 inch mesh opening and width 3 – 7 inch 20 series, 60 kinds specifications row electric welding net machine that for the clients to produce every kind of high quality common curl type, common wire , stainless electric welding net, row wire mesh machine, wire mesh sheet machine. This series of machine widely used for every technical-net, highway fence mesh, cage of animal, wall net building. www. apmwiremeshmachine. com
Fence Mesh Welding Machine Fence mesh welding machine by this machine is flat in surface and yield little diagonal tolerance. Technical Information: Wire diameter 2. 0 – 6. 0 mm Mesh opening 50 – 400 mm Mesh width 2500 mm Welding speed 50 mesh/minutes Hydraulic pressure 5 – 7 mpa Power 380/220 V 50 – 60 Hz Outside size 4300 x 2800 x 1400 mm Weight 4000 KG www. apmwiremeshmachine. com

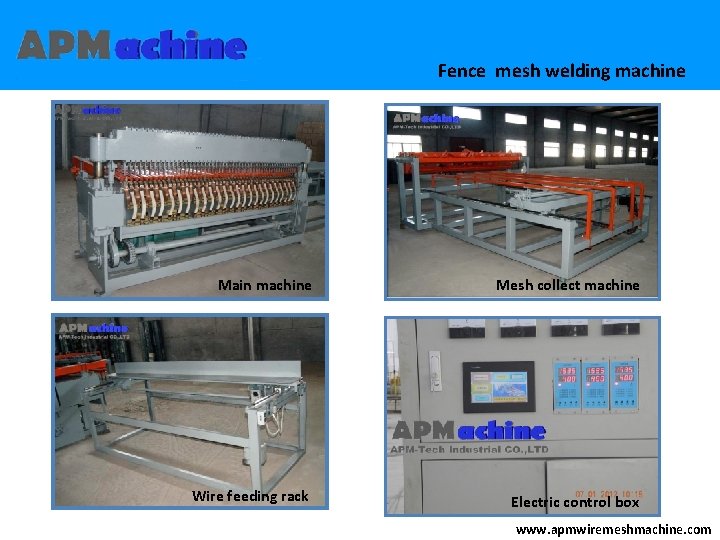

Fence mesh welding machine Main machine Mesh collect machine Wire feeding rack Electric control box www. apmwiremeshmachine. com

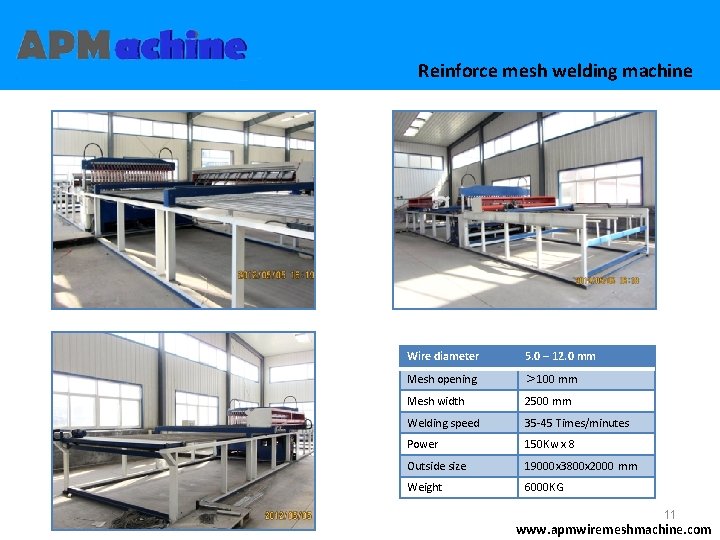

Reinforce mesh welding machine Wire diameter 5. 0 – 12. 0 mm Mesh opening > 100 mm Mesh width 2500 mm Welding speed 35 -45 Times/minutes Power 150 Kw x 8 Outside size 19000 x 3800 x 2000 mm Weight 6000 KG 11 www. apmwiremeshmachine. com

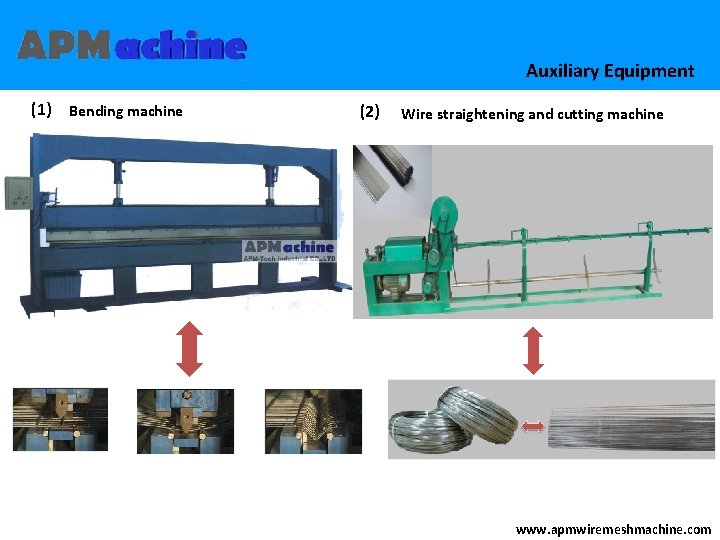

Auxiliary Equipment (1) Bending machine (2) Wire straightening and cutting machine www. apmwiremeshmachine. com

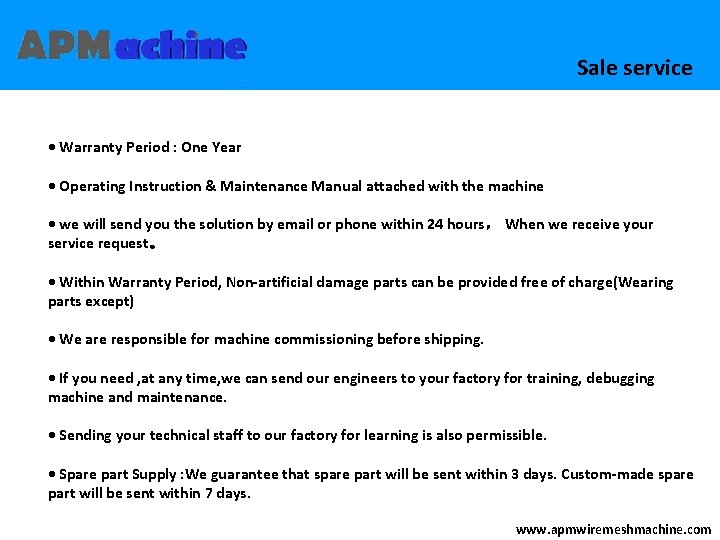

Sale service • Warranty Period : One Year • Operating Instruction & Maintenance Manual attached with the machine • we will send you the solution by email or phone within 24 hours, When we receive your service request。 • Within Warranty Period, Non-artificial damage parts can be provided free of charge(Wearing parts except) • We are responsible for machine commissioning before shipping. • If you need , at any time, we can send our engineers to your factory for training, debugging machine and maintenance. • Sending your technical staff to our factory for learning is also permissible. • Spare part Supply : We guarantee that spare part will be sent within 3 days. Custom-made spare part will be sent within 7 days. www. apmwiremeshmachine. com
Customers in the world Russia Canada Jordan Beijing Pakistan LA Tokyo U. S. A China Egypt Ontario Miami Kuala Lumpur Dubai India Santiago Jakarta Sydney Johannesburg Auckland 14 www. apmwiremeshmachine. com
Welded Wire Mesh Machine Welcome to visit our factory 单击此处编辑母版标题样式 单击此处编辑母版副标题样式 Our Culture: Hebei Metal Enterprise Co. , Ltd To To 2020/10/7 be credited be dedicated learn innovate Tel: +86 -311 -66792197 Fax: +86 -311 -66792192 Email: sales@apmwiremesh. com service@apmwiremesh. com Website: www. apmwiremesh. com 15
