Welcome Workshop 7 of 7 Todays Topics Data
- Slides: 21
Welcome! Workshop 7 of 7
Today's Topics Data Acquisition MAX DAQ Assistant Express VI DAQmx API Create Task Configure Trigger Start Task Read/Write Close Task Sampling Mode, Rate and Size my. DAQ Activity
Data Acquisition (DAQ) 1. 2. 3. 4. 5. Signal Terminal Block Cable DAQ Device Computer 3
Data Acquisition (DAQ) with my. DAQ 1. Signal 2. my. DAQ 3. Computer 3. 5 mm cable USB 4
Data Acquisition (DAQ): Software • NI-DAQmx Driver level software Detects DAQ devices Installs NI-DAQmx functions in Lab. VIEW • Measurement & Automation Explorer Configure and test DAQ device • DAQ Assistant Configurable Express VI used to create a DAQ application • DAQmx API Provides a set of VIs to program DAQ applications
Measurement & Automation Explorer • Configure and test DAQ device • Verify: - Installed devices - Installed software - Available remote devices • Access wiring diagrams
Measurement & Automation Explorer • My System – the local computer; the one you are currently using • Remote Systems – computers or devices (c. RIO, PXI) that are available to communicate with local computer through the internet • Devices and Interfaces- list of installed devices (on local computer is under My System) • Device currently installed • Device previously installed but not currently installed • Device ? ? ?
Demonstration: Using Measurement & Automation Explorer (MAX) - Plug in your my. DAQ and verify you can see it in MAX
DAQ terminology • Task: DAQmx’s method of organizing Analog Input, Analog Output, Digital Input, Digital Output underthe-hood; cannot have AO and AI in the same task • Channel: physical connection on the DAQ device; place where the wire(s) connect • Virtual Channel: DAQmx’s representation of a corresponding physical channel • Sampling Rate (Hz): how quickly a data point (sample) is acquired or generated. • Sample Mode: method of acquiring data- one point, chunks or continuously 9
DAQ Assistant • Quick way to create a VI that acquires data. • Place DAQ Assistant on block diagram -> configuration window will pop up -> configure your device -> press OK and Lab. VIEW will build the DAQ task 10
Demonstration: Configuring the DAQ Assistant
DAQmx API: set of DAQ functions 12
DAQ: Basic Flow A basic DAQmx application involves the following process: only do read/write within the loop Create Task Configure Task Start Task Acquire or Generate Data Clear Task 13
DAQ: Example 14
ELVISmx - Driver on top of DAQmx specifically for my. DAQ and ELVIS instruments

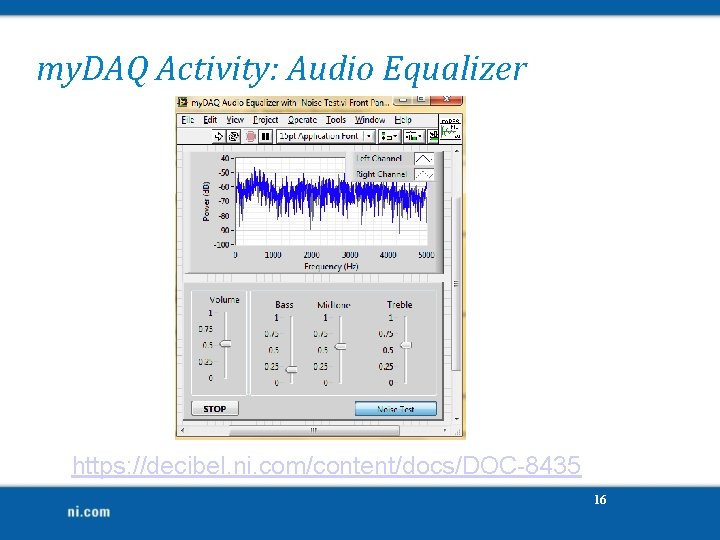

my. DAQ Activity: Audio Equalizer https: //decibel. ni. com/content/docs/DOC-8435 16

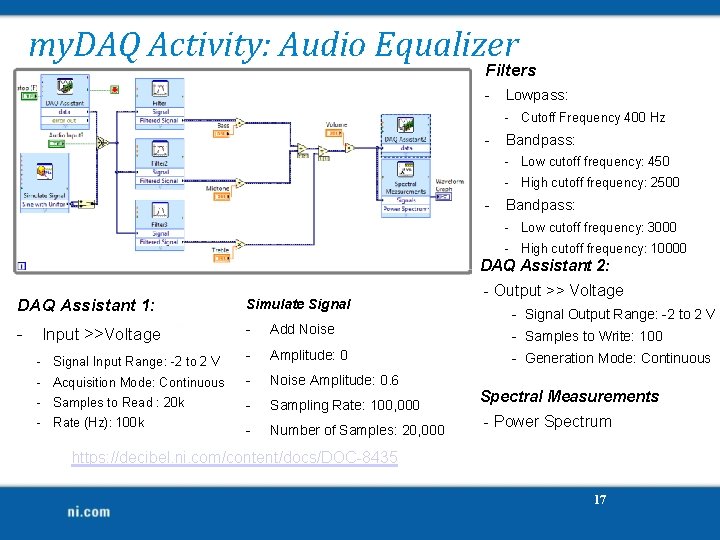

my. DAQ Activity: Audio Equalizer Filters - Lowpass: - Cutoff Frequency 400 Hz - Bandpass: - Low cutoff frequency: 450 - High cutoff frequency: 2500 - Bandpass: - Low cutoff frequency: 3000 - High cutoff frequency: 10000 DAQ Assistant 2: - Output >> Voltage DAQ Assistant 1: Simulate Signal - - Add Noise - Samples to Write: 100 - Amplitude: 0 - Generation Mode: Continuous Acquisition Mode: Continuous - Noise Amplitude: 0. 6 Samples to Read : 20 k - Sampling Rate: 100, 000 - Number of Samples: 20, 000 Input >>Voltage - Signal Input Range: -2 to 2 V Rate (Hz): 100 k - Signal Output Range: -2 to 2 V Spectral Measurements - Power Spectrum https: //decibel. ni. com/content/docs/DOC-8435 17
Demonstration: Completed Audio Equalizer
Resources • Download NI DAQmx Driver (http: //joule. ni. com/nidu/cds/view/p/id/2888/lang/en) o Ni. com o Click on Support o Click on Drivers and Updates o Click on NI DAQmx o Click on NI-DAQmx, version 9. 5 (this will bring up the instructions on how to download the DAQmx toolkit) • my. DAQ ideas o Ni. com/my. DAQzone
Homework • Register for the CLAD by Friday March 23 rd • Work on creating a game • Study for CLAD • Go to ni. com/mst for CLAD Review Resources • Take the practice exams • Review the Study Guide • Webcast for most missed problems • Interested in being an LSA? • Student Design Competition
Proficiency Quiz
