Welcome to World Geography Using Maps Basic Map
Welcome to World Geography! Using Maps

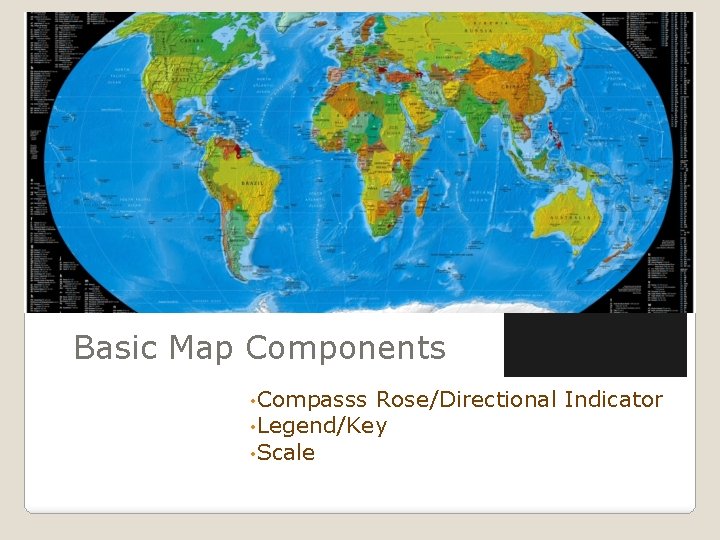

Basic Map Components • Compasss Rose/Directional Indicator • Legend/Key • Scale
AKA: directional indicator Shows cardinal directions ◦ N, S, E, W Often indicates intermediate directions ◦ NE, SW, NW Compass Rose

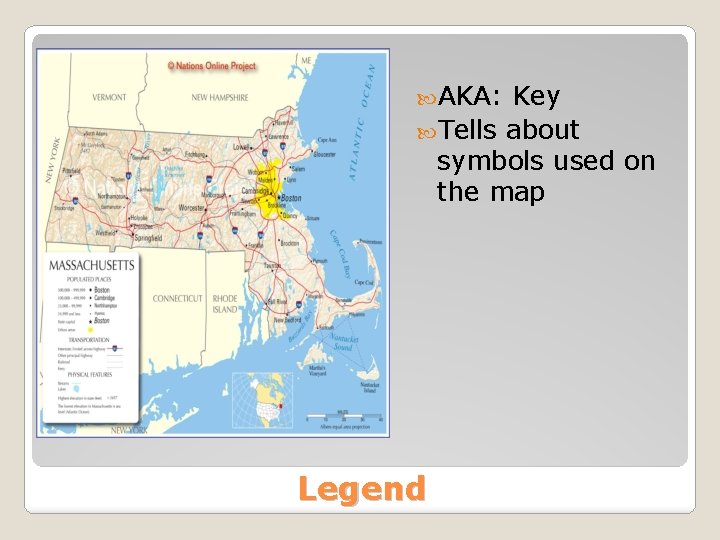

AKA: Key Tells about symbols used on the map Legend
Tells about the size of a map in relation to the size of the real world How? ◦ Gives the ratio between distances on the map and actual distances on the earth Shown in both miles (mi) and kilometers (km) Scale
Parallels of Latitude Meridians of longitude The Global Grid

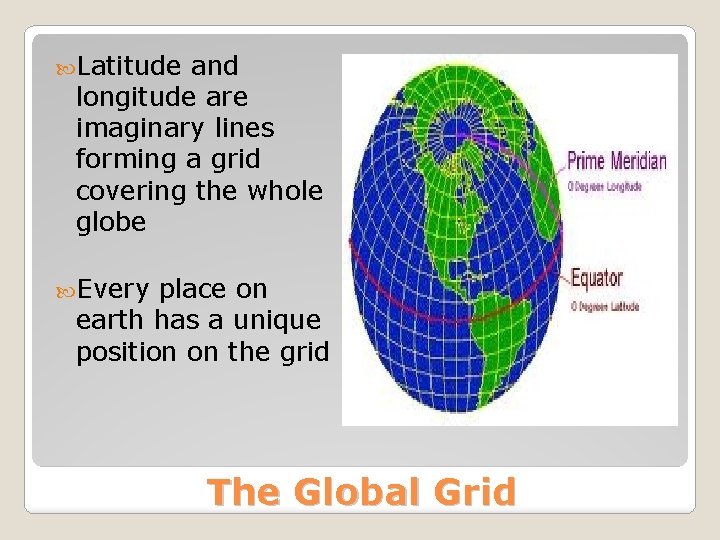

Latitude and longitude are imaginary lines forming a grid covering the whole globe Every place on earth has a unique position on the grid The Global Grid

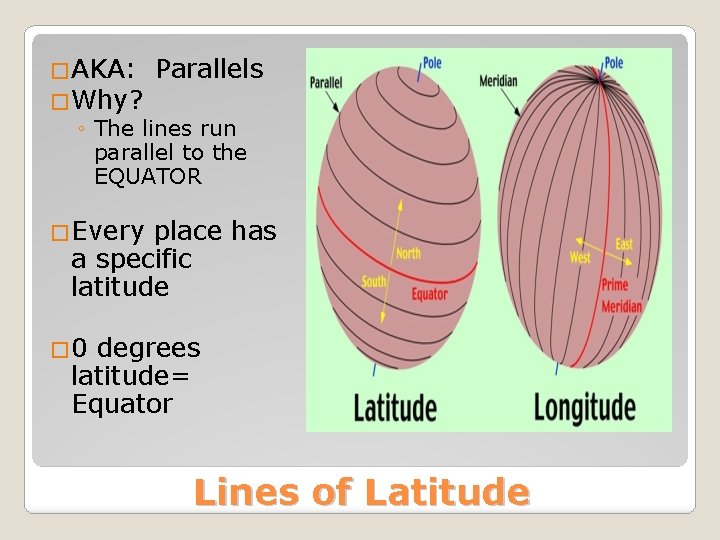

�AKA: Parallels �Why? ◦ The lines run parallel to the EQUATOR �Every place has a specific latitude � 0 degrees latitude= Equator Lines of Latitude

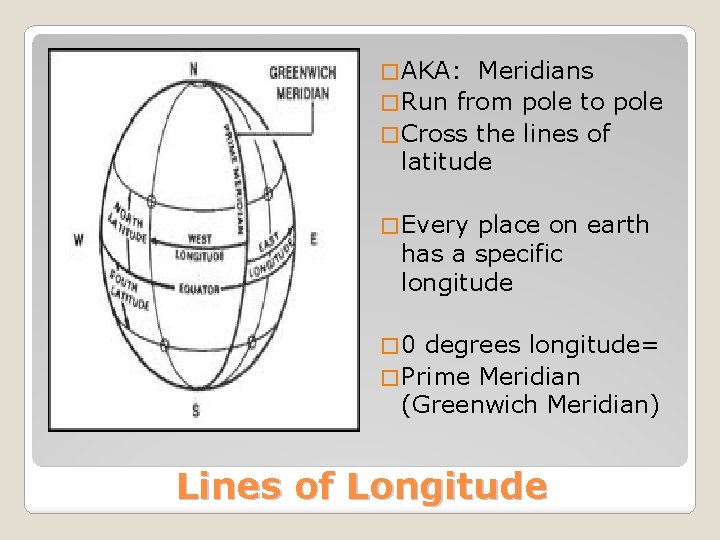

� AKA: Meridians � Run from pole to pole � Cross the lines of latitude � Every place on earth has a specific longitude � 0 degrees longitude= � Prime Meridian (Greenwich Meridian) Lines of Longitude

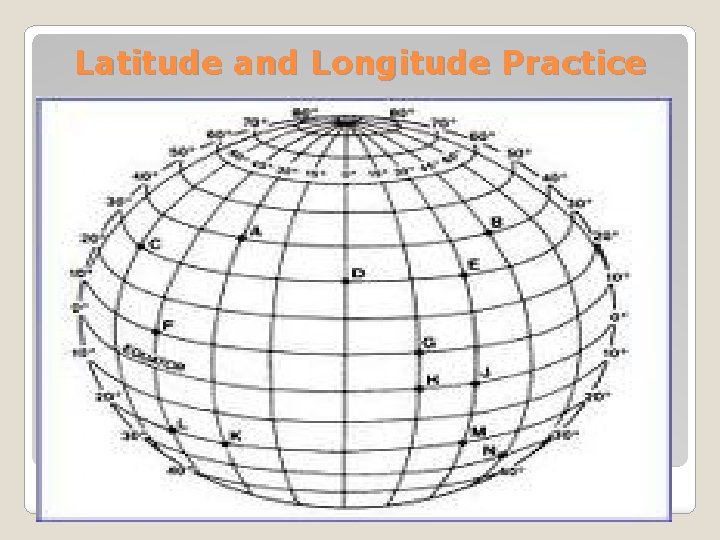

Latitude and Longitude Practice

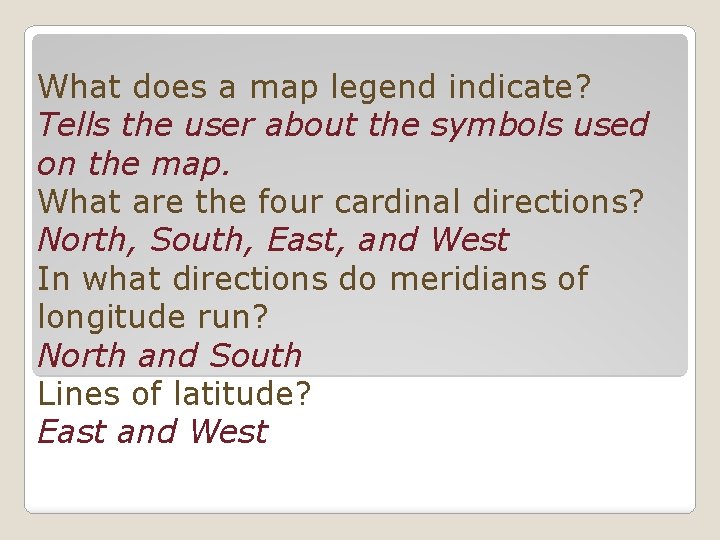

What does a map legend indicate? Tells the user about the symbols used on the map. What are the four cardinal directions? North, South, East, and West In what directions do meridians of longitude run? North and South Lines of latitude? East and West
Displaying Information Globe: the MOST ACCURATE method of showing the entire surface of the earth What are possible problems of carrying a globe around with you?

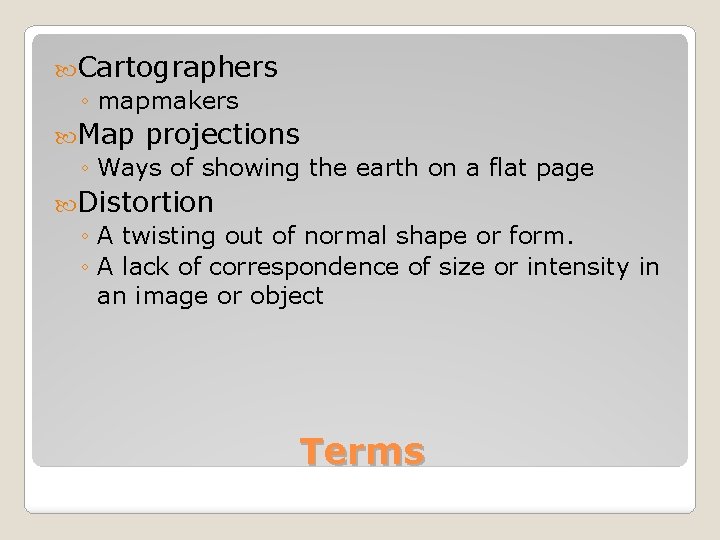

Cartographers ◦ mapmakers Map projections ◦ Ways of showing the earth on a flat page Distortion ◦ A twisting out of normal shape or form. ◦ A lack of correspondence of size or intensity in an image or object Terms

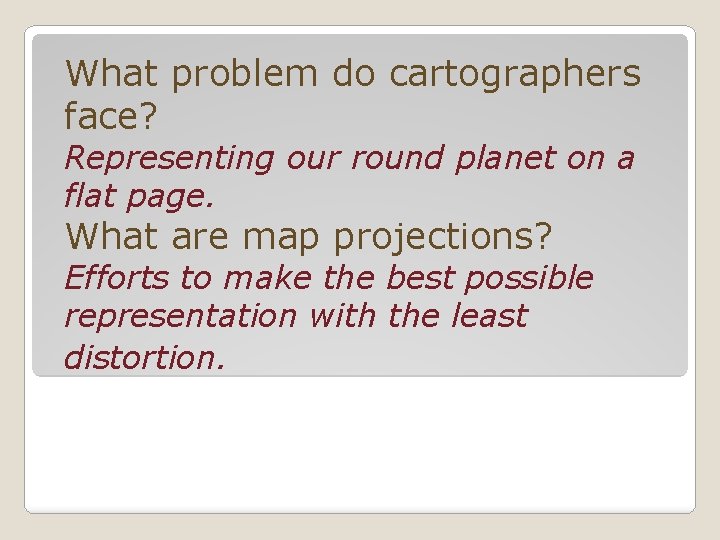

What problem do cartographers face? Representing our round planet on a flat page. What are map projections? Efforts to make the best possible representation with the least distortion.

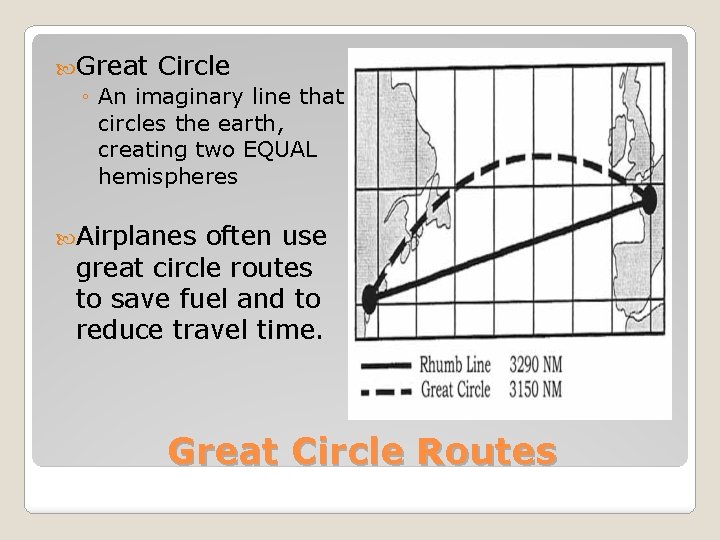

Great Circle ◦ An imaginary line that circles the earth, creating two EQUAL hemispheres Airplanes often use great circle routes to save fuel and to reduce travel time. Great Circle Routes
� � loxodrome curve cutting the meridians of a sphere at a constant nonright angle. Thus, it may be seen as the path of a ship sailing always oblique to the meridian and directed always to the same point of the compass. Pedro Nunes, who first conceived the curve (1550), mistakenly believed it to be the shortest path joining two points on a sphere (see great circle route). Any ship following such a course would, because of convergence of meridians on the poles, travel around the Earth on a spiral that approaches one of the poles as a limit. On a Mercator projection such a line ( rhumb line) would be straight. Rhumb lines are used to simplify smallscale charting � Encyclopedia Britannica, 2008. Encyclopedia Britannica Online. Trivia Time!

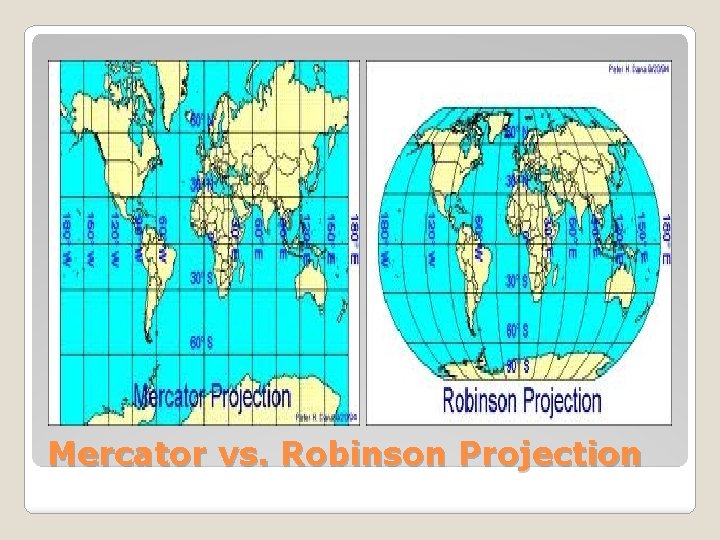

Mercator vs. Robinson Projection

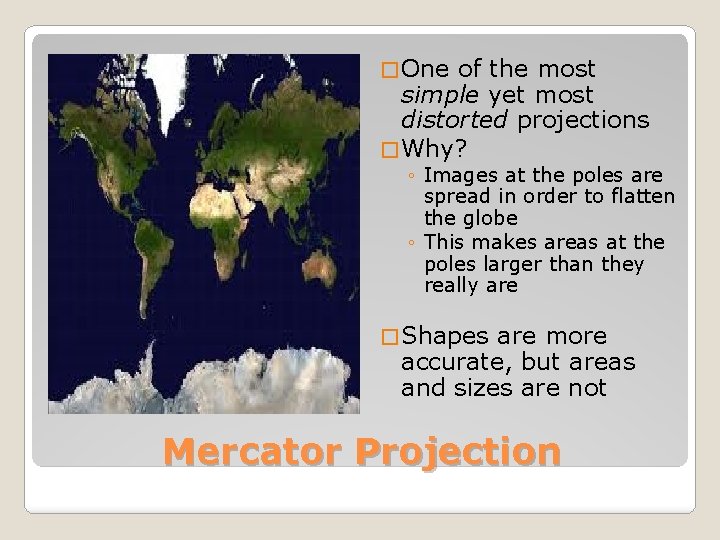

� One of the most simple yet most distorted projections � Why? ◦ Images at the poles are spread in order to flatten the globe ◦ This makes areas at the poles larger than they really are � Shapes are more accurate, but areas and sizes are not Mercator Projection
Less size and shape distortion Areas at the poles appear flatter than they really are Land on eastern and western edges are fairly accurate in size and shape Robinson Projection

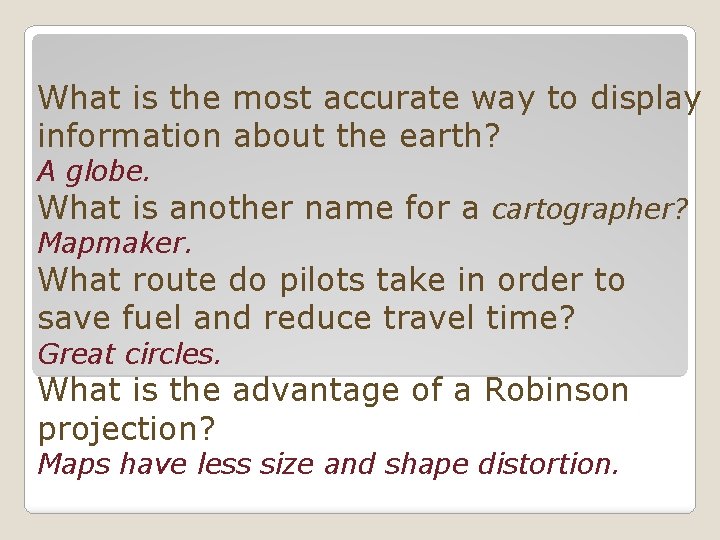

What is the most accurate way to display information about the earth? A globe. What is another name for a cartographer? Mapmaker. What route do pilots take in order to save fuel and reduce travel time? Great circles. What is the advantage of a Robinson projection? Maps have less size and shape distortion.
Types of Maps

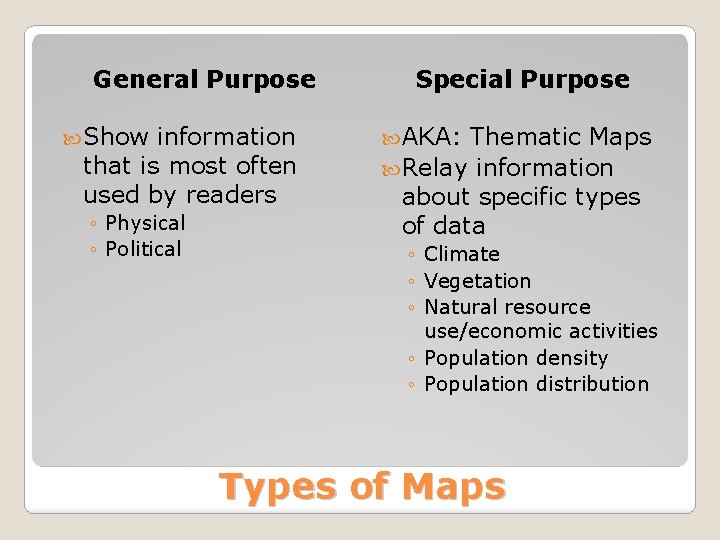

General Purpose Show information that is most often used by readers ◦ Physical ◦ Political Special Purpose AKA: Thematic Maps Relay information about specific types of data ◦ Climate ◦ Vegetation ◦ Natural resource use/economic activities ◦ Population density ◦ Population distribution Types of Maps
AKA: Relief maps Show physical features of an area ◦ Mountains ◦ Rivers ◦ Lakes Relief-the changing elevation of the land Colors used: ◦ Green for lower relief ◦ Brown for higher relief ◦ Blue for water bodies Physical Maps

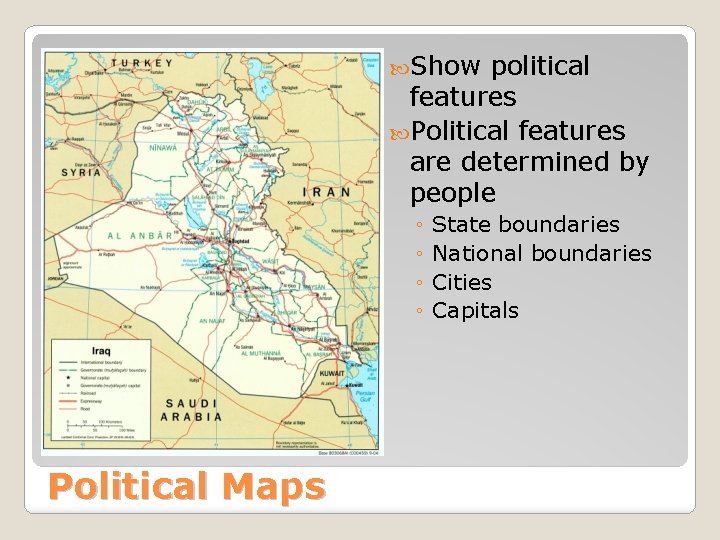

Show political features Political features are determined by people ◦ ◦ Political Maps State boundaries National boundaries Cities Capitals

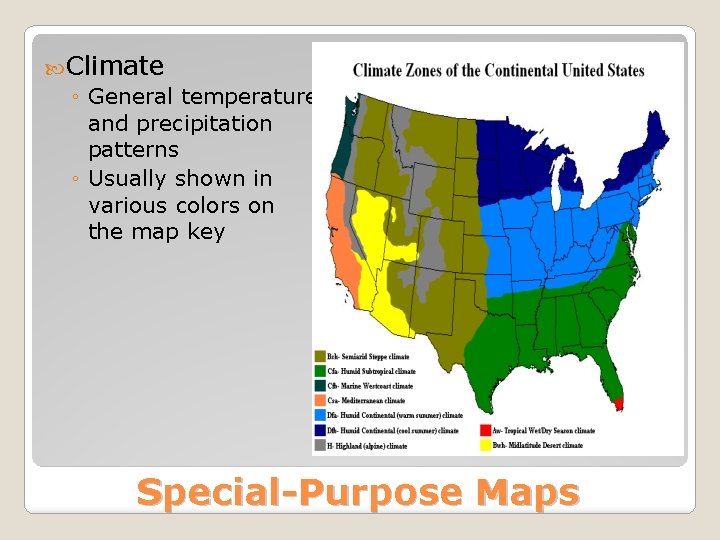

Climate ◦ General temperature and precipitation patterns ◦ Usually shown in various colors on the map key Special-Purpose Maps

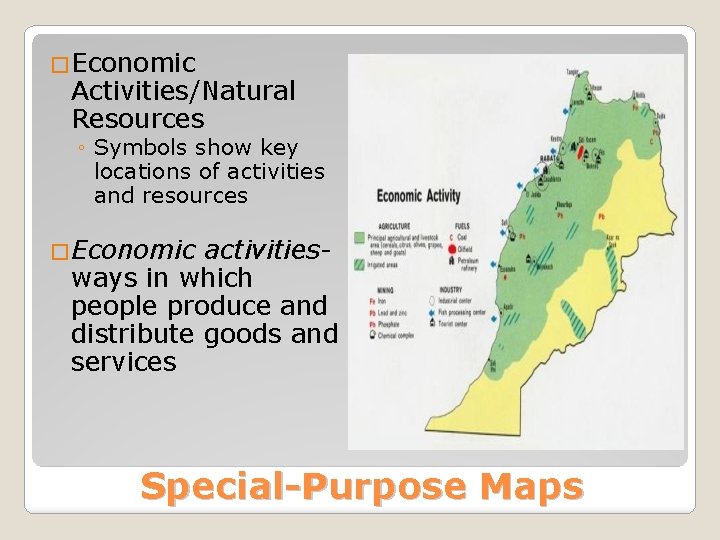

�Economic Activities/Natural Resources ◦ Symbols show key locations of activities and resources �Economic activitiesways in which people produce and distribute goods and services Special-Purpose Maps

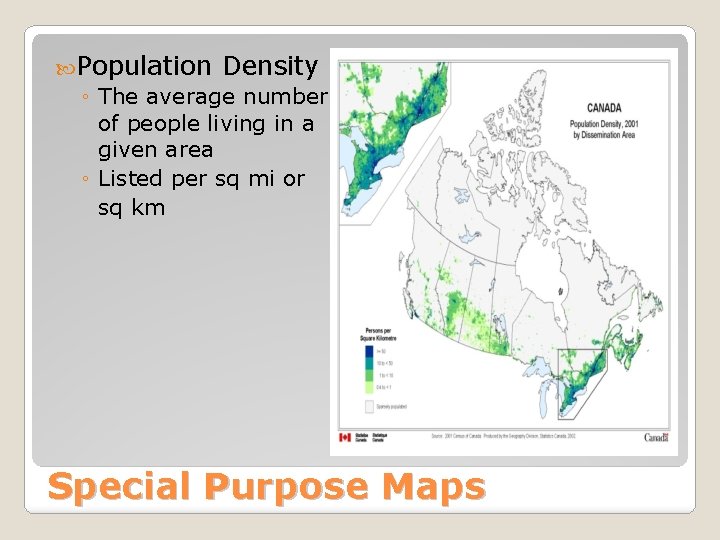

Population Density ◦ The average number of people living in a given area ◦ Listed per sq mi or sq km Special Purpose Maps
How does a natural resources map show where different resources are found? By using symbols to show key locations of activities and resources. What is the difference between an economic activity and a natural resource? Economic activities-ways in which people produce and distribute goods and services Natural resource-item in the environment that people need and value
