Welcome To The Webinar New HDCP Encoders and
Welcome To The Webinar New HDCP Encoders and 4 K Media Player IP Video & Digital Signage Solutions
Today’s Presenters Euan Long Grant Prophet Melissa Favre-Lorraine Product Manager Product Marketing Manager
Welcome • • • Questions will be covered at the end of each section Please enter questions into the “Questions” box in your webinar application Or email us at webinar@exterity. com
38 -series HDCP Encoders Firmware Version 2. 1 Euan Long Product Manager IP Video & Digital Signage Solutions
Contents • • • Product line Features and benefits Summary Marketing Questions
Product line changes – HD HDMI encoders Predecessor: 37 -series HD encoder platform Description Product code Notes Avedia. Stream e 3730 HDCP 32 encoder blade, single HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 32 end points, enhanced features avstr-e 3730 -hdcp-32 No longer available. Will be replaced with avstr-e 3830 -hdcp-32 Avedia. Stream e 3732 HDCP 32 encoder blade, dual HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 32 end points, enhanced features avstr-e 3732 -hdcp-32 No longer available. Will be replaced with avstr-e 3832 -hdcp-32 Description Product code Notes Avedia. Stream e 3830 HDCP 32 encoder blade, single HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 32 end points, enhanced features avstr-e 3830 -hdcp-32 Available June 2020 Avedia. Stream e 3832 HDCP 32 encoder blade, dual HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 32 end points, enhanced features avstr-e 3832 -hdcp-32 Available June 2020 NEW: 38 -series HDCP 32 encoders
Product line changes – HD HDMI encoders Predecessor: 37 -series HD encoder platform Description Product code Notes Avedia. Stream e 3730 HDCP Pro encoder blade, single HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 1000 end points, enhanced features avstr-e 3730 -hdcp-pro No longer available. Will be replaced with avstr-e 3830 -hdcp-pro Avedia. Stream e 3732 HDCP Pro encoder blade, dual HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 1000 end points, enhanced features avstr-e 3732 -hdcp-pro No longer available. Will be replaced with avstr-e 3832 -hdcp-pro Description Product code Notes Avedia. Stream e 3830 HDCP Pro encoder blade, single HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 1000 end points, enhanced features avstr-e 3830 -hdcp-pro Available July 2020 Avedia. Stream e 3832 HDCP Pro encoder blade, dual HD HDMI in, up to 1080 p out, HDCPv 2. 2 out to 1000 end points, enhanced features avstr-e 3832 -hdcp-pro Available July 2020 NEW: 38 -series HDCP Pro encoders
Features and benefits • HDCP 32 • • HDCP Professional • • • Means that during installation or troubleshooting, end-to-end video can be proven to end points (HDCP models only) Video scaling • • As per HDCP 32, but with support for up to 1000 media players per stream As with the 37 -series encoders, this requires a legal agreement completed by the end customer Test patterns • • Means that premium HDMI content, such as from a satellite set top box, can be legally protected end-to-end for delivery to up to 32 Exterity media players per stream Means that video output compatibility with end points can be achieved even if the end point does not support the source video resolution and/or frame rate (HDCP models only) Web. UI help hyperlink • A clickable link for easy access to encoder admin guides online
HDCP Professional notes • HDCP Professional encoders “-hdcp-pro” require an up-front legal agreement to be completed by the end customer including • • Basic installation details Statement that the HDCP Professional encoder will not be installed in a multi-dwelling unit such as student accommodation, apartment blocks etc. Confirmation that the customer has the rights to distribute the content The document is managed using the Docu. Sign electronic signature platform
Summary • 38 -series HDCP 32 and HDCP Professional encoders launch with: • • • HDCP 32/Professional for protected content to 32/1000 Media Players per stream Test patterns for end-to-end AV testing during site set-up (HDCP models only) Video scaling for output video compatibility with end points (HDCP models only) Web. UI help hyperlink for easy access to encoder admin guides Available July 2020

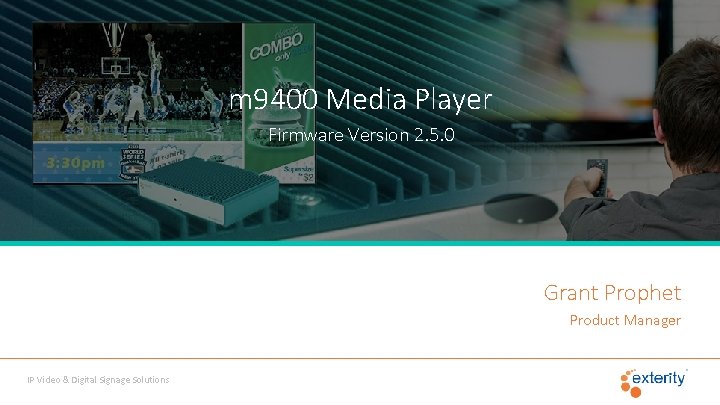

m 9400 Media Player Firmware Version 2. 5. 0 Grant Prophet Product Manager IP Video & Digital Signage Solutions
Contents • New m 9400 Media Player • Firmware Version V 2. 5. 0 • Features & Benefits • HDMI-CEC support • Security upgrades • Reboot into previous state • Online help hyperlink
The New m 9400 Media Player • Designed for Artio. Guest • Features: • • • CEC TV control support Reboot to previous state to minimise guest interruption Security upgrades
The New m 9400 Media Player • • Designed for Artio. Guest 4 K video quality and high-resolution interface (1080) • Discoverable by Smart Control • Responsive performance • Remote control support
Capability Table • Model Video AG Graphics AS Graphics Artio. Guest Artio. Sign 94 Series m 9405 4 K 1080 Y Y m 9400 4 K 1080 - Y N 93 Series m 9305 HD 720 1080 Y Y r 9300 HD 720 - Y N The m 9400 is available to ship June 2020
V 2. 5. 0: HDMI-CEC Support • • • m 9400 and m 9405 Media Players now support sending HDMI-CEC commands to the TV Control the on/off state of the TV using only the Media Player remote On/off commands send via Smart Control are also passed over CEC, enabling remote, central control of both Media Players and the displays they are attached to
V 2. 5. 0: HDMI-CEC Support Use Case I have multiple displays around my office building connected to m 9405 Media Players. To conserve energy, all of the displays are turned off at night, and back on again in the morning. Benefit Rather than having someone manually turn on and off displays throughout an entire building, this can be done centrally by sending commands to the Media Players, which will in turn pass them on to the display.
V 2. 5. 0: Security Upgrades • 94 -series Media Players now support the import of signed certificates • • • Eliminates browser security warnings when accessing Web UI (HTTPSprotected traffic between the Media Player and the browser) Stricter password requirements have been implemented, with a minimum character requirement , and palindromes/dictionary words are not accepted • This mirrors the e 38 series encoder password requirements • Note: existing passwords still work after upgrade Ability to disable SSDP for customers who perceive it as insecure
V 2. 5. 0: Security Upgrades Use Case My organisation has very strict security requirements for all networked devices. Benefit Strict password requirements and visible security certificates ensure that 94 -series Media Players are suitable for use within organisations with stringent network security requirements.
V 2. 5. 0: Reboot Into Previous State • • When upgraded, Media Players will return to the previous state they were in before the upgrade This ensures minimal disruption to viewers, and enables customers to upgrade units at convenient times where viewership is low (e. g. at night)
V 2. 5. 0: Reboot Into Previous State Use Case I have a cruise ship fitted out with m 9400 s in the cabins, and need to upgrade them all. I want to do this at night so as to minimise guest disruption. Benefit Once the units have been upgraded, they will reboot into the previous state, so if the guest TV is in standby, it will not light up and disturb them in the middle of the night.
V 2. 5. 0: Online Help Hyperlink • For end users who require a little more help with their Media Players, there is now a hyperlink in the Web UI which navigates to the online help pages
Marketing • Brochure / website and datasheet updates • Product update email • Social media posts • Info. Comm Connected 16 -18 June
Questions • Please submit any questions to webinar@exterity. com • Don't forget to take our survey
