Welcome to the Steinel Academy STEINEL ACADEMY 1
- Slides: 35
Welcome to the Steinel Academy STEINEL ACADEMY 1
Technology basics sensor technology Company presentation Sensor technology application Sensor range Indoor sensor light range Outdoor sensor light range Intensive sens. IQ Intensive RS PRO Intensive Control Pro KNX RELUX STEINEL ACADEMY Sensor-switched floodlight range Impulser range Intensive Impulser PROLog 2
Technology basics sensor technology Company presentation Sensor technology application Sensor range Indoor sensor light range Outdoor sensor light range Intensive sens. IQ Intensive RS PRO Intensive Control Pro KNX RELUX STEINEL ACADEMY Sensor-switched floodlight range Impulser range Intensive Impulser PROLog 3
Intelligent Lighting for Professionals. STEINEL ACADEMY 4
STEINEL Professional Committed to building the best sensors and sensor lights STEINEL ACADEMY 5
Know-how, efficiency and precision Control PRO system – performance counts STEINEL ACADEMY 6
Training content 1. What is KNX? 2. History of KNX 3. Communication media 4. KNX Installation 4. 1 5. TP Topology STEINEL Control Pro KNX 5. 1 Technical Specifications 5. 2 Features 6. ETS 4 Demo V 1. 00 STEINEL ACADEMY 7
1. What is KNX? STEINEL ACADEMY 8
KNX is the worldwide approved INTERNATIONAL STANDARD for home- and building control. • International Standard ISO/IEC 14543 -3 • European Standard (CENELEC EN 50090 and CEN EN 13321 -1 and 13321 -2) • Chinese Standard (GB/Z 20965) • ANSI/ASHRAE Standard (ANSI/ASHRAE 135) STEINEL ACADEMY 9

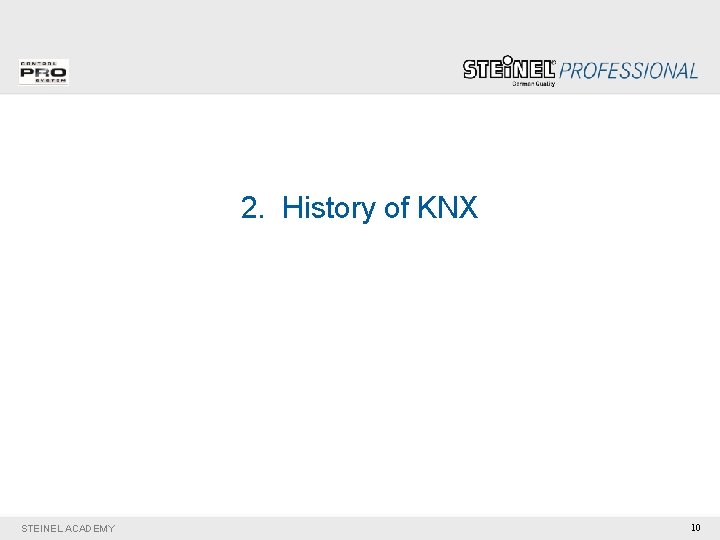

2. History of KNX STEINEL ACADEMY 10
BCI STEINEL ACADEMY EHSA EIBA 11
3. Communication media STEINEL ACADEMY 12
Supported media: • Twisted Pair (TP) • Powerline (PL) • Radio frequency (RF) • IP (Ethernet) STEINEL ACADEMY 13
4. KNX installation STEINEL ACADEMY 14
STEINEL ACADEMY 15
4. 1 TP Topology STEINEL ACADEMY 16
Line: • The smallest installation unit is a line. It can consist of a maximum of 4 line segments, each with up to 64 devices STEINEL ACADEMY 17
DVC = Device LR = Line repeater PS/Ch = Power supply with choke STEINEL ACADEMY 18
The following limit values apply for the cable lenghts within a line: • Length of a line segment • Distance between power supply and bus devices • Distance between 2 power supplies incl. Chokes • Distance between two bus devices STEINEL ACADEMY max. 1000 m max. 350 m max. 200 m max. 700 m 19
Area: • If more than 1 line is used, up to 15 lines can be connected to a main line via a line coupler and combined into an area. STEINEL ACADEMY 20
LC = Line coupler PS/Ch = Power supply with choke STEINEL ACADEMY 21
Several areas: • Several areas can be extended via the backbone line whereby each backbone coupler links its area to the backbone line STEINEL ACADEMY 22
DVC = Device LC = Line coupler BC = Backbone coupler PS/Ch = Power supply with choke STEINEL ACADEMY 23
6. STEINEL Control Pro KNX STEINEL ACADEMY 24
Calibration Description and ETS database 1: http: //knx. steinel. de/ 1 ETS STEINEL ACADEMY version 3. 0 f and higher 25
5. 1 Technical Specifications STEINEL ACADEMY 26
• KNX mains connection: 24 V via KNX bus voltage • Settings: ETS, remote control, bus • Lighting outputs • HVAC output • Presence output • Light-level output • Scenario outputs STEINEL ACADEMY 27
5. 1 Features STEINEL ACADEMY 28
Lighting outputs: • switching-mode or constant-lighting mode • 4 channels (interdependent) • full- or semi-automatic • IQ-mode • stay-On time / light-level are changeable by bus • basic illumination • disable and enable output by bus STEINEL ACADEMY 29
HVAC output: • switch-ON delay (with room surveillance) • stay-ON time • switch-ON delay and stay-ON time are changeable by bus • disable and enable output by bus STEINEL ACADEMY 30
Presence output: • switch-ON delay (with min. number of movements) • send presence cyclically • switch-ON delay and stay-ON time are changeable by bus • disable and enable output by bus STEINEL ACADEMY 31
Light level output: • min. light-level change • send measured level cyclically STEINEL ACADEMY 32
Scenario outputs: • scene control of 4 scene STEINEL ACADEMY 33
6. ETS 4 Demo STEINEL ACADEMY 34
Thank you for your attention! STEINEL ACADEMY 35
