Welcome to the Software Universe A Roadmap to

Welcome to the Software Universe A Roadmap to Solution Architecture Ralf Westphal, info@ralfw. de Consultant, Trainer, Author, Speaker on. NET architectural issues, MVP One Man Think Tank, Hamburg, Germany Session Code: ARC 202

X

The Fundamental Structure of Software (

about Forget classes! (for a while at least)

Building Blocks (

Software consists of Functional Units

Functional Units can have State (but don´t need to)

Functional Units are nested

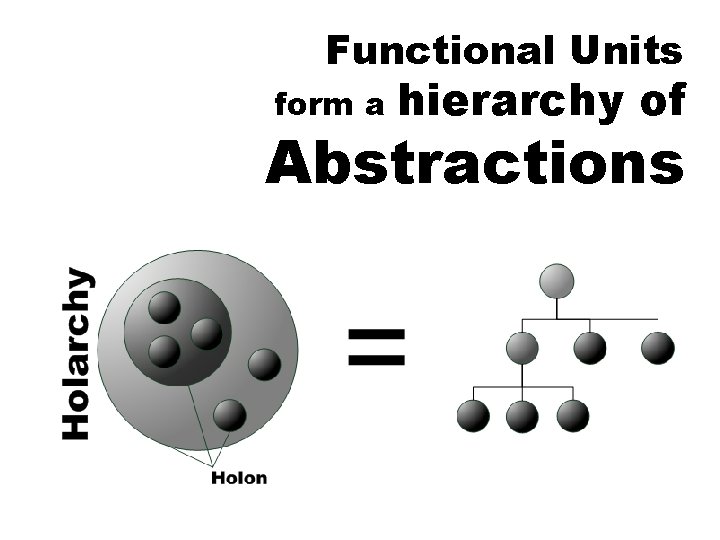

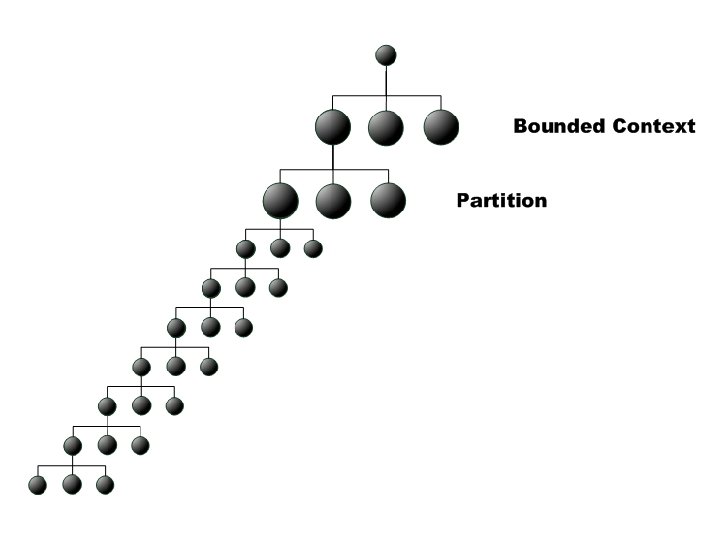

Functional Units form a hierarchy of Abstractions

The Software Universe (

Grounding the Holarchy in programming artifacts

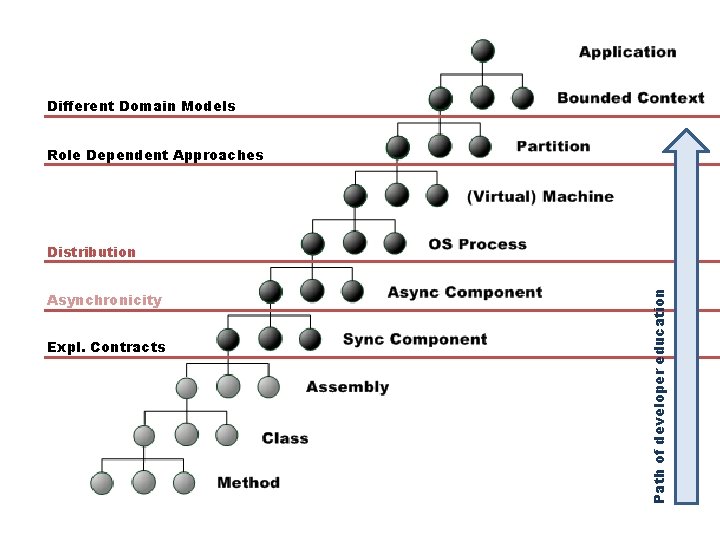

SOA DDD Application Architectural relevant Levels N-Tier ure t c e t i h c r A WSDL CCR L Arch ayered itect ure P O O De P n g si s n r e att DD D

Different Domain Models Role Dependent Approaches Asynchronicity Expl. Contracts Path of developer education Distribution

Where have all those classes gone?

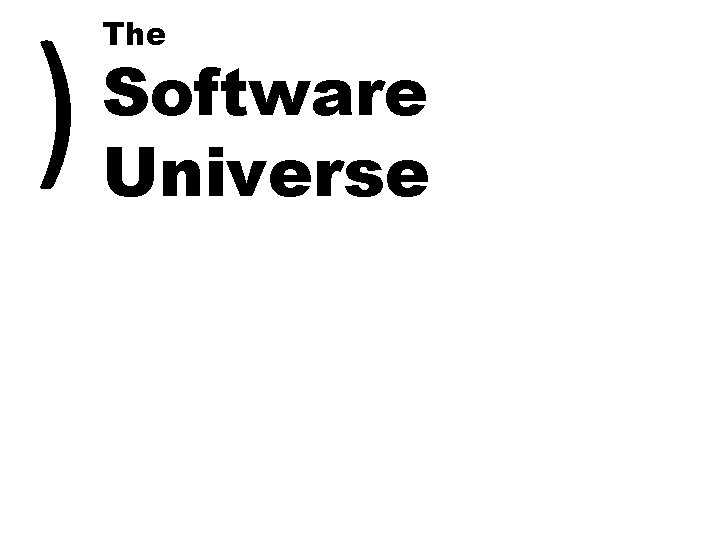

) The Software Universe

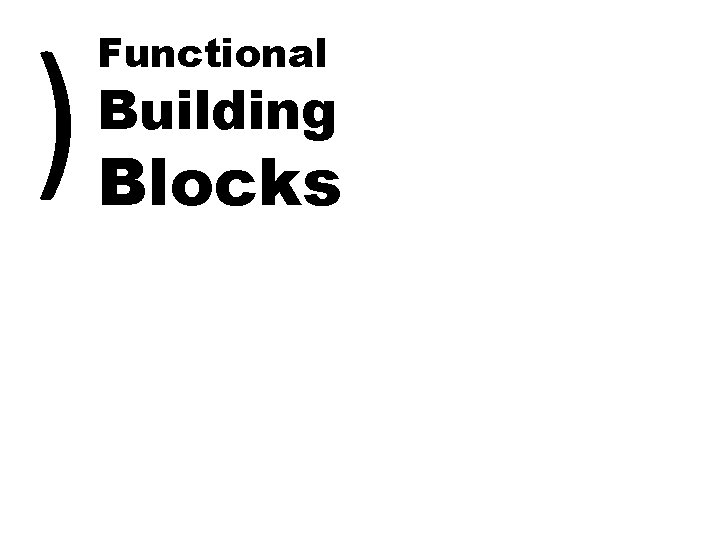

) Functional Building Blocks

Functional Dependencies (

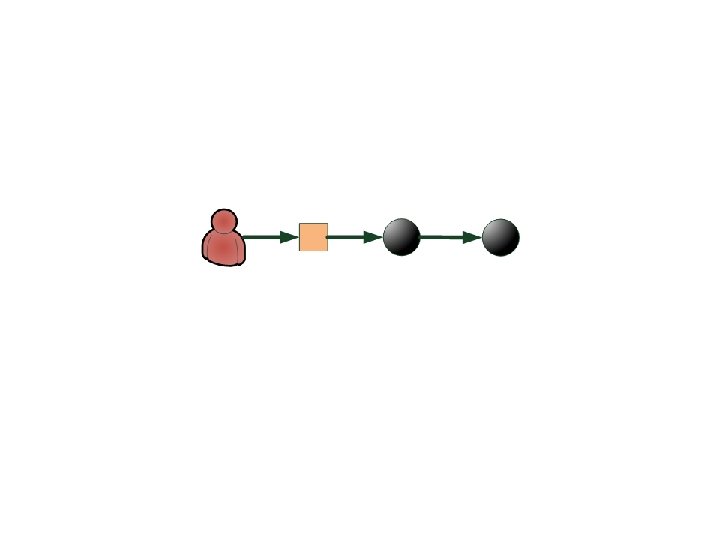

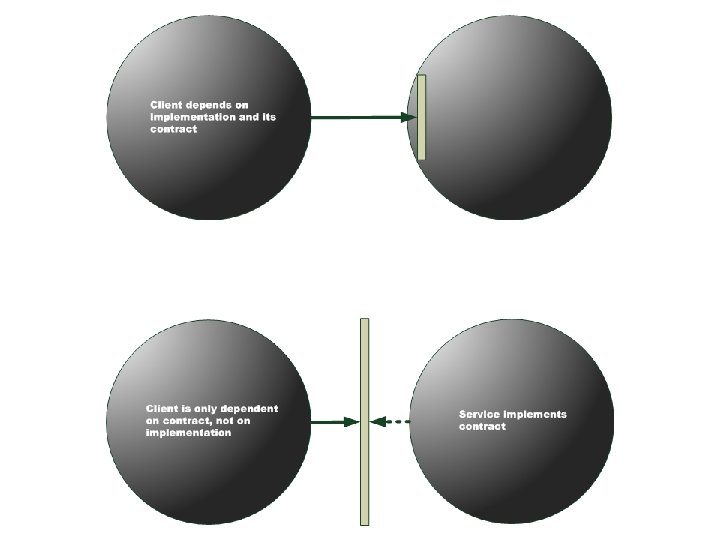

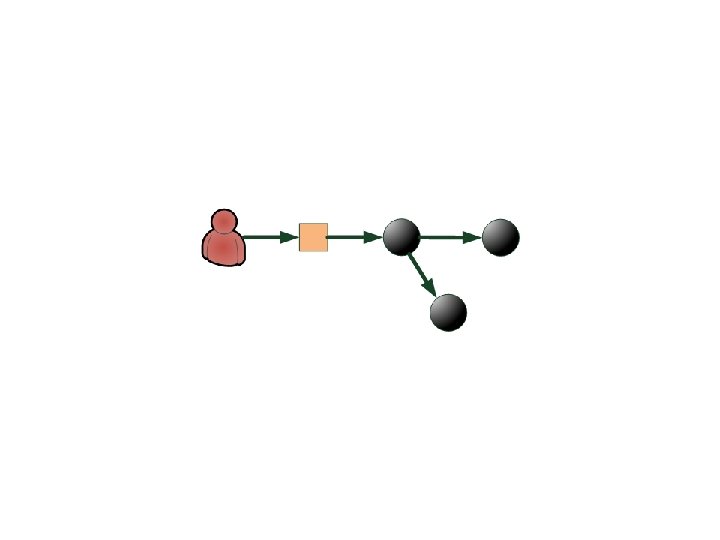

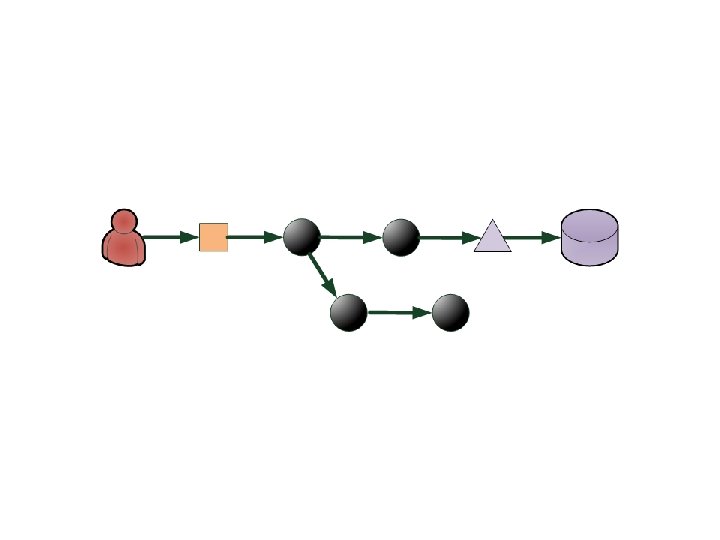

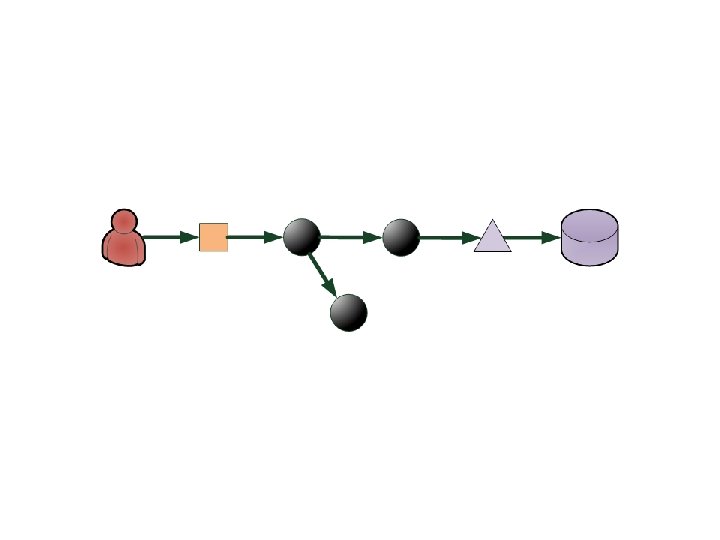

Functional Units are connected by Note the level of abstraction Functional Dependencies

Contracts (

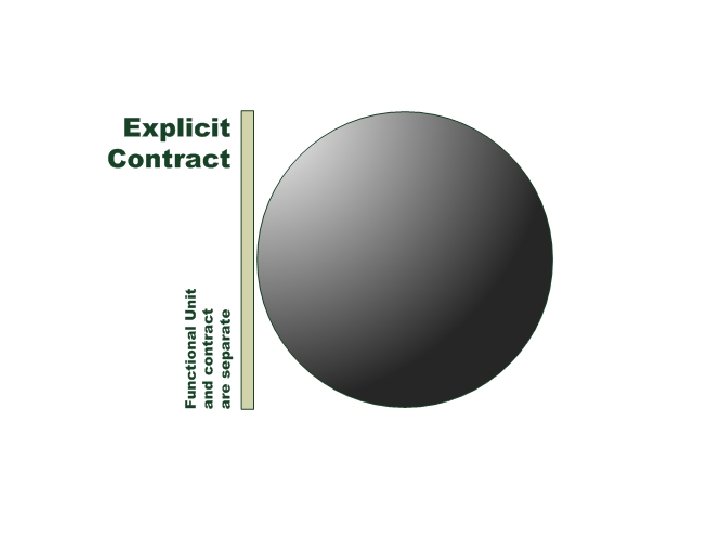

Definition of a Functional Unit´s services

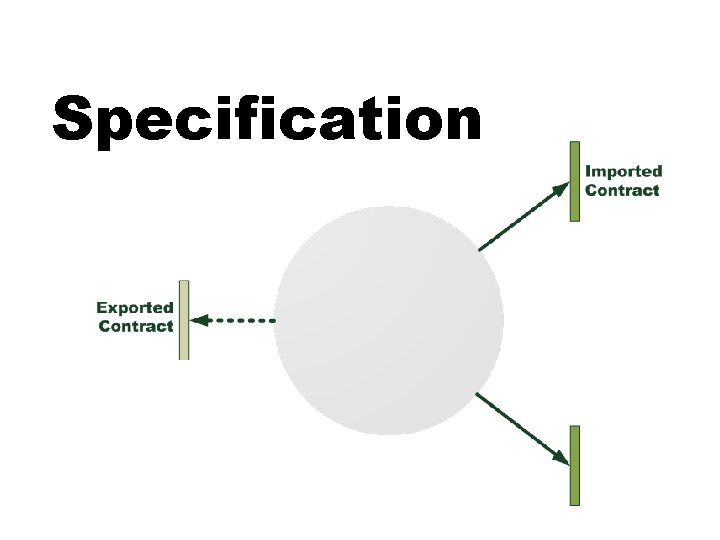

Specification

) Contracts

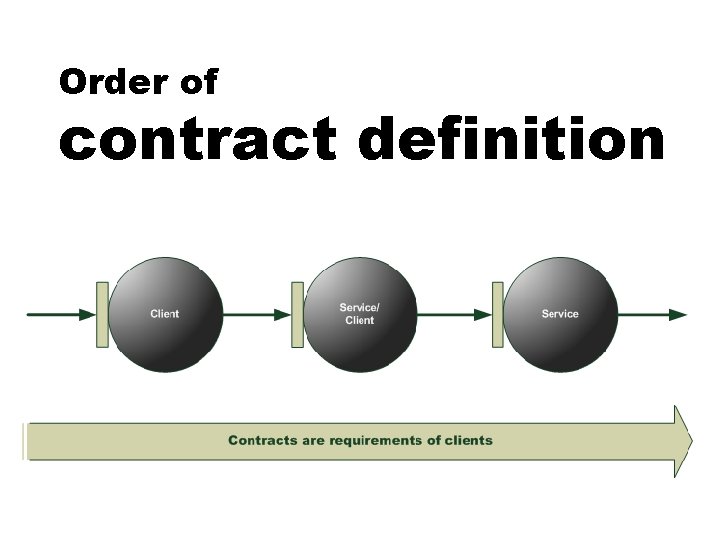

Order of contract definition

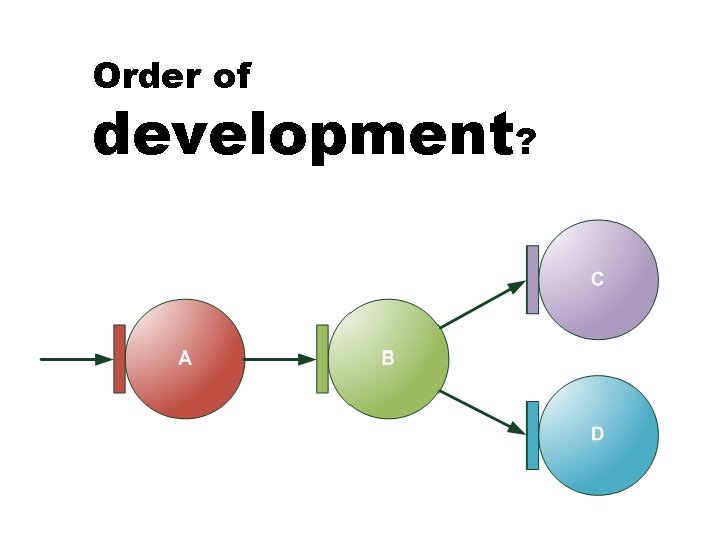

Order of development?

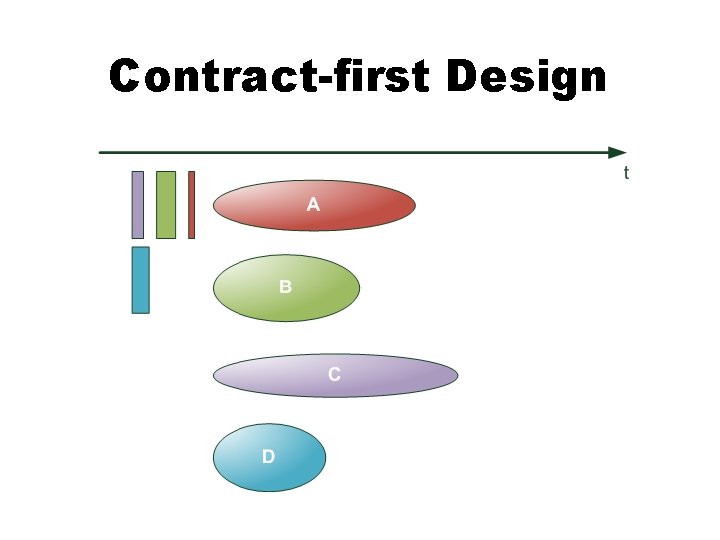

Contract-first Design

) Functional Dependencies

Software Cells (

re a tw s l l Ce f the o g S pulatin e Uni r o e s r ve p S a w t of

) Software Cells

) The Fundamental Structure of Software

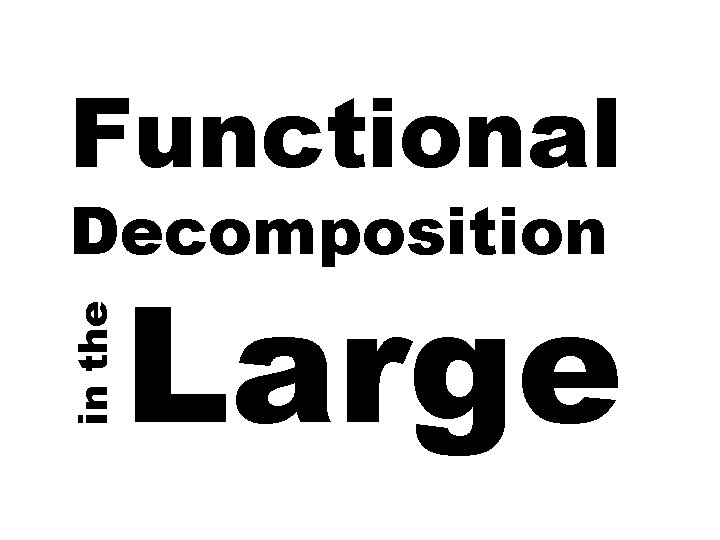

Functional in the Decomposition Large

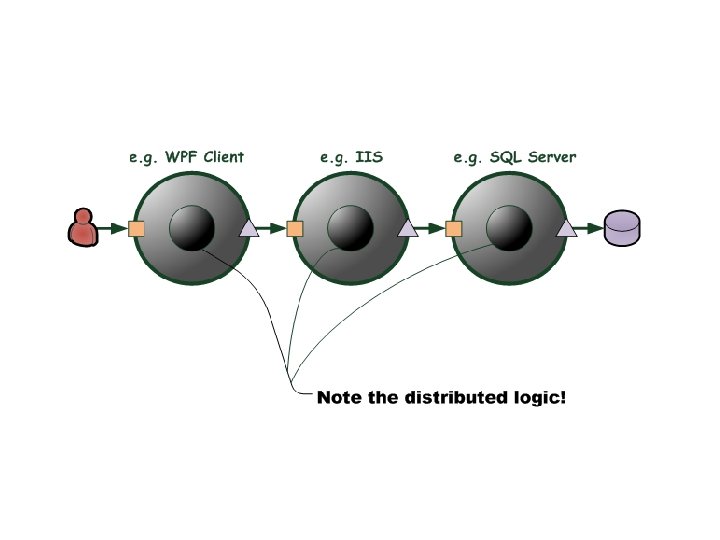

Where have all those layers gone?

Functional in the Decomposition Small

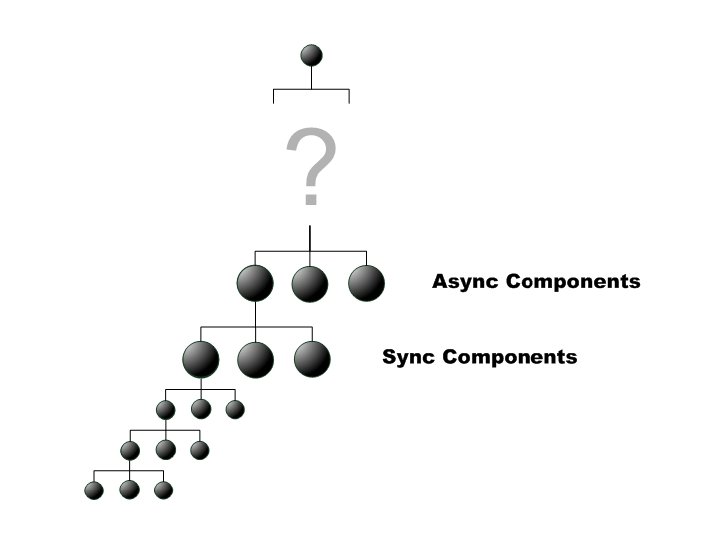

ar ds w To ue tr co m po ne … nt s

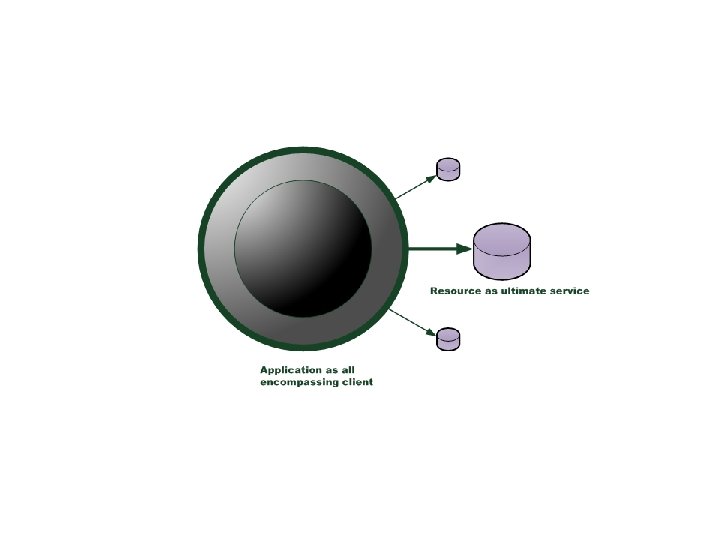

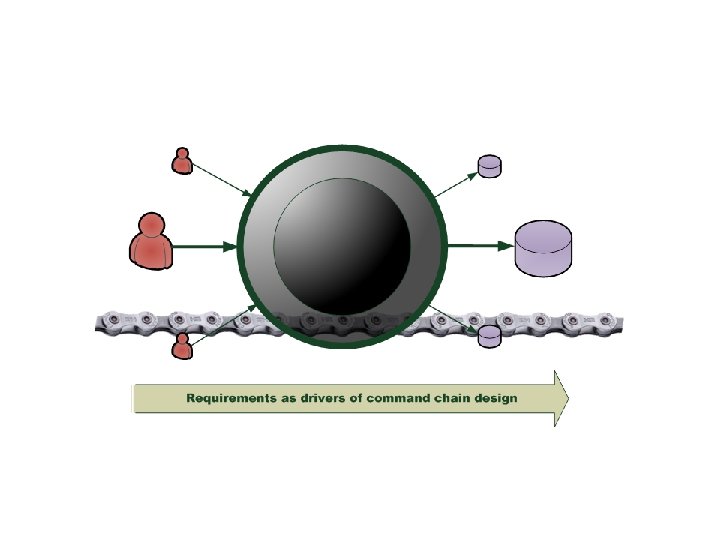

backlog features Let drive the structure…

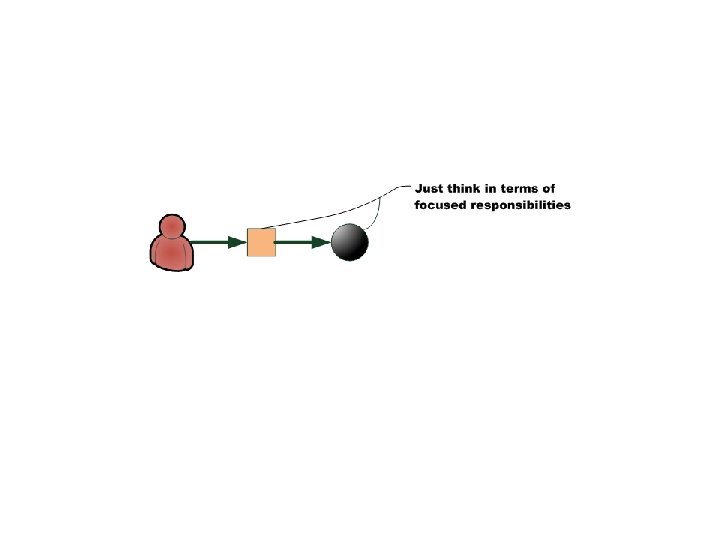

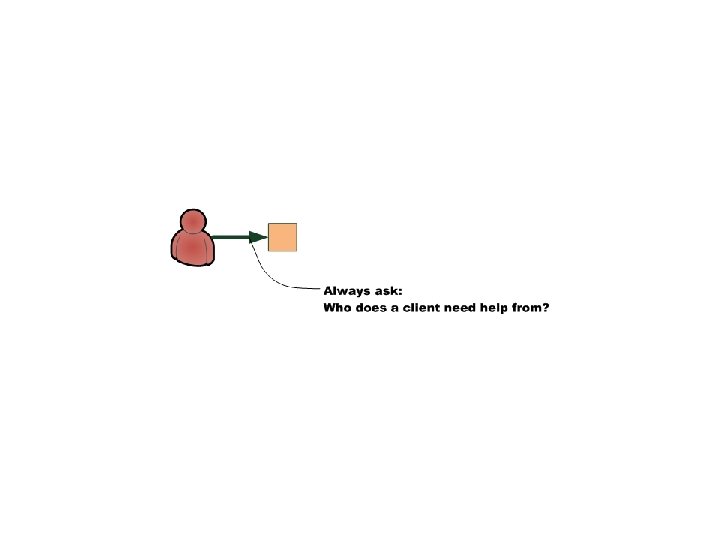

Think (UI ) interact ion first

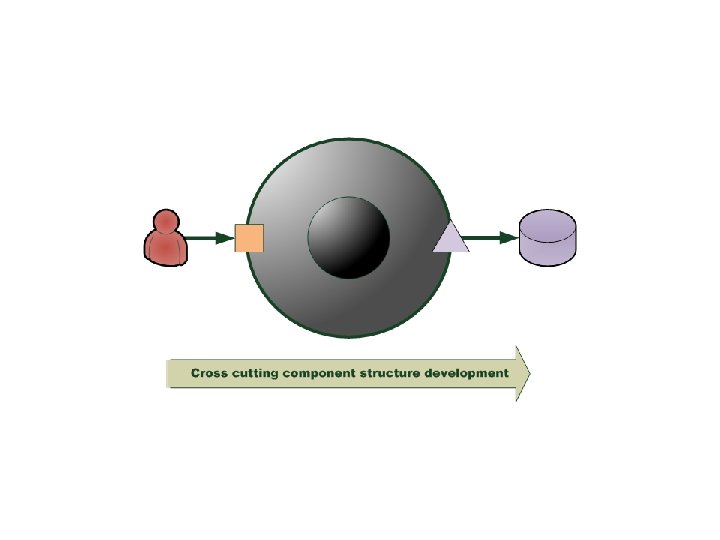

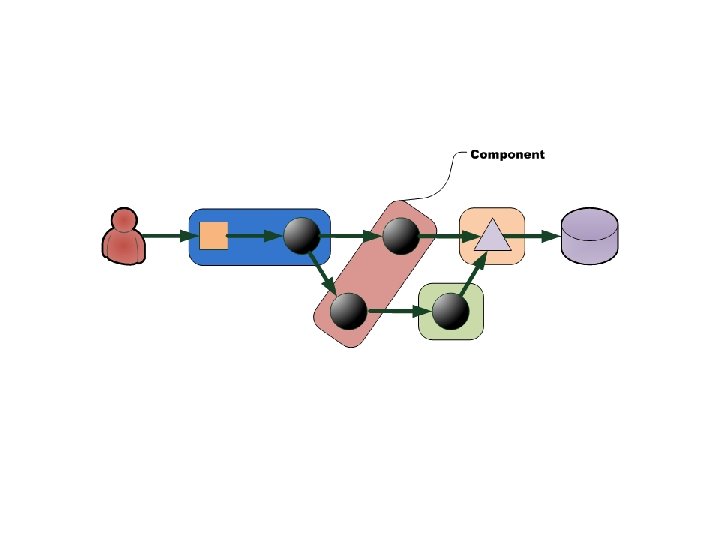

Component architecture of a single OS process software cell

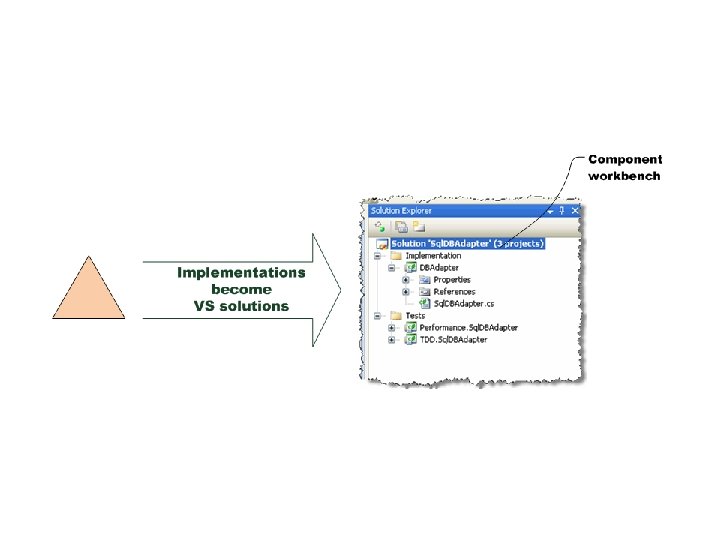

translate How to a component architecture to Visual Studio artifacts?

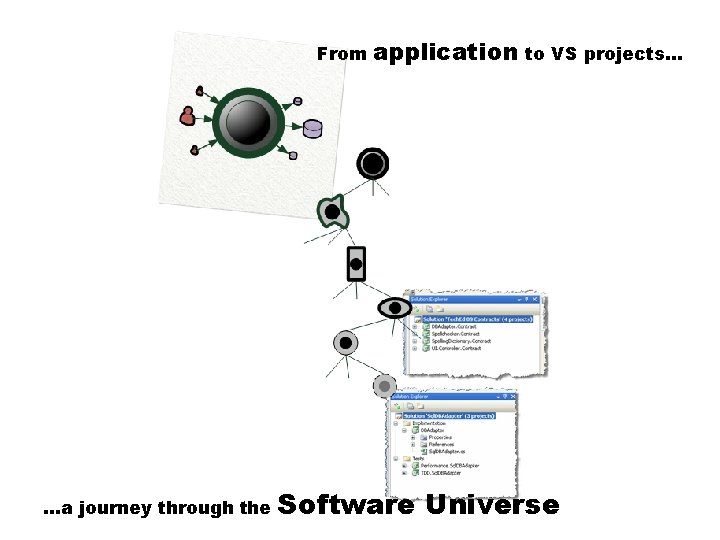

From …a journey through the application to VS projects… Software Universe

Thank you!

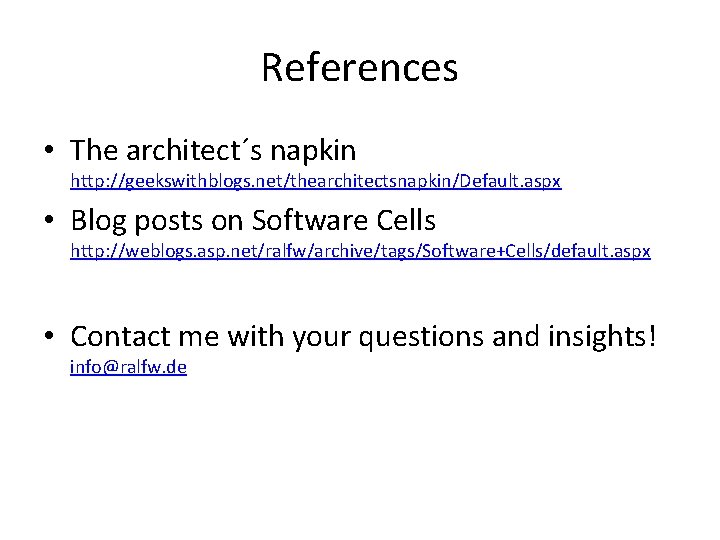

References • The architect´s napkin http: //geekswithblogs. net/thearchitectsnapkin/Default. aspx • Blog posts on Software Cells http: //weblogs. asp. net/ralfw/archive/tags/Software+Cells/default. aspx • Contact me with your questions and insights! info@ralfw. de
