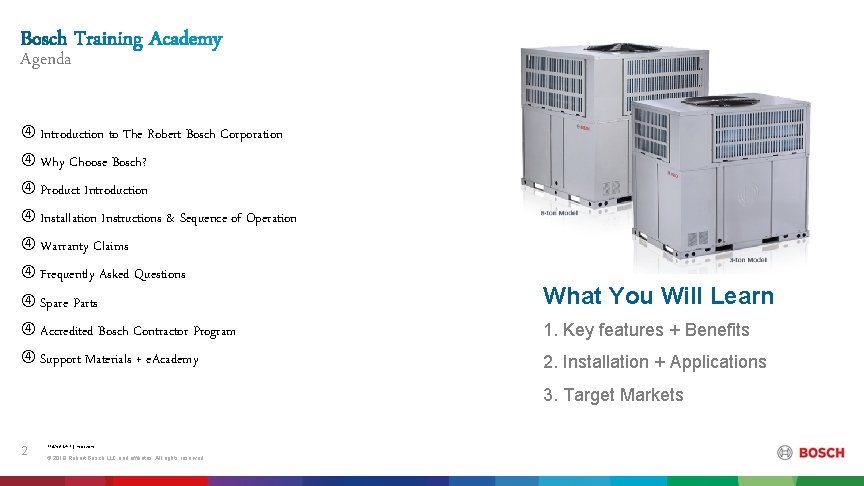

Agenda Introduction to The Robert Bosch Corporation Why Choose Bosch? Product Introduction Installation Instructions & Sequence of Operation Warranty Claims Frequently Asked Questions Spare Parts Accredited Bosch Contractor Program Support Materials + e. Academy What You Will Learn 1. Key features + Benefits 2. Installation + Applications 3. Target Markets 2 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
PRODUCT INTRODUCTION
4 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
Key Installation Features and Benefits: • Up to 19 SEER, 12. 5 EER and 10 HSPF • Inverter Compressor (36%-118% speed), modulation in 1% increments • IDP 3 T – Provides up to 4 -stage indoor fan control, mobile home certified for high static • IDP 5 T – Provides up to 2 -stage indoor fan control • Whisper quiet operation • 2 -way design allows for horizontal and downflow installations, air return/supply are field convertible • Easy to install – compatible with most standard 24 VAC heat pump thermostats 5 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
Fed tax eral ava credi ilab t le! Unique Selling Points • Bosch Quality • Premium Comfort • Minimal Energy Use • Contractor Friendly • Enhanced Dehumidification • Best in Market Efficiency and Technology 6 TT/SNA-MKT | 19. 03. 2019 © 2018 Robert Bosch LLC and affiliates. All rights reserved.
B R B 60 H W D 1 N 1 M 19 7 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. B: Bosch R: Rooftop (always R) B: Field convertible (downflow/horizonta 60: Nominal Capacity H: Heat Pump (Function Type) W: Wire Control D 1: Compressor type (always DC inverter) N 1: Refrigerant type (always R 410 A) M: Power (208/230/1/60) 19: SEER
B R B 36 H W D 1 N 1 M 18 8 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. B: Bosch R: Rooftop (always R) B: Field convertible (downflow/horizonta 36: Nominal Capacity H: Heat Pump (Function Type) W: Wire Control D 1: Compressor type (always DC inverter) N 1: Refrigerant type (always R 410 A) M: Power (208/230/1/60) 18: SEER
[Unit : ºF] -4 8 16 24 IDS 1. 0 NEW IDS 2. 0 NEW IDP 9 IDS 2. 0 NEW IDP 40 48 56 64 72 80 88 96 104 112 120 128 40ºF 15ºF 125ºF 23ºF IDS 1. 0 NEW 32 5ºF 86ºF -4ºF Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
10 Model Part No. Capacity Available Cabinet Orientations Bosch Model Bosch Part No. Size Downflow Horizontal* BRB-60 HWD 1 N 1 -M 19 7738006459 60 k. BTU/hr (5 ton) ✓ ✓ BRB-36 HWD 1 N 1 -M 18 8733954410 36 k. BTU/hr (3 ton) ✓ ✓ Note: For conversion from horizontal to downflow, refer to IDP IOM Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. *factory default

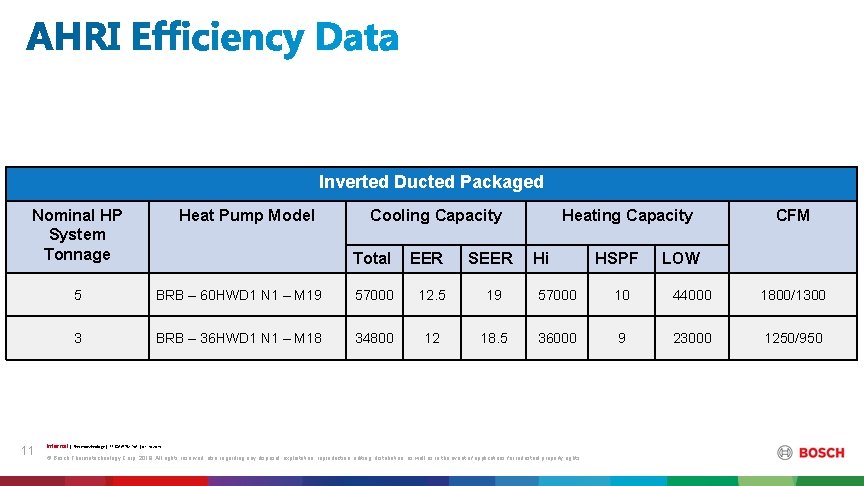

Inverted Ducted Packaged Nominal HP System Tonnage 11 Heat Pump Model Cooling Capacity Total EER SEER Heating Capacity Hi HSPF CFM LOW 5 BRB – 60 HWD 1 N 1 – M 19 57000 12. 5 19 57000 10 44000 1800/1300 3 BRB – 36 HWD 1 N 1 – M 18 34800 12 18. 5 36000 9 23000 1250/950 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
*All installations should be propery maintained by a qualified and trained HVAC contractor 12 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
• Variable speed inverter drive which allows for adjustment of the compressor to optimize comfort • Inverter compressor modulates in 1% increments, allowing the unit to meet building load without wasting energy and wear and tear on the equipment. • Recommended pairing with Bosch BCC 100 or BCC 50 for maximum comfort and efficiency* *the system can also work with most conventional 24 VAC thermostats 13 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
• Same control board technology (as IDS 2. 0) • Same compressor technology as IDS 2. 0 (GMCC) • Same sensors • Same compressor control logic • Several similar spare parts • Same warranty Bosch IDS 2. 0 • Same fault/error codes • Similar troubleshooting • Passive dehumidification • Anti-cold air fan delay • Heating Fan Delay Bosch IDP 14 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
• Fan control: • IDP 5 ton: has 2 stage fan control, controlled via Y 1/Y 2 thermostat calls • IDP 3 ton: has 4 stage fan control, controlled via difference between return air temp (new sensor T 1) & “estimated” thermostat set point (T 1 reading when thermostat was last satisfied) • Dehumidification: • IDP 5 ton: Fan downstages to “low” speed with DH call from thermostat • IDP 3 ton: Fan downstages to lowest fan speed, evaporator target temperature reduced by 2°F • High static certification: • IDP 5 ton: at this time does not have high static (mobile home) UL rating • IDP 3 ton: DOES have high static (mobile home) UL rating upon launch of product • Required thermostat: • IDP 5 ton: can work with either one or two stage HP thermostats, but 2 stage fan logic will only work if used with 2 stage thermostat 15 • IDP 3 ton: can work with a single stage HP thermostat and will still work in 4 stage fan control TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. Bosch IDP
Option 1: Installer to fabricate their own curb based on Bosch specification* *see complete IOM for both models (3 T and 5 T) Option 2: Installer to purchase/re-use other manufacturer curb 16 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

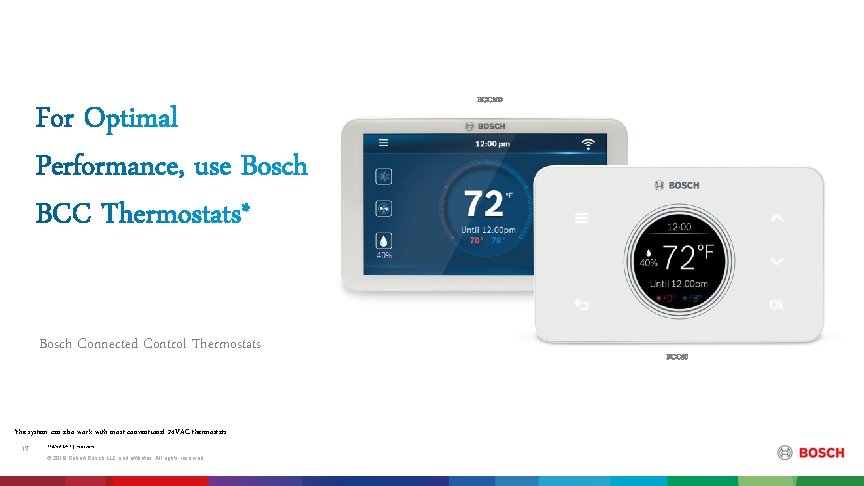

BCC 100 Bosch Connected Control Thermostats *the system can also work with most conventional 24 VAC thermostats 17 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. BCC 50
Supply/return openings (back side* also convertible to down flow) *Manufacturer default Image = 5 T model 18 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 Indoor blower access panel Compressor Control board access panel Isometric View © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Reversing Valve Suction Line Accumulator Service Valves Compressor Isometric View 19 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. Image = 5 T model
Discharge Return Back View Image = 5 T model 20 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. Note: Factory default as shown: horizontal discharge/return.
Outdoor Fan Outdoor Coil Electric Heat “Slot” (no electric heat shown) Terminal Strip: High and Low Voltage Connections Control Board 21 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 Front View © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. Image = 5 T model

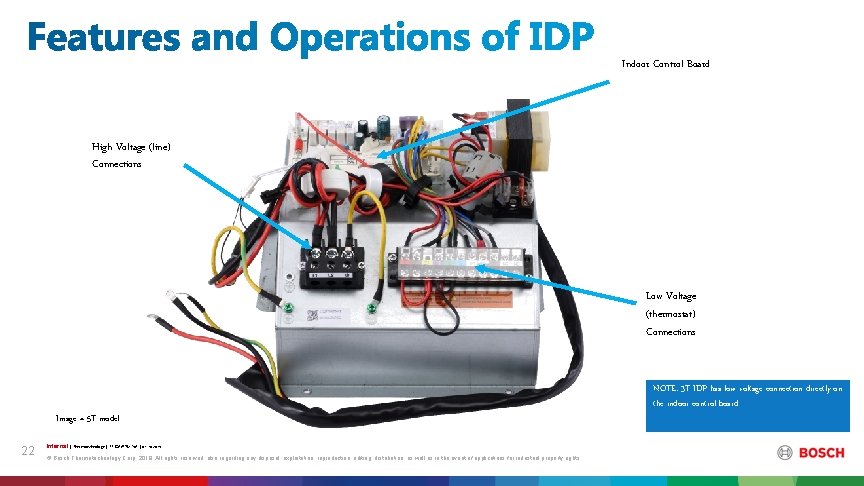

Indoor Control Board High Voltage (line) Connections Low Voltage (thermostat) Connections Image = 5 T model 22 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. NOTE: 3 T IDP has low voltage connection directly on the indoor control board
Low Voltage Wire Maximum Run 23 TTNA/SNA Wh | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. 24 Volt Wire Size Max Wire Length 18 AWG 150 ft. 16 AWG 225 ft. 14 AWG 300 ft.
• Packaged units come pre-charged from the factory and typically do not require charge adjustment • If components have been replaced, maintenance is performed on the refrigerant circuit, or if there is a suspected leak, adjust charge according to subcooling requirement. • See IOM for details Heat Pump Model Refrigerant Charge (lb-oz) BRB-60 HWD 1 N 1 -M 19 12 -9 BRB-36 HWD 1 N 1 -M 18 7 -8 Inverted Ducted Packaged MODEL Subcooling (F) Superheat (F) 60 K / 36 K 12 +/- 4 not applicable Superheat does not change as there is no lineset in the packaged unit 24 Internal | Thermotechnology | TT-CA/PRM-NA | 01 -10 -2019 © Bosch Thermotechnology Corp. 2018. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
25 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. Diagram shows 4 heat, 2 cool

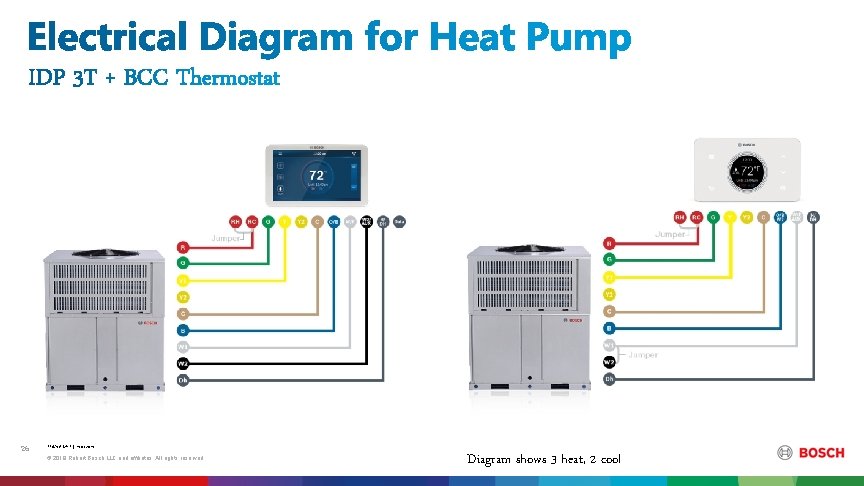

26 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. Diagram shows 3 heat, 2 cool
Frequently Asked Questions What is the difference between a packaged and a split HVAC system? A packaged system has all components located in one cabinet or in a “package”. A split system has one part outside (compressor & fan) and another part located inside (air handler, coils and/or heat exchanger) What is the difference between packaged gas, packaged heat pump and packaged dual fuel? A packaged gas unit is packaged unit which includes AC only as well as a gas furnace. A dual fuel packaged unit includes a heat pump (can operate in heating or cooling), and also includes a gas furnace. A packaged heat pump is a heat pump only unit, running only on electricity 27 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.

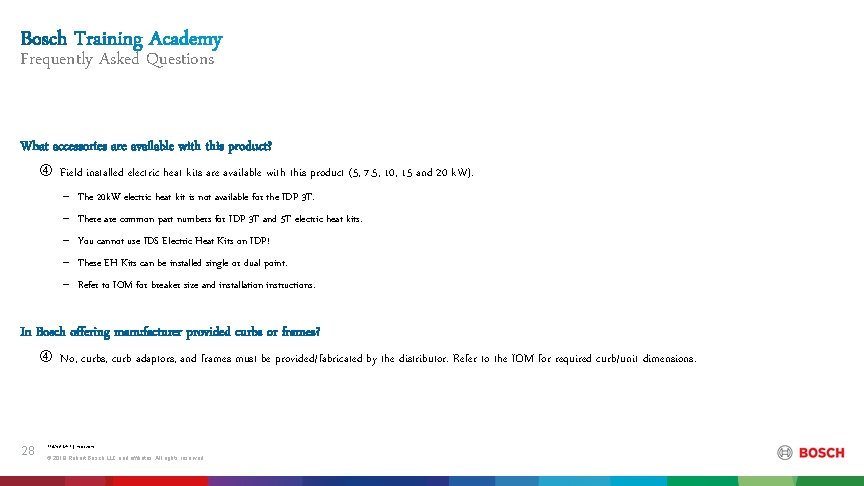

Frequently Asked Questions What accessories are available with this product? Field installed electric heat kits are available with this product (5, 7. 5, 10, 15 and 20 k. W). ‒ The 20 k. W electric heat kit is not available for the IDP 3 T. ‒ There are common part numbers for IDP 3 T and 5 T electric heat kits. ‒ You cannot use IDS Electric Heat Kits on IDP! ‒ These EH Kits can be installed single or dual point. ‒ Refer to IOM for breaker size and installation instructions. In Bosch offering manufacturer provided curbs or frames? No, curbs, curb adaptors, and frames must be provided/fabricated by the distributor. Refer to the IOM for required curb/unit dimensions. 28 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
Warranty Claims* Warranty Terms Warranty Claims For installation in residential applications, this product is warrantied for 10 years parts, 90 days labor** ABC members will qualify for an additional one year of parts warranty on the product if it is registered within 30 days of installation. There is no additional labor warranty for the IDP product. 29 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. All warranty claims must be filed through your local distributor or wholesaler. The claims are submitted via our website www. boschprohvac. com. Please note that a distributor or wholesaler MUST have an account to create and submit a claim. *Please visit boschheatingandcooling. com for full limited warranty details and to register your product **Warranty Labor Allowance Schedule details are available on www. boschprohvac. com
Spare Parts Information Spare Parts are stocked in the US at warehouses in either New Hampshire or Illinois Distributors can order parts from us the same as units Contractors can order Spare Parts and Accessories locally through distributors As a safety net for emergency situations or when no inventory of spares is available via a local distributor, we have the possibility of processing credit card orders for items at List Price Reference documents including Spare Part Lists, Technical bulletins, Installation and Operation manuals, and other product information are all available on our website: http: //spareparts. bosch-climate. us/ 30 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved.
Join our Accredited Bosch Contractor Program Why Join? Earn status and take advantage of our benefits package: One year extended warranty* Lead generation Priority technical support Exclusive promotions/discounts & more! Why Bosch? By choosing Bosch, you represent one of the largest HVAC brands in the market with over a 100 years of Industry expertise. 31 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. Why ABC? We are committed to supporting our ABC’s by providing tools to manage and grow your business, allowing you to focus on what matters; providing your customers with comfort they can count on. Join Our Elite Team www. bosch-ABCpartner. com
Support Material + e. Academy The Bosch Training e. Academy Find all literature related to this course and others: https: //www. boschheatingcooling. com/brochures 32 TT/SNA-MKT | 19. 03. 2019 © 2019 Robert Bosch LLC and affiliates. All rights reserved. Would you like to receive a certificate for your course? Sign up on e. Academy! www. training. boschprohvac. com
