Welcome to Sultex ITMA Preview Davide Maccabruni Head
Welcome to Sultex ITMA Preview Davide Maccabruni Head of Innovation Dalmine - July 11, 2007
Sultex at ITMA 2007 Summary • Introduction: ITEMA Group and ITEMA Weaving • Rapier Weaving Machine G 6500 • Air-jet Weaving Machine L 5500 • Projectile Weaving Machine P 7300 HP • Active Textile Services 2 July 11, 2007
Sultex at ITMA 2007 Summary • Introduction: ITEMA Group and ITEMA Weaving • Rapier Weaving Machine G 6500 • Air-jet Weaving Machine L 5500 • Projectile Weaving Machine P 7300 HP • Active Textile Services 3 July 11, 2007
Sultex at ITMA 2007 ITEMA Group 2006 • Part of Radici Holding CEO Miro Radici • Turnover: € 667 million • Some 2. 500 employees • 4% of turnover invested in R&D 4 July 11, 2007
Sultex at ITMA 2007 ITEMA Group – New structure as of April 2007 ITEMA HOLDING WEAVING SPINNING Sultex Savio Promatech Istma KNITTING ELECTRONICS Eutron Steiger Itema SH First 5 July 11, 2007
Sultex at ITMA 2007 ITEMA WEAVING • 4 companies: Sultex, Promatech, ITEMA Shanghai, First • 6 well-established brands • About 7000 weaving machines in 2006 • Some 1. 650 employees • € 494, 6 million turnover in 2006 6 July 11, 2007
Sultex at ITMA 2007 Sultex Industry & market leader through: • Innovative solutions: - applications - services - consulting • Excellent textile know-how • Global presence • Customer retention • Sustainable profitability 7 July 11, 2007
Fabric complexity Sultex at ITMA 2007 Weft insertion technologies Projectile Rapier Air-jet Speed 8 July 11, 2007
Sultex at ITMA 2007 Summary • Introduction: ITEMA Group and ITEMA Weaving • Rapier Weaving Machine G 6500 • Air-jet Weaving Machine L 5500 • Projectile Weaving Machine P 7300 HP • Active Textile Services 9 July 11, 2007
Sultex at ITMA 2007 Rapier Weaving Machine G 6500 • Unbeatable flexibility 10 July 11, 2007
Sultex at ITMA 2007 Rapier Weaving Machine G 6500 Industry benchmark in: • Woolen & worsted fabrics • • Dress & neckwear Upholstery / car seats Protective clothing (Aramid fibres) Airbag (Flat & OPW) Benefits: • Top quality (new rapier technology) • High productivity (700 rpm) • Convincing economics (high yield) 11 July 11, 2007
Sultex at ITMA 2007 Active Rapier Technology ART means: • ART Weft Cutter – pneumatic system, freely programmable cutting point for each weft • ART Active Inserting Clamp – active movements in the rapier head during clamping (left) and transfer (center) without elements protruding in the warp • ART Anti-Loop – secure transfer system for coarse weft yarns • ART Receiving Rapier Head – parallel system, for coarse and multiple weft insertions • Optimum color selection through special geometry of fingers: virtually no difference between weft #1 and weft #n • ART retains the advantages of the flexible, traditional rapier system while enhancing the range of insertable weft yarns to (and beyond) the levels of the ‘positive’ rapier system: free mixability with just one machine setting active insertion 12 July 11, 2007
Sultex at ITMA 2007 Rapier Weaving Machines G 6500 at ITMA G 6500 S 260 N 8 RSP Sail cloth G 6500 B 200 F 8 J Souvenir Towel G 6500 S 190 N 4 SP Aramid fabric (Twaron) G 6500 B 190 N 8 SP High speed application G 6500 S 150 N 8 J Labels 13 July 11, 2007
Sultex at ITMA 2007 Summary • Introduction: ITEMA Group and ITEMA Weaving • Rapier Weaving Machine G 6500 • Air-jet Weaving Machine L 5500 • Projectile Weaving Machine P 7300 HP • Active Textile Services 14 July 11, 2007
Sultex at ITMA 2007 Air-jet Weaving Machine L 5500 • Unmatched productivity 15 July 11, 2007
Sultex at ITMA 2007 Air-jet Weaving Machine L 5500 Industry benchmark in: • High-end sheeting (high thread count / sateen) • Work wear • Light-to medium weight Denim • Sports & leisure wear Benefits: • Best economics (lowest air consumption) • Outstanding productivity (> 1200 rpm) • Simplicity at its best 16 July 11, 2007
Sultex at ITMA 2007 Active Weft Control Air Consumption [m 3/h] Difference in operational costs per year and machine [€] (vs L 5500/1) Difference in operational costs per year and machine [€] (vs L 5500/2) Investment for 100 machines [€] Difference per machine [€] 17 Dornier Picanol 105 90 6536 3956 8084 5504 493056 2280 358152 931 Sultex L 5500 / 1 Sultex L 5500 / 2 67 58 265032 0 July 11, 2007
Sultex at ITMA 2007 Air-jet Weaving Machine L 5500 at ITMA L 5500 S 230 N 4 SP Shower curtain L 5500 B 190 N 4 SP Pique – leisure wear 18 July 11, 2007

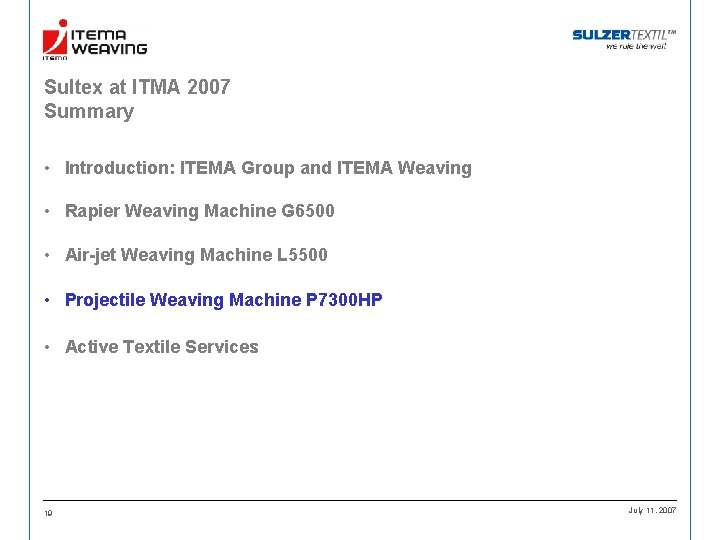

Sultex at ITMA 2007 Summary • Introduction: ITEMA Group and ITEMA Weaving • Rapier Weaving Machine G 6500 • Air-jet Weaving Machine L 5500 • Projectile Weaving Machine P 7300 HP • Active Textile Services 19 July 11, 2007
Sultex at ITMA 2007 Projectile Weaving Machine P 7300 HP • Unique versatility 20 July 11, 2007
Sultex at ITMA 2007 Projectile Weaving Machine P 7300 HP Industry benchmark in: • High-end / fashion Denim • • Floor coverings Coating fabrics (> 4 m) Geotextiles Agrotextiles Benefits: • Low cost operation (low energy consumption) • Increase in material yield (less wastage) • Quick turn around 21 July 11, 2007
Sultex at ITMA 2007 Active Projectile System APS means: • Active weft transfer to the projectile geometrically defined • Fully controlled and geometrically defined weft insertion • Weft beat-up with constant weft tension • Weft yarn is fully stretched during weft insertion • Weft tensioner movement to minimize weft waste • Selvedge Saver and tucked selvedge to minimize selvedge waste • High flexibility regarding weft material • Controlled multiple weft insertion up to 4 colors • Active yarn control during and after weft insertion 22 July 11, 2007
Sultex at ITMA 2007 Projectile Weaving Machine P 7300 HP at ITMA P 7300 HP B 390 N 2 EP D 12 Fancy Denim 23 July 11, 2007

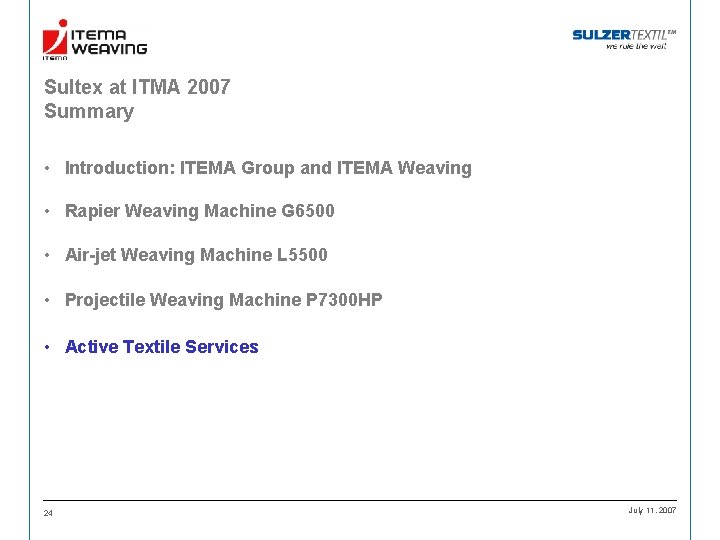

Sultex at ITMA 2007 Summary • Introduction: ITEMA Group and ITEMA Weaving • Rapier Weaving Machine G 6500 • Air-jet Weaving Machine L 5500 • Projectile Weaving Machine P 7300 HP • Active Textile Services 24 July 11, 2007
Sultex at ITMA 2007 Active Textile Services Anything 25 Anytime Anywhere July 11, 2007
Sultex at ITMA 2007 26 July 11, 2007
Sultex at ITMA 2007 Questions? 27 July 11, 2007
Sultex at ITMA 2007 Thank you for your attention. See you in Munich! 28 July 11, 2007
Sultex at ITMA 2007 29 July 11, 2007
