WELCOME TO SEMINAR ON SKYBUS METRO By SOUMYA

WELCOME TO SEMINAR ON SKYBUS METRO By SOUMYA. (3 vco 7 ec 104)

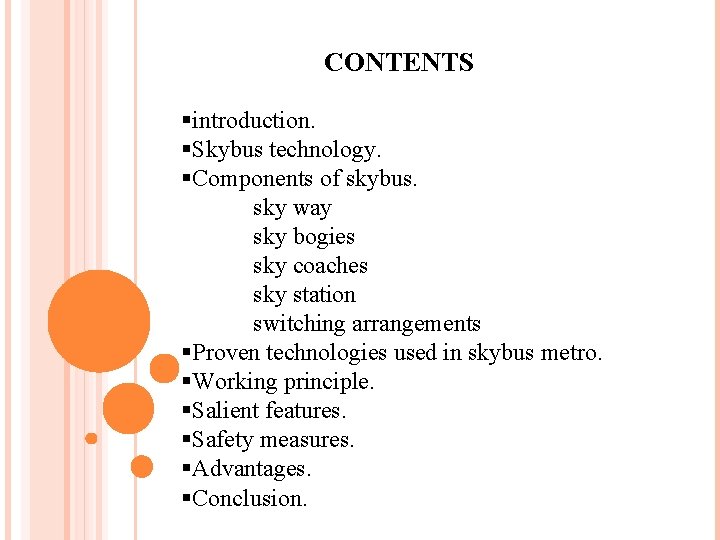

CONTENTS §introduction. §Skybus technology. §Components of skybus. sky way sky bogies sky coaches sky station switching arrangements §Proven technologies used in skybus metro. §Working principle. §Salient features. §Safety measures. §Advantages. §Conclusion.

INTRODUCTION §What is skybus? §This concept was first presented in Bologna university Italy by MR. B Rajaram. §Sky Bus Technology Oct. 2003, at Madgaon, Goa. Launched 15 th §This type of system has been successfully implemented in certain countries, where road has been added along with introduction of metro type transport system.

SKYBUS TECHNOLOGY schematic arrangement

COMPONENTS OF SKYBUS The components used in this are: §Sky way

Ø SKY BOGIES

ØSKY COACHES

ØSKY STATION

ØTRAVERSERS ARRANGEMENT AT TERMINALS

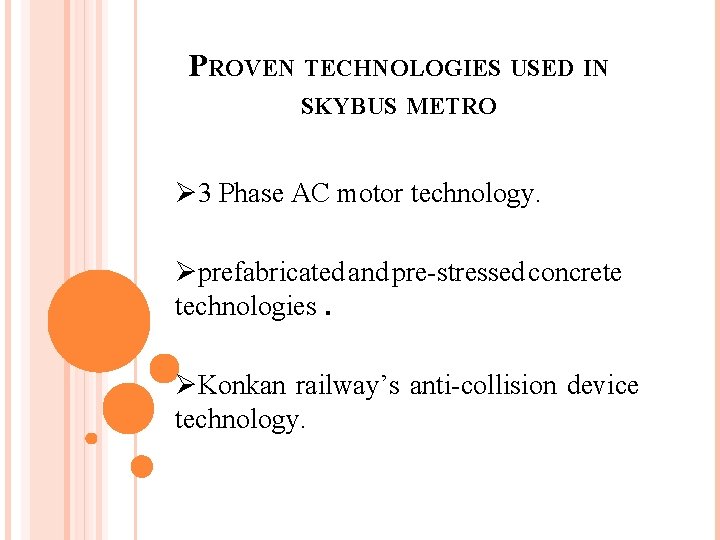

PROVEN TECHNOLOGIES USED IN SKYBUS METRO Ø 3 Phase AC motor technology. Øprefabricated and pre-stressed concrete technologies. ØKonkan railway’s anti-collision device technology.

WORKING PRINCIPLE Ssff F Standard railway coach running on railway track. The under –frame with standard railway wheel set running on railway track. The railways wheels remains same, they run on same track, the coach is firmely attached.

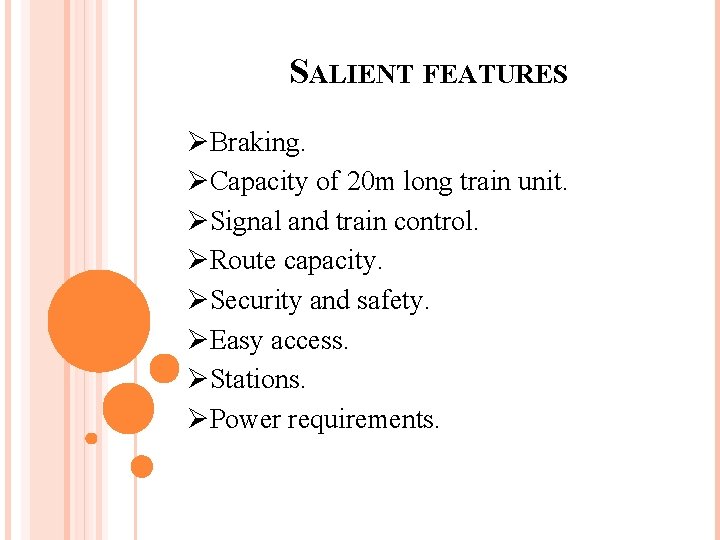

SALIENT FEATURES ØBraking. ØCapacity of 20 m long train unit. ØSignal and train control. ØRoute capacity. ØSecurity and safety. ØEasy access. ØStations. ØPower requirements.

SAFETY MEASURES ØDynamic safety is improved. ØIn skybus wind cannot topple. ØDerailment arresters which prevents the wheel from jumping of the rails. ØSafety air bags are provided with each coaches. ØRaksha kavach will be there in each sky bogiee.

ADVANTAGES ØFast transportation. ØMinimal land acquisition problems. ØNo vandalism. ØNo capsizing. ØConstruction. ØCharges. ØNo interference with road traffic. ØNo pollution. ØNo traffic jams.

CONCLUSION The Sky Bus metro is one single technology which can change the face of our cities, take out almost 10 million road vehicles in the cities and make the cities liveable, improving quality of life and attract and sustain economic activity to generate wealth.

THANK YOU Any quries?
