WELCOME TO ORBITA ABOUT US Shenzhen China Orbita

WELCOME TO ORBITA

ABOUT US • • Shenzhen China • • Orbita is one of the biggest card operated locking systems supplier for the hospitality industry in China, established to offer the best quality products with professional and effective service to our customers. Orbita series of product is a product of years of experience integrated with the advanced technology from Siemens, Dallas, Atmel, Motorola, and Kenwood etc. More than 3000 hotels, resorts and cruise ships in 90 countries in the world are using our card locks, digital safes and other satisfactory hotel intelligent accessories that have been becoming another attractive point for the hotel. Orbita, together with its worldwide partners, is forwarding towards its blueprint on the correct Orbita.

PRODUCTS 1. 2. 3. 4. 5. 6. 7. 8. IC LOCK SERIES RF LOCK SERIES RESIDENTIAL LOCK SERIES BATHROOM LOCK SERIES DIGITAL HOTEL SAFE SERIES HOTEL ENERGY SAVING SWITCH BESIDE CONSOLE SAUNA LOCK

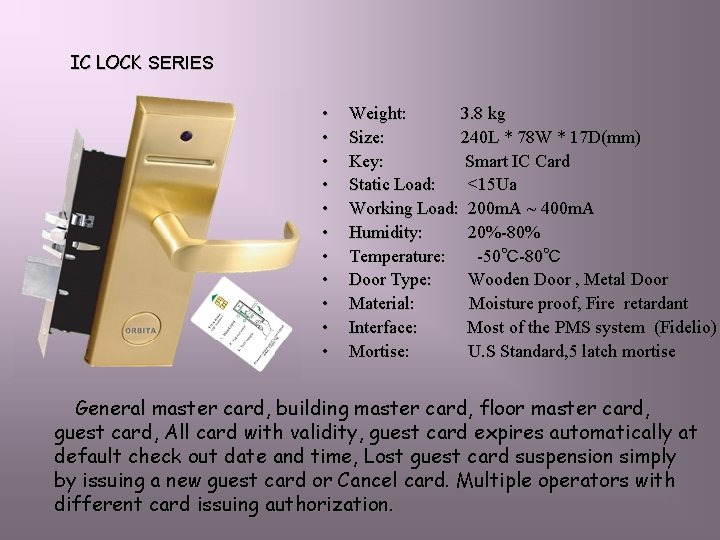

IC LOCK SERIES • • • Weight: 3. 8 kg Size: 240 L * 78 W * 17 D(mm) Key: Smart IC Card Static Load: <15 Ua Working Load: 200 m. A ~ 400 m. A Humidity: 20%-80% Temperature: -50℃-80℃ Door Type: Wooden Door , Metal Door Material: Moisture proof, Fire retardant Interface: Most of the PMS system (Fidelio) Mortise: U. S Standard, 5 latch mortise General master card, building master card, floor master card, guest card, All card with validity, guest card expires automatically at default check out date and time, Lost guest card suspension simply by issuing a new guest card or Cancel card. Multiple operators with different card issuing authorization.

E 1260 E 1330 E 1080 I 1110 R 1350 I 1010 F 1220 I 1330

RF LOCK SERIES • • • Weight: 3. 8 kg Size: 350 L * 78 W * 17 D(mm) Key: Smart RF Card Static Load: <15 Ua Working Load: 200 m. A ~ 400 m. A Humidity: 20%-80% Temperature: -50℃-80℃ Door Type: Wooden Door , Metal Door Material: Moisture proof, Fire retardant Interface: PMS system (Fidelio) Mortise: U. S Standard, 5 latch mortise Temic. E 5557/Mifare 1 card, Contact less/Proximity Override Computer Key for Emergency use Key card with different Authorization , one lock accepts multiple cards and one card operates multiple locks Host and hostess card open all rooms baby-sitter (house keeper) card opens all doors with her card except host room. (can be adjusted) Lost card suspension simply by touch the programming card, no need to change lock.

F 3120 F 3010 F 3220 F 3110 E 3330 F 3350

TM LOCK SERIES • • • Weight: 3. 8 kg Size: 350 L * 78 W * 17 D(mm) Key: Smart TM Card Static Load: <15 Ua Working Load: 200 m. A ~ 400 m. A Humidity: 20%-80% Temperature: -50℃-80℃ Door Type: Wooden Door , Metal Door Material: Moisture proof, Fire retardant Interface: PMS system Ibutton 1991 card, Water proof, fire proof, In time clock Override Computer Key for Emergency use, individual/master cylinder Personalized Locking System and cylinder cover Step by step installation software, easy operation. General master card, building master card, floor master card, guest card ，All card with validity, guest card expires automatically at default check out date and time, Lost guest card suspension simply by issuing a new guest card or Cancel card. Multiple operators with different card issuing authorization Lock operation record printable.

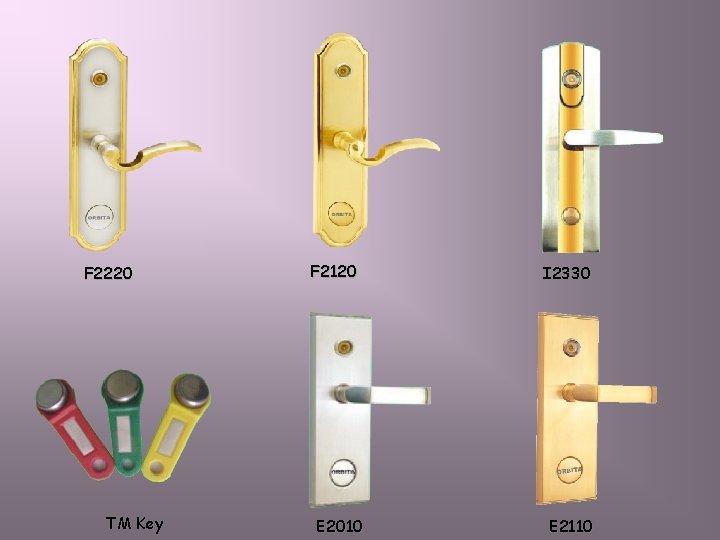

F 2220 TM Key F 2120 E 2010 I 2330 E 2110

Digital Hotel Safe Series OBT-2240 OBT-2045 Size: 220 HX 400 LX 340 D Steel Structure, multiple bolts Door Thickness: 5 mm, Wall. Thickness: 2 mm Password: 1 -10 digit Master Password/User password LED Display Opening Method: Password/Override Mechanical Key Net Weight: 14 kgs Packing Size: 240 HX 415 LX 350 D(mm) Size: 200 HX 450 LX 400 D Steel Structure, multiple bolts Door Thickness: 5 mm, Wall. Thickness: 2 mm Password: 1 -10 digit Master Password/User password LED Display Opening Method: Password/Override Mechanical Key Net Weight: 14 kgs Packing Size: 215 HX 470 LX 450 D(mm)

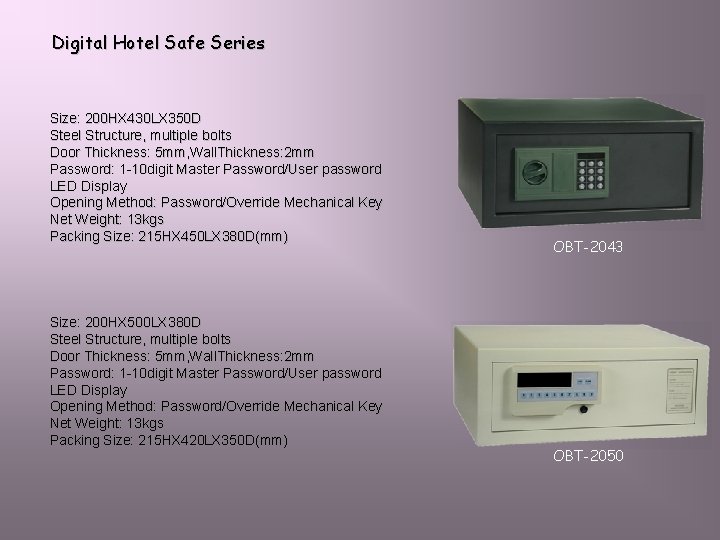

Digital Hotel Safe Series Size: 200 HX 430 LX 350 D Steel Structure, multiple bolts Door Thickness: 5 mm, Wall. Thickness: 2 mm Password: 1 -10 digit Master Password/User password LED Display Opening Method: Password/Override Mechanical Key Net Weight: 13 kgs Packing Size: 215 HX 450 LX 380 D(mm) Size: 200 HX 500 LX 380 D Steel Structure, multiple bolts Door Thickness: 5 mm, Wall. Thickness: 2 mm Password: 1 -10 digit Master Password/User password LED Display Opening Method: Password/Override Mechanical Key Net Weight: 13 kgs Packing Size: 215 HX 420 LX 350 D(mm) OBT-2043 OBT-2050

Digital Hotel Safe Series OBT-2040 Size: 200 HX 400 LX 300 D Steel Structure, multiple bolts Door Thickness: 5 mm, Wall. Thickness: 2 mm Password: 1 -10 digit Master Password/User password LED Display Opening Method: Password/Override Mechanical Key Net Weight: 13 kgs Packing Size: 215 HX 420 LX 350 D(mm) Size: 180 HX 310 LX 250 D Steel Structure, multiple bolts Door Thickness: 6 mm, Wall. Thickness: 3 mm Password: 1 -10 digit Master Password/User password LED Display Opening Method: Password/Override Mechanical Key Net Weight: 8 kgs Packing Size: 200 HX 330 LX 280 D(mm) OBT-1831

Digital Hotel Safe Series OBT-3542 Size: 350 HX 420 LX 320 D Steel Structure, multiple bolts Door Thickness: 5 mm, Wall. Thickness: 2 mm Password: 1 -10 digit Master Password/User password LED Display Opening Method: Password/Override Mechanical Key Net Weight: 29 kgs Packing Size: 370 HX 430 LX 340 D(mm) Size: 130 HX 310 LX 290 D Door Thickness: 18 mm, Wall. Thickness: 2 mm 4 Dight LCD Display Opening Method: Password/Override Mechanical Key Gas spring mounted on top door build in handle Packing Size: 150 HX 330 LX 310 D(mm) OBT-1331

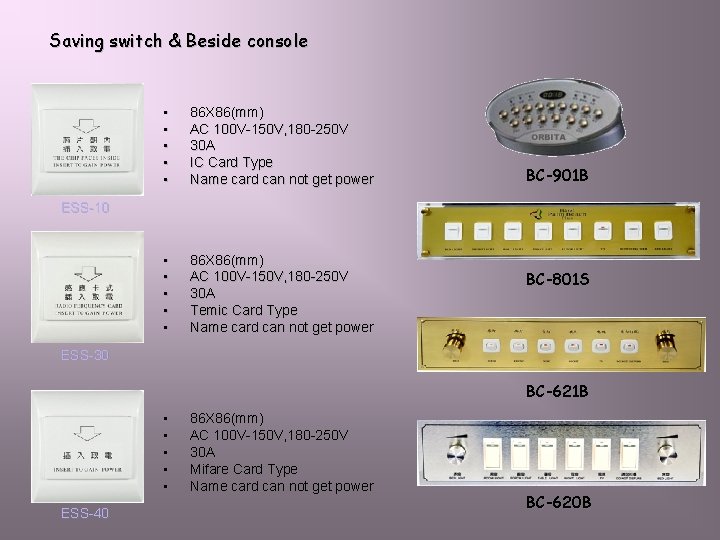

Saving switch & Beside console • • • 86 X 86(mm) AC 100 V-150 V, 180 -250 V 30 A IC Card Type Name card can not get power • • • 86 X 86(mm) AC 100 V-150 V, 180 -250 V 30 A Temic Card Type Name card can not get power BC-901 B ESS-10 BC-801 S ESS-30 BC-621 B • • • ESS-40 86 X 86(mm) AC 100 V-150 V, 180 -250 V 30 A Mifare Card Type Name card can not get power BC-620 B

Sauna Lock SL-630 SL-650 A SL-670 A SL-650 SL-640 A SL-650 B SL-650 C SL-670 B SL-670 C SL-640 B SL-640 C SL-650 D SL-650 E Waterproof button key

Successful case Sadaf Hotel Kish, Iran Hormoz hotel, Iran Homa Hotel Group, Iran Corp Dubai Grand Hotel Reykjavik, Iceland Tulip Inn, Saudi Arabia Phoenicia Hotel, Bahrain

Successful case Estancia Inn Hotel, Mexico Foss Hotel, Iceland Pavilion Hotel, China Hotel Yangon, Burma Asia International Hotel, China Hotel Olympic, Greece Deccan Plaza, India King Solomon, Israel

Successful case

Thanks We hope we can co. operate
