Delayed return units Lockable piston rod Controllable Gas Springs KF Flex Form. TM Lockable piston rod

Flex Form. TM Flex Form TM Press Lockable piston rod High force hydraulic system Self Contained Option Delayed return option Flexible Orientation Customized return force Low contact force No pressure increase Controllable return speed PED approved

Flex Form. TM No pressure increase Stroke Force Press Flex Form Cylinder Flex Form Force (blank holder force)

Flex Form. TM System components Cylinder Flex Form CFF 1 - 6 pcs Force Generator FFG Hydraulic Fluid 7 -100 bar Nitrogen

Flex Form. TM System components FFG Flex Form Force Generator CFF Cylinder Flex Form Stroke lengths 13 -225 mm Four sizes Force CFF-1000 0. 5 – 2 ton CFF-2400 1. 3 – 4. 8 ton CFF-4200 2. 3 – 8. 8 ton CFF-6600 3. 6 – 12. 5 ton FFG Flex Form Force Generator One size Control up to six flex form cylinders Flow up to 300 l/min Pressure range 70 -275 bar Max working temp. 93 °C

Flex Form. TM Force Generator FFG Thermal Relay Accumulator Force generator pressure valve Safety Pressure Relief Valve Oil Bleed Plug Return valve (24 VDC) Digital Pressure Gauge (24 VDC) Return force control unit Foot Mount Pressure Relief Overflow Hose

Flex Form. TM Cylinder Flex Form CFF Bleeder Plug Rod Diameter Height Cylinder Diameter Oil bleeder valve Base Width Base Height To the force generator

Flex Form. TM Function Cylinder Flex Form CFF 1 - 6 pcs Force Generator FFG Force generator pressure valve pressure range 70 -275 bar Thermal Relay Hydraulic Fluid Return valve (24 VDC) 7 -100 bar Nitrogen Digital pressure gauge Accumulator (24 VDC) Return force control unit pressure 7 -100 bar

Flex Form TM Requirements To obtain a complete system the following data is required: • Number of pressure points (maximum six CFF to one FFG) • Needed tonnage for the system • Production rate parts/minute • Max high before stroked (L max) • Used stroke length • Max press velocity during stroke length (m/s) • Needed return force

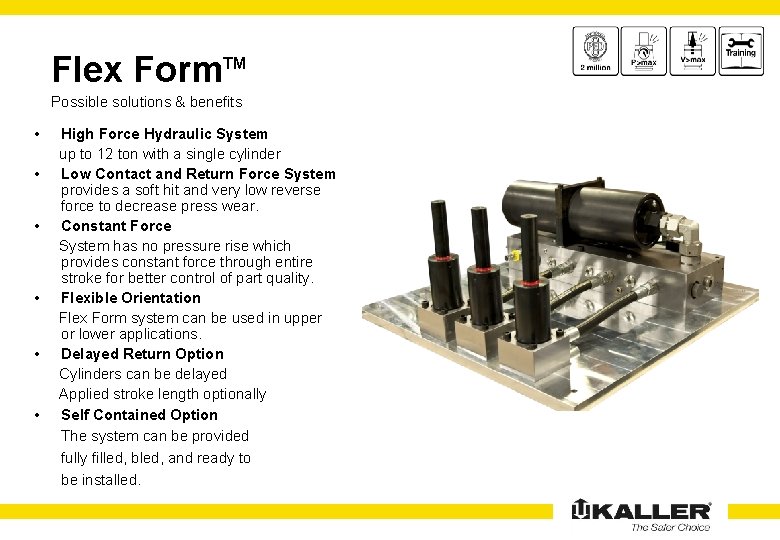

Flex Form. TM Possible solutions & benefits • • • High Force Hydraulic System up to 12 ton with a single cylinder Low Contact and Return Force System provides a soft hit and very low reverse force to decrease press wear. Constant Force System has no pressure rise which provides constant force through entire stroke for better control of part quality. Flexible Orientation Flex Form system can be used in upper or lower applications. Delayed Return Option Cylinders can be delayed Applied stroke length optionally Self Contained Option The system can be provided fully filled, bled, and ready to be installed.

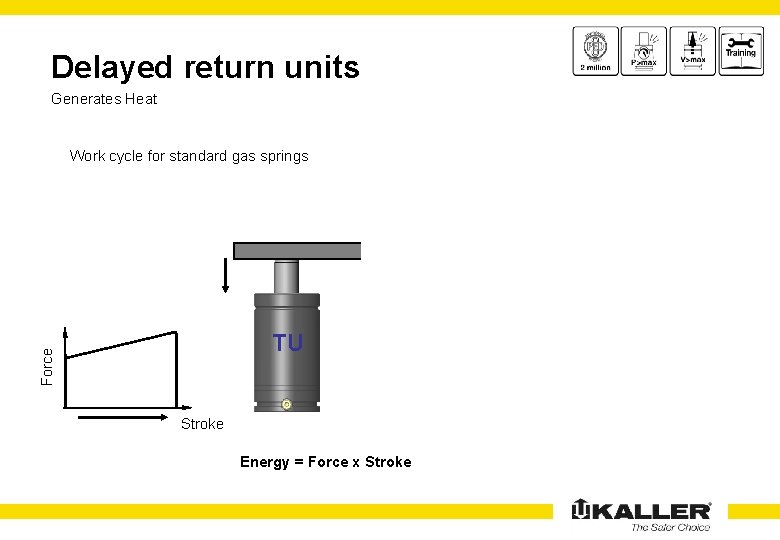

Delayed return units Generates Heat Force Work cycle for standard gas springs TU Energy Work cycle for delayed return systems KF 2 or CFF Stroke Energy = Force x Stroke Force Energy Heat

Delayed return units System choice Dissipate 2. 3 k. W heat Dissipate 0. 1 to 0. 5 k. W heat (depending of the spring size) Limited number of springs Large number of springs High force / area High stroke length & press velocity Not to high stroke length No place for hose connections

Flex Form. TM Summary Flex Form TM Press Lockable piston rod Available! High force hydraulic system Self Contained Option Delayed return option Flexible Orientation Customized return force Low contact force No pressure increase Controllable return speed PED approved
