SV 22 The SV 22 valve is a Selector Valve that may be used

SV 22 The SV 22 valve is a Selector Valve that may be used for distributing INERGEN from a shared supply to multiple rooms. The SV 22 must be reset manually and can not limit the INERGEN volume for each room. The INEGEN volume for each room must be calculated separately. By activating only the required quantity of cylinders for each zone it is possible to limit the INERGEN volume to the calculated volume.

Features The SV 22 has two independent actuation ports, which may be used together

Features The SV 22 has two independent actuation ports, which may be used together or individually for redundancy. Non-return valves features male and female tread to ensure correct installation. Cylinders used for SV 22 control must be discharged to respective zone.

SV 22 Components 305150 SV 22 Selector valve 1”

SV 22 Components 305150 SV 22 Selector valve 1”

SV 22 Zone kit 305160 SV 22 Zone kit

SV 22 Zone kit 305160 SV 22 Zone kit

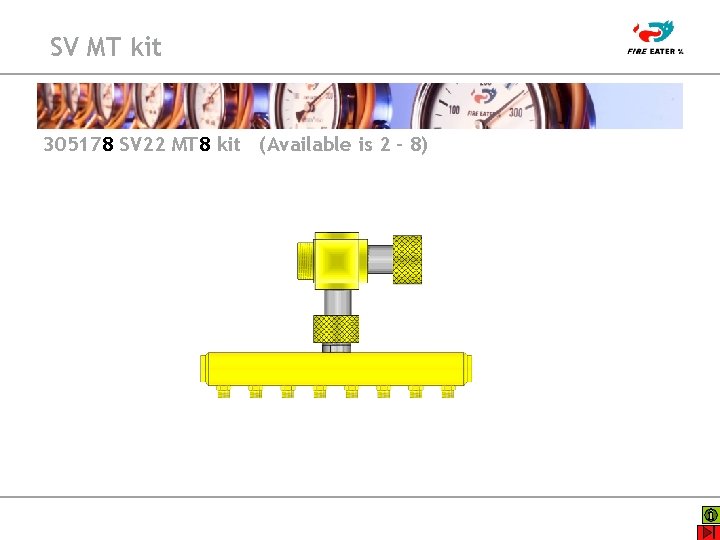

SV MT kit 305178 SV 22 MT 8 kit (Available is 2 – 8)

SV MT kit 305178 SV 22 MT 8 kit (Available is 2 – 8)

SV-Ci start kit 305198 SV-Ci start kit (tube incl IV 8 1: Tube ø

SV-Ci start kit 305198 SV-Ci start kit (tube incl IV 8 1: Tube ø 6 mm 1 102012 2 1 3 2 2 214058 301328 777003 214035 214301 7: Non-Return valve ¼” 2 305302 10: Bleed fitting 400 bar 1 305320 11: Tee ¼” BSP (In-Union-In) 1 12: Pressure Hose Dn 6 -400 0. 330 m 1 13: Pressure Hose Dn 6 -400 180+90 gr 0. 4 m 1 303281 301174 303184 14: DV 7 a -2 M 25 (300 bar) 15: Ci-IV 8 -300 Basic 304042 305411 2: Compression 3: Compression 4: Bonded seal 5: Compression 6: Compression fitting 1/8” BSPT – ø 6 fitting ¼” BSP (F) ø 6 fitting Tee fitting ¼” BSPT-ø 6 Stud 1 1

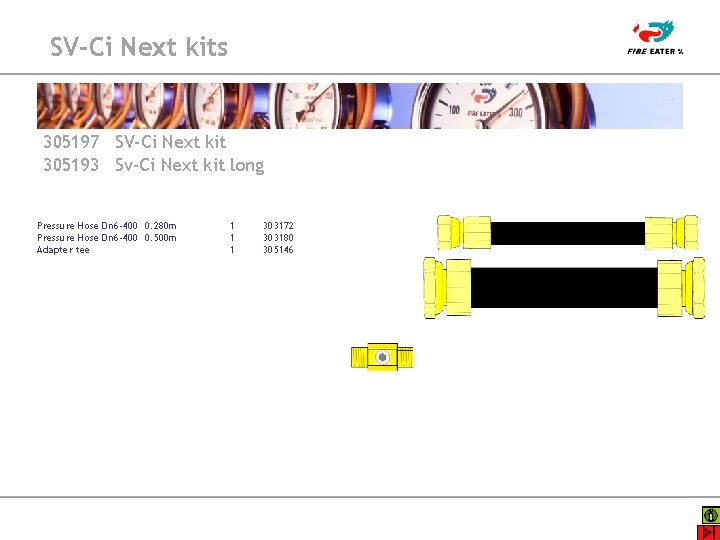

SV-Ci Next kits 305197 SV-Ci Next kit 305193 Sv-Ci Next kit long Pressure Hose

SV-Ci Next kits 305197 SV-Ci Next kit 305193 Sv-Ci Next kit long Pressure Hose Dn 6 -400 0. 280 m Pressure Hose Dn 6 -400 0. 500 m Adapter tee 1 1 1 303172 303180 305146

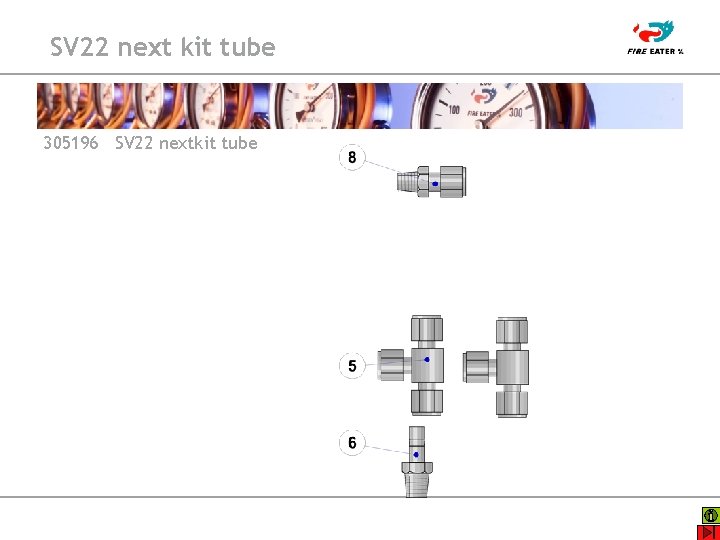

SV 22 next kit tube 305196 SV 22 nextkit tube

SV 22 next kit tube 305196 SV 22 nextkit tube

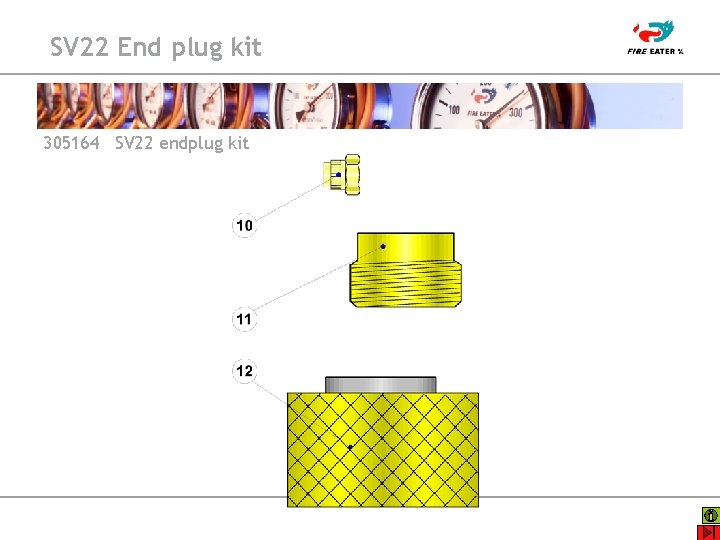

SV 22 End plug kit 305164 SV 22 endplug kit

SV 22 End plug kit 305164 SV 22 endplug kit

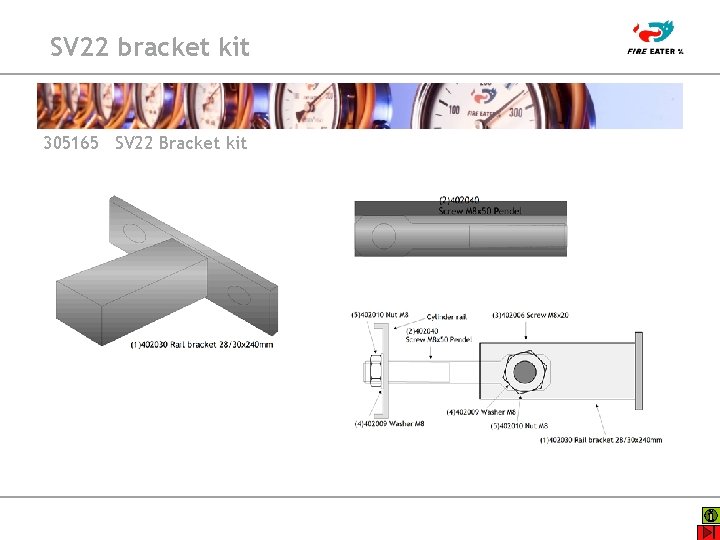

SV 22 bracket kit 305165 SV 22 Bracket kit

SV 22 bracket kit 305165 SV 22 Bracket kit

SV 22 Switch kit 305190 SV 22 switch kit 305189 SV 2 switch kit

SV 22 Switch kit 305190 SV 22 switch kit 305189 SV 2 switch kit custom resistance

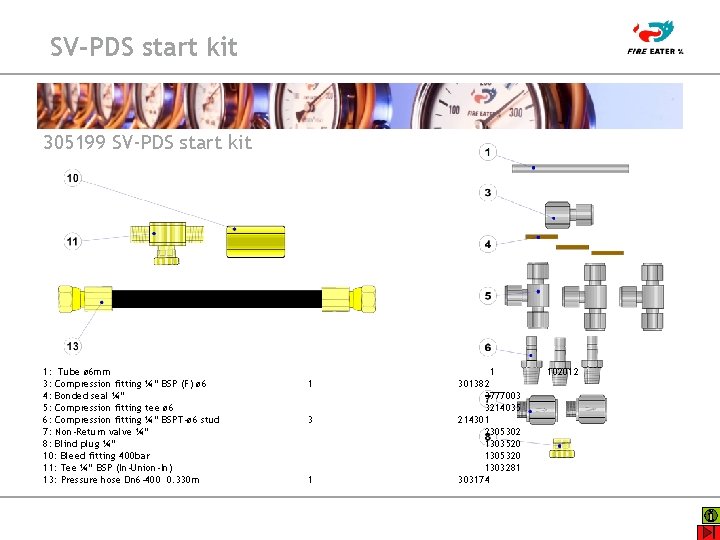

SV-PDS start kit 305199 SV-PDS start kit 1: Tube ø 6 mm 3: Compression

SV-PDS start kit 305199 SV-PDS start kit 1: Tube ø 6 mm 3: Compression fitting ¼” BSP (F) ø 6 4: Bonded seal ¼” 5: Compression fitting tee ø 6 6: Compression fitting ¼” BSPT-ø 6 stud 7: Non-Return valve ¼” 8: Blind plug ¼” 10: Bleed fitting 400 bar 11: Tee ¼” BSP (In-Union-In) 13: Pressure hose Dn 6 -400 0. 330 m 1 3 1 1 301382 3777003 3214035 214301 2305302 1303520 1305320 1303281 303174 102012
