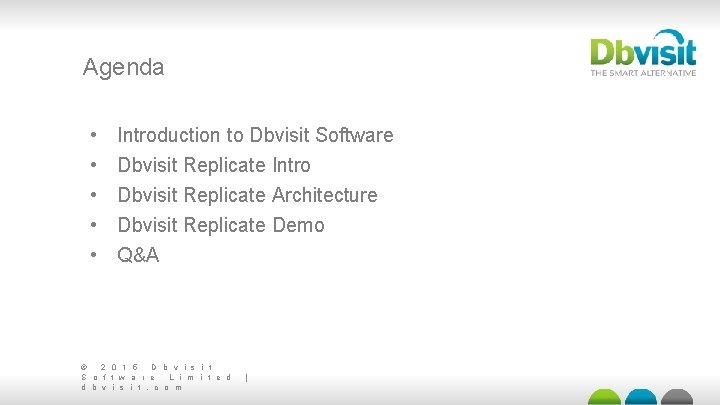

Agenda • • • Introduction to Dbvisit Software Dbvisit Replicate Intro Dbvisit Replicate Architecture Dbvisit Replicate Demo Q&A © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Dbvisit • • Used in 80+ Countries Trusted by 800+ Companies Worldwide leader in disaster recovery solutions for Oracle Standard Edition Exceptional Product Engineers with “real world” DBA Experience Two Oracle 11 g Certified Masters Regular presenters at Oracle events such as OOW and Collaborate Passionate about Oracle Technology © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Trusted in 80+ countries. . . © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | . . . By 800+ companies.

Product Lineup World-leading Disaster Recovery Solution for the Oracle SE database © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | Affordable Alternative to Golden. Gate: – Data Replication for Oracle-sourced databases

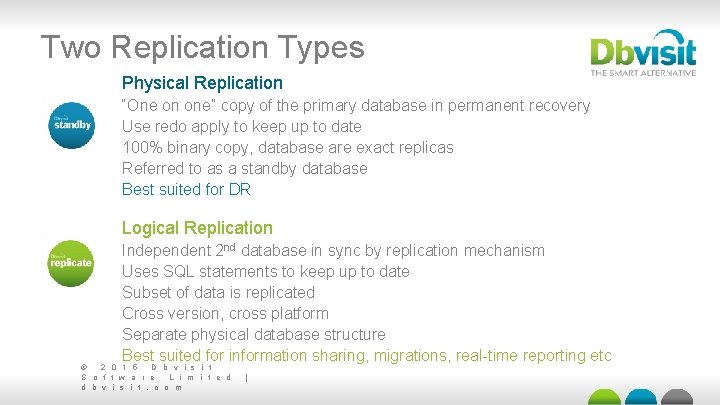

Two Replication Types Physical Replication “One on one” copy of the primary database in permanent recovery Use redo apply to keep up to date 100% binary copy, database are exact replicas Referred to as a standby database Best suited for DR Logical Replication Independent 2 nd database in sync by replication mechanism Uses SQL statements to keep up to date Subset of data is replicated Cross version, cross platform Separate physical database structure Best suited for information sharing, migrations, real-time reporting etc © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

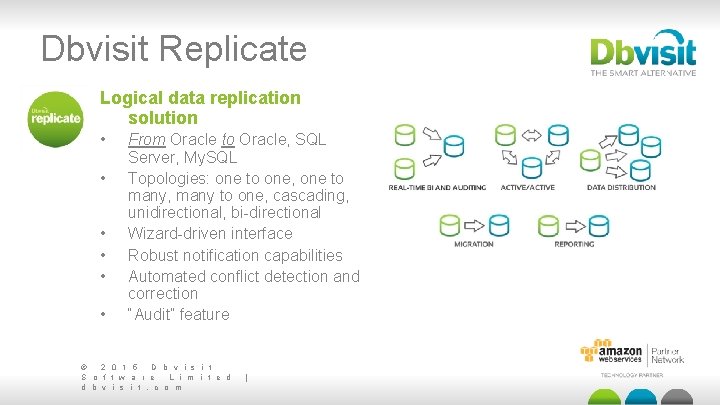

Dbvisit Replicate Logical data replication solution • • • From Oracle to Oracle, SQL Server, My. SQL Topologies: one to one, one to many, many to one, cascading, unidirectional, bi-directional Wizard-driven interface Robust notification capabilities Automated conflict detection and correction “Audit” feature © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Dbvisit Replicate Use Cases 1) Offloaded reporting and query environments 2) Data warehousing a) b) “Audit” feature Integration with ETL tools 3) Migration projects a) b) Term licenses Oracle version upgrades, OS platform, to the Cloud, etc. 4) Cloud a) b) c) d) Migration Backup Reporting DRaa. S © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

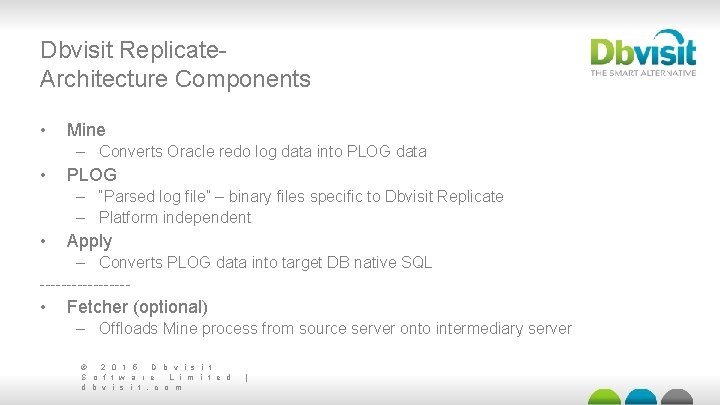

Dbvisit Replicate. Architecture Components • Mine – Converts Oracle redo log data into PLOG data • PLOG – “Parsed log file” – binary files specific to Dbvisit Replicate – Platform independent • Apply – Converts PLOG data into target DB native SQL --------- • Fetcher (optional) – Offloads Mine process from source server onto intermediary server © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

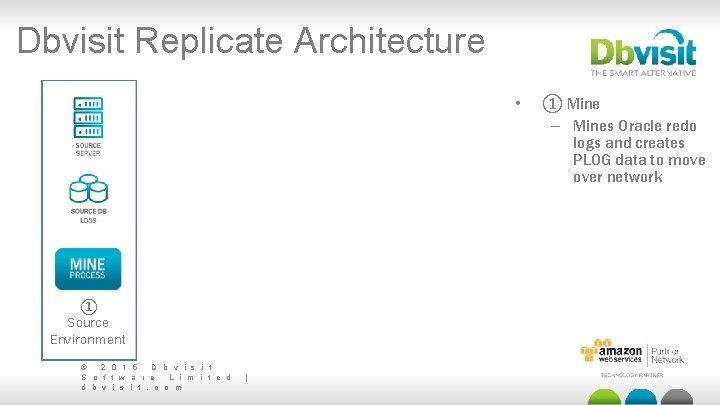

Dbvisit Replicate Architecture • ① Source Environment © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | ① Mine – Mines Oracle redo logs and creates PLOG data to move over network

Dbvisit Replicate Architecture LAN ① Source Environment ② © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | • ① Mine – Mines Oracle redo logs and creates PLOG data to move over network • ② PLOG –- Parsed logs – binary files specific to Dbvisit Reporting –- Platform independent

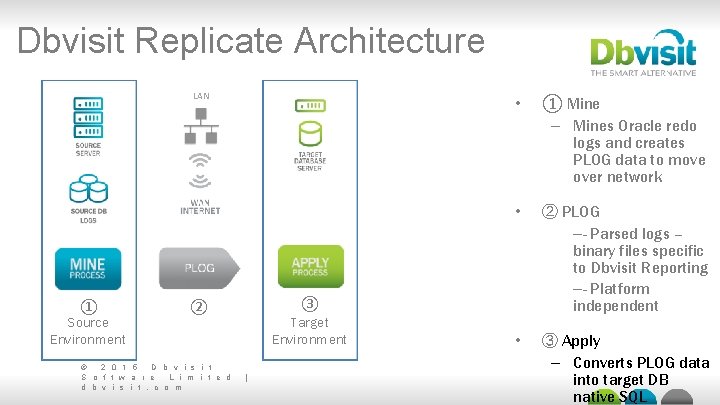

Dbvisit Replicate Architecture LAN ① Source Environment ③ Target Environment ② © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | • ① Mine – Mines Oracle redo logs and creates PLOG data to move over network • ② PLOG –- Parsed logs – binary files specific to Dbvisit Reporting –- Platform independent • ③ Apply – Converts PLOG data into target DB native SQL

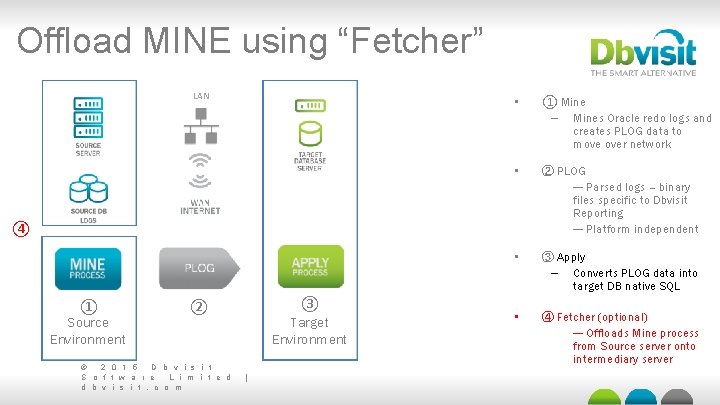

Offload MINE using “Fetcher” LAN • ① Mine – Mines Oracle redo logs and creates PLOG data to move over network • ② PLOG –- Parsed logs – binary files specific to Dbvisit Reporting –- Platform independent • ③ Apply – Converts PLOG data into target DB native SQL • ④ Fetcher (optional) –- Offloads Mine process from Source server onto intermediary server ④ ① Source Environment ③ Target Environment ② © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

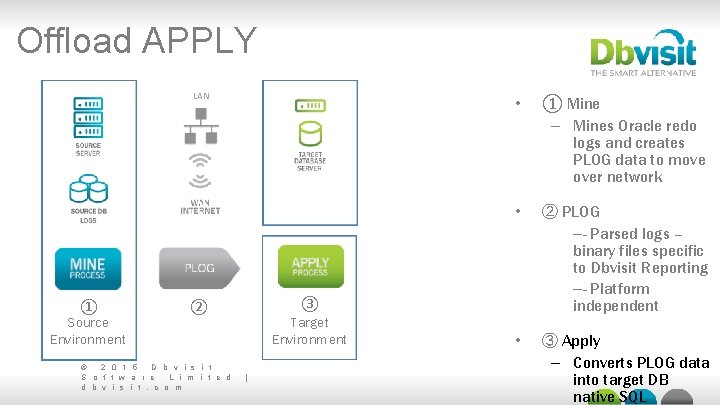

Offload APPLY LAN ① Source Environment ③ Target Environment ② © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | • ① Mine – Mines Oracle redo logs and creates PLOG data to move over network • ② PLOG –- Parsed logs – binary files specific to Dbvisit Reporting –- Platform independent • ③ Apply – Converts PLOG data into target DB native SQL

Dbvisit Replicate and RDS © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

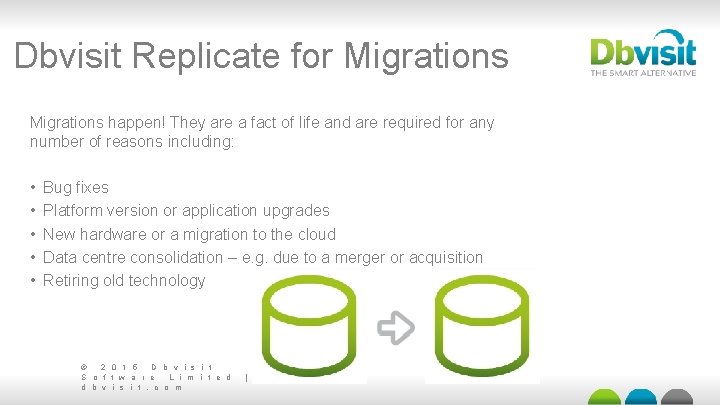

Dbvisit Replicate for Migrations happen! They are a fact of life and are required for any number of reasons including: • • • Bug fixes Platform version or application upgrades New hardware or a migration to the cloud Data centre consolidation – e. g. due to a merger or acquisition Retiring old technology © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Migration objectives Migrate previous release database to new release database with: 1. 2. 3. 4. 5. Minimal outage Low risk Low stress Extended testing with live data 100% Data integrity © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

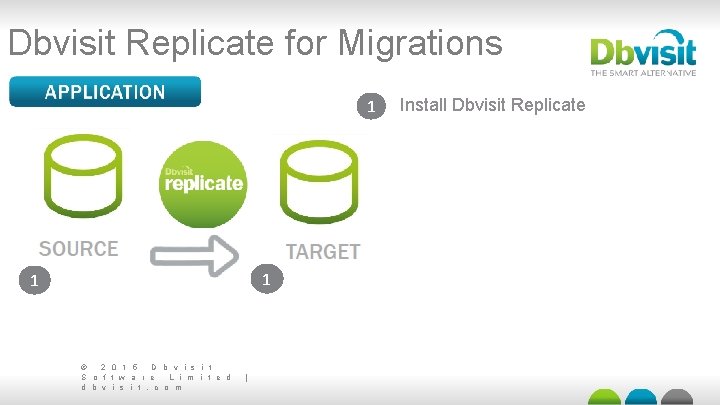

Dbvisit Replicate for Migrations 1 1 1 © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | Install Dbvisit Replicate

Dbvisit Replicate for Migrations 1 2 the 1 1 2 © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | Install Dbvisit Replicate Start the MINE process on Source Database

Dbvisit Replicate for Migrations 3 1 Install Dbvisit Replicate 2 Start the MINE process on the Source Database as of SCN 123 3 Export the database as of SCN 123 1 1 2 © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Dbvisit Replicate for Migrations 3 4 1 Install Dbvisit Replicate 2 Start the MINE process on the Source Database as of SCN 123 3 123 4 1 1 2 © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | Export the database as of SCN Import the database

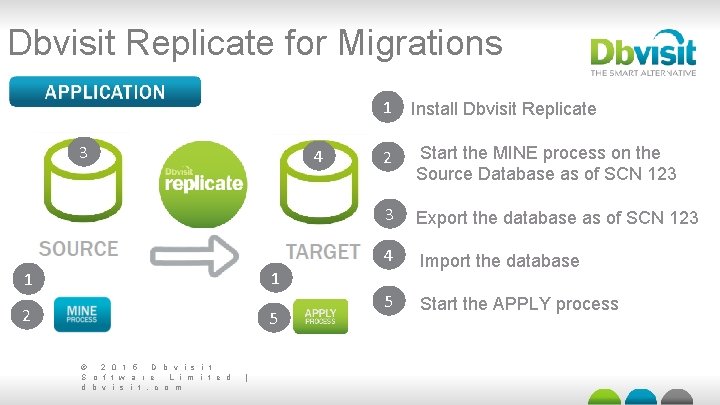

Dbvisit Replicate for Migrations 3 4 1 1 2 5 © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | 1 Install Dbvisit Replicate 2 Start the MINE process on the Source Database as of SCN 123 3 Export the database as of SCN 123 4 Import the database 5 Start the APPLY process

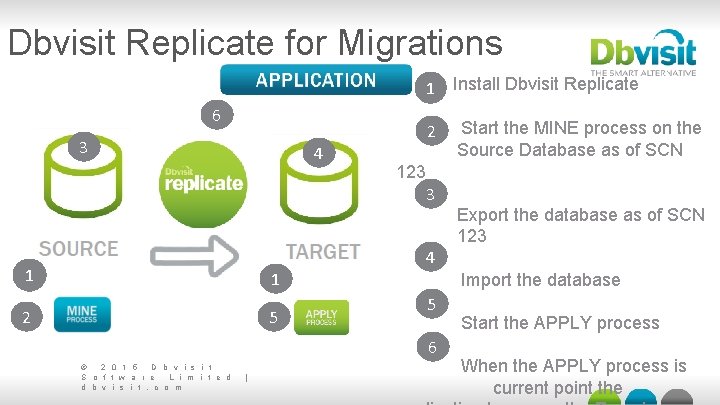

Dbvisit Replicate for Migrations 1 Install Dbvisit Replicate 2 Start the MINE process on the Source Database as of SCN 6 3 4 123 3 4 1 1 2 5 Import the database 5 6 © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | Export the database as of SCN 123 Start the APPLY process When the APPLY process is current point the

Dbvisit Replicate Feature Highlight: CDC/Audit real-time BI (ii) This does not maintain a copy of the source table(s), but logs all operations as separate entries. © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Dbvisit Replicate Feature Highlight: CDC/Audit real-time BI (ii) New row inserted in staging table for every: • Insert • Update • Delete © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

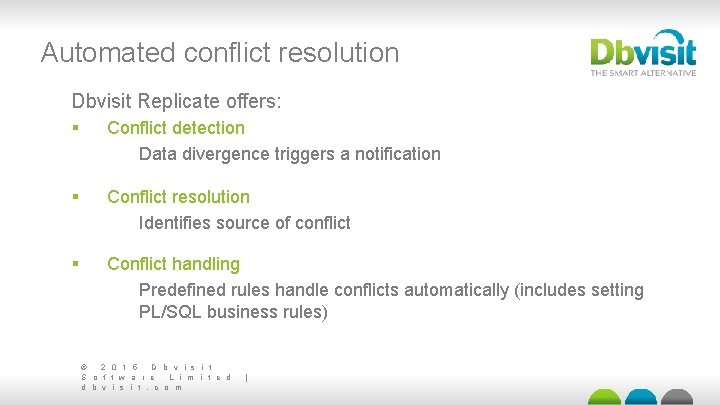

Automated conflict resolution Dbvisit Replicate offers: § Conflict detection Data divergence triggers a notification § Conflict resolution Identifies source of conflict § Conflict handling Predefined rules handle conflicts automatically (includes setting PL/SQL business rules) © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Formal Product Training • Workshop style – combining lecture and hand’s on • Available now: Replicate LTD, XTD, MAX • Coming soon: Standby • Conducted via Go. Training • Short segments (to fit into work schedule) © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

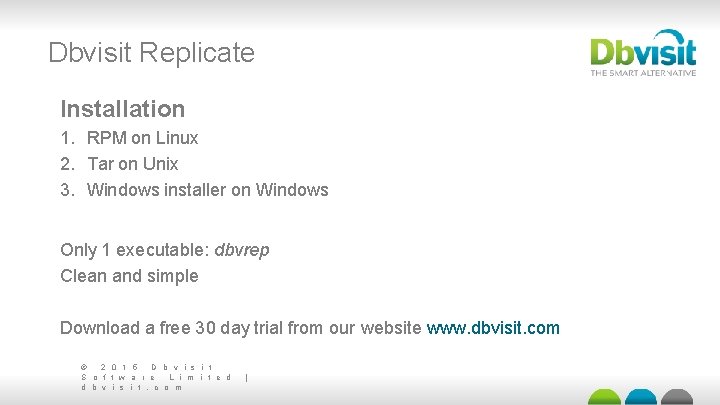

Dbvisit Replicate Installation 1. RPM on Linux 2. Tar on Unix 3. Windows installer on Windows Only 1 executable: dbvrep Clean and simple Download a free 30 day trial from our website www. dbvisit. com © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

Dbvisit Replicate Demos 1. Dbvisit Replicate console overview 2. Oracle to Oracle 3. Oracle to My. SQL Other demos are on our "Dbvisit" Youtube channel © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

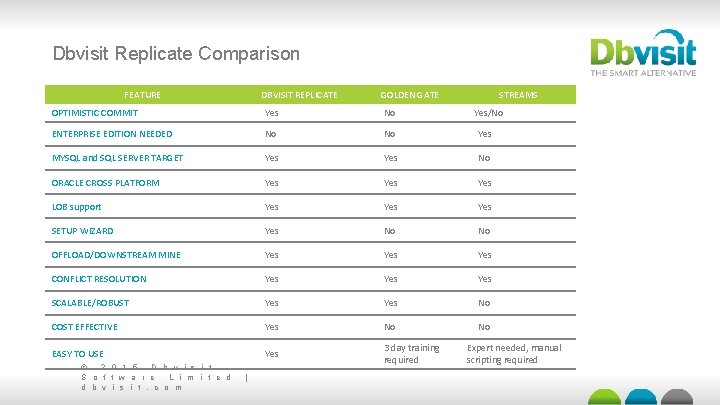

Dbvisit Replicate Comparison FEATURE DBVISIT REPLICATE GOLDEN GATE STREAMS OPTIMISTIC COMMIT Yes No ENTERPRISE EDITION NEEDED No No Yes MYSQL and SQL SERVER TARGET Yes No ORACLE CROSS PLATFORM Yes Yes LOB support Yes Yes SETUP WIZARD Yes No No OFFLOAD/DOWNSTREAM MINE Yes Yes CONFLICT RESOLUTION Yes Yes SCALABLE/ROBUST Yes No COST EFFECTIVE Yes No No EASY TO USE Yes 3 day training required © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m | Yes/No Expert needed, manual scripting required

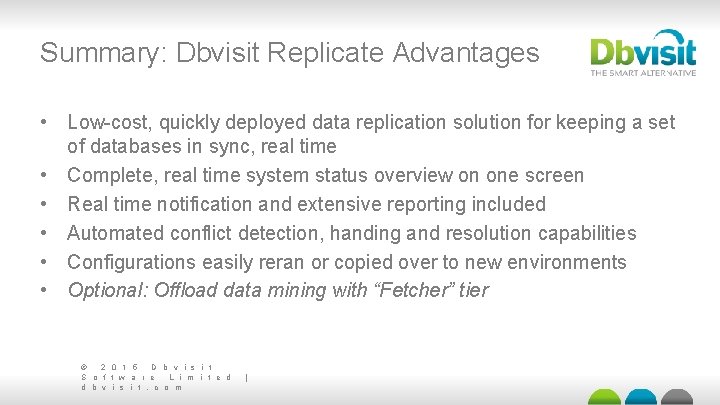

Summary: Dbvisit Replicate Advantages • Low-cost, quickly deployed data replication solution for keeping a set of databases in sync, real time • Complete, real time system status overview on one screen • Real time notification and extensive reporting included • Automated conflict detection, handing and resolution capabilities • Configurations easily reran or copied over to new environments • Optional: Offload data mining with “Fetcher” tier © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |

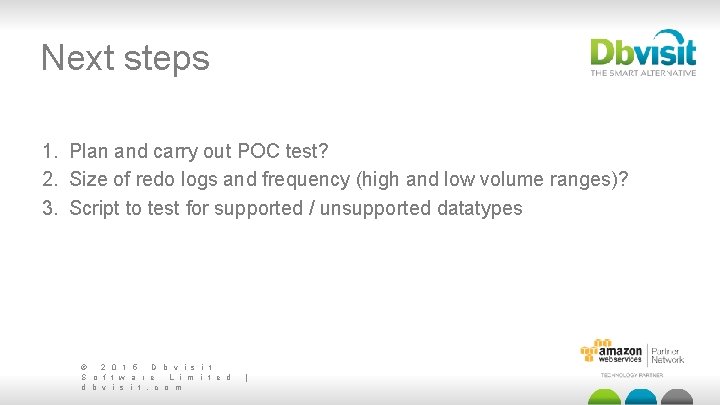

Next steps 1. Plan and carry out POC test? 2. Size of redo logs and frequency (high and low volume ranges)? 3. Script to test for supported / unsupported datatypes © 2 0 1 5 D b v i s i t S o f t w a r e L i m i t e d d b v i s i t. c o m |
