Amateur Radio License Training Course Technician Sponsored by the Roanoke Valley Amateur Radio Club
Class Outline ➢T 1 - 6 questions - FCC Rules, descriptions, and definitions for the Amateu Radio Service, operator and station license responsibilities. ➢T 2 - 3 questions - Operating Procedures. ➢T 3 - 3 questions -Radio wave characteristics: properties of radio waves; propagation modes. ➢T 4 - 2 exam questions - Amateur radio practices and station set up. ➢T 5 - 4 exam questions Electrical principles: math for electronics; electronic principles; Ohm’s Law. ➢T 6 - 4 exam questions - Electrical components; circuit diagrams; component functions. ➢T 7 - 4 exam questions Station equipment: common transmitter and receiver problems; antenna measurements; troubleshooting; basic repair a testing. ➢T 8 - 4 exam questions Modulation modes: amateur satellite operation; operating activities; non-voice and digital communications. ➢T 9 - 2 exam questions - Antennas and feed lines. ➢T 0 - 3 exam questions - Electrical safety: AC and DC power circuits; antenna installation; RF hazards.
Subelement T 8 • T 8 - 4 examquestions - Modulation modes: amateur satellite operation; operating activities; non-voice and digital communications
Subelement T 8 • Single sideband is a form of amplitude modulation. (T 8 A 01) • FM is most commonly used for VHF packet radio transmissions. (T 8 A 02) • SSB is most often used for long-distance (weak signal) contacts on the VHF and UHF bands. (T 8 A 03) • FM is most commonly used for VHF and UHF voice repeaters. (T 8 A 04)
Subelement T 8 • Upper sideband is normally used for 10 meter HF, VHF and UHF single-sideband communications. (T 8 A 06) • CW has the narrowest bandwidth. (T 8 A 05) • SSB signals have narrower bandwidth is the primary advantage of single sideband over FM for voice transmissions. (T 8 A 07)
Carrier only CW Tones produce Both side bands or AM Remove one sideband suppress carrier and it becomes SSB
CW Signal 500 Hz wide SSB Signal 2 - 3 k. Hz wide FM Signal 5 - 15 k. Hz wide UHF Fast-Scan TV ~ 6 MHz

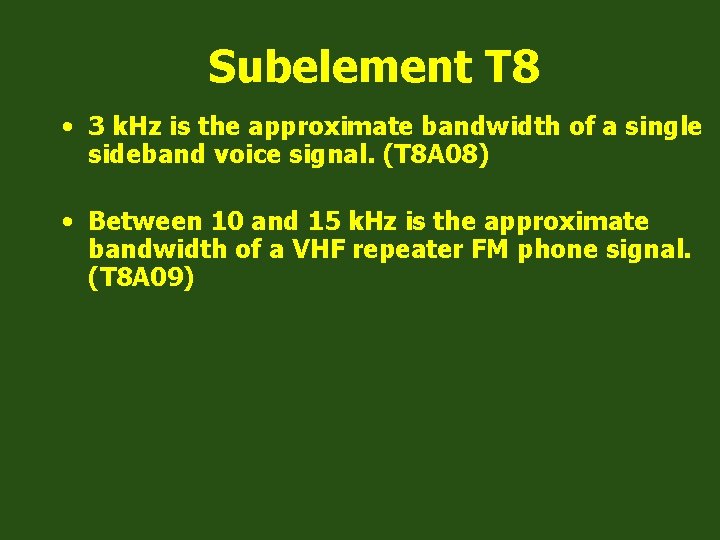

Subelement T 8 • 3 k. Hz is the approximate bandwidth of a single sideband voice signal. (T 8 A 08) • Between 10 and 15 k. Hz is the approximate bandwidth of a VHF repeater FM phone signal. (T 8 A 09)
Subelement T 8 • About 6 MHz is the typical bandwidth of analog fast-scan TV transmissions on the 70 cm band. (T 8 A 10) • 150 Hz is the approximate maximum bandwidth required to transmit a CW signal. (T 8 A 11)
Subelement T 8 • The health and status of the satellite is the telemetry information typically transmitted on satellite beacons. (T 8 B 01) • Using too much effective radiated power on a satellite uplink will result in blocking access by other users. (T 8 B 02)

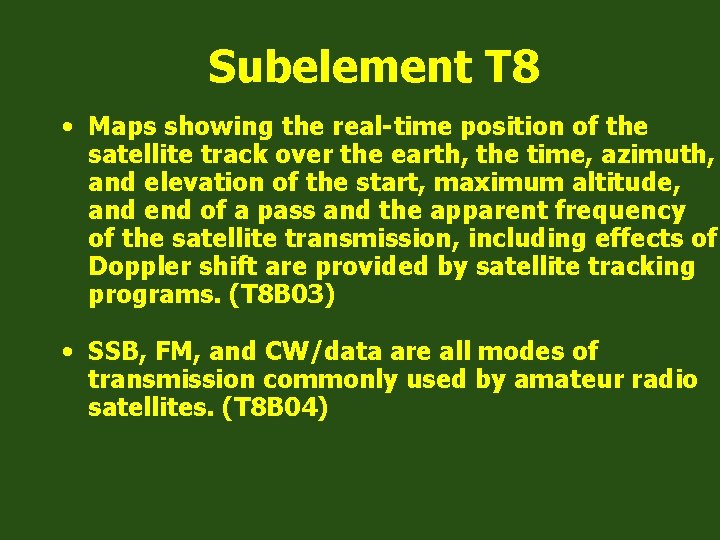

Subelement T 8 • Maps showing the real-time position of the satellite track over the earth, the time, azimuth, and elevation of the start, maximum altitude, and end of a pass and the apparent frequency of the satellite transmission, including effects of Doppler shift are provided by satellite tracking programs. (T 8 B 03) • SSB, FM, and CW/data are all modes of transmission commonly used by amateur radio satellites. (T 8 B 04)
Tracking and communicating through amateur satellites can be done witha crosspolarized satellite antenna
Subelement T 8 • A transmission from a space station that contains information about a satellite is a satellite beacon. (T 8 B 05) • The Keplerian elements are inputs to a satellitetracking program. (T 8 B 06) • An observed change in signal frequency caused by relative motion between the satellite and the earth station is Doppler shift. (T 8 B 07)
Satellite Operating Modes Frequency Bands High Frequency VHF UHF L band S band C band X band K band Frequency Rang e 21 - 30 MHz 144 - 146 MH z 435 - 438 MH z 1. 26 - 1. 27 GHz 2. 4 - 2. 45 GHz 5. 8 GHz 10. 4 GHz 24 Ghz K Modes Mode H Mode V Mode U Mode L Mode S Mode C Mode X Mode
Subelement T 8 • The satellite uplink is in the 70 cm band the downlink is in the 2 -meter band is operating in mode U/V. (T 8 B 08) • Rotation of the satellite and its antennas causes spin fading when referring to satellite signals. (T 8 B 09)
Subelement T 8 • Initials LEO tell you the satellite is in a Low Earth Orbit. (T 8 B 10) • Anyone who can receive the telemetry signal may receive telemetry from a space station. (T 8 B 11) • Your signal on the downlink should be about the same as the beacon. This is a good way to judge whether your uplink power is neither too low nor too high. (T 8 B 12)
Subelement T 8 • Radio direction finding is used to locate sources of noise interference or jamming. (T 8 C 01) • A directional antenna would be useful for a hidden transmitter hunt. (T 8 C 02)
Radio direction finding is a method usedlocate to sources of noise interference or jamming. A directional antenna would be the most useful for a hidden transmitter hunt.
Subelement T 8 • Contesting is a popular operating activity involving contacting as many stations as possible during a specified period of time. (T 8 C 03) • Send only the minimum information needed for proper identification and the contest exchange is good procedure when contacting another station in a radio contest. (T 8 C 04) • A letter-number designator assigned to a geographic location is a grid locator. (T 8 C 05)
Subelement T 8 • Voice Over Internet Protocol (Vo. IP) as used in amateur radio is a method of delivering voice communications over the internet using digital techniques. (T 8 C 07) • Internet Radio Linking Project (IRLP) is a technique to connect amateur radio systems, such as repeaters, via the internet using Voice Over Internet Protocol (Vo. IP) (T 8 C 08)
Subelement T 8 • You can obtain a list of active nodes that use Vo. IP by subscribing to an on line service, from on line repeater lists maintained by the local repeater frequency coordinator, or from a repeater directory. (T 8 C 09) • You must register your call and provide proof of license before you may use the Echolink system to communicate using a repeater. (T 8 C 10)
Subelement T 8 • Some IRLP nodes are accessed by using DTMF signals. (T 8 C 06) • A gateway is the name given to an amateur radio station that is used to connect other amateur stations to the Internet. (T 8 C 11)
Internet Radio Linking Project (IRLP) PC User Internet Gateway Repeater
Subelement T 8 • Packet radio, IEEE 802. 11, and JT 65 are all digital communications modes. (T 8 D 01) • Automatic Packet Reporting System is "APRS". (T 8 D 02) • A Global Positioning System receiver provides data to the transmitter when sending automatic position reports from a mobile amateur radio station. (T 8 D 03)
Subelement T 8 • Providing real time tactical digital communications in conjunction with a map showing the locations of stations is an application of APRS (Automatic Packet Reporting System). (T 8 D 05) • The abbreviation “PSK” means Phase Shift Keying. (T 8 D 06)
Subelement T 8 • DMR (Digital Mobile Radio or Digital Migration Radio) is best described as a technique for time-multiplexing two digital voice signals on a single 12. 5 k. Hz repeater signal. (T 8 D 07) • FT 8 is a digital mode capable of operating in low signal-to-noise conditions that transmits on 15 -second intervals. (T 8 D 13) • An electronic keyer is a device that assists in manual sending of Morse code. (T 8 D 14)
Subelement T 8 • Broadband-Hamnet™, also referred to as a high -speed multi-media network is an amateurradio-based data network using commercial Wi. Fi gear with modified firmware. (T 8 D 12) • Check sum which permits error detection, a header which contains the call sign of the station to which the information is being sent, and automatic repeat request in case of error are included in packet transmissions. (T 8 D 08)
Laptop, TNC, and Handheld comprise a Packet Station.
Subelement T 8 • International Morse is used when sending CW in the amateur bands. (T 8 D 09) • Moonbounce or Earth-Moon-Earth, Weak-signal propagation beacons, and Meteor scatter are all operating activities supported by digital mode software in the WSJT suite. (T 8 D 10)
Subelement T 8 • A digital scheme where by the receiving station detects errors and sends a request to the sending station to retransmit the information is an ARQ transmission system. (T 8 D 11) • An analog fast scan color TV signal is indicated by the term NTSC. (T 8 D 04)
Which of the following is a form of amplitude modulation? (T 8 A 01) • • A. Spreadspectrum B. Packet radio C. Single sideband D. Phase shift keying (PSK)
Which of the following is a form of amplitude modulation? (T 8 A 01) • • A. Spreadspectrum B. Packet radio C. Single sideband D. Phase shift keying (PSK)
What type of modulation is most commonly used for VHF packet radio transmissions? (T 8 A 02) • • A. FM B. SSB C. AM D. Spread Spectrum
What type of modulation is most commonly used for VHF packet radio transmissions? (T 8 A 02) • • A. FM B. SSB C. AM D. Spread Spectrum
Which type of voice mode is most often use for long-distance (weak signal) contacts on the VHF and UHF bands? T 8 A 03) ( • • A. FM B. DRM C. SSB D. PM
Which type of voice mode is most often use for long-distance (weak signal) contacts on the VHF and UHF bands? T 8 A 03) ( • • A. FM B. DRM C. SSB D. PM
Which type of modulation is most commonly used for VHF and UHF voice repeaters? (T 8 A 04) • • A. AM B. SSB C. PSK D. FM
Which type of modulation is most commonly used for VHF and UHF voice repeaters? (T 8 A 04) • • A. AM B. SSB C. PSK D. FM
Which of the following types of emission has the narrowest bandwidth? (T 8 A 05) • • A. FM voice B. SSB voice C. CW D. Slow-scan TV
Which of the following types of emission has the narrowest bandwidth? (T 8 A 05) • • A. FM voice B. SSB voice C. CW D. Slow-scan TV
Which sideband is normally used for 10 meter HF, VHF and UHF single-sideband communications? (T 8 A 06) • • A. Upper sideband B. Lower sideband C. Suppressed sideband D. Inverted sideband
Which sideband is normally used for 10 meter HF, VHF and UHF single-sideband communications? (T 8 A 06) • • A. Upper sideband B. Lower sideband C. Suppressed sideband D. Inverted sideband
What is thean advantage of single sideband (SSB) over FM for voice transmissions? (T 8 A 07) • A. SSB signals are easier to tune • B. SSB signals are less susceptible to interference • C. SSB signals have narrower bandwidth • D. All of these choices are correct
What is thean advantage of single sideband (SSB) over FM for voice transmissions? (T 8 A 07) • A. SSB signals are easier to tune • B. SSB signals are less susceptible to interference • C. SSB signals have narrower bandwidth • D. All of these choices are correct
What is the approximate bandwidth of a single sideband (SSB) voice signal? (T 8 A 08) • • A. 1 k. Hz B. 3 k. Hz C. 6 k. Hz D. 15 k. Hz
What is the approximate bandwidth of a single sideband (SSB) voice signal? (T 8 A 08) • • A. 1 k. Hz B. 3 k. Hz C. 6 k. Hz D. 15 k. Hz
What is the approximate bandwidth of a VHF repeater FM phone signal? (T 8 A 09) • • A. Less than 500 Hz B. About 150 k. Hz C. Between 10 and 15 k. Hz D. Between 50 and 125 k. Hz
What is the approximate bandwidth of a VHF repeater FM phone signal? (T 8 A 09) • • A. Less than 500 Hz B. About 150 k. Hz C. Between 10 and 15 k. Hz D. Between 50 and 125 k. Hz
What is the typical bandwidth of analog fast-scan TV transmissions on the 70 cm band? (T 8 A 10) • • A. More than 10 MHz B. About 6 MHz C. About 3 MHz D. About 1 MHz
What is the typical bandwidth of analog fast-scan TV transmissions on the 70 cm band? (T 8 A 10) • • A. More than 10 MHz B. About 6 MHz C. About 3 MHz D. About 1 MHz
What is the approximate maximum bandwidth required to transmit a CW signal? (T 8 A 11) • • A. 2. 4 k. Hz B. 150 Hz C. 1000 Hz D. 15 k. Hz
What is the approximate maximum bandwidth required to transmit a CW signal? (T 8 A 11) • • A. 2. 4 k. Hz B. 150 Hz C. 1000 Hz D. 15 k. Hz
What telemetry information is typically transmitted by satellite beacons? (T 8 B 01) • A. The signal strength of received signals • B. Time of day accurate to plus or minus 1/10 second • C. Health and status of the satellite • D. All of these choices are correct
What telemetry information is typically transmitted by satellite beacons? (T 8 B 01) • A. The signal strength of received signals • B. Time of day accurate to plus or minus 1/10 second • C. Health and status of the satellite • D. All of these choices are correct
What is the impact of using too much effective radiated power on a satellite uplink? (T 8 B 02) • A. Possibility of commanding the satellite to an improper mode • B. Blocking access by other users • C. Overloading the satellite batteries • D. Possibility of rebooting the satellite control computer
What is the impact of using too much effective radiated power on a satellite uplink? (T 8 B 02) • A. Possibility of commanding the satellite to an improper mode • B. Blocking access by other users • C. Overloading the satellite batteries • D. Possibility of rebooting the satellite control computer
Which of the following are provided by satellite tracking programs? (T 8 B 03) • A. Maps showing the real-time position of the satellite track over the earth • B. The time, azimuth, and elevation of the start, maximum altitude, and end of a pass • C. The apparent frequency of the satellite transmission, including effects of Doppler shift • D. All of these answers are correct
Which of the following are provided by satellite tracking programs? (T 8 B 03) • A. Maps showing the real-time position of the satellite track over the earth • B. The time, azimuth, and elevation of the start, maximum altitude, and end of a pass • C. The apparent frequency of the satellite transmission, including effects of Doppler shift • D. All of these answers are correct
What mode of transmission is commonly used by amateur radio satellites ? (T 8 B 04) • • A. SSB B. FM C. CW/data D. All of these choices are correct
What mode of transmission is commonly used by amateur radio satellites ? (T 8 B 04) • • A. SSB B. FM C. CW/data D. All of these choices are correct
What is a satellite beacon? (T 8 B 0 5) • A. The primary transmit antenna on the satellite • B. An indicator light that shows where to point your antenna • C. A reflective surface on the satellite • D. A transmission from a space station that contains information about a satellite
What is a satellite beacon? (T 8 B 0 5) • A. The primary transmit antenna on the satellite • B. An indicator light that shows where to point your antenna • C. A reflective surface on the satellite • D. A transmission from a space station that contains information about a satellite
Which of the following are inputs to a satellite tracking program? (T 8 B 06) • A. The weight of the satellite • B. The Keplerian elements • C. The last observed time of zero Doppler shift • D. All of these answers are correct
Which of the following are inputs to a satellite tracking program? (T 8 B 06) • A. The weight of the satellite • B. The Keplerian elements • C. The last observed time of zero Doppler shift • D. All of these answers are correct
With regard to satellite communications, what is Doppler shift? (T 8 B 07) • A. A change in the satellite orbit • B. A mode where the satellite receives signals on one band transmits on another • C. An observed change in signal frequency caused by relative motion between the satellite and the earth station • D. A special digital communications mode for some satellites
With regard to satellite communications, what is Doppler shift? (T 8 B 07) • A. A change in the satellite orbit • B. A mode where the satellite receives signals on one band transmits on another • C. An observed change in signal frequency caused by relative motion between the satellite and the earth station • D. A special digital communications mode for some satellites
What is meant by the statement that a satellite is operating in mode U/V? (T 8 B 08) • A. The satellite uplink is in the 15 meter band the downlink is in the 10 meter band • B. The satellite uplink is in the 70 cm band the downlink is in the 2 meter band • C. The satellite operates using ultraviolet frequencies • D. The satellite frequencies are usually variable
What is meant by the statement that a satellite is operating in mode U/V? (T 8 B 08) • A. The satellite uplink is in the 15 meter band the downlink is in the 10 meter band • B. The satellite uplink is in the 70 cm band the downlink is in the 2 meter band • C. The satellite operates using ultraviolet frequencies • D. The satellite frequencies are usually variable
What causes spin fading when referring to satellite signals? (T 8 B 09) • A. Circular polarized noise interference radiated from the sun • B. Rotation of the satellite and its antennas • C. Doppler shift of the received signal • D. Interfering signals within the satellite uplink band
What causes spin fading when referring to satellite signals? (T 8 B 09) • A. Circular polarized noise interference radiated from the sun • B. Rotation of the satellite and its antennas • C. Doppler shift of the received signal • D. Interfering signals within the satellite uplink band
What do the initials LEO tell you about an amateur satellite? (T 8 B 10) • A. The satellite battery is in Low Energy Operation mode • B. The satellite is performing a Lunar Ejection Orbit maneuver • C. The satellite is in a Low Earth Orbit • D. The satellite uses Light Emitting Optics
What do the initials LEO tell you about an amateur satellite? (T 8 B 10) • A. The satellite battery is in Low Energy Operation mode • B. The satellite is performing a Lunar Ejection Orbit maneuver • C. The satellite is in a Low Earth Orbit • D. The satellite uses Light Emitting Optics
Who may receive telemetry from a space station? (T 8 B 11) • A. Anyone who can receive the telemetry signal • B. A licensed radio amateur with a transmitter equipped for interrogating the satellite • C. A licensed radio amateurho w has been certified by the protocol developer • D. A licensed ratio amateur who has registered for an access code from AMSAT
Who may receive telemetry from a space station? (T 8 B 11) • A. Anyone who can receive the telemetry signal • B. A licensed radio amateur with a transmitter equipped for interrogating the satellite • C. A licensed radio amateurho w has been certified by the protocol developer • D. A licensed ratio amateur who has registered for an access code from AMSAT

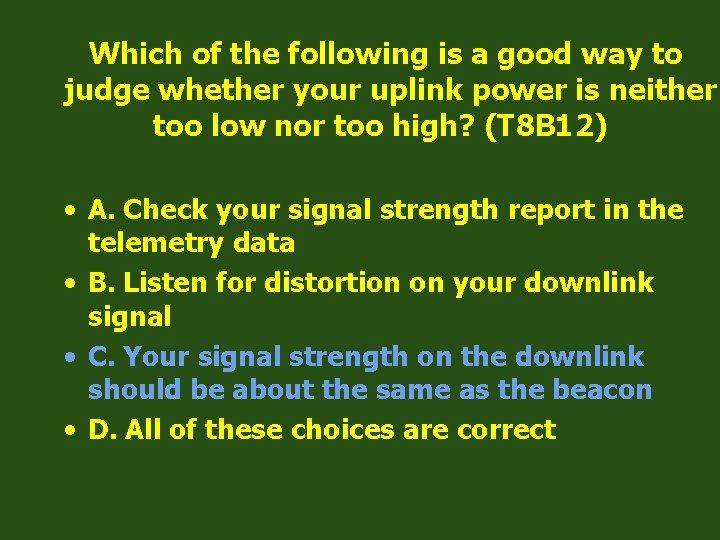

Which of the following is a good way to judge whether your uplink power is neither too low nor too high? (T 8 B 12) • A. Check your signal strength report in the telemetry data • B. Listen for distortion on your downlink signal • C. Your signal strength on the downlink should be about the same as the beacon • D. All of these choices are correct
Which of the following is a good way to judge whether your uplink power is neither too low nor too high? (T 8 B 12) • A. Check your signal strength report in the telemetry data • B. Listen for distortion on your downlink signal • C. Your signal strength on the downlink should be about the same as the beacon • D. All of these choices are correct
Which of the following methods is used to locate sources of noise interference or jamming? (T 8 C 01) • • A. Echolocation B. Doppler radar C. Radio direction finding D. Phase locking
Which of the following methods is used to locate sources of noise interference or jamming? (T 8 C 01) • • A. Echolocation B. Doppler radar C. Radio direction finding D. Phase locking
Which of these would be useful for a hidden transmitter hunt? (T 8 C 02) • • A. Calibrated SWR meter B. A directional antenna C. A calibrated noise bridge D. All of these choices are correct
Which of these would be useful for a hidden transmitter hunt? (T 8 C 02) • • A. Calibrated SWR meter B. A directional antenna C. A calibrated noise bridge D. All of these choices are correct
What operating activity involves contacting as many stations as possible during a specified period of time? (T 8 C 03) • • A. Contesting B. Net operations C. Public service events D. Simulated emergency exercises
What operating activity involves contacting as many stations as possible during a specified period of time? (T 8 C 03) • • A. Contesting B. Net operations C. Public service events D. Simulated emergency exercises
Which of the following is good procedure when contacting another station in a radio contest? (T 8 C 0 4) • A. Sign only the last two letters of your call if thereare many other stations calling • B. Contact the station twice to be sure that you are in his log • C. Send only the minimum information needed for proper identification and the contest exchange • D. All of these choices are correct
Which of the following is good procedure when contacting another station in a radio contest? (T 8 C 0 4) • A. Sign only the last two letters of your call if thereare many other stations calling • B. Contact the station twice to be sure that you are in his log • C. Send only the minimum information needed for proper identification and the contest exchange • D. All of these choices are correct
What is a grid locator? (T 8 C 05) • A. A letter-number designator assigned to a geographic location • B. A letter-number designator assigned to an azimuth and elevation • C. An instrument for neutralizing a final amplifier • D. An instrument for radio direction finding
What is a grid locator? (T 8 C 05) • A. A letter-number designator assigned to a geographic location • B. A letter-number designator assigned to an azimuth and elevation • C. An instrument for neutralizing a final amplifier • D. An instrument for radio direction finding
How is access tosome IRLP nodes accomplished? (T 8 C 06) • A. By obtaining a password which is sent via voice to the node • B. By using DTMF signals • C. By entering the proper internet password • D. By using CTCSS tone codes
How is access tosome IRLP nodes accomplished? (T 8 C 06) • A. By obtaining a password which is sent via voice to the node • B. By using DTMF signals • C. By entering the proper internet password • D. By using CTCSS tone codes
What is meant by Voice Over Internet Protocol (Vo. IP) as used in amateur radio? (T 8 C 07) • A. A set of rules specifying how to identify your station when linked over the internet to another station • B. A set of guidelines for contacting DX stations during contests using internet access • C. A technique for measuring the modulation quality of a transmitter using remote sites monitored via the internet • D. A method of delivering voice communications over the internet using digital techniques
What is meant by Voice Over Internet Protocol (Vo. IP) as used in amateur radio? (T 8 C 07) • A. A set of rules specifying how to identify your station when linked over the internet to another station • B. A set of guidelines for contacting DX stations during contests using internet access • C. A technique for measuring the modulation quality of a transmitter using remote sites monitored via the internet • D. A method of delivering voice communications over the internet using digital techniques
What is the Internet Radio Linking Project (IRLP)? (T 8 C 08) • A. A technique to connect amateur radio systems, such as repeaters, via the internet using Voice Over Internet Protocol (Vo. IP) • B. A system for providing access to websites via amateur radio • C. A system for informing amateurs in real time of the frequency of active DX stations • D. A technique for measuring signal strength of an amateur transmitter via the internet
What is the Internet Radio Linking Project (IRLP)? (T 8 C 08) • A. A technique to connect amateur radio systems, such as repeaters, via the internet using Voice Over Internet Protocol (Vo. IP) • B. A system for providing access to websites via amateur radio • C. A system for informing amateurs in real time of the frequency of active DX stations • D. A technique for measuring signal strength of an amateur transmitter via the internet
How might you obtain a list of active nodes that use Vo. IP? (T 8 C 09) • A. By subscribing to an on line service • B. From on line repeater lists maintained by the local repeater frequency coordinator • C. From a repeater directory • D. All of these choices are correct
How might you obtain a list of active nodes that use Vo. IP? (T 8 C 09) • A. By subscribing to an on line service • B. From on line repeater lists maintained by the local repeater frequency coordinator • C. From a repeater directory • D. All of these choices are correct
What must be done before you may use the Echolink system to communicate using a repeater? (T 8 C 10) • A. You must complete the required Echo. Link training • B. You must have purchased a license to use the Echo. Link software • C. You must be sponsored by a current Echo. Link user • D. You must register your call sign and provide proof of license
What must be done before you may use the Echolink system to communicate using a repeater? (T 8 C 10) • A. You must complete the required Echo. Link training • B. You must have purchased a license to use the Echo. Link software • C. You must be sponsored by a current Echo. Link user • D. You must register your call sign and provide proof of license
What name is given to an amateur radio station that is used to connect other amateur stations to the Internet? (T 8 C 11) • • A. A gateway B. A repeater C. A digipeater D. A beacon
What name is given to an amateur radio station that is used to connect other amateur stations to the Internet? (T 8 C 11) • • A. A gateway B. A repeater C. A digipeater D. A beacon
Which of the following is a digital communication mode? (T 8 D 01) • • A. Packet radio B. IEEE 802. 11 C. JT 65 D. All of these choices are correct
Which of the following is a digital communication mode? (T 8 D 01) • • A. Packet radio B. IEEE 802. 11 C. JT 65 D. All of these choices are correct
What does the term “APRS” mean ? (T 8 D 02) • • A. Automatic Packet Reporting System B. Associated Public Radio Station C. Auto Planning Radio Set-up D. Advanced Polar Radio System
What does the term “APRS” mean ? (T 8 D 02) • • A. Automatic Packet Reporting System B. Associated Public Radio Station C. Auto Planning Radio Set-up D. Advanced Polar Radio System
Which of the following devices is used to provide data to the transmitter when sending automatic position reports from a mobile amateur radio station ? (T 8 D 03) • A. The vehicle speedometer • B. A WWV receiver • C. A connection to a broadcast FM subcarrier receiver • D. A Global Positioning System receiver
Which of the following devices is used to provide data to the transmitter when sending automatic position reports from a mobile amateur radio station ? (T 8 D 03) • A. The vehicle speedometer • B. A WWV receiver • C. A connection to a broadcast FM subcarrier receiver • D. A Global Positioning System receiver
What type of transmission is indicated by the term NTSC? (T 8 D 04) • A. A Normal Transmission mode in Static Circuit • B. A special mode for earth satellite uplink • C. An analog fast scan color TV signal • D. A frame compression scheme for TV signals
What type of transmission is indicated by the term NTSC? (T 8 D 04) • A. A Normal Transmission mode in Static Circuit • B. A special mode for earth satellite uplink • C. An analog fast scan color TV signal • D. A frame compression scheme for TV signals
Which of the following is an application of APRS (Automatic Packet Reporting System)? (T 8 D 05) • A. Providing real time tactical digital communications in conjunction with a map showing the locations of stations • B. Showing automatically the number of packets transmitted via PACTOR during a specific time interval • C. Providing voice over internet connection between repeaters • D. Providing information on the number of stations signed into a repeater
Which of the following is an application of APRS (Automatic Packet Reporting System)? (T 8 D 05) • A. Providing real time tactical digital communications in conjunction with a map showing the locations of stations • B. Showing automatically the number of packets transmitted via PACTOR during a specific time interval • C. Providing voice over internet connection between repeaters • D. Providing information on the number of stations signed into a repeater
What does the abbreviation PSK mean? (T 8 D 06) • • A. Pulse Shift Keying B. Phase Shift Keying C. Packet Short Keying D. Phased Slide Keying
What does the abbreviation PSK mean? (T 8 D 06) • • A. Pulse Shift Keying B. Phase Shift Keying C. Packet Short Keying D. Phased Slide Keying
Which of the following best describes DMR (Digital Mobile Radio) ? (T 8 D 07) • A. A technique for time-multiplexing two digital voice signals on a single 12. 5 k. Hz repeater channel • B. An automatic position tracking mode for FM mobile communicating through repeaters • C. An automatic computer logging technique for hands-off logging when communicating while operating a vehicle • D. A digital technique for transmitting on two repeater inputs simultaneously for automatic error correction
Which of the following best describes DMR (Digital Mobile Radio) ? (T 8 D 07) • A. A technique for time-multiplexing two digital voice signals on a single 12. 5 k. Hz repeater channel • B. An automatic position tracking mode for FM mobile communicating through repeaters • C. An automatic computer logging technique for hands-off logging when communicating while operating a vehicle • D. A digital technique for transmitting on two repeater inputs simultaneously for automatic error correction

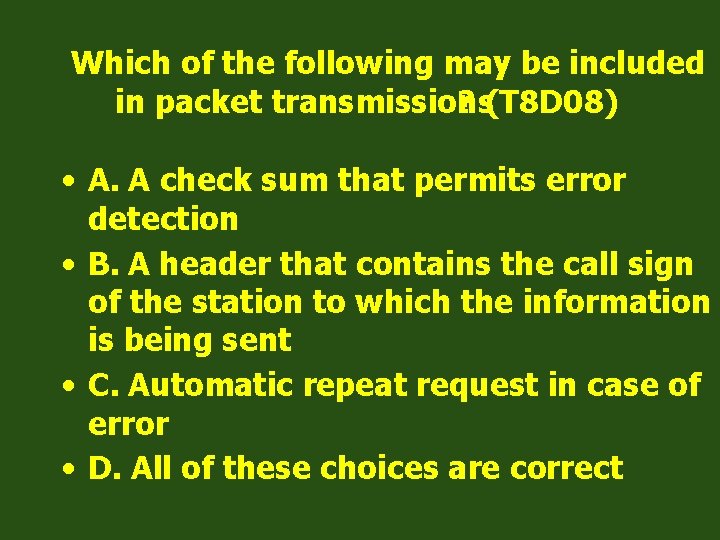

Which of the following may be included in packet transmissions ? (T 8 D 08) • A. A check sum that permits error detection • B. A header that contains the call sign of the station to which the information is being sent • C. Automatic repeat request in case of error • D. All of these choices are correct
Which of the following may be included in packet transmissions ? (T 8 D 08) • A. A check sum that permits error detection • B. A header that contains the call sign of the station to which the information is being sent • C. Automatic repeat request in case of error • D. All of these choices are correct
What code is used when sending CW in the amateur bands? (T 8 D 09) • • A. Baudot B. Hamming C. International Morse D. All of these choices are correct
What code is used when sending CW in the amateur bands? (T 8 D 09) • • A. Baudot B. Hamming C. International Morse D. All of these choices are correct
Which of the following operating activities is supported by digital mode software in the WSJT suite ? (T 8 D 10) • • A. Moonbounce or Earth-Moon-Earth B. Weak-signal propagation beacons C. Meteor scatter D. All of these choices are correct
Which of the following operating activities is supported by digital mode software in the WSJT suite ? (T 8 D 10) • • A. Moonbounce or Earth-Moon-Earth B. Weak-signal propagation beacons C. Meteor scatter D. All of these choices are correct
What is an ARQ transmission system? (T 8 D 11) • A. A special transmission format limited to video signals • B. A system used to encrypt command signals to an amateur radio satellite • C. A digital scheme whereby the receiving station detects errors and sends a request to the sending station to retransmit the information • D. A method of compressing the data in a message so more information can be sent in a shorter time
What is an ARQ transmission system? (T 8 D 11) • A. A special transmission format limited to video signals • B. A system used to encrypt command signals to an amateur radio satellite • C. A digital scheme whereby the receiving station detects errors and sends a request to the sending station to retransmit the information • D. A method of compressing the data in a message so more information can be sent in a shorter time
Which of the following best describes Broadband-Hamnet™, also referred to as a high-speed multi-media network ? (T 8 D 12) • A. An amateur-radio-based data network using commercial Wi-Fi gear with modified firmware • B. A wide-bandwidth digital voice mode employin DRM protocols • C. A satellite communications network using modified commercial satellite TV hardware • D. An internet linking protocol used to network repeaters
Which of the following best describes Broadband-Hamnet™, also referred to as a high-speed multi-media network ? (T 8 D 12) • A. An amateur-radio-based data network using commercial Wi-Fi gear with modified firmware • B. A wide-bandwidth digital voice mode employin DRM protocols • C. A satellite communications network using modified commercial satellite TV hardware • D. An internet linking protocol used to network repeaters
What is FT 8? (T 8 D 13) • A. A wideband FM voice mode • B. A digital mode capable of operating in low signal-to-noise conditions that transmits on 15 second intervals • C. An eight channel multiplex mode for FM repeaters • D. A digital slow scan TV mode with forward erro correction and automatic color compensation
What is FT 8? (T 8 D 13) • A. A wideband FM voice mode • B. A digital mode capable of operating in low signal-to-noise conditions that transmits on 15 second intervals • C. An eight channel multiplex mode for FM repeaters • D. A digital slow scan TV mode with forward erro correction and automatic color compensation
What is an electronic keyer ? (T 8 D 14) • A. A device for switching antennas from transmit to receive • B. A device for voice activated switching from receive to transmit • C. A device that assists in manual sending of Morse code • D. An interlock to prevent unauthorized use of a radio
What is an electronic keyer ? (T 8 D 14) • A. A device for switching antennas from transmit to receive • B. A device for voice activated switching from receive to transmit • C. A device that assists in manual sending of Morse code • D. An interlock to prevent unauthorized use of a radio
Let's see what you've learned. Practice test time!
Practice Test Resources ● ● ARRL − http: //arrlexamreview. appspot. com/ − Review by subelement QRZ − http: //www. qrz. com/ − Gives correct answers as you go e. Ham − http: //www. eham. net/exams/ − Like taking the real test AA 9 PW − http: //www. aa 9 pw. net/radio/ − Gives the most info—shows where you need to study
