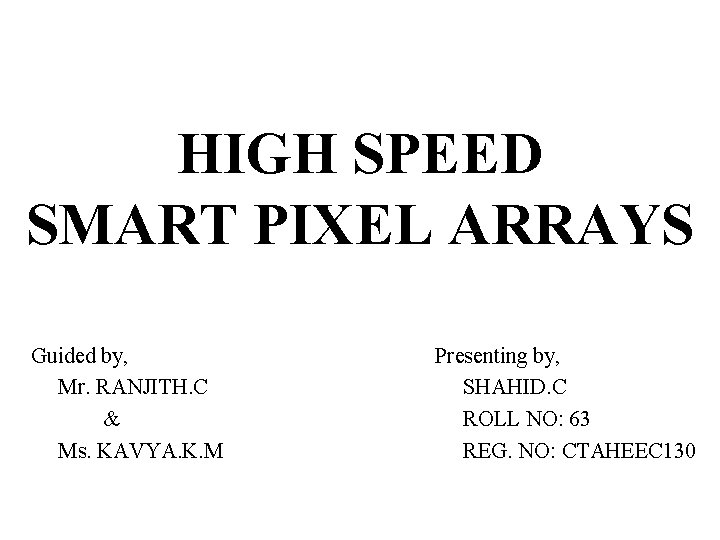

HIGH SPEED SMART PIXEL ARRAYS Guided by, Mr. RANJITH. C & Ms. KAVYA. K. M Presenting by, SHAHID. C ROLL NO: 63 REG. NO: CTAHEEC 130

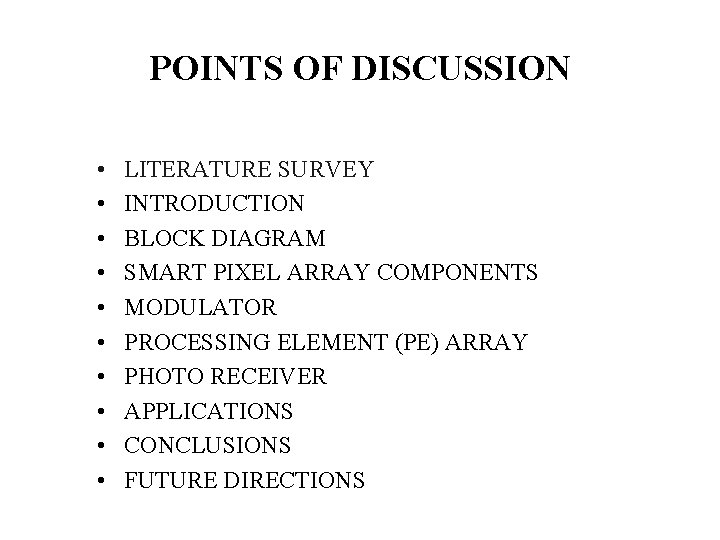

POINTS OF DISCUSSION • • • LITERATURE SURVEY INTRODUCTION BLOCK DIAGRAM SMART PIXEL ARRAY COMPONENTS MODULATOR PROCESSING ELEMENT (PE) ARRAY PHOTO RECEIVER APPLICATIONS CONCLUSIONS FUTURE DIRECTIONS

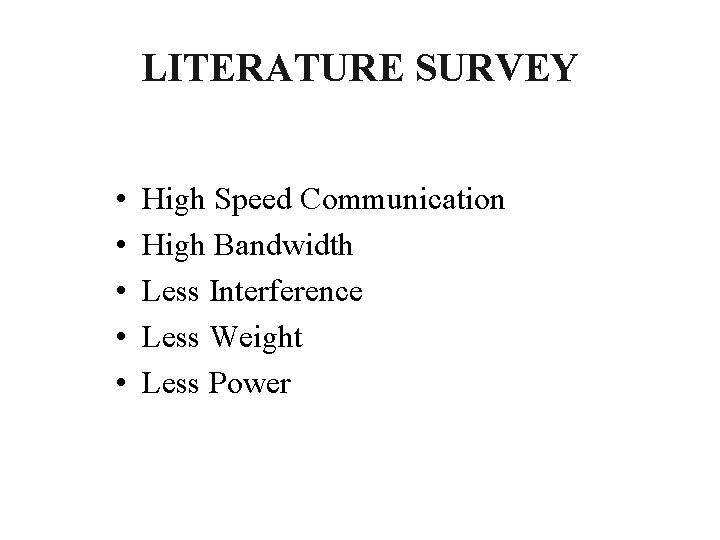

LITERATURE SURVEY • • • High Speed Communication High Bandwidth Less Interference Less Weight Less Power

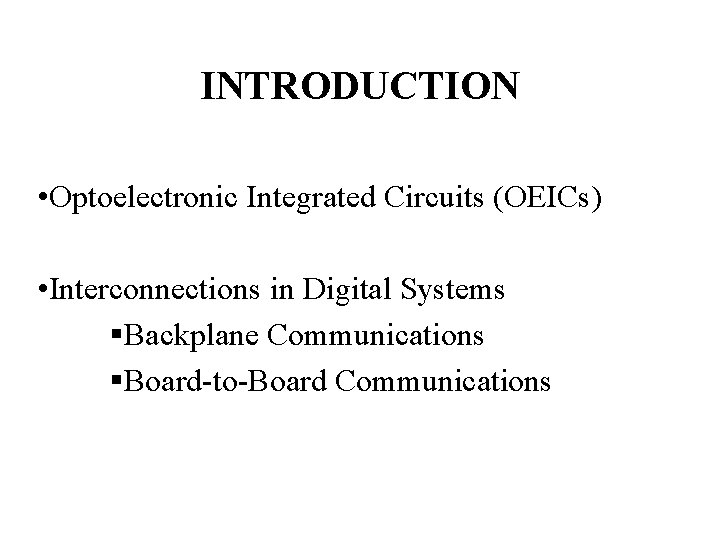

INTRODUCTION • Optoelectronic Integrated Circuits (OEICs) • Interconnections in Digital Systems §Backplane Communications §Board-to-Board Communications

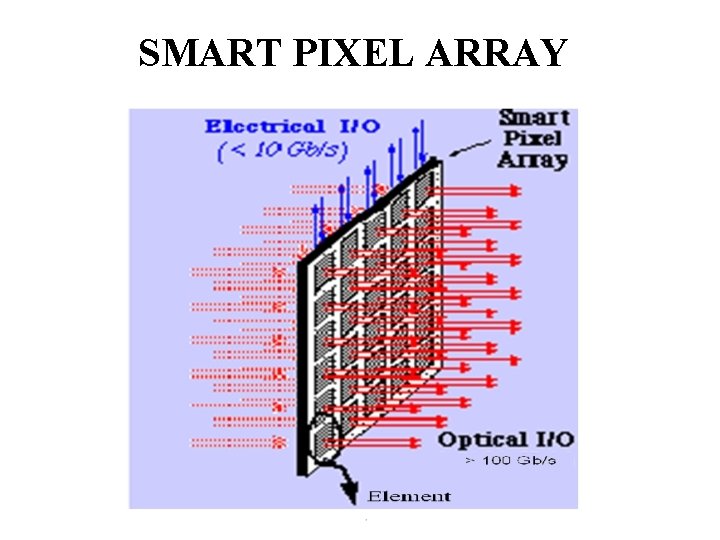

SMART PIXEL ARRAY

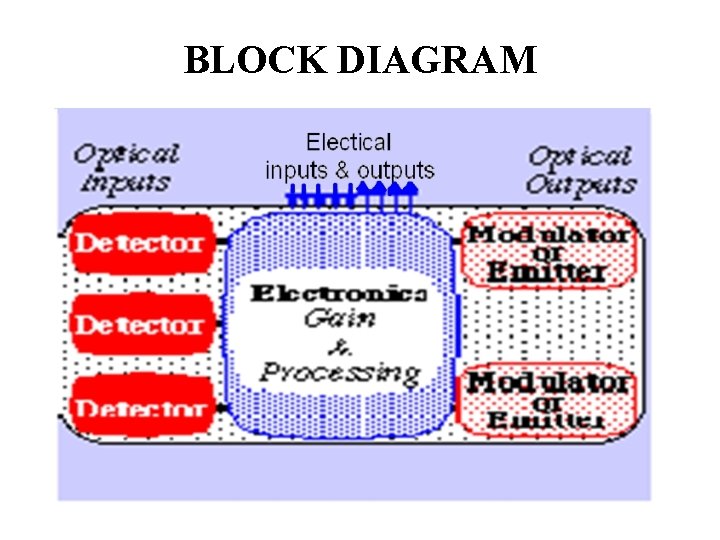

BLOCK DIAGRAM

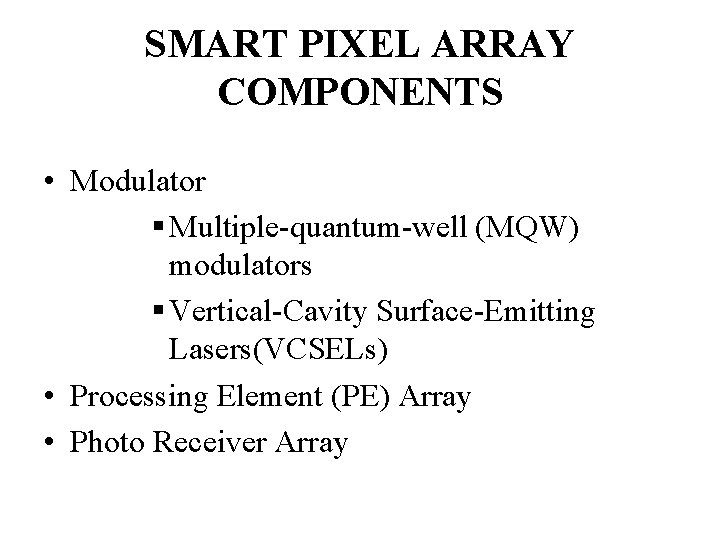

SMART PIXEL ARRAY COMPONENTS • Modulator § Multiple-quantum-well (MQW) modulators § Vertical-Cavity Surface-Emitting Lasers(VCSELs) • Processing Element (PE) Array • Photo Receiver Array

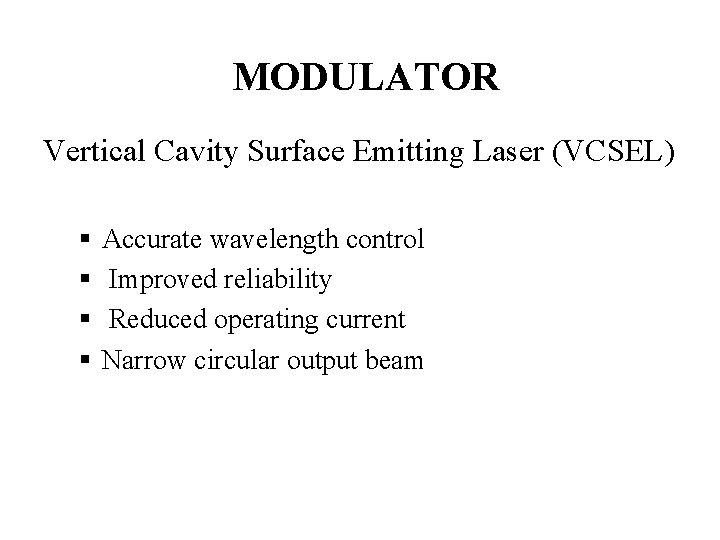

MODULATOR Vertical Cavity Surface Emitting Laser (VCSEL) § § Accurate wavelength control Improved reliability Reduced operating current Narrow circular output beam

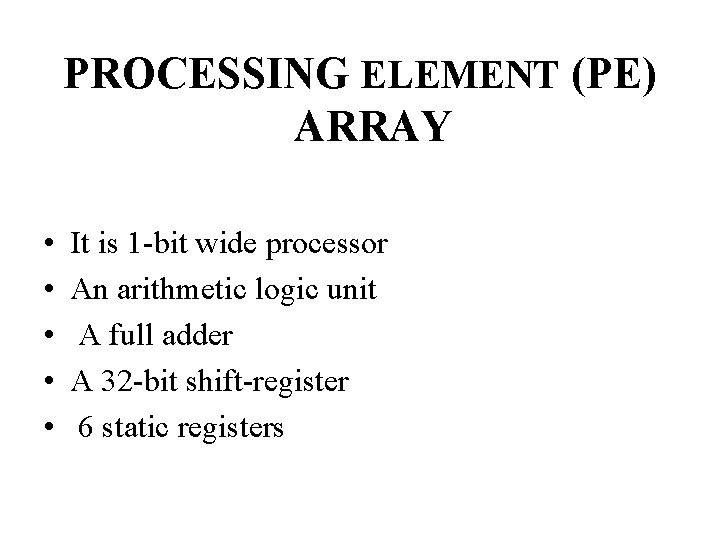

PROCESSING ELEMENT (PE) ARRAY • • • It is 1 -bit wide processor An arithmetic logic unit A full adder A 32 -bit shift-register 6 static registers

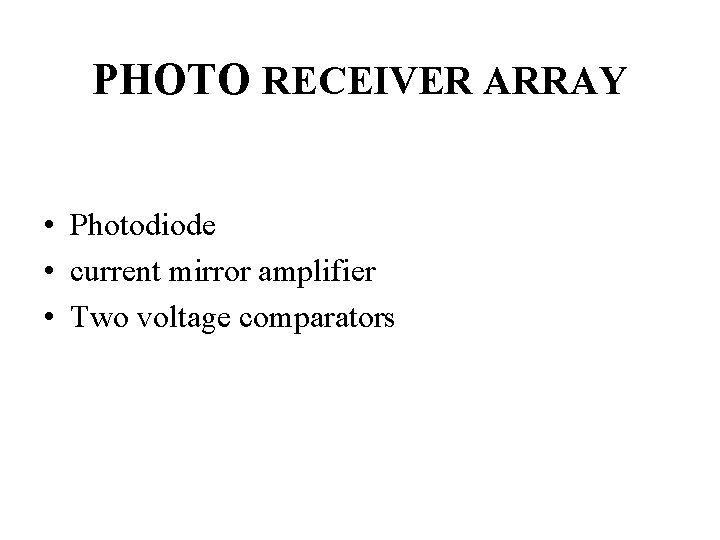

PHOTO RECEIVER ARRAY • Photodiode • current mirror amplifier • Two voltage comparators

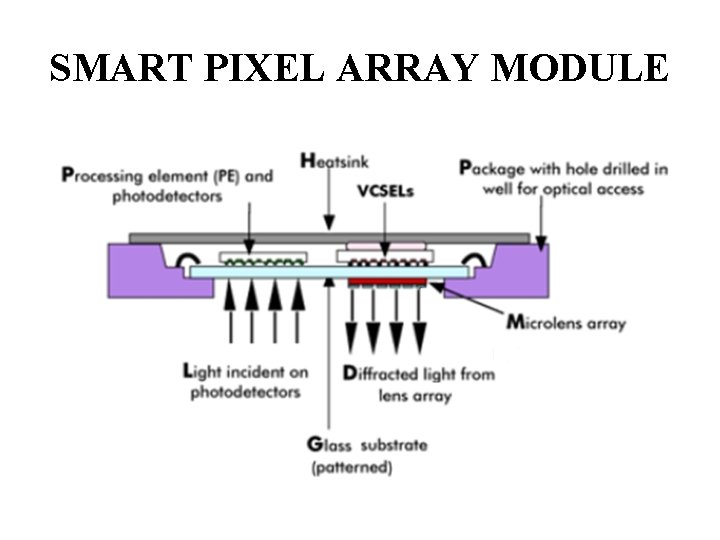

SMART PIXEL ARRAY MODULE

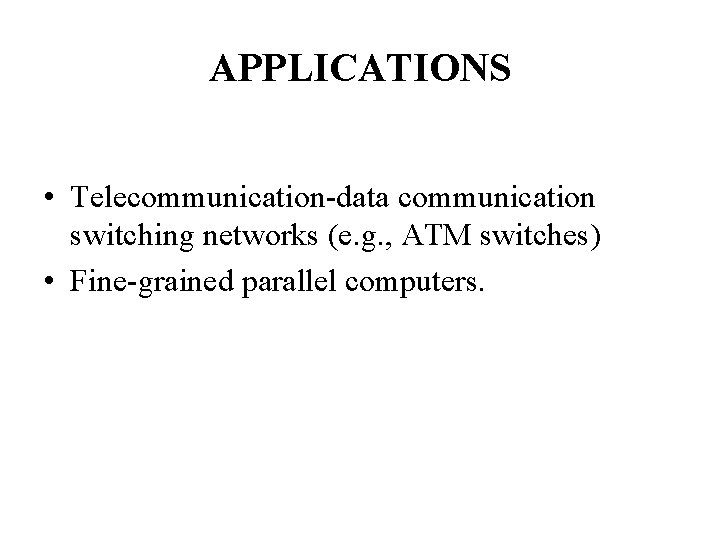

APPLICATIONS • Telecommunication-data communication switching networks (e. g. , ATM switches) • Fine-grained parallel computers.

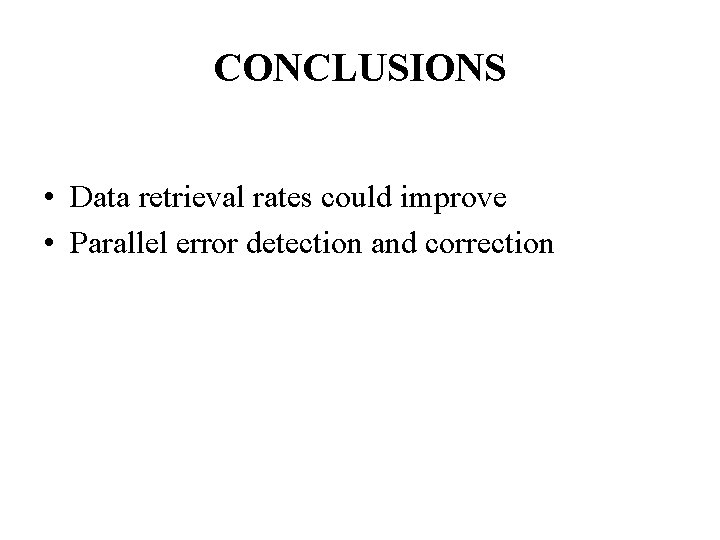

CONCLUSIONS • Data retrieval rates could improve • Parallel error detection and correction

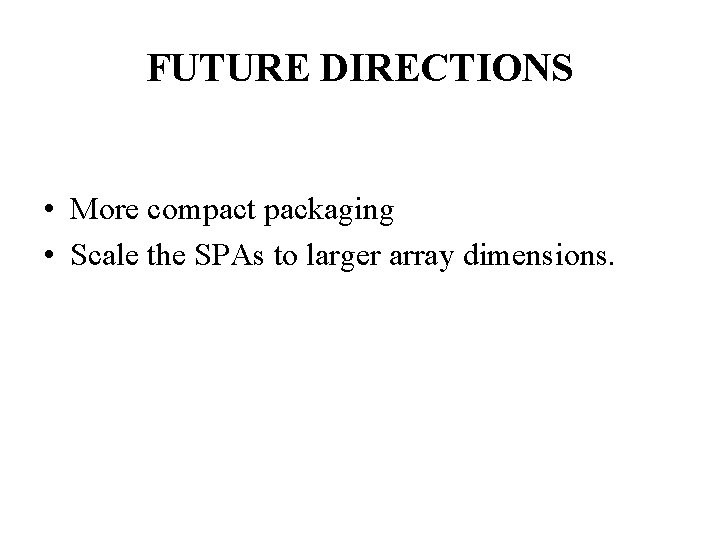

FUTURE DIRECTIONS • More compact packaging • Scale the SPAs to larger array dimensions.

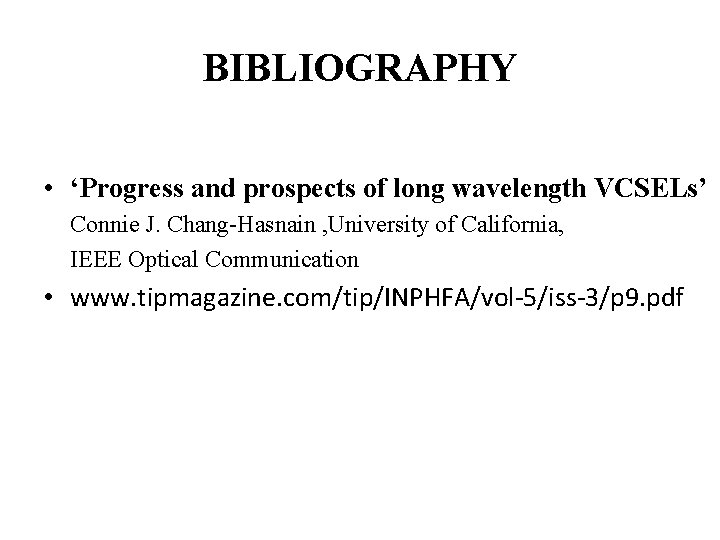

BIBLIOGRAPHY • ‘Progress and prospects of long wavelength VCSELs’ Connie J. Chang-Hasnain , University of California, IEEE Optical Communication • www. tipmagazine. com/tip/INPHFA/vol-5/iss-3/p 9. pdf
