WEIS REGISTRATION ONBOARDING OVERVIEW MARKET REGISTRATION EDUCATION SESSION

WEIS REGISTRATION & ONBOARDING OVERVIEW MARKET REGISTRATION EDUCATION SESSION Helping our members work together to keep the lights on. . . today and in the future. Southwest. Power. Pool SPPorg southwest-power-pool

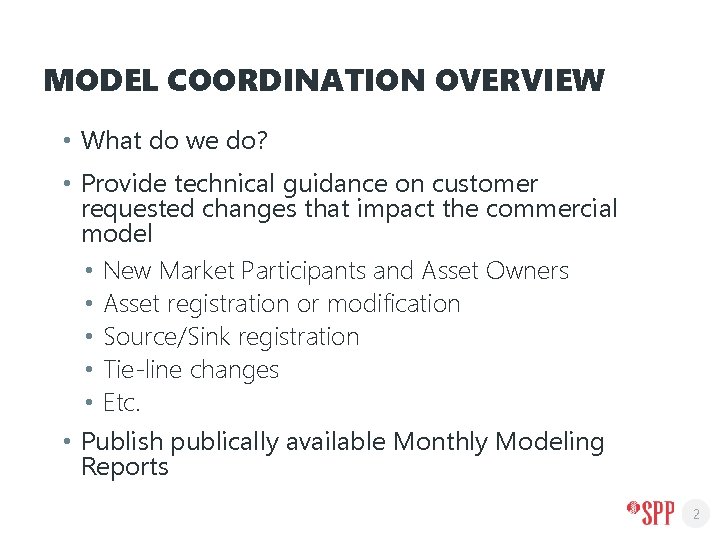

MODEL COORDINATION OVERVIEW • What do we do? • Provide technical guidance on customer requested changes that impact the commercial model • New Market Participants and Asset Owners • Asset registration or modification • Source/Sink registration • Tie-line changes • Etc. • Publish publically available Monthly Modeling Reports 2

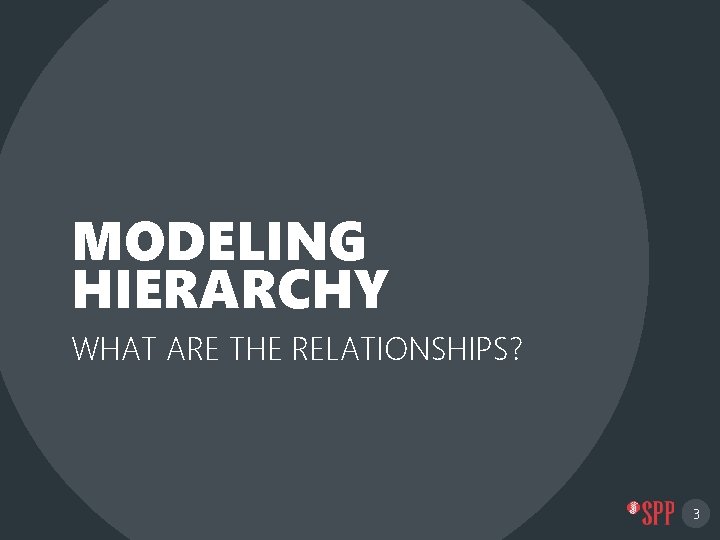

MODELING HIERARCHY WHAT ARE THE RELATIONSHIPS? 3

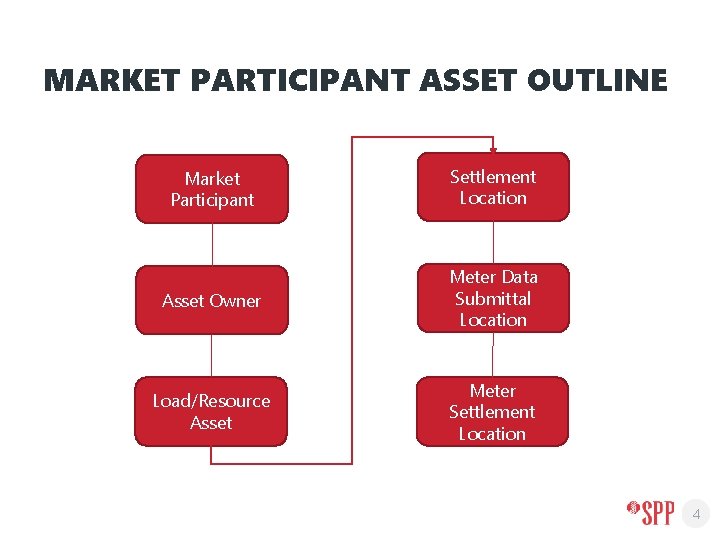

MARKET PARTICIPANT ASSET OUTLINE Market Participant Settlement Location Asset Owner Meter Data Submittal Location Load/Resource Asset Meter Settlement Location 4

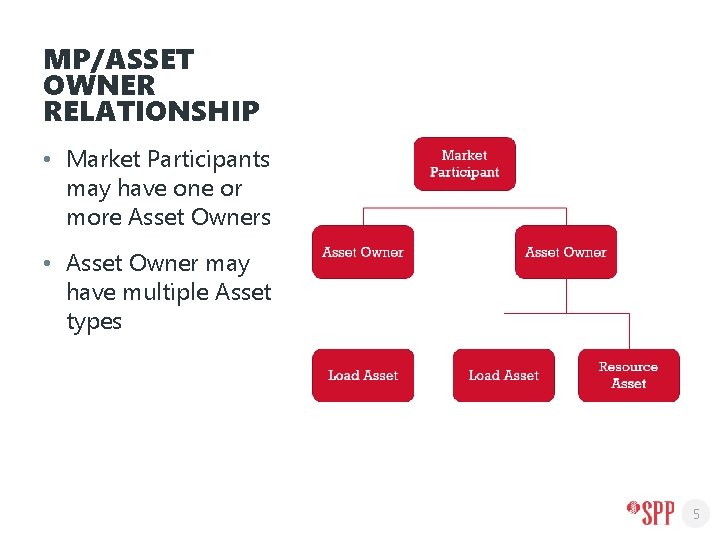

MP/ASSET OWNER RELATIONSHIP • Market Participants may have one or more Asset Owners • Asset Owner may have multiple Asset types 5

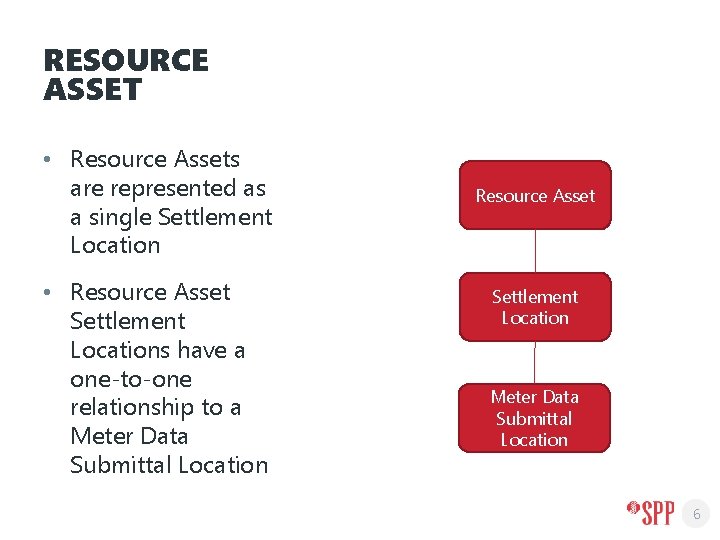

RESOURCE ASSET • Resource Assets are represented as a single Settlement Location • Resource Asset Settlement Locations have a one-to-one relationship to a Meter Data Submittal Location Resource Asset Settlement Location Meter Data Submittal Location 6

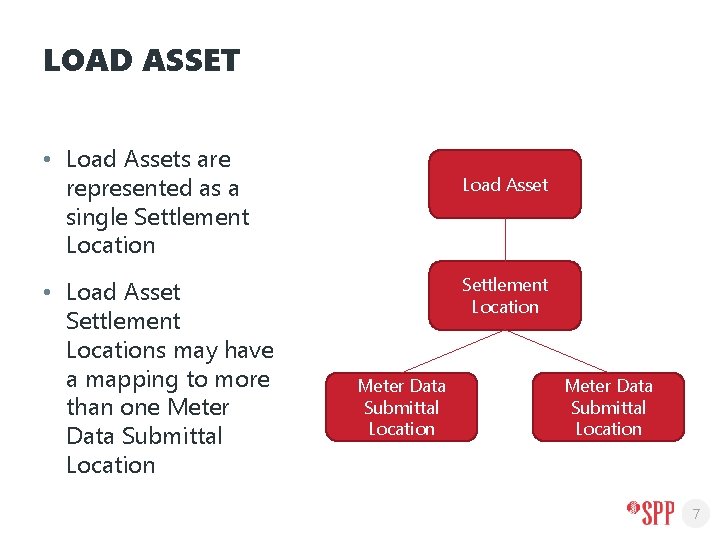

LOAD ASSET • Load Assets are represented as a single Settlement Location • Load Asset Settlement Locations may have a mapping to more than one Meter Data Submittal Location Load Asset Settlement Location Meter Data Submittal Location 7

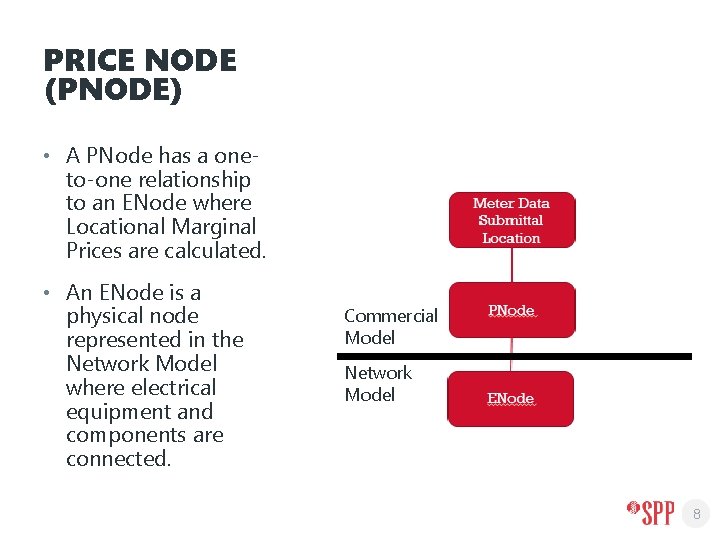

PRICE NODE (PNODE) • A PNode has a oneto-one relationship to an ENode where Locational Marginal Prices are calculated. • An ENode is a physical node represented in the Network Model where electrical equipment and components are connected. Commercial Model Network Model 8

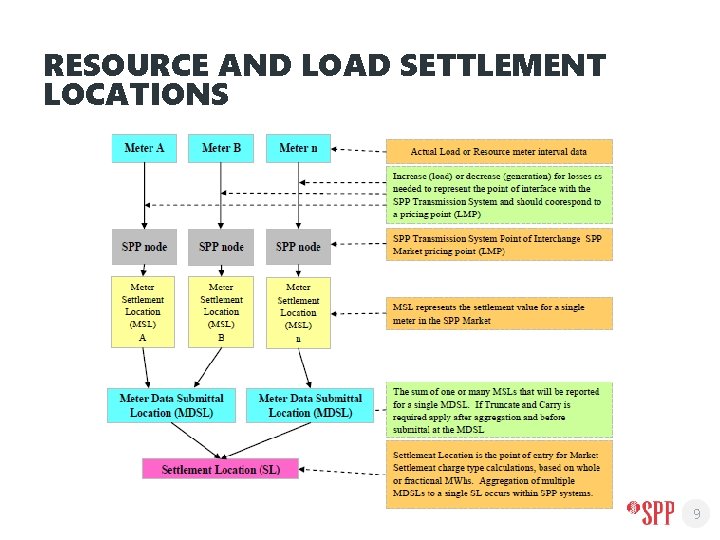

RESOURCE AND LOAD SETTLEMENT LOCATIONS 9

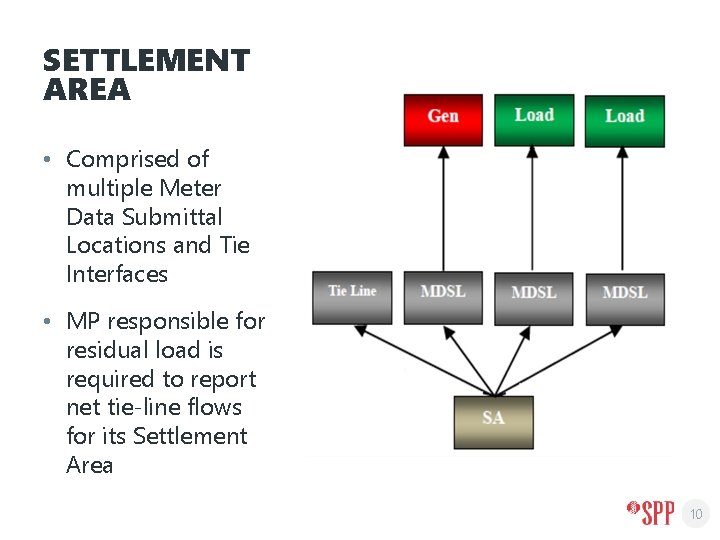

SETTLEMENT AREA • Comprised of multiple Meter Data Submittal Locations and Tie Interfaces • MP responsible for residual load is required to report net tie-line flows for its Settlement Area 10

ASSET REGISTRATION WHAT DOES THE CUSTOMER NEED TO SUBMIT? 11

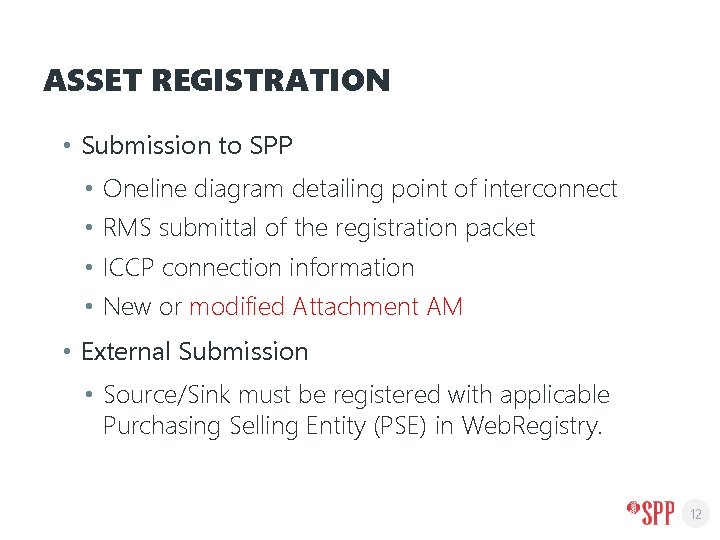

ASSET REGISTRATION • Submission to SPP • • Oneline diagram detailing point of interconnect RMS submittal of the registration packet ICCP connection information New or modified Attachment AM • External Submission • Source/Sink must be registered with applicable Purchasing Selling Entity (PSE) in Web. Registry. 12

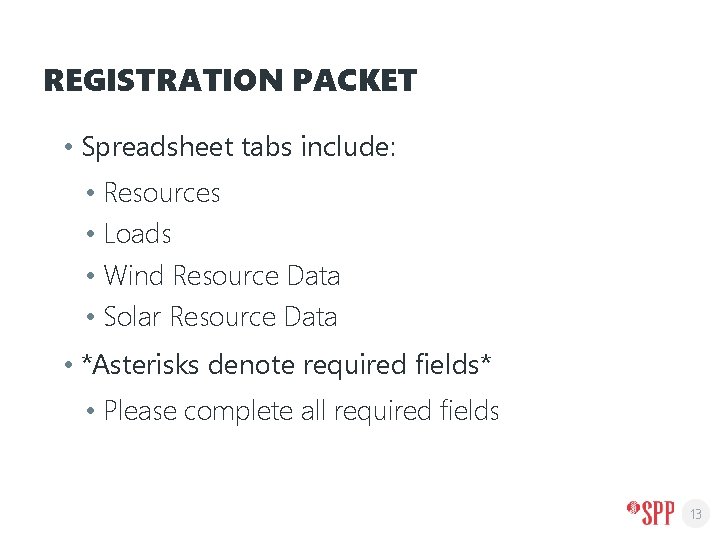

REGISTRATION PACKET • Spreadsheet tabs include: • Resources • Loads • Wind Resource Data • Solar Resource Data • *Asterisks denote required fields* • Please complete all required fields 13

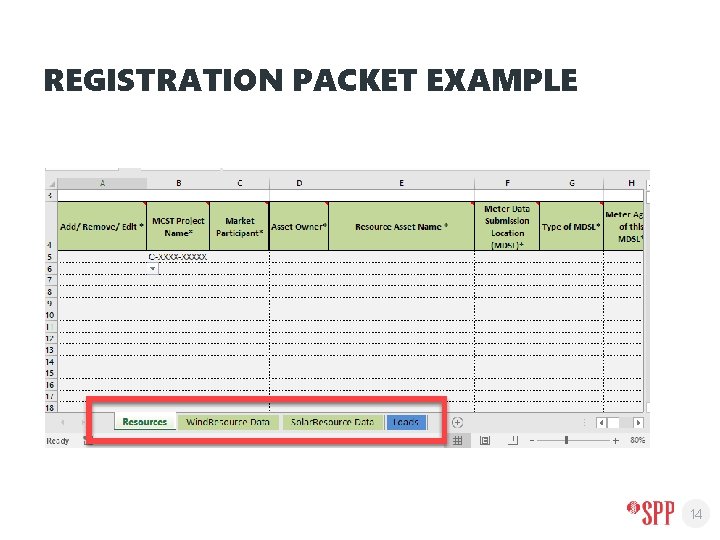

REGISTRATION PACKET EXAMPLE 14

METER AGENT AGREEMENT • Types • Resource • Load • Tie Line • Required information • Meter Data Submittal Location (MDSL) • Meter • Physical Location • Voltage Level • Losses • Operand (+ or -) 15

METER AGENT AGREEMENT EXAMPLE 16

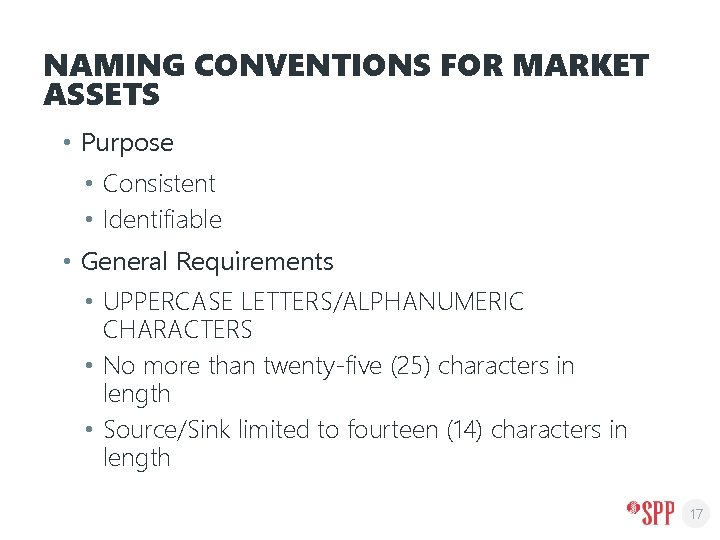

NAMING CONVENTIONS FOR MARKET ASSETS • Purpose • Consistent • Identifiable • General Requirements • UPPERCASE LETTERS/ALPHANUMERIC CHARACTERS • No more than twenty-five (25) characters in length • Source/Sink limited to fourteen (14) characters in length 17

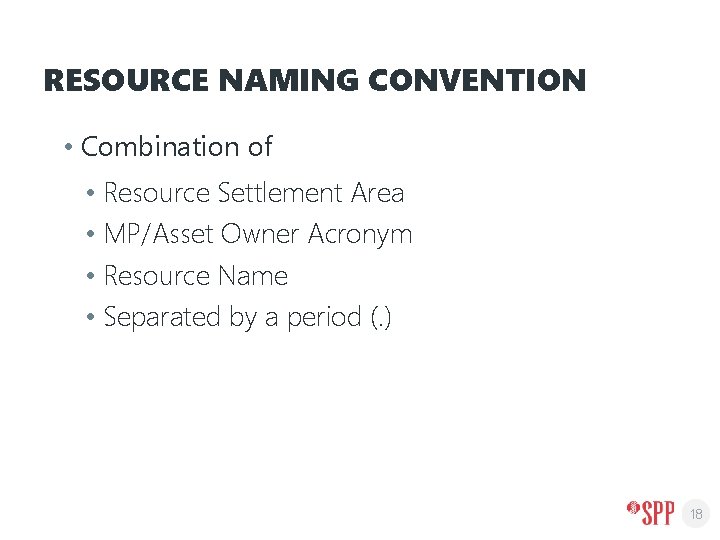

RESOURCE NAMING CONVENTION • Combination of • Resource Settlement Area • MP/Asset Owner Acronym • Resource Name • Separated by a period (. ) 18

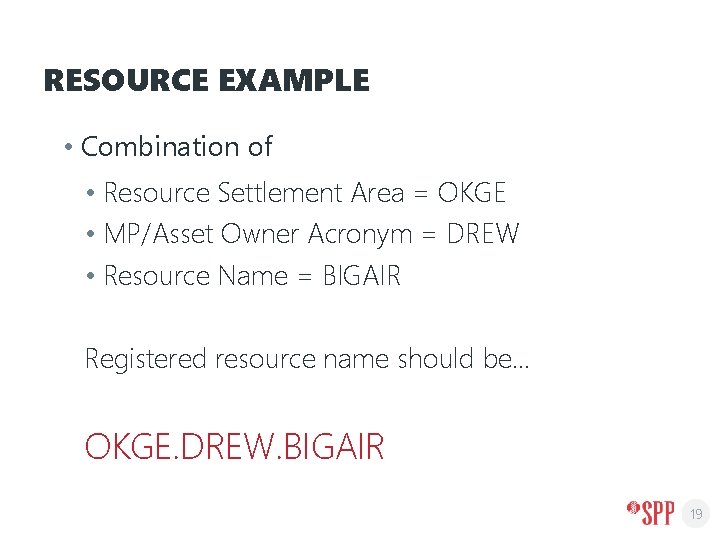

RESOURCE EXAMPLE • Combination of • Resource Settlement Area = OKGE • MP/Asset Owner Acronym = DREW • Resource Name = BIGAIR Registered resource name should be… OKGE. DREW. BIGAIR 19

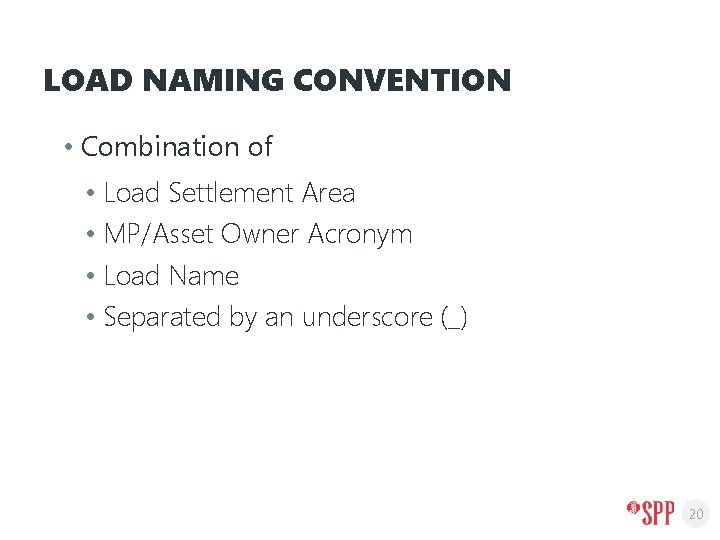

LOAD NAMING CONVENTION • Combination of • Load Settlement Area • MP/Asset Owner Acronym • Load Name • Separated by an underscore (_) 20

LOAD EXAMPLE • Combination of • Load Settlement Area = OKGE • MP/Asset Owner Acronym = DREW • Load Name = BIGCITY Registered load name should be… OKGE_DREW_BIGCITY 21

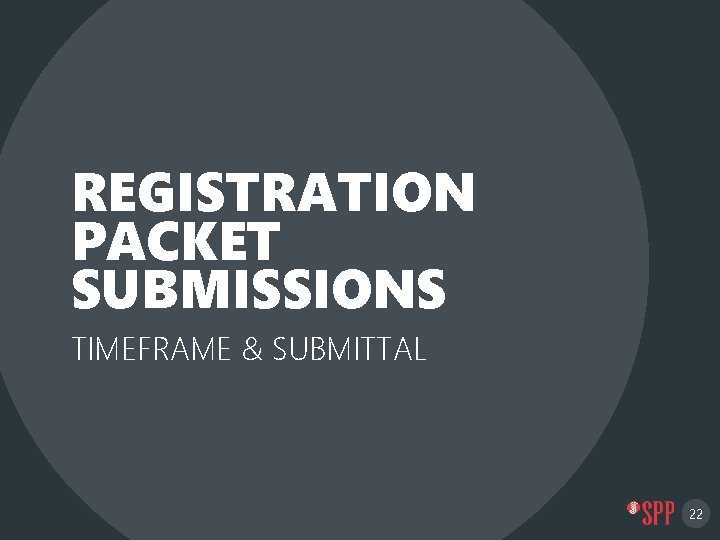

REGISTRATION PACKET SUBMISSIONS TIMEFRAME & SUBMITTAL 22

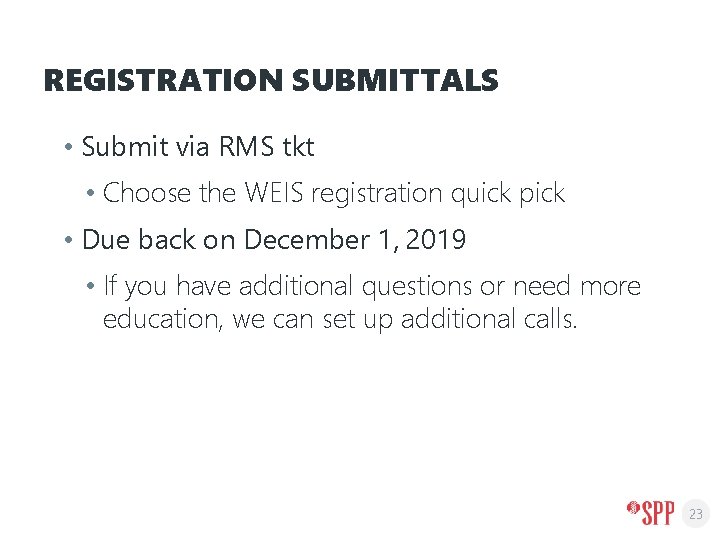

REGISTRATION SUBMITTALS • Submit via RMS tkt • Choose the WEIS registration quick pick • Due back on December 1, 2019 • If you have additional questions or need more education, we can set up additional calls. 23

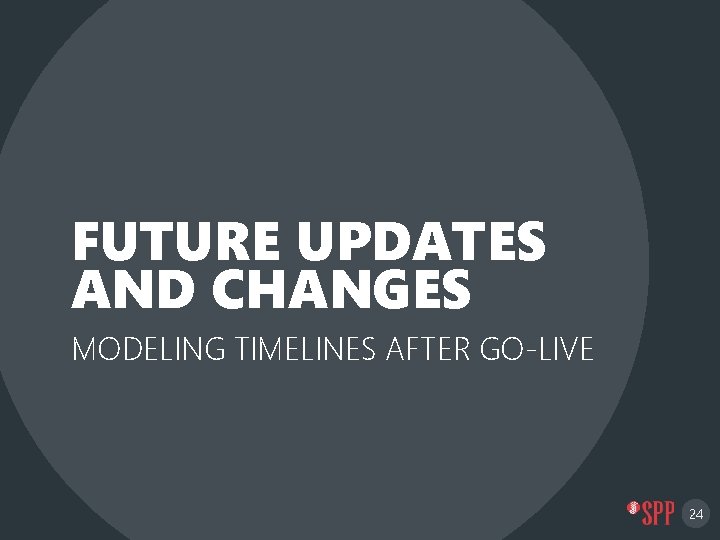

FUTURE UPDATES AND CHANGES MODELING TIMELINES AFTER GO-LIVE 24

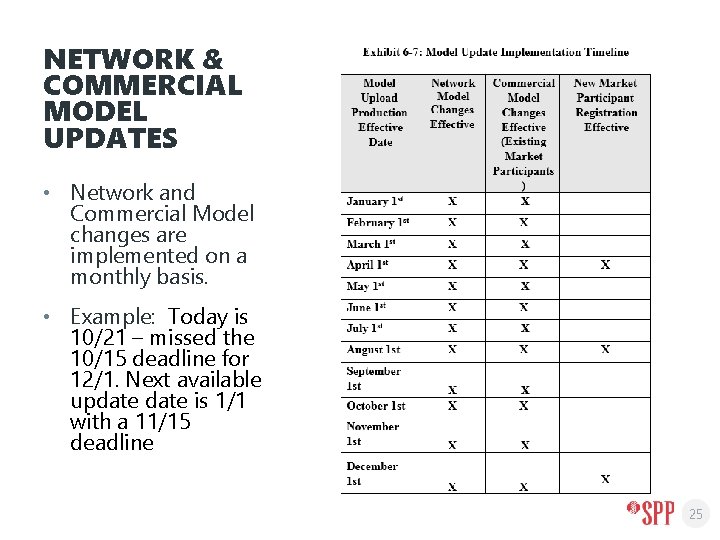

NETWORK & COMMERCIAL MODEL UPDATES • Network and Commercial Model changes are implemented on a monthly basis. • Example: Today is 10/21 – missed the 10/15 deadline for 12/1. Next available update is 1/1 with a 11/15 deadline 25

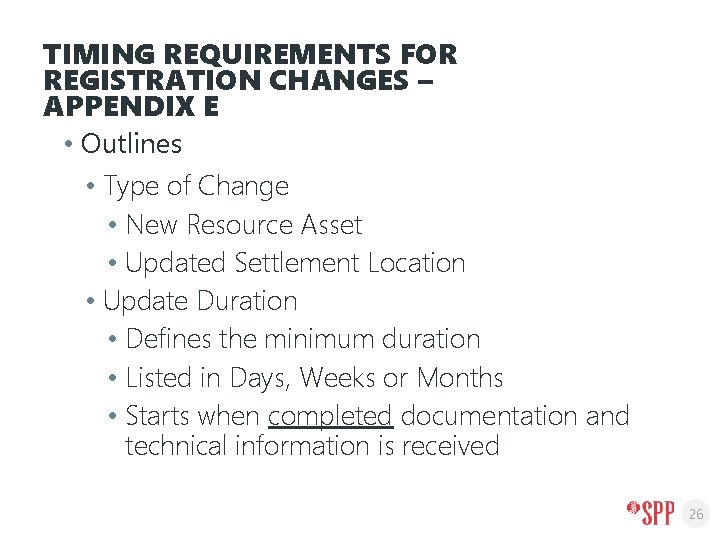

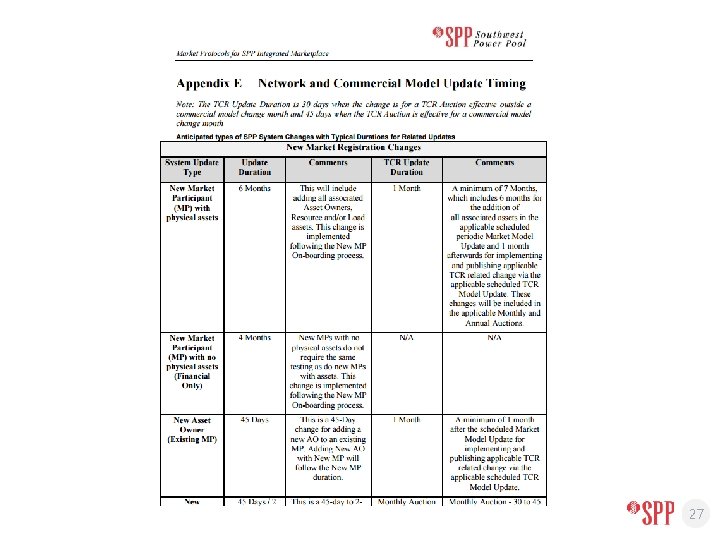

TIMING REQUIREMENTS FOR REGISTRATION CHANGES – APPENDIX E • Outlines • Type of Change • New Resource Asset • Updated Settlement Location • Update Duration • Defines the minimum duration • Listed in Days, Weeks or Months • Starts when completed documentation and technical information is received 26

27

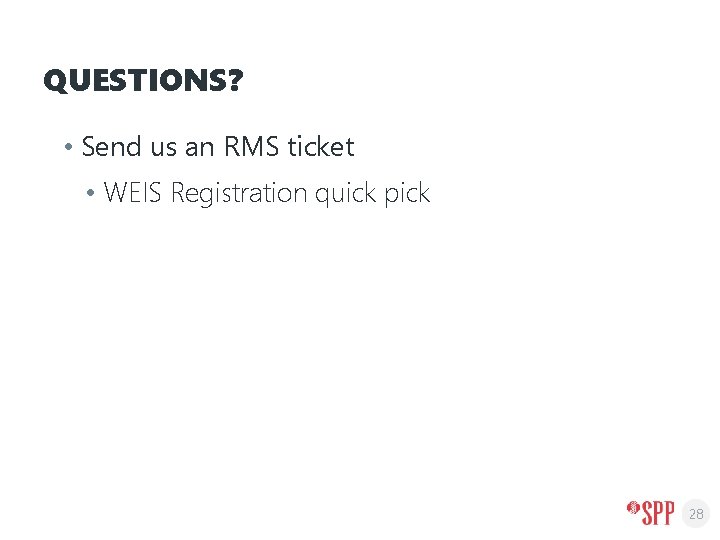

QUESTIONS? • Send us an RMS ticket • WEIS Registration quick pick 28

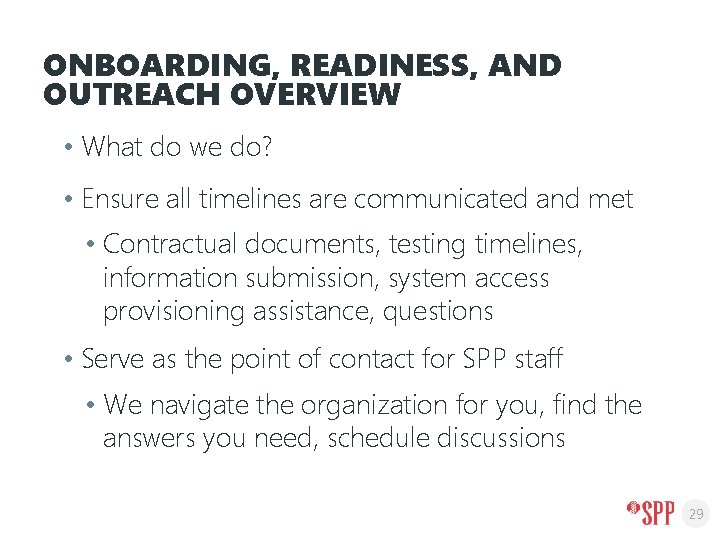

ONBOARDING, READINESS, AND OUTREACH OVERVIEW • What do we do? • Ensure all timelines are communicated and met • Contractual documents, testing timelines, information submission, system access provisioning assistance, questions • Serve as the point of contact for SPP staff • We navigate the organization for you, find the answers you need, schedule discussions 29

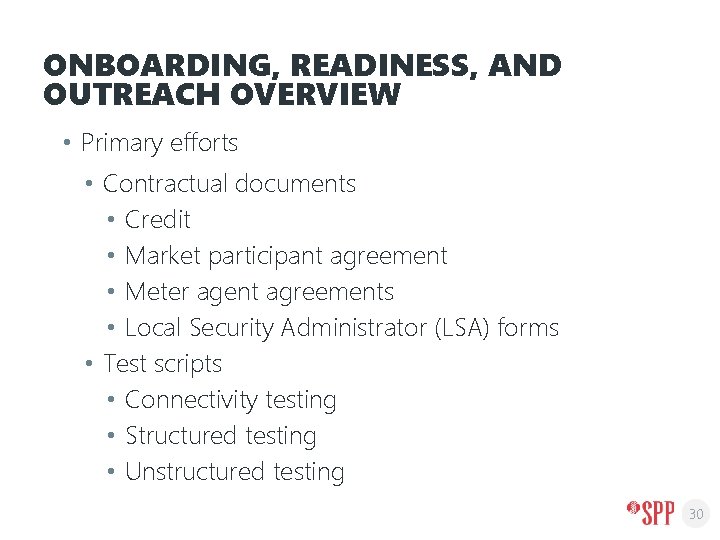

ONBOARDING, READINESS, AND OUTREACH OVERVIEW • Primary efforts • Contractual documents • Credit • Market participant agreement • Meter agent agreements • Local Security Administrator (LSA) forms • Test scripts • Connectivity testing • Structured testing • Unstructured testing 30

QUESTIONS? • Send us an RMS ticket • WEIS Registration quick pick 31
