weinbridge Circuit oscillator Schmitt trigger Circuit square wave

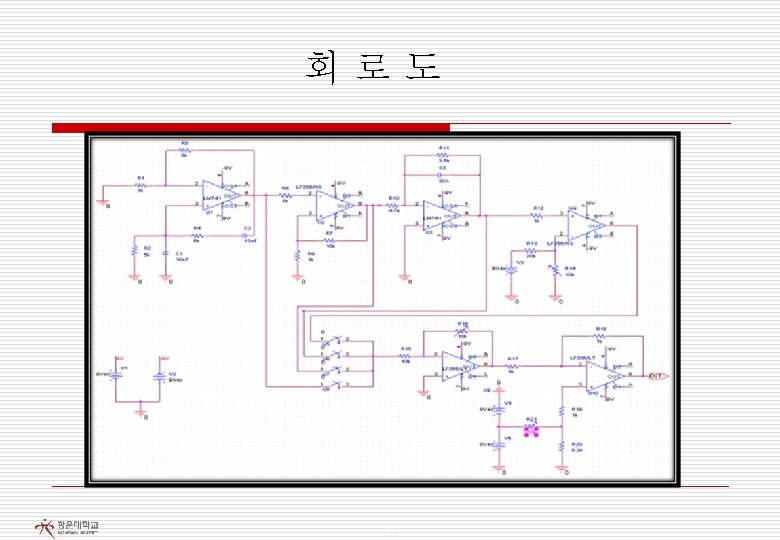

함수발생기 작동 원리 wein-bridge Circuit (oscillator) Schmitt trigger Circuit (square wave) LPF (pyramidal wave) Limited Detector (pulse wave) select a output wave with a switch Generation of sine curve OFF SET control GAIN control Output -4 -
회 로 도 분 석 (1) Wein-bridge circuit diagram A Sine curve generator 공진주파수 -6 -

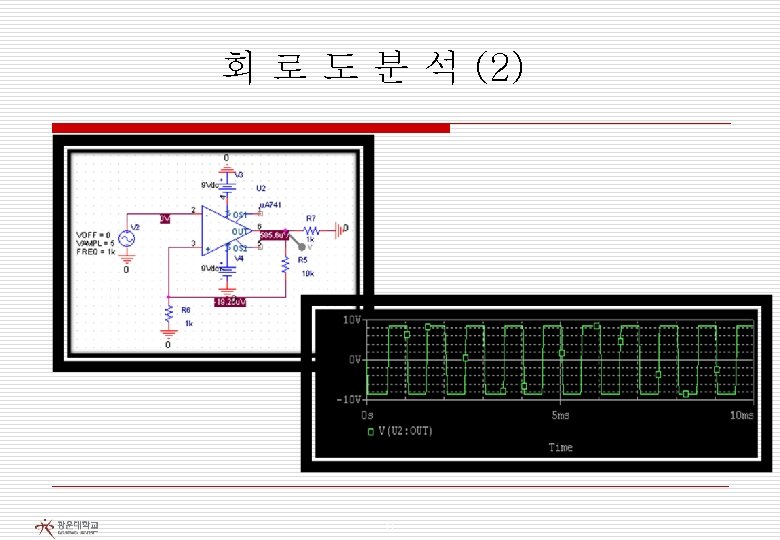

회 로 도 분 석 (2) Schmitt trigger circuit diagram Generation of Square wave -7 -

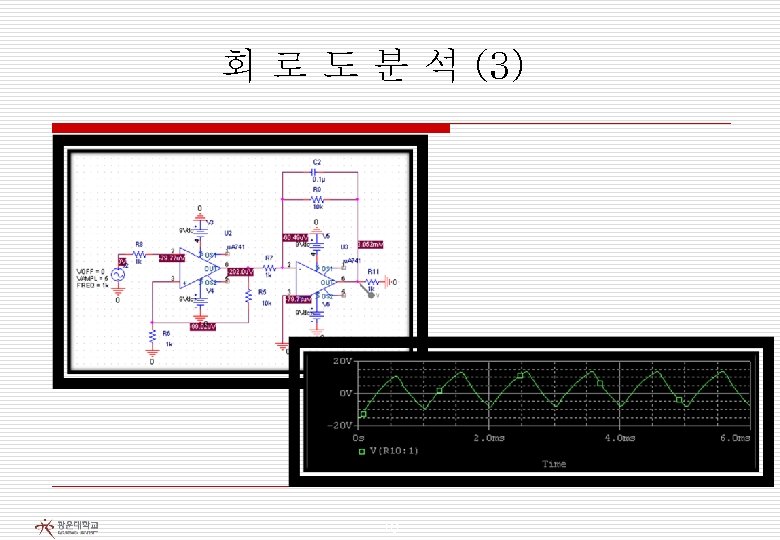

회 로 도 분 석 (3) Low Pass Filter circuit diagram Convert a square wave to pyramidal wave 공진주파수 -9 -

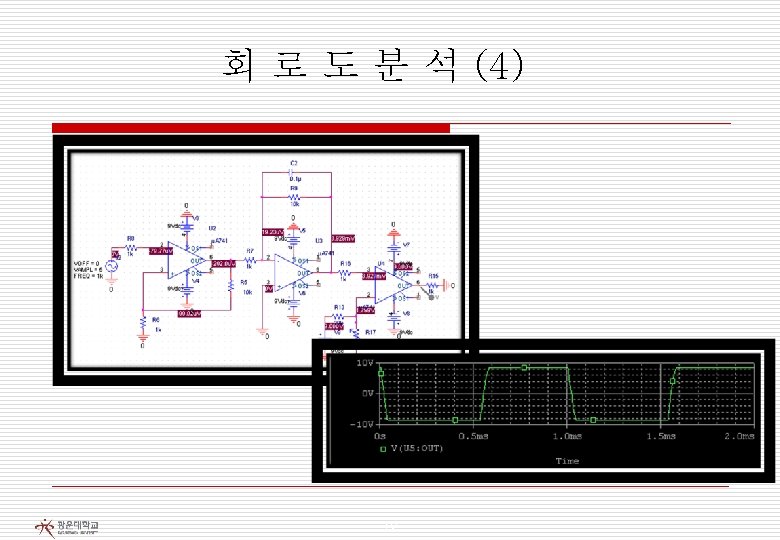

회 로 도 분 석 (4) Generation of pulse wave The regulation of DUTY (by R 14) -11 -
부품 및 예산 number Material UA 741(OP-Amp) 6 Capacitor 3 Variable resistance Resistance 4 15 dry cell 9 V 2 -14 -
Q&A reference 연산증폭기 –OP엠프- / 박건작 / ㈜북스힐 ELECTRONIC PRINCIPLES / Malvino / Mc. Graw- Hill 초급자를 위한 Pspice 활용 / 황락훈 / 동일출판사 ELECTRIC CIRCUITS / Hayt / Mc. Graw- Hill 대학전자응용실험 OP-AMP편 / 이재기 / 학문사
The End
