Weight, Mass, and the Dreaded Elevator Problem

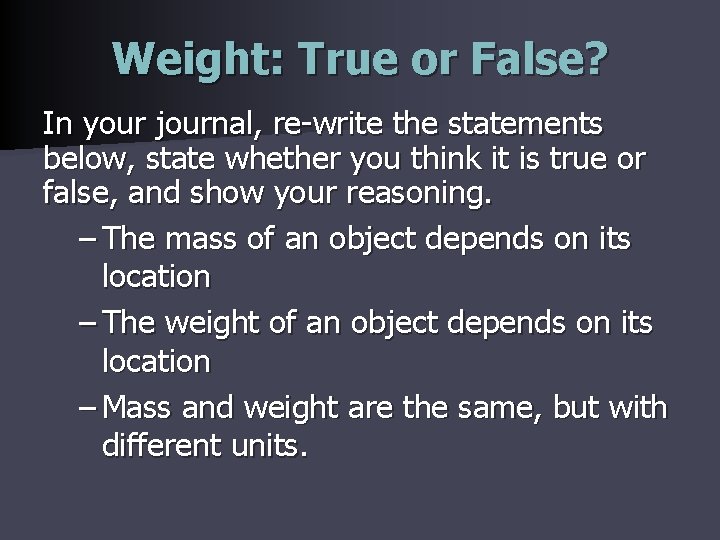

Weight: True or False? In your journal, re-write the statements below, state whether you think it is true or false, and show your reasoning. – The mass of an object depends on its location – The weight of an object depends on its location – Mass and weight are the same, but with different units.

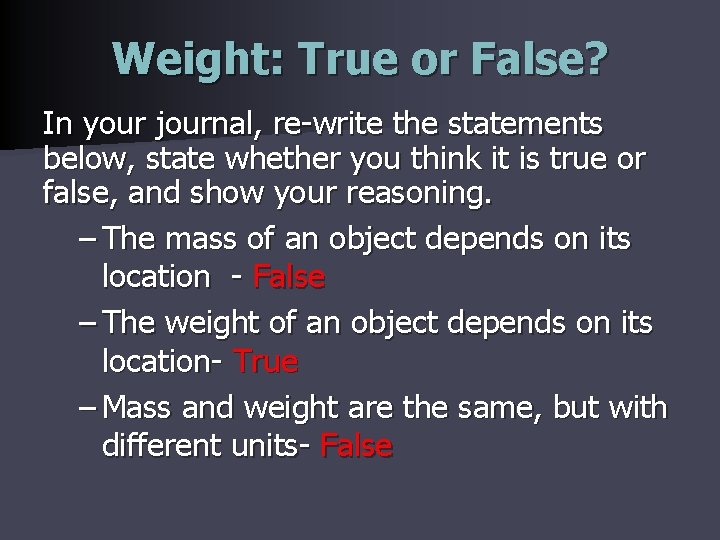

Weight: True or False? In your journal, re-write the statements below, state whether you think it is true or false, and show your reasoning. – The mass of an object depends on its location - False – The weight of an object depends on its location- True – Mass and weight are the same, but with different units- False

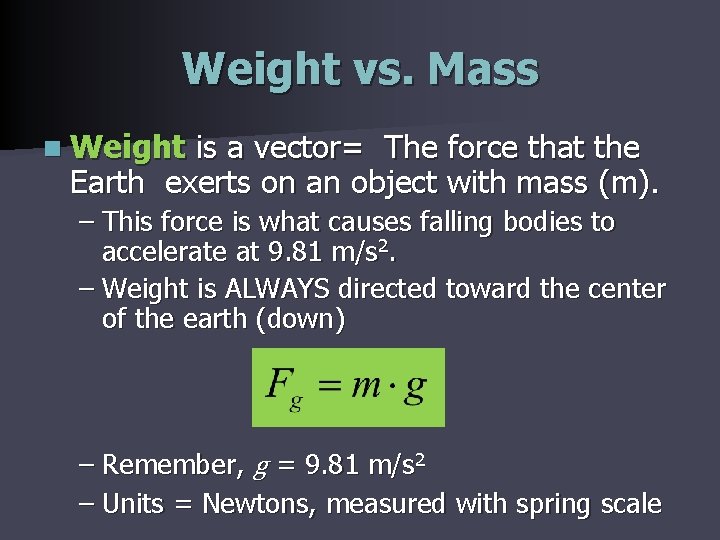

Weight vs. Mass n Weight is a vector= The force that the Earth exerts on an object with mass (m). – This force is what causes falling bodies to accelerate at 9. 81 m/s 2. – Weight is ALWAYS directed toward the center of the earth (down) – Remember, g = 9. 81 m/s 2 – Units = Newtons, measured with spring scale

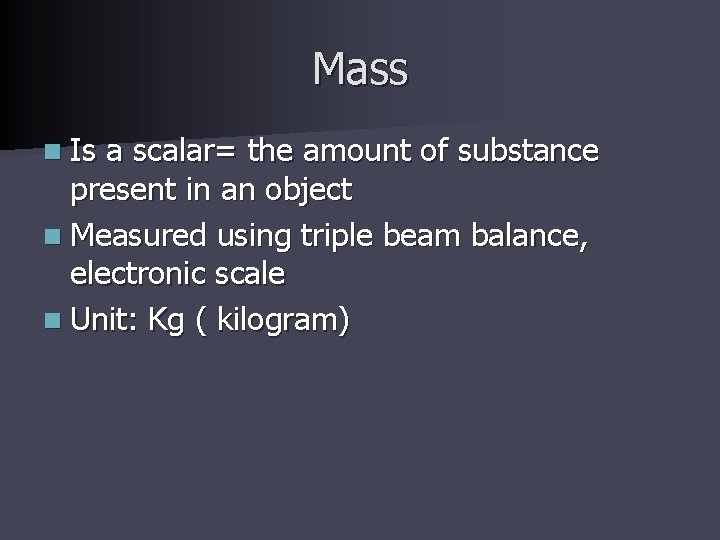

Mass n Is a scalar= the amount of substance present in an object n Measured using triple beam balance, electronic scale n Unit: Kg ( kilogram)

Apparent Weight n Apparent weight is the weight something appears to have as a result of an acceleration. n For example, if you were standing on a scale in an elevator, your apparent weight is the weight the scale would read. n So now for some conceptual practice…

Apparent Weight Practice… n Suppose you have a jet-powered flying platform that can move straight up and down. For each of the following cases, is you apparent weight equal to, greater than, or less then your true weight? Explain. – – – You are ascending and speeding up You are descending and speeding up You are ascending at a constant speed You are ascending and slowing down You are descending at a constant speed Heavier Lighter Same

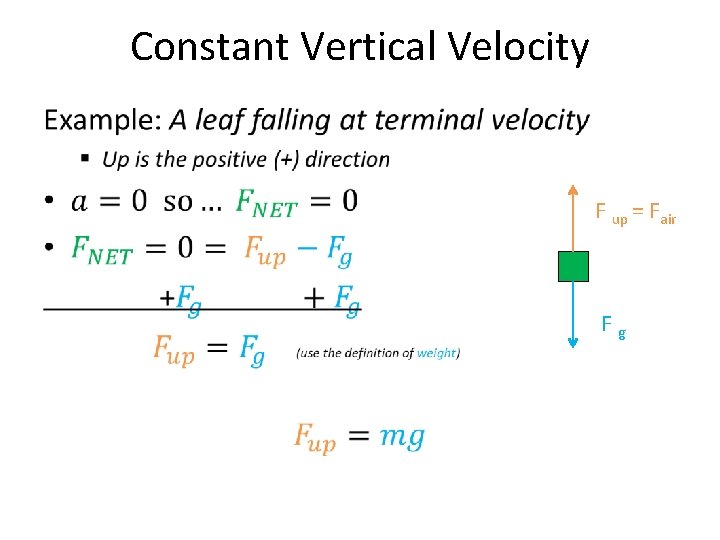

Constant Vertical Velocity • F up = Fair Fg

Calculating Apparent Weight n Apparent weight can easily be calculated using the concept of net force. n For example, if you are standing on a scale when you are at rest, what forces are acting on you? – The force of gravity (your weight) and the force of the scale pushing back up (the normal force) n What is the net force in this situation? – 0 N … you’re in static equilibrium

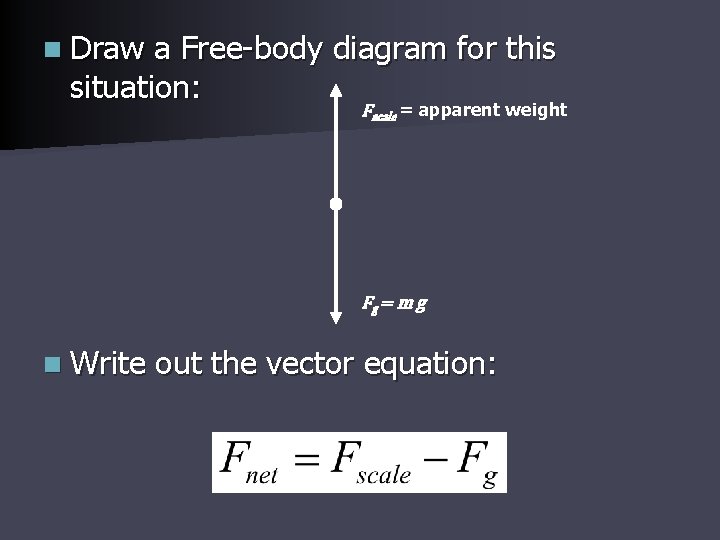

n Draw a Free-body diagram for this situation: Fscale = apparent weight Fg = m g n Write out the vector equation:

n Since this situation is in equilibrium, n Therefore, which means the scale is reading the “True weight” If the person standing on the scale has a mass of 65. 0 kg, what is his weight( g=9. 80 m/s 2)?

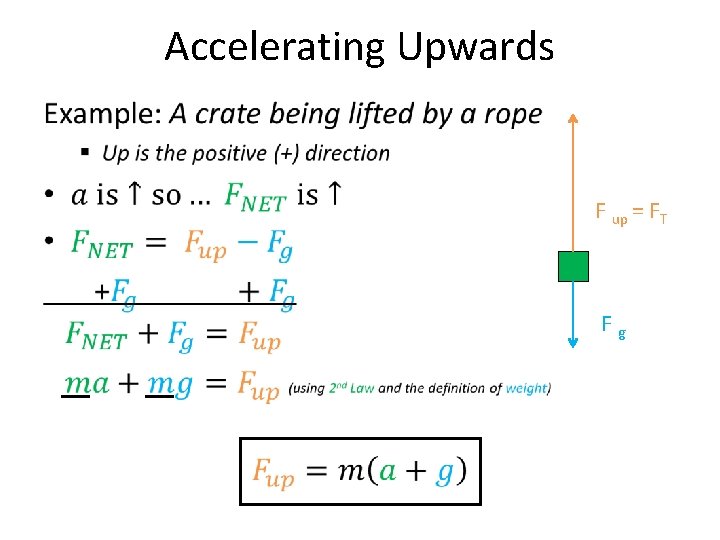

Accelerating Upwards • F up = FT Fg

An Accelerating elevator… n If the elevator is accelerating upwards or downwards, then our problem becomes slightly longer… n For example, let’s say the elevator is accelerating upwards at a rate of 2. 00 m/s 2. What is now different from our first example?

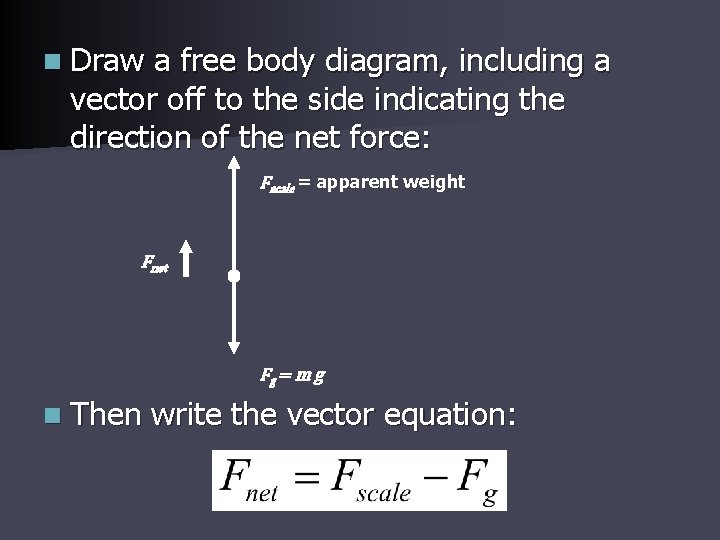

n Draw a free body diagram, including a vector off to the side indicating the direction of the net force: Fscale = apparent weight Fnet Fg = m g n Then write the vector equation:

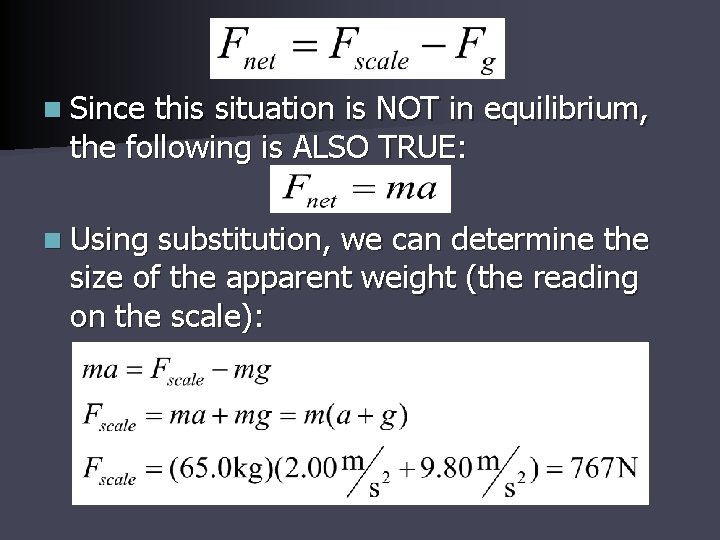

n Since this situation is NOT in equilibrium, the following is ALSO TRUE: n Using substitution, we can determine the size of the apparent weight (the reading on the scale):

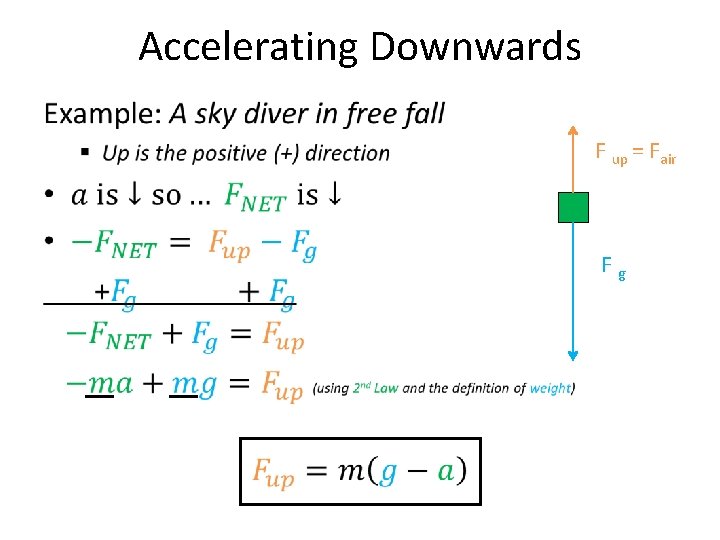

Accelerating Downwards • F up = Fair Fg

Another Accelerating elevator… n Now let’s say the elevator is accelerating downwards at a rate of 2. 00 m/s 2. (g=9. 80 m/s 2). Draw the free-body diagram for this situation: Fscale = apparent weight Fnet Fg = m g

n Again, we can write the vector equations… HOWEVER: the net force is now DOWN, so it (and the acceleration) is therefore a negative value… n Using substitution, we can determine the size of the apparent weight (the reading on the scale):

Now You Try! n Determine the apparent weight of a 67 kg man standing in an elevator when the elevator is: – At rest – Ascending and speeding up at a rate of 1. 5 m/s 2 – Ascending and slowing down at a rate of -1. 2 m/s 2
