Weekly Checks Monday VSP Room Tuesday Pilothouse System
- Slides: 37

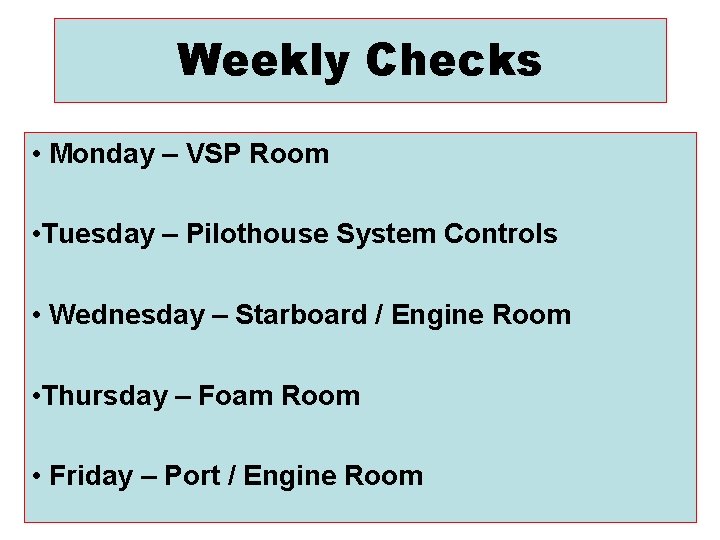

Weekly Checks • Monday – VSP Room • Tuesday – Pilothouse System Controls • Wednesday – Starboard / Engine Room • Thursday – Foam Room • Friday – Port / Engine Room
Monday – VSP Room weekly checks Visually Check: • • Hvac system for leaks & valve settings Fresh water system for leaks & valve settings VSP linkage Autopilot connections Ventilation fan switch and breaker Fuel Valves at the fwd tank for leaks & settings Fuel valves at the transfer pipe for leaks & settings
Monday – VSP Room Weekly Checks • Cycle all valves in the VSP room • Check oil level in the VSP units • Check oil level in the VSP header tanks • Check bilge for water and pump or suction as needed • Check fresh water system for leaks • Check hot water heater for heat • Fill day tanks and check and record fuel level in the fw fuel storage tank • Pump out grey water tank as needed • Check hydraulic oil storage tank level – fill as needed • Check and replace lights • Check ventilation fan plenum for water – drain as need • Check general alarm bell & light • Check phone & intercom # 107 • Clean / wipe / wash / service all areas as needed
Monday - VSP Room Pump switch Pump out grey water tank 50 gal. tank Cycle the overboard valve located on the starboard side Overboard valve
Monday – VSP Room • Fill day tanks • Stick and measure main storage tank • Measure sight gauge for the fwd storage tank • Record fuel onboard Between each colored mark is 1000 gallons

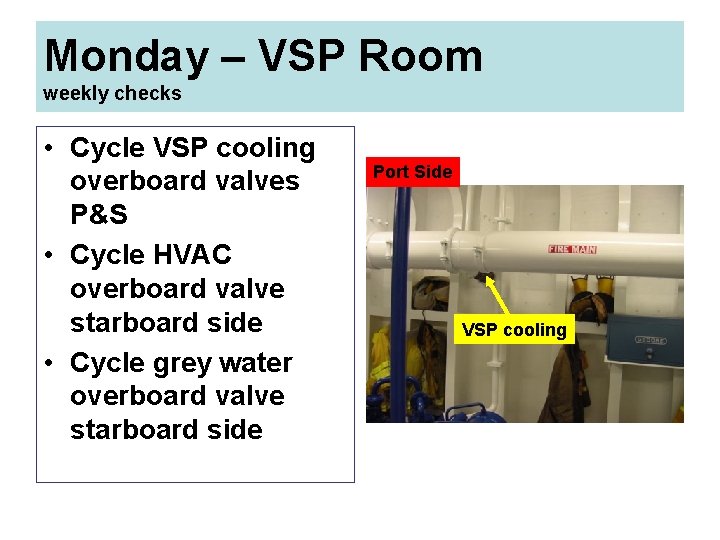

Monday – VSP Room weekly checks • Cycle VSP cooling overboard valves P&S • Cycle HVAC overboard valve starboard side • Cycle grey water overboard valve starboard side Port Side VSP cooling
Monday – VSP Room weekly checks Starboard Side Grey water overboard VSP cooling HVAC overboard
Monday – VSP Room weekly checks Check VSP unit oil level P & S Replace gently to avoid cross threading Dipstick location Look for signs of water (foam/milk) Operating range

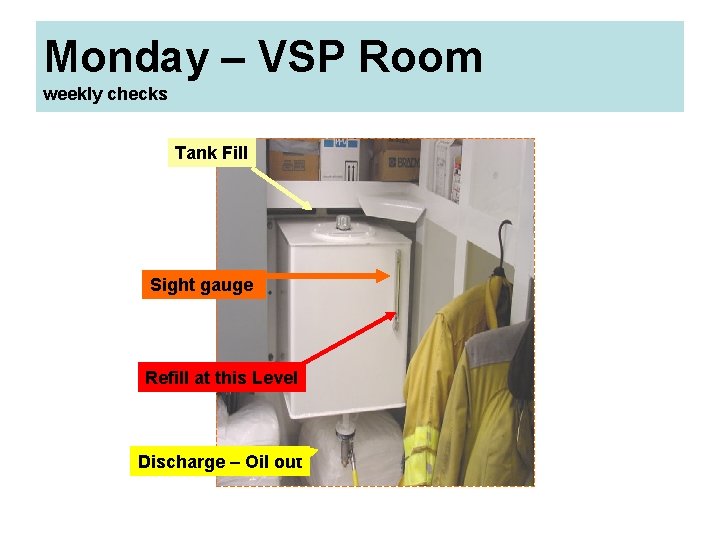

Monday – VSP Room weekly checks Tank Fill Sight gauge Refill at this Level Discharge – Oil out
Monday – VSP Room weekly checks Check under this floor plate • Remove / Lift floor plate and check for water • NEVER PUMP OILY WATER OVERBOARD • Start pump and listen for prime – NEVER run dry – use prime valves if necessary • Close all valves when finished Bilge suction under floor plate On / Off VSP Room Valve Prime valves

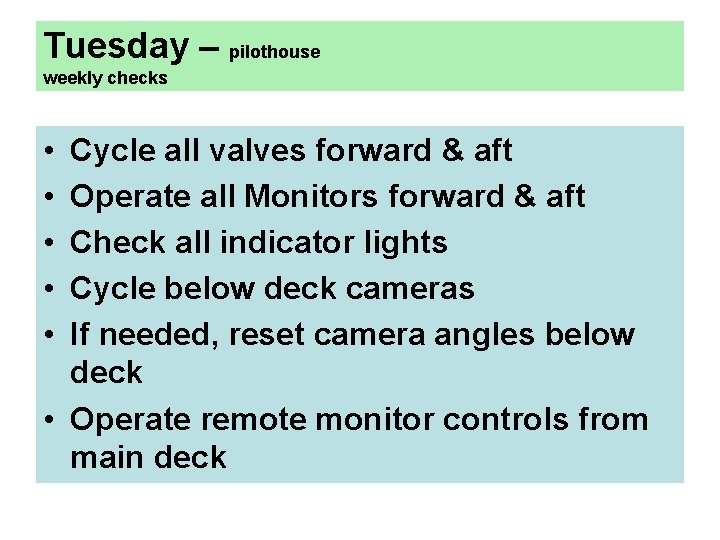

Tuesday – pilothouse weekly checks • • • Cycle all valves forward & aft Operate all Monitors forward & aft Check all indicator lights Cycle below deck cameras If needed, reset camera angles below deck • Operate remote monitor controls from main deck
Tuesday – pilothouse weekly checks Engine and throttle controls Valve & pump controls Monitor controls
Tuesday – pilothouse weekly checks Camera Monitor Camera control boxes
Tuesday – pilothouse weekly checks Remote aft deck / boat deck monitor controls • Boat Deck • Aft Deck
Wednesday – starboard side engine room weekly checks • Cycle all valves on the starboard side of the engine room • Check all systems, connections, valves, & bilges for leaks • Wipe / wash / vacuum / polish / service all areas as needed • Check and replace lights as needed • Check phone / intercom & # 106 • Check general alarm (bell & Light) • Check oil level in the fire pump hydraulic clutches – Main Engine & Pump Engine

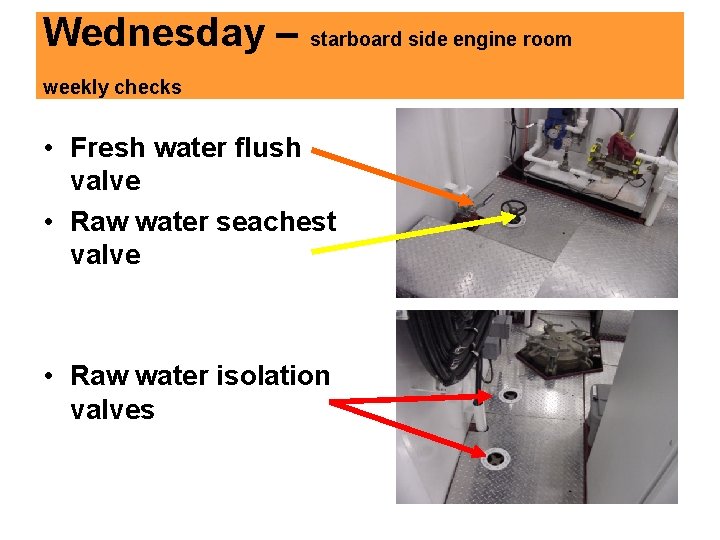

Wednesday – starboard side engine room weekly checks • Fresh water flush valve • Raw water seachest valve • Raw water isolation valves
Wednesday – starboard side engine room weekly checks Raw water inlet valve – Pump Engine Fire pump sea chest inlet valve Sea chest valve “wheel”
Wednesday – starboard engine room weekly checks Main engine raw water overboard Generator raw water overboard

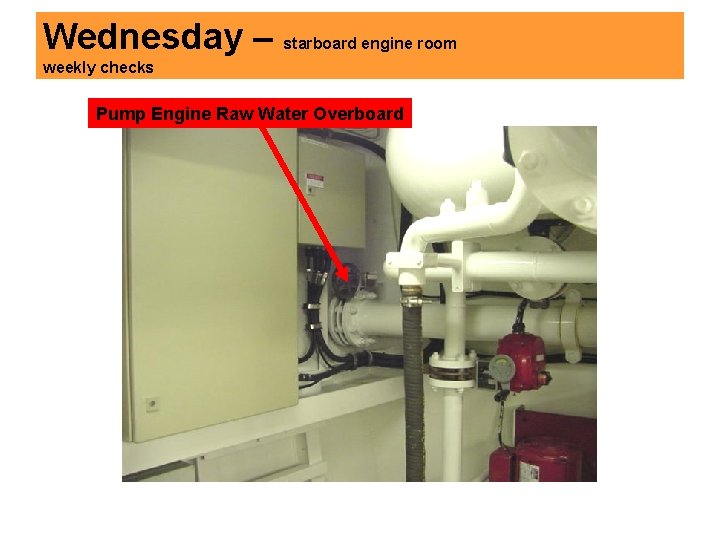

Wednesday – starboard engine room weekly checks Pump Engine Raw Water Overboard
Wednesday – starboard engine room weekly checks Firemain by-pass valve (pump 3) Firemain by-pass valve (pump 1) Hydraulic Clutch (pump #3)

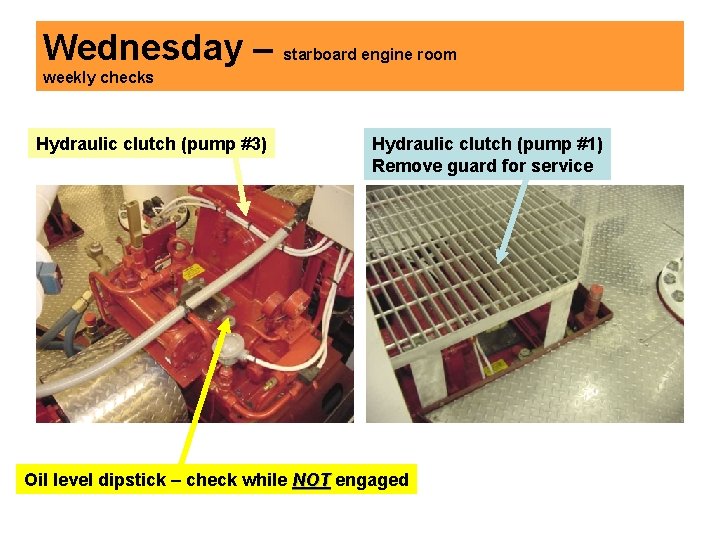

Wednesday – starboard engine room weekly checks Hydraulic clutch (pump #3) Hydraulic clutch (pump #1) Remove guard for service Oil level dipstick – check while NOT engaged
Wednesday – starboard engine room weekly checks Sea chest Valve Pump #5 Fuel Fill Valve
Wednesday – starboard engine room weekly checks Sea chest vent / blow down valve Foam delivery valve
Wednesday – starboard side weekly checks Pump #6 Pump #5 Fire main by-pass valves

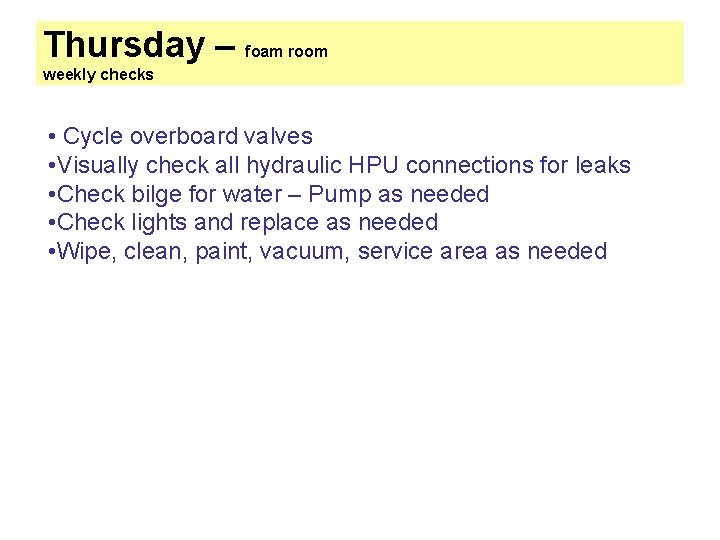

Thursday – foam room weekly checks • Cycle overboard valves • Visually check all hydraulic HPU connections for leaks • Check bilge for water – Pump as needed • Check lights and replace as needed • Wipe, clean, paint, vacuum, service area as needed
Thursday – foam room weekly checks Firemain “Overboard” valve Foam storage & foam pump inlet valves
Thursday – foam room weekly checks Hydraulic Power Units “HPU’s” Under wharf Monitors Aft Capstan
Thursday – foam room weekly checks Hydraulic Power Unit for the Deck Crane
Friday – port side engine room weekly checks • • • Cycle all valves on the port side of the engine room Check all systems, connections, valves, & bilges for leaks Wipe, wash, vacuum, polish, service all areas as needed Check and replace lights as needed Check oil level in the fire pump hydraulic clutches – main engine & pump engine
Friday – port side engine room weekly checks Bilge pump overboard valve Main engine raw water overboard valve
Friday – port side engine room weekly checks Cooling system fresh water flush valve Raw water sea chest valve
Friday – port side engine room weekly checks Hydraulic clutch – pump #2 Hydraulic clutch – pump #4 Remove guard for service Hydraulic oil level dipstick

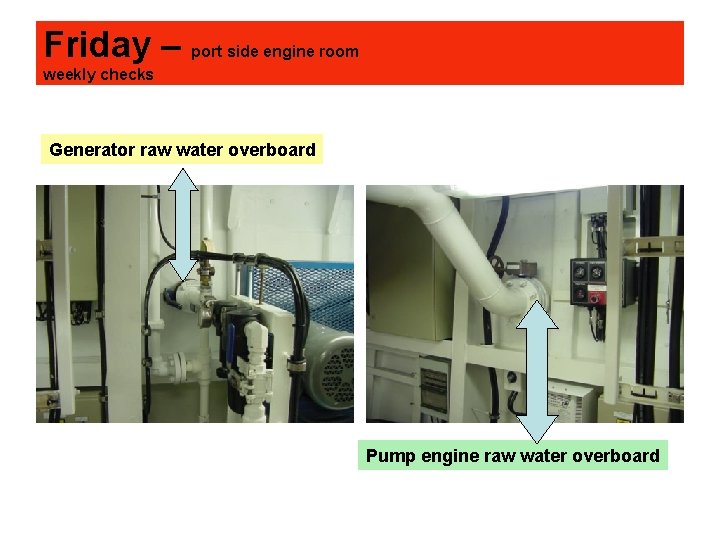

Friday – port side engine room weekly checks Generator raw water overboard Pump engine raw water overboard
Friday – port side engine room weekly checks Air Dryers Compressor oil level dipstick

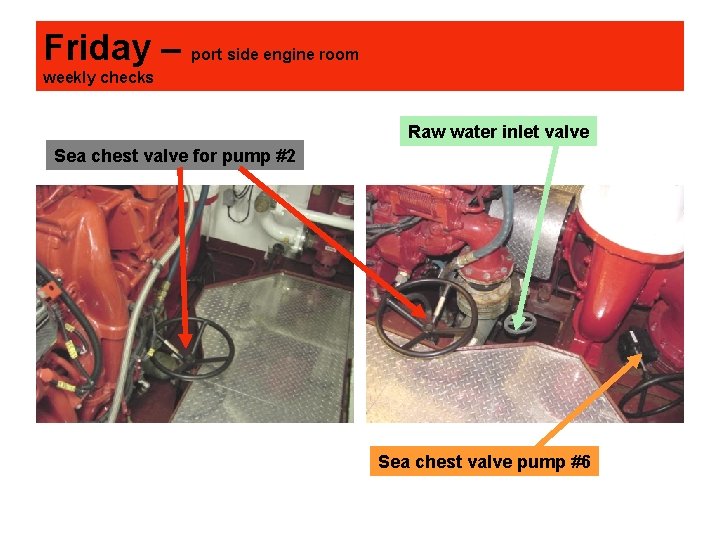

Friday – port side engine room weekly checks Raw water inlet valve Sea chest valve for pump #2 Sea chest valve pump #6

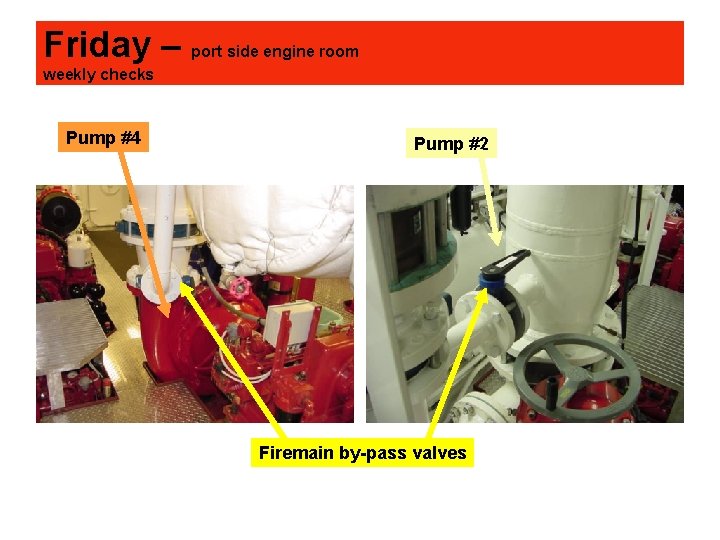

Friday – port side engine room weekly checks Pump #4 Pump #2 Firemain by-pass valves
Friday – port side engine room weekly checks Bilge Pump System Manifold Fire pump & firemain drains
