Week 8 b OUTLINE Using pn-diodes to isolate transistors in an IC The metal-oxide-field-effect transistor (MOSFET) Structure of the MOSFET The MOSFET as a controlled resistance Pinch-off and current saturation in the MOSFET Channel-length modulation Velocity saturation in a short-channel MOSFET Reading Rabaey et al. Ch. 3. 3. 1 -3. 3. 2 Hambley Ch. 12. 1 EECS 42, Spring 2005 Week 8 b, Slide 1 Prof. White

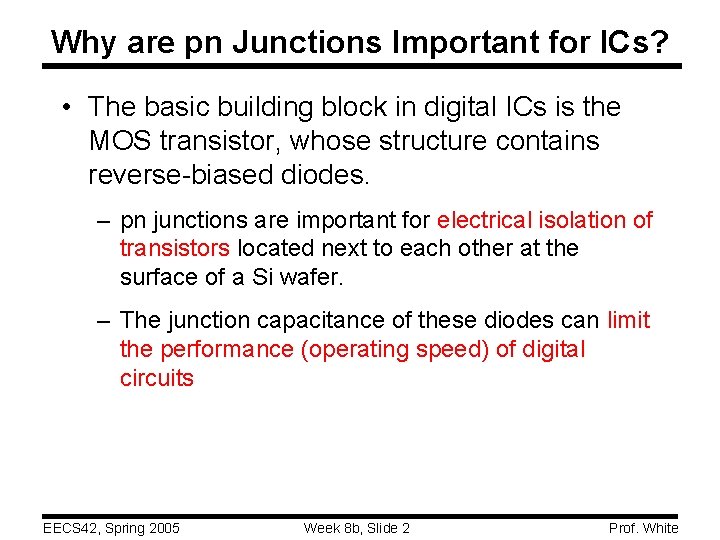

Why are pn Junctions Important for ICs? • The basic building block in digital ICs is the MOS transistor, whose structure contains reverse-biased diodes. – pn junctions are important for electrical isolation of transistors located next to each other at the surface of a Si wafer. – The junction capacitance of these diodes can limit the performance (operating speed) of digital circuits EECS 42, Spring 2005 Week 8 b, Slide 2 Prof. White

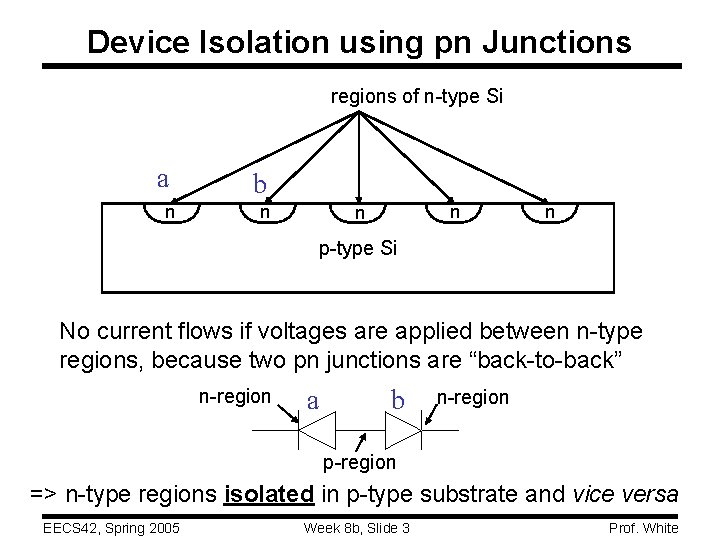

Device Isolation using pn Junctions regions of n-type Si a b n n n p-type Si No current flows if voltages are applied between n-type regions, because two pn junctions are “back-to-back” n-region a b n-region p-region => n-type regions isolated in p-type substrate and vice versa EECS 42, Spring 2005 Week 8 b, Slide 3 Prof. White

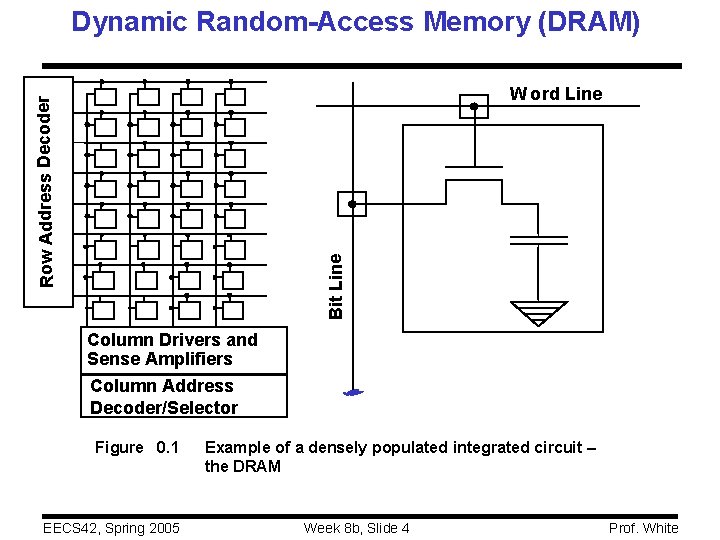

Dynamic Random-Access Memory (DRAM) Bit Line Row Address Decoder W ord Line Column Drivers and Sense Amplifiers Column Address Decoder/Selector Figure 0. 1 EECS 42, Spring 2005 Example of a densely populated integrated circuit – the DRAM Week 8 b, Slide 4 Prof. White

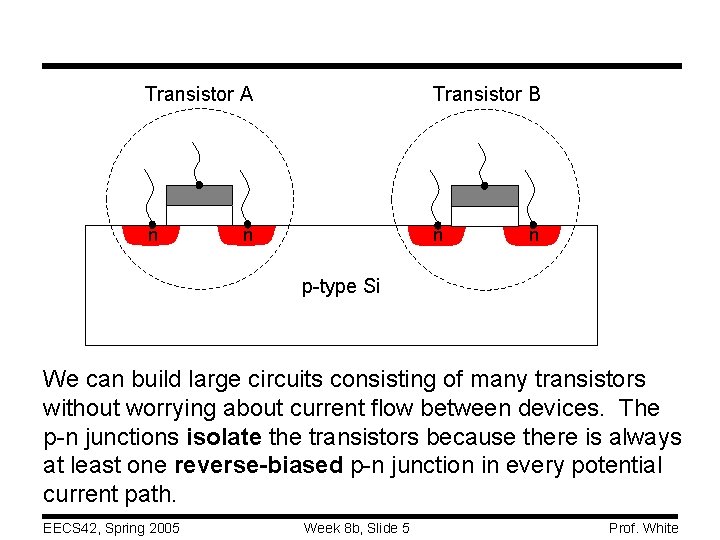

Transistor A Transistor B n n p-type Si We can build large circuits consisting of many transistors without worrying about current flow between devices. The p-n junctions isolate the transistors because there is always at least one reverse-biased p-n junction in every potential current path. EECS 42, Spring 2005 Week 8 b, Slide 5 Prof. White

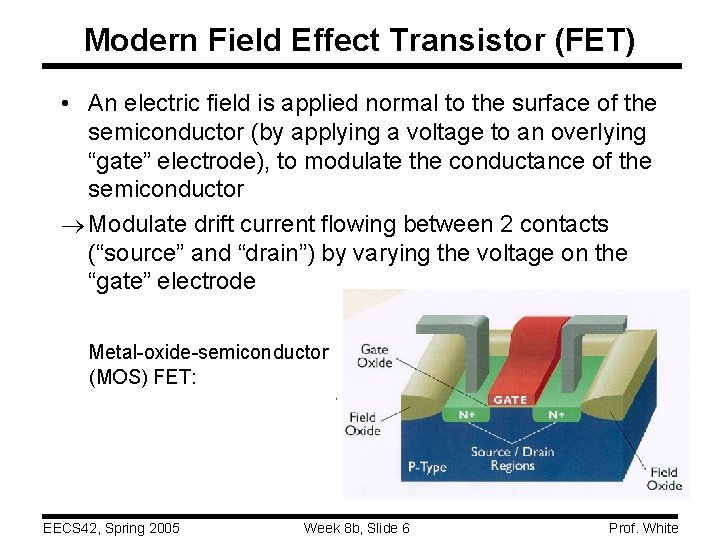

Modern Field Effect Transistor (FET) • An electric field is applied normal to the surface of the semiconductor (by applying a voltage to an overlying “gate” electrode), to modulate the conductance of the semiconductor ® Modulate drift current flowing between 2 contacts (“source” and “drain”) by varying the voltage on the “gate” electrode Metal-oxide-semiconductor (MOS) FET: EECS 42, Spring 2005 Week 8 b, Slide 6 Prof. White

MOSFET • NMOS: N-channel Metal Oxide Semiconductor • L = channel length W • W = channel width GATE L lator “Metal” (heavily doped poly-Si) su oxide in n con ili p-type s n DRAIN SOURCE • A GATE electrode is placed above (electrically insulated from) the silicon surface, and is used to control the resistance between the SOURCE and DRAIN regions EECS 42, Spring 2005 Week 8 b, Slide 7 Prof. White

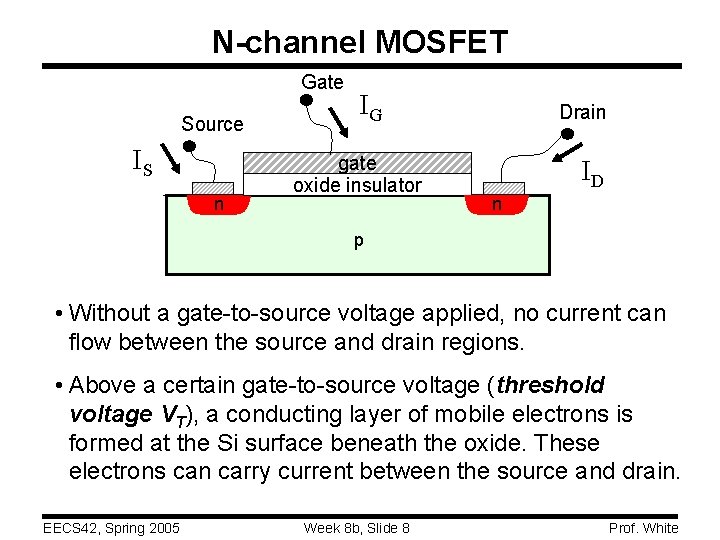

N-channel MOSFET Gate Source IS n IG gate oxide insulator Drain ID n p • Without a gate-to-source voltage applied, no current can flow between the source and drain regions. • Above a certain gate-to-source voltage (threshold voltage VT), a conducting layer of mobile electrons is formed at the Si surface beneath the oxide. These electrons can carry current between the source and drain. EECS 42, Spring 2005 Week 8 b, Slide 8 Prof. White

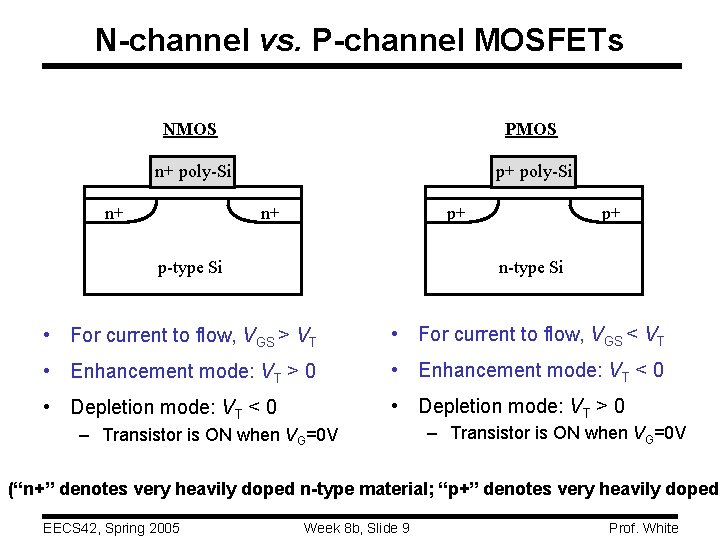

N-channel vs. P-channel MOSFETs NMOS PMOS n+ poly-Si p+ poly-Si n+ n+ p+ p-type Si p+ n-type Si • For current to flow, VGS > VT • For current to flow, VGS < VT • Enhancement mode: VT > 0 • Enhancement mode: VT < 0 • Depletion mode: VT > 0 – Transistor is ON when VG=0 V (“n+” denotes very heavily doped n-type material; “p+” denotes very heavily doped EECS 42, Spring 2005 Week 8 b, Slide 9 Prof. White

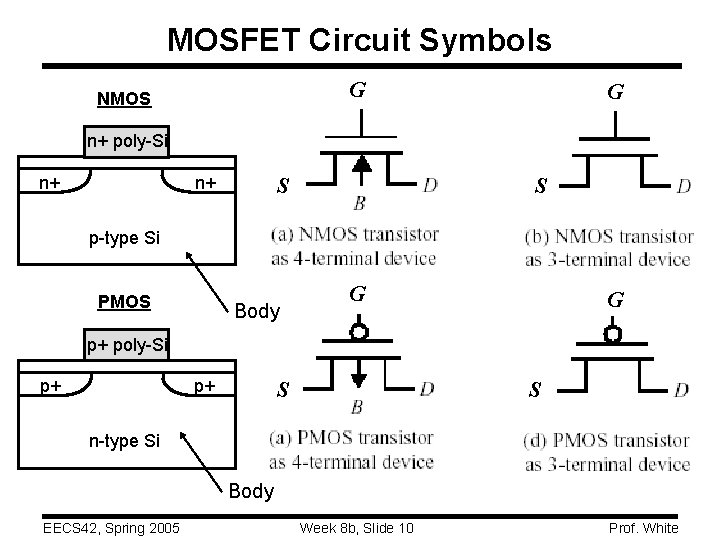

MOSFET Circuit Symbols G NMOS G n+ poly-Si n+ n+ S S p-type Si PMOS Body G G p+ poly-Si p+ p+ S S n-type Si Body EECS 42, Spring 2005 Week 8 b, Slide 10 Prof. White

Water Model for P-channel MOSFET EECS 42, Spring 2005 Week 8 b, Slide 11 Prof. White

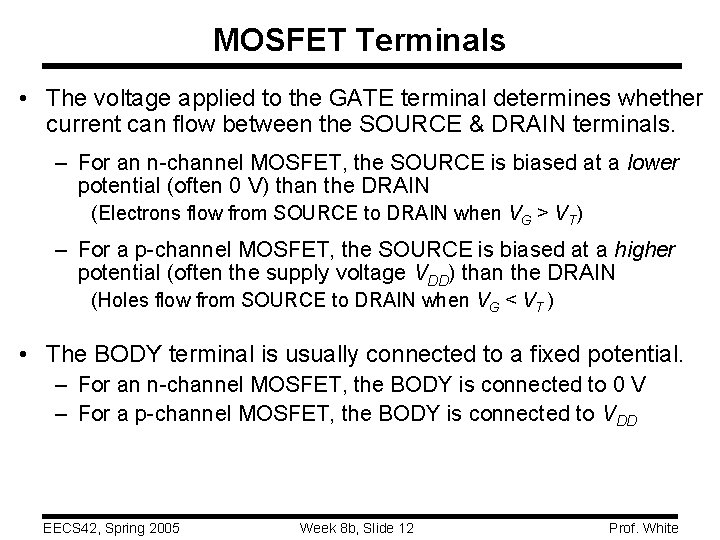

MOSFET Terminals • The voltage applied to the GATE terminal determines whether current can flow between the SOURCE & DRAIN terminals. – For an n-channel MOSFET, the SOURCE is biased at a lower potential (often 0 V) than the DRAIN (Electrons flow from SOURCE to DRAIN when VG > VT) – For a p-channel MOSFET, the SOURCE is biased at a higher potential (often the supply voltage VDD) than the DRAIN (Holes flow from SOURCE to DRAIN when VG < VT ) • The BODY terminal is usually connected to a fixed potential. – For an n-channel MOSFET, the BODY is connected to 0 V – For a p-channel MOSFET, the BODY is connected to VDD EECS 42, Spring 2005 Week 8 b, Slide 12 Prof. White

NMOSFET IG vs. VGS Characteristic Consider the current IG (flowing into G) versus VGS : IG G S oxide semiconductor VGS + IG D VDS + The gate is insulated from the semiconductor, so there is no significant steady gate current. always zero! VGS EECS 42, Spring 2005 Week 8 b, Slide 13 Prof. White

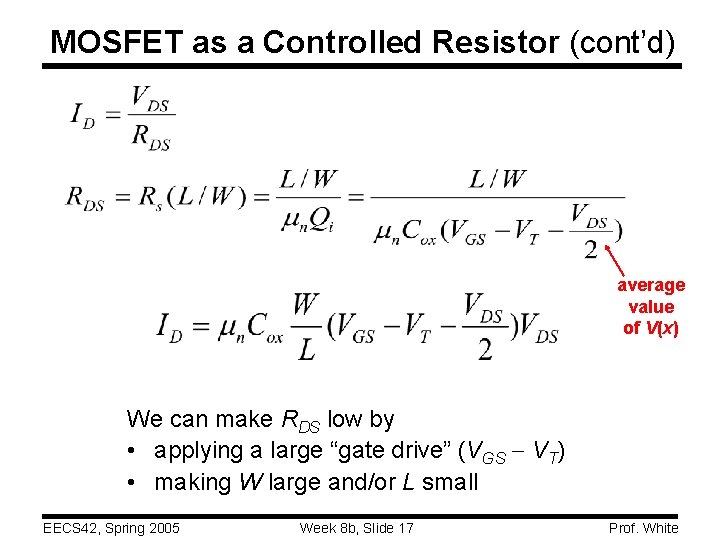

The MOSFET as a Controlled Resistor • The MOSFET behaves as a resistor when VDS is low: – Drain current ID increases linearly with VDS – Resistance RDS between SOURCE & DRAIN depends on VGS • RDS is lowered as VGS increases above VT oxide thickness tox NMOSFET Example: ID VGS = 2 V VGS = 1 V > VT VDS IDS = 0 if VGS < VT EECS 42, Spring 2005 Inversion charge density Qi(x) = -Cox[VGS-VT-V(x)] where Cox eox / tox Week 8 b, Slide 14 Prof. White

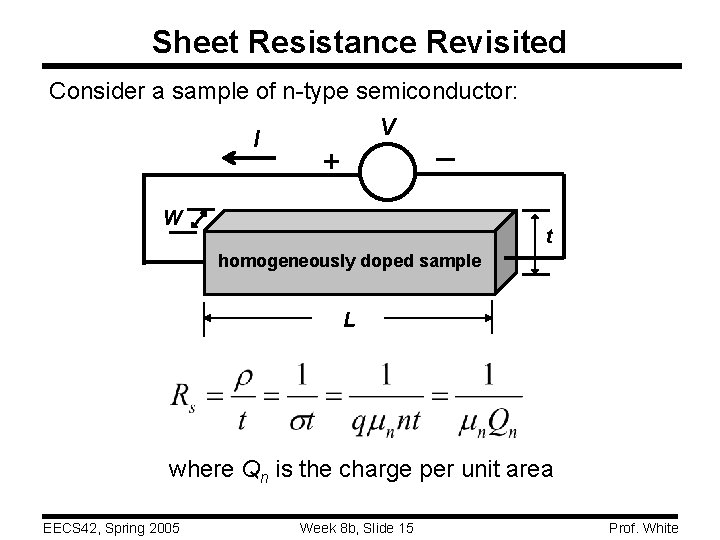

Sheet Resistance Revisited Consider a sample of n-type semiconductor: V I _ + W t homogeneously doped sample L where Qn is the charge per unit area EECS 42, Spring 2005 Week 8 b, Slide 15 Prof. White

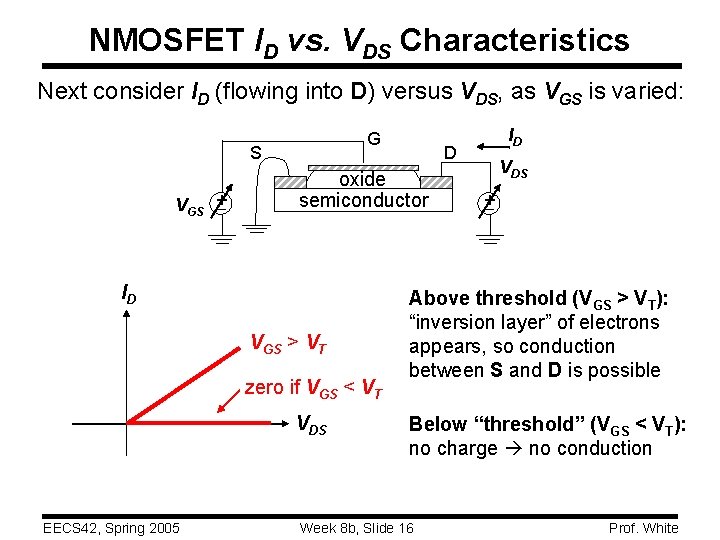

NMOSFET ID vs. VDS Characteristics Next consider ID (flowing into D) versus VDS, as VGS is varied: G S VGS + VGS > VT zero if VGS < VT VDS EECS 42, Spring 2005 D oxide semiconductor ID ID VDS + Above threshold (VGS > VT): “inversion layer” of electrons appears, so conduction between S and D is possible Below “threshold” (VGS < VT): no charge no conduction Week 8 b, Slide 16 Prof. White

MOSFET as a Controlled Resistor (cont’d) average value of V(x) We can make RDS low by • applying a large “gate drive” (VGS VT) • making W large and/or L small EECS 42, Spring 2005 Week 8 b, Slide 17 Prof. White

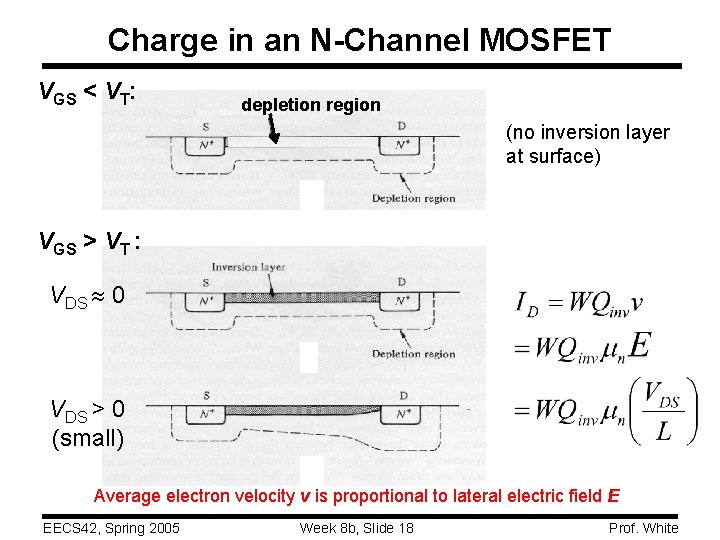

Charge in an N-Channel MOSFET VGS < VT: depletion region (no inversion layer at surface) VGS > VT : VDS 0 VDS > 0 (small) Average electron velocity v is proportional to lateral electric field E EECS 42, Spring 2005 Week 8 b, Slide 18 Prof. White

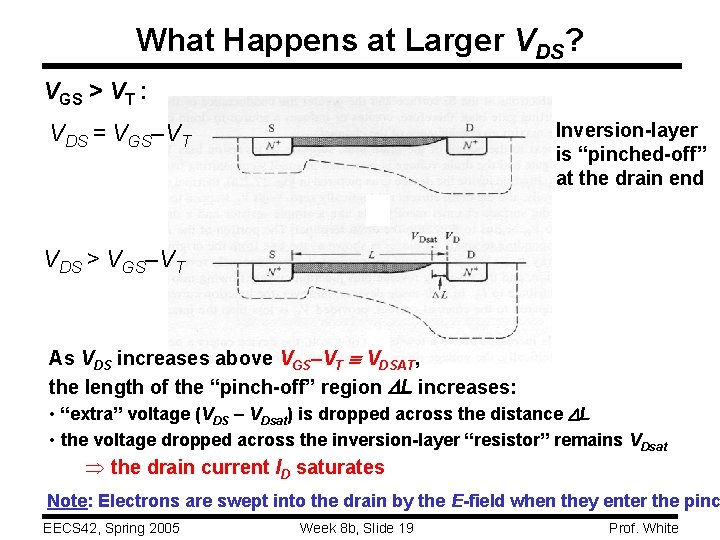

What Happens at Larger VDS? VGS > VT : Inversion-layer is “pinched-off” at the drain end VDS = VGS–VT VDS > VGS–VT As VDS increases above VGS–VT VDSAT, the length of the “pinch-off” region DL increases: • “extra” voltage (VDS – VDsat) is dropped across the distance DL • the voltage dropped across the inversion-layer “resistor” remains VDsat Þ the drain current ID saturates Note: Electrons are swept into the drain by the E-field when they enter the pinc EECS 42, Spring 2005 Week 8 b, Slide 19 Prof. White

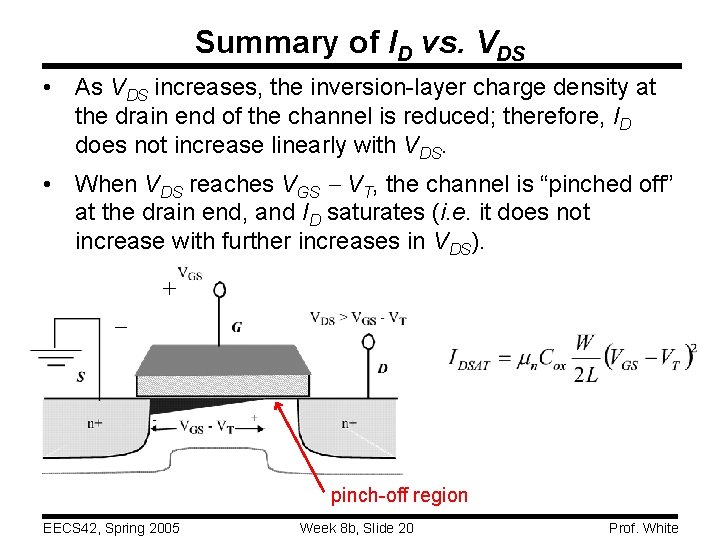

Summary of ID vs. VDS • As VDS increases, the inversion-layer charge density at the drain end of the channel is reduced; therefore, ID does not increase linearly with VDS. • When VDS reaches VGS VT, the channel is “pinched off” at the drain end, and ID saturates (i. e. it does not increase with further increases in VDS). + – pinch-off region EECS 42, Spring 2005 Week 8 b, Slide 20 Prof. White

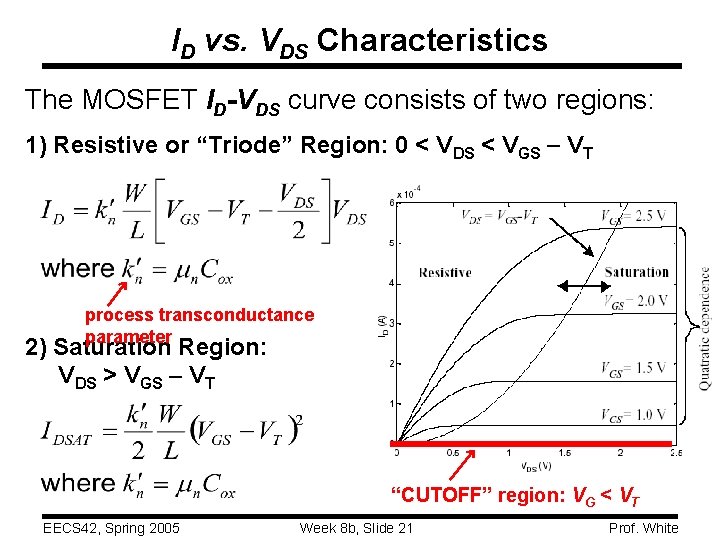

ID vs. VDS Characteristics The MOSFET ID-VDS curve consists of two regions: 1) Resistive or “Triode” Region: 0 < VDS < VGS VT process transconductance parameter 2) Saturation Region: VDS > VGS VT “CUTOFF” region: VG < VT EECS 42, Spring 2005 Week 8 b, Slide 21 Prof. White

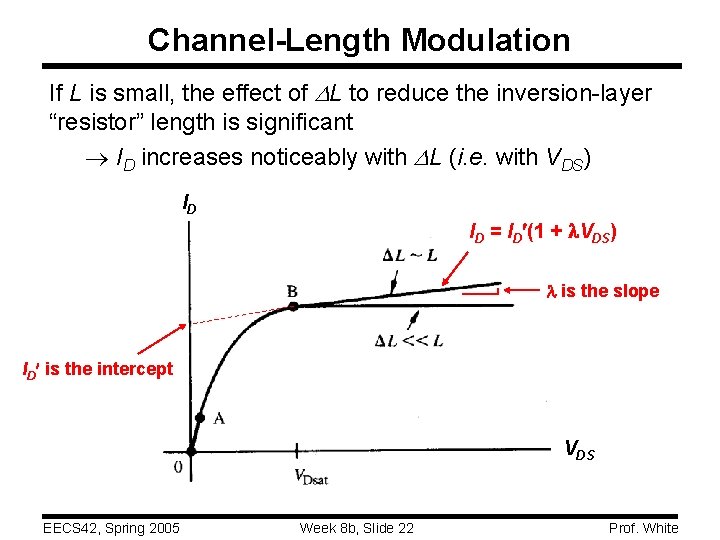

Channel-Length Modulation If L is small, the effect of DL to reduce the inversion-layer “resistor” length is significant ® ID increases noticeably with DL (i. e. with VDS) ID ID = ID (1 + l. VDS) l is the slope ID is the intercept VDS EECS 42, Spring 2005 Week 8 b, Slide 22 Prof. White

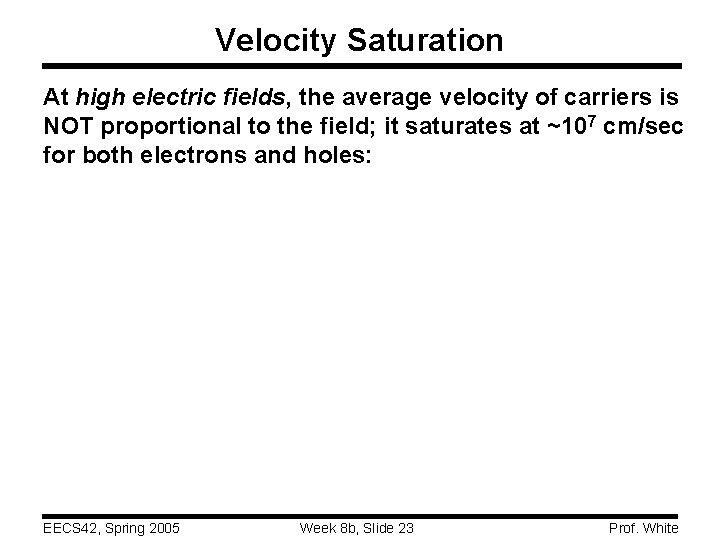

Velocity Saturation At high electric fields, the average velocity of carriers is NOT proportional to the field; it saturates at ~107 cm/sec for both electrons and holes: EECS 42, Spring 2005 Week 8 b, Slide 23 Prof. White

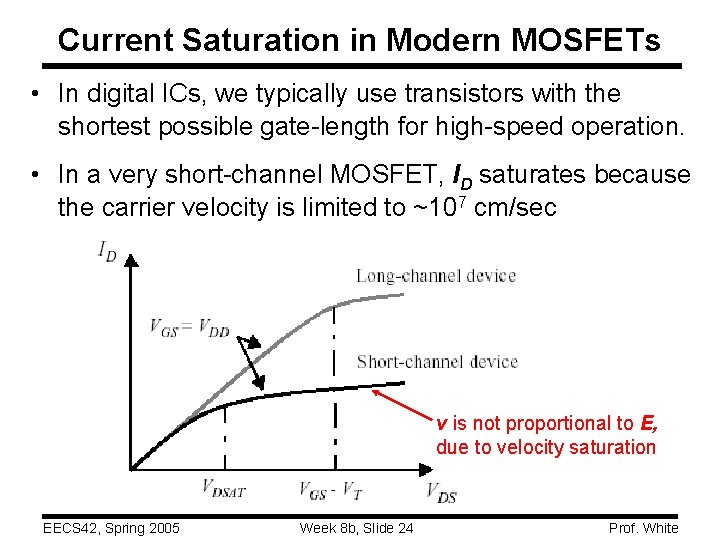

Current Saturation in Modern MOSFETs • In digital ICs, we typically use transistors with the shortest possible gate-length for high-speed operation. • In a very short-channel MOSFET, ID saturates because the carrier velocity is limited to ~107 cm/sec v is not proportional to E, due to velocity saturation EECS 42, Spring 2005 Week 8 b, Slide 24 Prof. White

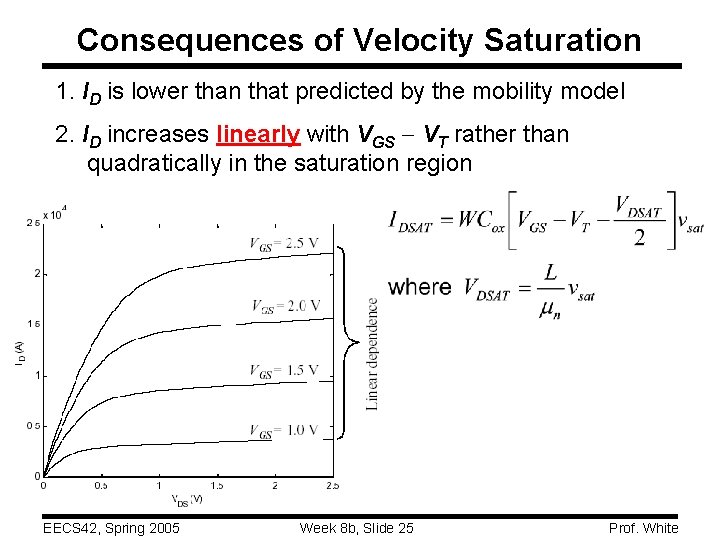

Consequences of Velocity Saturation 1. ID is lower than that predicted by the mobility model 2. ID increases linearly with VGS VT rather than quadratically in the saturation region EECS 42, Spring 2005 Week 8 b, Slide 25 Prof. White

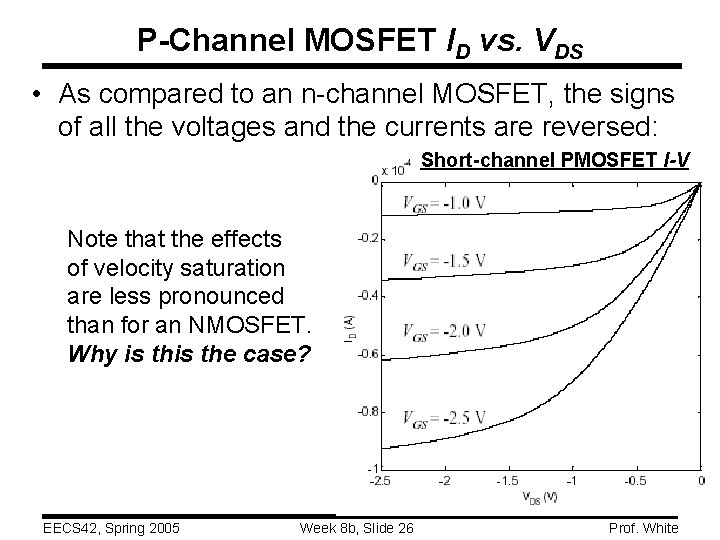

P-Channel MOSFET ID vs. VDS • As compared to an n-channel MOSFET, the signs of all the voltages and the currents are reversed: Short-channel PMOSFET I-V Note that the effects of velocity saturation are less pronounced than for an NMOSFET. Why is the case? EECS 42, Spring 2005 Week 8 b, Slide 26 Prof. White
