WEBs-AX™ Controller WEB-700
WEBs-AX Series 7 Controller • WEBs-AX Integration Controller For the Niagara. AX Platform • Higher horse-power over existing WEB-600 controller • Remote I/O for enabling inputs • Offer communication and driver options identical to other Integration Controllers 2 Honeywell WEB-700 Controller Overview

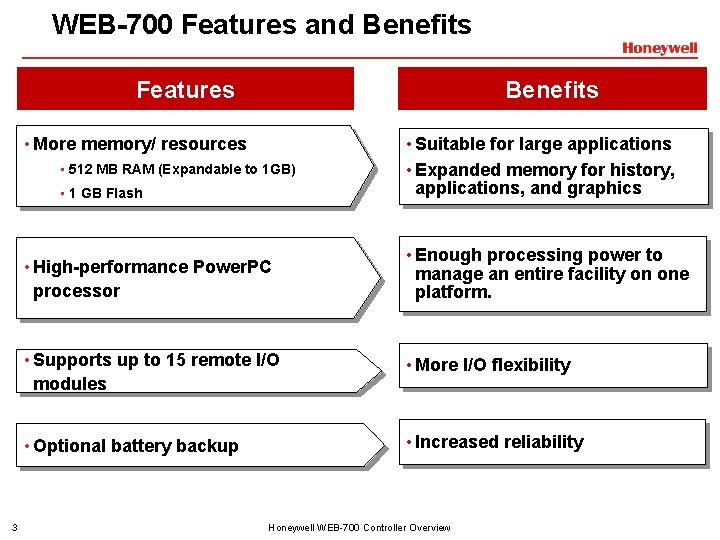

WEB-700 Features and Benefits Features Benefits • More memory/ resources • 512 MB RAM (Expandable to 1 GB) • 1 GB Flash 3 • Suitable for large applications • Expanded memory for history, applications, and graphics • High-performance Power. PC processor • Enough processing power to manage an entire facility on one platform. • Supports up to 15 remote I/O modules • More I/O flexibility • Optional battery backup • Increased reliability Honeywell WEB-700 Controller Overview
WEB-700 Product Specifications • Requires Niagara 3. 5 • Processing and Memory - 440 Epx Power PC processor @ 667 MHz - 1 GB Standard installed RAM; 512 MB usable w Upgrade driver part NPM-1 GB to unlock complete RAM - 1 GB Flash • Communication Ports - (2) Gigabit Ethernet ports - (2) USB port - (1) RS-232 and (1) RS-485 port • Miscellaneous - (2) Option card slots (Same as WEB-600/201) - On-board battery charging circuit for SLA backup batteries - Slightly larger footprint than WEB-600/201 controllers - Din rail or surface mount 4 Honeywell WEB-700 Controller Overview

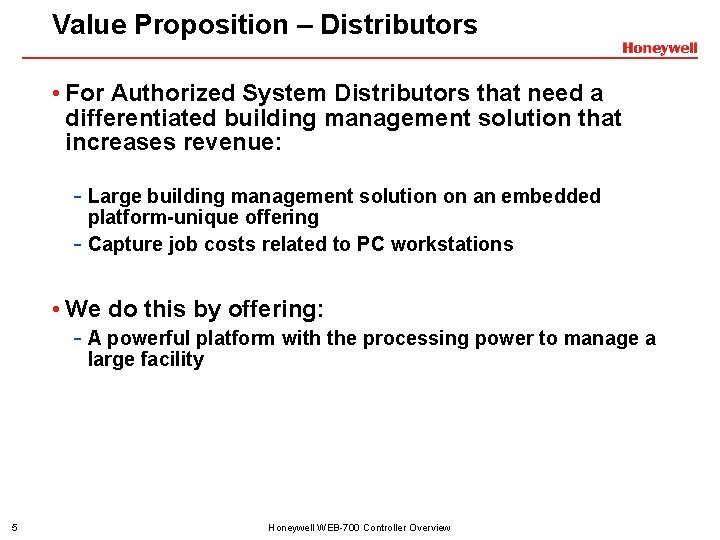

Value Proposition – Distributors • For Authorized System Distributors that need a differentiated building management solution that increases revenue: - Large building management solution on an embedded platform-unique offering - Capture job costs related to PC workstations • We do this by offering: - A powerful platform with the processing power to manage a large facility 5 Honeywell WEB-700 Controller Overview

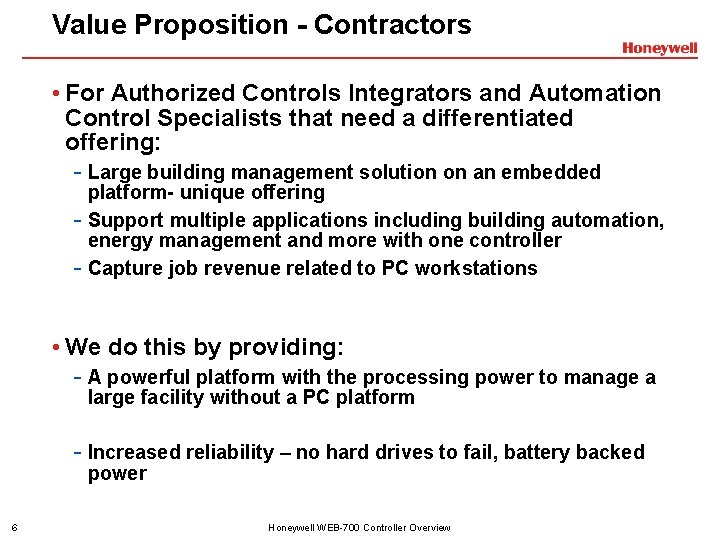

Value Proposition - Contractors • For Authorized Controls Integrators and Automation Control Specialists that need a differentiated offering: - Large building management solution on an embedded platform- unique offering - Support multiple applications including building automation, energy management and more with one controller - Capture job revenue related to PC workstations • We do this by providing: - A powerful platform with the processing power to manage a large facility without a PC platform - Increased reliability – no hard drives to fail, battery backed power 6 Honeywell WEB-700 Controller Overview
WEB-700 – Base Parts Model # 7 Description WEB-700 512 MB RAM/1 GB Flash, (2) GB Ethernet ports, (2)USB ports, (1) RS-485 serial port, (1) RS-232 serial port, (2) sockets for optional communication cards. Includes Niagara-AX station and Web User Interface. Standard drivers include o. BIX Client/Server and Niagara Network (Fox) Client/Server. Factory mounted in a wall-mount vinyl enclosure. Embedded Workbench is optional. Requires Niagara Release 3. 5 or Higher WEB-700 -O Same as above, but with WEBs Open license Honeywell WEB-700 Controller Overview
www. honeywell. com 8 Honeywell WEB-700 Controller Overview
