Web Sol Ecommerce webpage for Bedding and Linen

Web. Sol Ecommerce webpage for Bedding and Linen Products Group Members Danish Naqash as a Project Manager Minh Tuan Pham as a Designer Amit Kherwar as a Database Administrator Riste Sekuloski as a Developer Muhammad Zohaib as a Quality Assurance

About Business & Client Info United Australia Imports PTY LTD Mr. Anil Kumar 346 Frankston Dandenong Road, Dandenong South, 3175 VIC

Goals & Objectives Increase the Revenue Enter into online world. Increase the online sales. People start knowing them

Purpose & Scope Develop an ecommerce website for United Australia Detail information on Product Backboned by a database Online payment system, Pay. Pal

Project Methodolgy � Waterfall Methodology Why? � Simple and easy to understand use � Easy to manage � Phases do not overlap � Excellent for small projects

Requirements Functional Requirements � + Sign up for an online account + View product by category or on detail. + Choose product(s) and making online payment + Searching product + Leaving comment � � � � � Back-end site: + Storing data about products, customers, transactions, orders … + Administration interaction: + Insert, Edit, Update new data + Viewing data of all sorts Non Functional Requirements � The maximum page load time: 6 sec � Accessible from major browsers and devices

Requirement Traceability Matrix

Gantt Chart

Budget Instructions For Clients Requeted Changes By Client Live Testing (online) Database Load Testing Simulated Testing Database Development Phase Softwares Equipment Result Brain Storming Initial Phase 0 2000 4000 6000 $ 8000 10000 12000 14000

Architecture Of The System

Architecture Of The System Deployment Architecture Three Tier

Context Diagram

DFD Level 0 Customer

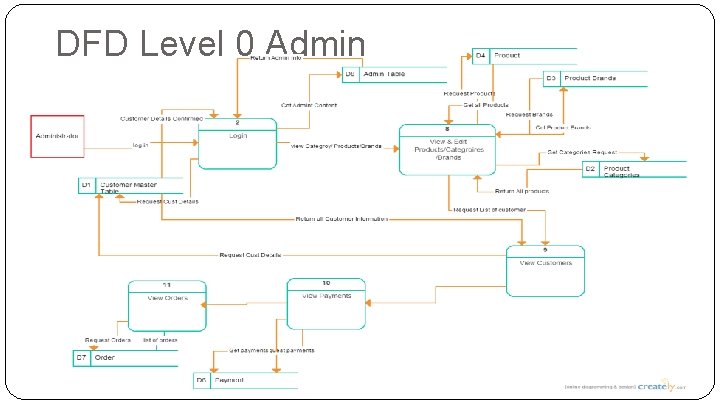

DFD Level 0 Admin

Use-Case Diagram

Sequence Diagram (System)

Sequence Diagram (Admin view orders and confirm customer orders)

Activity diagram System

Activity Diagram User Add to Cart

ER-Diagram & Class Diagram

Technical Plan – Test Plan Unit testing: source code, modules Acceptance testing: functional requirement testing Black-box testing: visual testing Performance testing: nonfunctional requirement testing. Ex: loading speed

Backup Plan Backup schedule Weekly Backup: database, system Daily Backup: selected files, Full Backup Differential Backup Local Backup Off-site Backup Online Backup changed files Backup Diary Backup Report Recovery Plan

Conclusion Our team have created ecommerce website that is: User friendly Easy to navigate & use Contains admin panel dedicated to the owners

Recommendation For Future Is our software product the best solution? The answer is no, but at the moment it fulfils the client needs and expectations, and that is the most important!! In future the new technology will emerge We can upgrade the cart to calculate shipping cots, delivery or even international shipping. The possibilities for future upgrade are endless same as technology
