Web Smart Fiber Optic Switch HUB 1 0

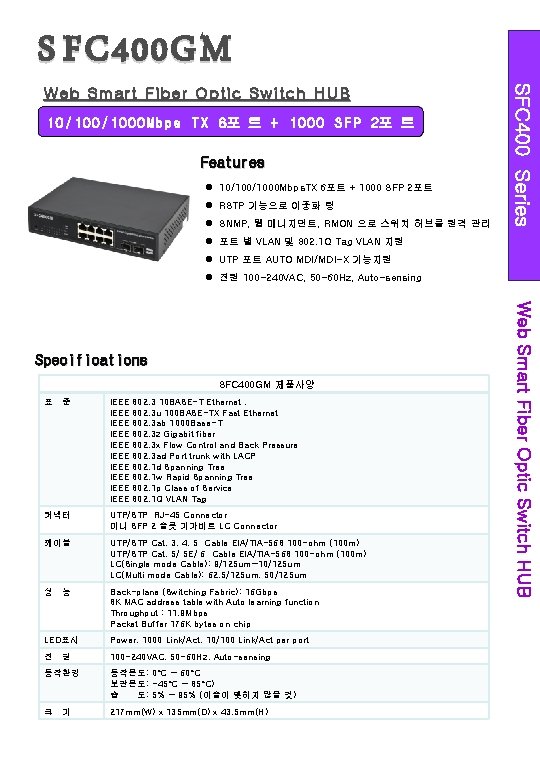

Web Smart Fiber Optic Switch HUB 1 0 / 1 0 0 0 M b p s T X 6포 트 + 1 0 0 0 S F P 2포 트 Features l 10/1000 Mbps. TX 6포트 + 1000 SFP 2포트 l RSTP 기능으로 이중화 링 l SNMP, 웹 매니지먼트, RMON 으로 스위치 허브를 원격 관리 SFC 400 Series S FC 400 G M l 포트 별 VLAN 및 802. 1 Q Tag VLAN 지원 l UTP 포트 AUTO MDI/MDI-X 기능지원 l 전원 100 -240 VAC, 50 -60 Hz, Auto-sensing SFC 400 GM 제품사양 표 준 IEEE IEEE IEEE 802. 3 10 BASE-T Ethernet , 802. 3 u 100 BASE-TX Fast Ethernet 802. 3 ab 1000 Base-T 802. 3 z Gigabit fiber 802. 3 x Flow Control and Back Pressure 802. 3 ad Port trunk with LACP 802. 1 d Spanning Tree 802. 1 w Rapid Spanning Tree 802. 1 p Class of Service 802. 1 Q VLAN Tag 커넥터 UTP/STP RJ-45 Connector 미니 SFP 2 슬롯 기가비트 LC Connector 케이블 UTP/STP Cat. 3, 4, 5 Cable EIA/TIA-568 100 -ohm (100 m) UTP/STP Cat. 5/ 5 E/ 6 Cable EIA/TIA-568 100 -ohm (100 m) LC(Single mode Cable): 9/125 um~10/125 um LC(Multi mode Cable): 62. 5/125 um, 50/125 um 성 Back-plane (Switching Fabric): 16 Gbps 8 K MAC address table with Auto learning function Throughput : 11. 9 Mbps Packet Buffer 176 K bytes on chip 능 LED표시 Power, 1000 Link/Act, 10/100 Link/Act per port 전 100 -240 VAC, 50 -60 Hz, Auto-sensing 원 동작환경 동작온도: 0°C ~ 60°C 보관온도: -45°C ~ 85°C) 습 도: 5% ~ 95% (이슬이 맺히지 않을 것) 크 217 mm(W) x 135 mm(D) x 43. 5 mm(H) 기 Web Smart Fiber Optic Switch HUB Specifications

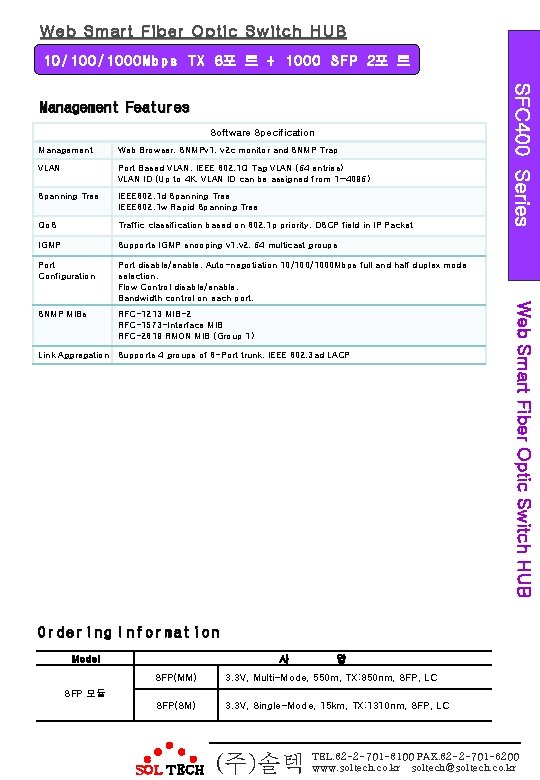

Web Smart Fiber Optic Switch HUB 1 0 / 1 0 0 0 M b p s T X 6포 트 + 1 0 0 0 S F P 2포 트 Software Specification Web Browser, SNMPv 1, v 2 c monitor and SNMP Trap VLAN Port Based VLAN, IEEE 802. 1 Q Tag VLAN (64 entries) VLAN ID (Up to 4 K, VLAN ID can be assigned from 1~4096) Spanning Tree IEEE 802. 1 d Spanning Tree IEEE 802. 1 w Rapid Spanning Tree Qo. S Traffic classification based on 802. 1 p priority, DSCP field in IP Packet IGMP Supports IGMP snooping v 1, v 2, 64 multicast groups Port Configuration Port disable/enable. Auto-negotiation 10/1000 Mbps full and half duplex mode selection. Flow Control disable/enable. Bandwidth control on each port. SNMP MIBs RFC-1213 MIB-2 RFC-1573 -Interface MIB RFC-2819 RMON MIB (Group 1) Link Aggregation Supports 4 groups of 8 -Port trunk, IEEE 802. 3 ad LACP Web Smart Fiber Optic Switch HUB Management SFC 400 Series Management Features Ordering Information Model 사 양 SFP(MM) 3. 3 V, Multi-Mode, 550 m, TX: 850 nm, SFP, LC SFP(SM) 3. 3 V, Single-Mode, 15 km, TX: 1310 nm, SFP, LC SFP 모듈 SOL TECH FAX. 82 -2 -701 -6200 www. soltech. co. kr soltech@soltech. co. kr (주)솔텍 TEL. 82 -2 -701 -8100
