Web Optimization Alteon Sales Training Luiz Brandao Objectives

Web Optimization Alteon Sales Training Luiz Brandao

Objectives • By the end of this training the Sales person will be able to: – Describe the Data Center Market Opportunity for Alteon Solutions – Understand Alteon’s Key applications and services from a Data Center perspective – Describe Alteon’s value proposition and solutions at a high level – Identify Alteon opportunities – Differentiate Alteon from other alternatives

What is a Data Center? • Any environment where you have the following key components: 1) Internet Access (Big Pipes) Internet Gateway A Gateway B AD 4 2) Switches / Load Balancers 3) Security ( Firewall & VPN) 4) Server Farm Firewalls PP 8600 W/ WSM PP 8600 W/WSM Secure Server Farm Internet Data Center

The Data Center Challenge Issues & requirements • Load balancers, firewalls, Intrusion Detection Systems, VPN, SSL offload devices, etc. • The “Need for Speed!” • Performance and reliability are limited by weakest link • • • Constant change Fail-over becomes complex Manage traffic spikes Manage Network Security & Access More effectively manage limited bandwidth Differentiated web presence With Alteon Web Switches • • • Optimization /Consolidation Ensures high availability • Introduces revenue generation opportunities Delivers unprecedented performance Optimizes network infrastructure Enables service differentiation

Slow Web Sites = Lost Revenue 32% of users who have trouble accessing a Web site stop using it or find an alternative. (Zona Research, 1999) $4. 35 billion in online revenue is at risk each year due to Web wait! (Zona Research, 1999) • Amazon losing one customer due to slow Web site - $20 • United Airlines lost sales / hour due to reservations system failure (9, 000 bookings/hour) $3. 5 million (Banc. Boston Robertson Stephens)

Every Second Counts • The difference between losing 10% of prospective customers and 30% is one second Source: Zona Research < 7 second response is crucial

Delivering Real Value “Had the equipment from Alteon not been in place, thousands of customers would have found the company’s ‘front door’ locked. ” - Mike Batchelor Ticketmaster

What’s a Content Switch? • Also known as web switching, URL switching, Layer 4 -7 switching • Directs HTTP requests to a specific server (or cache) using information about content attributes or location • Captures, parses and redirects traffic based on information found beyond Layer 4 – HTTP headers – HTTP cookies – Universal Resource Locators (URLs) • Allocates bandwidth based on content and policies

Moving Up the Stack OSI 7 -Layer Model Layer 7 Protocol Example Yahoo. com Layer 6 Server Layer 5 HTTP Layer 4 TCP Layer 3 Device Example Content Switch Router or Layer-3 Switch IP Bridge or Layer-2 Switch Layer 2 Layer 1 Ethernet

Traditional Switching/Routing

IP Appliances/Layer 4 Switches

Intelligent Web Switching

How It Works. . . FILES. jpg. gif. html 6 2 1 5 3 4 FILES. cgi. asp. exe 1. A TCP connection request is made by client(s) 2. Switch responds on behalf of the server, completes the three-way TCP handshake 3. Client makes HTTP request for an active server page 4. Content switch parses HTTP request, opens connection to the appropriate server and switches traffic based on header and/or URL, while splicing the two connections together 5. Web server receives HTTP requests and responds with appropriate content 6. Content switch receives response, adjusts sequence numbers and forwards packets

How Content Switching is Different

Who needs Content Switching? • Any company that has a web portal • Any company concerned about performance • Any company worried about its security Firewalls • Any company with a server farm • Any company requiring high server availability • Any company that needs redundant data centers • Any company concerned about resilience and flexibility of their services

Nortel is leading the way… $665 M market in 2000 • Invented Web switching • Over 20, 000 Web switches installed • 2, 500+customers worldwide Other competitors; Extreme, Cyber. IQ, Intel, Coyote. Point, Riverstone Source: Dell’Oro, Feb 2001 L 4 -7 Content Switch Market

. 2001 -2004 Global Opportunity Global Enterprise Market Opportunity ($Millions) Layer 2 2000 $2, 506 2001 $2, 049 2002 $1, 701 2003 $1, 430 2004 $1, 224 Mkt Share 10% (Q 1 -01) Layer 3 Layer 4 -7 $1, 516 $ 204 $2, 022 $ 208 $2, 652 $ 314 $3, 834 $ 488 $4, 605 $ 674 14% (Q 1 -01) 26% (Q 1 -01) Total $4, 226 $4, 279 $4, 667 $5752 $6, 503 Enterprise Service Provider Source: Dell’Oro Market Forecast (July 2001)

Key Customer Applications of Content Switching • Optimizing server utilization with local server load balancing • Dramatically reducing WEB WAIT on E-commerce with SSL Acceleration • Saving Bandwidth with Caches • Increasing security with Firewall Load Balancing • Reducing request response time with Web cache redirection • Improve availability with Global server load balancing

Problem: How to scale servers • On most environments there are enough servers for the business needs Site 2 • The distribution of content and Site 1 traffic flow is the main concern e! g ta Ou revenue loss. • Servers idle represent investment Site 1 • Failure of one server can cause Site 2 Site 2 business. ge n o C • Busy servers can slow down the n! o i st loss Clients Site 3 tedty! s a i W pac Ca

Solution: Local Server Load Balancing What does this feature do? Server Load Balancing, or SLB, balances the requests coming in to servers that all have the same content to ensure that no servers become overloaded – This feature is basic Layer 4 Server Load Balancing, not to be confused with Content Intelligent (or Layer 7) switching – It is one of the first features Alteon introduced and is still very popular Application 1 Application 2 Application 3 Site 1 Clients Site 2 Application 1 Application 2 Application 3 Value Proposition • Improves server utilization • Increases reliability • Enhances performance • Provides scalability

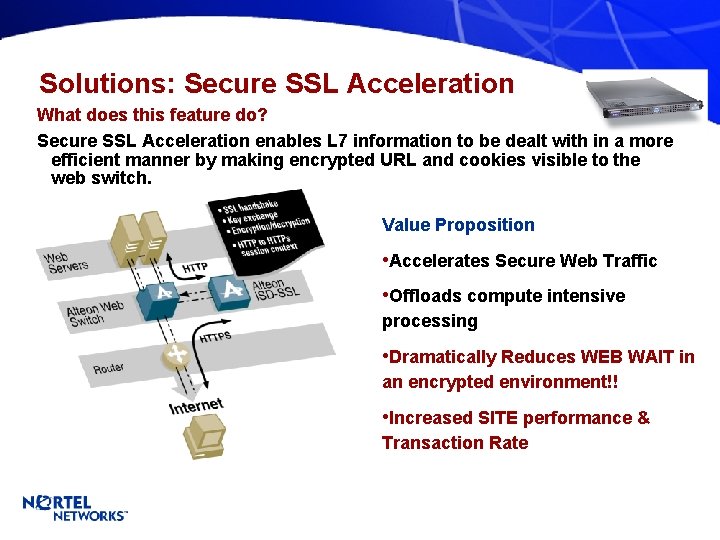

Solutions: Secure SSL Acceleration What does this feature do? Secure SSL Acceleration enables L 7 information to be dealt with in a more efficient manner by making encrypted URL and cookies visible to the web switch. Value Proposition • Accelerates Secure Web Traffic • Offloads compute intensive processing • Dramatically Reduces WEB WAIT in an encrypted environment!! • Increased SITE performance & Transaction Rate

Problem: How to have fast answers from the Internet • Pressure Exerted Internet End User Subscribers • Popularity of broadband access • Demand for multimedia content, richer applications Access & ISP POP • Customer retention • Bandwidth costs • Subscription revenue Internet Backbone • Best effort delivery • Peering points, routers and backbone congestion Internet Data Center • Flash crowds and surge capability • Data center scalability • Cost containment Content Owner / Provider • Worldwide delivery of rich content • Online brand user experience • Advertisement

Solution: Caches Reducing Internet Traffic New York PCC PCC San Francisco London

Problem: Cache will sit on dataflow • When any device is on the dataflow it cannot represent a speed bump • Caches are only valuable for specific kind of data, on the dataflow caches will create a bottleneck

Solution: Web Cache Redirection What does this feature do? Web Cache Redirection, or WCR, sends appropriate requests to a Web cache, rather than to the server. This allows faster servicing of the request and offloads the servers, which Host B improves overall performance. Host C Host A Value Proposition • Provides faster response to Internet client requests Web Cache Redirector HTTPTo B HTTPTo A HTTPTo B Non-HTTP Forward at L 2/3 Local/ remote transparent proxy caches • Provides WAN cost savings • Reduces server processing

Problem: Is the network save from attacks § Hacking: Internet meaning is the repeat poking of an IP address until the machine behind the IP address responds. § Modifying content of web pages to your own wishes. § Denying the services of a computer system or network to the Internet. § Business warfare. § Graffiti on the Internet. § An alternate to Video games § A way for boring computer geeks to feel important.

Solution: Firewall Load Balancing What does this feature do? Firewall Load Balancing, or FWLB, balances the traffic going through firewalls to ensure that the firewall does not become overloaded or a bottleneck. It also keeps a firewall from being a single point of failure for the network. Internet Value Proposition • Eliminates single points of failure in a network • Allows multiple active firewalls to operate in parallel • Increases Internet access for internal users • Fw. LB and SLB can be performed on the same switch • Scalable solution Protected Network

Problem: Providing High Availability on multiple sites – Sometimes it is not safe to have the data center at only one physical locations – It is important to be able to attend the customer requests even when a entire facility is down – Also when a specific site is overloaded you should be able to steer traffic to other place

Solution: Global Server Load Balancing What does this feature do? Global Server Load Balancing (GSLB) intelligently load balances requests between mirrored sites, determining the fastest responding site to the user’s DNS. Value Proposition • Improved Availability • Improves Responsiveness • Distributes Load • Takes Geography into account • Easy to deploy and manage

Business Initiatives & Critical Success Factors ISPs Business Drivers Business Initiatives Critical Success Factors • Bandwidth is not enough Web • Performance = revenue Enterprise • Save money • Performance is key • Availability is a must, even during Do. S attack or flash crowd • Provide access to everyone that needs it Bring content to the edge Construct an architecture that provides session persistence, performance, availability and scalability Engineer an intranet, extranet and Internet experience that is secure and cost effective • Must be able to load balance servers & firewalls • Must be able to redirect to caches • Infrastructure must be content aware • Must load balance…everything • Must optimize existing equipment • Must be highly available • Rapid ROI

The Unfair Advantage Why Alteon 1. The Most Proven & Stable technology » 80% Market Share in Latin America » Failover in less than 1 second 2. The Highest Performance in the industry. » Measured in sessions per second 3. The Best Feature Flexibility – most feature-rich Web switch in the market » Firewall load balancing and server load balancing » L 3 and L 4 -7 load balancing » i. SD appliance platform extends feature leadership

Alteon Web Systems Portfolio • Alteon 180 Series – Stackable Gig Ethernet line of Web Switches • ACEdirector Series – Stackable Fast Ethernet Web Switches • Alteon Web Switching Module (for PP 8600) – Nortel’s carrier-grade Layer 2 -7 Switching Solution • i. SD-SSL Accelerator – Allows for content switching on HTTPS secure sessions • Personal Content Cache – High Performance cache appliance with Advanced Streaming Support • Personal Content Director – High Performance GSLB & Layer 7 Content Aware request to content routing

Alteon Web Switch Platforms WSM Industry Leading Web Switching (L 4 -7) Price 180 e AD 4 AD 3 • • • • • Eight 10/1000 Mbps ports (4 front facing) 80 MB of Memory 512 K concurrent sessions 184 • • • Nine 10/1000 Mbps ports 4 MB of memory per port (1 -8) 8 MB of memory on port 9 512 K concurrent sessions 8 Gbps backplane capacity WSM Eight 10/1000 Mbps ports One 1000 BASE-SX port 2 MB of memory per port 8 Gbps backplane capacity 336 K concurrent sessions 8 Gbps backplane capacity 184 Eight 10/100 BASE-T ports One 1000 BASE-SX uplink 4 MB of memory per port (1 -8) 8 MB of memory on port 9 512 K concurrent sessions 8 Gbps backplane capacity 180 e AD 4 Eight 10/100 BASE-T ports One 1000 BASE-SX uplink 2 MB of memory per port 336 K concurrent sessions 8 Gbps backplane capacity AD 3 Feature/Function

Alteon’s Stackable Web Switches ACEdirector Series • Eight 10/100 BASE-T ports • One 1000 BASE-SX uplink • Up to 4 MB of memory per port • Up to 512 K connection capacity • 8 Gbps backplane capacity Alteon 180 series • Eight 10/1000 Mbps ports • One 1000 Mbps uplink • Up to 4 MB of memory per port • Up to 512 K connection capacity • 8 Gbps backplane capacity

NEW Introducing the Alteon WSM ! Carrier-Class Data Center Content Switch/Router (Complete L 2 -7) Value Proposition: Nortel’s Complete Layers 2 -7 switching solution (PP 8600 w/WSM) • 8600 I/O module based on A 184 • Up to 32 Gig ports of Web Switching per PP 8600 platform (8 WSM modules) • Eight 10/1000 Mbps Ports – 4 front facing, 10/100 RJ 45 and 1000 Base SX physical ports • 80 MB of Memory Alteon Web Switch Module (WSM) • 512 K Concurrent Sessions & 296 K sessions per second • 128 G switch capacity; 336 FE, 60 Gig. E • Carrier-class redundancy Passport 8600 w/ • Multi-STP, Port & L 2/3/4 VLANs, 802. 1 p/q WSM • OSPF, RIP v 1&2, DVMRP, IGMP • Supports all Web. OS 9. 0 applications – SLB, GSLB, FWLB, WCR, BWM, RTSP, IDSLB Product Availability: First Customer Ship (FCS)= September 10, 2001 General Availability (GA) = October 1, 2001

Alteon i. SD-SSL Accelerator Value Proposition: • Best of both web switching and security services – Allows for content switching on HTTPS secure sessions • Improves server performance processing SSL traffic – Improves performance 5 x-250 x – Offloads bulk encryption and key exchange • Scalable architecture – Up to 600 SSL sessions per second per i. SD – Group up to 255 i. SDs per switch – Up to 7500 simultaneous connections per i. SD • Public Key Infrastructure enabler – Client Authentication for B 2 B, financials and extranets – Certificate management for ease of use of PKI – Key management for enhanced security – Private keys are encrypted and never leave the system – Cipher selection for performance/content type optimization – Support for multiple protocols for Enterprise and ASP applications – HTTP-S, SMTP-S, IMAP-S, POP 3 -S • Seamless integration into existing topologies – Out-of-network path integration using transparent proxy code >> Web switch passes to the i. SD only traffic it needs to see so regular web traffic not penalized by extra hop

Alteon Personal Content Cache Value Proposition: • High performance cache appliance – Industry’s most optimized caching and streaming software – Support for concurrent Forward/Transparent/Reverse-proxy modes – High Power with a small foot-print: only 1 RU or 2 RUs! • Value-add services – Advanced support for streaming, including concurrent on-demand stream caching and live-stream splitting – Content pinning for localization and prioritization of content (Qo. S/SLA) – Content filtering, purging, and bypass

Personal Content Director Value Proposition: • Layer 7 aware request-to-content routing. – Allows intelligent routing based on the L 7 information in the request. • True user proximity routing of requests. – Routes the request to the closest content server based on the proximity of the user (not his DNS server) • Provides GSLB and global high availability • Dynamically learns and updates user to network mappings – Efficiently routes the requests from learned networks. • Multiple proximity methods to suit various network configurations including static mapping to known networks • Routes the requests to the fastest responding sites based on health checks.

Doing the math…

Traditional Solutions Extreme Black Diamond L 2/L 3 Switch Starts at $25, 000 F 5 Labs Big IP Starts at $15, 000 Cisco Distributed. Director Starts at $15, 000 Rad. Ware Fire. Proof Starts at $15, 000 Xedia Access Point 100 Starts at $15, 000 Local Load Balancer Global Load Balancer Firewall Load Balancer Bandwidth Manager Starts at $85, 000

The Alteon Alternative Extreme Black Diamond L 2/L 3 Switch F 5 Labs Big IP Local Load Balancer Cisco Distributed. Director Global Load Balancer Rad. Ware Fire. Proof Firewall Load Balancer Alteon Web Switching Module $55, 000 Xedia Access Point 100 Bandwidth Manager

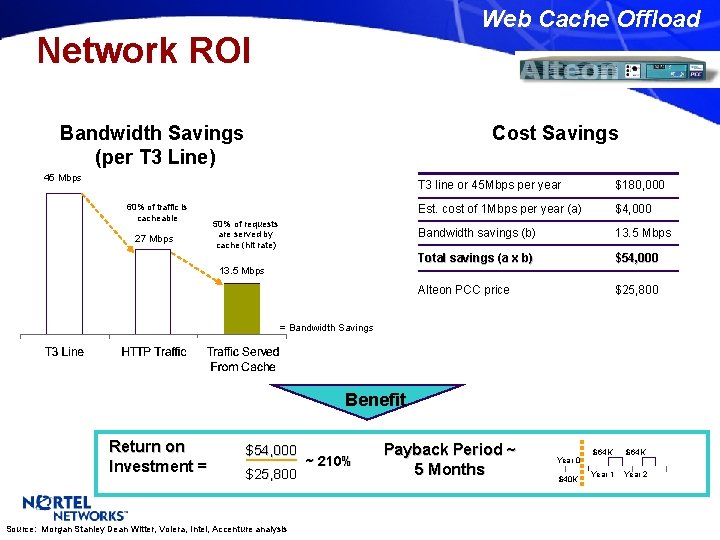

Web Cache Offload Network ROI Bandwidth Savings (per T 3 Line) Cost Savings 45 Mbps 60% of traffic is cacheable 27 Mbps 50% of requests are served by cache (hit rate) T 3 line or 45 Mbps per year $180, 000 Est. cost of 1 Mbps per year (a) $4, 000 Bandwidth savings (b) 13. 5 Mbps Total savings (a x b) $54, 000 Alteon PCC price $25, 800 13. 5 Mbps = Bandwidth Savings Benefit Return on Investment = $54, 000 $25, 800 Source: Morgan Stanley Dean Witter, Volera, Intel, Accenture analysis ~ 210% Payback Period ~ 5 Months Year 0 $40 K $64 K Year 1 Year 2

Alteon Customers Hosters ISPs Portals Publishers/ E-Commerce Enterprise

Alteon in CALA

Comparative Analysis

Questions to Ask • Do you have a Web-Portal? • Do you have a Server Farm? • Are you concerned about Security? • Do you have a Firewall? • Do you want to improve your Web Performance? • Do you want to offer Flexible Services? • Do you require High Server Availability? If the answer is yes to the questions above, you must consider the Alteon Content Switching solution

Alteon 184 versus Cisco/Arrow Point CSS 11000 Series Platform The CSS 11000 series has lower overall performance due to an ATM-based architecture that imposes 10% overhead, making wire-speed switching impossible. The Alteon 184 has 5 times the performance of the CSS 11150 and 2 times the performance of the 11800 in L 4. In L 7 the Alteon 184 has 4 times the performance of the 11150 and 20% higher than the 11800. The CSS 11000 series is less reliable than the Alteon 184 as it doesn’t support active load sharing between the switches. Poor integration and slower technology !!! CSS 11000 Series

Alteon 184 versus Foundry’s Server. Iron XL The Serverlon XL has serious performance issues as it does not allow to have L 3 routing and L 4 -7 processing on the same switch. It requires a combination of a Servelron and Biglron. In addition the Alteon 184 is 2. 5 times faster than the Server. Iron XL in L 7 throughput, and 2 times faster in L 4. The Serverlon XL is not a reliable switch. The switch Fabric is a single point of failure. If the ASIC fails, all the ports go dead and all traffic is interrupted. The Alteon 184 has local switching which prevents a single point of failure. Less reliable and slower technology !!! Foundry Server. Iron. XL

The PP 8600 and Alteon WSM vs. Cisco Catalyst 6500 w/ CSM The Catalyst 6500 w/ CSM has very poor integration and minimal investment protection. It requires numerous swap-outs, including supervisors, switch fabric, and line cards have to be downgraded to use new Content Switching Module. The PP 8600 & Alteon WSM is an integrated solution. The Catalyst 6500 w/ CSM has Poor Layer 3 -7 performance due to centralized processing and CSM incompatibilities. The Catalyst 6500 w/ CSM is 3 times slower for Layer 3: (30 Mpps vs. 8600’s 96 Mpps). Poor integration and slower technology !!! Catalyst 6500 w/ CSM

The PP 8600 and Alteon WSM vs. Foundry Server. Iron 800 The Serverlron 800 is less reliable. It does not have a redundancy option for the switch fabric making it a single point of failure. The PP 8600 & Alteon WSM have no single point of failure with a redundant switching fabric and a failover of less than 1 second. The Serverlon 800 has serious performance issues as it does not allow to have L 3 routing and L 4 -7 processing on the same switch. It requires a combination of a Servelron and Biglron. Less reliable and slower technology !!! Foundry Server. Iron 800

Nortel Networks Certified Account Specialist (NNCAS) • Design Expert • Field Specialist • Support Expert • Architect TBD

Where to find information about Alteon General Page: http: //www. nortelnetworks. com/products/01/web/ White Papers: http: //www. nortelnetworks. com/products/01/web/doclib. html Technical Discussions: http: //www. nortelnetworks. com/products/01/web/doclib. html In the News: http: //www. nortelnetworks. com/products/01/web/inthenews. html Testing Results: http: //www. nortelnetworks. com/products/01/cor/testing/index. html Alteon 180 General Description: http: //www. nortelnetworks. com/products/01/alt 180/ Product Overview: http: //www. nortelnetworks. com/products/01/alt 180/doclib. html Hosting Solution: http: //www. nortelnetworks. com/products/01/alt 180/doclib. html Technical Documentation: http: //www. nortelnetworks. com/products/01/alt 180/doclib. html Alteon Ace. Director Alteon Web OS General Information: http: //www. nortelnetworks. com/products/01/webos/index. html Technical Specs: http: //www. nortelnetworks. com/products/01/webos/techspec. html i. SD-SSL Accelerator General Description: http: //www. nortelnetworks. com/products/01/isdssl/index. html Technical Specs: http: //www. nortelnetworks. com/products/01/isdssl/techspec. html

Thanks
