Web Engineering Testing and Usability of Web Applications

Where are we? # Date Title 1 5 th March Web Engineering Introduction and Overview 2 12 th March Requirements Engineering for Web Applications 3 19 th March Web Application Modeling 4 26 th March Web Application Architectures 5 16 th April Developing Applications with Web. ML 6 23 rd April Testing and Usability 7 30 th April Web Technologies I 8 7 th May Web Technologies II 9 21 th May Web Application Development Process 10 28 th May Project Management for Web Applications 11 11 th June Web Application Security 12 18 th June Mobile Application Development 13 25 th June Final Exam 2

Overview • • • Introduction Fundamentals of Testing on the Web Methods and techniques to Test Web Applications Automatic Web application Testing Fundamentals of Usability on the Web Summary 3

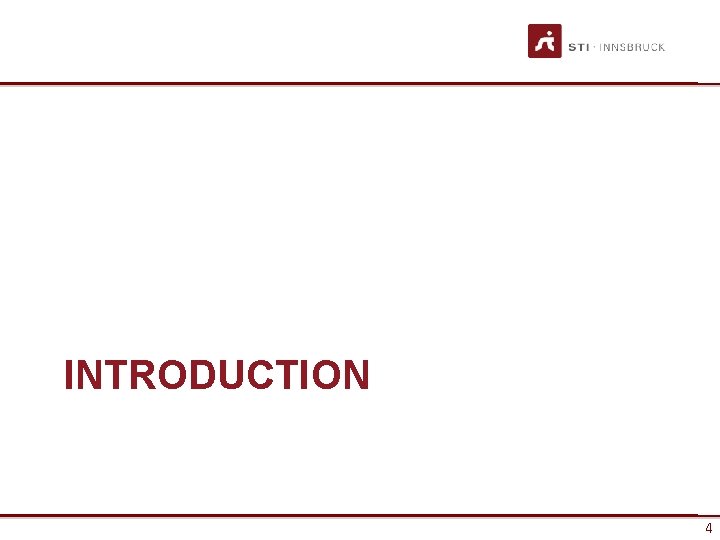

INTRODUCTION 4

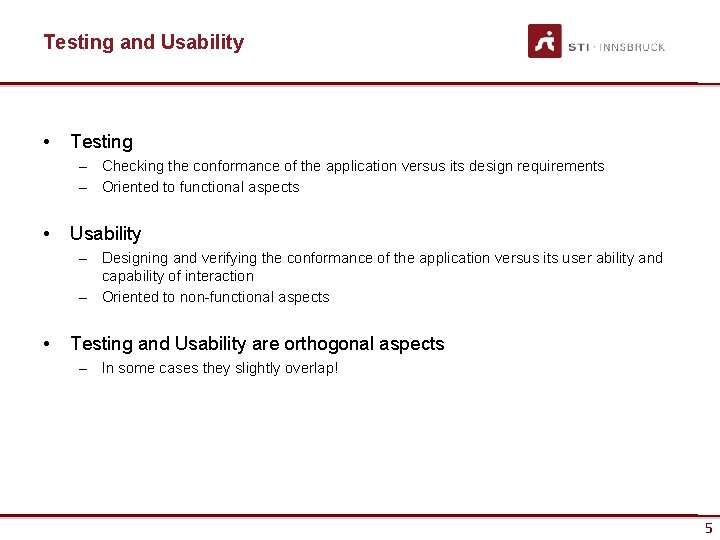

Testing and Usability • Testing – Checking the conformance of the application versus its design requirements – Oriented to functional aspects • Usability – Designing and verifying the conformance of the application versus its user ability and capability of interaction – Oriented to non-functional aspects • Testing and Usability are orthogonal aspects – In some cases they slightly overlap! 5

The Importance of Testing • Traditionally, testing has focused on functional requirements – not enough for Web applications. • On the Web, testing is a critical measure of quality assurance. – – Meeting users’ expectations Finding errors and shortcomings Many users, many platforms Behavior of third-party software 6

The Importance of Usability • “Mission critical” Web applications • Poor design leads to lost time, productivity • Your website speaks for your organization – Customers have choices – Easy come, easy go • Diverse contexts – Proliferation of web-enabled devices – Increasing adoption by special needs groups – ex. seniors 7

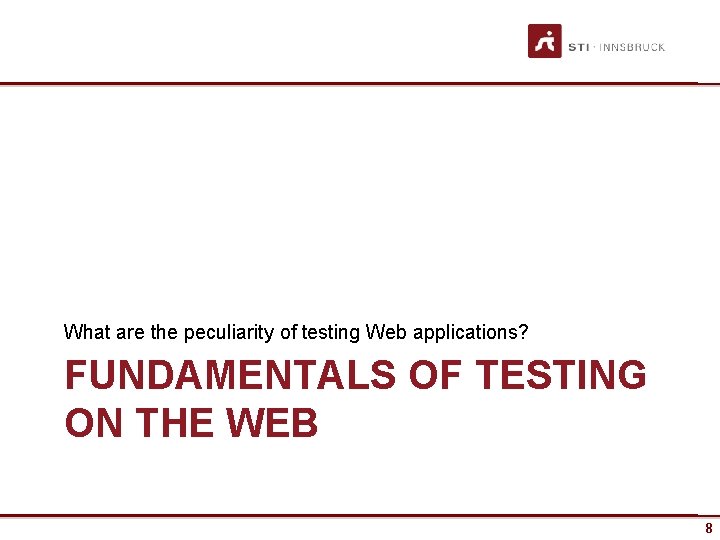

What are the peculiarity of testing Web applications? FUNDAMENTALS OF TESTING ON THE WEB 8

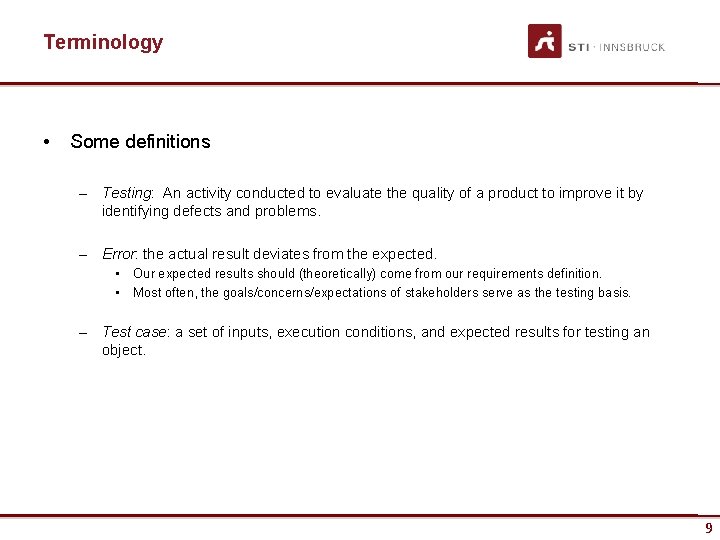

Terminology • Some definitions – Testing: An activity conducted to evaluate the quality of a product to improve it by identifying defects and problems. – Error: the actual result deviates from the expected. • Our expected results should (theoretically) come from our requirements definition. • Most often, the goals/concerns/expectations of stakeholders serve as the testing basis. – Test case: a set of inputs, execution conditions, and expected results for testing an object. 9

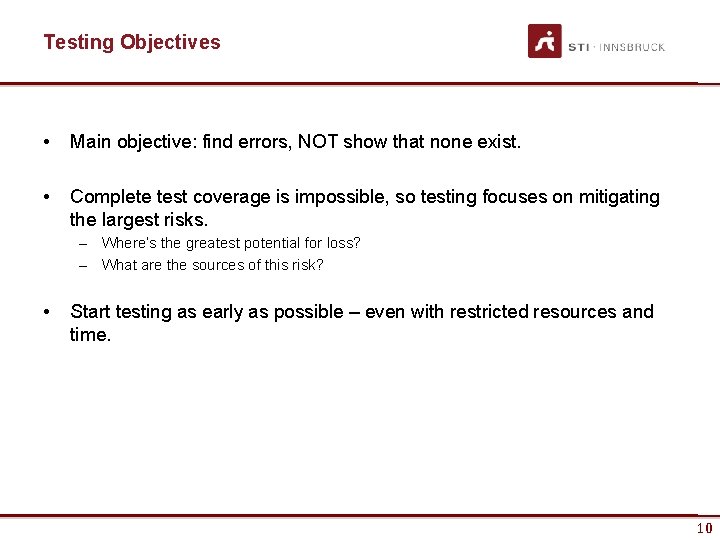

Testing Objectives • Main objective: find errors, NOT show that none exist. • Complete test coverage is impossible, so testing focuses on mitigating the largest risks. – Where’s the greatest potential for loss? – What are the sources of this risk? • Start testing as early as possible – even with restricted resources and time. 10

Testing Levels • Unit tests: – Testing the “atomic” units - classes, Web pages, etc. - independently. (Developer) • Integration tests: – Test the interaction of units (Tester & Developer) • System tests: – Testing the whole, integrated system (Dedicated team) • Acceptance tests: – “Real-world” tests – testing under conditions that are as close to the “live” environment as possible (Client) • Beta tests: – Informal, product-wide tests conducted by “friendly” users. 11

The Tester Role • The ideal tester has a “destructive” attitude. • Very difficult for developers to “destroy” their own work. • However, Web projects focus heavily on unit tests, making them more prone to errors. • Thus, some guidelines: – Have others in the Web team perform tests. – Best tester is the one who gets the most bugs fixed. 12

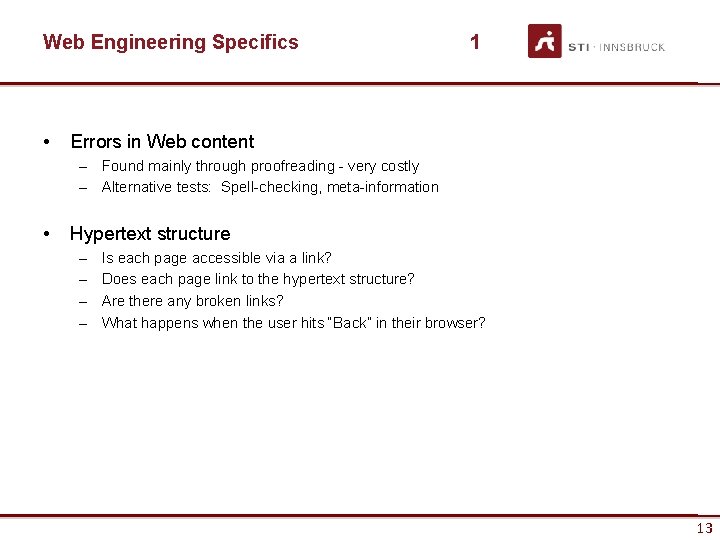

Web Engineering Specifics • 1 Errors in Web content – Found mainly through proofreading - very costly – Alternative tests: Spell-checking, meta-information • Hypertext structure – – Is each page accessible via a link? Does each page link to the hypertext structure? Are there any broken links? What happens when the user hits “Back” in their browser? 13

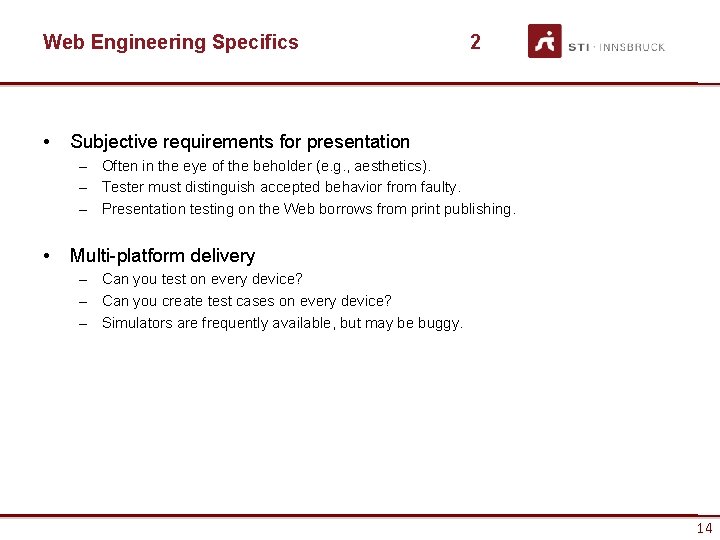

Web Engineering Specifics • 2 Subjective requirements for presentation – Often in the eye of the beholder (e. g. , aesthetics). – Tester must distinguish accepted behavior from faulty. – Presentation testing on the Web borrows from print publishing. • Multi-platform delivery – Can you test on every device? – Can you create test cases on every device? – Simulators are frequently available, but may be buggy. 14

Web Engineering Specifics • 3 Global availability – Testing dynamic content in multiple languages – Testing for layout difficulties due to varying text lengths. • Juvenility & Multidisciplinarity of Web team – – Reluctance to accept testing methods. Lack of testing knowledge. Consensus-building is required. May do too much testing; just as bad as too little. 15

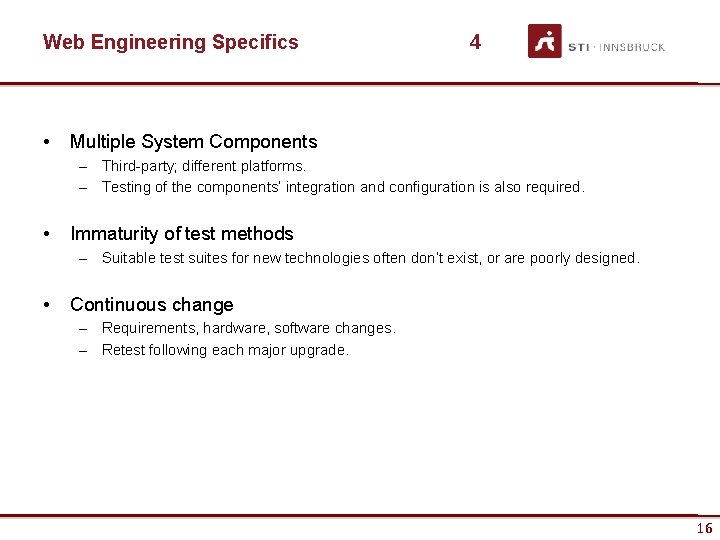

Web Engineering Specifics • 4 Multiple System Components – Third-party; different platforms. – Testing of the components’ integration and configuration is also required. • Immaturity of test methods – Suitable test suites for new technologies often don’t exist, or are poorly designed. • Continuous change – Requirements, hardware, software changes. – Retest following each major upgrade. 16

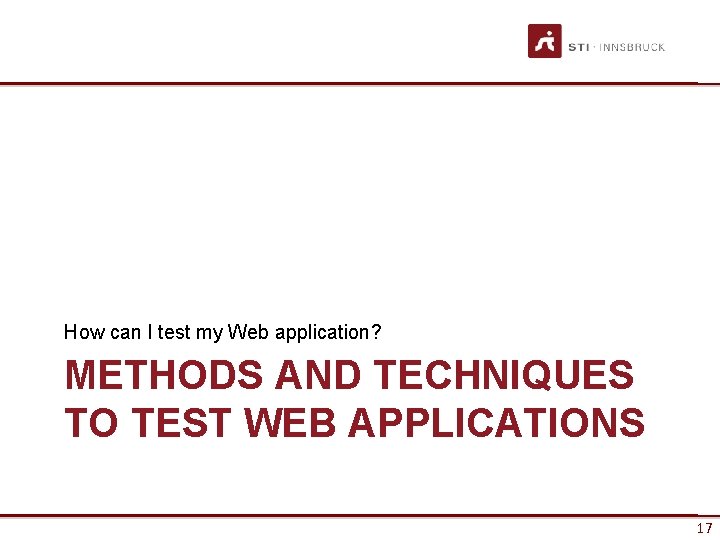

How can I test my Web application? METHODS AND TECHNIQUES TO TEST WEB APPLICATIONS 17

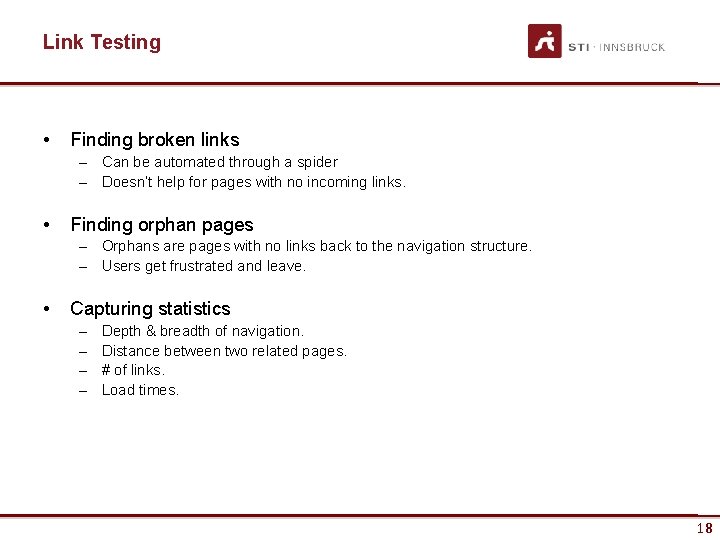

Link Testing • Finding broken links – Can be automated through a spider – Doesn’t help for pages with no incoming links. • Finding orphan pages – Orphans are pages with no links back to the navigation structure. – Users get frustrated and leave. • Capturing statistics – – Depth & breadth of navigation. Distance between two related pages. # of links. Load times. 18

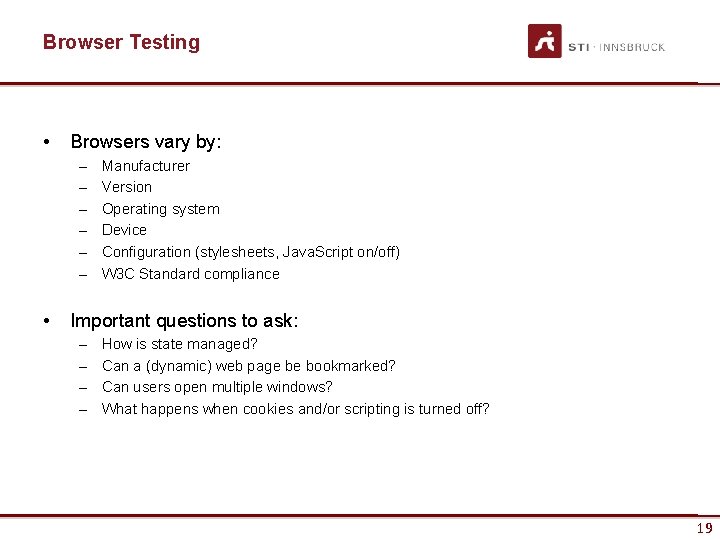

Browser Testing • Browsers vary by: – – – • Manufacturer Version Operating system Device Configuration (stylesheets, Java. Script on/off) W 3 C Standard compliance Important questions to ask: – – How is state managed? Can a (dynamic) web page be bookmarked? Can users open multiple windows? What happens when cookies and/or scripting is turned off? 19

Load Testing • Does the system meet required response times and throughput? • Load profile - expected access types, visits per day, transaction types, transactions per session, etc. • Must determine the range of values for response times and throughput. • Evaluate the results to look for bottlenecks. 20

Stress Testing • How does the system behave under abnormal/extreme conditions? • The test should tell you… – – If the system meets the target responses times and throughputs If the system responds with an appropriate error message. (i. e. graceful degradation) If the system crashes (it should NOT!) How quickly the system recovers to normal operation. 21

Continuous Testing • Simulates usage over a long period of time • Testing for errors that “pop up” because resources aren’t released by an operation. – Unreleased database connections – Other memory leaks • Typically, running the operation a few times doesn’t produce an error, hence the need for continuous testing. 22

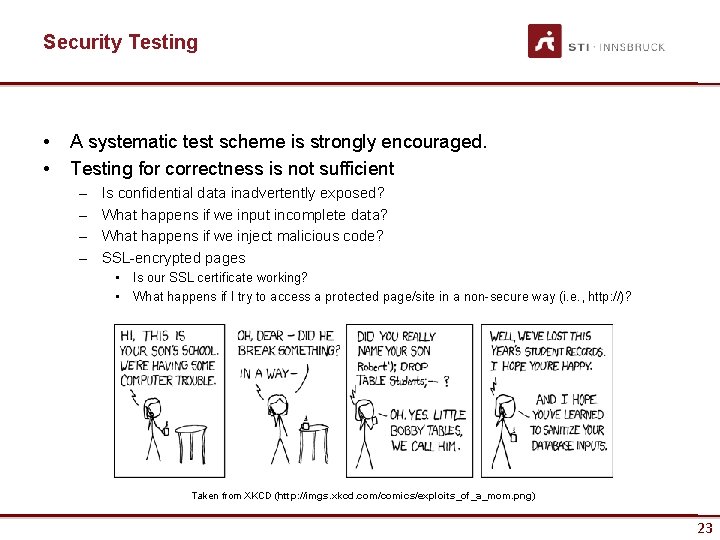

Security Testing • • A systematic test scheme is strongly encouraged. Testing for correctness is not sufficient – – Is confidential data inadvertently exposed? What happens if we input incomplete data? What happens if we inject malicious code? SSL-encrypted pages • Is our SSL certificate working? • What happens if I try to access a protected page/site in a non-secure way (i. e. , http: //)? Taken from XKCD (http: //imgs. xkcd. com/comics/exploits_of_a_mom. png) 23

Test-Driven Development • Inspired by the test-first approach used in XP (e. Xtreme Programming); can be used in any type of project. • Tests must be written before implementation. – Every unit has a test. – When a test fails, the developer must only change the code to successfully run the test. • Developers can concentrate on small steps, while still making clean code that works. • More pressure leads to more testing. 24

How can we reduce the cost of Web application testing? AUTOMATIC WEB APPLICATION TESTING 25

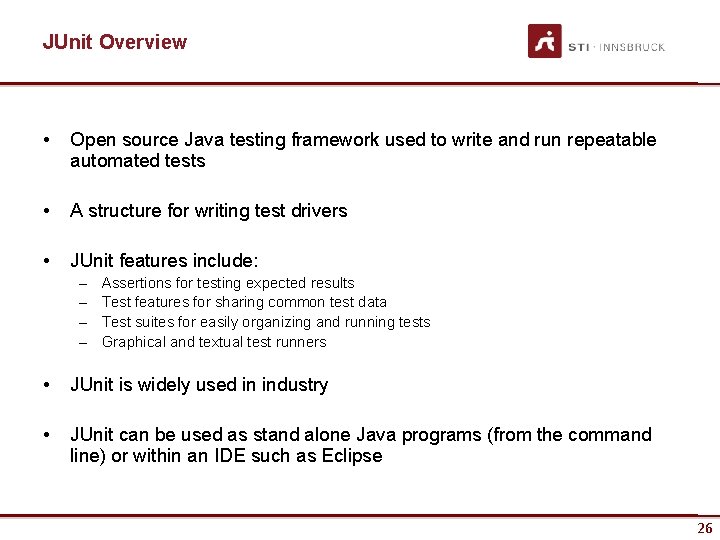

JUnit Overview • Open source Java testing framework used to write and run repeatable automated tests • A structure for writing test drivers • JUnit features include: – – Assertions for testing expected results Test features for sharing common test data Test suites for easily organizing and running tests Graphical and textual test runners • JUnit is widely used in industry • JUnit can be used as stand alone Java programs (from the command line) or within an IDE such as Eclipse 26

Cactus Overview • Built on Junit framework • Intended to test JSP, Servlets, EJBs, Filters, and custom tags • Complex architecture that has client JVM call the J 2 EE application server JVM • Testcase classes must reside on client and server 27

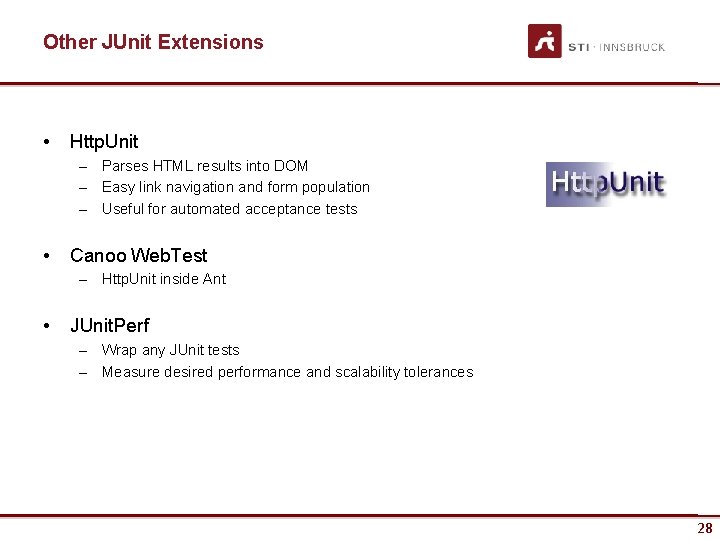

Other JUnit Extensions • Http. Unit – Parses HTML results into DOM – Easy link navigation and form population – Useful for automated acceptance tests • Canoo Web. Test – Http. Unit inside Ant • JUnit. Perf – Wrap any JUnit tests – Measure desired performance and scalability tolerances 28

Automating Testing - Advantages • Some tests are impossible to perform manually. – Load & stress tests. – Link testing for large websites. • More tests can be run in less time. • When updating an application, can detect errors caused by side-effects to unchanged functionality. 29

Automating Testing - Disadvantages • Expectations of automated testing is often too high. – Automation does NOT improve effectiveness. – If tests are poorly devised, automating them does not magically improve them. • Automation is expensive – Test execution infrastructure must be maintained. – License fees & training costs 30

How to design usable Web applications? FUNDAMENTALS OF USABILITY ON THE WEB 31

Usability Defined • ISO/IEC standard definition (1998): – “[T]he extent to which a product can be used by specified users within a specified usage context to achieve specified goals effectively, efficiently, and satisfactorily. ” • Usability engineering is an ongoing, but critical process – Define user and task models – Iteratively test and reevaluate – User-based vs. expert methods 32

Defining Usability in Web Applications • Traditional software usability specifics do not necessarily carry over to the Web: – People use your application immediately. – No manual or trainers. – No salespeople. • How to categorize users? – – First-time or returning? Expert or novice? Broadband or dial-up? Desktop or mobile? 33

Top Problems • Contact information – address or phone number is buried • Search function is not visible or unclear as to functionality • No easy way to get back to critical points • Pages that should load fast don’t (e. g. main page or key link page) • “What’s new” is old • Back button requires a repost of data 34

Usability Engineering • Consists of 4 phases that are essentially parallel to the Web Engineering process Usability Engineering Analysis Design Implementation Coding Testing Operation Maintenance Web Engineering 35

User-Centered vs. Usage-Centered Phase Focal Points User-Centered (Traditional) Usage-Centered (Web) Requirements Meetings, interviews, focus groups Competitive analysis; Task analysis & models Design & Implementation User requirements Direct user participation Models Inspection & remote testing Operation Training, evaluation of Log file analysis; help-desk logs server stats; user feedback analysis 36

Requirements Analysis • Systems Analysts & Usability Experts take the lead: – Competitive Analysis – Define qualitative/quantitative goals • Information, Entertainment, Exchange (Siegel) • Make them concrete and testable! – User-centered: build user profiles – Usage-centered • Task analysis • Ease-of-use or Ease-of-learning? 37

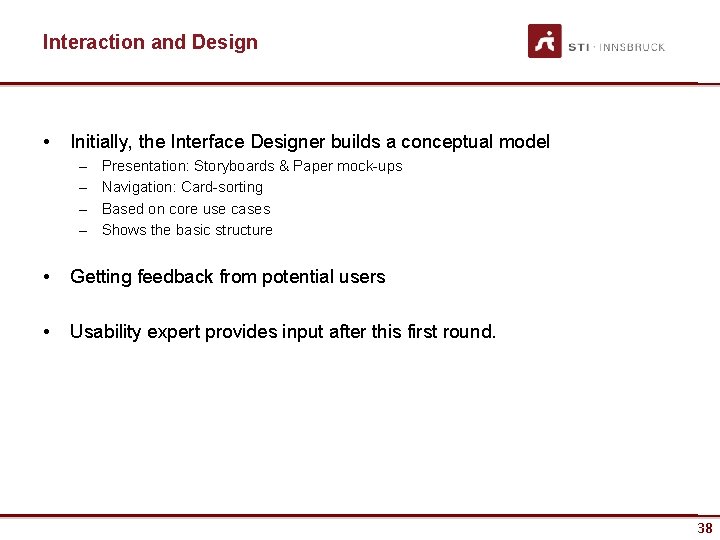

Interaction and Design • Initially, the Interface Designer builds a conceptual model – – Presentation: Storyboards & Paper mock-ups Navigation: Card-sorting Based on core use cases Shows the basic structure • Getting feedback from potential users • Usability expert provides input after this first round. 38

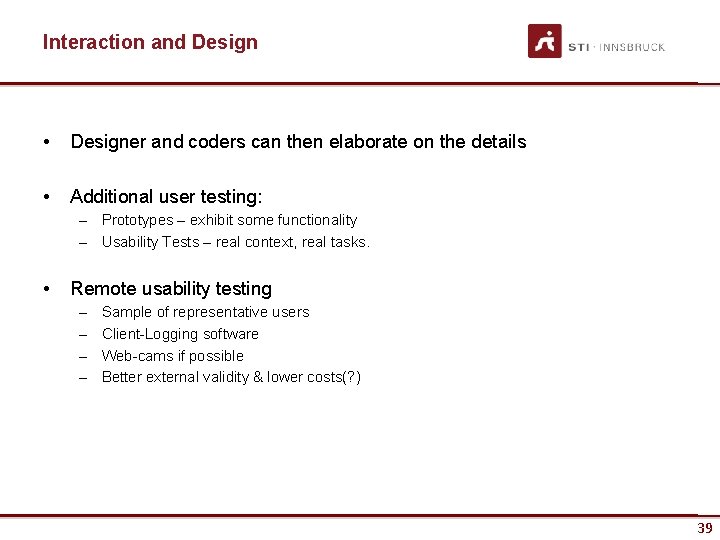

Interaction and Design • Designer and coders can then elaborate on the details • Additional user testing: – Prototypes – exhibit some functionality – Usability Tests – real context, real tasks. • Remote usability testing – – Sample of representative users Client-Logging software Web-cams if possible Better external validity & lower costs(? ) 39

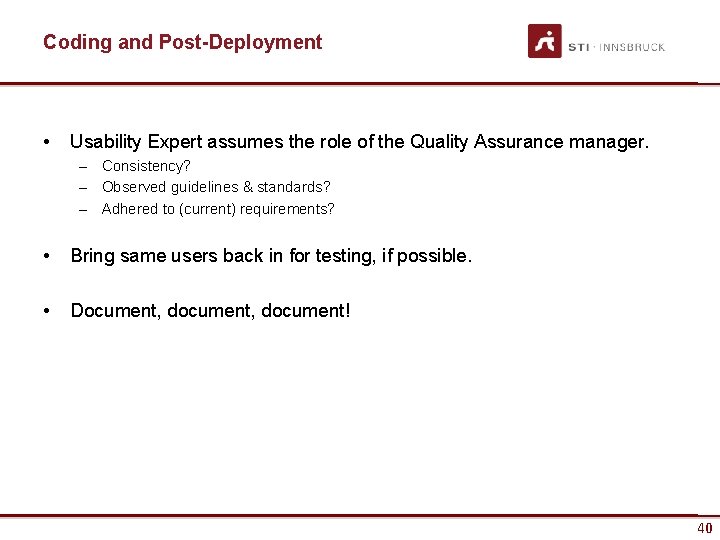

Coding and Post-Deployment • Usability Expert assumes the role of the Quality Assurance manager. – Consistency? – Observed guidelines & standards? – Adhered to (current) requirements? • Bring same users back in for testing, if possible. • Document, document! 40

General Design Guidelines • Design guidelines represent best practices • OK for “general” users – Normal cognitive ability – Normal audiovisual abilities • Some guidelines may be inappropriate for audience members with special needs. – Ex. Navigation elements for schizophrenics • More rigorous usability engineering techniques (just discussed) should be employed 41

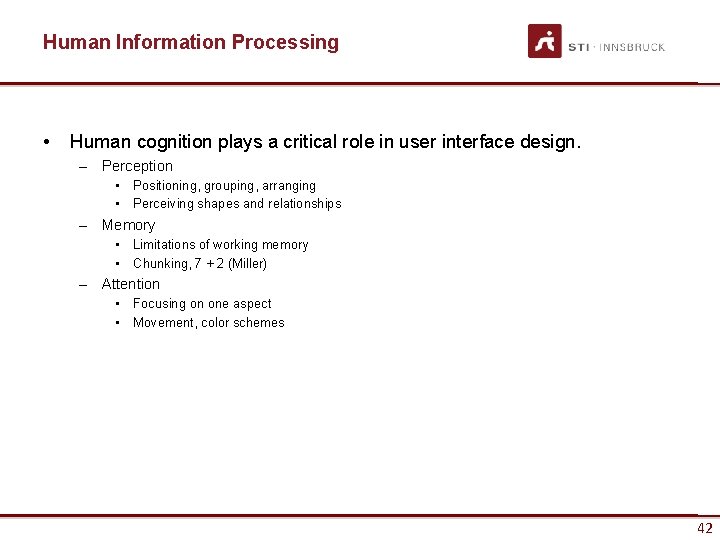

Human Information Processing • Human cognition plays a critical role in user interface design. – Perception • Positioning, grouping, arranging • Perceiving shapes and relationships – Memory • Limitations of working memory • Chunking, 7 + 2 (Miller) – Attention • Focusing on one aspect • Movement, color schemes 42

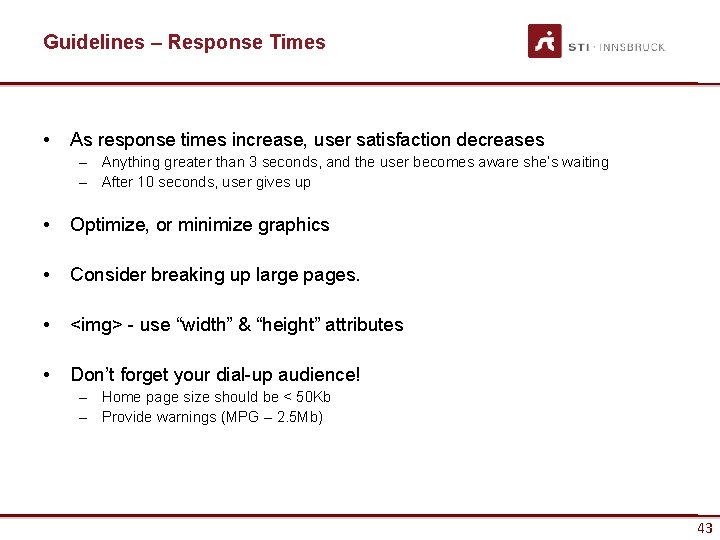

Guidelines – Response Times • As response times increase, user satisfaction decreases – Anything greater than 3 seconds, and the user becomes aware she’s waiting – After 10 seconds, user gives up • Optimize, or minimize graphics • Consider breaking up large pages. • <img> - use “width” & “height” attributes • Don’t forget your dial-up audience! – Home page size should be < 50 Kb – Provide warnings (MPG – 2. 5 Mb) 43

Guidelines – Efficiency • Minimize distance between clickable elements (while keeping effective sizing) • Avoid frequent changes between mouse and keyboard • Tab-friendly for text-based browsers • Minimize clicks to accomplish tasks (rule of thumb: no more than 4 clicks) 44

Guidelines – Colors • Colors have different meaning depending on your audience – Cultural differences – Domain-specific meanings – Warm vs. cool colors • Make sure all information conveyed by colors is also available without color. • Minimize the number of colors • Avoid extreme hues, highly saturated colors • How does your site look on an LCD? CRT? 45

Guidelines – Text Layout • Screen vs. Paper • Consider different window sizes – Avoid fixed width layouts – Avoid multiple columns (typically) • Readability – Sans-serif for screen, serif for print – Avoid patterns, low-contrast background – Short paragraphs • Allow for user-selected font-sizes 46

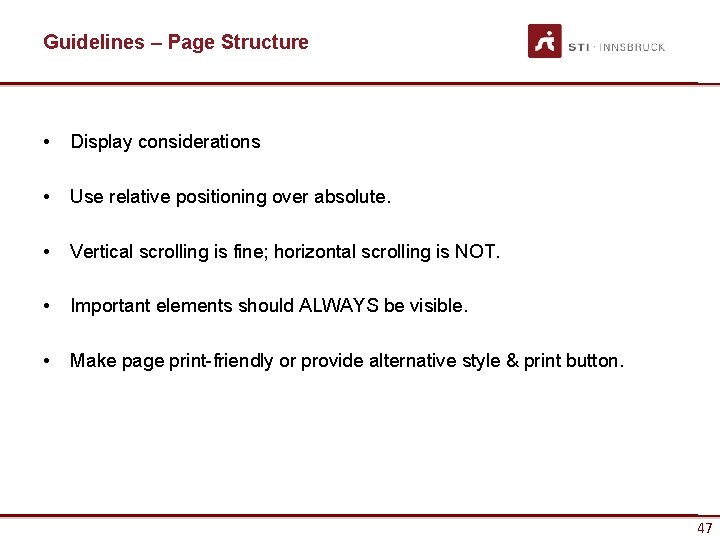

Guidelines – Page Structure • Display considerations • Use relative positioning over absolute. • Vertical scrolling is fine; horizontal scrolling is NOT. • Important elements should ALWAYS be visible. • Make page print-friendly or provide alternative style & print button. 47

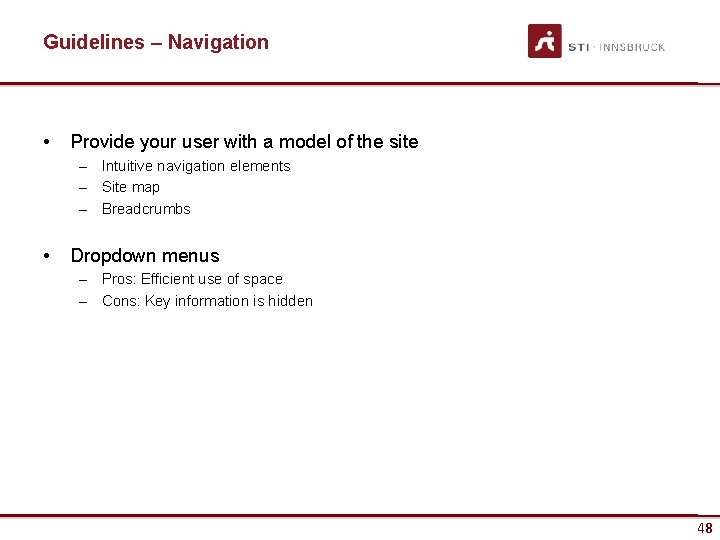

Guidelines – Navigation • Provide your user with a model of the site – Intuitive navigation elements – Site map – Breadcrumbs • Dropdown menus – Pros: Efficient use of space – Cons: Key information is hidden 48

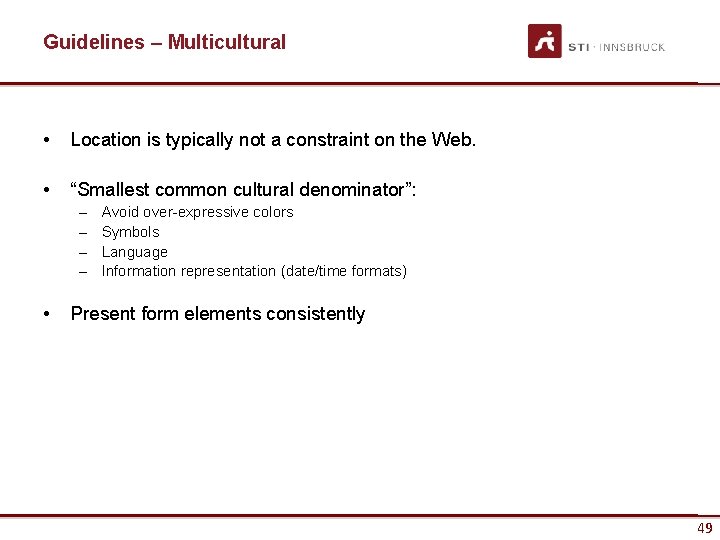

Guidelines – Multicultural • Location is typically not a constraint on the Web. • “Smallest common cultural denominator”: – – • Avoid over-expressive colors Symbols Language Information representation (date/time formats) Present form elements consistently 49

Guidelines – Consistency • Consistency keeps learning to a minimum; users don’t want to have to think! • Identity can be set by consistent components – Header: home, logo, navigation, search, help – Footer: author, modification, contact • Consistent design helps users avoid getting lost, especially when jumping to different sub-units of an organization. 50

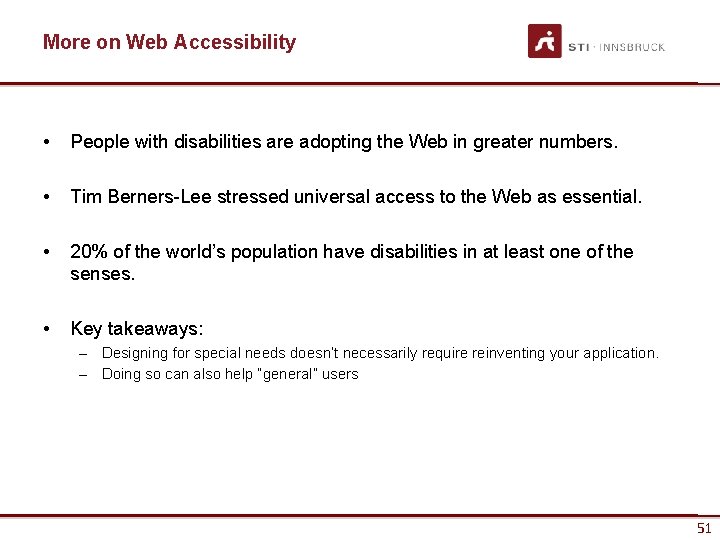

More on Web Accessibility • People with disabilities are adopting the Web in greater numbers. • Tim Berners-Lee stressed universal access to the Web as essential. • 20% of the world’s population have disabilities in at least one of the senses. • Key takeaways: – Designing for special needs doesn’t necessarily require reinventing your application. – Doing so can also help “general” users 51

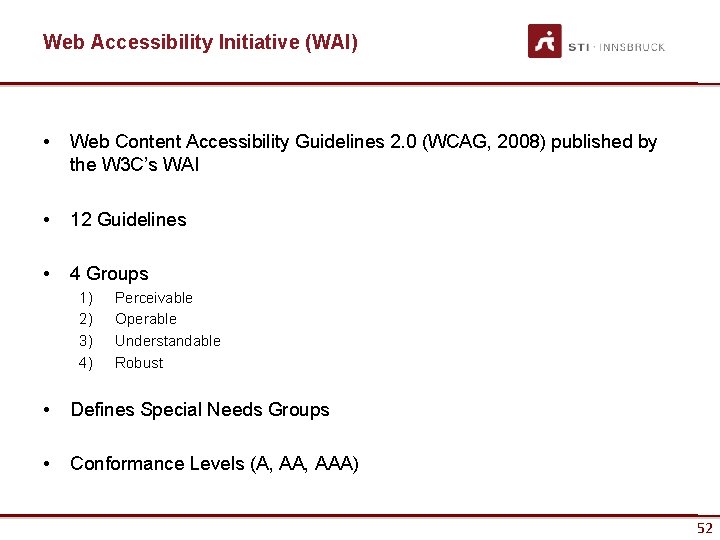

Web Accessibility Initiative (WAI) • Web Content Accessibility Guidelines 2. 0 (WCAG, 2008) published by the W 3 C’s WAI • 12 Guidelines • 4 Groups 1) 2) 3) 4) Perceivable Operable Understandable Robust • Defines Special Needs Groups • Conformance Levels (A, AAA) 52

That’s almost all for day… WRAP-UP 53

Things to keep in mind (or summary) • Testing and Usability are orthogonal issues – Testing covers functional requirements validation – Usability tends to cover “non-functional” requirements validation (this is not totally exact) • Both are part of a good (Web) application design process • They can be partially automated • Key differences – Testing deals mainly with in house and (rarely) external developers and end users – Usability relies on expertise outside “technological world” 54

Bibliography • Mandatory reading – Kappel, G. , Proll, B. Reich, S. & Retschitzegger, W. (2006). Web Engineering, Wiley & Sons. 7 th and 11 th Chapter • Other References – Kent Beck, e. Xtreme Programming Explained – http: //www. usability. gov/ 55

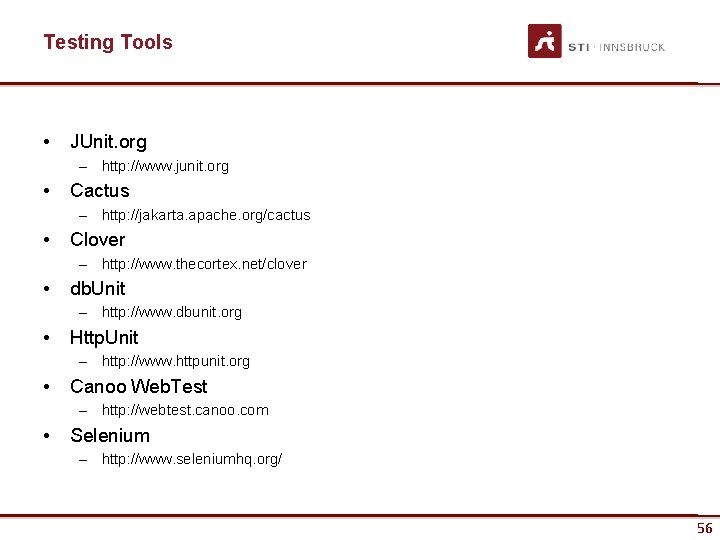

Testing Tools • JUnit. org – http: //www. junit. org • Cactus – http: //jakarta. apache. org/cactus • Clover – http: //www. thecortex. net/clover • db. Unit – http: //www. dbunit. org • Http. Unit – http: //www. httpunit. org • Canoo Web. Test – http: //webtest. canoo. com • Selenium – http: //www. seleniumhq. org/ 56

Usability Tools • Development – Firefox Developer Toolbar (http: //chrispederick. com/work/web-developer/) • Testing – http: //www. fujitsu. com/global/accessibility/assistance/wi/ – http: //webusability. com/usability_tools. htm – http: //wave. webaim. org/ • Comprehensive list of WAI tools – http: //www. w 3. org/WAI/ER/tools/complete 57

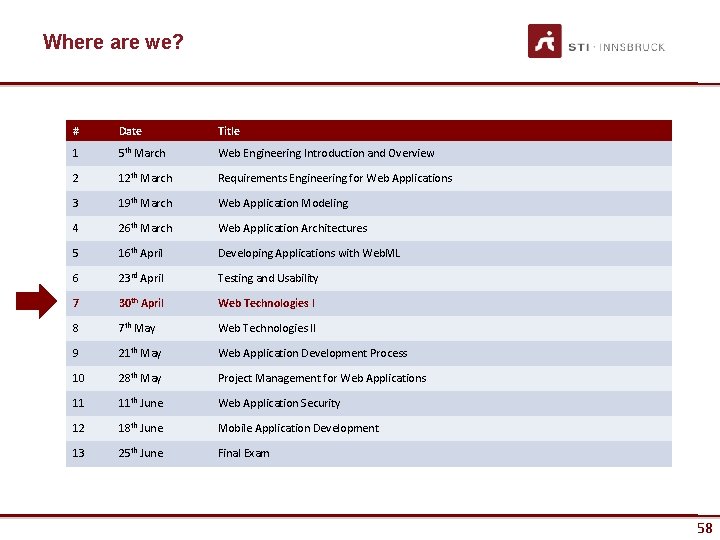

Where are we? # Date Title 1 5 th March Web Engineering Introduction and Overview 2 12 th March Requirements Engineering for Web Applications 3 19 th March Web Application Modeling 4 26 th March Web Application Architectures 5 16 th April Developing Applications with Web. ML 6 23 rd April Testing and Usability 7 30 th April Web Technologies I 8 7 th May Web Technologies II 9 21 th May Web Application Development Process 10 28 th May Project Management for Web Applications 11 11 th June Web Application Security 12 18 th June Mobile Application Development 13 25 th June Final Exam 58

Questions? 59
