Web ADI for R 12 Sub Ledger Accounting

Web. ADI for R 12 Sub. Ledger Accounting John Peters JRPJR, Inc john. peters@jrpjr. com http: //www. jrpjr. com Session 8620

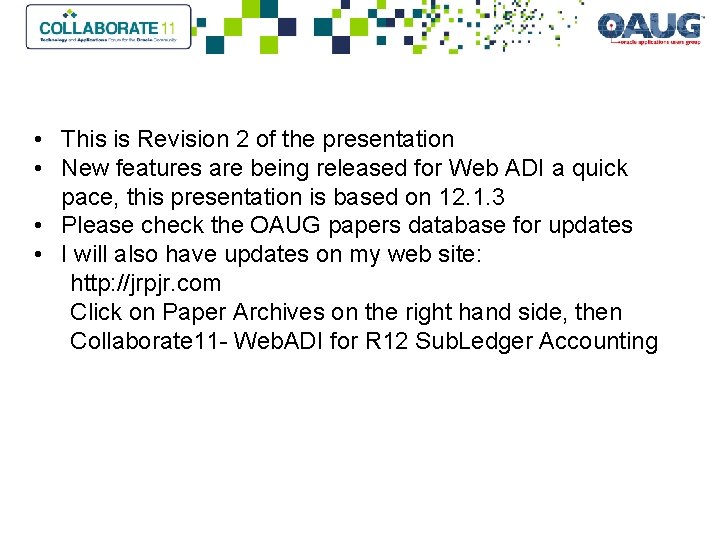

• This is Revision 2 of the presentation • New features are being released for Web ADI a quick pace, this presentation is based on 12. 1. 3 • Please check the OAUG papers database for updates • I will also have updates on my web site: http: //jrpjr. com Click on Paper Archives on the right hand side, then Collaborate 11 - Web. ADI for R 12 Sub. Ledger Accounting

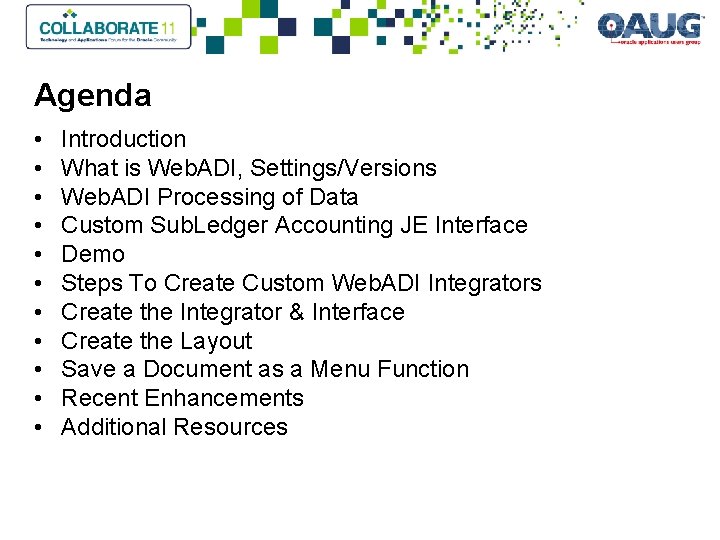

Agenda • • • Introduction What is Web. ADI, Settings/Versions Web. ADI Processing of Data Custom Sub. Ledger Accounting JE Interface Demo Steps To Create Custom Web. ADI Integrators Create the Integrator & Interface Create the Layout Save a Document as a Menu Function Recent Enhancements Additional Resources

Introduction • John Peters, JRPJR, Inc • Independent Consulting in the San Francisco Bay Area • I have been working with Oracle E-Business Suite since 1992, early days of Release 10 character mode • I have presented many technical papers at numerous OUAG, IOUG and Open. World conferences • Founding member of the Northern California OAUG GEO • Current Coordinator for the Workflow SIG

Introduction • I have worked on multiple Journal Entry Interfaces into Sub. Ledger Accounting for several R 12 Clients • The most recent one involved integrating various external accounting and transactional systems with R 12. 1. 3 SLA • The client was a large shipping services company that has gone through many mergers and acquisitions that did not fully integrate their information systems • This was a new R 12 implementation with a new COA and business processes all the way through Procure to Pay, Order to Cash and Fixed Assets

Introduction • Sub. Ledger Accounting has a public PL/SQL API for integrating in Journal Entries XLA_JOURNAL_ENTRIES_PUB_PKG • What Sub. Ledger Accounting does not have is a Web. ADI interface like GL has for interfacing in Journal Entries • This presentation will go over the creation of a custom Web. ADI interface for Sub. Ledger Accounting to support the integration of accounting transactions from the clients various external systems

What is Web. ADI

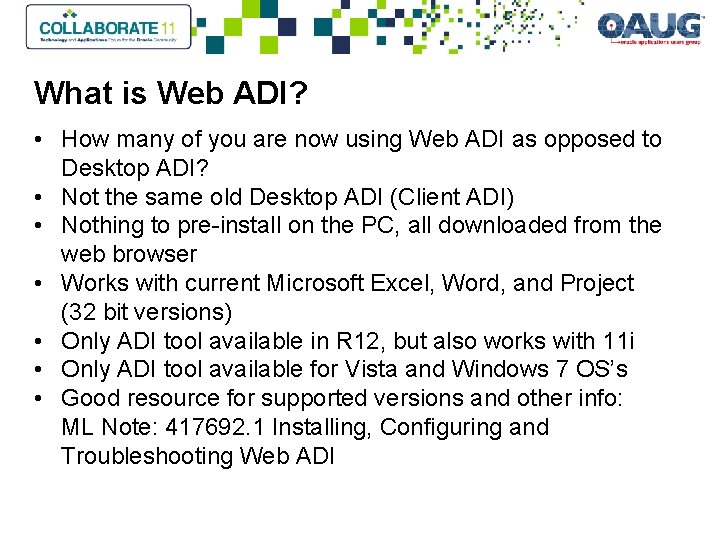

What is Web ADI? • How many of you are now using Web ADI as opposed to Desktop ADI? • Not the same old Desktop ADI (Client ADI) • Nothing to pre-install on the PC, all downloaded from the web browser • Works with current Microsoft Excel, Word, and Project (32 bit versions) • Only ADI tool available in R 12, but also works with 11 i • Only ADI tool available for Vista and Windows 7 OS’s • Good resource for supported versions and other info: ML Note: 417692. 1 Installing, Configuring and Troubleshooting Web ADI

Web ADI requires security setting changes • ML Note: 1077728. 1 Using Microsoft Office 2007 and 2010 with Oracle E-Business Suite 11 i and R 12 • These settings essentially loosen the security of your PC • You can also now digitally sign your Desktop Integrators ML Note: 1095155. 1, which allows you to keep your Excel security settings high

IE Browser Settings • Select 'Tools' -> 'Internet Options -> 'Security' (Tab) from the browser menu • Select the appropriate zone i. e. 'Trusted Sites' -> 'Custom Level' (button) • Under the 'Downloads' section ensure 'File download' is enabled • Set 'Allow Status bar updates via script' to 'Enable‘ • I also identify the server as a Trusted Site

Excel 2010 Settings • • Click File -> Options Click 'Trust Center' link in the 'Excel Options' window Click 'Trust Center Settings. . . ' button In the 'Trust Center' window click 'Macro Settings' link from the menu on the left Under 'Macro Settings' check 'Disable all macros with notification' Under 'Developer Macro Settings' check 'Trust Access to the VBA project object model' Click 'OK' button to close the 'Trust Center' window Click 'OK' button to return to the spreadsheet

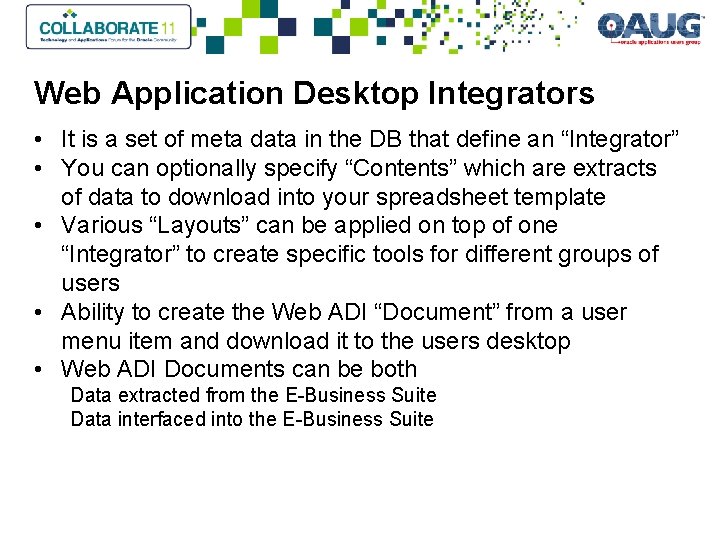

Web Application Desktop Integrators • It is a set of meta data in the DB that define an “Integrator” • You can optionally specify “Contents” which are extracts of data to download into your spreadsheet template • Various “Layouts” can be applied on top of one “Integrator” to create specific tools for different groups of users • Ability to create the Web ADI “Document” from a user menu item and download it to the users desktop • Web ADI Documents can be both Data extracted from the E-Business Suite Data interfaced into the E-Business Suite

E-Business Suite Uses of Web ADI • Web ADI Integrators are now used by many modules in the EBusiness Suite, it has become a tool that all development groups use. • Over 240 Integrators predefined by Oracle in 12. 1. 3 APPLICATION_NAME COUNT(*) APAC Consulting Localizations 9 Advanced Benefits 4 Advanced Product Catalog 5 Application Report Generator 1 Assets 5 CRM Foundation 6 Custom Development 1 Enterprise Performance Foundation 6 Financial Consolidation Hub 11 Financial Intelligence 2 Financials Common Modules 1 General Ledger 5 Human Resources 83 Incentive Compensation 1 Information Technology Audit 1 Internal Controls Manager 9 Learning Management 2 Marketing 3 COUNT(* APPLICATION_NAME ) Operations Intelligence 3 Oracle Price Protection 3 Payroll 32 Projects 7 Public Sector Financials International 6 Public Sector HR 5 Public Sector Payroll 3 Report Manager 2 Sales Offline 1 Scheduler 1 Site Management 2 Student System 9 Supply Chain Intelligence 5 Trade Management 4 Transfer Pricing 2 Web Applications Desktop Integrator 1 i. Supplier Portal 1

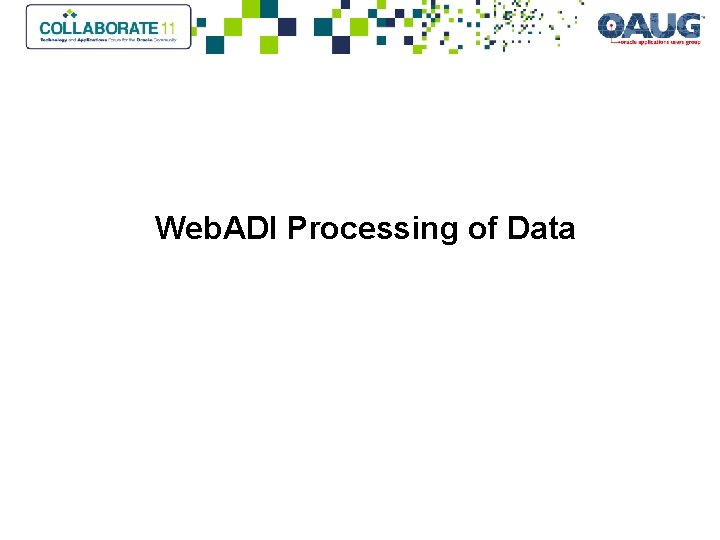

Web. ADI Processing of Data

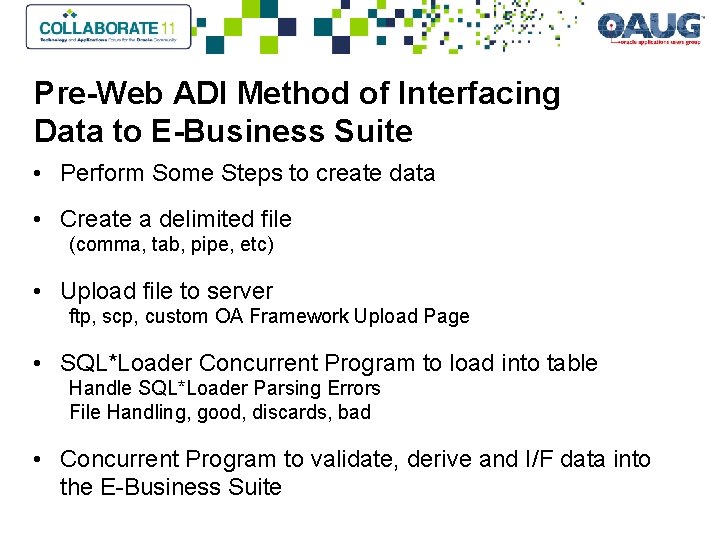

Pre-Web ADI Method of Interfacing Data to E-Business Suite • Perform Some Steps to create data • Create a delimited file (comma, tab, pipe, etc) • Upload file to server ftp, scp, custom OA Framework Upload Page • SQL*Loader Concurrent Program to load into table Handle SQL*Loader Parsing Errors File Handling, good, discards, bad • Concurrent Program to validate, derive and I/F data into the E-Business Suite

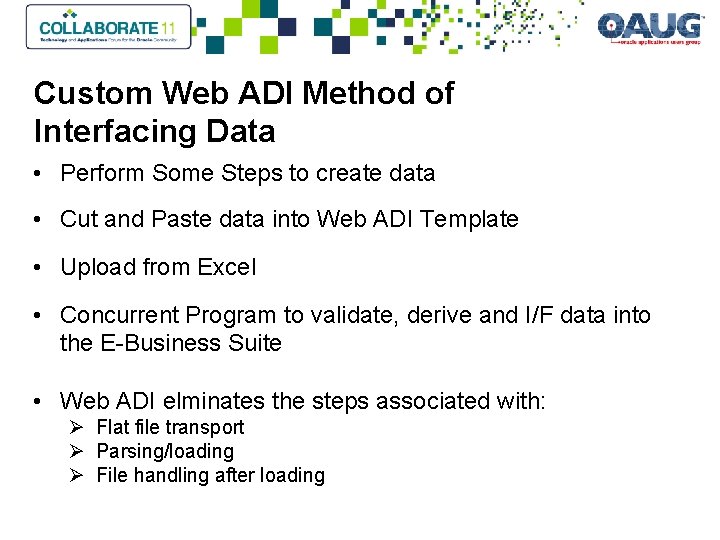

Custom Web ADI Method of Interfacing Data • Perform Some Steps to create data • Cut and Paste data into Web ADI Template • Upload from Excel • Concurrent Program to validate, derive and I/F data into the E-Business Suite • Web ADI elminates the steps associated with: Ø Flat file transport Ø Parsing/loading Ø File handling after loading

Overall Custom SLA JE Process • Web ADI uploads Journal Entries from Excel to a custom staging table • Custom concurrent program performs derivations and validations against the data in the staging table • Then the Journal Entries are interfaced to the base Oracle E-Business Suite XLA tables using the PL/SQL API XLA_JOURNAL_ENTRIES_PUB_PKG

Custom Sub. Ledger Accounting JE Interface

Business Requirement • The client is a shipping services company, new R 12. 1. 3 implementation, financial modules are being used, new COA • The client has well over three dozen external systems that will continue to feed transactions and data into R 12 in Legacy formats (COA, Customers, Suppliers, etc) • Some data interfaces will be eventually automated with extracts, transfers and loads • For now the JE interfaces need human intervention to “tweak” the data prior to load into R 12

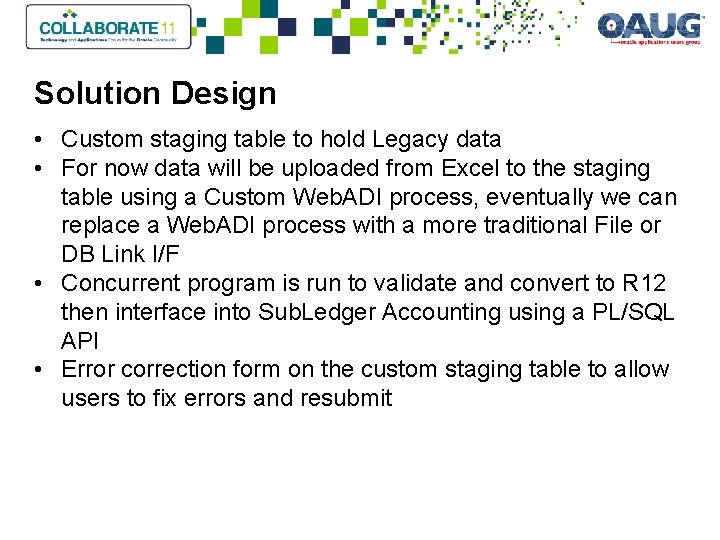

Solution Design • Custom staging table to hold Legacy data • For now data will be uploaded from Excel to the staging table using a Custom Web. ADI process, eventually we can replace a Web. ADI process with a more traditional File or DB Link I/F • Concurrent program is run to validate and convert to R 12 then interface into Sub. Ledger Accounting using a PL/SQL API • Error correction form on the custom staging table to allow users to fix errors and resubmit

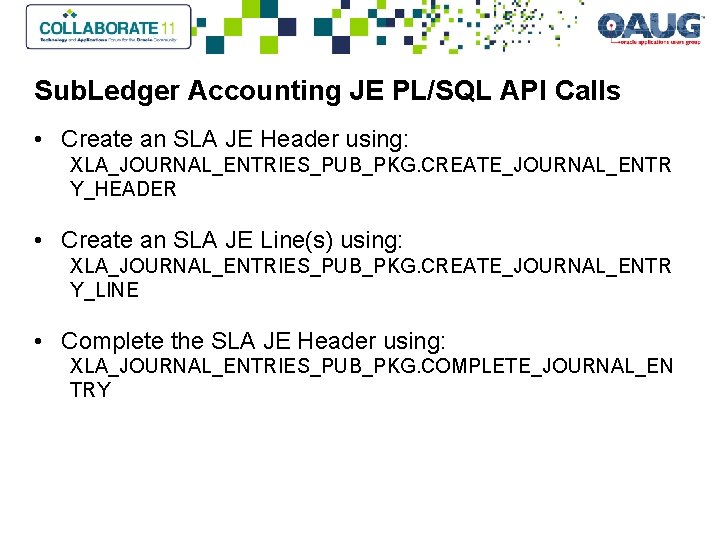

Sub. Ledger Accounting JE PL/SQL API Calls • Create an SLA JE Header using: XLA_JOURNAL_ENTRIES_PUB_PKG. CREATE_JOURNAL_ENTR Y_HEADER • Create an SLA JE Line(s) using: XLA_JOURNAL_ENTRIES_PUB_PKG. CREATE_JOURNAL_ENTR Y_LINE • Complete the SLA JE Header using: XLA_JOURNAL_ENTRIES_PUB_PKG. COMPLETE_JOURNAL_EN TRY

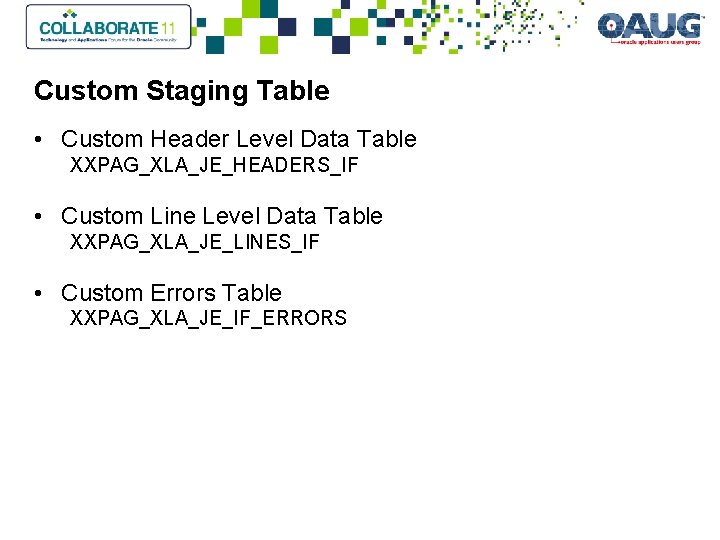

Custom Staging Table • Custom Header Level Data Table XXPAG_XLA_JE_HEADERS_IF • Custom Line Level Data Table XXPAG_XLA_JE_LINES_IF • Custom Errors Table XXPAG_XLA_JE_IF_ERRORS

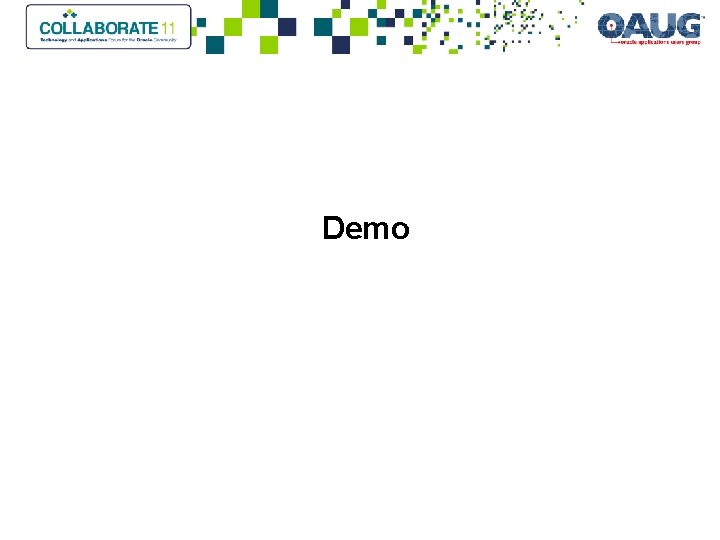

Demo

Steps To Create Custom Web. ADI Integrators

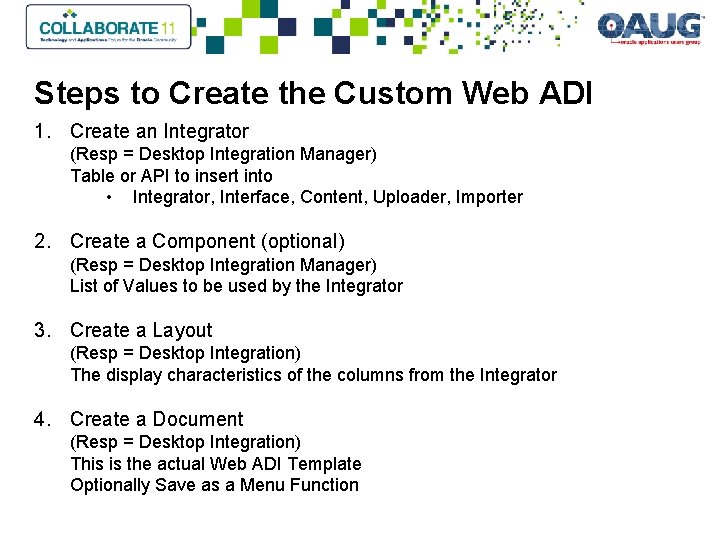

Steps to Create the Custom Web ADI 1. Create an Integrator (Resp = Desktop Integration Manager) Table or API to insert into • Integrator, Interface, Content, Uploader, Importer 2. Create a Component (optional) (Resp = Desktop Integration Manager) List of Values to be used by the Integrator 3. Create a Layout (Resp = Desktop Integration) The display characteristics of the columns from the Integrator 4. Create a Document (Resp = Desktop Integration) This is the actual Web ADI Template Optionally Save as a Menu Function

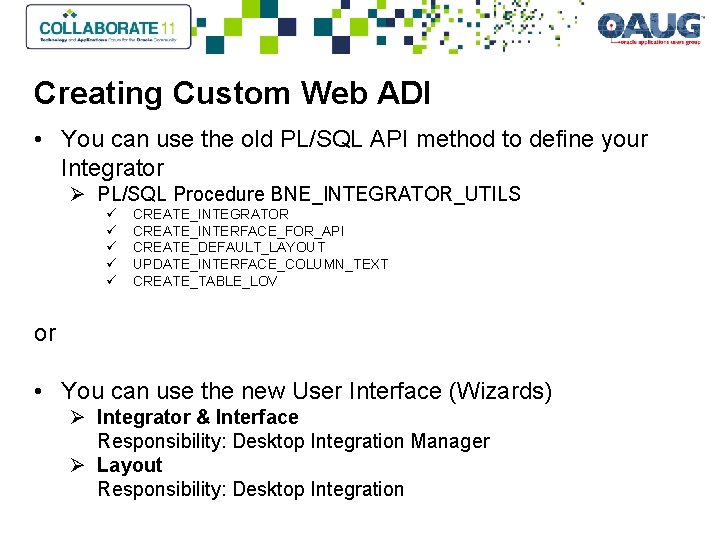

Creating Custom Web ADI • You can use the old PL/SQL API method to define your Integrator Ø PL/SQL Procedure BNE_INTEGRATOR_UTILS ü ü ü CREATE_INTEGRATOR CREATE_INTERFACE_FOR_API CREATE_DEFAULT_LAYOUT UPDATE_INTERFACE_COLUMN_TEXT CREATE_TABLE_LOV or • You can use the new User Interface (Wizards) Ø Integrator & Interface Responsibility: Desktop Integration Manager Ø Layout Responsibility: Desktop Integration

Create the Integrator & Interface

Create the Integrator & Interface • I will show the wizard based UI method of creating these • The Integrator is the essentially the name that holds all of the meta data together for you spreadsheet integration • The Interface is how the data is uploaded from the desktop appication to the Oracle E-Business Suite Ø Table Ø PL/SQL API Procedure Ø PL/SQL API Function

Create the Integrator

Integrator Fields • • • Integrator Name – name you will see if the forms Internal Name – keep this name short Application – create under your custom application name Enabled – this appears to be the only way to disable an integrator Display in Create Document Page – I allow this, more on this later Integrator Parameters – you can create a parameters page required to specify constraints on a download document • Security Rule – I create my own function and assign this, along with the seeded ‘Desktop Integration – Create Document’ which allows the users to use the Create Document Page • Click Next

Create the Interface – step 1

Interface Fields – step 1 • Interface Name – name you will see if the forms, keep this name short (6 to 8 characters) since it is used by the wizard (or PL/SQL API) to autocreate column definitions • Interface Type – select an interface type Ø Table • Table Name Ø API – Procedure • Package Name • Procedure/Function Name • API Returns Ø API – Function • Package Name • Procedure/Function Name • Returns error information • API Returns • Click Apply

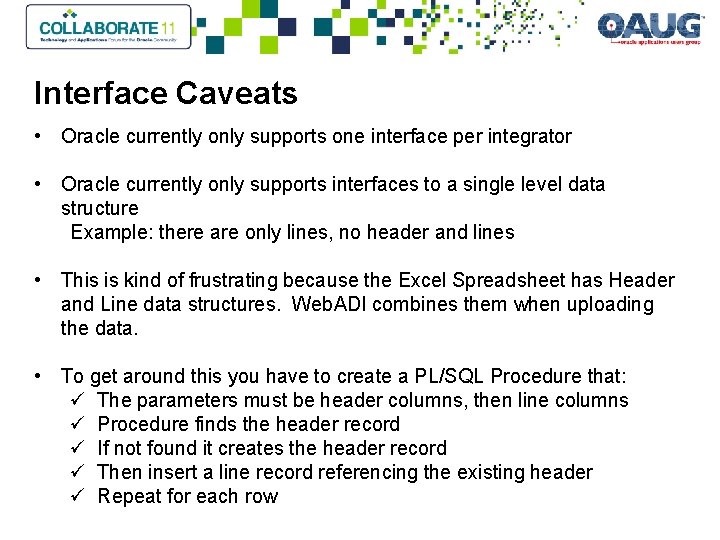

Interface Caveats • Oracle currently only supports one interface per integrator • Oracle currently only supports interfaces to a single level data structure Example: there are only lines, no header and lines • This is kind of frustrating because the Excel Spreadsheet has Header and Line data structures. Web. ADI combines them when uploading the data. • To get around this you have to create a PL/SQL Procedure that: ü The parameters must be header columns, then line columns ü Procedure finds the header record ü If not found it creates the header record ü Then insert a line record referencing the existing header ü Repeat for each row

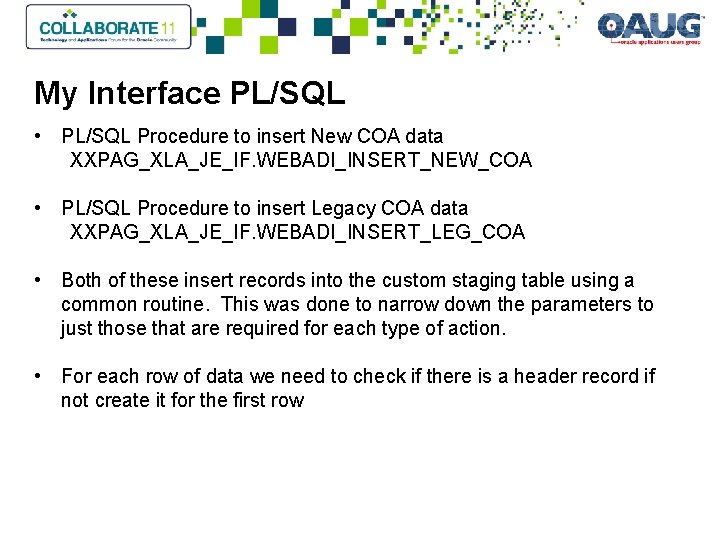

My Interface PL/SQL • PL/SQL Procedure to insert New COA data XXPAG_XLA_JE_IF. WEBADI_INSERT_NEW_COA • PL/SQL Procedure to insert Legacy COA data XXPAG_XLA_JE_IF. WEBADI_INSERT_LEG_COA • Both of these insert records into the custom staging table using a common routine. This was done to narrow down the parameters to just those that are required for each type of action. • For each row of data we need to check if there is a header record if not create it for the first row

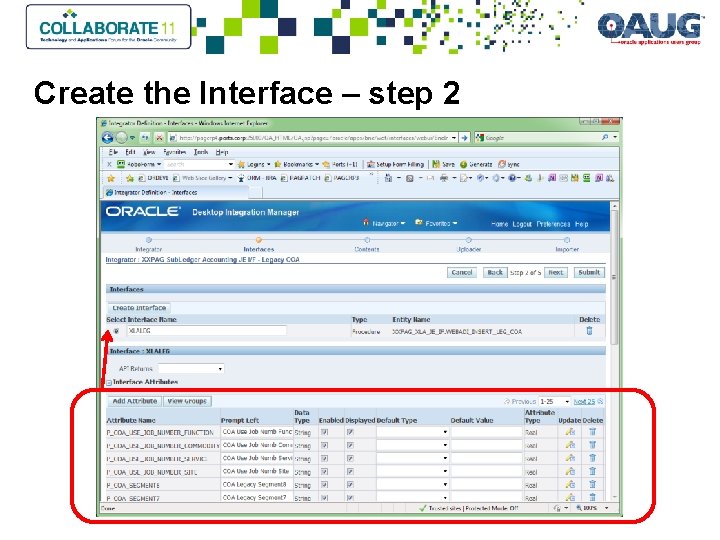

Create the Interface – step 2

Interface Fields – step 2 • You must select the Interface Name • Wait a few seconds for the bottom region to become visible • I have found this form only works in IE, when ever I try to use it in Firefox it is way too slow to be usable

Interface Fields – step 2 • • • Attribute Name – RO the PL/SQL Parameter, or table column name Prompt Left – left hand prompt in the document Data Type – RO from the parameter or column defintion Enabled – should the attribute be used Displayed – should the attribute be displayed Default Type – Constant, Environment Variable, Parameter, Profile Option, SQL Query, Lookup • Attribute Type – RO describing where it originated from • Click Update

Create the Interface – step 2

Interface Fields – step 2 • • • Required – Should this attribute be included in all laoyouts Enabled for Mapping – left hand prompt in the document Available for Summary – Not NULL – Prevent leaving the attribute NULL Read Only – Prevent the attribute from being changed Validation Type – Descriptive Flex. Field, Descriptive Flex. Field Context, Descriptive Flex. Field Segment, Group, Java, Key Flex. Field Segment, Table • Group Name –

Interface Fields – step 2 Table Validation • ID Column – LOOKUP_CODE • Meaning Column – MEANING • Desc Column – DESCRIPTION • Validation Entity – View you want query against • Where Clause – Your where clause for the view • Component Name – Prior defined component name • LOV Type – None, Pop List, Standard • Click Save • Click Submit

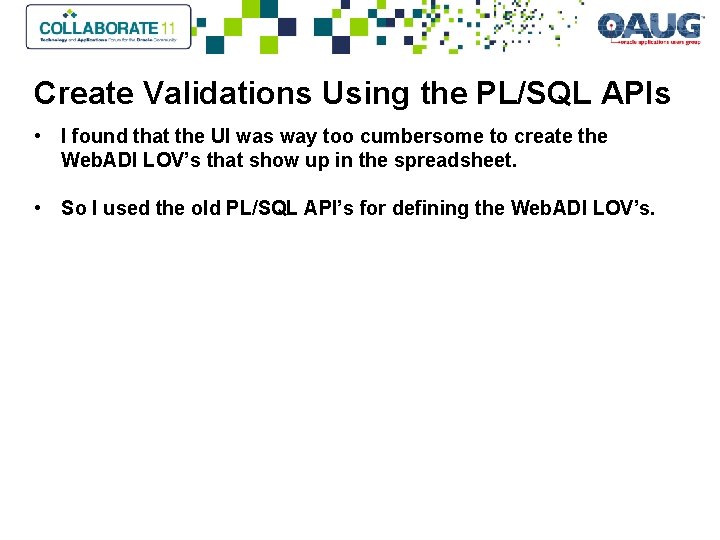

Create Validations Using the PL/SQL APIs • I found that the UI was way too cumbersome to create the Web. ADI LOV’s that show up in the spreadsheet. • So I used the old PL/SQL API’s for defining the Web. ADI LOV’s.

Create Validations Using the PL/SQL APIs • I found that the UI was way too cumbersome to create the Web. ADI LOV’s that show up in the spreadsheet. • So I used the old PL/SQL API’s for defining the Web. ADI LOV’s. • First create the required views: create or replace view XXPAG_FND_FLEX_VALUES_V as SELECT ffvs. FLEX_VALUE_SET_NAME, ffv. FLEX_VALUE_SET_ID, to_char(ffv. FLEX_VALUE) flex_value, to_char(ffvtl. DESCRIPTION) description FROM FND_FLEX_VALUES_TL ffvtl, FND_FLEX_VALUES ffv, FND_FLEX_VALUE_SETS ffvs WHERE ffvtl. LANGUAGE = 'US' AND ffv. FLEX_VALUE_ID = ffvtl. FLEX_VALUE_ID and ffv. ENABLED_FLAG = 'Y' and SYSDATE between nvl(ffv. START_DATE_ACTIVE, SYSDATE) and nvl(ffv. END_DATE_ACTIVE, SYSDATE) AND ffvs. FLEX_VALUE_SET_ID = ffv. FLEX_VALUE_SET_ID;

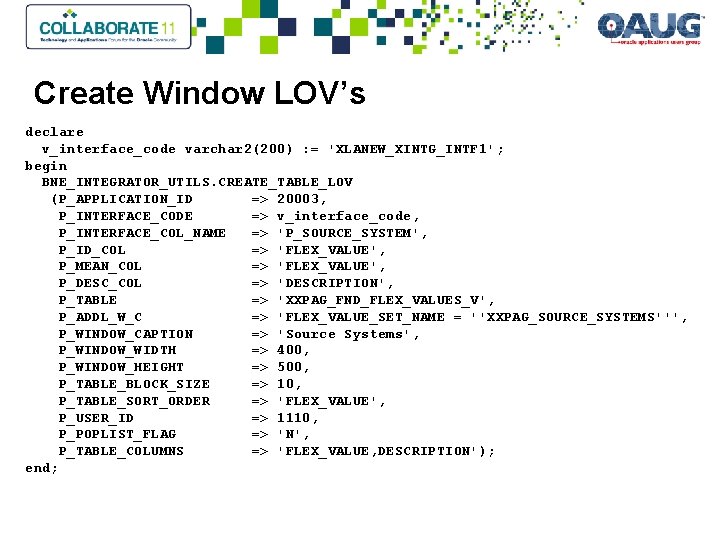

Create Window LOV’s declare v_interface_code varchar 2(200) : = 'XLANEW_XINTG_INTF 1'; begin BNE_INTEGRATOR_UTILS. CREATE_TABLE_LOV (P_APPLICATION_ID => 20003, P_INTERFACE_CODE => v_interface_code, P_INTERFACE_COL_NAME => 'P_SOURCE_SYSTEM', P_ID_COL => 'FLEX_VALUE', P_MEAN_COL => 'FLEX_VALUE', P_DESC_COL => 'DESCRIPTION', P_TABLE => 'XXPAG_FND_FLEX_VALUES_V', P_ADDL_W_C => 'FLEX_VALUE_SET_NAME = ''XXPAG_SOURCE_SYSTEMS''', P_WINDOW_CAPTION => 'Source Systems', P_WINDOW_WIDTH => 400, P_WINDOW_HEIGHT => 500, P_TABLE_BLOCK_SIZE => 10, P_TABLE_SORT_ORDER => 'FLEX_VALUE', P_USER_ID => 1110, P_POPLIST_FLAG => 'N', P_TABLE_COLUMNS => 'FLEX_VALUE, DESCRIPTION'); end;

Create Pop-List LOV’s declare v_interface_code varchar 2(200) : = 'XLANEW_XINTG_INTF 1'; begin BNE_INTEGRATOR_UTILS. CREATE_TABLE_LOV (P_APPLICATION_ID => 20003, P_INTERFACE_CODE => v_interface_code, P_INTERFACE_COL_NAME => 'P_PRODUCT_CODE', P_ID_COL => 'PRODUCT_CODE', P_MEAN_COL => 'PRODUCT_CODE', P_DESC_COL => 'APPLICATION_NAME', P_TABLE => 'XXPAG_XLA_PRODUCT_CODES_V', P_ADDL_W_C => NULL, P_WINDOW_CAPTION => 'Product Codes', P_WINDOW_WIDTH => 400, P_WINDOW_HEIGHT => 500, P_TABLE_BLOCK_SIZE => 10, P_TABLE_SORT_ORDER => 'PRODUCT_CODE', P_USER_ID => 1110, P_POPLIST_FLAG => 'Y', P_TABLE_COLUMNS => 'PRODUCT_CODE, APPLICATION_NAME'); end;

Optional Elements • The following are optional elements. You don’t have to define them to get your Integrator working. Play with them later once you have defined your first Integrator. • Contents The definition of what data the integrator should initially populate the desktop document with. Effectively the query. • Uploader The definition of what parameters the user should be prompted for during the upload action. • Importer The definition of what to do once the data is uploaded, example, run a concurrent program.

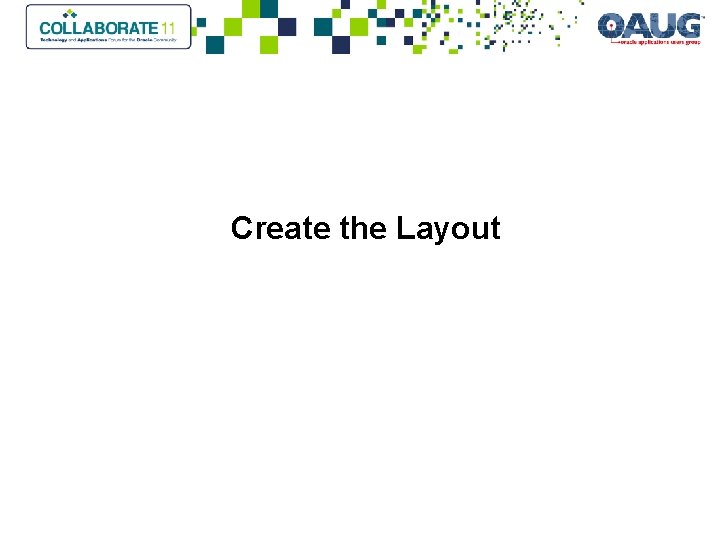

Create the Layout

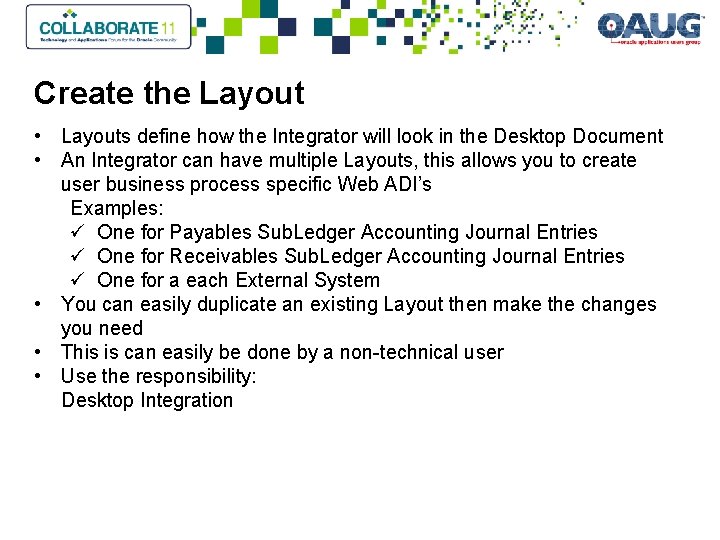

Create the Layout • Layouts define how the Integrator will look in the Desktop Document • An Integrator can have multiple Layouts, this allows you to create user business process specific Web ADI’s Examples: ü One for Payables Sub. Ledger Accounting Journal Entries ü One for Receivables Sub. Ledger Accounting Journal Entries ü One for a each External System • You can easily duplicate an existing Layout then make the changes you need • This is can easily be done by a non-technical user • Use the responsibility: Desktop Integration

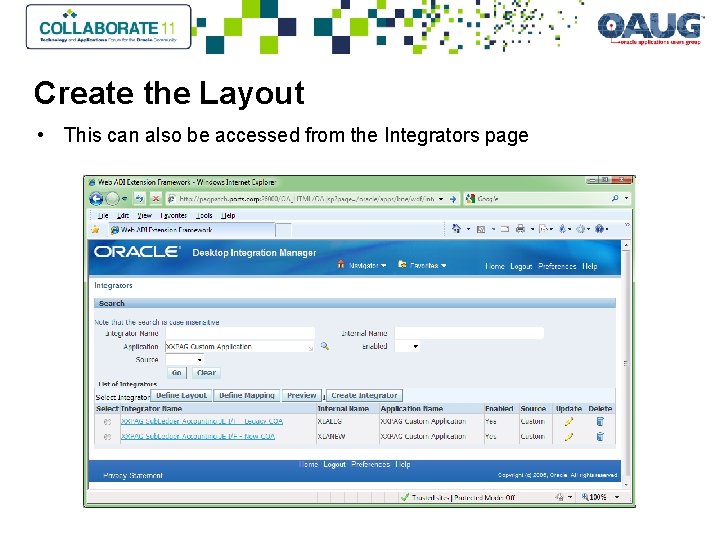

Create the Layout • This can also be accessed from the Integrators page

Create the Layout • Menu Item: Manage Layout • Select the Integrator, then an existing Layout and Action, or Create

Create the Layout • Name the Layout • Specify the Number of Header sections in the spreadsheet

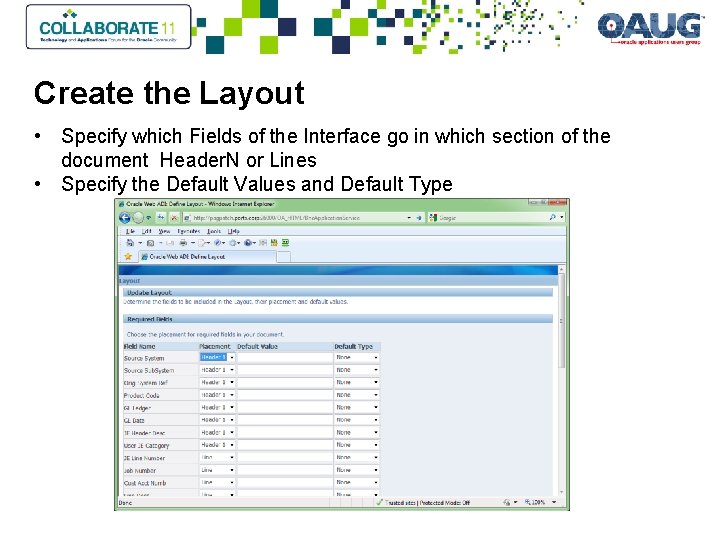

Create the Layout • Specify which Fields of the Interface go in which section of the document Header. N or Lines • Specify the Default Values and Default Type

Create the Layout • Should the sheet be protected when downloaded • Style Sheet identifies the colors and fonts in the spreadsheet • Order of Header Fields and if they are Read Only or Hidden

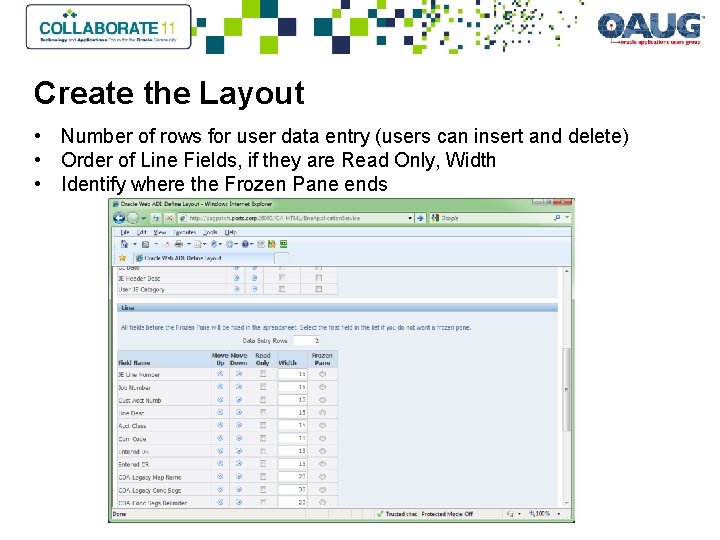

Create the Layout • Number of rows for user data entry (users can insert and delete) • Order of Line Fields, if they are Read Only, Width • Identify where the Frozen Pane ends

Save a Document as a Menu Function

Save a Document as a Menu Function • You can assign a function to the user’s menu to allow them to download a specific Web. ADI Layout Template Spreadsheet • Makes it far easier for the users to get the Web. ADI Document Template

Save a Document as a Menu Function • Select Integrator, Click on Preview

Save a Document as a Menu Function • Select the Viewer you wish to create a Document for

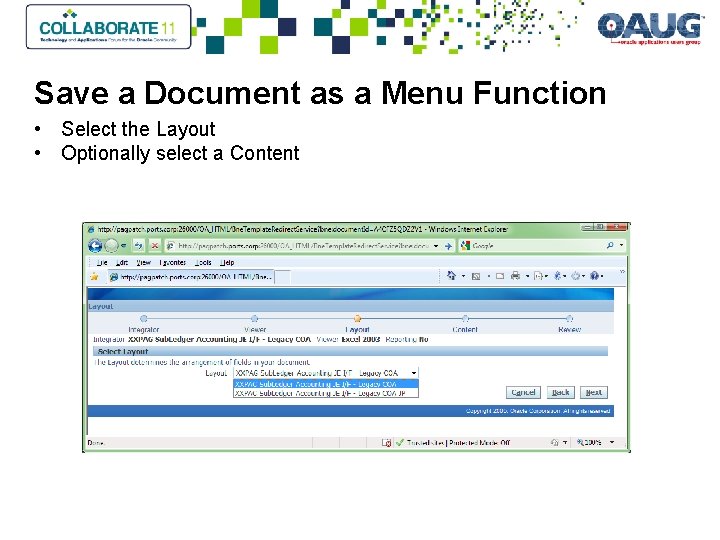

Save a Document as a Menu Function • Select the Layout • Optionally select a Content

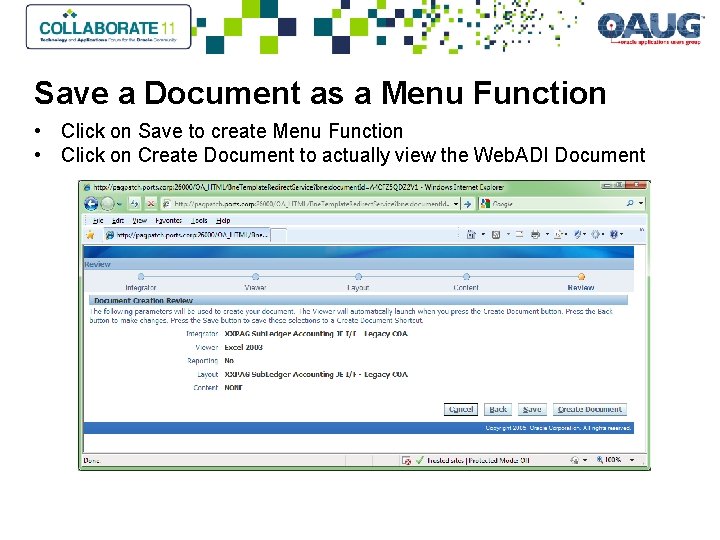

Save a Document as a Menu Function • Click on Save to create Menu Function • Click on Create Document to actually view the Web. ADI Document

Save a Document as a Menu Function • Provide the Shortcut Name, Select Save to Form Function, Apply

Save a Document as a Menu Function • Function was created with the Shortcut Name as the User Function Name

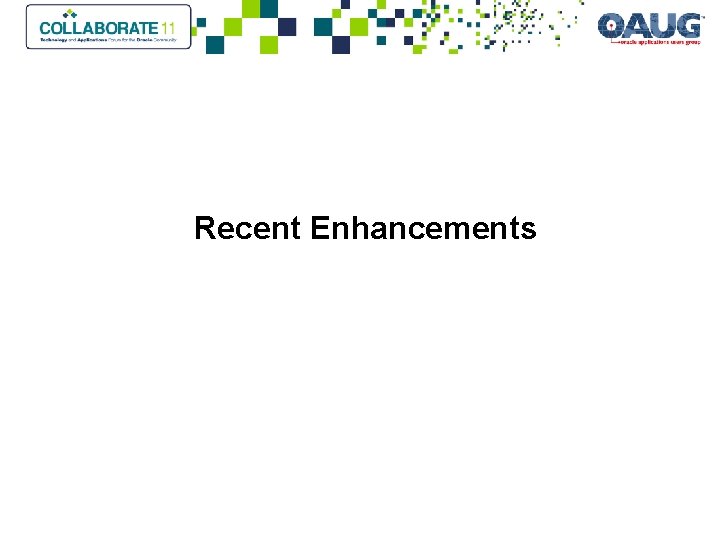

Recent Enhancements

12. 1. 2 Enhancements • Oracle E-Business Suite Desktop Integration Framework o User Interface placed on top of the Web. ADI API’s to provide the starting functionality for creating a Custom Web. ADI. o Wizard based setup o You will still have to jump out to the API’s for some tasks.

12. 1. 3 Enhancements • Oracle E-Business Suite Desktop Integration Framework Enhancements o Upload parameters support o Importer rules support • Digital Signature Support o You can lock down those risky Excel settings

12. 2 Enhancements • Oracle E-Business Suite Desktop Integration Framework Enhancements o Links to common pages (home, logout, diagnostics, preferences, help) o Logo on Spreadsheets o Expanders/Compressors on Spreadsheet o Ability to switch responsibilities prior to upload o Upload commit granularity on validations o Compress upload • Microsoft Office 2010 32 bit and 64 bit Certification • Web. ADI Diagnostics

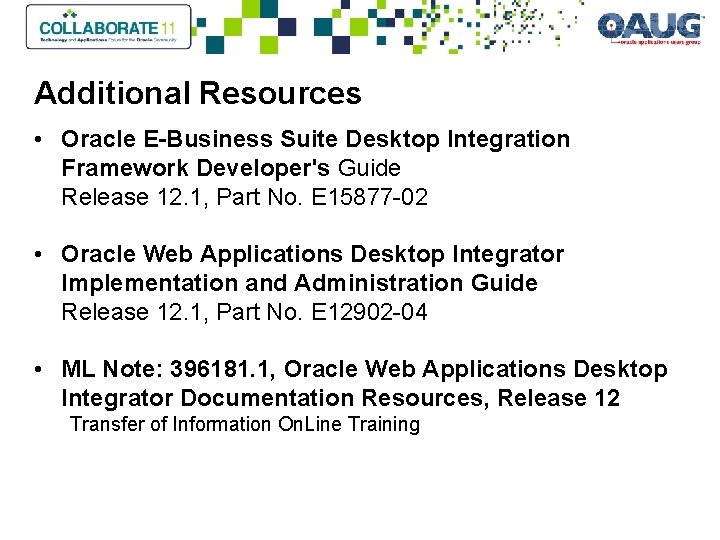

Additional Resources • Oracle E-Business Suite Desktop Integration Framework Developer's Guide Release 12. 1, Part No. E 15877 -02 • Oracle Web Applications Desktop Integrator Implementation and Administration Guide Release 12. 1, Part No. E 12902 -04 • ML Note: 396181. 1, Oracle Web Applications Desktop Integrator Documentation Resources, Release 12 Transfer of Information On. Line Training

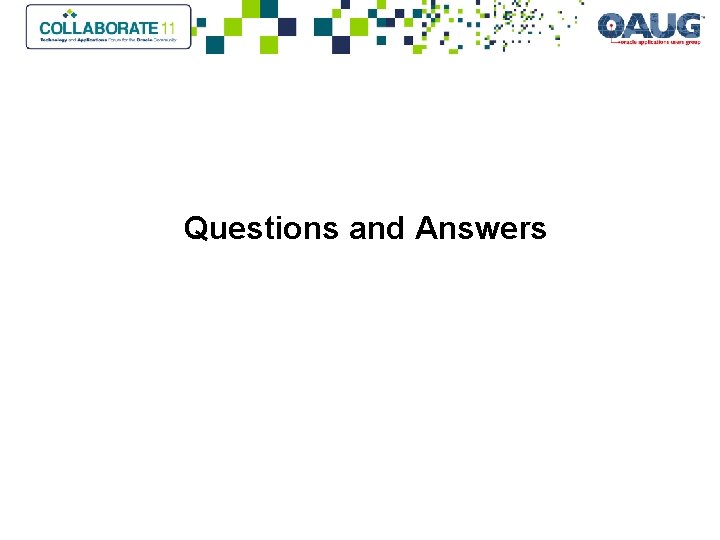

Questions and Answers

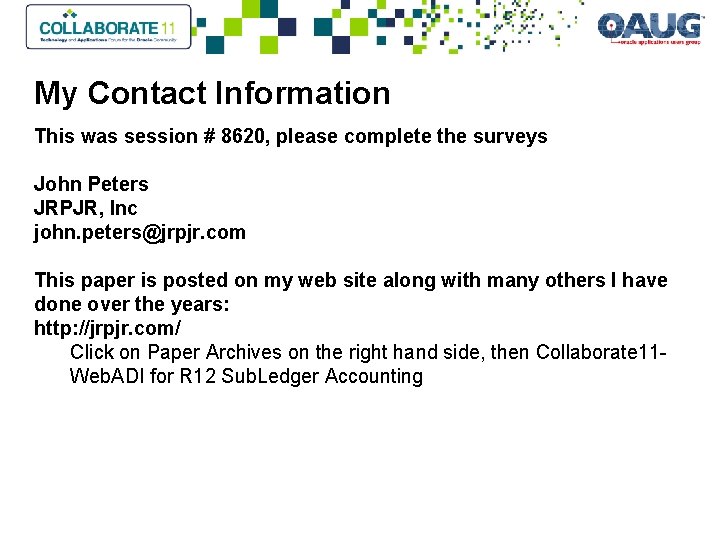

My Contact Information This was session # 8620, please complete the surveys John Peters JRPJR, Inc john. peters@jrpjr. com This paper is posted on my web site along with many others I have done over the years: http: //jrpjr. com/ Click on Paper Archives on the right hand side, then Collaborate 11 Web. ADI for R 12 Sub. Ledger Accounting
