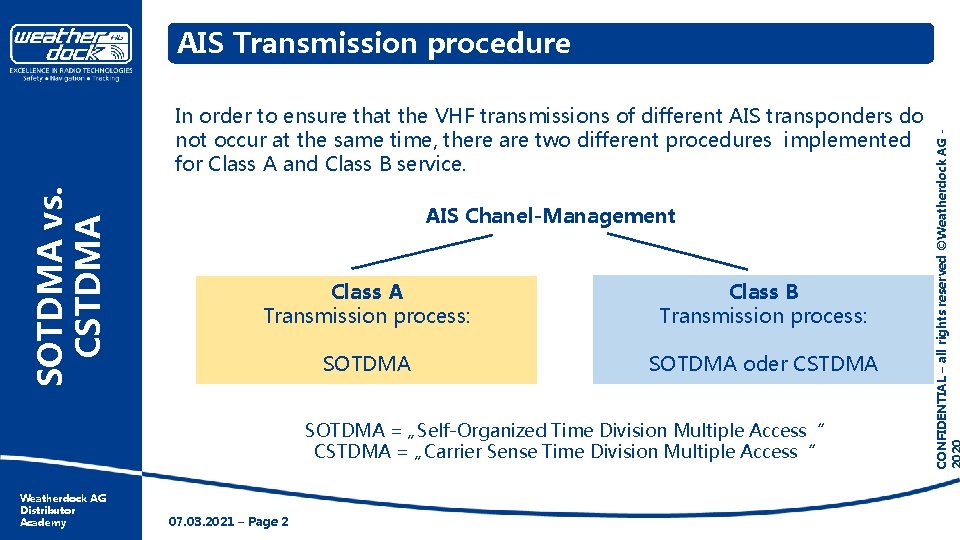

SOTDMA vs. CSTDMA In order to ensure that the VHF transmissions of different AIS transponders do not occur at the same time, there are two different procedures implemented for Class A and Class B service. AIS Chanel-Management Class A Transmission process: Class B Transmission process: SOTDMA oder CSTDMA SOTDMA = „Self-Organized Time Division Multiple Access“ CSTDMA = „Carrier Sense Time Division Multiple Access“ Weatherdock AG Distributor Academy 07. 03. 2021 – Page 2 CONFIDENTIAL – all rights reserved ©Weatherdock AG - AIS Transmission procedure

AIS Transmission procedure Weatherdock AG Distributor Academy SOTDMA CSTDMA 5 watt 2 watt Up to every 15 sec. Fix all 30 sec. Reservation of future slots X Sending/receiving of text messages X Priority to Class A devices 2 nd Priority 3 rd Priority SOTDM Transmission power A Transmission interval 07. 03. 2021 – Page 3 CONFIDENTIAL – all rights reserved ©Weatherdock AG - SOTDMA vs. CSTDMA The Differences between SOTDMA and CSTDMA at a glance

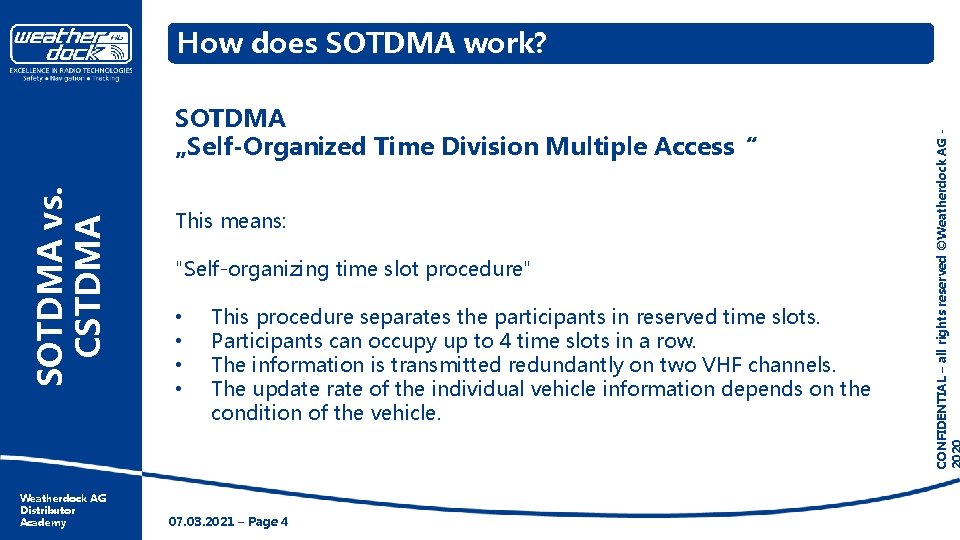

SOTDMA vs. CSTDMA SOTDMA „Self-Organized Time Division Multiple Access“ Weatherdock AG Distributor Academy This means: "Self-organizing time slot procedure" • • This procedure separates the participants in reserved time slots. Participants can occupy up to 4 time slots in a row. The information is transmitted redundantly on two VHF channels. The update rate of the individual vehicle information depends on the condition of the vehicle. 07. 03. 2021 – Page 4 CONFIDENTIAL – all rights reserved ©Weatherdock AG - How does SOTDMA work?

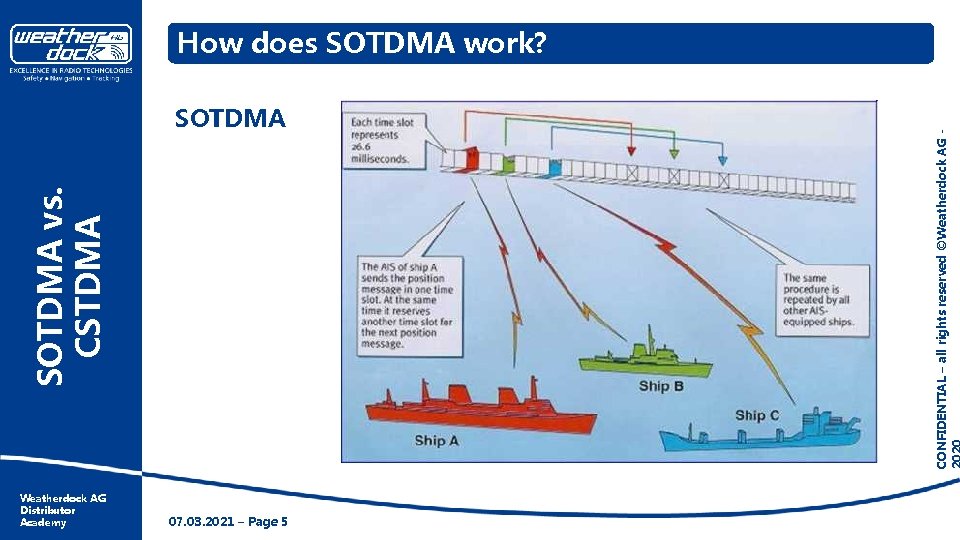

SOTDMA vs. CSTDMA SOTDMA Weatherdock AG Distributor Academy 07. 03. 2021 – Page 5 CONFIDENTIAL – all rights reserved ©Weatherdock AG - How does SOTDMA work?

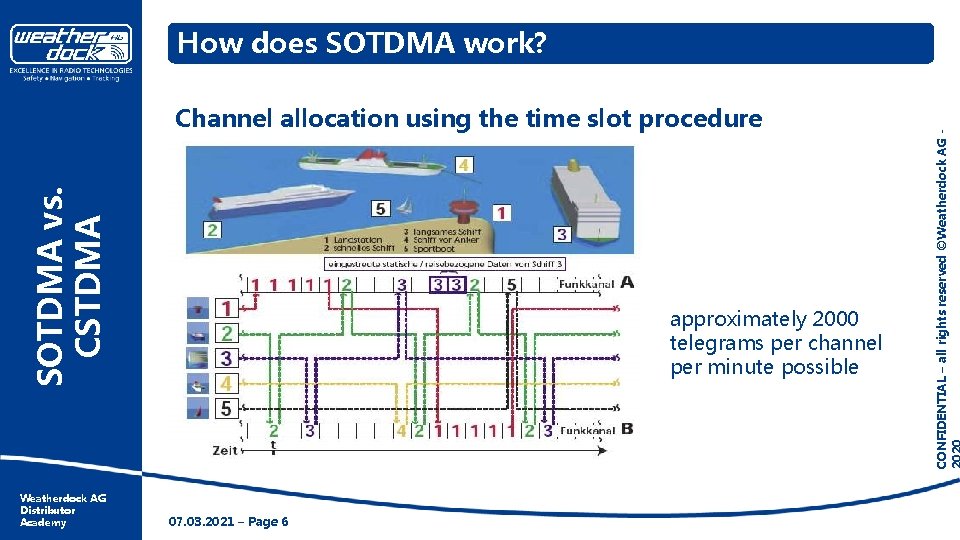

SOTDMA vs. CSTDMA Channel allocation using the time slot procedure Weatherdock AG Distributor Academy approximately 2000 telegrams per channel per minute possible 07. 03. 2021 – Page 6 CONFIDENTIAL – all rights reserved ©Weatherdock AG - How does SOTDMA work?

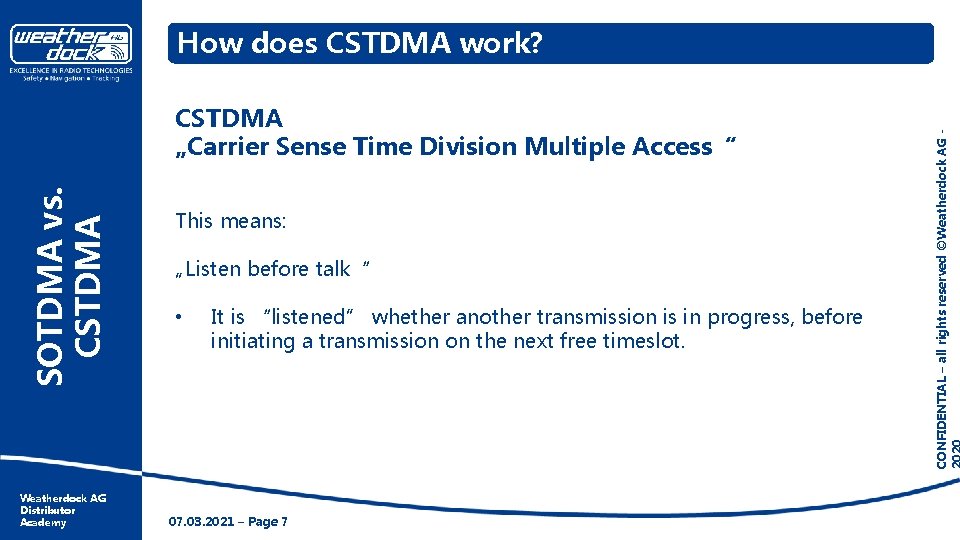

SOTDMA vs. CSTDMA „Carrier Sense Time Division Multiple Access“ Weatherdock AG Distributor Academy This means: „Listen before talk“ • It is “listened” whether another transmission is in progress, before initiating a transmission on the next free timeslot. 07. 03. 2021 – Page 7 CONFIDENTIAL – all rights reserved ©Weatherdock AG - How does CSTDMA work?
