Weather Charts 1 Current Weather Products Observations Surface
Weather Charts 1
Current Weather Products • Observations – Surface Analysis Charts – Constant Pressure Charts – Weather Depiction Charts – Lifted Index Charts – Radar Summary Charts • Forecast Charts – Short Range Surface Prognostic Chart – Low level Significant Weather Prognostic Chart 2

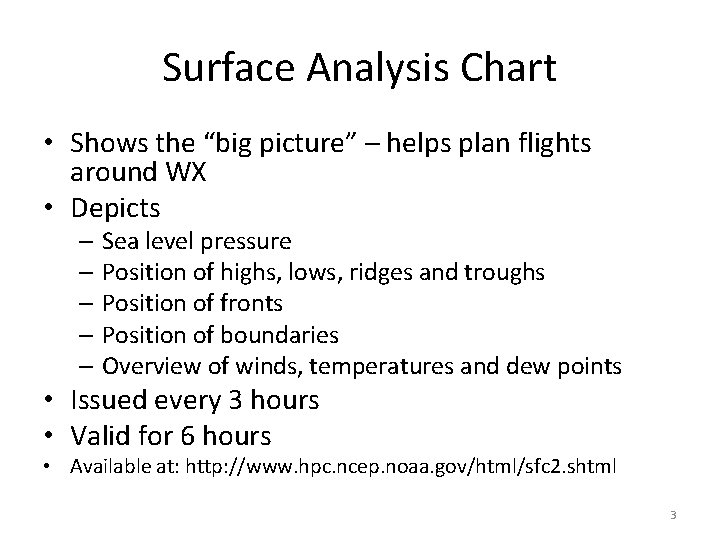

Surface Analysis Chart • Shows the “big picture” – helps plan flights around WX • Depicts – Sea level pressure – Position of highs, lows, ridges and troughs – Position of fronts – Position of boundaries – Overview of winds, temperatures and dew points • Issued every 3 hours • Valid for 6 hours • Available at: http: //www. hpc. ncep. noaa. gov/html/sfc 2. shtml 3

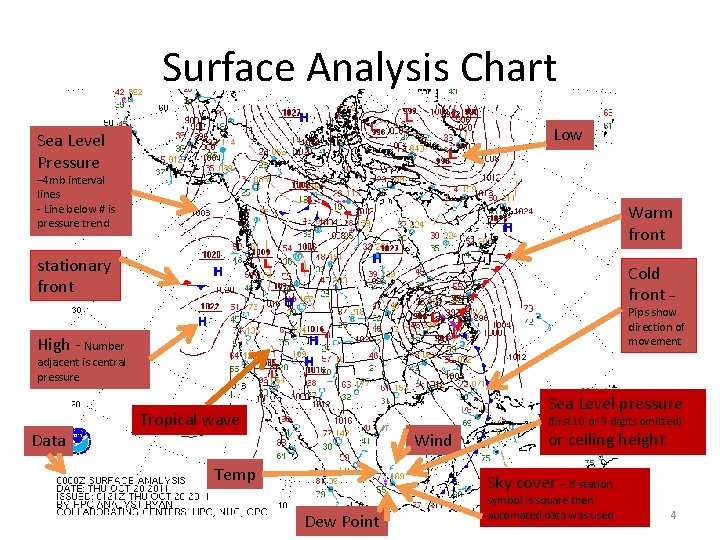

Surface Analysis Chart Low Sea Level Pressure – 4 mb interval lines - Line below # is pressure trend Warm front stationary front Cold front – Pips show direction of movement High - Number adjacent is central pressure Data Sea Level pressure Tropical wave (first 10 or 9 digits omitted) Wind Temp or ceiling height Sky cover – If station Dew Point symbol is square then automated data was used 4
Surface Analysis Chart 5
Surface Analysis Chart 6
Surface Analysis Chart 7
DUATS Surface Analysis Chart 8

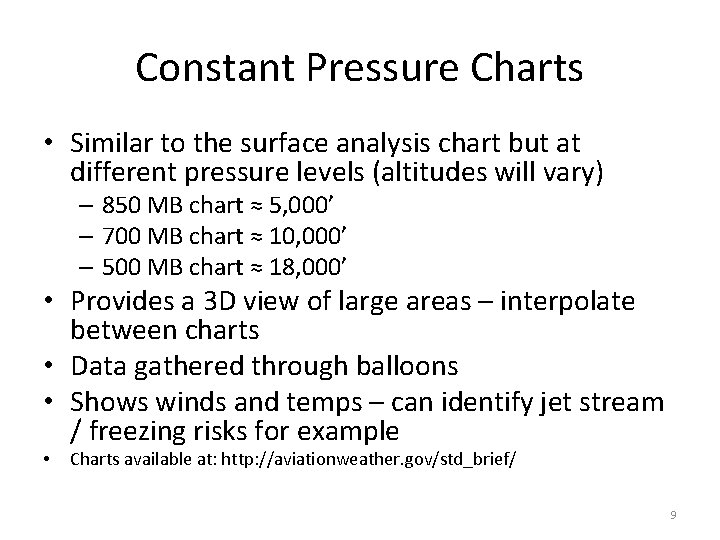

Constant Pressure Charts • Similar to the surface analysis chart but at different pressure levels (altitudes will vary) – 850 MB chart ≈ 5, 000’ – 700 MB chart ≈ 10, 000’ – 500 MB chart ≈ 18, 000’ • Provides a 3 D view of large areas – interpolate between charts • Data gathered through balloons • Shows winds and temps – can identify jet stream / freezing risks for example • Charts available at: http: //aviationweather. gov/std_brief/ 9

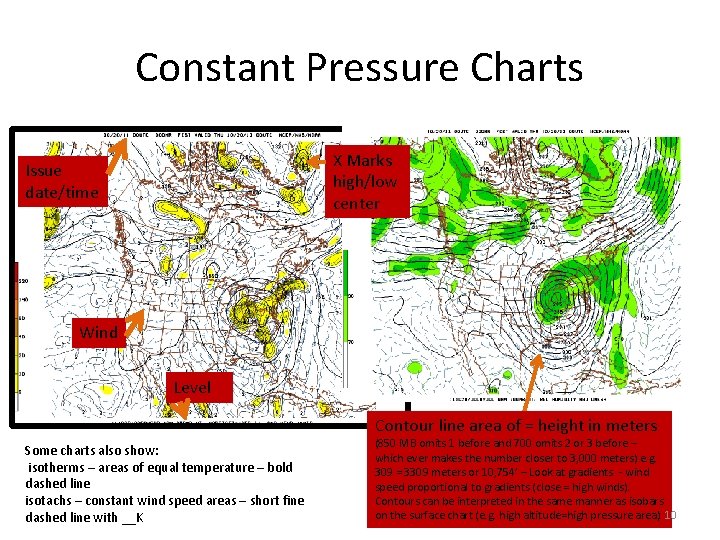

Constant Pressure Charts X Marks high/low center Issue date/time Wind Level Contour line area of = height in meters Some charts also show: isotherms – areas of equal temperature – bold dashed line isotachs – constant wind speed areas – short fine dashed line with __K (850 MB omits 1 before and 700 omits 2 or 3 before – which ever makes the number closer to 3, 000 meters) e. g. 309 = 3309 meters or 10, 754’ – Look at gradients - wind speed proportional to gradients (close = high winds). Contours can be interpreted in the same manner as isobars on the surface chart (e. g. high altitude=high pressure area) 10

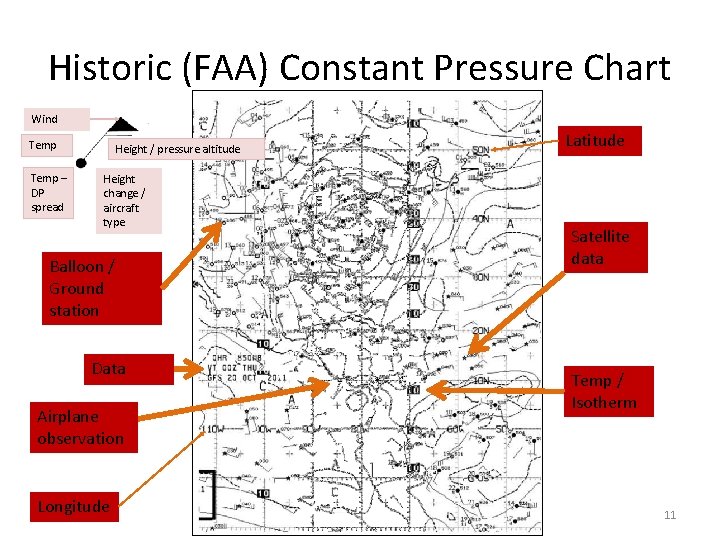

Historic (FAA) Constant Pressure Chart Wind Temp – DP spread Height / pressure altitude Height change / aircraft type Balloon / Ground station Data Airplane observation Longitude Latitude Satellite data Temp / Isotherm 11

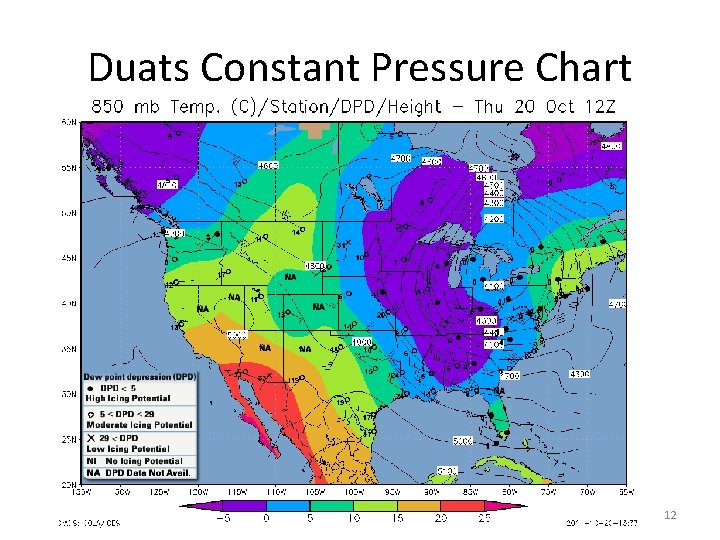

Duats Constant Pressure Chart 12

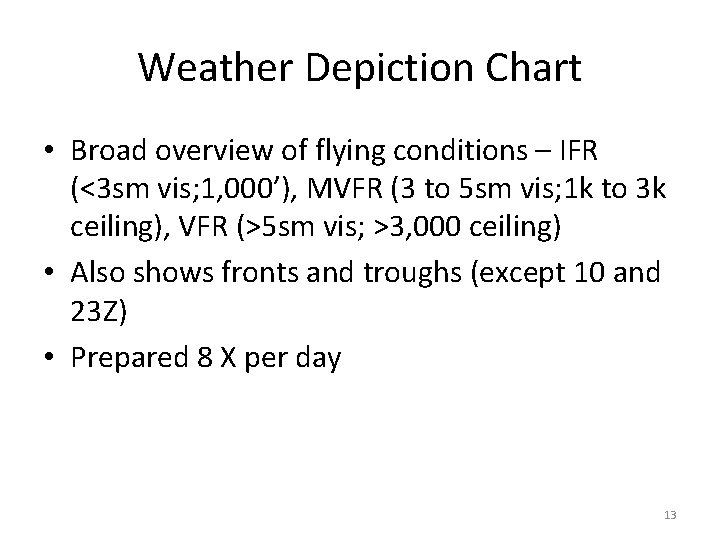

Weather Depiction Chart • Broad overview of flying conditions – IFR (<3 sm vis; 1, 000’), MVFR (3 to 5 sm vis; 1 k to 3 k ceiling), VFR (>5 sm vis; >3, 000 ceiling) • Also shows fronts and troughs (except 10 and 23 Z) • Prepared 8 X per day 13
Weather Depiction Chart IFR MVFR Precipitation / Vis obstructions Data Sky cover AGL cloud height Legend 14
Weather depiction Chart Symbols NB: Symbols are the same as the Surface Analysis Chart 15

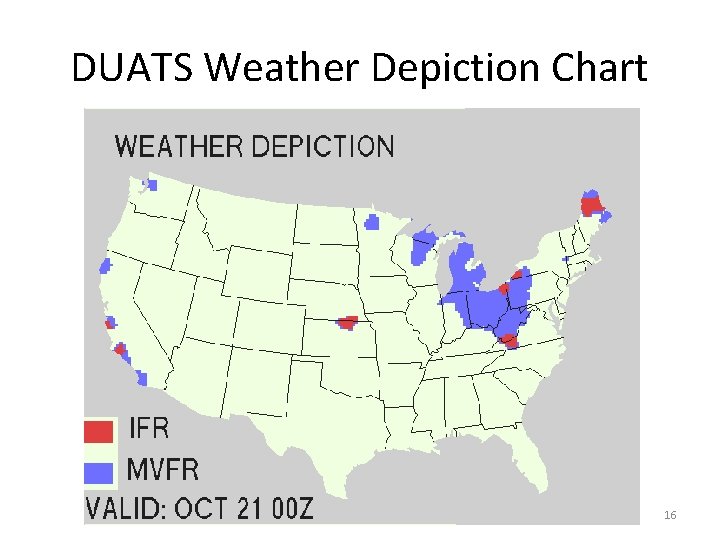

DUATS Weather Depiction Chart 16

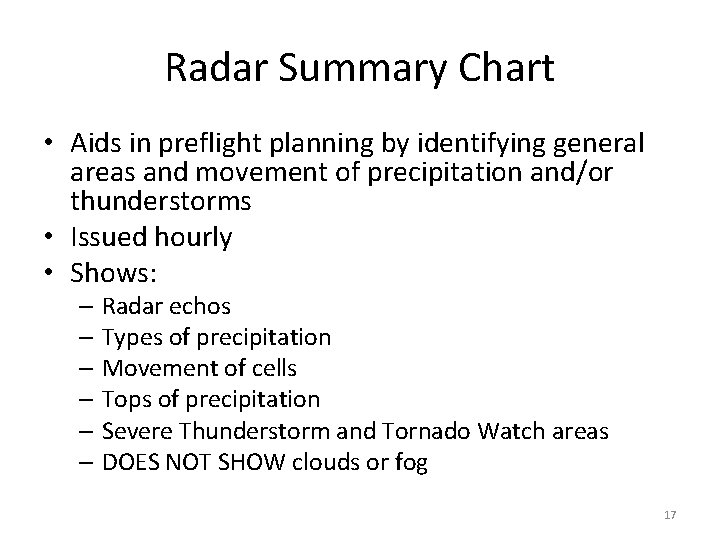

Radar Summary Chart • Aids in preflight planning by identifying general areas and movement of precipitation and/or thunderstorms • Issued hourly • Shows: – Radar echos – Types of precipitation – Movement of cells – Tops of precipitation – Severe Thunderstorm and Tornado Watch areas – DOES NOT SHOW clouds or fog 17

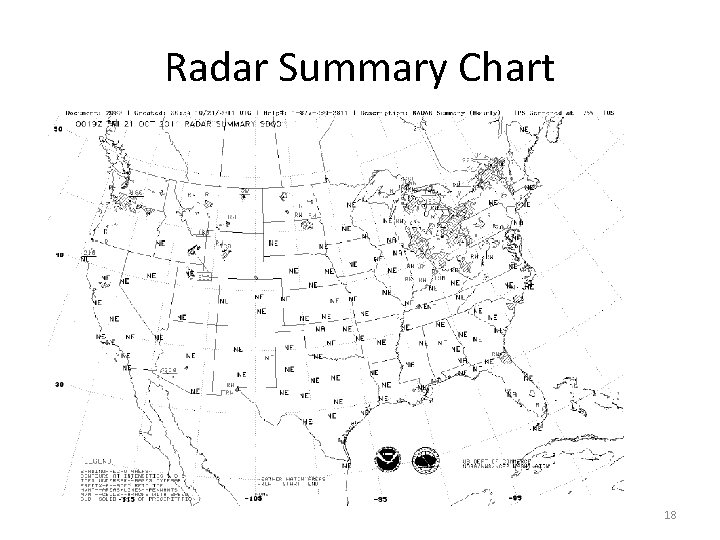

Radar Summary Chart 18
Radar Summary Chart • Individual cell movement is indicated by an arrow with the speed in knots entered as a number at the top of the arrow head. • Highest echo height in the area is shown above a short line, with the top height displayed. • Severe weather watch areas are outlined by heavy dashed lines, usually in the form of a large rectangular box. 19

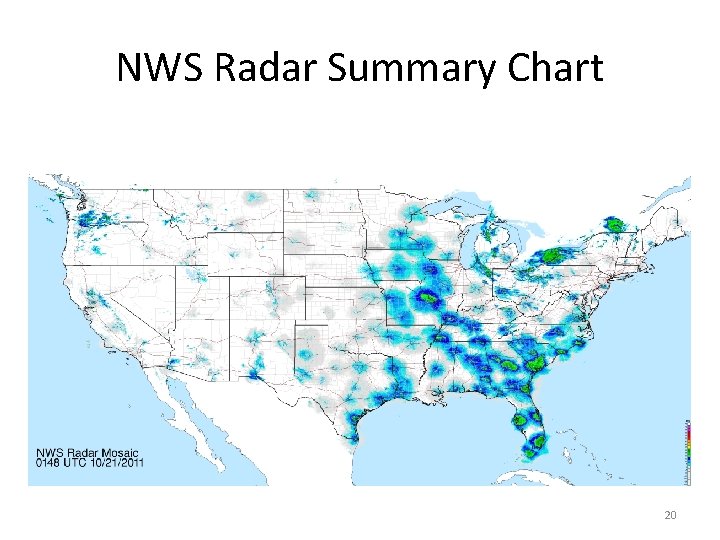

NWS Radar Summary Chart 20
Nexrad Radar 21

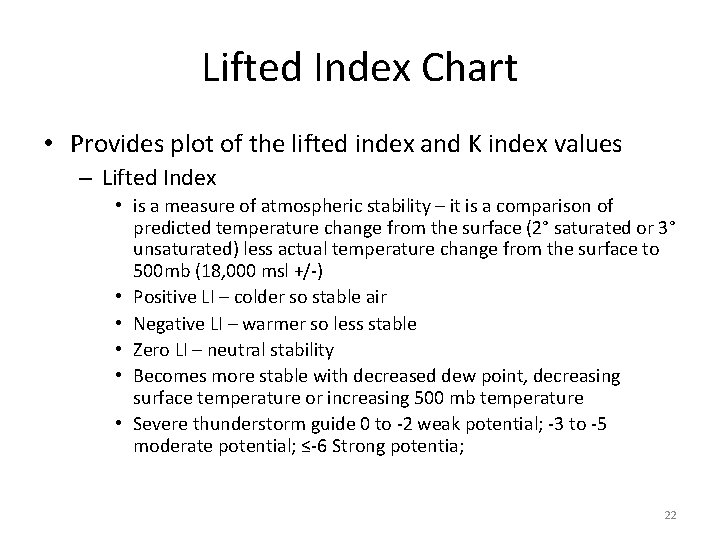

Lifted Index Chart • Provides plot of the lifted index and K index values – Lifted Index • is a measure of atmospheric stability – it is a comparison of predicted temperature change from the surface (2° saturated or 3° unsaturated) less actual temperature change from the surface to 500 mb (18, 000 msl +/-) • Positive LI – colder so stable air • Negative LI – warmer so less stable • Zero LI – neutral stability • Becomes more stable with decreased dew point, decreasing surface temperature or increasing 500 mb temperature • Severe thunderstorm guide 0 to -2 weak potential; -3 to -5 moderate potential; ≤-6 Strong potentia; 22
Lifted Index Chart – K Index – used mostly by meteorologists • During warm season a large Ki indicates conditions favorable for thunderstorms • In winter temperature terms completely dominate K index • Ki < 20 – No chance of thunderstorms • Ki 20 to 25 – Isolated thunderstorms • Ki 26 – 30 – Widely scattered thunderstorms • Ki 31 – 35 – Scattered Thunderstorms • Ki > 35 – Numerous thunderstorms 23

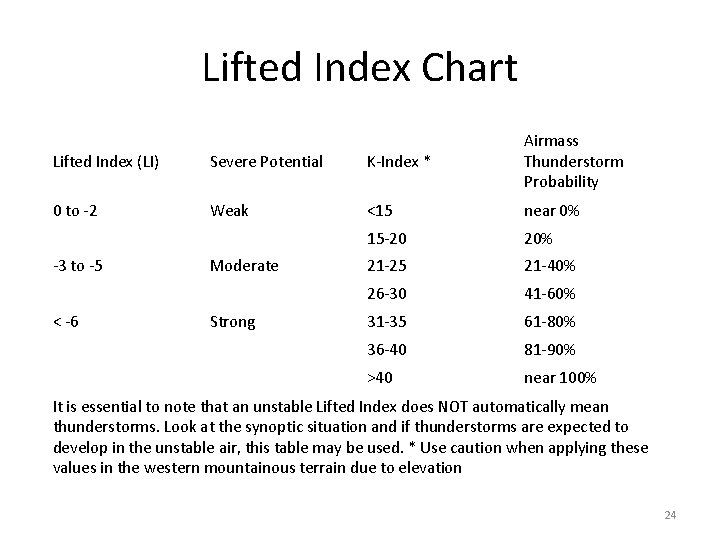

Lifted Index Chart Lifted Index (LI) Severe Potential K-Index * Airmass Thunderstorm Probability 0 to -2 Weak <15 near 0% 15 -20 20% 21 -25 21 -40% 26 -30 41 -60% 31 -35 61 -80% 36 -40 81 -90% >40 near 100% -3 to -5 < -6 Moderate Strong It is essential to note that an unstable Lifted Index does NOT automatically mean thunderstorms. Look at the synoptic situation and if thunderstorms are expected to develop in the unstable air, this table may be used. * Use caution when applying these values in the western mountainous terrain due to elevation 24

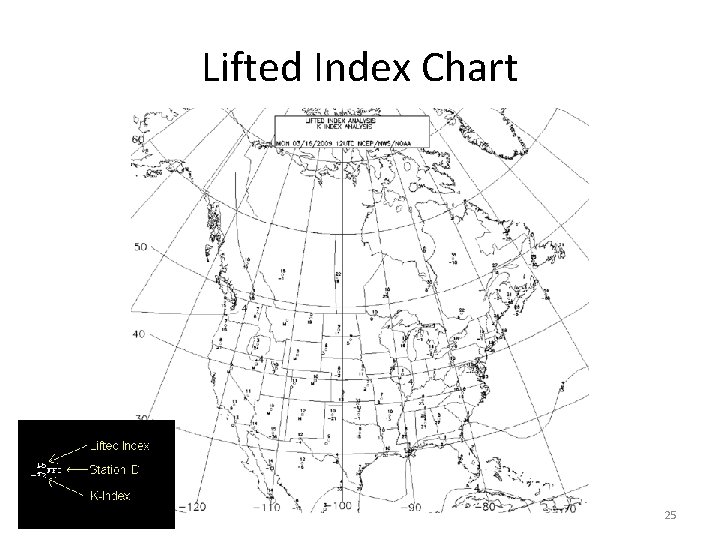

Lifted Index Chart 25

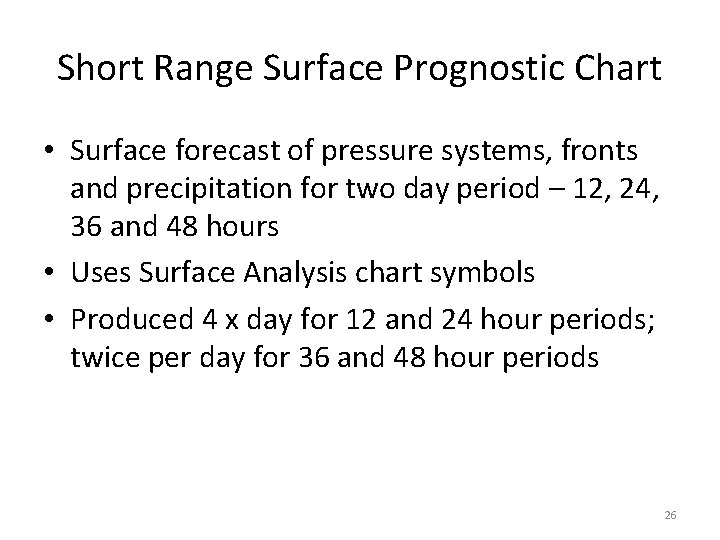

Short Range Surface Prognostic Chart • Surface forecast of pressure systems, fronts and precipitation for two day period – 12, 24, 36 and 48 hours • Uses Surface Analysis chart symbols • Produced 4 x day for 12 and 24 hour periods; twice per day for 36 and 48 hour periods 26

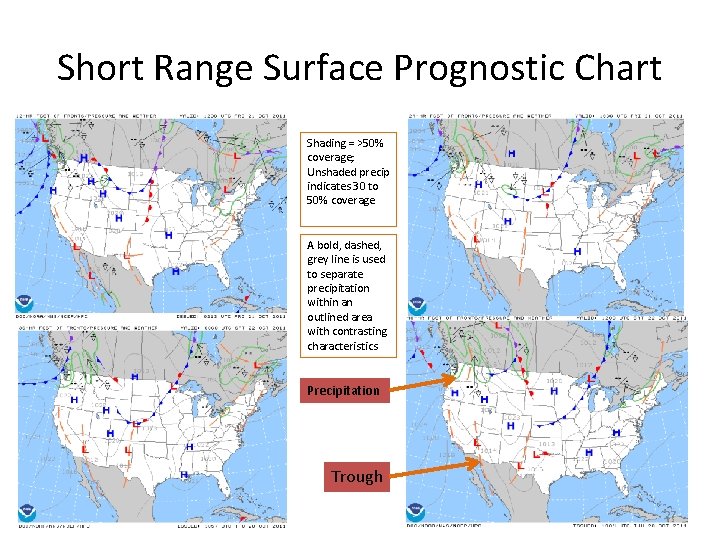

Short Range Surface Prognostic Chart Shading = >50% coverage; Unshaded precip indicates 30 to 50% coverage A bold, dashed, grey line is used to separate precipitation within an outlined area with contrasting characteristics Precipitation Trough 27

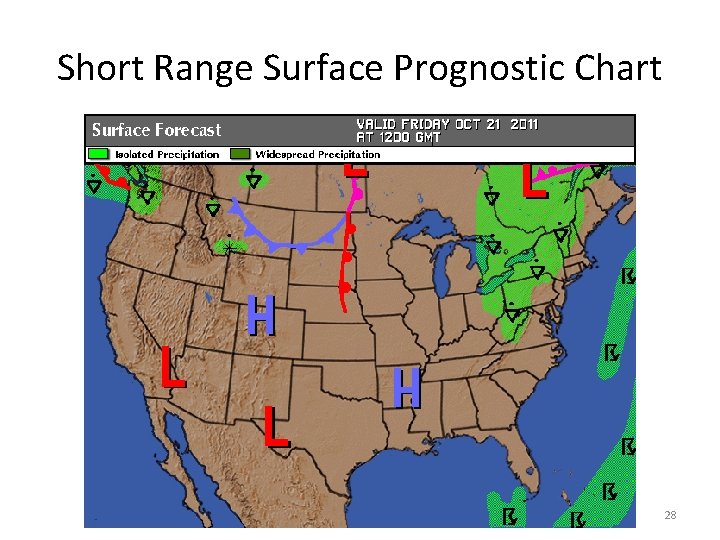

Short Range Surface Prognostic Chart 28
DUATS Low Level Weather Prognostic Chart 29
Low Level Significant Weather Prognostic Chart • Forecast of aviation weather hazards • Preflight use • 3 versions (High level (FL 250 -FL 630); mid level (FL 100 FL 450) and low level (SFC-FL 240)) • 12 and 24 hour panels; additional charts for 30, 36 and 48 hours • Depicts – – • VFR, MVFR and IFR areas (top panel) Freezing levels (top panel) Turbulence (top panel) Fronts and pressure systems (lower panel) Available at: http: //aviationweather. gov/products/swl/ 30
Low Level Significant Weather Prognostic Chart 31
Low Level Significant Weather Prognostic Chart 32
Low Level Significant Weather Prognostic Chart 33

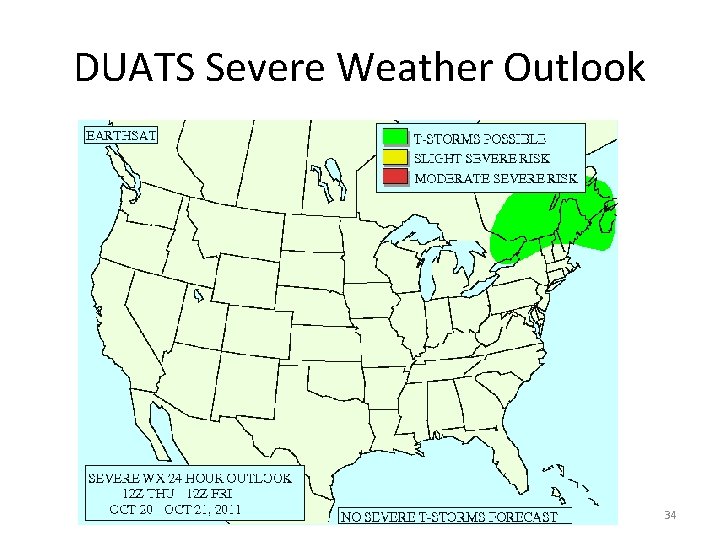

DUATS Severe Weather Outlook 34
DUATS Winds Aloft Forecast Chart 35

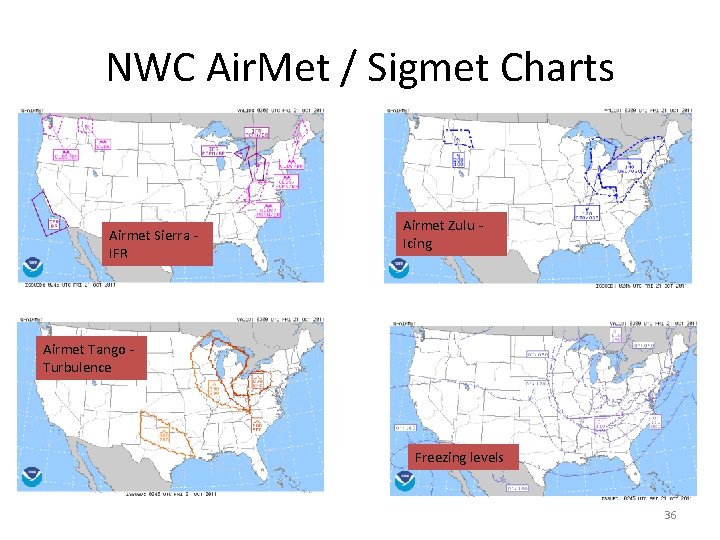

NWC Air. Met / Sigmet Charts Airmet Sierra IFR Airmet Zulu Icing Airmet Tango Turbulence Freezing levels 36
Freezing Level Chart 37

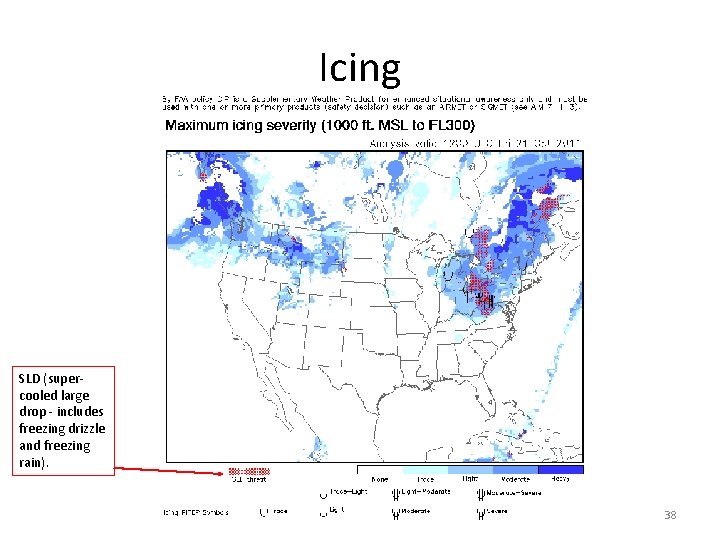

Icing SLD (supercooled large drop - includes freezing drizzle and freezing rain). 38

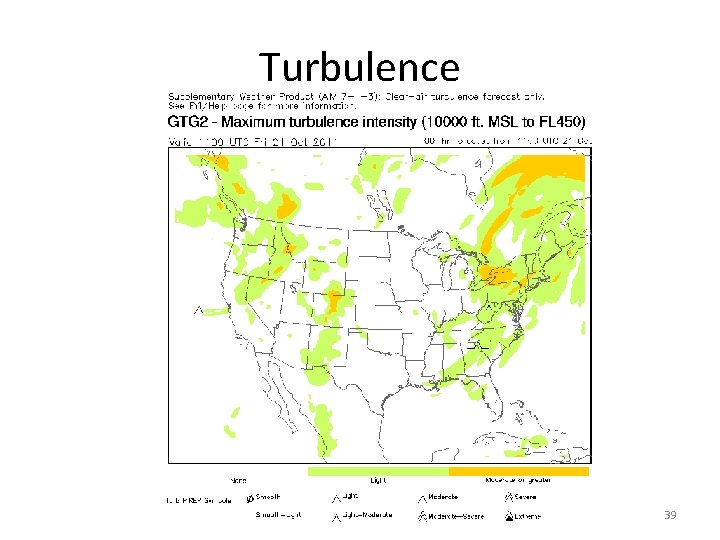

Turbulence 39
Infrared Satellite Chart 40

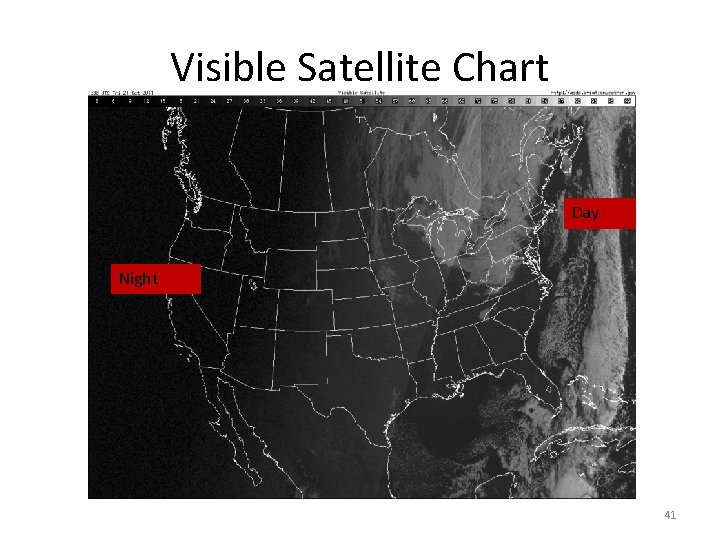

Visible Satellite Chart Day Night 41
QUESTIONS
