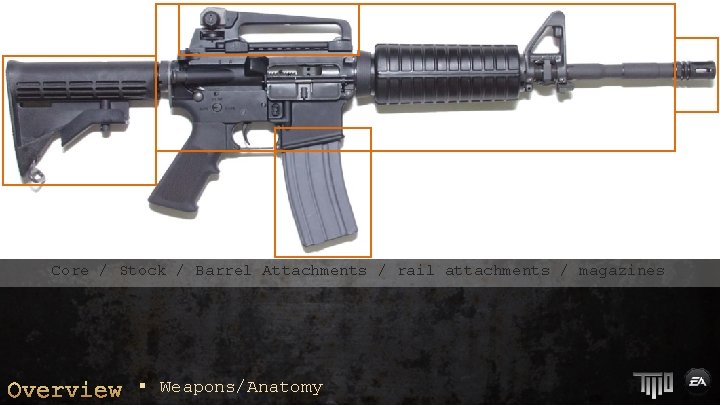

Core / Stock / Barrel Attachments / rail attachments / magazines Overview § Weapons/Anatomy

Core Weapon and Alternate Attachments Overview § Weapons/Anatomy

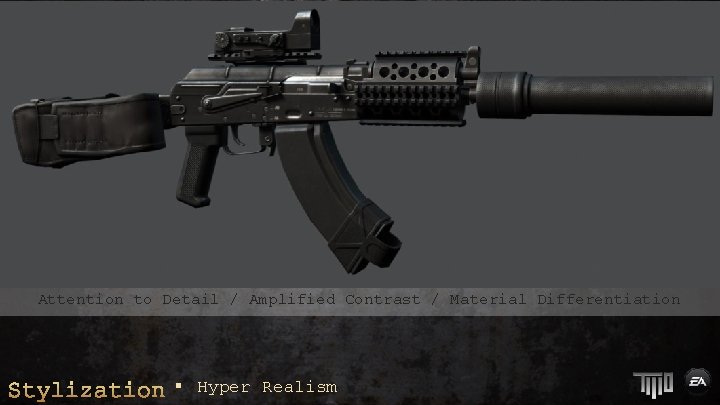

Attention to Detail / Amplified Contrast / Material Differentiation Stylization § Hyper Realism

Attention to Detail / Amplified Contrast / Material Differentiation Stylization § Hyper Realism

Attention to Detail / Amplified Contrast / Material Differentiation Stylization § Hyper Realism

Army of Two Geometry 7944 tris Battlefield 3 6257 tris Medal of Honor 8410 tris

Army of Two Geometry § Battlefield 3 Detail Where it Matters Medal of Honor

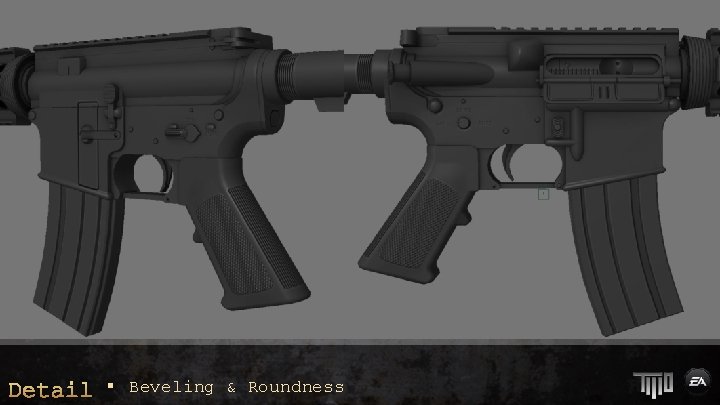

Detail § Beveling & Roundness

Non-Uniform (bad) Texel Density Textures § Texel Density

Uniform (good) Texel Density Textures § Texel Density

Uniform (good) Texel Density Textures § Weapon Skins

Good Wear Textures § Wear and Tear Bad Wear

Wear in areas of contact Textures § Wear and Tear

Wear on leading edges Textures § Wear and Tear

Wear: light surface detail Textures § Wear and Tear

Metal Textures § Materials Plastic Wood

Army of Two Rifle Textures § Contrast

Real-World Rifle Textures § Contrast

Side by Side Comparison Textures § Contrast

Quantity of Pixels Tonal Range Textures § How to read a Histogram

Seams Faceted Polys Quality Control Tiling Bad Texels Mirroring UV Stretching

§ Text and Logos (Brand names, symbols, trade marks) § Trade Dress Modify distinctive features as per Art Direction § File Naming Follow exact names provided by EA (here) Email References Do not Refer to real weapons in emails Legality

General Overview of Weapons and Upgrades Budgets Customization Materials Rigging Sniper Scope Setup Material and Shader Guide References
