WDM 드라이버의 기본 구조 What is WDM? What are Device Objects and Device Stacks?

WDM 드라이버의 기본 구조 What is WDM? What are Device Objects and Device Stacks? Something about Kernel-Mode Driver Components

 • What is Device Object? • Device Object Type • Creating Device Object

• What is Device Object? • Device Object Type • Creating Device Object • Named device object • NT device name • Device extension • Properties • Device access 제어 Driver Components • What is WDM? • Types Device Objects and Device Stacks • Types • Design goal Windows Driver Model Windows 드라이버 소개 Contents • Standard Driver Routine • 필수 루틴 • Driver Object 의 Entry Point • 필수 Dispatch Routine • Unload routine

Types of Windows Drivers • Highest-level drivers always depend on support from underlying lower-level

Types of Windows Drivers • Highest-level drivers always depend on support from underlying lower-level drivers • Intermediate drivers depend on support from underlying lower-level drivers. – Function/filter driver • Lowest-level drivers control an I/O bus to which peripheral devices are connected.

Design Goal for Drivers • Portable • Configurable • Always pre-emptible and always interruptible

Design Goal for Drivers • Portable • Configurable • Always pre-emptible and always interruptible • Multiprocessor-safe • Object-based • Packet-driven I/O with reusable IRPs • Capable of supporting asynchronous I/O

QA

QA

WDM 드라이버 타입 • Bus Driver – Enumerate the device on its bus –

WDM 드라이버 타입 • Bus Driver – Enumerate the device on its bus – Respond to Plug and Play IRPs and power management IRPs – Multiplex access to the bus – Generically administer the devices on its bus • Filter Driver – Add value to or modify the behavior of a device – Optional • Function Driver – Handles reads and writes to the device and manage device power policy

WDM Driver Layer Example

WDM Driver Layer Example

QA

QA

Device Object • OS represents devices by device object • One or more device

Device Object • OS represents devices by device object • One or more device object are associated with each device (n: 1) • Software-only driver still must a device object to represent the target of its operations • System passes an IRP data structure to the driver for the top device object in the device stack

Types of Device Object • Physical Device Object – Represents a device on a

Types of Device Object • Physical Device Object – Represents a device on a bus to a bus driver • Function Device Object – Represents a device to a function driver • Filter Device Object – Represents a device to a filter driver • Each device objects are all of the type DEVICE_OBJECT, DEVICE_OBJECT but are used differently and can have different device extensions

Creating a Device Object • Device Extension is a systemallocated storage area that the

Creating a Device Object • Device Extension is a systemallocated storage area that the driver can use for device-specific storage • Device Type represented by the device object • Characteristic indicate the device characteristics for the device • Exclusive indicate the driver services an exclusive device – WDM drivers must set FALSE • Driver Object point to their driver object in their Driver. Entry routine • Device Name is an optional pointer to a null-terminated Unicode String – Only with non-WDM/Bus drivers

Named Device Objects • Device object can be named or unnamed. • 유저모드 어플리케이션이

Named Device Objects • Device object can be named or unnamed. • 유저모드 어플리케이션이 이름으로 연산 대상을 정하면, 오브젝트 매니저가 이름을 확인하고 I/O 목적지를 정함. (Communication between driver and app) • WDM drivers do not in general require MS-DOS device name but interface

NT Device Name • NT device name은 Device. Name 형식. • WDM Driver –

NT Device Name • NT device name은 Device. Name 형식. • WDM Driver – Bus driver specifies the FILE_AUTOGENERATED_DEVICE_NAME device characteristic when it creates device object. – FDO, Filter DO are not named. • Non-WDM Driver – Must explicitly specify a name. If not, cant accessible from user mode

ex Device Extensions • Driver-defined structure. • Maintain device state information • Provide storage

ex Device Extensions • Driver-defined structure. • Maintain device state information • Provide storage for any kerneldefined objects or other system resources used by the driver • Hold any data the driver must have resident and in system space to carry out its I/O operations

Device Object properties • Type – Ntddk. h/wdm. h에 상수로 define • Characteristics –

Device Object properties • Type – Ntddk. h/wdm. h에 상수로 define • Characteristics – 각 디바이스 오브젝트는 1개 이상의 속성을 가질 수 있음. – FILE_DEVICE_SECURE_OPEN • In the Registry – WDM: can be set each device or a whole device setup class – Non-WDM: can be set for a named device object’s device setup class

Controlling Device Access • Can be specified when the device object is created, or

Controlling Device Access • Can be specified when the device object is created, or set in the registry • WDM: when create device object, Pn. P manager determines a security descriptor for the device – Set by Registry VS default security descriptor • WDM(Bus Driver): – Must provide security descriptor for PDO opened in raw mode. • Non-WDM: – Must specify default security descriptor and class GUID for named device object.

QA

QA

Standard Driver Routines • Required – – Driver. Entry: initialize the driver and driver

Standard Driver Routines • Required – – Driver. Entry: initialize the driver and driver its object Add. Device: initialize devices and creates device objects Dispatch Routine: receive and process IRPs Unload: release system resources acquired by driver – – – – Reinitialize: Driver. Entry가 초기화를 마무리 못했다면, 마무리 Start. Io: start I/O on a physical device Interrupt Service Routine: save device state when interrupted Synch. Crit. Section: synchronizes access to driver data Io. Completion: completes driver’s processing of an IRP Cancel: cancel driver’s processing of an IRP. . . And more. . . • Optional

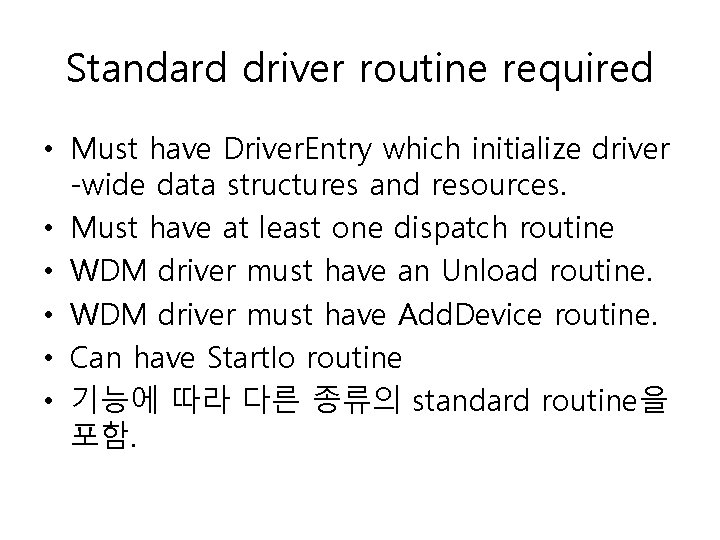

Standard driver routine required • Must have Driver. Entry which initialize driver -wide data

Standard driver routine required • Must have Driver. Entry which initialize driver -wide data structures and resources. • Must have at least one dispatch routine • WDM driver must have an Unload routine. • WDM driver must have Add. Device routine. • Can have Start. Io routine • 기능에 따라 다른 종류의 standard routine을 포함.

Driver Object • I/O manager creates a driver object for each driver • Driver

Driver Object • I/O manager creates a driver object for each driver • Driver object contains storage for entry points to many of a driver’s standard routines. • Driver. Entry routine supplies the address of the driver’s driver object

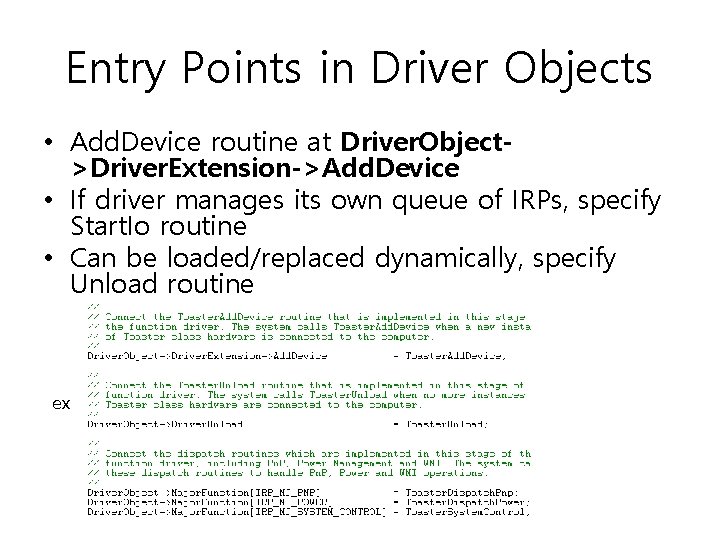

Entry Points in Driver Objects • Add. Device routine at Driver. Object>Driver. Extension->Add. Device

Entry Points in Driver Objects • Add. Device routine at Driver. Object>Driver. Extension->Add. Device • If driver manages its own queue of IRPs, specify Start. Io routine • Can be loaded/replaced dynamically, specify Unload routine ex

Required Dispatch Routines ex • Dispatch. Pn. P: IRP_MJ_PNP • Dispatch. Power: IRP_MJ_ROUTINE •

Required Dispatch Routines ex • Dispatch. Pn. P: IRP_MJ_PNP • Dispatch. Power: IRP_MJ_ROUTINE • Dispatch. Create: IRP_MJ_CREATE • Dispatch. Close: IRP_MJ_CLOSE • Dispatch. Read: IRP_MJ_READ • Dispatch. Write: IRP_MJ_WRITE • Dispatch. Device. Control: IRP_MJ_DEVICE_CONTROL • Dispatch. Internal. Device. Control: IRP_MJ_INTERNAL_DEVICE_CONTROL • Dispatch. System. Control: IRP_MJ_SYSTEM_CONTROL – Request Pn. P device recognition, hardware configuration, resource allocation – Request pertaining to the power state of either their device or the system – Last handle of the file object that was associated the target device object has been closed and released. – Transfer data from the underlying physical device to the system. – Transfer data from the system to the underlying physical device – Used to specify WMI requests to drivers

Unload routine environment • Pn. P manager calls Unload routine if driver has no

Unload routine environment • Pn. P manager calls Unload routine if driver has no more device objects after driver handles an IRP_MN_REMOVE_DEVICE request • Start of unloading sequence, driver object and its device objects as “unload pending”. • While “unload pending”, no additional driver attach and no IRPs to the driver

Unload Routine • Pn. P Driver: – In general, unloading process is a synchronous

Unload Routine • Pn. P Driver: – In general, unloading process is a synchronous – If driver allocated driver-wide resources, it must deallocate in Unload routine unless it has already done so. • Non-Pn. P Driver: – Must release resources, delete device objects, and detach from the device stack in Unload routine. If not, ISR might be calld to handle a device interrupt while the Unload routine is releasing resources. – After disabling interrupt, file system/legacy driver release resources and objects.
