Wayne Bexton Head of Energy Services Project Overview

Wayne Bexton – Head of Energy Services

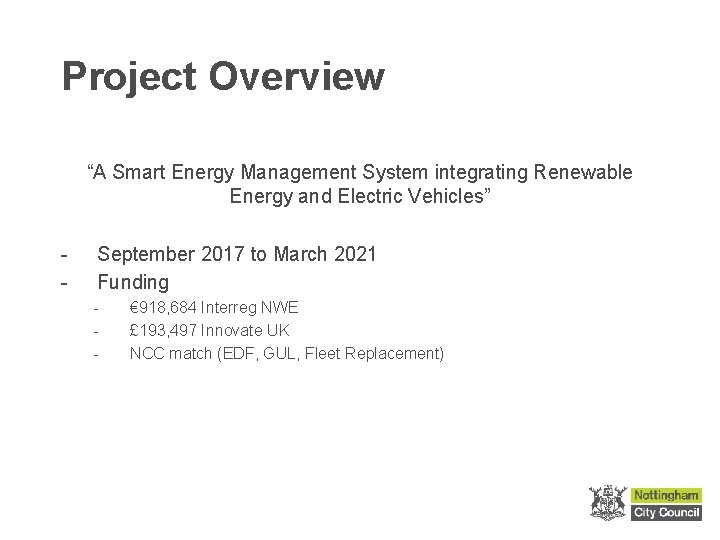

Project Overview “A Smart Energy Management System integrating Renewable Energy and Electric Vehicles” - September 2017 to March 2021 Funding - € 918, 684 Interreg NWE £ 193, 497 Innovate UK NCC match (EDF, GUL, Fleet Replacement)

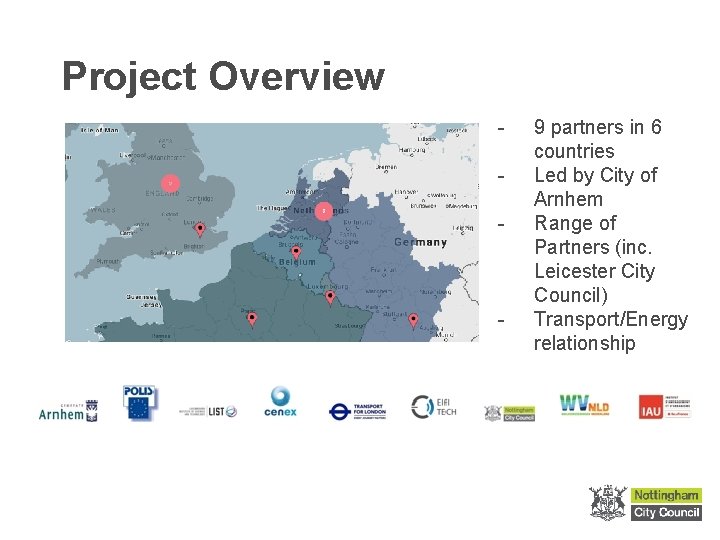

Project Overview - - 9 partners in 6 countries Led by City of Arnhem Range of Partners (inc. Leicester City Council) Transport/Energy relationship

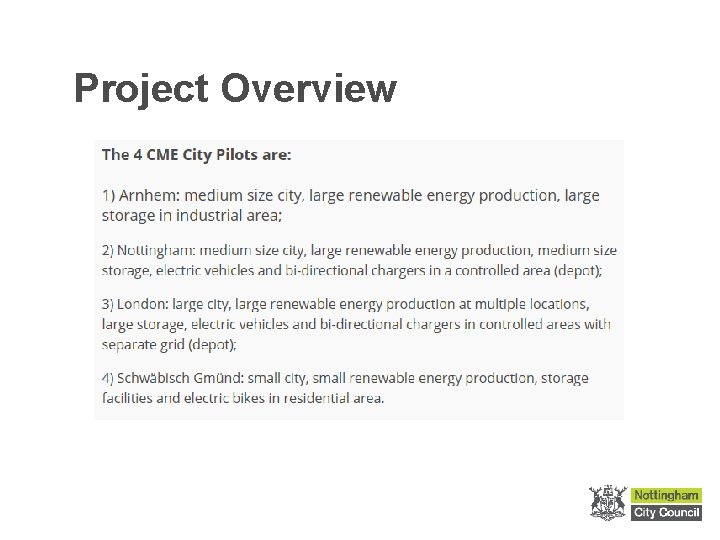

Project Overview

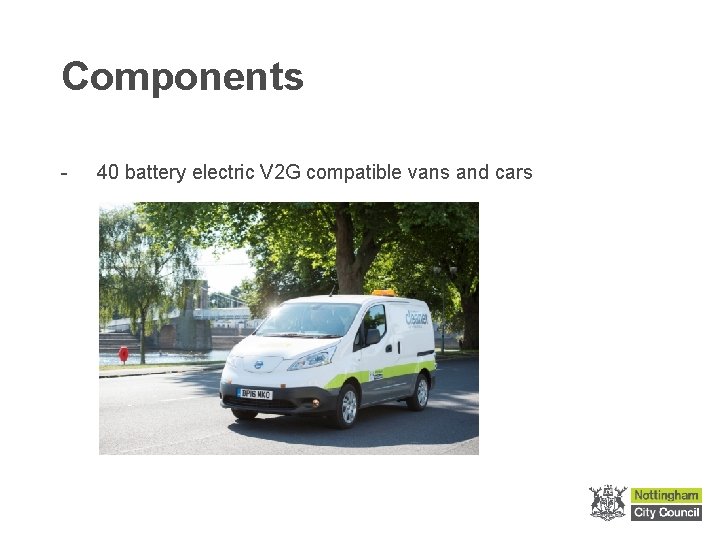

Components - 40 battery electric V 2 G compatible vans and cars

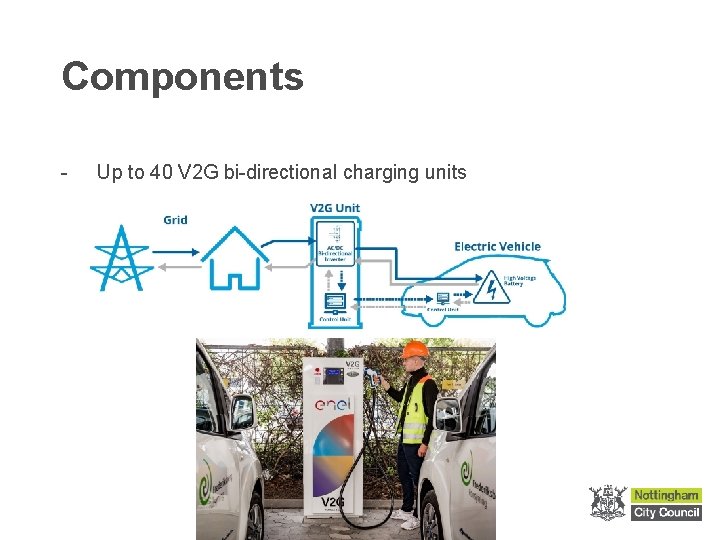

Components - Up to 40 V 2 G bi-directional charging units

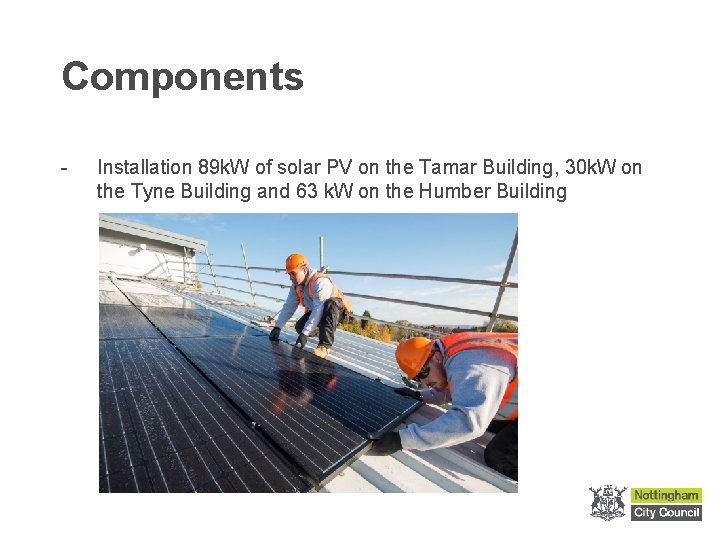

Components - Installation 89 k. W of solar PV on the Tamar Building, 30 k. W on the Tyne Building and 63 k. W on the Humber Building

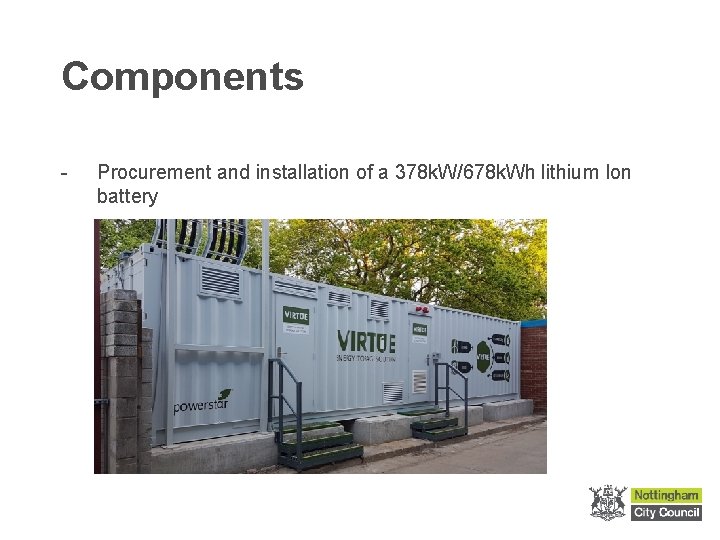

Components - Procurement and installation of a 378 k. W/678 k. Wh lithium Ion battery

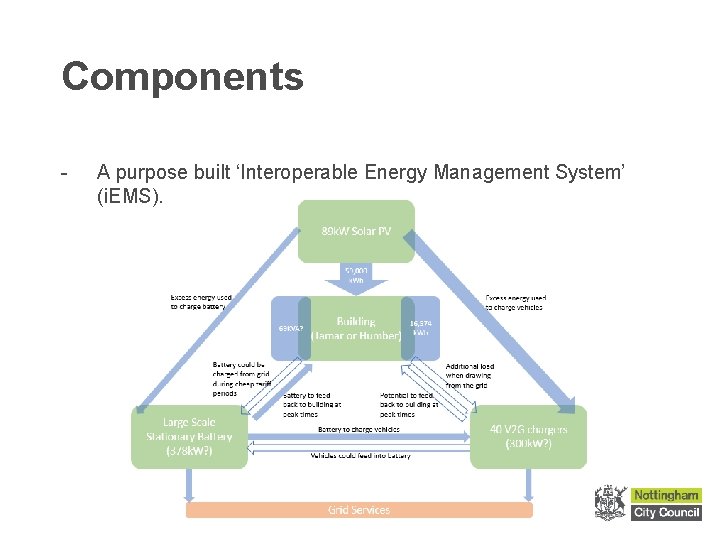

Components - A purpose built ‘Interoperable Energy Management System’ (i. EMS).

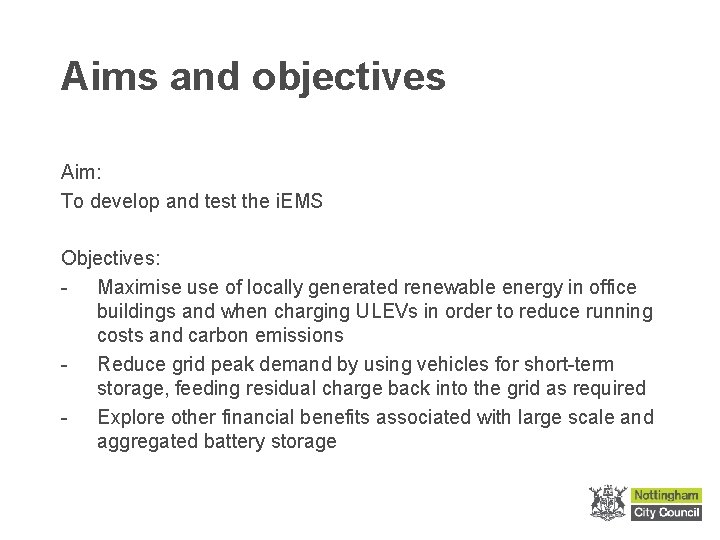

Aims and objectives Aim: To develop and test the i. EMS Objectives: - Maximise use of locally generated renewable energy in office buildings and when charging ULEVs in order to reduce running costs and carbon emissions - Reduce grid peak demand by using vehicles for short-term storage, feeding residual charge back into the grid as required - Explore other financial benefits associated with large scale and aggregated battery storage

Aims and objectives Objectives 1. - Maximise use of renewable energy generation, no export to grid Supply building with RE Charge vehicles with RE Store any excess RE in stationary battery for later use (least efficient option, 83%? ) 2. Reduce energy bills -Avoid DUo. S, TNUo. S, Capacity Mechanism charges (4 -7 pm) -If RE not available, make use of “cheap” night tariff 3. Generate revenue -Use an aggregator to access Capacity Mechanism/STOR/FFR/Demand turn up contracts

Any Questions?
