Wavelets: theory and applications An introduction GTDIR Grupo de Investigación: Tratamiento Digital de Imágenes Radiológicas Enrique Nava, University of Málaga (Spain) Brasov, July 2006

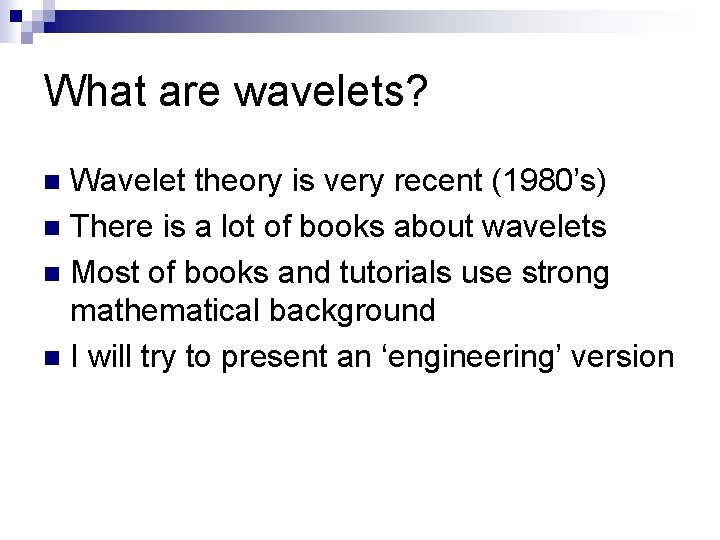

What are wavelets? Wavelet theory is very recent (1980’s) n There is a lot of books about wavelets n Most of books and tutorials use strong mathematical background n I will try to present an ‘engineering’ version n

Overview n n Spectral analysis Continuous Wavelet Transform Discrete Wavelet Transform Applications A wavelet tour of signal processing, S. Mallat, Academic Press 1998

Spectral analysis: frequency n n n Frequency (f) is the inverse of a period (T). A signal is periodic if T>0 and We need to know only information for 1 period Any signal (finite length) can be periodized. A signal is regular if the signal values and derivatives are equal at the left and right side of the interval (period)

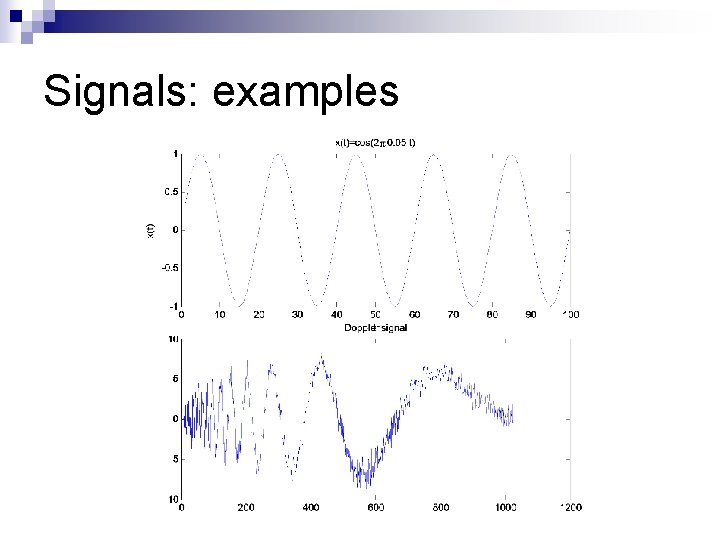

Signals: examples

Signals: examples

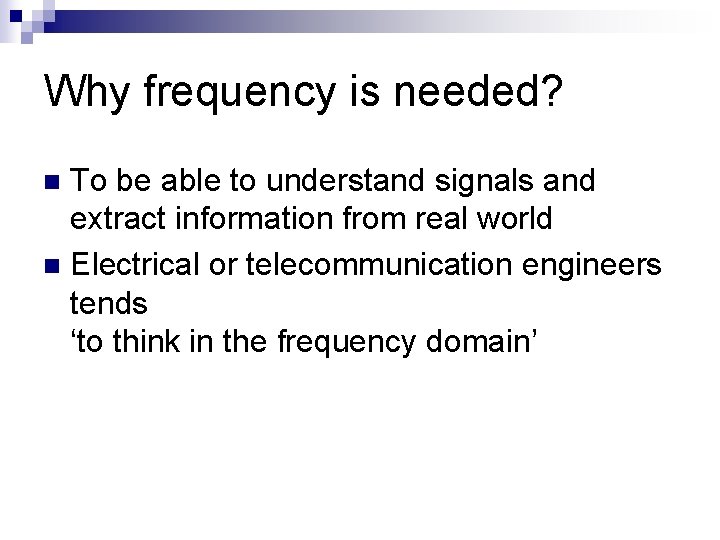

Why frequency is needed? To be able to understand signals and extract information from real world n Electrical or telecommunication engineers tends ‘to think in the frequency domain’ n

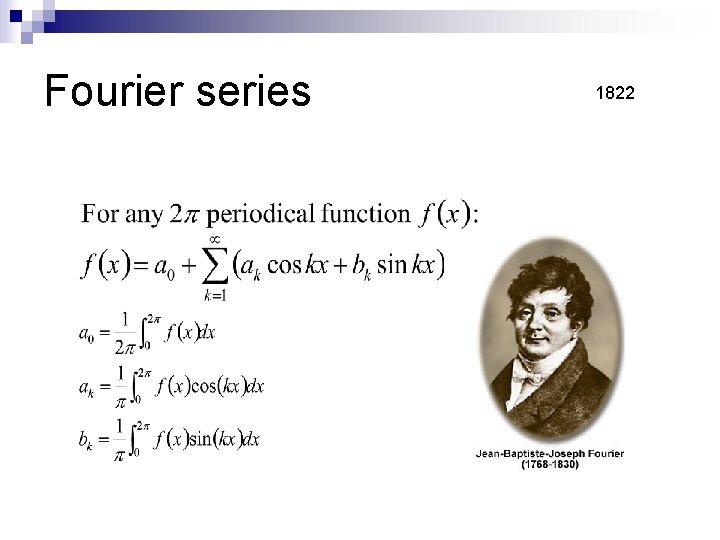

Fourier series 1822

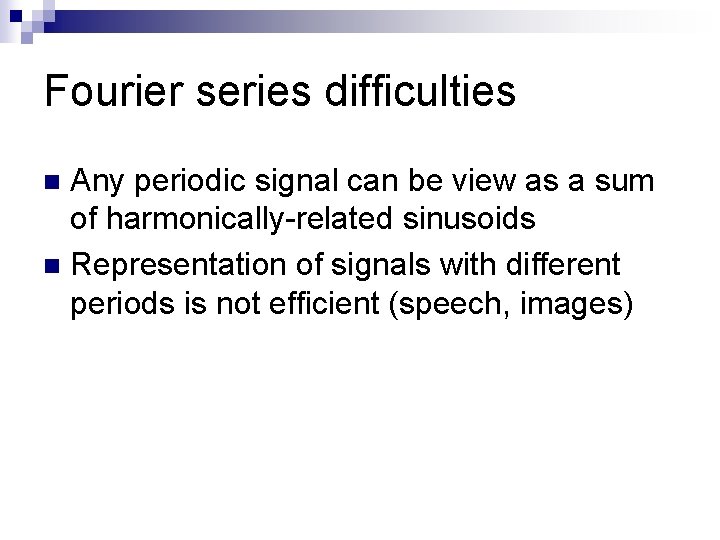

Fourier series difficulties Any periodic signal can be view as a sum of harmonically-related sinusoids n Representation of signals with different periods is not efficient (speech, images) n

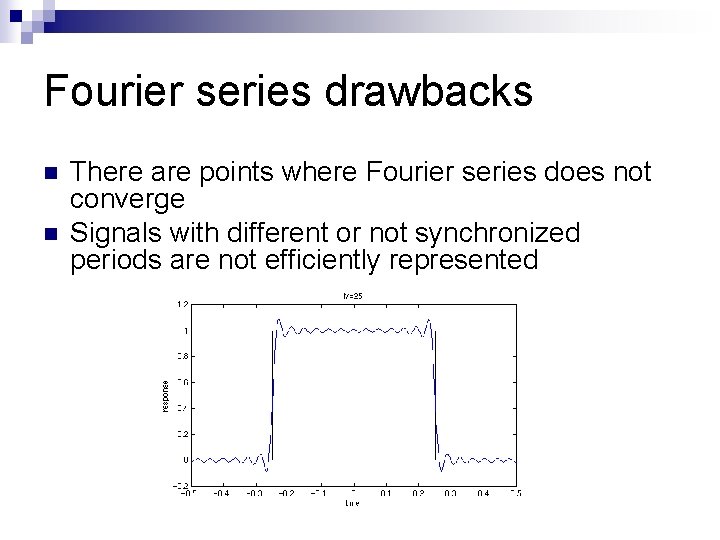

Fourier series drawbacks n n There are points where Fourier series does not converge Signals with different or not synchronized periods are not efficiently represented

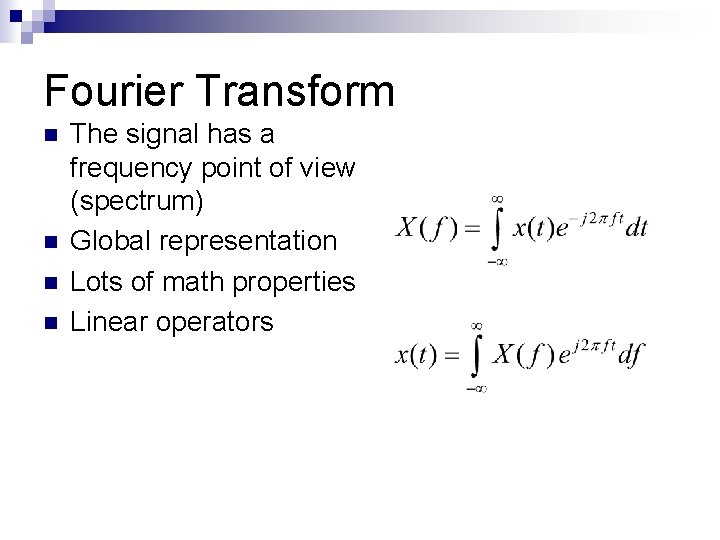

Fourier Transform n n The signal has a frequency point of view (spectrum) Global representation Lots of math properties Linear operators

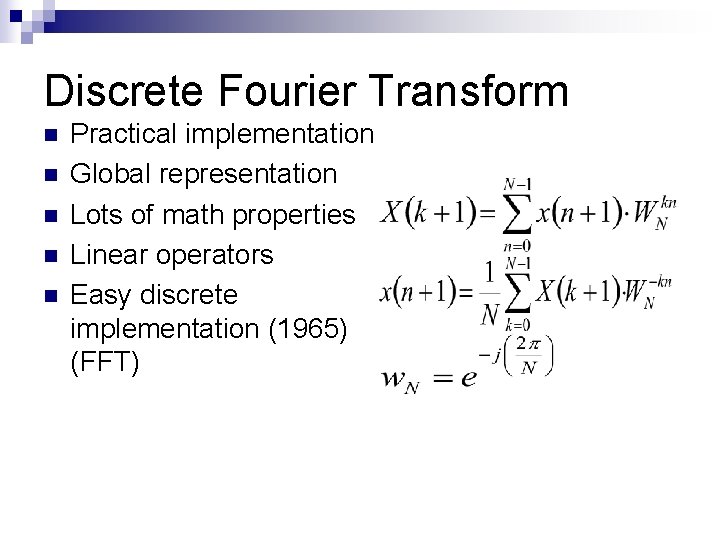

Discrete Fourier Transform n n n Practical implementation Global representation Lots of math properties Linear operators Easy discrete implementation (1965) (FFT)

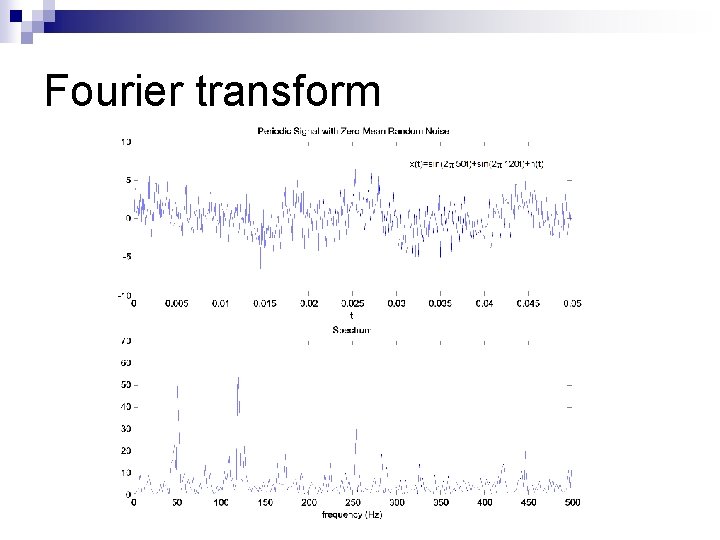

Fourier transform

Random signals n Stationary signals: ¨ Statistics don’t change with time ¨ Frequency contents don’t change with time ¨ Information doesn’t change with time n Non-stationary signals: ¨ Statistics change with time ¨ Frequencies change with time ¨ Information quantity increases

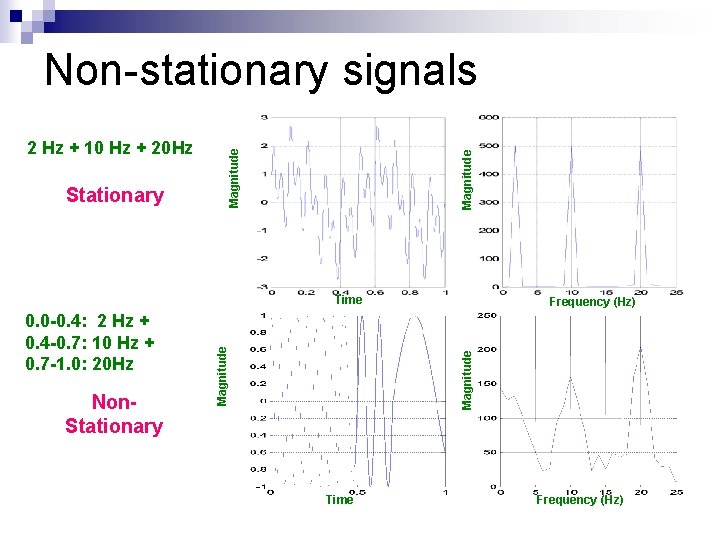

Stationary Magnitude 2 Hz + 10 Hz + 20 Hz Magnitude Non-stationary signals Non. Stationary Frequency (Hz) Magnitude 0. 0 -0. 4: 2 Hz + 0. 4 -0. 7: 10 Hz + 0. 7 -1. 0: 20 Hz Magnitude Time Frequency (Hz)

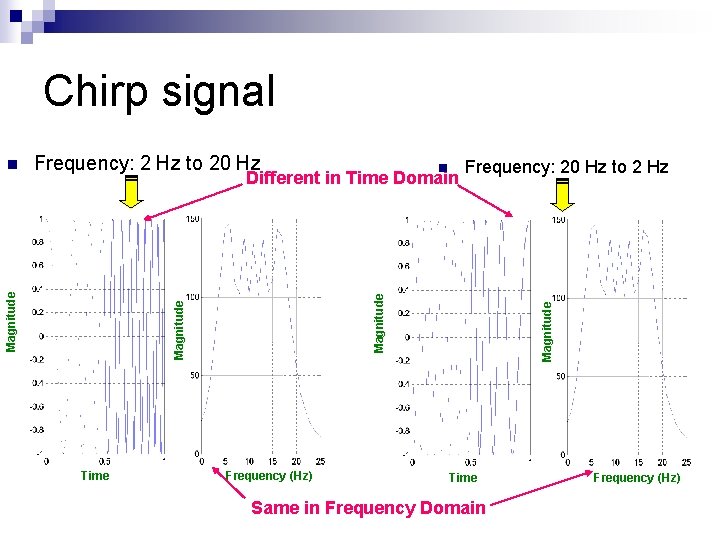

Chirp signal Frequency: 2 Hz to 20 Hz n Frequency (Hz) Magnitude Time Frequency: 20 Hz to 2 Hz Magnitude Different in Time Domain Magnitude n Time Same in Frequency Domain Frequency (Hz)

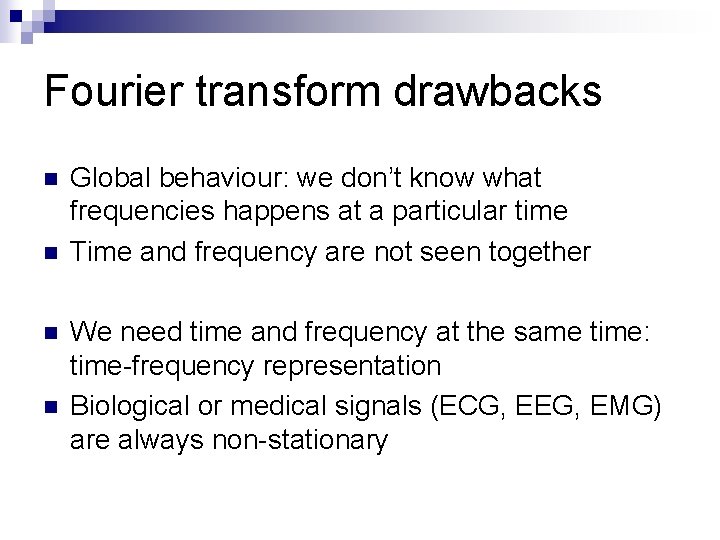

Fourier transform drawbacks n n Global behaviour: we don’t know what frequencies happens at a particular time Time and frequency are not seen together We need time and frequency at the same time: time-frequency representation Biological or medical signals (ECG, EEG, EMG) are always non-stationary

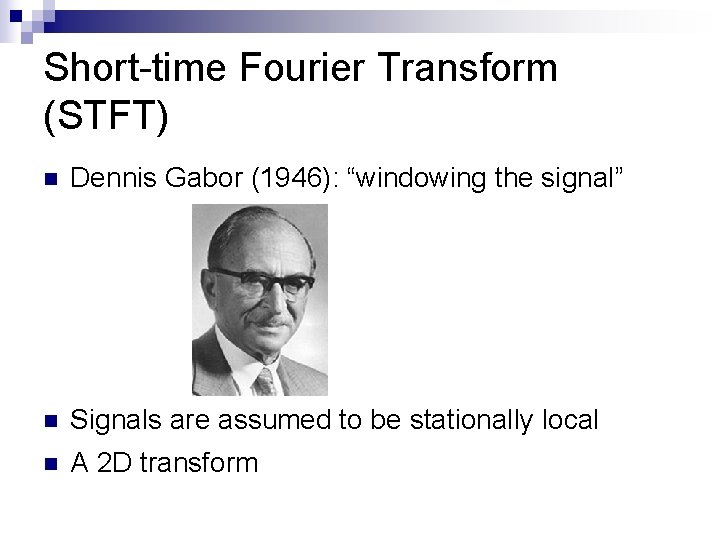

Short-time Fourier Transform (STFT) n Dennis Gabor (1946): “windowing the signal” n Signals are assumed to be stationally local n A 2 D transform

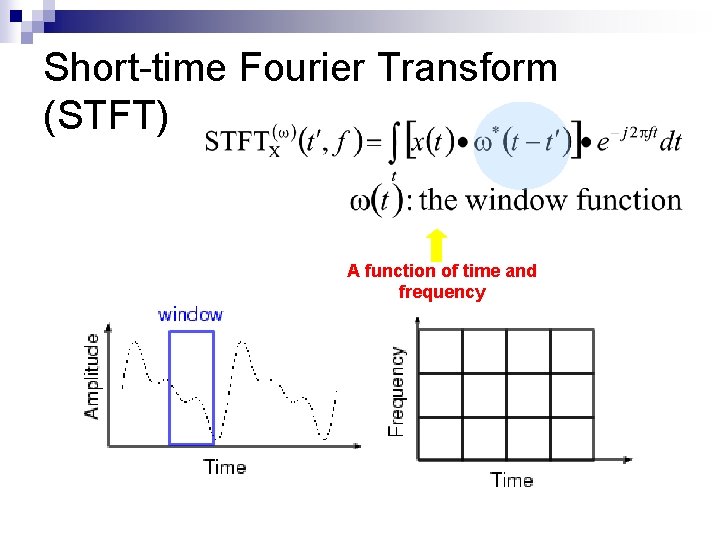

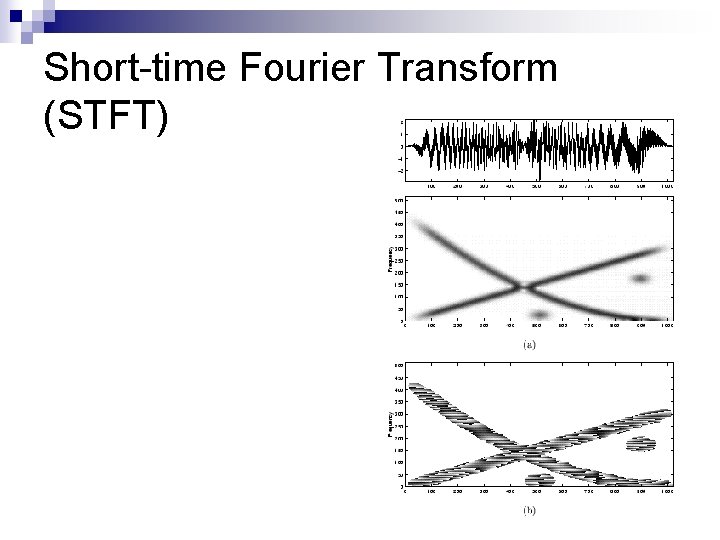

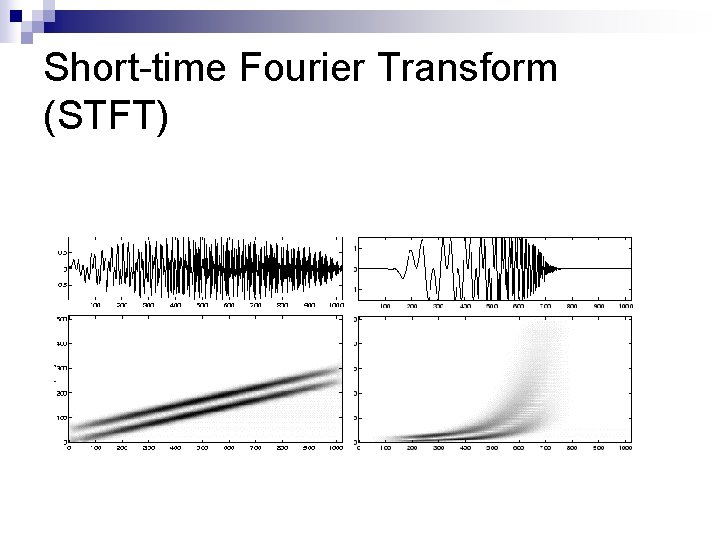

Short-time Fourier Transform (STFT) A function of time and frequency

Short-time Fourier Transform (STFT)

Short-time Fourier Transform (STFT)

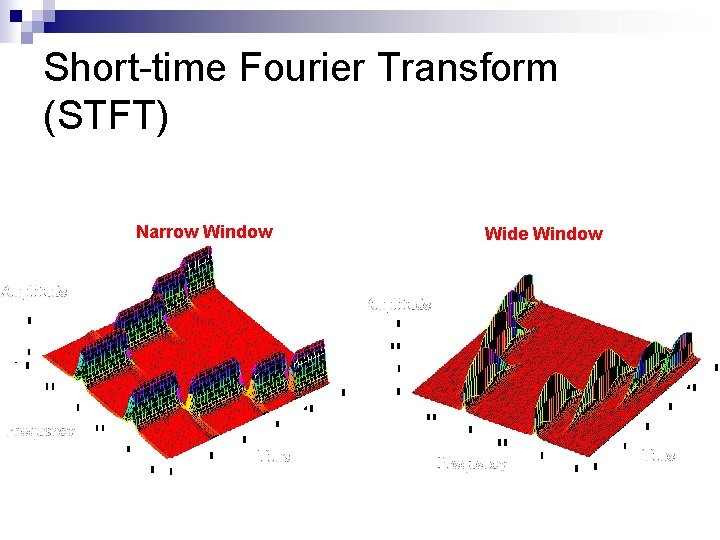

Short-time Fourier Transform (STFT) Narrow Window Wide Window

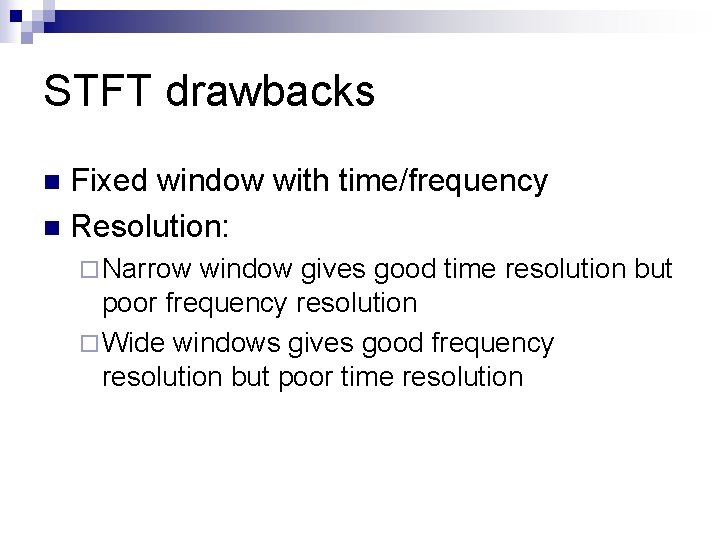

STFT drawbacks Fixed window with time/frequency n Resolution: n ¨ Narrow window gives good time resolution but poor frequency resolution ¨ Wide windows gives good frequency resolution but poor time resolution

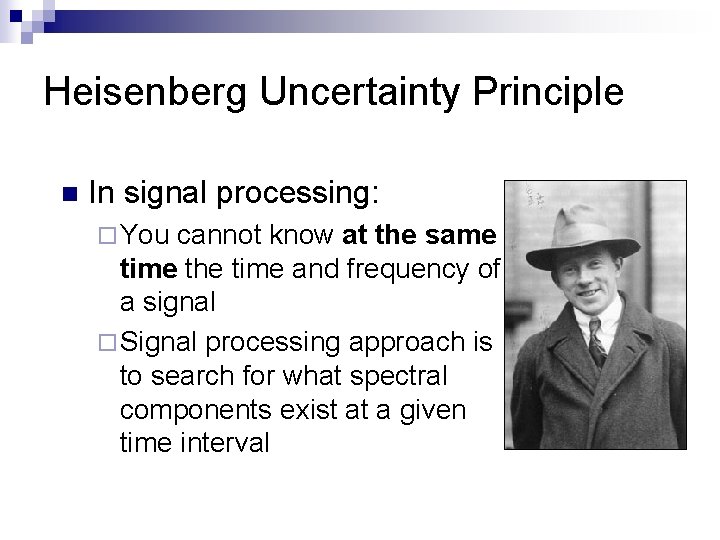

Heisenberg Uncertainty Principle n In signal processing: ¨ You cannot know at the same time the time and frequency of a signal ¨ Signal processing approach is to search for what spectral components exist at a given time interval

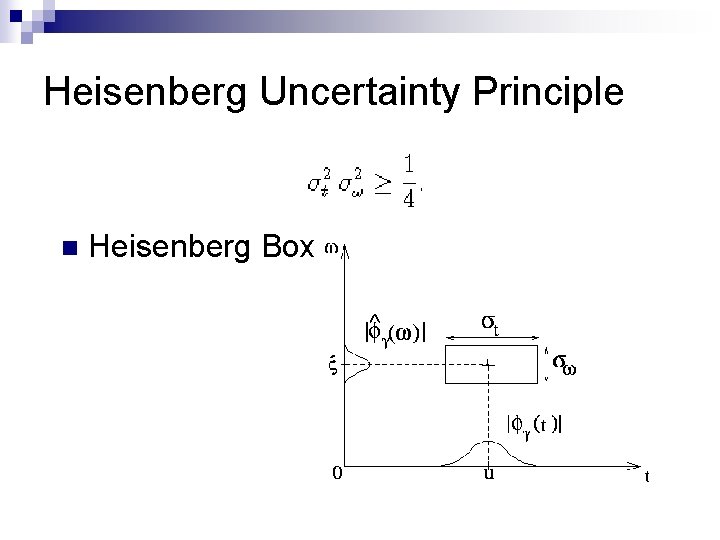

Heisenberg Uncertainty Principle n Heisenberg Box

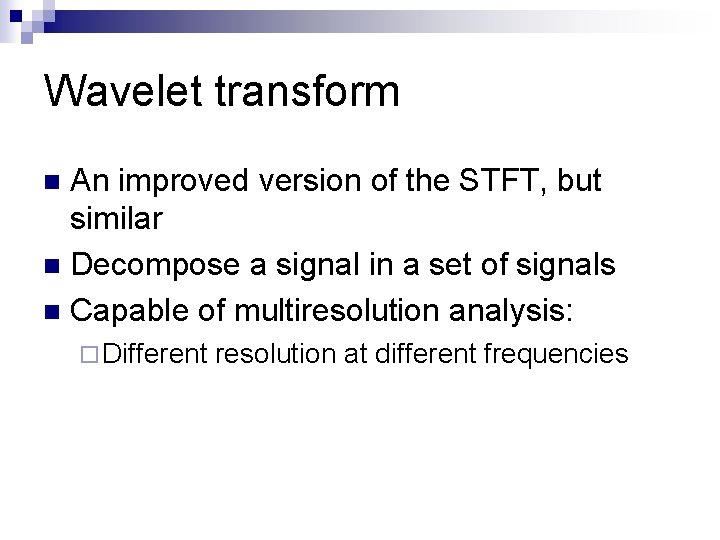

Wavelet transform An improved version of the STFT, but similar n Decompose a signal in a set of signals n Capable of multiresolution analysis: n ¨ Different resolution at different frequencies

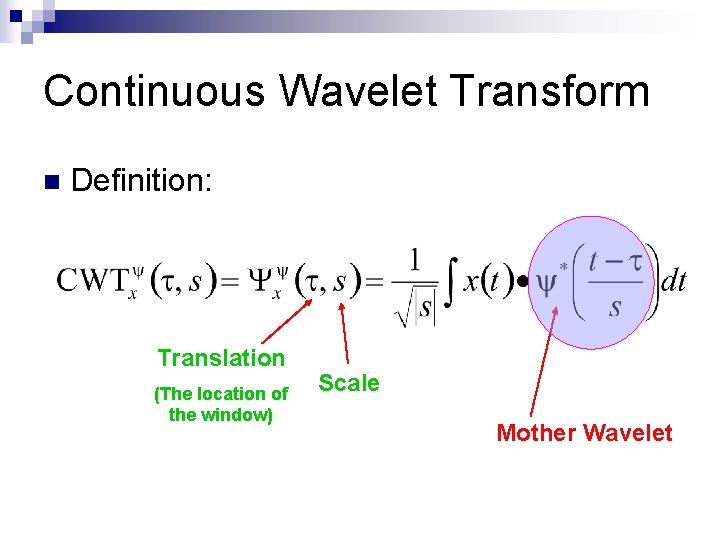

Continuous Wavelet Transform n Definition: Translation (The location of the window) Scale Mother Wavelet

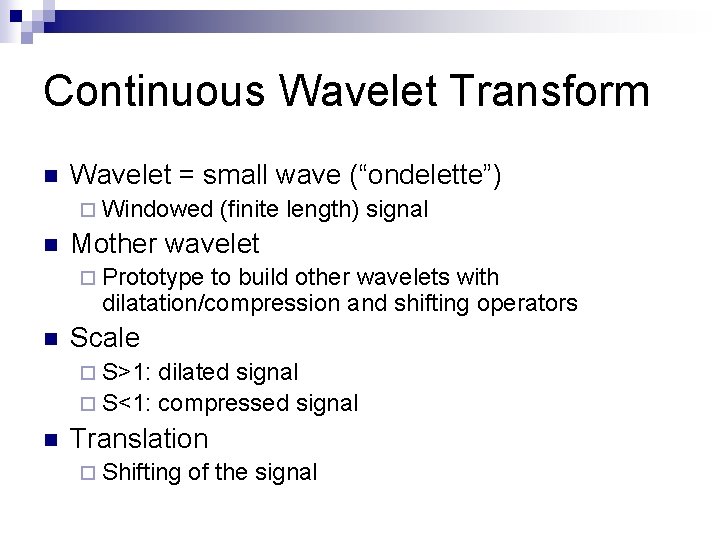

Continuous Wavelet Transform n Wavelet = small wave (“ondelette”) ¨ Windowed n (finite length) signal Mother wavelet ¨ Prototype to build other wavelets with dilatation/compression and shifting operators n Scale ¨ S>1: dilated signal ¨ S<1: compressed signal n Translation ¨ Shifting of the signal

CWT practical computation Energy normalization 1. 2. 3. 4. Select s=1 and t=0. Compute the integral and normalize by 1/ Shift the wavelet by t=Dt and repeat until wavelet reaches the end of signal Increase s and repeat steps 1 to 3

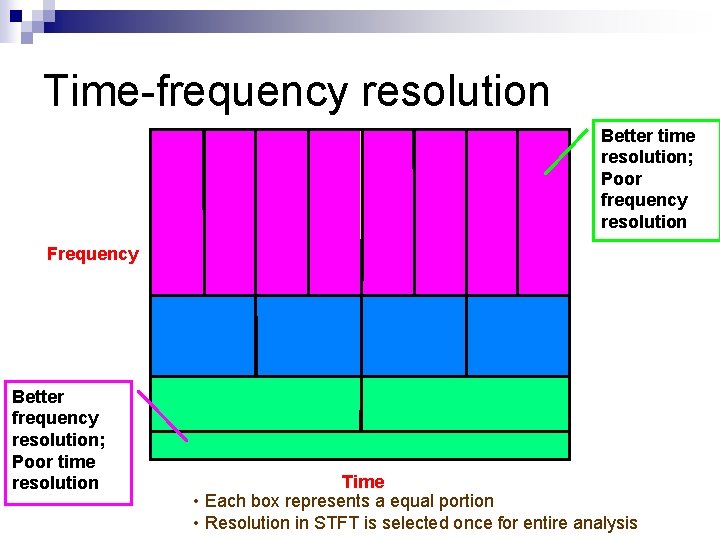

Time-frequency resolution Better time resolution; Poor frequency resolution Frequency Better frequency resolution; Poor time resolution Time • Each box represents a equal portion • Resolution in STFT is selected once for entire analysis

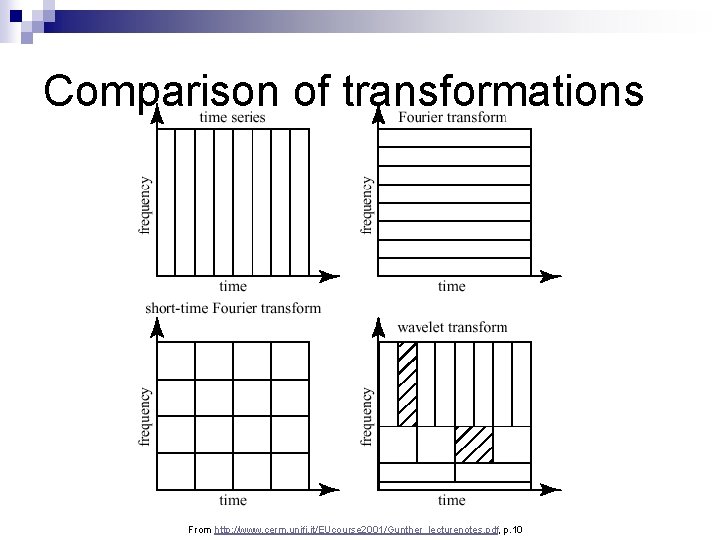

Comparison of transformations From http: //www. cerm. unifi. it/EUcourse 2001/Gunther_lecturenotes. pdf, p. 10

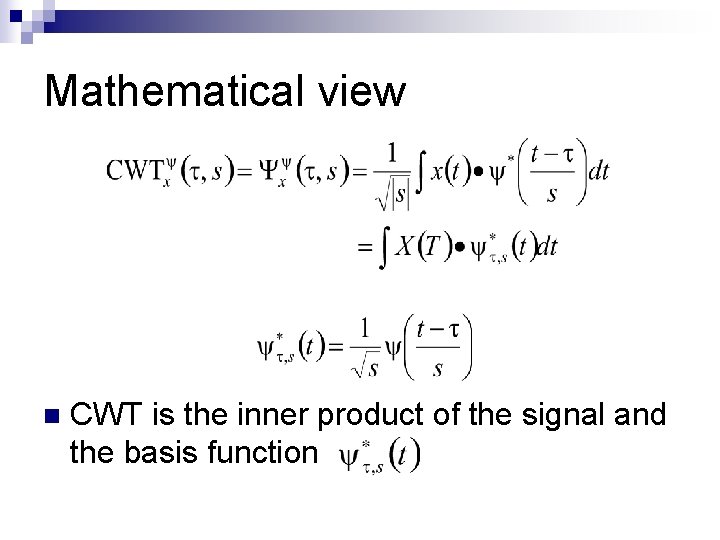

Mathematical view n CWT is the inner product of the signal and the basis function

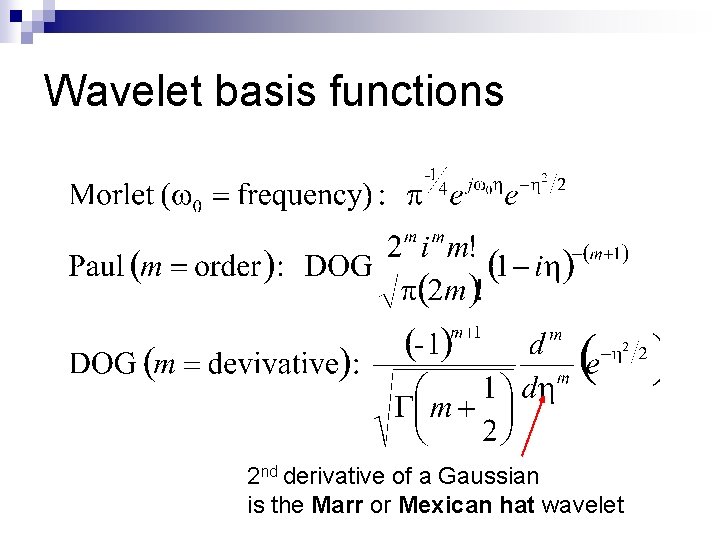

Wavelet basis functions 2 nd derivative of a Gaussian is the Marr or Mexican hat wavelet

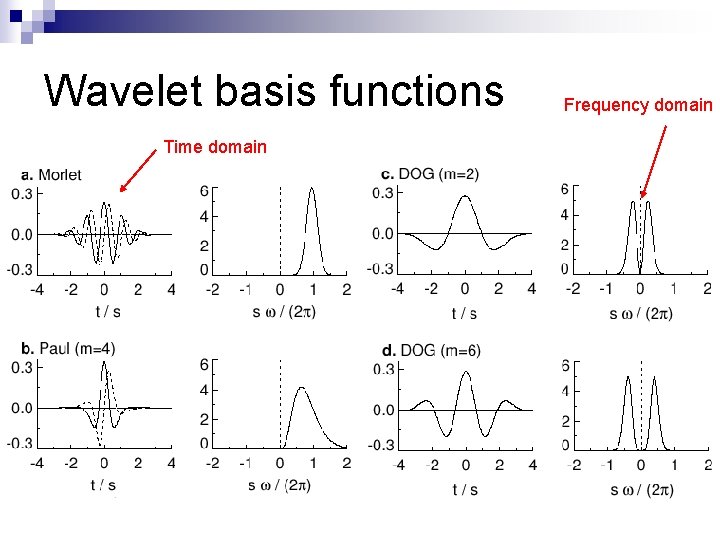

Wavelet basis functions Time domain Frequency domain

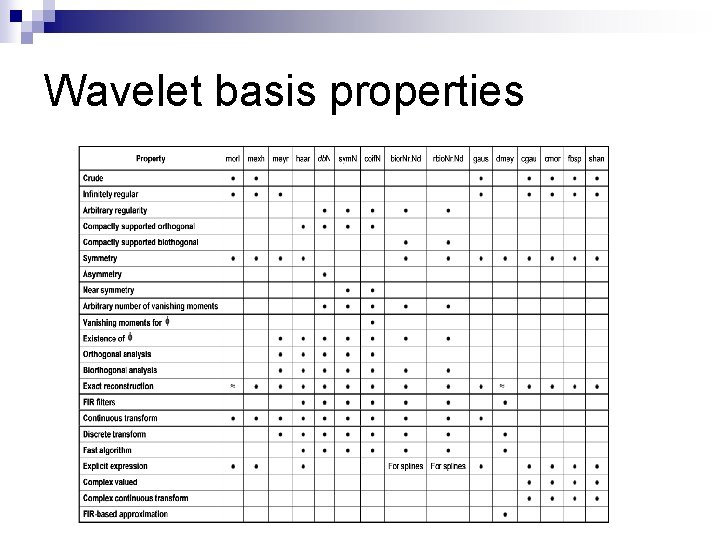

Wavelet basis properties

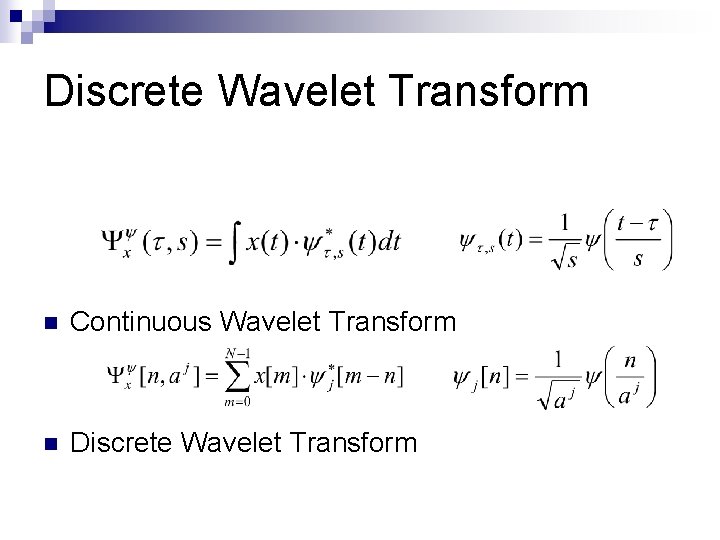

Discrete Wavelet Transform n Continuous Wavelet Transform n Discrete Wavelet Transform

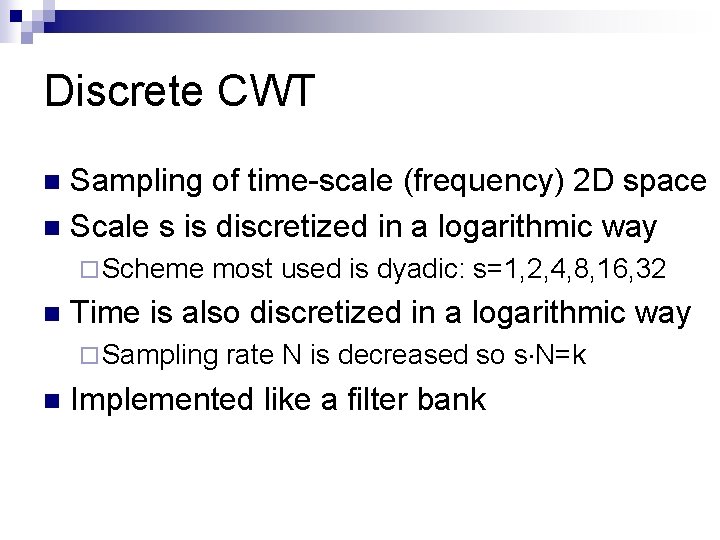

Discrete CWT Sampling of time-scale (frequency) 2 D space n Scale s is discretized in a logarithmic way n ¨ Scheme n most used is dyadic: s=1, 2, 4, 8, 16, 32 Time is also discretized in a logarithmic way ¨ Sampling n rate N is decreased so s N=k Implemented like a filter bank

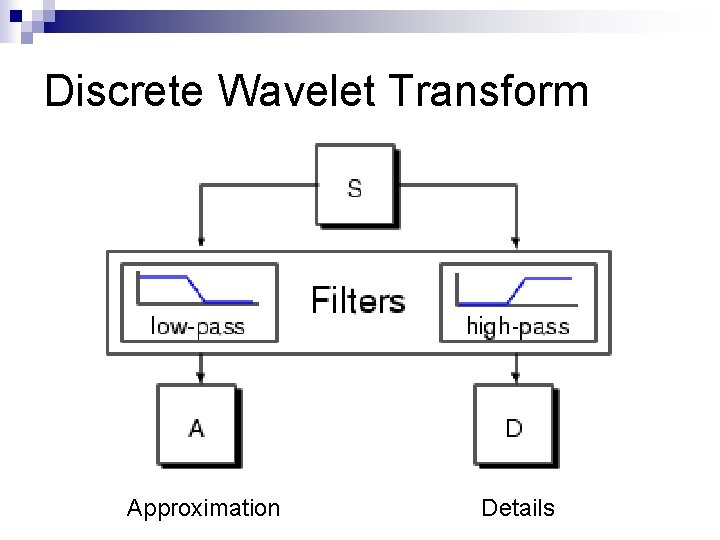

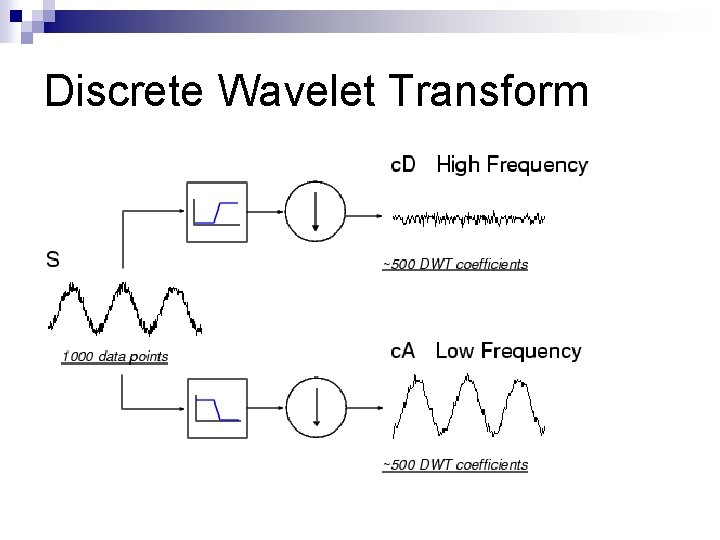

Discrete Wavelet Transform Approximation Details

Discrete Wavelet Transform

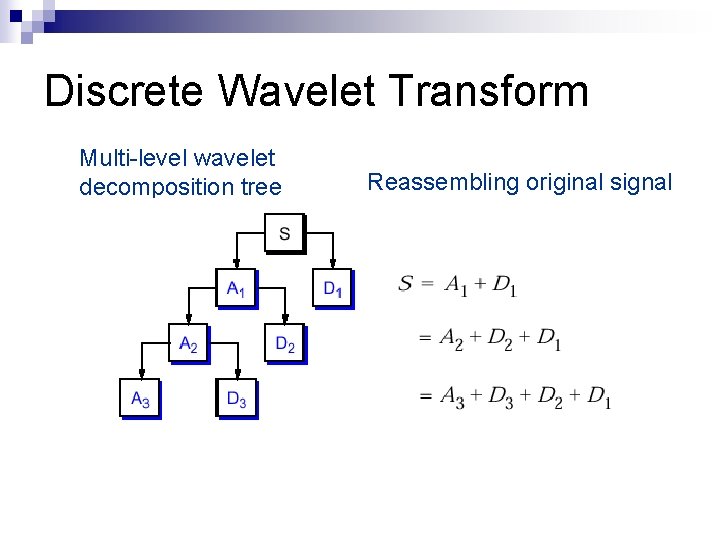

Discrete Wavelet Transform Multi-level wavelet decomposition tree Reassembling original signal

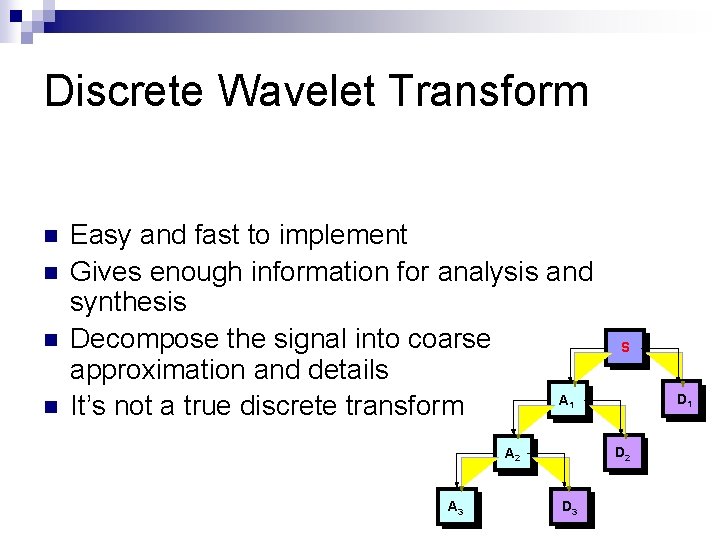

Discrete Wavelet Transform n n Easy and fast to implement Gives enough information for analysis and synthesis Decompose the signal into coarse approximation and details A It’s not a true discrete transform S S D 1 1 D 2 A 3 D 3

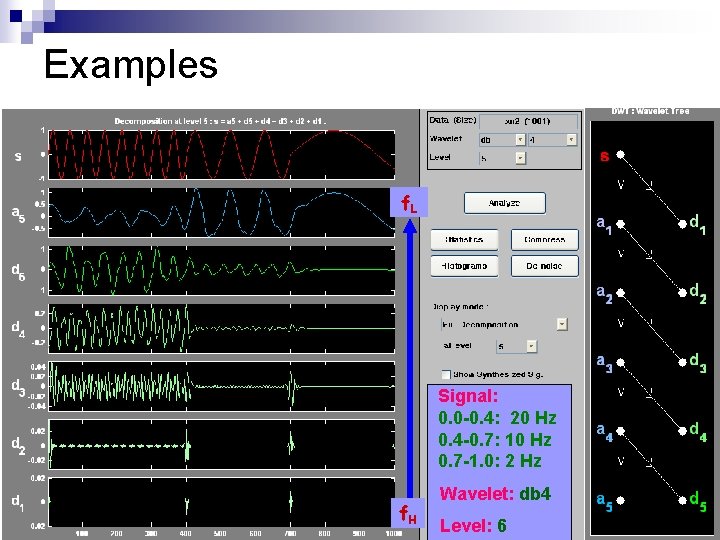

Examples f. L Signal: 0. 0 -0. 4: 20 Hz 0. 4 -0. 7: 10 Hz 0. 7 -1. 0: 2 Hz f. H Wavelet: db 4 Level: 6

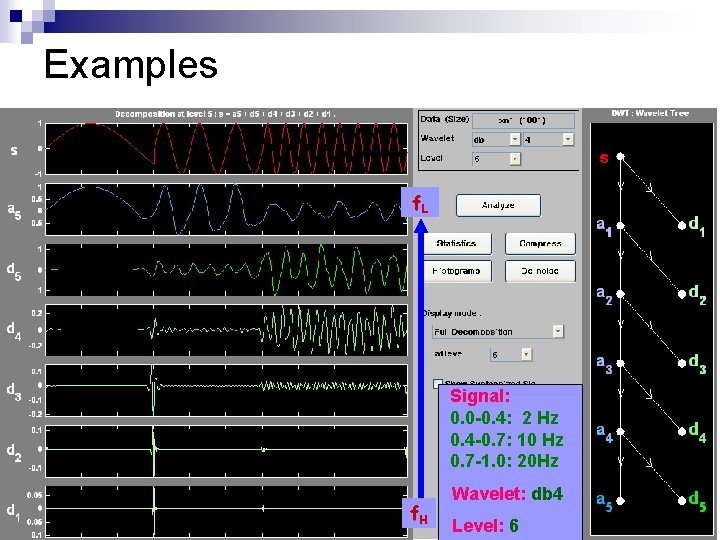

Examples f. L Signal: 0. 0 -0. 4: 2 Hz 0. 4 -0. 7: 10 Hz 0. 7 -1. 0: 20 Hz f. H Wavelet: db 4 Level: 6

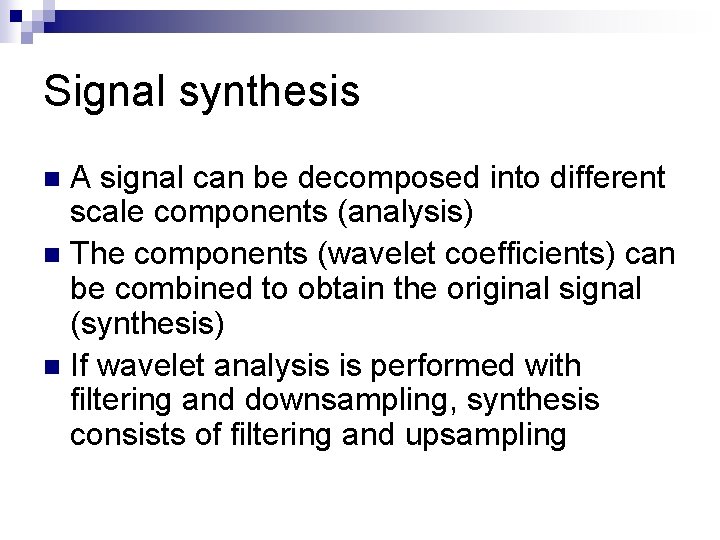

Signal synthesis A signal can be decomposed into different scale components (analysis) n The components (wavelet coefficients) can be combined to obtain the original signal (synthesis) n If wavelet analysis is performed with filtering and downsampling, synthesis consists of filtering and upsampling n

Synthesis technique n Upsampling (insert zeros between samples)

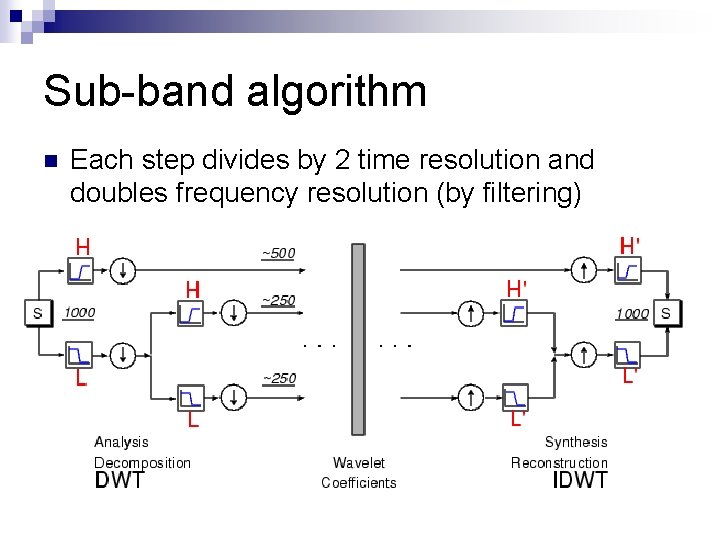

Sub-band algorithm n Each step divides by 2 time resolution and doubles frequency resolution (by filtering)

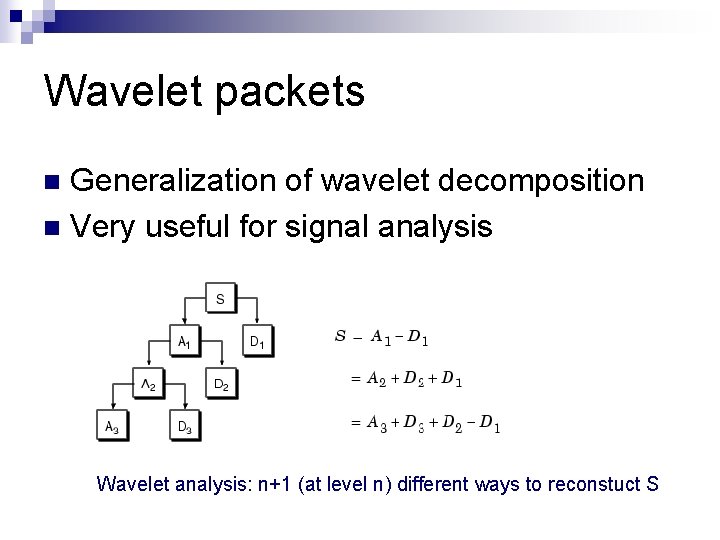

Wavelet packets Generalization of wavelet decomposition n Very useful for signal analysis n Wavelet analysis: n+1 (at level n) different ways to reconstuct S

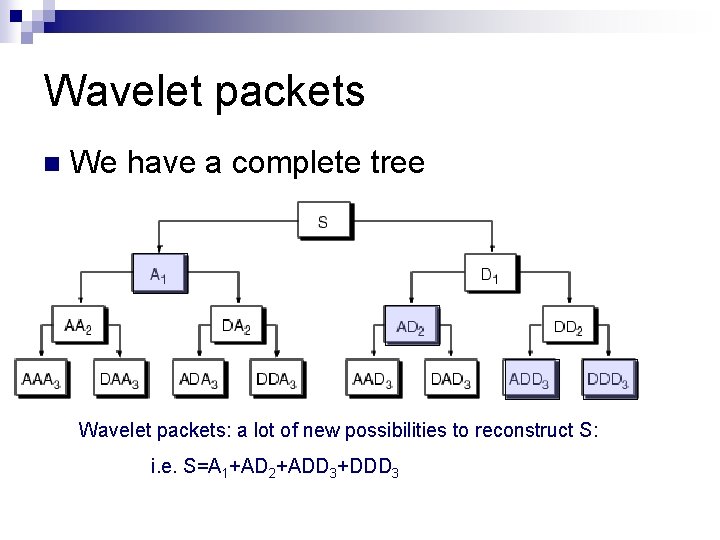

Wavelet packets n We have a complete tree Wavelet packets: a lot of new possibilities to reconstruct S: i. e. S=A 1+AD 2+ADD 3+DDD 3

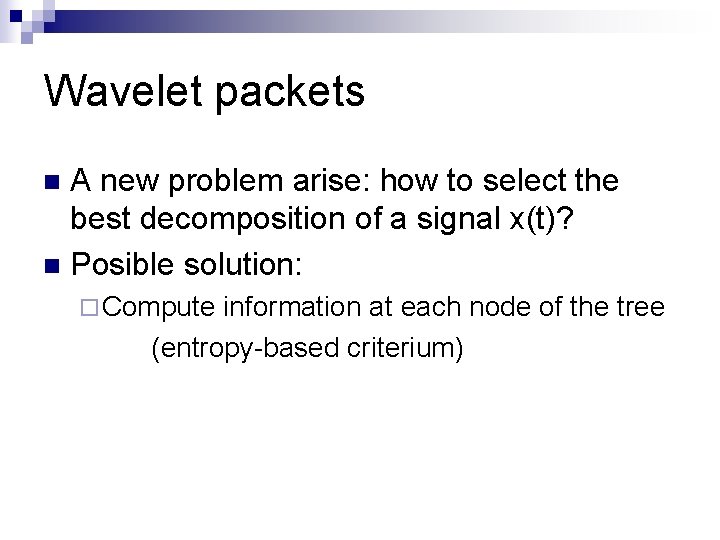

Wavelet packets A new problem arise: how to select the best decomposition of a signal x(t)? n Posible solution: n ¨ Compute information at each node of the tree (entropy-based criterium)

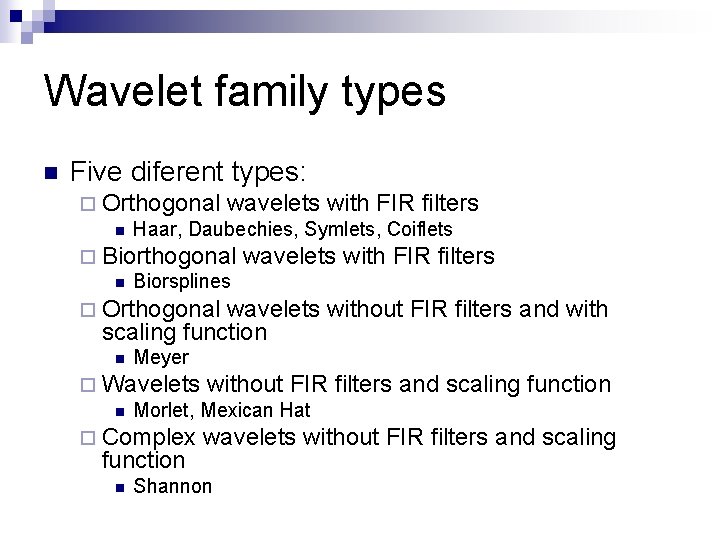

Wavelet family types n Five diferent types: ¨ Orthogonal wavelets with FIR filters n Haar, Daubechies, Symlets, Coiflets ¨ Biorthogonal wavelets with FIR filters n Biorsplines ¨ Orthogonal wavelets without FIR filters scaling function n and with Meyer ¨ Wavelets without FIR filters and scaling function n Morlet, Mexican Hat ¨ Complex wavelets without FIR filters and scaling function n Shannon

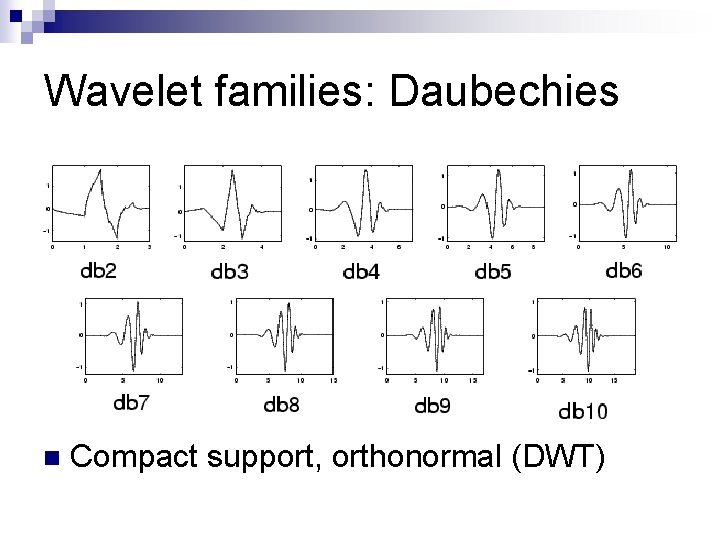

Wavelet families: Daubechies n Compact support, orthonormal (DWT)

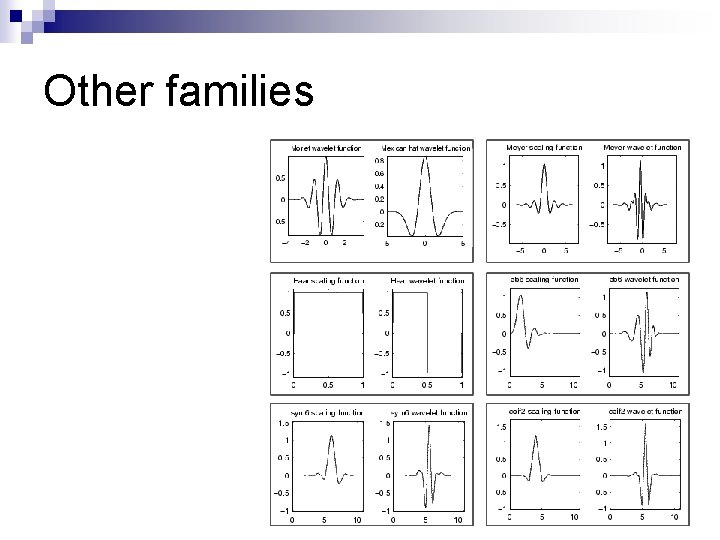

Other families

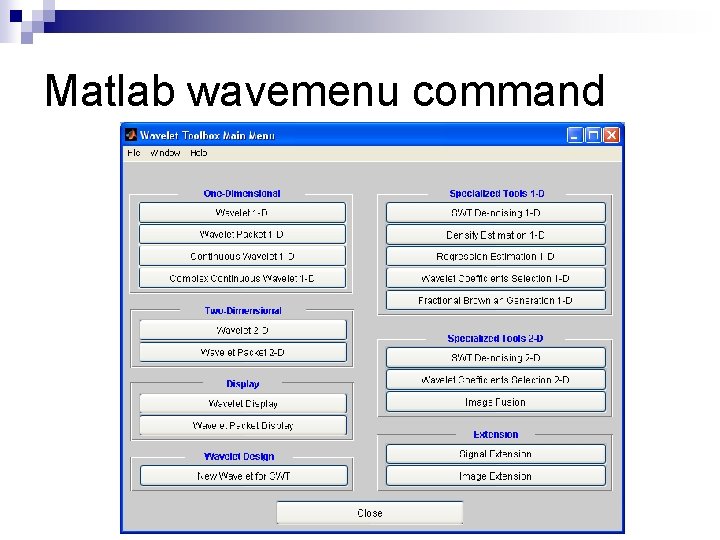

Matlab wavemenu command

Wavelet application n n Physics (acoustics, astronomy, geophysics) Telecommunication Engineering (signal processing, subband coding, speech recognition, image processing, image analysis) Mecanical engineering (turbulence) Medical (digital radiology, computer aided diagnosis, human vision perception) Applied and Pure Mathematics (fractals)

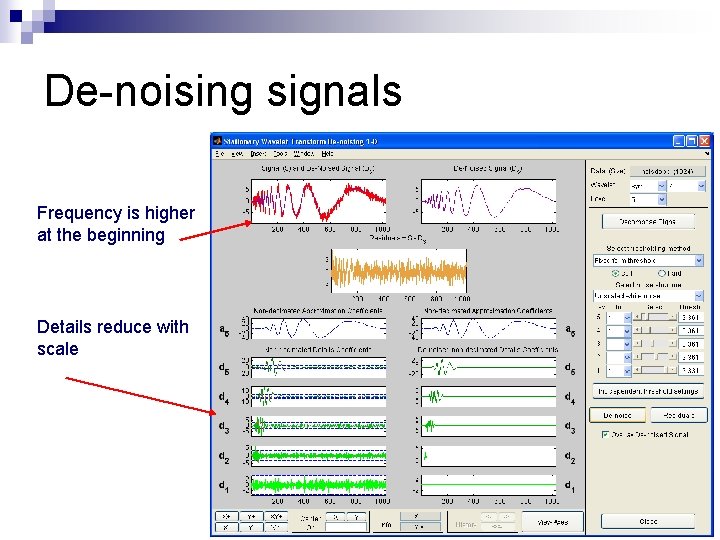

De-noising signals Frequency is higher at the beginning Details reduce with scale

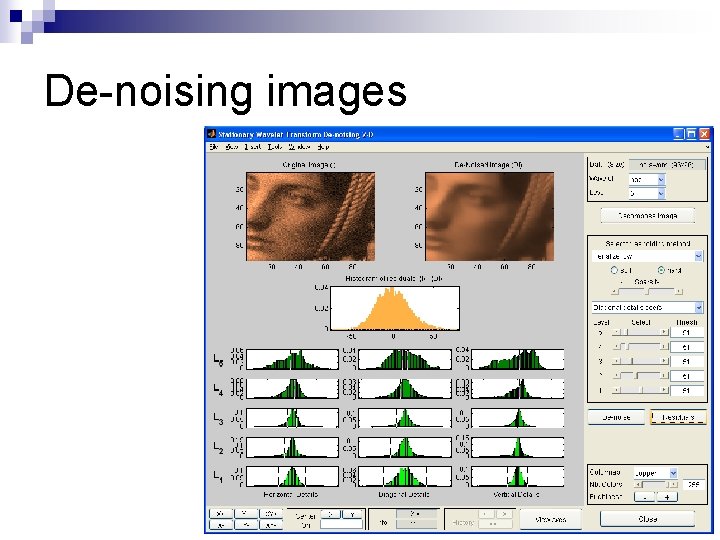

De-noising images

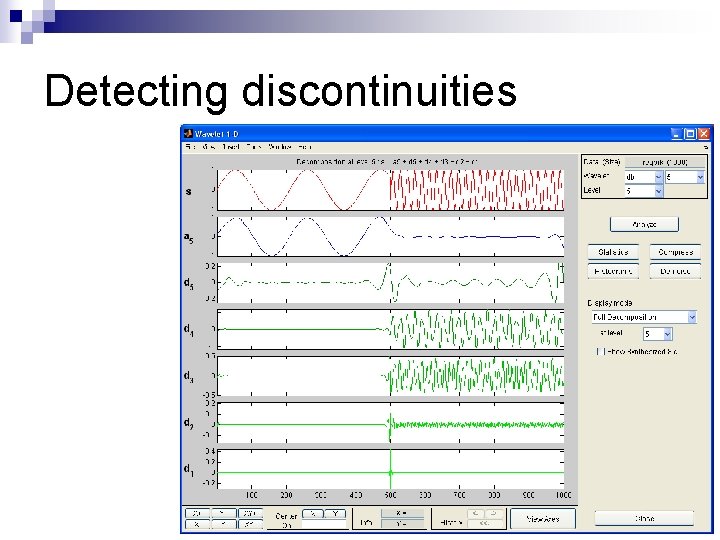

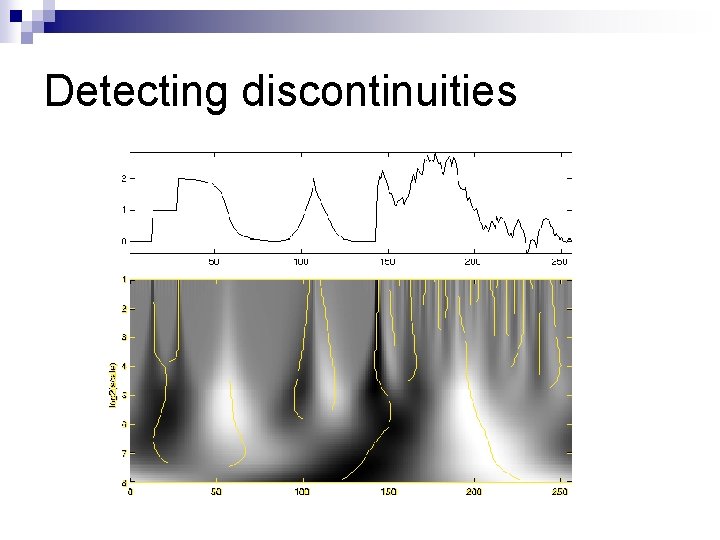

Detecting discontinuities

Detecting discontinuities

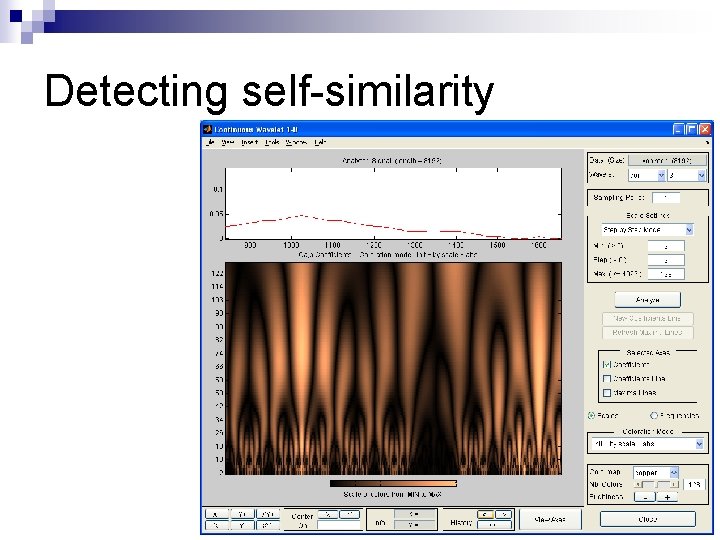

Detecting self-similarity

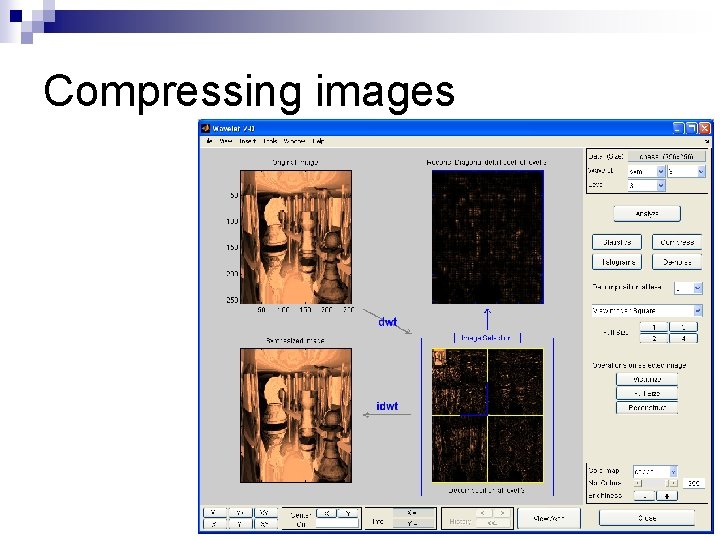

Compressing images

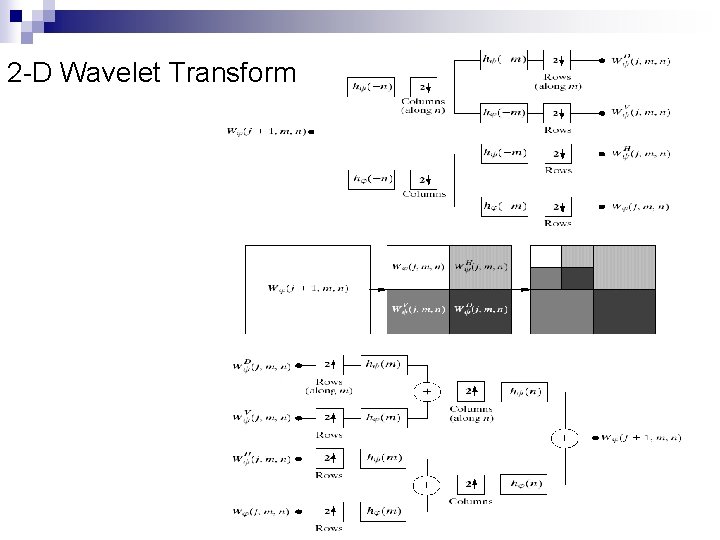

2 -D Wavelet Transform

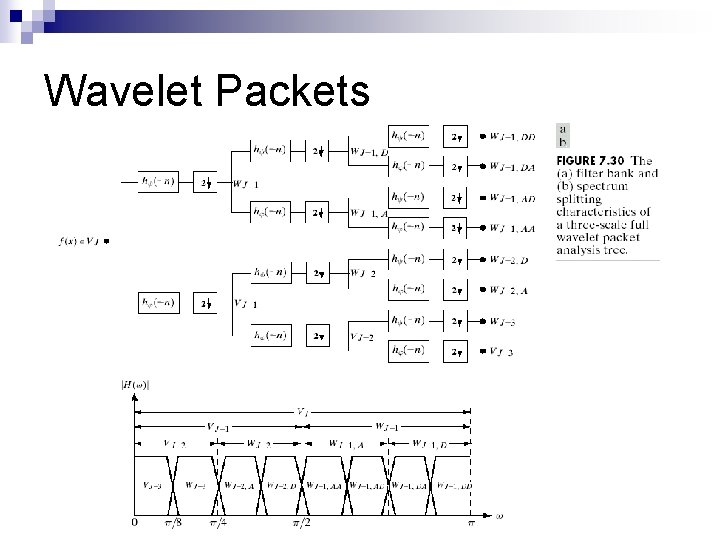

Wavelet Packets

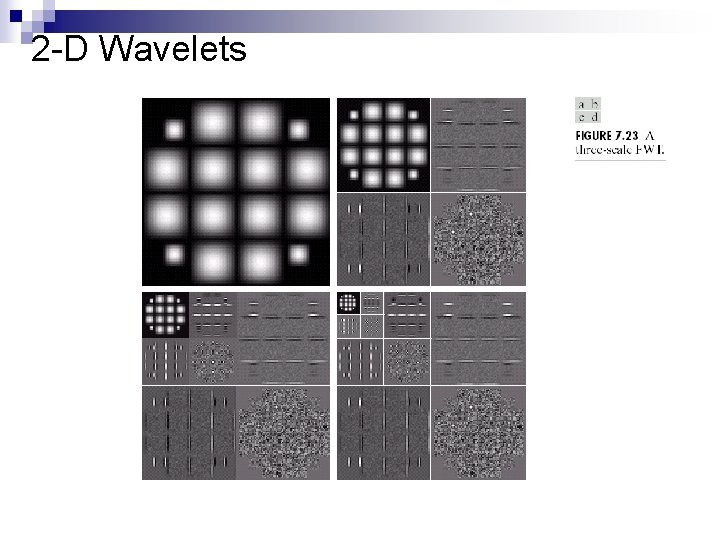

2 -D Wavelets

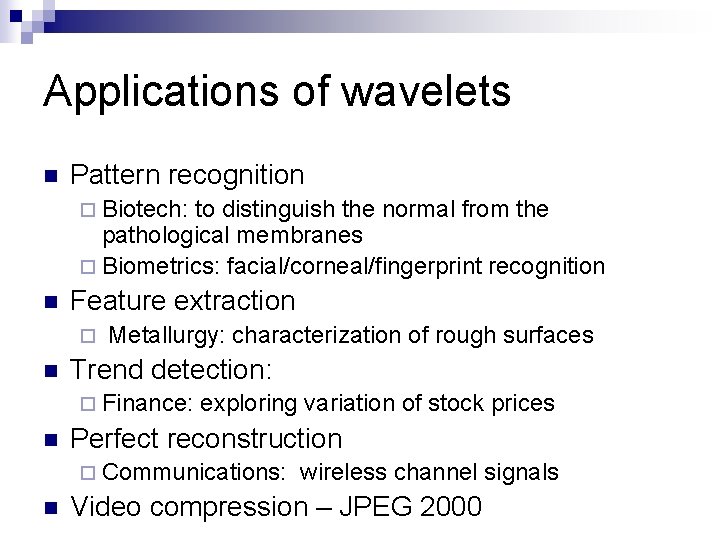

Applications of wavelets n Pattern recognition ¨ Biotech: to distinguish the normal from the pathological membranes ¨ Biometrics: facial/corneal/fingerprint recognition n Feature extraction ¨ n Metallurgy: characterization of rough surfaces Trend detection: ¨ Finance: n exploring variation of stock prices Perfect reconstruction ¨ Communications: n wireless channel signals Video compression – JPEG 2000

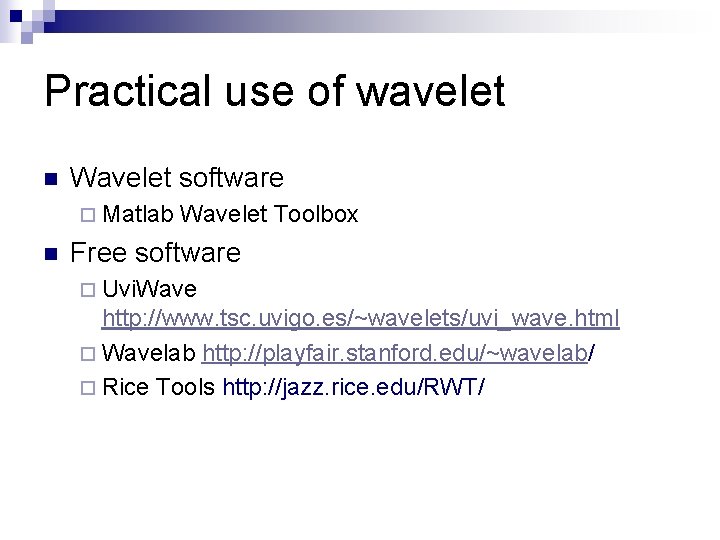

Practical use of wavelet n Wavelet software ¨ Matlab n Wavelet Toolbox Free software ¨ Uvi. Wave http: //www. tsc. uvigo. es/~wavelets/uvi_wave. html ¨ Wavelab http: //playfair. stanford. edu/~wavelab/ ¨ Rice Tools http: //jazz. rice. edu/RWT/

Useful Links to continue Matlab wavelet tool using guide n http: //www. wavelet. org n http: //www. multires. caltech. edu/teaching/ n http: //www-dsp. rice. edu/software/RWT/ n www. multires. caltech. edu/teaching/course s/ waveletcourse/sig 95. course. pdf n http: //www. amara. com/current/wavelet. htm l n
