Watersheds • Reading: – Discussion: issues facing Arizona’s rivers • Lecture: – How you

Watersheds • Reading: – Discussion: issues facing Arizona’s rivers • Lecture: – How you identify a watershed – Why are they important • Activity: – Using tributaries to find a watershed boundary HWR 203 The University of Arizona Washburne

What separates watersheds? How do you identify watershed boundaries? River Networks Drainage Divides Contour

What separates watersheds? How do you identify watershed boundaries? River Networks Drainage Divides Contour Lines Reynolds and Johnson boto. ocean. washington. edu/gifs/purus. gif HWR 203 The University of Arizona Washburne

Drainage Divide Drainage Basin • A region or area bounded by a drainage divide

Drainage Divide Drainage Basin • A region or area bounded by a drainage divide and occupied by a drainage system; • specifically, the tract of country that gathers water originating as precipitation and contributes it to a particular stream channel or system of channels, or to a lake, reservoir or other body of water. • The original meaning of the term signifies a “water parting” or the line, ridge, or summit of high ground separating two drainage basins. Source: Glossary of Geology, 3 rd Ed. , 1987, AGI HWR 203 http: //www. alpinezone. com/hiking/01 images/older/KNIFEDGE. jpg The University of Arizona Washburne

Watershed Definitions • A region draining into a river or lake (American Heritage Dictionary)

Watershed Definitions • A region draining into a river or lake (American Heritage Dictionary) • The area that produces runoff to a downstream point (Handbook of Hydrology) • The area contained within a drainage divide above a specified point on a stream (Dictionary Of Geologic Terms) • The upstream area that can contribute runoff to a point below. • A drainage basin that divides the landscape into hydrologically defined areas. (Environment Canada) HWR 203 The University of Arizona Washburne

The Continental Divide is a line separating waters that flow into the Atlantic Ocean

The Continental Divide is a line separating waters that flow into the Atlantic Ocean or Gulf of Mexico from those that flow into the Pacific Ocean. It runs north-south along the crest of the Rocky Mountains (in Mexico and Canada too) and is sometimes called the Great Divide. This map layer was compiled by the U. S. Geological Survey by extracting the appropriate lines from the Hydrologic Unit Boundaries layer of the National Atlas. http: //www. nationalatlas. gov/Images/condivm. gif HWR 203 The University of Arizona Washburne www. nationalatlas. gov/condivm. html

Watershed - Importance 1. Understand what a watershed is both literally and conceptually (including

Watershed - Importance 1. Understand what a watershed is both literally and conceptually (including the mapped representation of a watershed and the issue of scale). 2. Understand the components and processes of a watershed including runoff, soil, geology, geography, permeability, storage, land cover, land use, vegetation, precipitation, stream flow, flooding, drought (climate), fire, drainage patterns, erosion, deposition and population. 3. Understand a watershed as a system (e. g. a change in one area will affect the dynamics of the entire system) and how that system functions. 4. Understand that watershed management is complex because of culture, economics, politics, social constructs, scientific studies and aesthetics. Some water users include urban, rural, agricultural, business & industry, energy, recreation, fish and wildlife and earth systems. 5. Understand that watersheds change over time both naturally (e. g. flooding, fire) and due to anthropogenic causes (e. g. damming a river, water rights, water withdrawals). 6. Know some of the issues facing the watershed managers of the Colorado River Watershed as well as other Southwestern Watersheds. HWR 203 The University of Arizona Washburne

The drainage pattern allows you to understand the watershed boundaries and directions of stream

The drainage pattern allows you to understand the watershed boundaries and directions of stream flow even without topography The University of Arizona Washburne

… although a shaded DEM helps! The University of Arizona Washburne

… although a shaded DEM helps! The University of Arizona Washburne

Seeing Watersheds Activity 1: trace the main channel of the river from its mouth

Seeing Watersheds Activity 1: trace the main channel of the river from its mouth to the headwaters. 2: trace the major tributaries (start at the coast/Gulf). 3 a: Find the drainage divides by marking a dot above the top of each river, midway to the adjacent watershed. 3 b: Connect the dots (start at the mouth) to form the watershed boundary. 4: Identify sub-watersheds of major tributaries HWR 203 The University of Arizona Washburne

Synonyms: Basin Catchment Area Catchment Basin Drainage Area Drainage Basin Feeding Ground Gathering Ground

Synonyms: Basin Catchment Area Catchment Basin Drainage Area Drainage Basin Feeding Ground Gathering Ground Hydrographic Basin Watershed Source: Glossary of Geology, 3 rd Ed. , 1987, American Geophysical Institute HWR 203 The University of Arizona Washburne

Watershed – Sub-watershed HUC: 14 -15 HWR 203 HUC: 1401 -1508 The University of

Watershed – Sub-watershed HUC: 14 -15 HWR 203 HUC: 1401 -1508 The University of Arizona Washburne

Colorado – “source” of 4 WS’s = 8, 131, 000 af HWR 203 The

Colorado – “source” of 4 WS’s = 8, 131, 000 af HWR 203 The University of Arizona Washburne

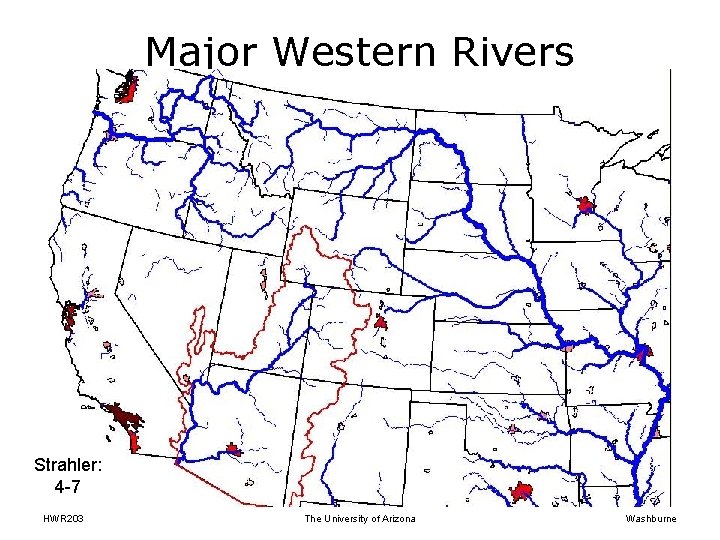

Major Western Rivers Strahler: 4 -7 HWR 203 The University of Arizona Washburne

Major Western Rivers Strahler: 4 -7 HWR 203 The University of Arizona Washburne

Major Western Rivers ag. arizona. edu/watershed/ ri ou Yellowstone ss Mi Columbia Klamath Snake

Major Western Rivers ag. arizona. edu/watershed/ ri ou Yellowstone ss Mi Columbia Klamath Snake Sacramento Platte San Joaquin o ol C Gila HWR 203 ad or Rio Grande The University of Arizona Washburne

Contributing Area Upper Basin • CO • WY • NM • UT Lower Basin

Contributing Area Upper Basin • CO • WY • NM • UT Lower Basin • AZ • NV • CA HWR 203 The University of Arizona Washburne

CRB Analysis HWR 203 The University of Arizona Washburne

CRB Analysis HWR 203 The University of Arizona Washburne
