Watermarking and Steganography Watermarks First introduced in Bologna

Watermarking and Steganography

Watermarks • First introduced in Bologna, Italy in 1282 • Dandy Roll presses pattern into drying paper – Changes thickness of paper fibers • Uses: – – By paper makers to identify their product Security for stamps, official documents. Stock certificates, money, etc. Chic • Other “watermarks” – Printing on plastic with a window. (Australian $10 note)

Dandy Roll • Pressed into paper during paper-making process J. Plank Features • In-house watermark design • Computerized design process • Quick-change sleeves and sections • Dandy roll • 7. 25" diameter • Watermarking possible http: //www. uwsp. edu/papersci/PM/Machine/Dandy. htm

Dandy Roll • Wet pulp sprayed onto moving belt • Dandy Roll pressed into pulp • Dandy Roll looks like oversized printer’s roll covered with pattern • High grade stainless steel construction • Incorporates internal oscillating shower, internal pan, internal steam shower and external saveall pan • Extended Header Brush for easy cleaning of shower pipe

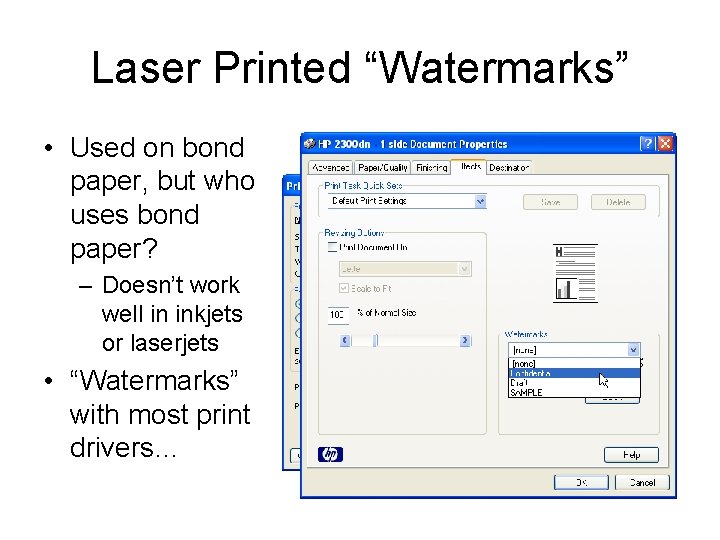

Laser Printed “Watermarks” • Used on bond paper, but who uses bond paper? – Doesn’t work well in inkjets or laserjets • “Watermarks” with most print drivers…

Printed Watermarks • Looks great • You can even put it in your PDF file…which is the problem! • No security

Printed Document Authentication Techniques • Microprinting – Print that is too small to produce or copy with conventional equipment • Intaglio –engraved pattern used to press ink with great force; raised letters • Letterpress – Ink rolled raised type, leaving depression. Used for printing numbers. • Simultan press – precise registration of front and back. (see-through register). Changing ink colors (rainbowing). • Optically variable inks (change color depending on angle) • Metal foils & threads embedded in paper • Security holograms

Lessons for paper authentication • Security features should convey a message relevant to the product. – Use iridescent ink to print the banknote denomination • Should obviously belong where they are – They become “embedded in the user’s cognitive model. ” • Should be obvious • Should not have competitors • Should be standardized Source: Security Engineering, Anderson

Information Hiding • Copyright Marks: – Watermarks - Hidden copyright messages – Fingerprints – Hidden serial numbers • Steganography – Hidden messages. • Other applications: – Closed captioning (hidden in first 21 scan lines) • http: //www. robson. org/gary/writing/nv-line 21. html – Audio RDS (Radio Data Service)-like service • “What’s that song? ”

Watermarks for Copyright Policy • “never copy” • “copy only once” • “copy only at low quality” JPMG Linnartz, “The ‘Ticket’ Concept for Copy Control Based on Embedded Signaling” (Anderson [504] ) Suggests a hash-based implementation of “copy only once: ” – X is the ticket – Record h(h(X)) on DVD – Provided with X, DVD recorded stores h(X) on secondgeneration copy.

The Broadcast Flag • “Advanced Television Systems Committee Flag” • Enable/Disable: – high-quality digital output – Re-transmitting on an “unprotected” channel • In the future: – Time-shifting? – Disallow fast-forward through commercials • Required on all digital TV cards sold after July 2005 • Only broadcast, not satellite or cable-transmitted. “Losing Control of Your TV, ” Technology Review, March 3, 2004 http: //www. technologyreview. com/articles/04/03/wo_garfinkel 030304. asp? p=1

Steganography • A hidden message that can't be found by humans • A hidden message that can't be found by an algorithm. A hidden message that can be found by an algorithm but not by a human. • A hidden message that can be found by some algorithms but not others. [Wayner 2004]

What is Hidden? Defining "Hidden" is not easy – We run into the usual Goedel limits that prevents us from being logical about detection. – Humans are very different. Some musicians have very, very good ears. – Some algorithms leave statistical anomalies. The message is often more random than the carrier signal. These statistics can give away the message.

Who wants it? • Evil doers. If evil messages can't be seen by good people, evil will triumph. Osama bin Laden? • Good doers. If the good guys can communicate in secret, then good will triumph. U. S. forces • Content owners and copyright czars. Hidden messages can carry information about rights to view, copy, share, listen, understand, etc. • Software Developers. "Hidden" channels can be added to data structures without crashing previous versions. Steganography can fight bit rot.

Models for Steganography • Replace random number generators with the message. – This works if the random numbers are used in a detectable way. – TCP/IP, for instance, uses a random number for connections. Some grab this for their own purposes. • Replace noise with the message. – Just replace the least-significant bit. – Avoid the noise and tweak the salient features. • Anything not affected by compression. – If you have the freedom to change data without hurting the data, then you have the freedom to include another message.

Models for Steganography • Structured Models – Run some compression algorithm in reverse • If the compression models the data accurately, then running it in reverse should spit out something that models the data well. • Huffman algorithms give common letters short bit strings and rare ones long ones. – Change the structure or the order. • Gif. Encoder, for instance, changes the order of the colors in the palette. – Synthesize something new and use the data to guide the synthesis. • Is the ghoul shooting at you in the game using a revolver or a machine gun? That's one bit.

Noise • The least significant bit of pixels or sound files is very popular. • Tweaking the LSB is only a small change. Less than 1%. – 140=10001100 – 141=10001101 • You can encrypt, too! LSB modified to hide info

LSB Modification • Side Effects: – The data may not have the same statistical pattern as the least significant bits being replaced. • Add a lot of noise, and it’s obvious 4 LSB modified produces banding

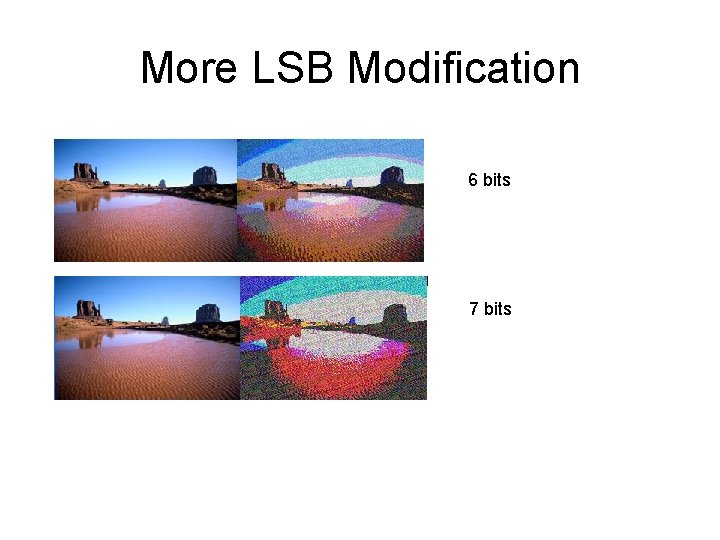

More LSB Modification 6 bits 7 bits

8 out of 8 bits All 8 bits Bit 8 vs. Bit 1

Wayner Demos • Information hiding at the bit level: – http: //www. wayner. org/books/discrypt 2/bitlevel. php • Encoding information through list order: – http: //www. wayner. org/books/discrypt 2/sorted. php#note 2

JPEG Watermarking “Hide and Seek: An Introduction to Steganography” IEEE Security & Privacy Figure 2. Embedded information in a JPEG. (a) The unmodified original picture; (b) the picture with the first chapter of The Hunting of the Snark embedded in it.

Mesh Watermarking • Robust mesh watermarking, Emil Praun, Hugues Hoppe, Adam Finkelstein, July 1999 Proceedings of the 26 th annual conference on Computer graphics and interactive techniques

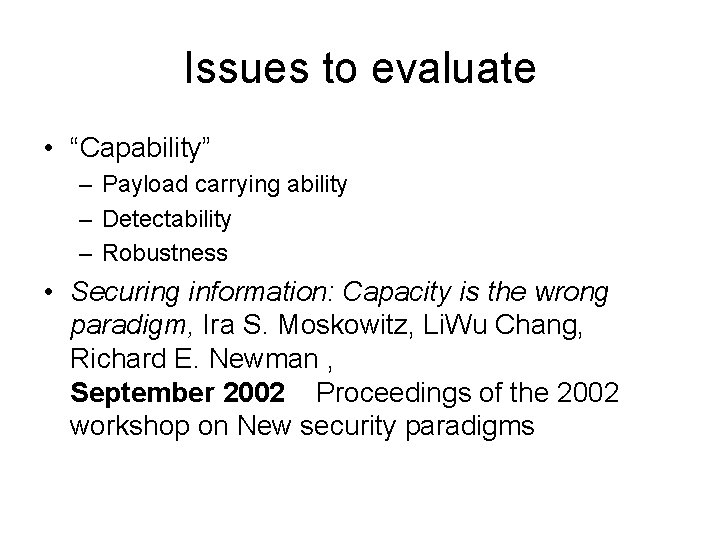

Issues to evaluate • “Capability” – Payload carrying ability – Detectability – Robustness • Securing information: Capacity is the wrong paradigm, Ira S. Moskowitz, Li. Wu Chang, Richard E. Newman , September 2002 Proceedings of the 2002 workshop on New security paradigms

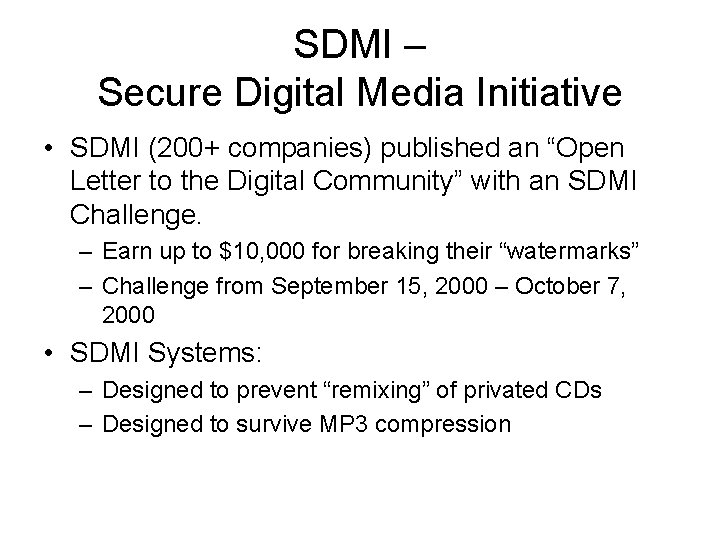

SDMI – Secure Digital Media Initiative • SDMI (200+ companies) published an “Open Letter to the Digital Community” with an SDMI Challenge. – Earn up to $10, 000 for breaking their “watermarks” – Challenge from September 15, 2000 – October 7, 2000 • SDMI Systems: – Designed to prevent “remixing” of privated CDs – Designed to survive MP 3 compression

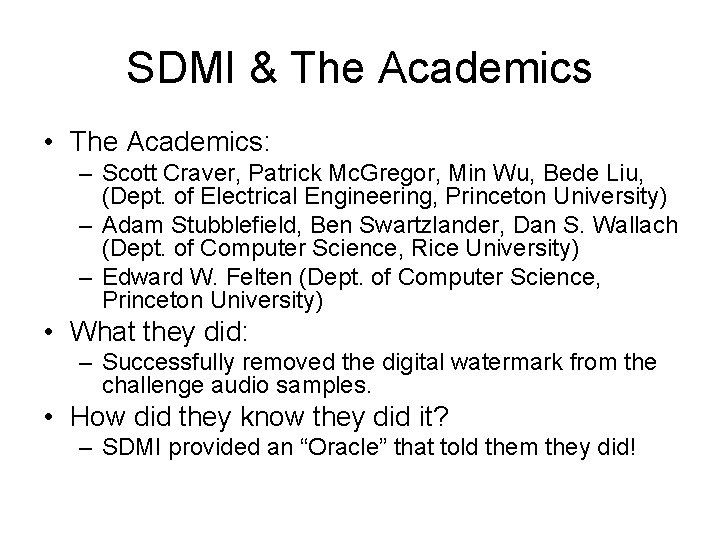

SDMI & The Academics • The Academics: – Scott Craver, Patrick Mc. Gregor, Min Wu, Bede Liu, (Dept. of Electrical Engineering, Princeton University) – Adam Stubblefield, Ben Swartzlander, Dan S. Wallach (Dept. of Computer Science, Rice University) – Edward W. Felten (Dept. of Computer Science, Princeton University) • What they did: – Successfully removed the digital watermark from the challenge audio samples. • How did they know they did it? – SDMI provided an “Oracle” that told them they did!

SDMI & Academics: Part 2 • Academics couldn’t claim cash prize – Doing so would have required signing a “confidentiality agreement” and prohibit the academics from sharing results with the public • DMCA didn’t apply… – … because SDMI specifically invited the work • Felton &c decided to present their findings at the 4 th International Information Hiding Workshop April 25 -29, 2001 • April 9, 2001 RIAA Senior VP for Business and Legal Affairs sent Felton letter with veiled DMCA threats • April 26, 2001 Felton declines to present paper • May 3, 2001 – RIAA and SDMI say they never intended to sue • June 6, 2001 – Felton files suit against RIAA asking for a declaratory judgment that they would not be infringing • November 28, 2001 – Case dismissed for mootness

Digi. Marc • Leading provider of watermarking technologies • Plug-ins for Windows, Photo. Shop, etc. • Communicates: – Copyright ownership – Image ID – Image content – adult, etc.

Tools and References • Fabien a. p. penticolas – http: //www. petitcolas. net/fabien/steganography/ • Digimarc • http: //theargon. com/archivess/steganograp hy/ • Hiding Secrets with Steganography, by Dru Lavigne, – http: //www. onlamp. com/pub/a/bsd/2003/12/04 /Free. BSD_Basics. html • http: //www. outguess. org

“Mosaïc attack” • Defeat an embedded watermark by chopping up image and serving it in pieces <nobr> <img SRC="kings_chapel_wmk 1. jpg’ BORDER="0’ ALT="1/6’ width="116’ height="140"> <img SRC="kings_chapel_wmk 2. jpg’ BORDER="0’ ALT="2/6’ width="116’ height="140"> <img SRC="kings_chapel_wmk 3. jpg’ BORDER="0’ ALT="3/6’ width="118’ height="140"> </nobr> <nobr> <img SRC="kings_chapel_wmk 4. jpg’ BORDER="0’ ALT="4/6’ width="116’ height="140"> <img SRC="kings_chapel_wmk 5. jpg’ BORDER="0’ ALT="5/6’ width="116’ height="140"> <img SRC="kings_chapel_wmk 6. jpg’ BORDER="0’ ALT="6/6’ width="118’ height="140"> </nobr>

Mosaïc assembled • Some websites use mosaics to deter casual copying!

MP 3 Stego • Hides information in MP 3 files during the compression process • Takes advantage of the fact that MP 3 provides high-quality compression of 11: 1 – Plenty of room for information hiding! – Randomly chooses which parts of the Layer III inner loop to modify; makes sure modifications don’t exceed threshold defined by the psycho acoustic model. • “Weak but better than the MPEG copyright flag defined in the standard” • Defeat by decompressing & recompressing

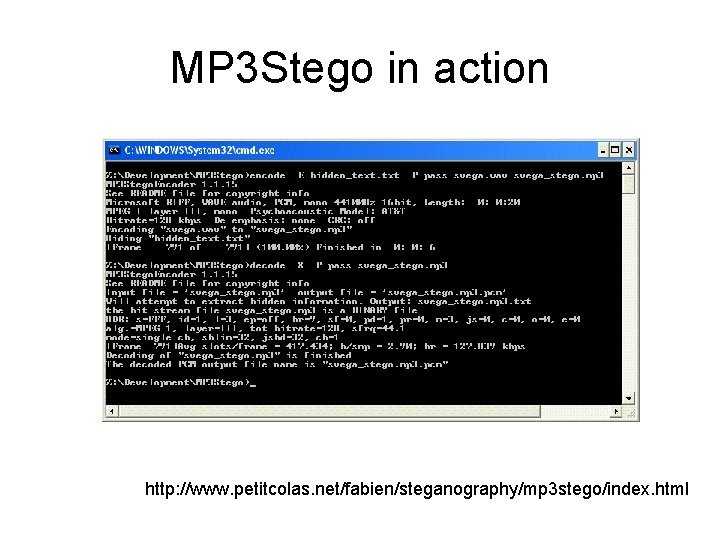

MP 3 Stego in action http: //www. petitcolas. net/fabien/steganography/mp 3 stego/index. html
