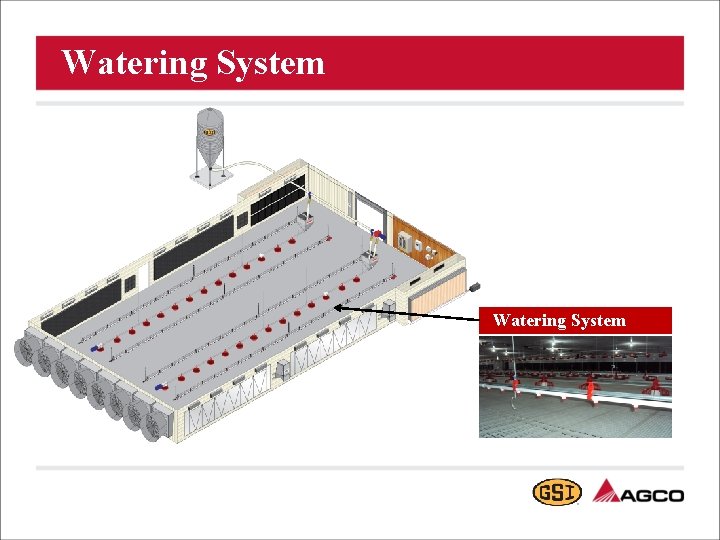

Watering System Watering System Installation Layout Sample Calculation

Watering System

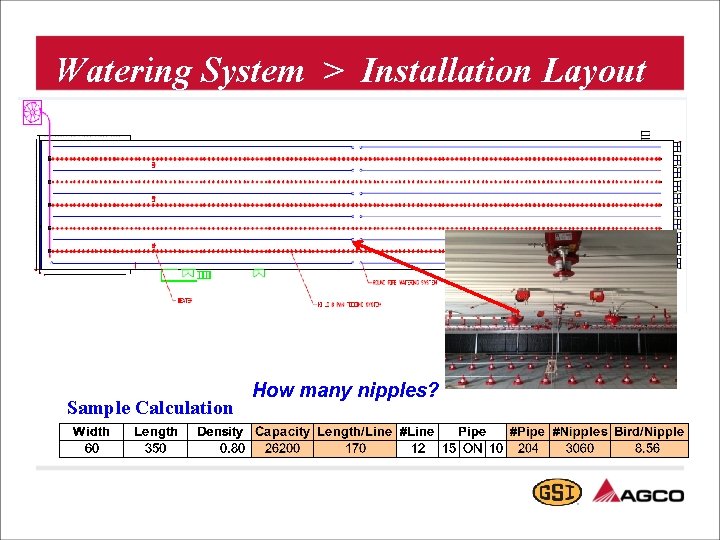

Watering System > Installation Layout Sample Calculation How many nipples?

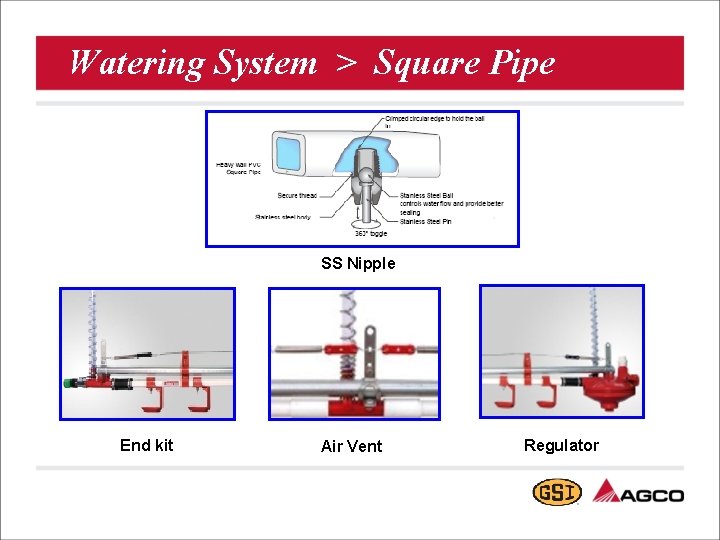

Watering System > Square Pipe SS Nipple End kit Air Vent Regulator

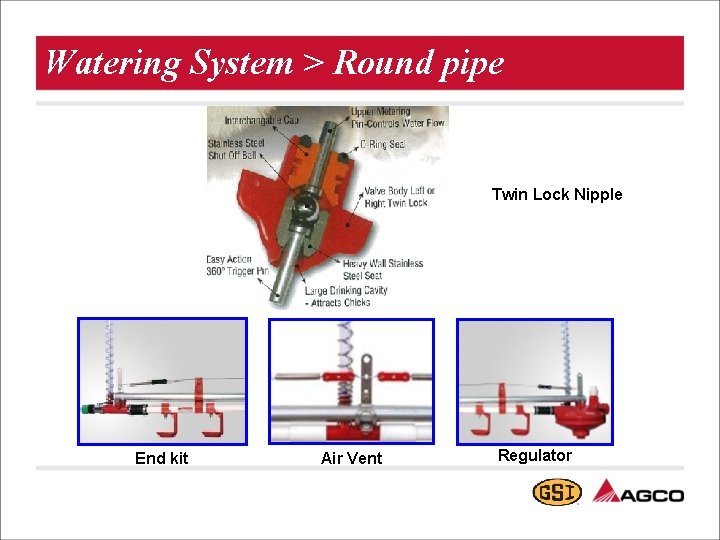

Watering System > Round pipe Twin Lock Nipple End kit Air Vent Regulator

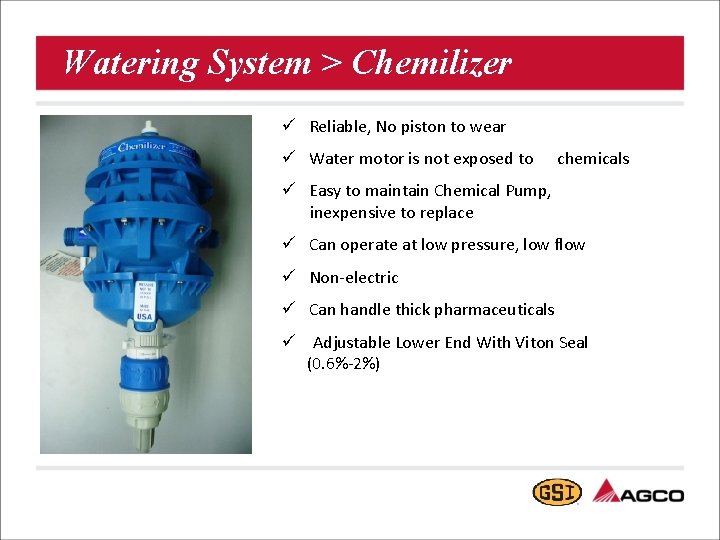

Watering System > Chemilizer ü Reliable, No piston to wear ü Water motor is not exposed to chemicals ü Easy to maintain Chemical Pump, inexpensive to replace ü Can operate at low pressure, low flow ü Non-electric ü Can handle thick pharmaceuticals ü Adjustable Lower End With Viton Seal (0. 6%-2%)

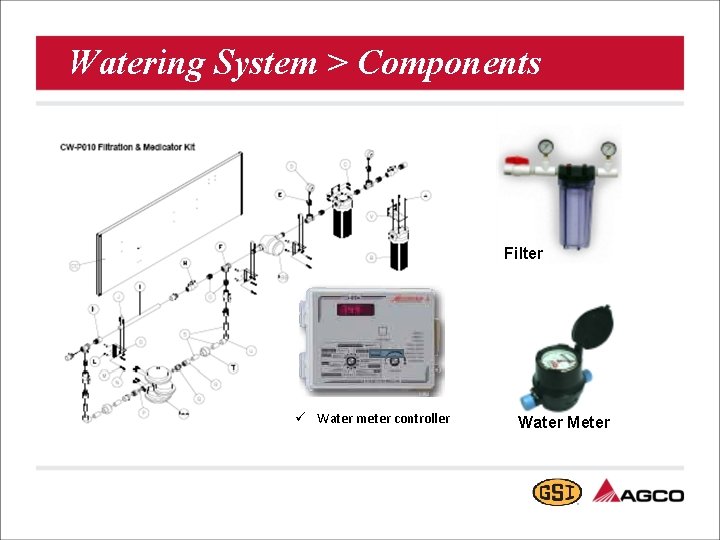

Watering System > Components Filter ü Water meter controller Water Meter

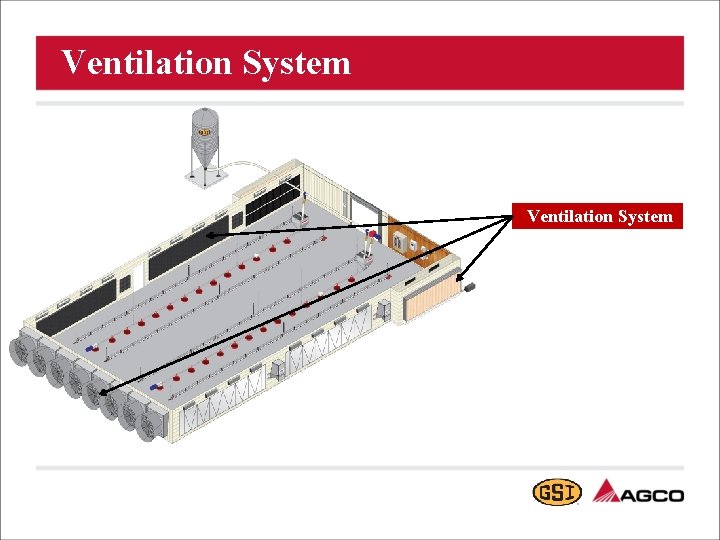

Ventilation System

Ventilation System >Tunnel Ventilation

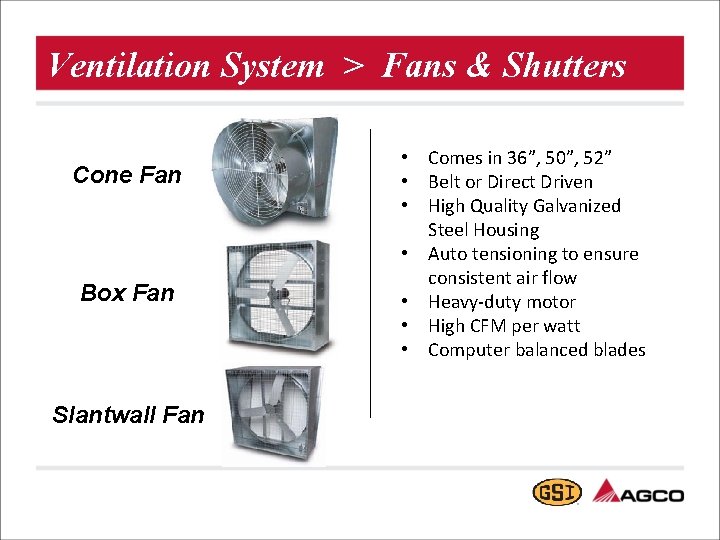

Ventilation System > Fans & Shutters Cone Fan Box Fan Slantwall Fan • Comes in 36”, 50”, 52” • Belt or Direct Driven • High Quality Galvanized Steel Housing • Auto tensioning to ensure consistent air flow • Heavy-duty motor • High CFM per watt • Computer balanced blades

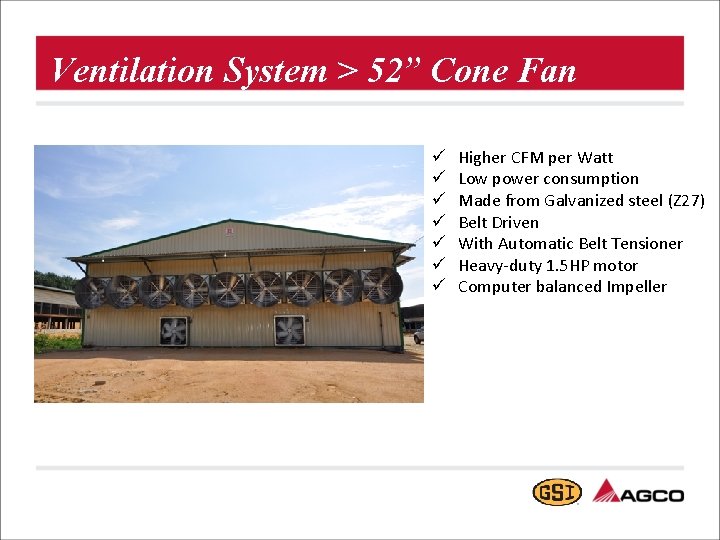

Ventilation System > 52” Cone Fan ü ü ü ü Higher CFM per Watt Low power consumption Made from Galvanized steel (Z 27) Belt Driven With Automatic Belt Tensioner Heavy-duty 1. 5 HP motor Computer balanced Impeller

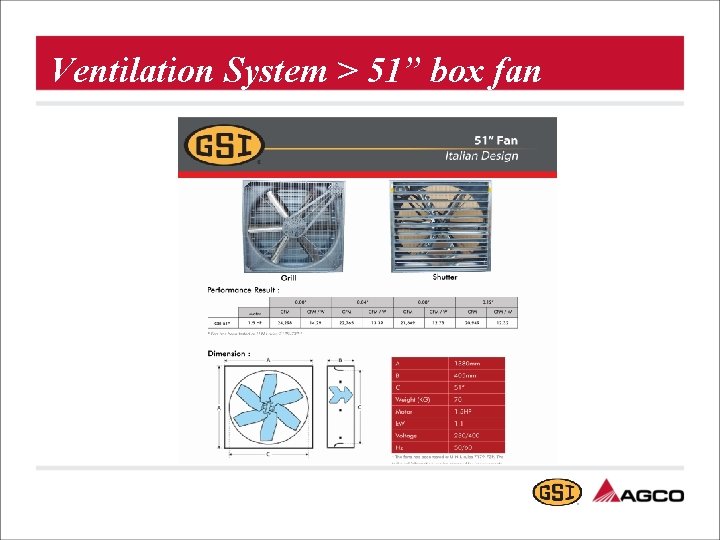

Ventilation System > 51” box fan

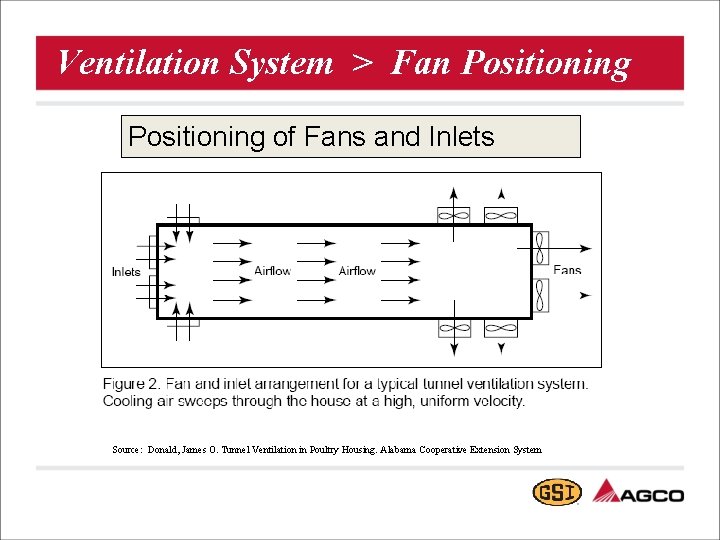

Ventilation System > Fan Positioning of Fans and Inlets Source: Donald, James O. Tunnel Ventilation in Poultry Housing. Alabama Cooperative Extension System

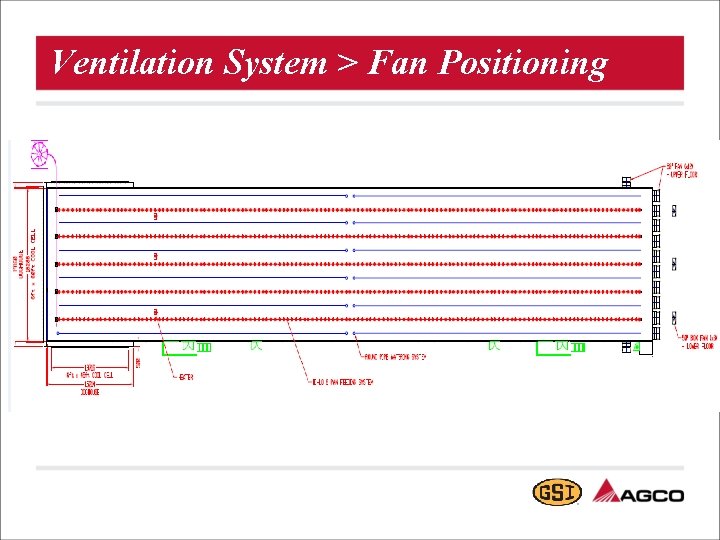

Ventilation System > Fan Positioning

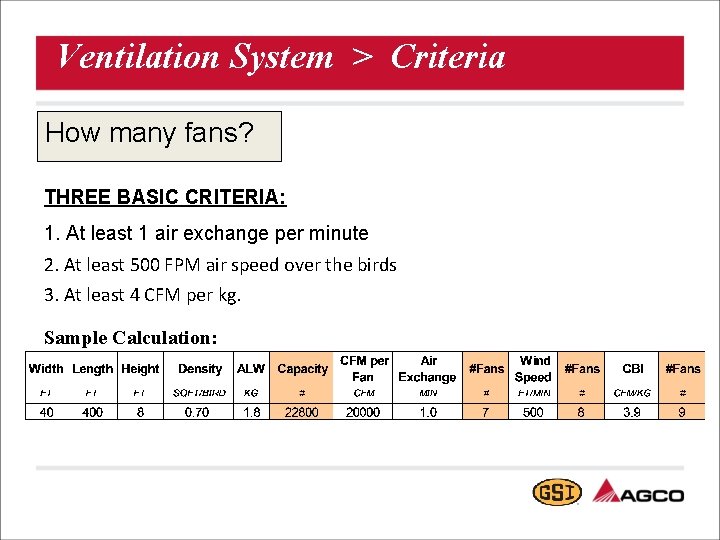

Ventilation System > Criteria How many fans? THREE BASIC CRITERIA: 1. At least 1 air exchange per minute 2. At least 500 FPM air speed over the birds 3. At least 4 CFM per kg. Sample Calculation:

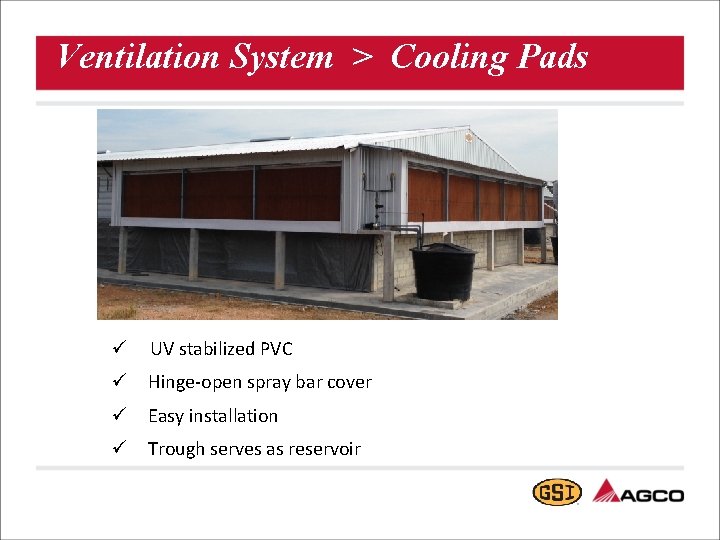

Ventilation System > Cooling Pads ü UV stabilized PVC ü Hinge-open spray bar cover ü Easy installation ü Trough serves as reservoir

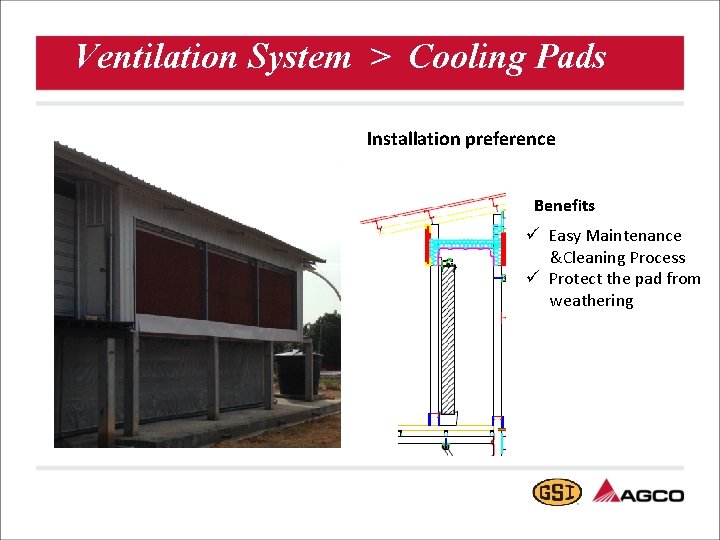

Ventilation System > Cooling Pads Installation preference Benefits ü Easy Maintenance &Cleaning Process ü Protect the pad from weathering

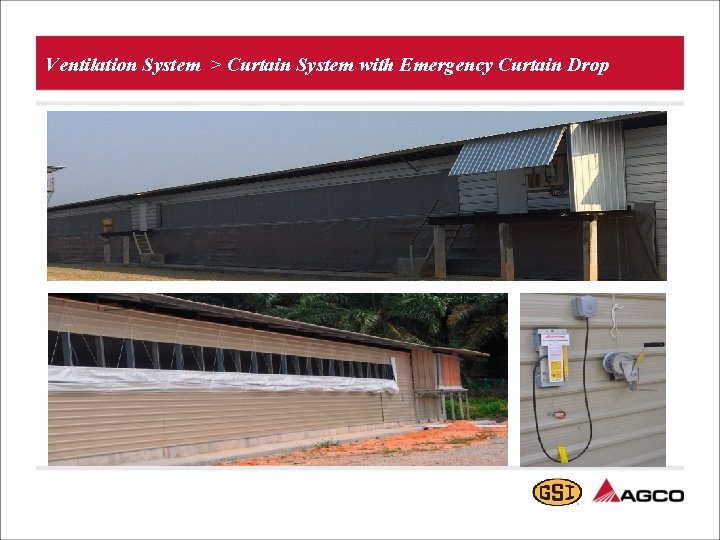

Ventilation System > Curtain System with Emergency Curtain Drop

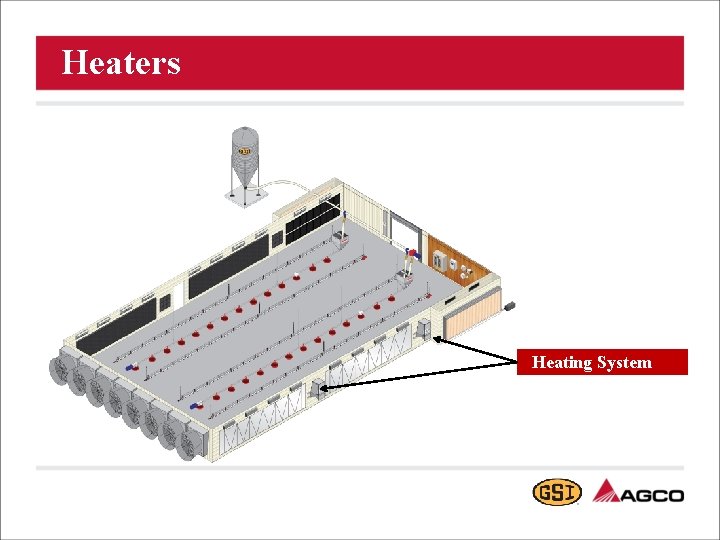

Heaters Heating System

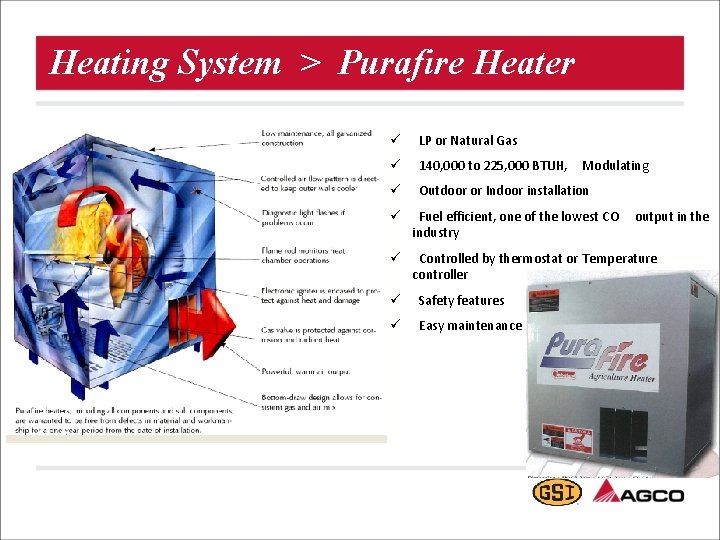

Heating System > Purafire Heater ü LP or Natural Gas ü 140, 000 to 225, 000 BTUH, ü Outdoor or Indoor installation Modulating ü Fuel efficient, one of the lowest CO industry ü Controlled by thermostat or Temperature controller ü Safety features ü Easy maintenance output in the

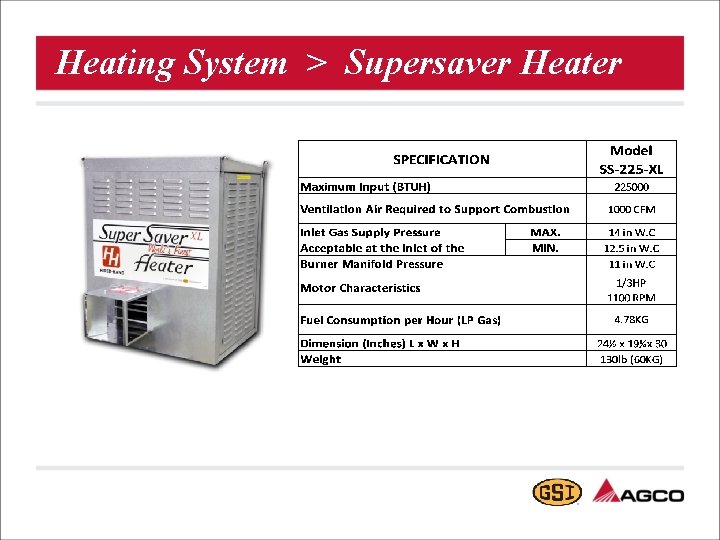

Heating System > Supersaver Heater

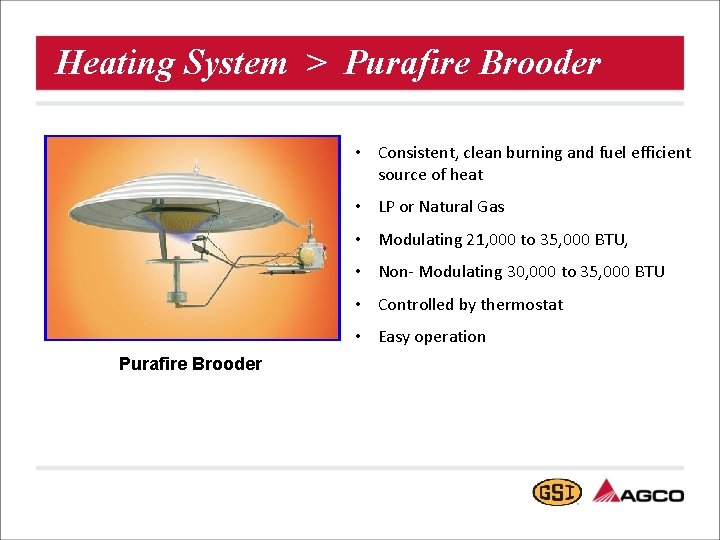

Heating System > Purafire Brooder • Consistent, clean burning and fuel efficient source of heat • LP or Natural Gas • Modulating 21, 000 to 35, 000 BTU, • Non- Modulating 30, 000 to 35, 000 BTU • Controlled by thermostat • Easy operation Purafire Brooder
