Water Fountains in Pre-Planetary Nebulae Hancock, New Hampshire VLBA Antenna Mark Claussen NRAO June 19, 2007 Asymmetric Planetary Nebulae IV La Palma, Canary Islands
Water Fountain Pre-Planetary Nebulae • Outflow velocity of water masers extremely high compared to AGB radial expansion velocities • More than ten known or candidate water fountain sources • Usually discovered serendipitously (i. e. not searching for highvelocity flows) • A recent targeted survey turned up only April 22, 2004 U. . Wash. Astron.
June 19, 2007 APN IV

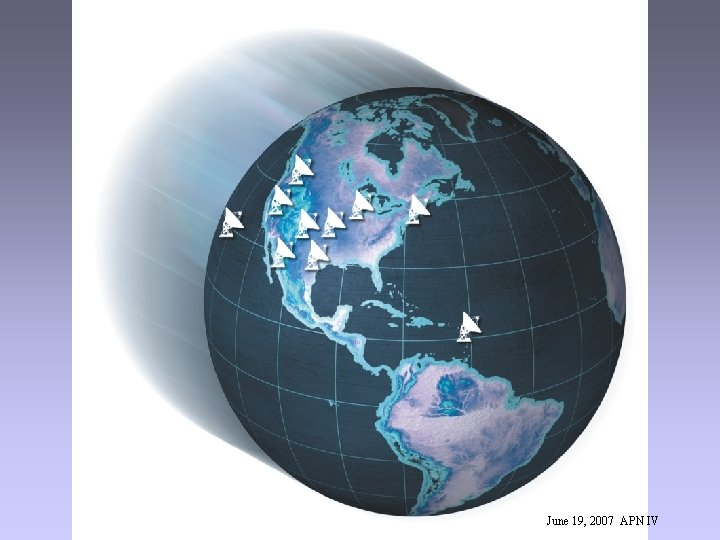

Very Long Baseline Array • Limited brightness temperature sensitivity • Limits observations to non-thermal phenomena • Superb angular resolution allows proper motion studies • Also allows A. U. scale structure on nearby objects • Astrometric studies give basic astronomy data April 22, 2004 U. Wash. Astron.
S 106 • Bipolar HII Region • Distance 600 pc • Luminosity: 24 – 1000 Lsun • Dark lane in radio and optical --- not a massive disk • No large scale outflow known
Late-Type Stars and Circumstellar Shells • Mira variables, OH/IR stars, and red supergiants • Pulsating stars • Oxygen-rich shells harbor molecular masers: OH, H 2 O, and Si. O • Masers can probe the kinematics and dynamics of the circumstellar shell April 22, 2004 U. Wash. Astron.
OH 100 --- 10000 AU H 2 O 100 s of AU Si. O
Si. O Masers and Dust Condensation Zone Photosphere A few stellar radii

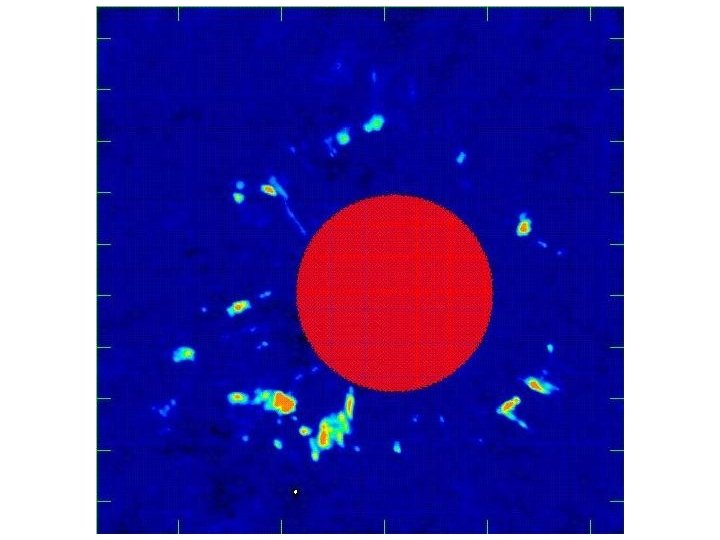

Si. O Masers in TX Camelopardalis • Si. O masers in extended atmospheres between photosphere and inner dust formation radius • Observations at approximately bi-weekly intervals over approximately 2 years from optical phase 0. 68 to 1. 82 • Angular resolution ~500 microarcseconds (43 GHz) • Distance = 390 pc => physical resolution of 0. 2 AU • Masers roughly in a ring • Significant asymmetry in the shell • Gas motion show predominantly expansion, but local deviations

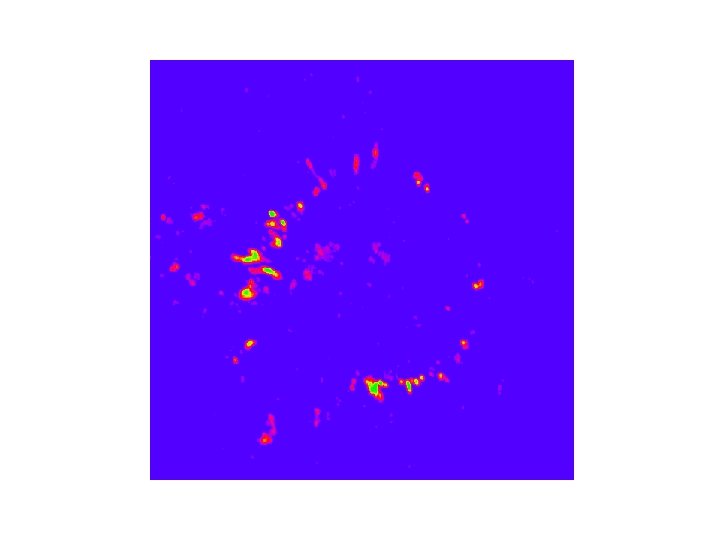

Diamond Kemball TX Cam Si. O Masers
Pre-planetary and Planetary Nebulae • Direct descendants of AGB circumstellar shells • So why are many not spherical in shape ? • Interacting winds ? • Fast wind is launched late in the history of AGB • Interacts with remnant of circumstellar shell • Where does fast wind come from ? April 22, 2004 U. Wash. Astron.
A few thousand A. U.
10 – 6 d n a s thou . U. A
IRAS 16342 -3814 Estimated Distance of 2 kpc Bipolar protoplanetary nebula “Water Fountain” Nebula 1000 AU
IRAS 16342 -3814 Estimated Distance of 2 kpc Bipolar protoplanetary nebula “Water Fountain” Nebula 1000 AU
2000 AU
10 AU

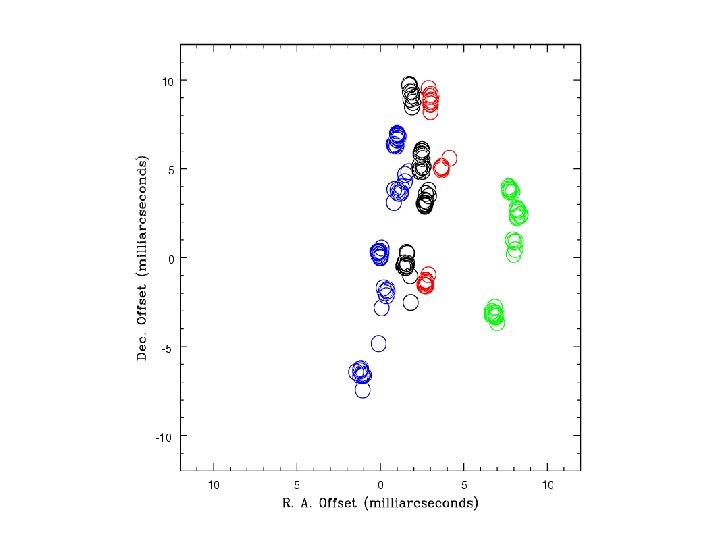

VLBA Observations of Water Masers in IRAS 16342 -3814 • Six monthly epochs of VLBA observations in 2002 • Simultaneous VLA observations to help with position registration • The line connecting the extreme velocities (some 2970 mas long) has increased its length by 3 mas • The separation corresponds to velocity of 175 km/s • Water maser emission quite likely arises in shocks where a jet hits some molecular gas. April 22, 2004 U. Wash. Astron.
VLBI using NRAO’s VLBA • Not just for extragalactic science ! • Can be vital for understanding • Star formation • Radio emission from stars • Stellar endpoints http: //www. aoc. nrao. edu/vlba/html mclausse@nrao. edu
Expanded Very Large Array Phase I • Improved sensitivity by a factor of 5 below 10 GHz to more than a factor of 20 between 10 and 50 GHz • Operation at any frequency between 1 and 50 GHz • New correlator to handle wide-band data transmission, also improving flexibility and spectral resolution. • Project began in 2002, test antenna outfitting in 2003 • First light with newly outfitted test antenna 28 October 2003 • First fringes between test antenna and VLA antennas on March 24, 2004
EVLA Phase I Schedule Start installation prototype system on VLA antenna for testing Start production of new electronics systems Start installation of new systems on VLA antennas at rate 4 ant/year Start installation of new correlator in new screened room First “shared risk” science with new correlator subset New correlator fully operational Last antenna converted to EVLA design Last EVLA receiver installed Apr 2003 Dec 2003 May 2004 Apr 2006 Apr 2007 Feb 2009 Oct 2010 Apr 2012
Student / Visitor Programs at NRAO • Undergraduate Summer Student Research Program (REU) • Graduate Summer Student Research Assistantships • like REU, but for 1 st and 2 nd year grad students • Co-op program • undergraduate engineering / computing students 2 -3 semesters • Graduate Student Internship Program • first / second year graduate students for pursuing a research program (not summer, see above) • Pre-Doctoral Research Program • Ph. D. candidates in radio astronomy in residence at NRAO
Student / Visitor Programs at NRAO • Pre-Doctoral Research Program • Ph. D. candidates in radio astronomy in residence at NRAO • GBT Student Support Program • Visiting Scientist Program • Ph. D. Scientists / Engineers – Faculty • Terms of visit negotiable, weeks – months & sabbaticals • http: //www. nrao. edu/students • http: //www. nrao. edu/astrores/visitors. shtml
