Water Balance Estimation Naomi Radke, seecon international Gmb. H Water Balance Estimation

Find this presentation and more on www. sswm. info Copyright & Disclaimer Copy it, adapt it, use it – but acknowledge the source! Copyright Included in the SSWM Toolbox are materials from various organisations and sources. Those materials are open source. Following the opensource concept for capacity building and non-profit use, copying and adapting is allowed provided proper acknowledgement of the source is made (see below). The publication of these materials in the SSWM Toolbox does not alter any existing copyrights. Material published in the SSWM Toolbox for the first time follows the same open-source concept, with all rights remaining with the original authors or producing organisations. To view an official copy of the Creative Commons Attribution Works 3. 0 Unported License we build upon, visit http: //creativecommons. org/licenses/by/3. 0. This agreement officially states that: You are free to: • Share - to copy, distribute and transmit this document • Remix - to adapt this document. We would appreciate receiving a copy of any changes that you have made to improve this document. Under the following conditions: • Attribution: You must always give the original authors or publishing agencies credit for the document or picture you are using. Disclaimer The contents of the SSWM Toolbox reflect the opinions of the respective authors and not necessarily the official opinion of the funding or supporting partner organisations. Depending on the initial situations and respective local circumstances, there is no guarantee that single measures described in the toolbox will make the local water and sanitation system more sustainable. The main aim of the SSWM Toolbox is to be a reference tool to provide ideas for improving the local water and sanitation situation in a sustainable manner. Results depend largely on the respective situation and the implementation and combination of the measures described. An in-depth analysis of respective advantages and disadvantages and the suitability of the measure is necessary in every single case. We do not assume any responsibility for and make no warranty with respect to the results that may be obtained from the use of the information provided. Water Balance Estimation

Find this presentation and more on www. sswm. info Contents 1. What is a Water Balance Estimation 2. Who is Involved? 3. What Can it be Used for? 4. Uncertainty and Problems 5. Conducting a Water Balance Estimation 6. Applicability 7. Advantages and Disadvantages 8. References Water Balance Estimation 3

Find this presentation and more on www. sswm. info 1. What is a Water Balance Estimation? A water balance estimation is. . . A tool to assess the current status and trends in water resources availability in an area over a specific period of time. Change in global water availability. A water balance estimate can reveal the situation of water availability. Source: UNEP GRID-A (2009) Water Balance Estimation 4

Find this presentation and more on www. sswm. info 1. What is a Water Balance Estimation? Calculating the water balance The simplest form of water balance estimation is: P = Q + E ± ∆S P: Q: E: ∆S: Precipitation Runoff Evaporation Storage in the soil, aquifers or reservoirs Example of water balance estimation. Source: BGR (2008) Water Balance Estimation 5

Find this presentation and more on www. sswm. info 1. What is a Water Balance Estimation? Conservation of water. . . If in a specific area over a specific time water inflows = water outflows ± changes in storage Precipitation (rainwater) is either transferred to surface run off or evaporates OR it is stored in the ground. Water Balance Estimation 6

Find this presentation and more on www. sswm. info 2. Who is Involved? • Stakeholders involved in decision-making that require more detailed info on water available • Specialists or staff that have undergone training and access to specialist support River. Ware (a river system modelling tool)Training in Mexico. Source: Water Balance Consulting (2013). Water Balance Estimation 7

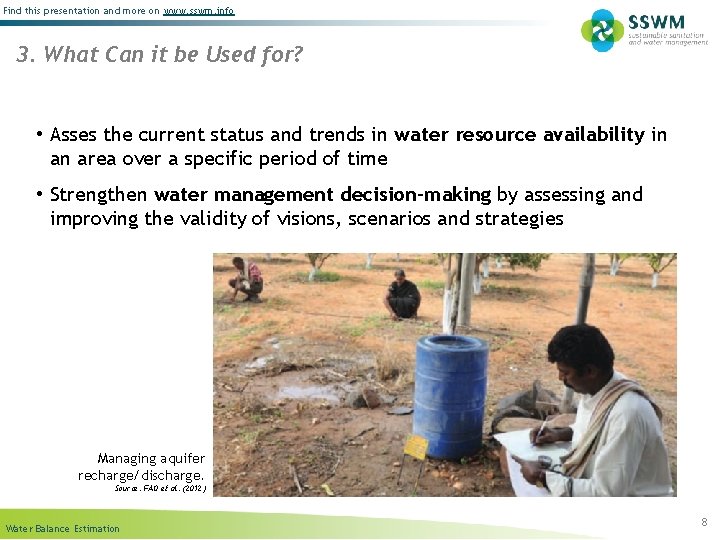

Find this presentation and more on www. sswm. info 3. What Can it be Used for? • Asses the current status and trends in water resource availability in an area over a specific period of time • Strengthen water management decision-making by assessing and improving the validity of visions, scenarios and strategies Managing aquifer recharge/discharge. Source: FAO et al. (2012) Water Balance Estimation 8

Find this presentation and more on www. sswm. info 4. Uncertainty and Problems Uncertainty in water balance estimation There is always uncertainty due to inadequate capture networks, measurement errors, complex spatial and temporal heterogeneity of hydrological processes ü Uncertainty Analysis is an important part of water balance estimation! Water Balance Estimation 9

Find this presentation and more on www. sswm. info 4. Uncertainty and Problems occurring in water balance estimation • Temporal and spatial boundaries are not defined • Quality of input data is poor • Double counting of water flows when water flows within an area added to water flow of exiting area • Inappropriate extrapolation of field level information to a larger scale • Intuition (often based on popular myths) is used rather than good quality information. • The storage term(s) of the water balance is omitted • Political or other pressures result in unreliable estimates that have been manipulated Water Balance Estimation 10

Find this presentation and more on www. sswm. info 5. Conducting a Water Balance Estimation Materials and Resources • Techniques: From very simple “back of the envelope” calculations to highly complex computer-based models • Precondition: Sound knowledge of hydrological processes • Advisable o To contract specialist service o To have access to a quality-controlled information database Water Balance Estimation 11

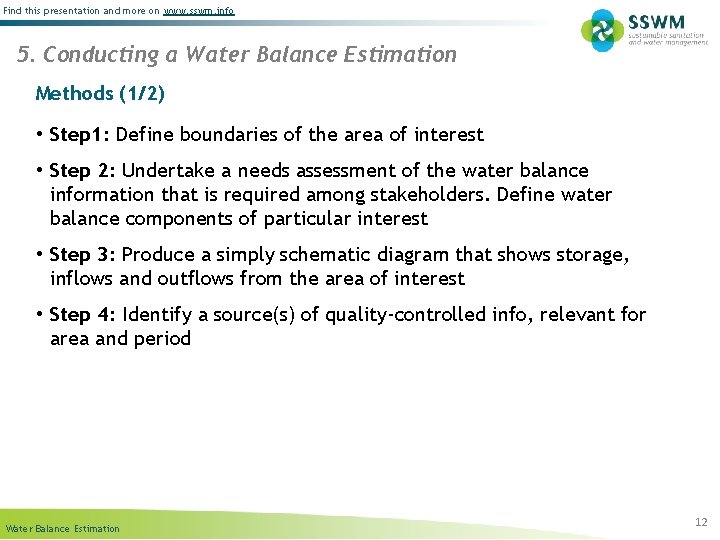

Find this presentation and more on www. sswm. info 5. Conducting a Water Balance Estimation Methods (1/2) • Step 1: Define boundaries of the area of interest • Step 2: Undertake a needs assessment of the water balance information that is required among stakeholders. Define water balance components of particular interest • Step 3: Produce a simply schematic diagram that shows storage, inflows and outflows from the area of interest • Step 4: Identify a source(s) of quality-controlled info, relevant for area and period Water Balance Estimation 12

Find this presentation and more on www. sswm. info 5. Conducting a Water Balance Estimation Methods (2/2) • Step 5: Uncertainty and sensitivity analysis on this info. If inadequacies, redefine the boundaries and/or modify equation • Step 6: Produce water balance estimates in a format that is useful for visioning, scenario building and planning with the community • Step 7: Control these estimates regarding their quality before they are disseminated • Step 8: Disseminate findings to stakeholders in a form they can understand Water Balance Estimation 13

Find this presentation and more on www. sswm. info 5. Conducting a Water Balance Estimation Result Example Australian water balance report. Source: NWC (2005) Water Balance Estimation 14

Find this presentation and more on www. sswm. info 6. Applicability Water balance estimation as basis for. . . • Quantitative evaluation of water resources and their change under human activities • Hydrological substantiation of projects for the rational use, control and redistribution of water resources in time and space How does irrigation effect the water availability? A water balance estimation can help assess the severity of human impact on the water cycle. Source: B. Haas Water Balance Estimation 15

Find this presentation and more on www. sswm. info 7. Advantages and Disadvantages Advantages: • Provides you with a comprehensive understanding of the water flow system and water resources in your area Water Balance Estimation Disadvantages: • Often incorrect for the many reasons listed before • Often, minimal or no account is taken of uncertainty when estimates are made and presented • Very complex work process that needs to be done by qualified experts (at least as support) which requires considerable time and resources 16

Find this presentation and more on www. sswm. info 8. References BGR (2008): Water Cycle/Water Balance for Germany. Hannover: Bundesanstalt fuer Geowissenschaften und Rohstoffe (BGR). URL: http: //www. bgr. bund. de/EN/Themen/Wasser/Bilder/Was_wasser_startseite_wasserkreis_g_en. html [Accessed: 14. 10. 2013] Water Balance Consulting (2013): River. Ware Simulation Training in Mexico. Boulder: Water Balance Consulting. URL: http: //waterbalance. org/projects-page/riverwaretraining/ [Accessed: 14. 10. 2013] FAO, GEF, IAH, IHP, World Bank (2012): Management of aquifer recharge and discharge processes and aquifer storage equilibrium. Rome: FAO. URL: http: //www. zaragoza. es/ciudad/medioambiente/onu/en/detalle. Per_Onu? id=587 [Accessed: 14. 10. 2013] NWC (Editor) (2005): Australian Water Resources 2005 - Water Balance Assessment. Canberra: Australian Government, National Water Commission (NWC). URL: http: //www. water. gov. au/Water. Availability/Waterbalanceassessments/index. aspx? Menu=Level 1_3_ 2 [Accessed: 14. 10. 2013] UNEP GRID-A (2009): The Contribution of Climate Change to Declining Water Availability. Arendal: United Nations Environment Programme (UNEP) GRID Arendal. URL: http: //maps. grida. no/go/graphic/the-contribution-of-climate-change-to-declining-water-availability [Accessed: 14. 10. 2013] Water Balance Estimation 17
