Waste Management Power Generation Technology Balboa Pacific Corporation
Waste Management & Power Generation Technology Balboa Pacific Corporation
Solutions to Waste Management must be addressed technologically. Using Mother Earth as a waste depository – land or sea, is unacceptable. And incineration pollutes the air we breathe. It is incumbent upon mankind to serve as stewards of the planet we inhabit. Balboa Pacific Corporation
Balboa Pacific Corporation Bal-Pac Thermal Converter OUR TECHNOLOGY Pyrolytic Gasification Balboa Pacific Corporation
Advantages of Bal-Pac Pyrolytic Gasification for processing waste streams 4 Environmentally clean process. 4 Controlled environment inside pyrolytic units. 4 Energy efficient process. 4 Controlled temperature in every stage of the process. 4 Portability - can be moved easily. 4 Can generate up to 3 Megawatt hours of power per 50 ton system per day. Balboa Pacific Corporation
Advantages of Bal-Pac Pyrolytic Gasification for processing waste streams 4 It is a continuous-feed process 4 Volume reduction of the material, up to 95% depending on waste composition 4 No toxic residue, non-leachable (ash) 4 No toxic emissions into the air 4 Creates heat energy as a by-product 4 Temperature range of Thermal Oxidizer as high 2600°F Balboa Pacific Corporation
Typical System Thermal Oxidizer operates between 1600 & 2600°F Thermal Converter operates between 1200 & 1800°F System stack Waste Conveyor Thermal Oxidizer Thermal Converter Steam Turbine Generator Waste Heat Boiler Char Waste Material Shredder/ Pelletizer Waste-heat Boiler pressure = 250 psi Multi-stage steam turbine generator Balboa Pacific Corporation
How It Works • Indirect heat • Oxygen free • Temperatures between 1200 & 1800°F. • Continuous process Balboa Pacific Corporation
Different Waste Streams Processed By Bal-Pac Pyrolytic Gasification Municipal Solid Wastes • Household, Commercial Centers, Buildings, Markets, Restaurants and Fast Food Eateries, Schools, Yard Waste, etc. Industrial Wastes • • • Oil Refineries Chemical Plants Metallurgical / Mining Industries Hospital Waste (Red Bag Waste) Electronic Industries (Chips, IC’s, MP’s) Steel Mills Plastic, Paper, Paints Rubber goods including tires Drum Waste Electrical Products (PVC, PE Insulation) Etc Contaminants successfully destroyed Balboa Pacific Corporation

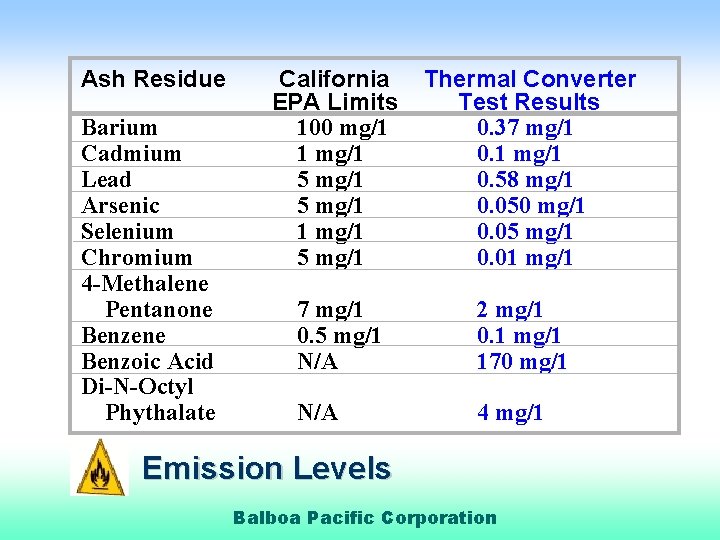

Ash Residue Barium Cadmium Lead Arsenic Selenium Chromium 4 -Methalene Pentanone Benzene Benzoic Acid Di-N-Octyl Phythalate California EPA Limits 100 mg/1 1 mg/1 5 mg/1 Thermal Converter Test Results 0. 37 mg/1 0. 1 mg/1 0. 58 mg/1 0. 050 mg/1 0. 05 mg/1 0. 01 mg/1 7 mg/1 0. 5 mg/1 N/A 2 mg/1 0. 1 mg/1 170 mg/1 N/A 4 mg/1 Emission Levels Balboa Pacific Corporation
Stack Emissions California Thermal Converter EPA Limits Test Results Particulate 0. 080 g CO (carbon monoxide) 50 ppm SO 2 (sulfur dioxide) 150 ppm HCI (hydrogen chloride) 50 ppm NOX (nitrogen oxides) 200 ppm 0. 051 g 1 ppm 24 ppm 68 ppm Emission Levels Balboa Pacific Corporation
A Comparative Analysis Bal-Pac Pyrolytic Gasification versus Incineration Decomposes oxygen free, converts to gas and carbon char Thermal destruction with direct flame and high oxygen Low air flow (low Nox) High air flow (high Nox) No toxic emissions (no Furans or Dioxins) Generates Furans and Dioxins 90 -95% reduction in volume and weight Creates energy up to 10 BTU Secondary control device rarely required (Scrubber or Dust Collector) Maximum 80% reduction Uses energy Secondary control device always required Balboa Pacific Corporation
the process 4 Energy rich - for every BTU* input, expect as much as 10 BTU output. 4 Superb waste-to-energy potential. 4 Bal-Pac Systems meet all environmental regulations and guidelines. * BTU - British Thermal Unit Balboa Pacific Corporation

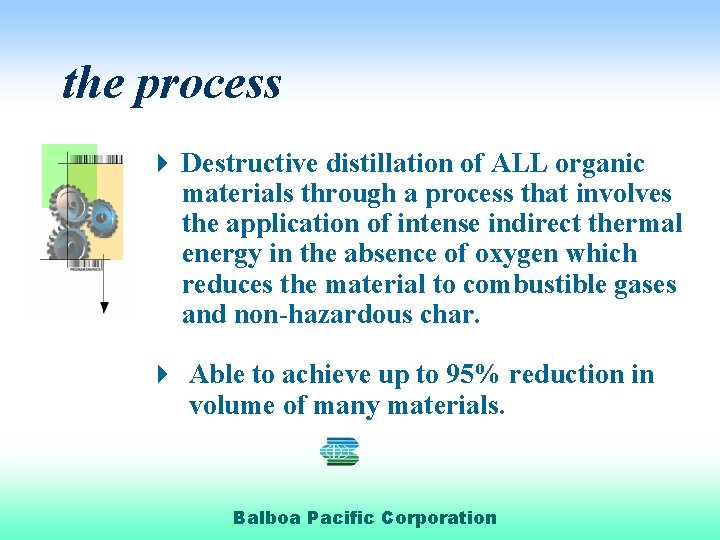

the process 4 Destructive distillation of ALL organic materials through a process that involves the application of intense indirect thermal energy in the absence of oxygen which reduces the material to combustible gases and non-hazardous char. 4 Able to achieve up to 95% reduction in volume of many materials. Balboa Pacific Corporation
For Mixed-Use Application Bal-Pac Thermal Converters can process: 1. Municipal waste 2. Industrial waste 3. Hospital waste 4. Household waste Bal-Pac Thermal Converters can: Generate / Create power for re-distribution within the same work area or re-sold to a local electric company Balboa Pacific Corporation
For Industrial Application Waste Management facility ideal for the final destruction of Toxic and Hazardous Waste (THW). Ideal for use as Waste Management facilities and power generating plants unit within industrial parks. Balboa Pacific Corporation
For Industrial Application An income generator because it processes not only internally generated waste, Bal-Pac offers one the option of treating waste from nearby industrial parks for a fee. A cost-cutting measure because it can generate up to 3 Megawatt hours of electricity per 50 ton system per day for use within the same industrial estate. Balboa Pacific Corporation
RRT Designs & Construction Melville, New York. Alstom Power Air Preheater Divison Wellsville, New York Strategic Alliances in Technology • Materials recovery facility EPC, O&M • MSW processing & recycling, transfer & collection systems T&O • MSW feedstock for RDF and COMPOST • Recyclable marketing services for paper, plastics, glass, metals, textiles, wood, aggregate, etc. • Waste-to-energy ash metals recovery • Leading supplier of engineered products, services and technologies for heat recovery systems, size reduction and classification equipment thermal processing and destruction equipment including custom manufacturing • Maintains a fully-equipped application laboratory and test center in Naperville Illinois, that offers pilot plant capabilities to simulate actual plant operations their products • APC manufacturing facilities in Concordia, Kansas and Wellsville, New York are both certified to AWS. D 1. 1 and ASME Section 1 and Section VIII certifications. The Concordia shop is also certified to ASME Section IV – Heating Boilers (“H” Stamp). Balboa Pacific Corporation
Balboa Pacific Corporation For Further Information Contact Douglas F. Golding Chief Operating Officer P. O. Box 10454 Costa Mesa, CA 92627 (949) 722 -6563 Doug@Balboa-Pacific. com www. Balboa-Pacific. com
