Warning and Notification Systems Workshop Warning and Notification
- Slides: 26
Warning and Notification Systems
Workshop – Warning and Notification Systems Summary Telegrafia Warning & Notification Systems Warning network Communication infrastructure Dispatching center

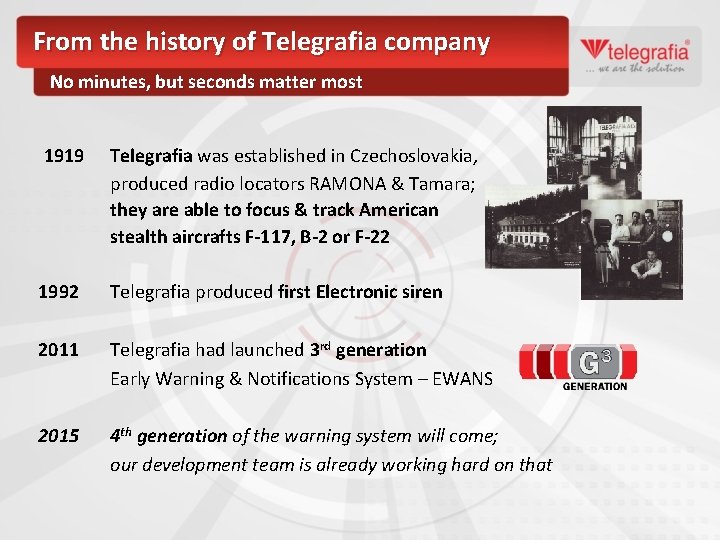

From the history of Telegrafia company No minutes, but seconds matter most 1919 Telegrafia was established in Czechoslovakia, produced radio locators RAMONA & Tamara; they are able to focus & track American stealth aircrafts F-117, B-2 or F-22 1992 Telegrafia produced first Electronic siren 2011 Telegrafia had launched 3 rd generation Early Warning & Notifications System – EWANS 2015 4 th generation of the warning system will come; our development team is already working hard on that
Workshop – Warning and Notification Systems Telegrafia – Present • Is specialized in development & production of early warning • • • systems, Has 72 employees, out of them 20 people work in development unit, Designs & develops hardware, firmware & software for warning systems and computers, Sales & distributes its products & solutions via partner chains in various countries in the world, Has its clients from among public administration institutions as well as industrial enterprises, Strives to offer the best products in the market
Workshop – Warning and Notification Systems Telegrafia – Representative network
Workshop – Warning and Notification Systems Telegrafia – Some references
Workshop – Warning and Notification Systems Telegrafia – Some references • Slovak national warning system - more than 2000 sirens • • placed all over Slovakia & it is integrated with number of industrial warning systems built and used by the private companies, which includes next circa 1000 sirens Early warning system for Nuclear power plant Jaslovské Bohunice, Slovakia - more than 350 sirens City warning system Dresden, Germany – more than 200 sirens Tsunami early warning system French Polynesia - more than 200 sirens More than 25 Dam Warning and Notifications systems
Workshop – Warning and Notification Systems Telegrafia – Some references Civil Defense - warning system Civil Defense - Control centre Other warning system connected to Civil Defense Water dam - Warning system Control centre Other Control centres

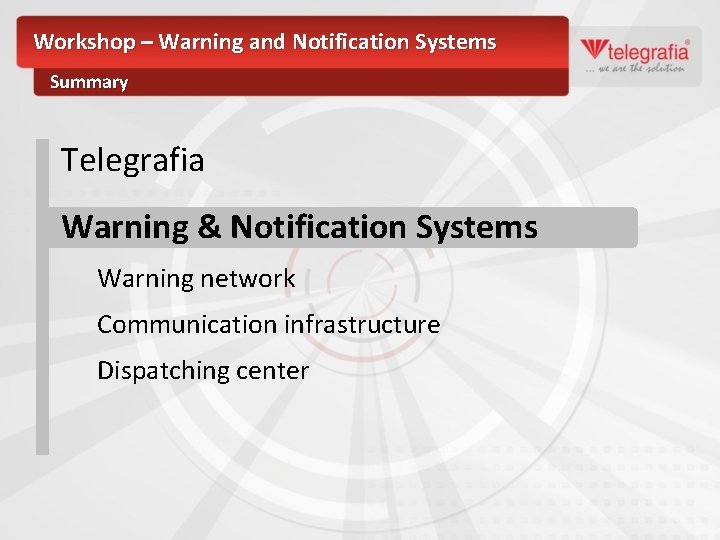

Workshop – Warning and Notification Systems Summary Telegrafia Warning & Notification Systems Warning network Communication infrastructure Dispatching center
Workshop – Warning and Notification Systems Warning And Notification System for Telegrafia • Follows the long term tradition of the production of highest quality electronics in Telegrafia, • Has been offered since 1992, from the beginning as EMA • Telegrafia won the international tender for the Slovak national warning system in 1997 (more than 2000 sirens), • Its 3 rd generation was launched in 2011 – Our R&D unit has already worked on the 4 th generation, which should be launched in 2015, • Its new generations are always compatible with the older ones, • No minutes, but seconds matter most
Workshop – Warning and Notification Systems Summary Telegrafia Warning & Notification Systems Warning network Communication infrastructure Dispatching center Dam WNS
Workshop – Warning and Notification Systems – Warning network Electronic sirens • Concentrate the high acoustic performance at one place • Cover a geographical territory unevenly – strong signal is in a siren • vicinity Enable to cover the endangered area by the warning signal in cost effective manners

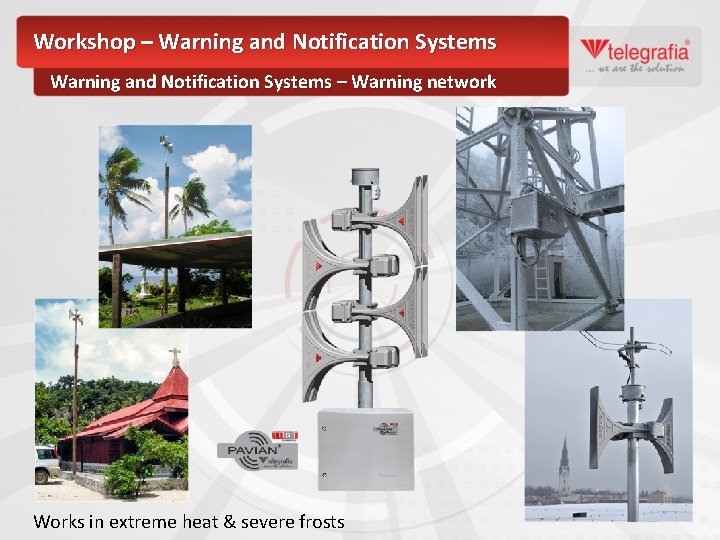

Workshop – Warning and Notification Systems – Warning network Works in extreme heat & severe frosts
Workshop – Warning and Notification Systems Summary Telegrafia Warning & Notification Systems Warning network Communication infrastructure Dispatching center Dam WNS
Workshop – Warning and Notification Systems – Communication • • • Modern warning systems usually have 2 communication channels for control of sirens – main & backup communication channels It is suitable, if at least 1 of them is radio channel working at the frequency assigned only for the warning system Our solutions have independent radio communication infrastructure which is optimized for activation speed of large warning systems Activation speed is measured in seconds, even for the large WNS – in the nuclear power station Jaslovské Bohunice, 350 sirens are activated in aprox. 20 seconds The confirmation of sirens´ activation is measured in minutes – from 350 sirens we can obtain this information within aprox. 2 minutes Other communication channels can be used for control – RDS, GPRS, TCP/IP, POCSAG, satelite. . .

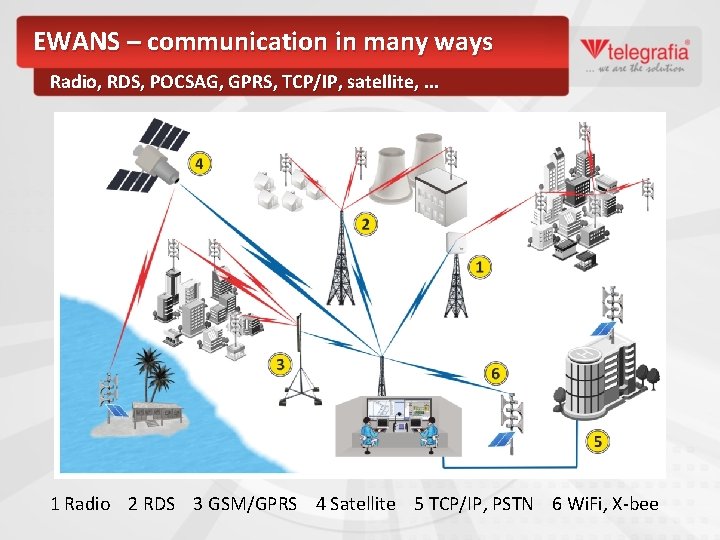

EWANS – communication in many ways Radio, RDS, POCSAG, GPRS, TCP/IP, satellite, . . . 1 Radio 2 RDS 3 GSM/GPRS 4 Satellite 5 TCP/IP, PSTN 6 Wi. Fi, X-bee

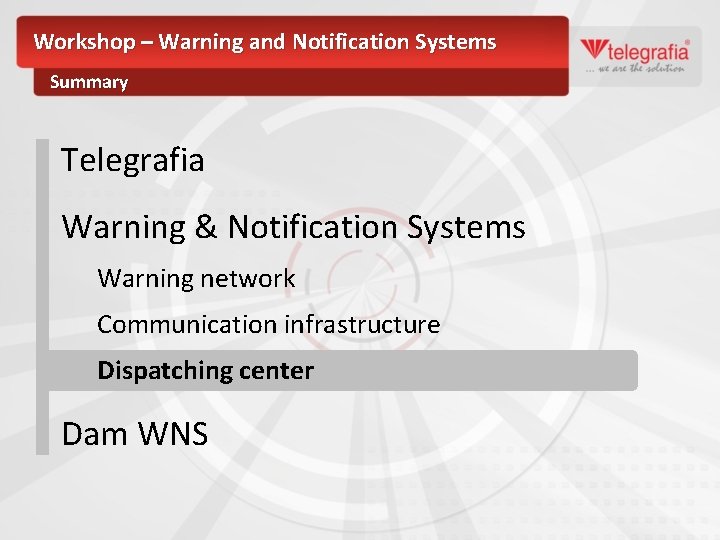

Workshop – Warning and Notification Systems Summary Telegrafia Warning & Notification Systems Warning network Communication infrastructure Dispatching center Dam WNS
Workshop – Warning and Notification Systems – Dispatching center
Workshop – Warning and Notification Systems – Dispatching center • User friendly GUI • Monitoring and control of locally connected and remote sirens • Automatic system check in regular intervals • Verbose and graphical state information • Immediate notification about failures • Logging of system events • Reports

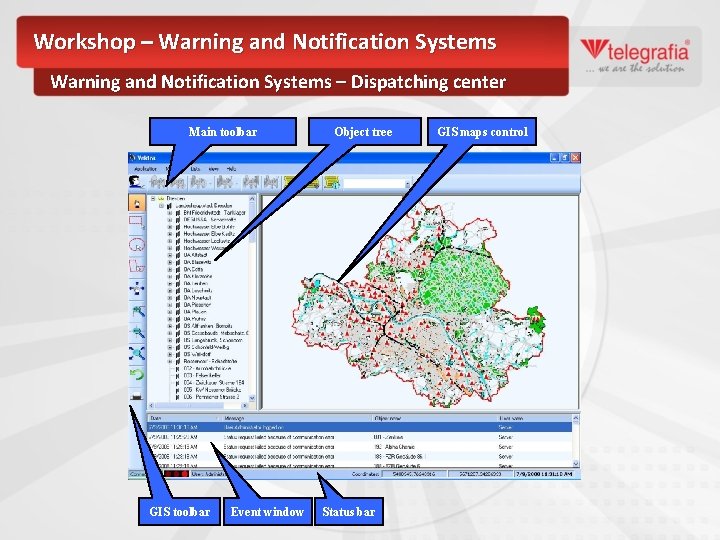

Workshop – Warning and Notification Systems – Dispatching center Main toolbar GIS toolbar Event window Object tree Status bar GIS maps control
Workshop – Warning and Notification Systems – Dispatching center Sirens visualizations in table
Workshop – Warning and Notification Systems – Dispatching center Notifications of persons and organizations

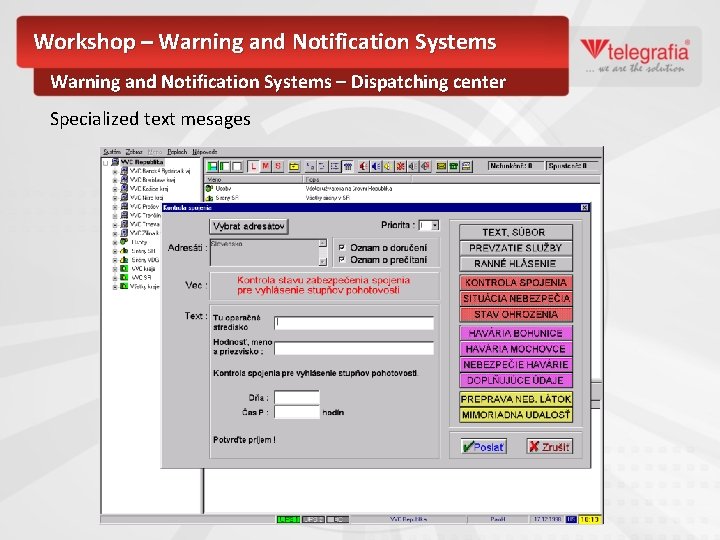

Workshop – Warning and Notification Systems – Dispatching center Specialized text mesages
Workshop – Warning and Notification Systems – Dispatching center Standard e-mail
Workshop – Warning and Notification Systems – Dispatching center Communication to fire departnment
Thank you for your attention. Questions?
