WARMUP mABC 14 x 2 mCBD 6 x
WARMUP - mÐABC = 14 x + 2, mÐCBD = 6 x + 1, mÐABD = 25 x – 27 C A D mÐABC = 14 x + 2 B mÐABC = 14(6) + 2 = 86 mÐABC + mÐCBD = mÐABD 14 x + 2 + 6 x + 1 = 25 x – 27 20 x + 3 = 25 x – 27 3 = 5 x – 27 30 = 5 x 6=x x=6 mÐABC = 86 mÐCBD = 6 x + 1 mÐCBD = 6(6) + 1 = 37 mÐABD = 25 x - 27 mÐABD = 25(6) - 27 = 123 mÐCBD = 37 mÐABD = 123

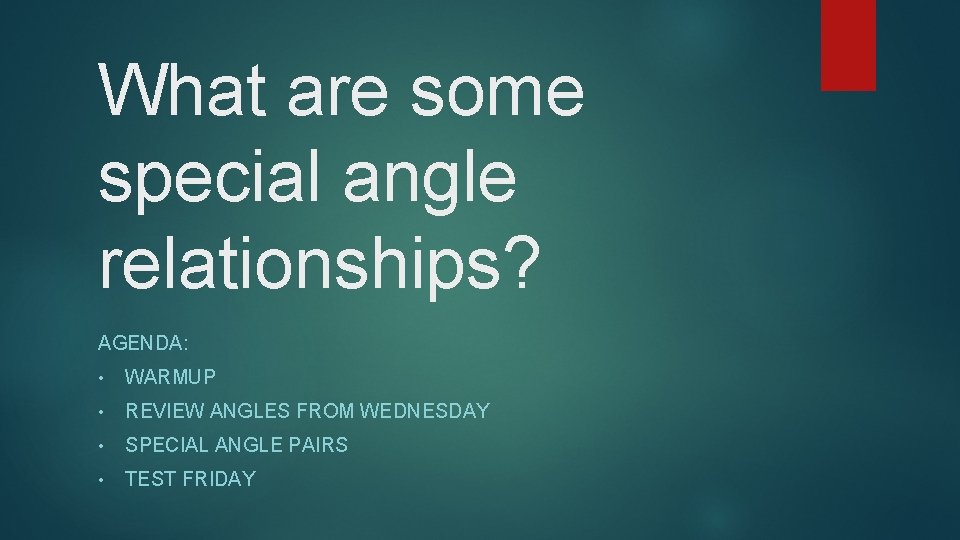

What are some special angle relationships? AGENDA: • WARMUP • REVIEW ANGLES FROM WEDNESDAY • SPECIAL ANGLE PAIRS • TEST FRIDAY
Complementary Angles Definition: two angles whose measures have the sum of 90. 20 70 55 35 Complementary Angles may or may not be Adjacent Angles.
Supplementary Angles Definition: two angles whose measures have the sum of 180. 110 55 70 125 Supplementary Angles may or may not be Adjacent Angles.
Linear Pair Definition: two supplementary, adjacent angles. 60 120 Linear Pair = A Pair of Angles that forms a Line.
Vertical Angles Definition: two non-adjacent angles formed by intersecting lines. 1 3 4 2 Ð 1 and Ð 2 are vertical angles. Ð 3 and Ð 4 are vertical angles.
What do you notice? 1 3 4 2 Ð 1@Ð 2 Ð 3@Ð 4 Theorem: Vertical Angles are Congruent.
Applying new concepts with Algebra… 102 10 x - 18 A C Q B 8 x + 6 102 Find x. D We know vertical angles are congruent; therefore the measure of vertical angles are equal and we can set these two expressions equal to one another. 10 x – 18 = 8 x + 6 2 x = 24 x = 12
What relationship do we see here? 18 Complementary Angles x x + 4 x = 90 72 4 x 5 x = 90 x = 18
Supplementary Angles 109 71 4 x+3 6 x+7 4 x+3 + 6 x+7 = 180 10 x + 10 = 180 10 x = 170 x = 17

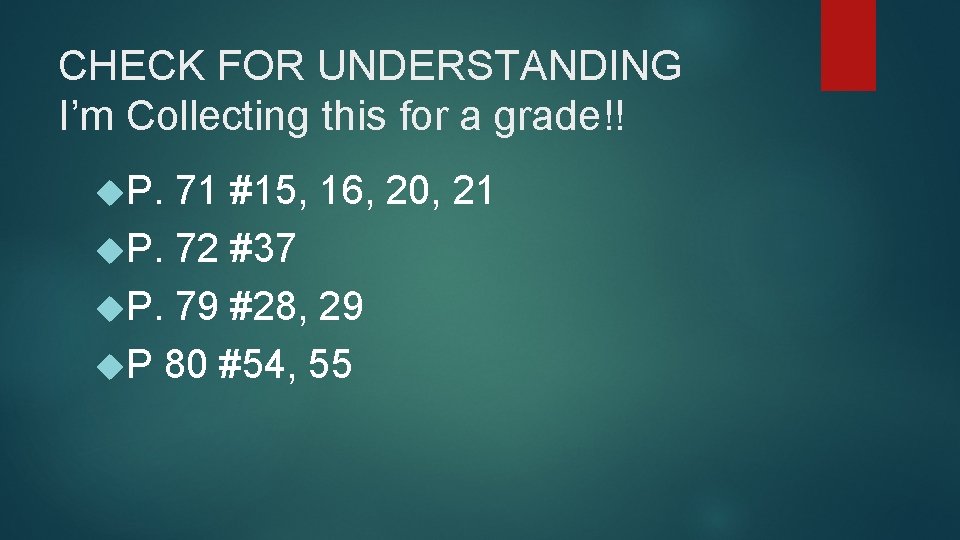

CHECK FOR UNDERSTANDING I’m Collecting this for a grade!! P. 71 #15, 16, 20, 21 P. 72 #37 P. 79 #28, 29 P 80 #54, 55
