Warm Welcome
Matrix SETU ATA Vo. IP Adaptors with FXO, FXS, GSM Ports and Multiple SIP Accounts
Introduction

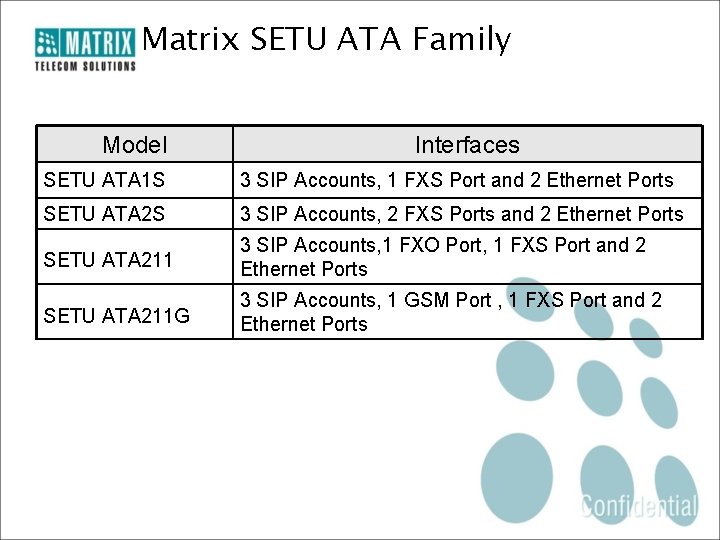

Matrix SETU ATA Family Model Interfaces SETU ATA 1 S 3 SIP Accounts, 1 FXS Port and 2 Ethernet Ports SETU ATA 2 S 3 SIP Accounts, 2 FXS Ports and 2 Ethernet Ports SETU ATA 211 3 SIP Accounts, 1 FXO Port, 1 FXS Port and 2 Ethernet Ports SETU ATA 211 G 3 SIP Accounts, 1 GSM Port , 1 FXS Port and 2 Ethernet Ports
SETU ATA 1 S Interfaces FXS Port DC Input Jack WAN Port LAN Port
SETU ATA 2 S Interfaces FXS 2 Ports (RJ 11) FXS 1 Port (RJ 11) DC Input Jack WAN Port LAN Port
SETU ATA 211 Interfaces FXO Port (RJ 11) FXS Port (RJ 11) DC Input Jack WAN Port (RJ 45) LAN Port (RJ 45)
SETU ATA 211 G Interfaces GSM Channel FXS Port (RJ 11) WAN Port (RJ 45) LAN Port (RJ 45)
Specifications SETU ATA 1 S SETU ATA 211 G FXS Port (RJ 11) 1 2 1 1 FXO Port (RJ 11) - - 1 - GSM Port - - - 1 Ethernet Port (RJ 45) 2 2 DC Power Input Jack 1 1 Description Vo. IP Protocols SIP v 2 SIP Accounts 3 Accounts Peer-to-Peer Table 500 Entries Dial Plan 10 Entries 100 Entries Phone Book 100 Entries 60 Entries G. 723, G. 729 A, G. 729 B, PCM -A, PCM-µ G. 723, G. 729 A, G. 729 B, PCM-A, PCM-µ Fax over IP Voice CODECS T. 38 G. 711 A-Law, µ-Law, G. 726, G. 729 A, G. 729 B

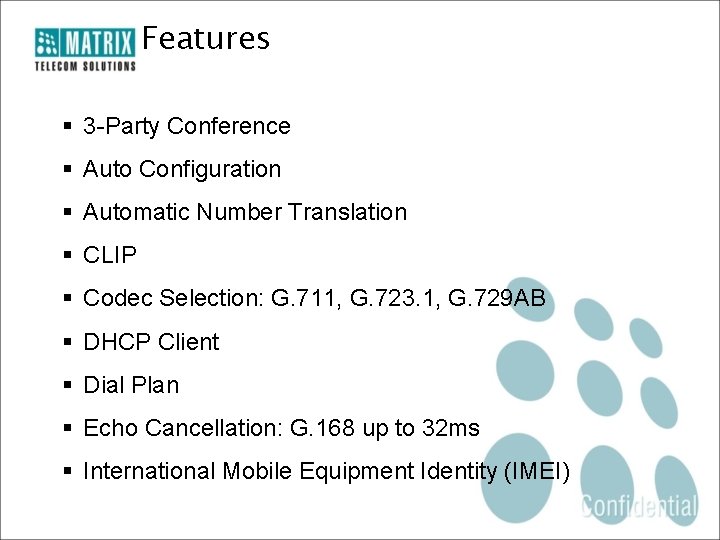

Features § 3 -Party Conference § Auto Configuration § Automatic Number Translation § CLIP § Codec Selection: G. 711, G. 723. 1, G. 729 AB § DHCP Client § Dial Plan § Echo Cancellation: G. 168 up to 32 ms § International Mobile Equipment Identity (IMEI)
Features § Incoming Call Routing § LED Indications § MAC Cloning § NAT and STUN § Network Selection § Peer-to-Peer Calling § Phone Book § PIN Authentication
Features § PPPo. E Client § Programmable Call Progress Tones and Rings § Quad-Band Support § Return Call to Original Caller (RCOC) (SETU ATA 211 G) § Signal Strength Indication (SETU ATA 211 G) § SIM PIN (SETU ATA 211 G) § Syslog Client § WAN and LAN pots-Surf and Talk Simultaneously
Auto Configuration § ATA’s Need to be Configured for Certain Basic Parameters before Use § ATA Users Mostly take an ITSP Connection to Make Calls § It is Desirable to Configure ATA from a Central Location, Avoiding Technical Difficulties during Configuration Process § Auto Configuration Allows ATA to be Configured from a Central Location (Service Provider Can Store the Configuration Files on a Central TFTP Server) § ATA will Periodically Search for Configuration Files on its

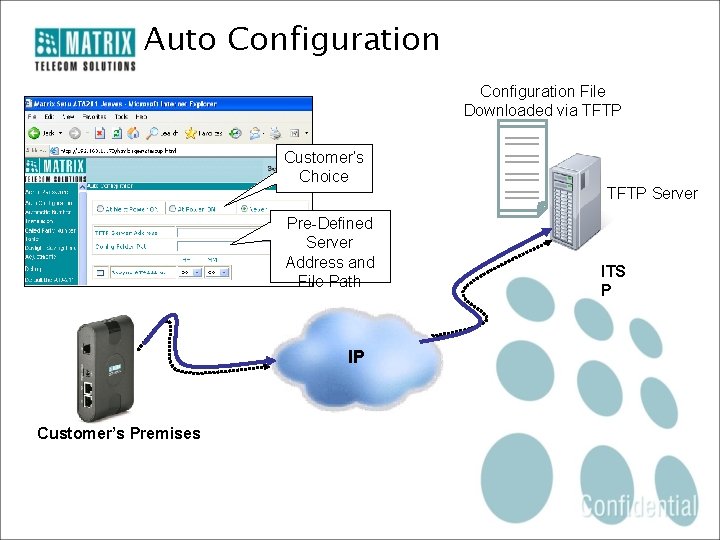

Auto Configuration File Downloaded via TFTP Customer’s Choice Pre-Defined Server Address and File Path IP Customer’s Premises TFTP Server ITS P
Calling Party Control (CPC) § The CPC signal Notifies to the ATA that ü The Called Party has Hung-Up ü Stop Recording to an Answering Machine or Voice Mail ü Drop the Call ü Prevents FXS Port from Hang-Up
Calling Party Control (CPC) CPC Passed to FXS Port Answering Machine/ Voice Mail System Drops the Call Disconnecte d CPC Sensed On WAN Port IP End User CPC Signal (0 Volt, for more than 500 ms) is sent by the Network End User Far End
Call Progress Tones and Rings § Different Tones to Indicate the Progress of a Call ü Dial Tone, Ring Back Tone, Busy Tone, Error Tone, Feature Tone and Confirmation Tones, with Different Cadence, with Specific Frequency are Supported § User can Select a Tone which Matches with the Tones Used in a Particular Region
CLIP § Detection of DTMF and FSK ITU-T and FSK Bellcore § CLIP for External Numbers, Internal Numbers § FXS Port can be Programmed for CLIP Protocol § This Feature can be Enabled / Disabled as Per Requirement
Dial Plan § Functions like LCR (Least Cost Routing) § Numbers to be Dialed, are Pre-Programmed to Use the Most Economical SIP Account § Basic Operation: ü User Dials a Number ü SETU ATA Searches for a Matching Number in the Programmed Number’s list ü A Number is then Dialed as Per the ‘Best-Fit’ Logic ü 100 Numbers can be Programmed & Mapped along with Preferred SIP Account
Dial Plan Index Number SIP Account 01 001 SIP 1 02 0064 SIP 2 : : : 100 0061 SIP 2
Digest Authentication § Feature Requirement ü Industry Standard for Web Authentication ü To Receive Calls from Specific Callers Only § Basic Operation ü Call is Received from Specific IP Device ü Digest Authentication Transmits Credentials Across the Network as Message Digest to Authenticate the Caller ü User is Authenticated for his User Name and Password ü If Successful, Call is Allowed ü Program such 100 Entries in “Digest Authentication Table” ü Applicable to Incoming SIP Calls Only
FXO Port § Supported by SETU ATA 211 § Can be Connected to POTS / GSM FCT for Making Calls § A ‘True’ FXO Port § Meant for INCOMING Calls as well as OUTGOING Calls
International Mobile Equipment Identity(IMEI) § 15/17 Digit Code Used to Identify a GSM Module on GSM Network § When SETU ATA 211 G is Switched on, the IMEI Number is Verified With the Service Providers List of Authorized Users § In Case of Lost/Stolen Equipment ü Get IMEI Number Blocked ü Prevents Misuse of Information Stored in the Gateway

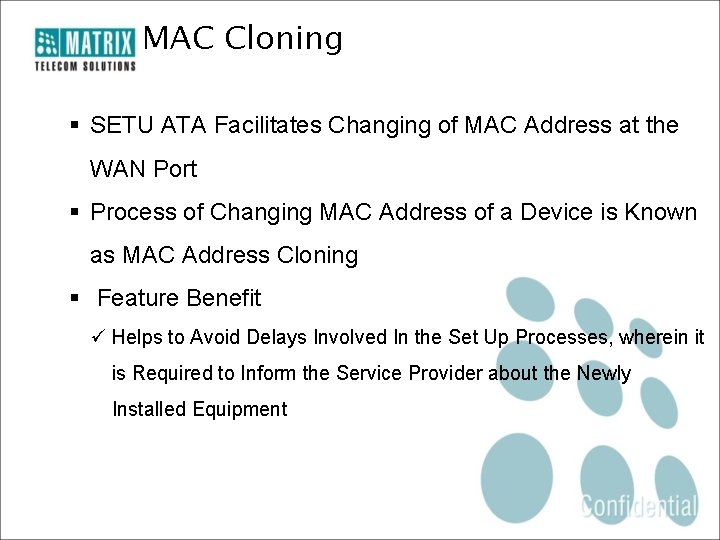

MAC Cloning § SETU ATA Facilitates Changing of MAC Address at the WAN Port § Process of Changing MAC Address of a Device is Known as MAC Address Cloning § Feature Benefit ü Helps to Avoid Delays Involved In the Set Up Processes, wherein it is Required to Inform the Service Provider about the Newly Installed Equipment
Multi-Stage Dialing § Feature Requirement: ü Consider Cases when Calls are to be made between Multi-Location Office Site § Normal Scenario: ü While Calling an Extension in Another Location Caller Needs to Dial Number in Two Stages ü SIP-ID of ATA , Followed by Extension Number § Preferred User Scenario: ü Caller wants to Dial Complete Number (SIP-ID of ATA and Extension Number) in One Stage Instead of Two ü With Multi-Stage Dialing, Caller Can Dial Complete Number in One
Multi-Stage Dialing: Case Study EXT-101 IP PBX PBX IP SETU ATA No. 1 EXT-102 SETU ATA Accepts Complete Number, but Processes SIPID first EXT-201 IP SETU ATA No. 2 On Call Maturity Extension Number is Dialed EXT-202 § ATA No. 1 and ATA No. 2 are Registered to the IP PBX § EXT-101 Wants to Call EXT-201 § Caller Dials 22 (SIP-ID of ATA No. 2) and 201 (Extension to be Called) at One Go § ATA No. 1 Accepts Complete Number but Dials SIP-ID of ATA No. 2 (22)
NAT Support § Network Address Translation § A Technology used by Firewalls and Routers § Feature Benefit ü Allows Multiple Devices in a LAN to Share a Single Public IP Address ü Enhances Security by Avoiding Direct Communication
NAT Router-Basic Operation 19. 168. 30. 11 NAT Router IP NAT Router WAN 192. 168. 30. 10 214. 20. 110 SETU ATA WAN SETU ATA Translation Table Head Office Private IP Translated to Public IP Private IP Public IP 192. 168. 50. 1 0 214. 20. 1 10 192. 168. 50. 1 1 214. 20. 1 11 Branch Office Response Delivered to Device which Started the Connection
STUN Support § STUN : Simple Traversal of User Datagram Protocol (UDP) through Network Address Translators (NAT's) § A Client-Server Protocol § STUN Allows a Client behind NAT to ü Discover its Public IP Address ü Discover the Type of NAT ü Discover the Internet Side Port (Port on which Received Response from External SIP Terminals can be Mapped to its Own Open Port)
STUN-Application Scenario Private IP: 192. 168. 50. 10 Open Port: 5060 Gateway/Firewall/Rou ter IP IP PBX SETU ATA Public IP of NAT: 214. 20. 110 Open Port : 1 STUN Server § STUN Client (like ATA) sends a request to STUN server § The Server Reports Back with the Public IP Address of the NAT Router and which Port is Opened by NAT to Allow Incoming Traffic § SETU ATA can Now Communicate the Public IP and Port details While Attempting to Register With the IP PBX
STUN Support § UDP: A Network Protocol for Transmitting Data (Without Acknowledgement/Connectionless Protocol) § SIP Based Vo. IP Calls uses UDP as Transport Protocol § STUN Allows ATA to work behind a Symmetrical NAT and Establish a Vo. IP Call
Syslog Client § Syslog: Protocol Used for Sending Debug Messages on IP Network § A Client/Server Protocol § Uses UDP as Transport Protocol for Debugging Process § Logging has Several Benefits ü Easier and Faster Troubleshooting ü Security Enhancement ü Better System Administration
Built-In Syslog Client Pre-Defined Server Address and Port IP SETU ATA 211 Syslog Server Debug Messages § SETU ATA has Built-In Syslog Client that Enables it to Send Debug Messages, to Remote Server, Via IP

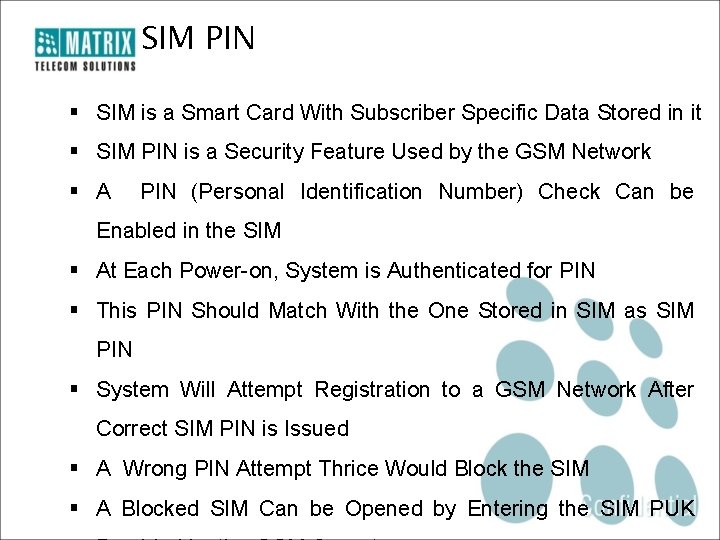

SIM PIN § SIM is a Smart Card With Subscriber Specific Data Stored in it § SIM PIN is a Security Feature Used by the GSM Network § A PIN (Personal Identification Number) Check Can be Enabled in the SIM § At Each Power-on, System is Authenticated for PIN § This PIN Should Match With the One Stored in SIM as SIM PIN § System Will Attempt Registration to a GSM Network After Correct SIM PIN is Issued § A Wrong PIN Attempt Thrice Would Block the SIM § A Blocked SIM Can be Opened by Entering the SIM PUK
PIN Authentication § Used to Authenticate a Caller § Caller has to Prove his Identity Before a Call is Routed from One Network to Another § Feature Benefit ü Avoids the Possibility of Unauthorized Use of Services

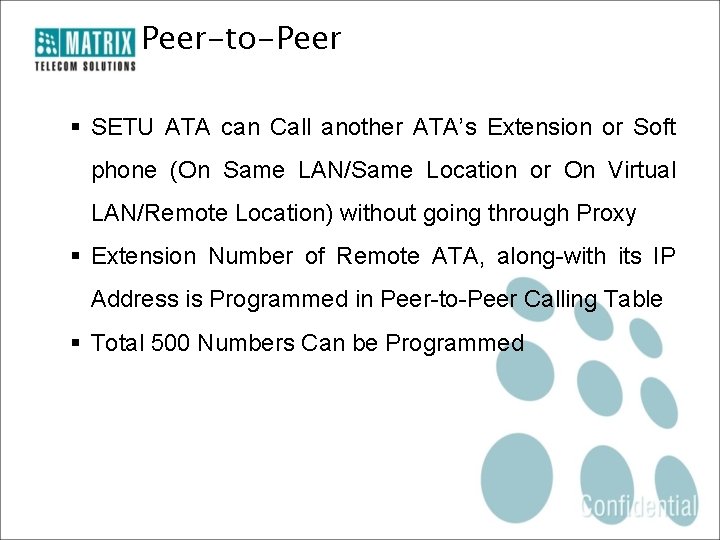

Peer-to-Peer § SETU ATA can Call another ATA’s Extension or Soft phone (On Same LAN/Same Location or On Virtual LAN/Remote Location) without going through Proxy § Extension Number of Remote ATA, along-with its IP Address is Programmed in Peer-to-Peer Calling Table § Total 500 Numbers Can be Programmed
Peer-to-Peer Table Index Number IP Address 01 201 192. 168. 1. 50 02 202 192. 168. 1. 75 : : : 500 600 192. 168. 1. 100
PPPo. E § PPPo. E : Point-to-Point Protocol over Ethernet ü A Network Protocol for Encapsulating PPP Frames in Ethernet Frames § Feature Requirement ü It is used to Virtually Dial Another Ethernet Machine and Make a Point-to-Point Connection ü Mainly used for x. DSL Services using x. DSL Modem § Feature Benefit ü Offers Standard PPP Features such as Encryption and Compression Authentication,
Quality of Service (Qo. S) § Qo. S : Capability of a Network to Provide Better Service ü Types of Qo. S Supported : To. S and Diff. Serve ü To. S (Type of Service): Server Decides Best Method of Delivering Data (Features like LCR, Fastest Route) ü Diff. Serve (Differentiated Services): Similar to Class of Service, Based on Application Type and Traffic Flow Services are Provided § Feature Requirement ü Decides Priority of Bandwidth Allocation ü Controls Jitter and Latency § Feature Benefit
Quad-Band Operations § Different Service Providers Uses Different GSM Frequency Bands § All GSM Frequency Bands are Supported in SETU ATA 211 G § Works everywhere in the World where GSM Networks are Available § Quad-Band Generally Refers to Devices that Support 4 GSM Networks ü GSM 850 MHz ü EGSM 900 MHz
Return Call To Original Caller (RCOC) § SETU ATA 211 G maintains records of all unsuccessful calls on GSM and IP Network § No need to ask who has called § Called party can directly reach to the concern person without any delay § Bypass Operator and Auto-Attendant § Saves time of the caller
Voice Activity Detection § It is a Software Application § Detects Audio Absence during Speech § Prevents the Transmission of these “ Silence Packets” over the Network § Saves Bandwidth
Target Customers § Home Users § Multi-Site Scenarios § Businesses § Call Shops
Applications of SETU ATA

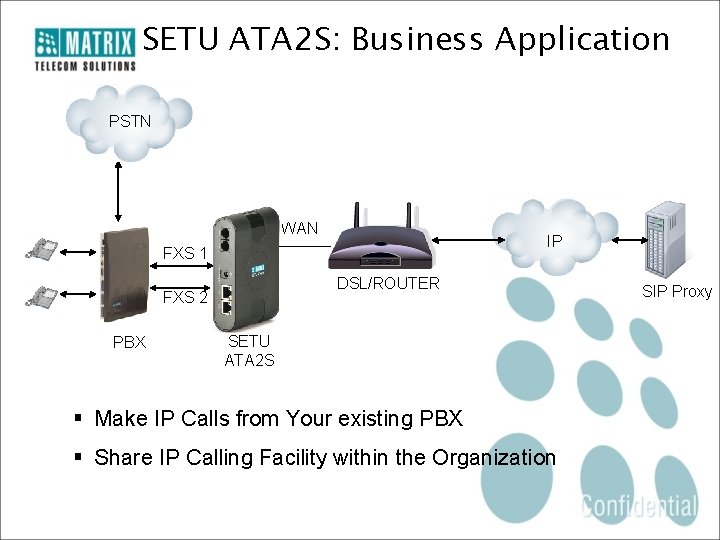

SETU ATA 2 S: Business Application PSTN WAN IP FXS 1 DSL/ROUTER FXS 2 PBX SETU ATA 2 S § Make IP Calls from Your existing PBX § Share IP Calling Facility within the Organization SIP Proxy
SETU ATA 211: Residential Application IP x. DSL/Router Proxy WAN LAN SETU ATA 211 FXS FXO PSTN
SETU ATA 211: Peer-to-Peer Application x. DSL /Router IP WAN Switch LAN FXS
SETU ATA 211 G: Business Application GSM IP SIP Proxy LAN Existing PBX SETU ATA 211 G
Matrix Vo. IP Product Range ETERNITY IP-PBX The IP-PBX with Universal Connectivity and Seamless Mobility SAPEX All-in-One Embedded IP-PBX Server VYOM CCX High-Density SIP Gateway ETERNITY The Universal Telephony Gateway SETU VGFX Multi-Port SIP based Vo. IP to GSM-FXO-FXS Gateway SETU VGB Multi-Port SIP based Vo. IP to GSM and BRI Gateway SETU VTEP Out-n-Out Vo. IP to PRI Gateway SETU VBR Multi-Port SIP based Vo. IP to BRI Gateway SETU VFXTH Multi-Port SIP based Vo. IP to FXO-FXS Gateway SETU VFX Multi-Port SIP based Vo. IP to FXS Gateway SETU ATA 211 G SETU ATA 211 SIP based Analog Telephone Adaptor with 1 FXS, 1 GSM and 2 Ethernet Ports SIP based Analog Telephone Adaptor with 1 FXO, 1 FXS and 2 Ethernet Ports SETU ATA 2 S SIP based Analog Telephone Adaptor with 2 FXS Ports and 2 Ethernet Ports SETU ATA 1 S SIP based Analog Telephone Adaptor with 1 FXS Port and 2 Ethernet Ports SETU VP 248 PE SETU VP 248 SE The High-Definition IP-Phone with 6 Lines x 24 Characters LCD Display and Po. E The High-Definition IP-Phone with 2 Lines x 24 Characters LCD Display and Po. E
Thank You
§ Type of Presentation: Product Presentation § Number of Slides: 51 § Revised On: 11 th November, 2010 § Version-Release Number: V 1 R 1 For Further Information Please Contact: Email ID: mt. voip@matrixcomsec. com Mobile: +91 9662544401 Visit us at www. matrixcomsec. com
