Bivariate Data – Scatter Plots and Correlation Coefficient

Objective Construct Scatter Plots and find Correlation Coefficient using Formula

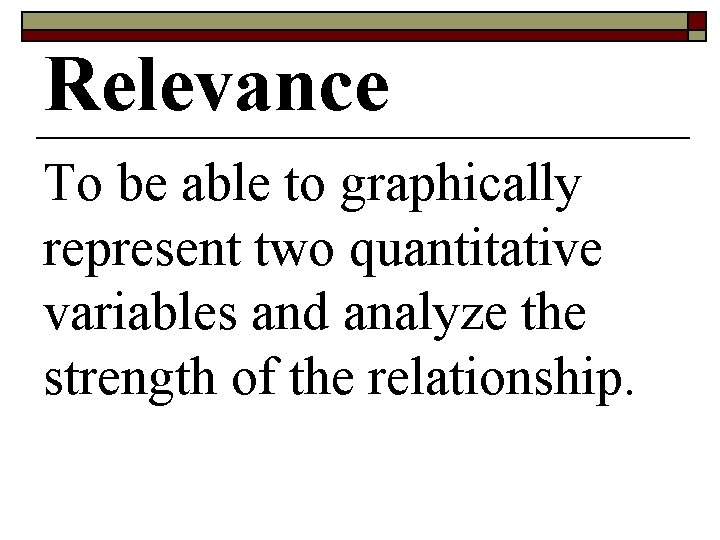

Relevance To be able to graphically represent two quantitative variables and analyze the strength of the relationship.

2 Quantitative Variables…… o We represent 2 variables that are quantitative by using a scatter plot. o Scatter Plot – a plot of ordered pairs (x, y) of bivariate data on a coordinate axis system. It is a visual or pictoral way to describe the nature of the relationship between 2 variables.

Input and Output Variables…… o X: a. Input Variable b. Independent Var c. Controlled Var o Y: a. Output Variable b. Dependent Var c. Results from the Controlled variable

Example o When dealing with height and weight, which variable would you use as the input variable and why? o Answer: o Height would be used as the input variable because weight is often predicted based on a person’s height. Normal acceptable weight ranges are based on a person’s height!

Constructing a scatter plot o Do a scatter plot of the following data: Independent Dependent Variable Age Blood Pressure 43 128 48 120 56 135 61 143 67 141 70 152

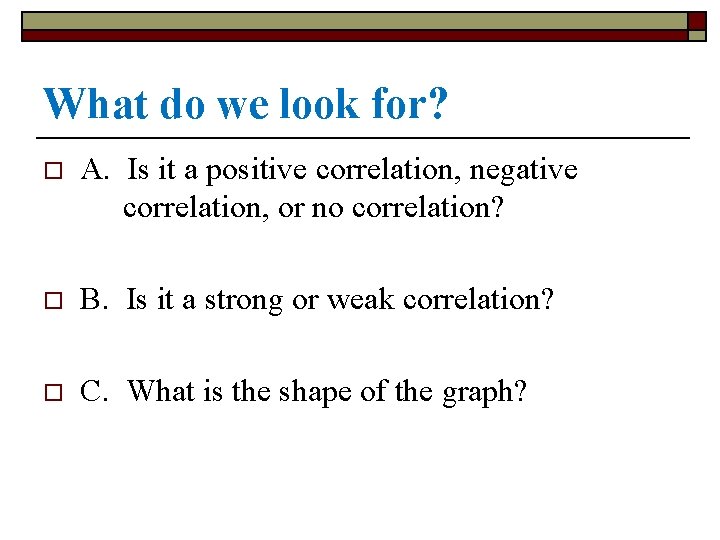

What do we look for? o A. Is it a positive correlation, negative correlation, or no correlation? o B. Is it a strong or weak correlation? o C. What is the shape of the graph?

Answer using GDC Age Blood Pressure 43 128 48 120 56 135 61 143 67 141 70 152

Notice o Notice the following: o A. Strong Positive – as x increases, y also increases. B. Linear - it is a graph of a line.

Example 2 – NO GDC Independent Dependent Variable # of Absences Final Grade 6 82 2 86 15 43 9 74 12 58 5 90 8 78

Example 2 using GDC Independent Dependent Variable # of Absences Final Grade 6 82 2 86 15 43 9 74 12 58 5 90 8 78

Notice o Notice the following: A. Strong Negative – As x increases, y decreases B. Linear – it’s the graph of a line.

Example 3 – NO GDC Independent Dependent Variable Hrs. of Exercise Amt of Milk 3 48 0 8 2 32 5 64 8 10 5 32 10 56 2 72 1 48

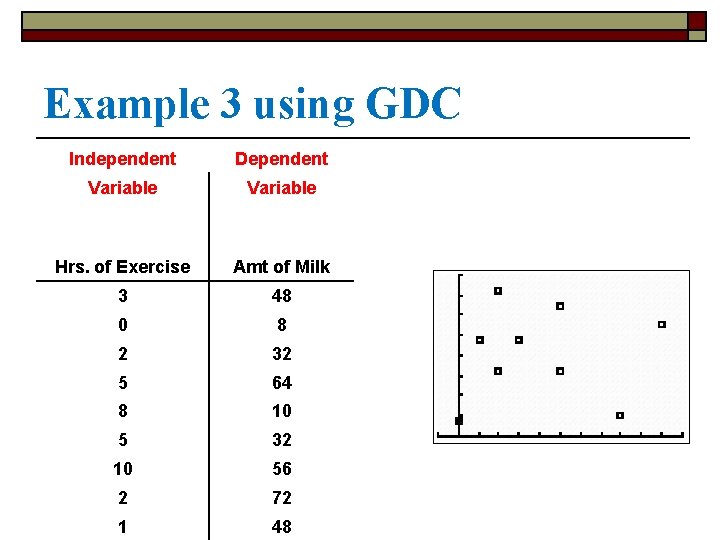

Example 3 using GDC Independent Dependent Variable Hrs. of Exercise Amt of Milk 3 48 0 8 2 32 5 64 8 10 5 32 10 56 2 72 1 48

Notice o Notice: o There seems to be no correlation between the hours or exercise a person performs and the amount of milk they drink.

Steps for Scatter Plot using GDC o Put x’s in L 1 and y’s in L 2 o Click on “ 2 nd y=“ o Set scatter plot to look like the screen to the right. o Press zoom 9 or set your own window and then press graph.

Linear Correlation

Correlation o Definition – a statistical method used to determine whether a relationship exists between variables. o 3 Types of Correlation: A. Positive B. Negative C. No Correlation

o o o Positive Correlation: as x increases, y increases or as x decreases, y decreases. Negative Correlation: as x increases, y decreases. No Correlation: there is no relationship between the variables.

Linear Correlation Analysis o Primary Purpose: to measure the strength of the relationship between the variables. o *This is a test question!!!!

Coefficient of Linear Correlation o The numerical measure of the strength and the direction between 2 variables. o This number is called the correlation coefficient. o The symbol used to represent the correlation coefficient is “r. ”

The range of “r” values o The range of the correlation coefficient is -1 to +1. o The closer to 0 you get, the weaker the correlation.

Range Strong Negative o No Linear Relationship Strong Positive __________________ -1 0 +1

Computational Formula using -scores of x and y z

Example 1 o o Find the correlation coefficient (r) of the following example. Use the lists in the calculator. x y 2 80 5 80 1 70 4 90 2 60

Find mean and standard deviation first Since you will be using a formula that uses z-scores, you will need to know the mean and standard deviation of the x and y values. o Better Option: 2 nd Stat Math Mean (L? ) o o Store It!!!!! o o Put x’s in L 1 Put y’s in L 2 Run stat calc one var stats L 1 – Write down mean & st. dev. Run stat calc one var stats L 2 – Write down mean & st. dev.

Shown on GDC – Write Down o x values: o y values:

Calculator Lists Set Formula L 1 L 2 L 3 = (L 1 -2. 8)/1. 643167673 L 4 = (L 2 -76)/11. 40175425 L 5 = L 3 x L 4 x y z(of x) z (of y) z (of x) times z(of y) 2 80 -0. 4869 0. 35082 -0. 1708 5 80 1. 3389 0. 35082 0. 46971 1 70 -1. 095 -0. 5262 0. 57646 4 90 0. 7303 1. 2279 0. 89672 2 60 -0. 4869 -1. 403 0. 68321 2. 455298358

Calculate “r” o o From the lists…. . n = 5

What does that mean? o Since r = 0. 61, the correlation is a moderate correlation. o Do we want to make predictions from this? o It depends on how precise the answer needs to be.

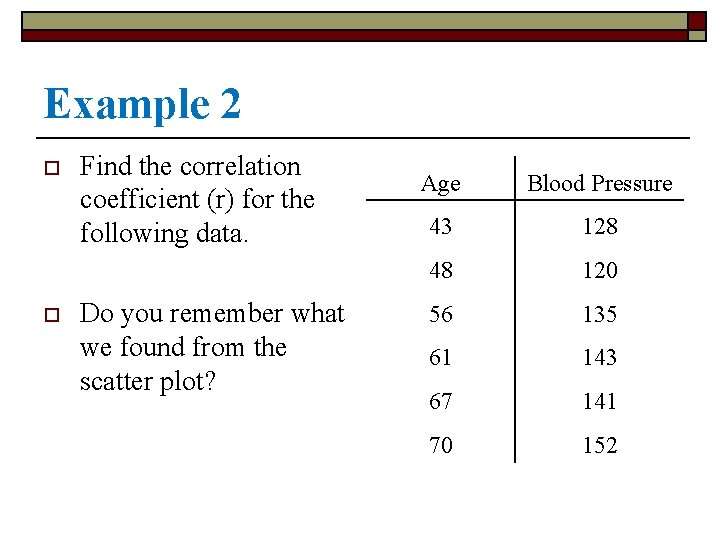

Example 2 o o Find the correlation coefficient (r) for the following data. Do you remember what we found from the scatter plot? Age Blood Pressure 43 128 48 120 56 135 61 143 67 141 70 152

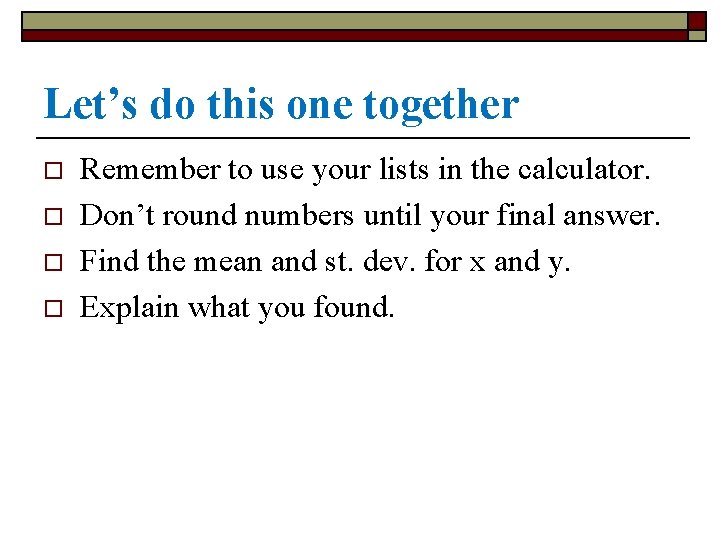

Let’s do this one together o o Remember to use your lists in the calculator. Don’t round numbers until your final answer. Find the mean and st. dev. for x and y. Explain what you found.

o X Values: o Y Values:

List values you should have n=6 L 1 L 2 L 3 L 4 L 5 43 128 -1. 368 -0. 7458 1. 0205 48 120 -0. 8965 -1. 448 1. 2978 56 135 -0. 1415 -0. 1316 0. 01863 61 143 0. 33028 0. 57031 0. 18836 67 141 0. 89647 0. 39483 0. 35395 70 152 1. 1796 1. 36 1. 6042 4. 483364073

Compute “r”

Describe it o Since r = 0. 897 Strong Positive Correlation

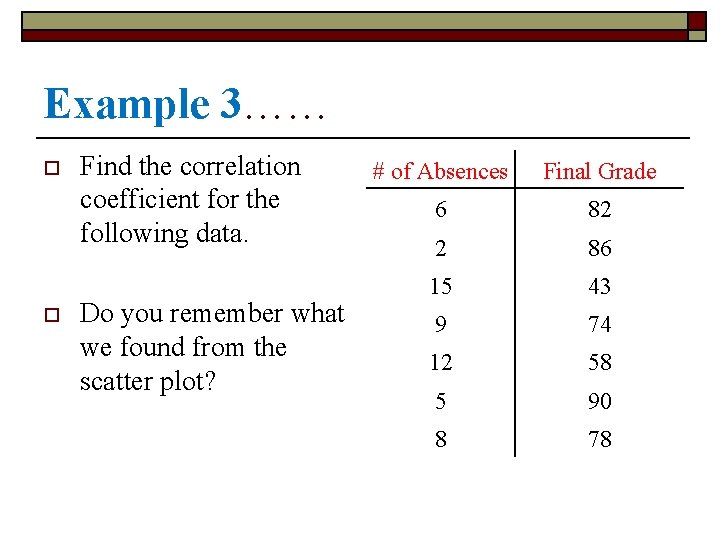

Example 3…… o o Find the correlation coefficient for the following data. Do you remember what we found from the scatter plot? # of Absences Final Grade 6 82 2 86 15 43 9 74 12 58 5 90 8 78

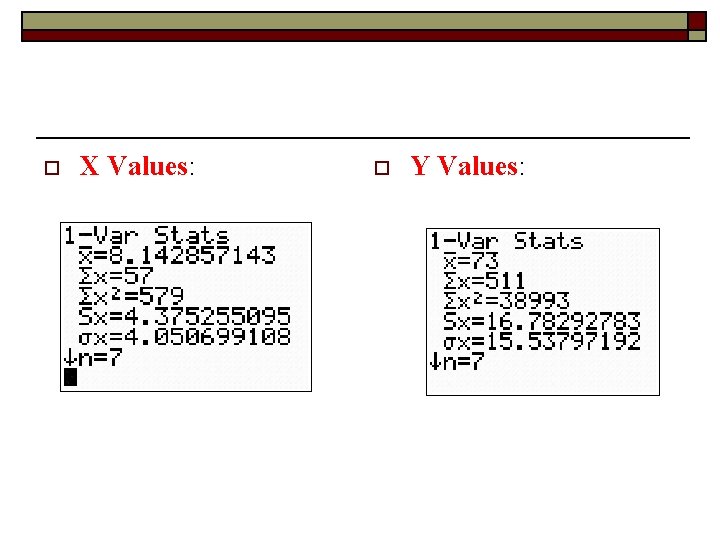

o X Values: o Y Values:

List Values using GDC n=7 L 1 L 2 L 3 L 4 L 5 6 82 -0. 4898 0. 53626 -0. 2626 2 86 -1. 404 0. 7746 -1. 088 15 43 1. 5673 -1. 788 -2. 802 9 74 0. 19591 0. 05958 0. 01167 12 58 0. 88158 -0. 8938 -0. 7879 5 90 -0. 7183 1. 0129 -0. 7276 8 78 -0. 0327 0. 29792 -0. 0097 -5. 66529102

Compute “r”

Describe it o Since r = -0. 944 Strong Negative Correlation

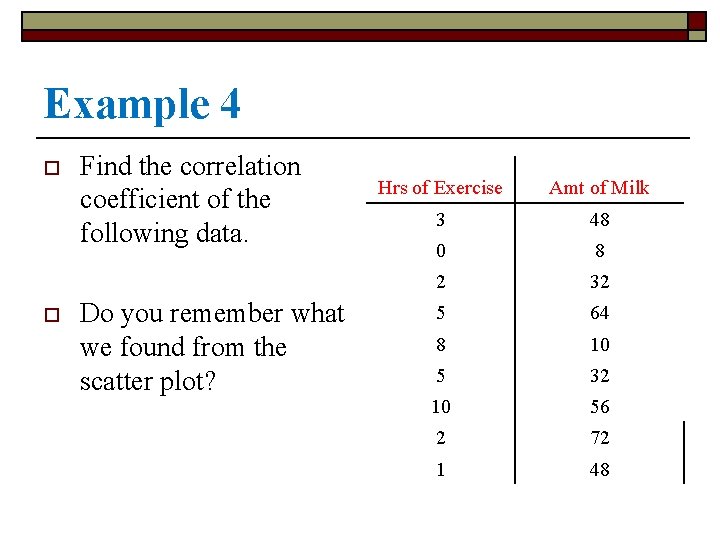

Example 4 o o Find the correlation coefficient of the following data. Do you remember what we found from the scatter plot? Hrs of Exercise Amt of Milk 3 48 0 8 2 32 5 64 8 10 5 32 10 56 2 72 1 48

o x Values: o y Values:

List Values using GDC n=9 Hrs of Exercise Amt of Milk L 3 L 4 L 5 3 48 -0. 3015 0. 30713 -0. 0926 0 8 -1. 206 -1. 476 1. 7804 2 32 -0. 603 -0. 4062 0. 24495 5 64 0. 30151 1. 0205 0. 30768 8 10 1. 206 -1. 387 -1. 673 5 32 0. 30151 -0. 4062 -0. 1225 10 56 1. 8091 0. 66379 1. 2008 2 72 -0. 603 1. 3771 -0. 8304 1 48 -0. 9045 0. 30713 -0. 2778 0. 537689672

Compute “r”

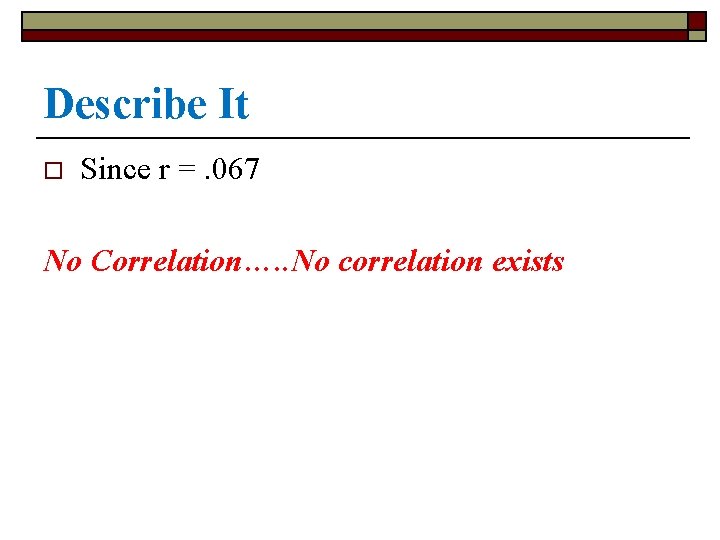

Describe It o Since r =. 067 No Correlation…. . No correlation exists

What is o It is the coefficient of determination. o It is the percentage of the total variation in y which can be explained by the relationship between x and y. o A way to think of it: The value tells you how much your ability to predict is improved by using the regression line compared with NOT using the regression line.

For Example o If it means that 89% of the variation in y can be explained by the relationship between x and y. o It is a good fit.

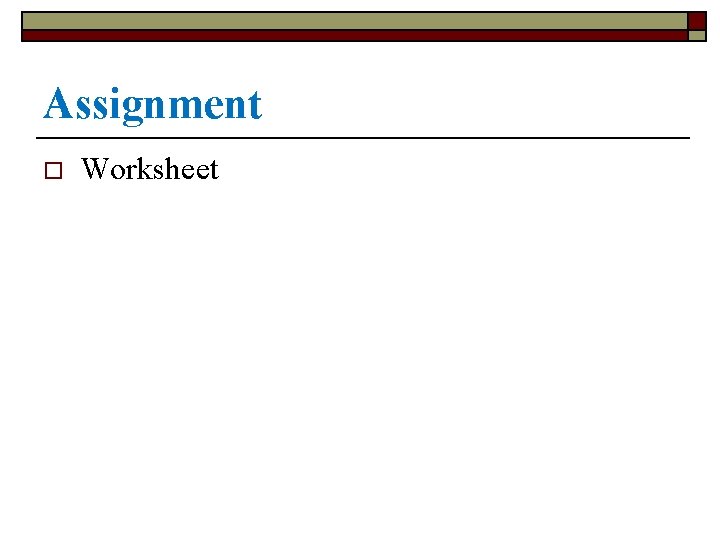

Assignment o Worksheet
