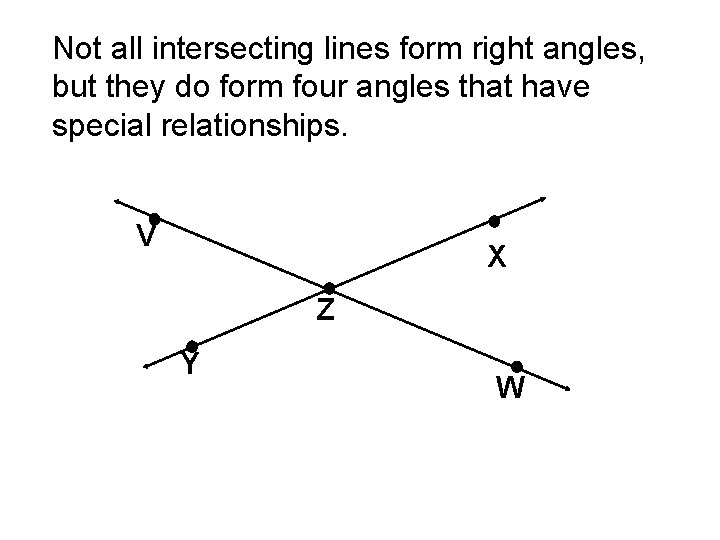

WARM UP Find the complement of where An Slides: 16 Download presentation WARM UP Find the complement of , where An angle measures 6 more than 3 times its supplement. Find the measure of its supplement. SPECIAL ANGLE PAIRS Complimentary Angles that sum to 90° Supplementary Angles that sum to 180° Not all intersecting lines form right angles, but they do form four angles that have special relationships. V X Z Y W Adjacent To be next to. SHARING a side. Vertical Angles Two non-adjacent angles formed by two intersecting lines. Angles that are ACROSS from each other when two lines cross. Vertical Angles V X Z Y W Vertical angles are ALWAYS CONGRUENT Linear Pair Adjacent angles whose noncommon sides are opposite rays. Two adjacent angles that are supplementary. Linear Pair V X Z Y W m YZV + m VZX = 180° Example 1 AC and DE intersect at B. Find the value of ‘x’ and the measure of EBC. A (2 x + 20) E B (3 x + 15) D C Example 2 GH and JK intersect at I. Find the value of ‘x’ and the measure of JIH. G (16 x – 20) K J I (13 x + 7) H Example 3 LN and OP intersect at M. Find the value of ‘x’ and the measures of LMO and OMN. O (5 x + 10) N (7 x + 20) L P M Example 4 If 1 and 2 are complements, with m 1 = (2 x + 20) and m 2 = (3 x + 15) , find the value of ‘x’. Example 5 Find all of the missing angles. m 1 = _____ m 2 = _____ m 3 = _____ m 4 = _____ 4 110 45 1 3 2 Example 6 CD AB, m 1 = (6 x – 3) , m 2 = (7 x – 11). Find the value of ‘x’. A 2 C B 1 D DiagrammrBcd subtraction using 1's complementTomorrowHow to calculate two's complement of a numberHow to find the complement of an angle1s and 2s complementCác châu lục và đại dương trên thế giớiHệ hô hấpưu thế lai là gìCác môn thể thao bắt đầu bằng tiếng nhảyTư thế ngồi viếtCái miệng bé xinh thế chỉ nói điều hay thôiHát kết hợp bộ gõ cơ thểCách giải mật thư tọa độTư thế ngồi viếtVoi kéo gỗ như thế nàoThẻ vin
