Warm up Copy the diagram then list all

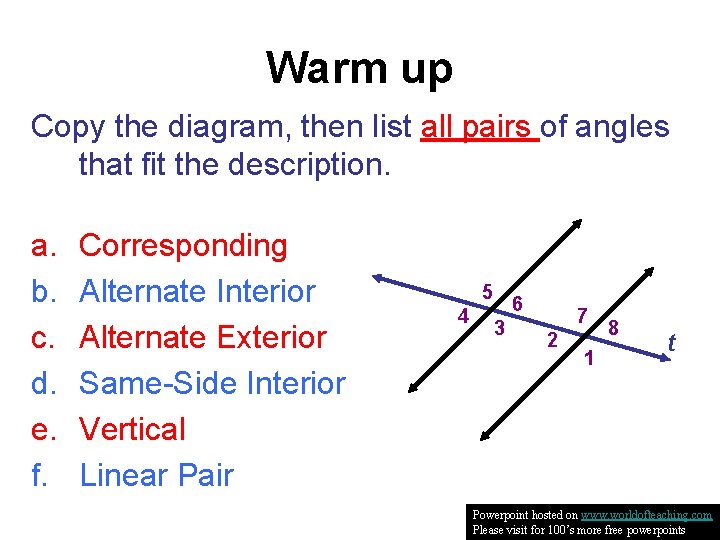

Warm up Copy the diagram, then list all pairs of angles that fit the description. a. b. c. d. e. f. Corresponding Alternate Interior Alternate Exterior Same-Side Interior Vertical Linear Pair 5 4 6 3 7 2 1 8 t Powerpoint hosted on www. worldofteaching. com Please visit for 100’s more free powerpoints

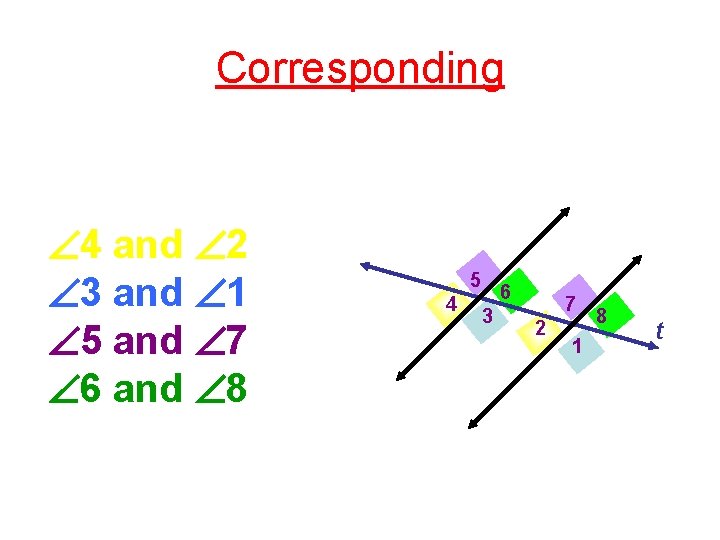

Corresponding 4 and 2 3 and 1 5 and 7 6 and 8 5 4 6 3 7 2 1 8 t

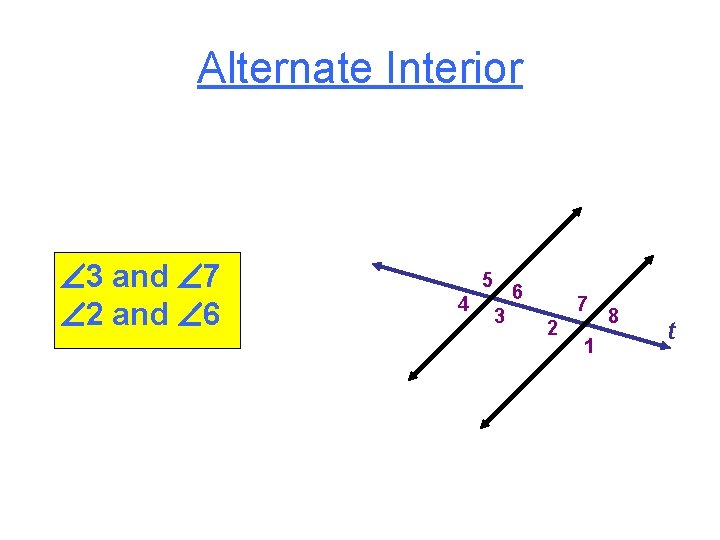

Alternate Interior 3 and 7 2 and 6 5 4 6 3 7 2 1 8 t

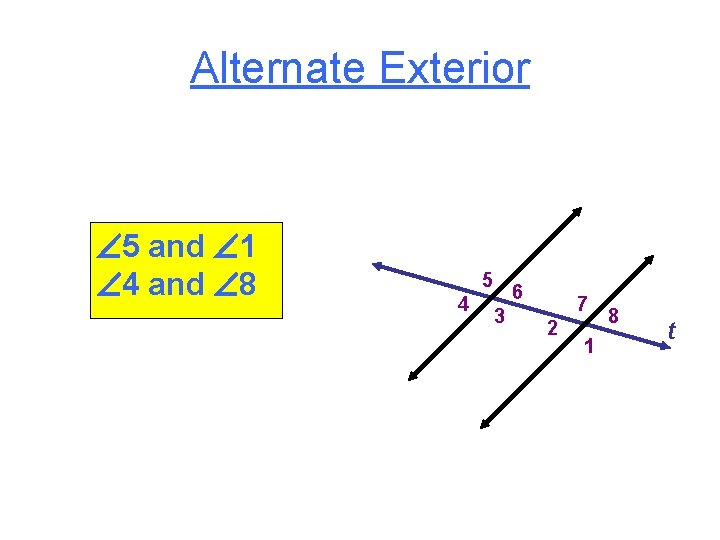

Alternate Exterior 5 and 1 4 and 8 5 4 6 3 7 2 1 8 t

Same-side Interior 3 and 2 6 and 7 5 4 6 3 7 2 1 8 t

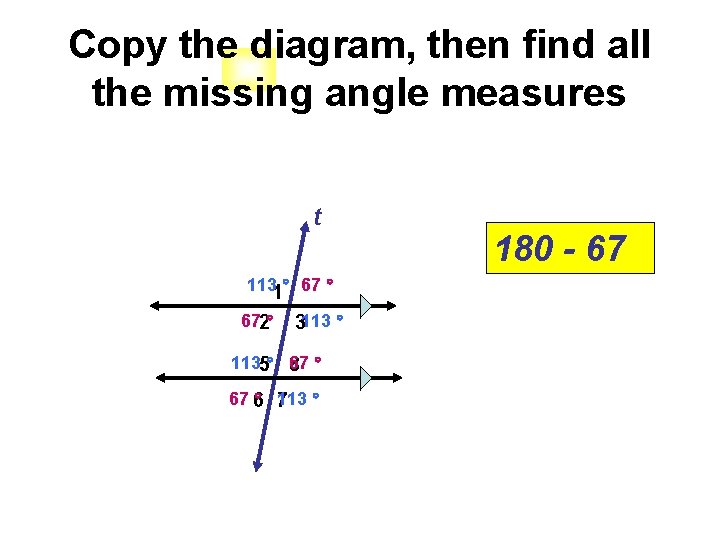

Copy the diagram, then find all the missing angle measures t 1131 67 672 3113 1135 67 8 67 6 113 7 180 - 67

CHAPTER 3 LINES AND ANGLES Part II: Equations

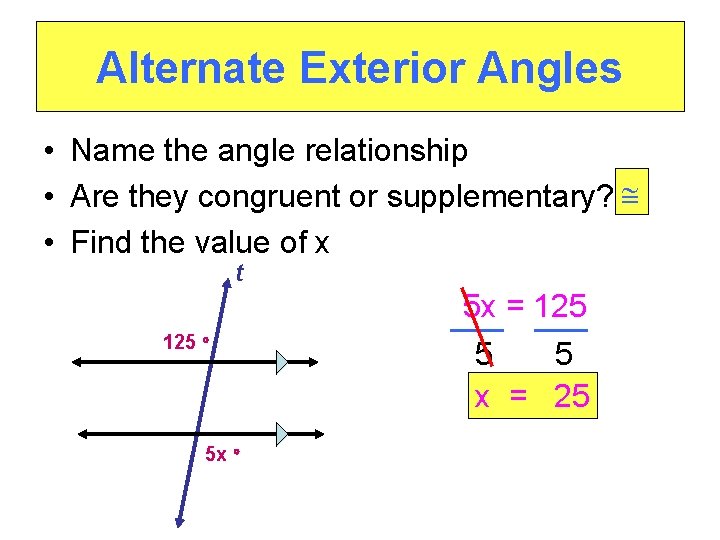

Alternate Exterior Angles • Name the angle relationship • Are they congruent or supplementary? • Find the value of x t 125 5 x = 125 5 5 x = 25

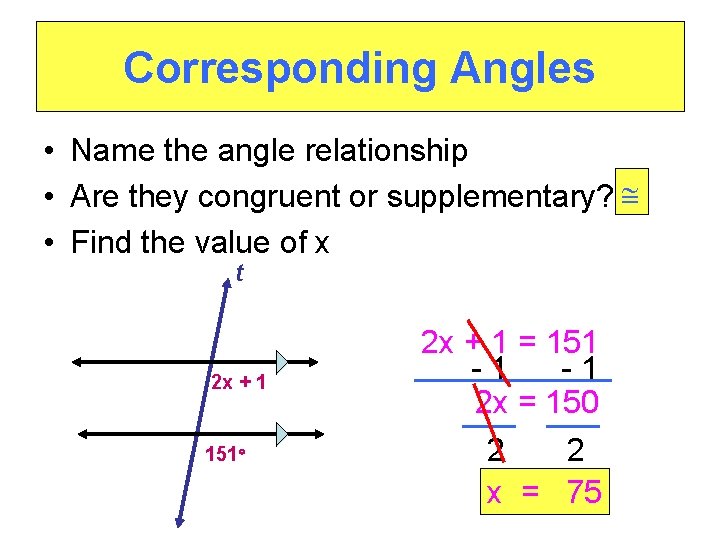

Corresponding Angles • Name the angle relationship • Are they congruent or supplementary? • Find the value of x t 2 x + 1 151 2 x + 1 = 151 -1 -1 2 x = 150 2 2 x = 75

Same-Side Interior Angles • Name the angle relationship • Are they congruent or supplementary? supp • Find the value of x t 81 7 x + 15 + 81 = 180 7 x + 96 = 180 - 96 7 x = 84 7 7 x = 12

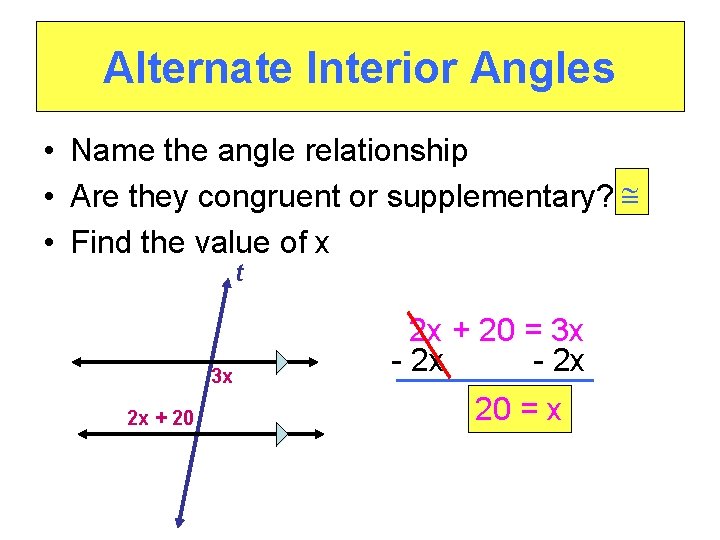

Alternate Interior Angles • Name the angle relationship • Are they congruent or supplementary? • Find the value of x t 3 x 2 x + 20 = 3 x - 2 x 20 = x
